USER MANUAL Thea I 80 W FABER

Technical line drawing of a metal enclosure with ventilation duct and mounting bracket (no text or symbols)

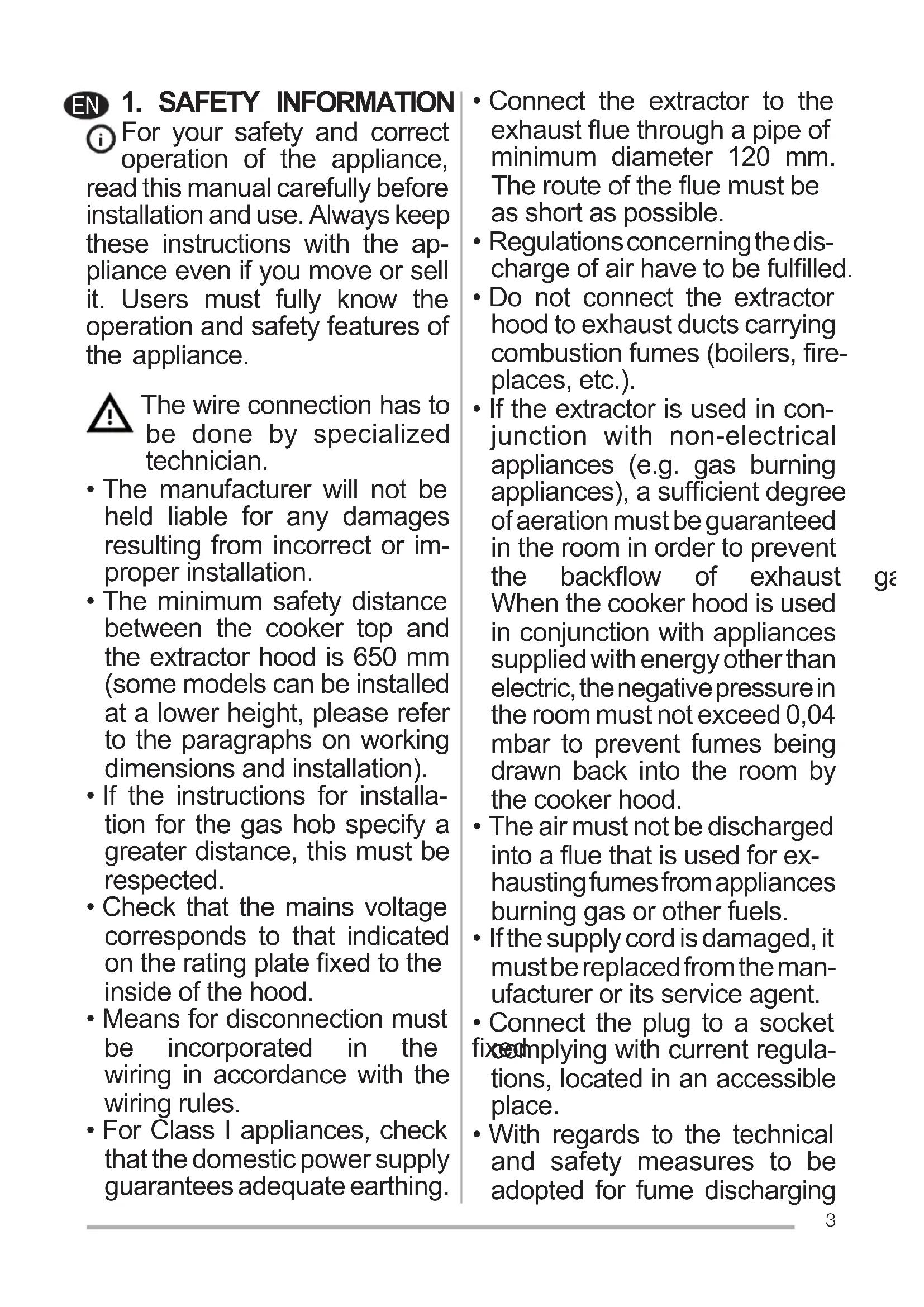

EN USER MANUAL....3

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket fix complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging

it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop

where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

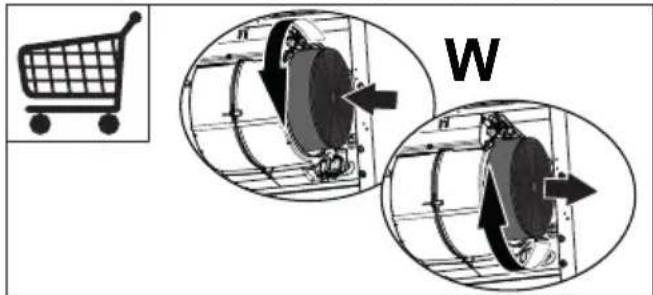

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

W

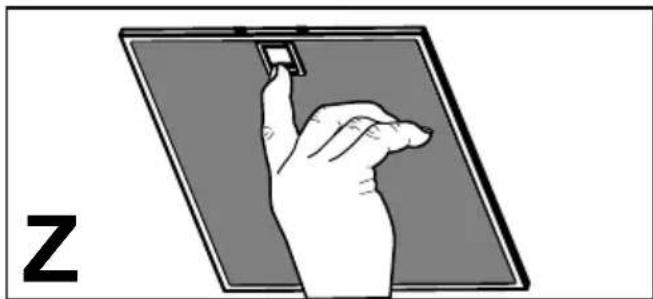

- The Grease filters must be every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

Illustration of a hand interacting with a tablet device (no text or symbols)

- Clean the hood using a damp cloth and a neutral liquid detergent.

under

cleaned

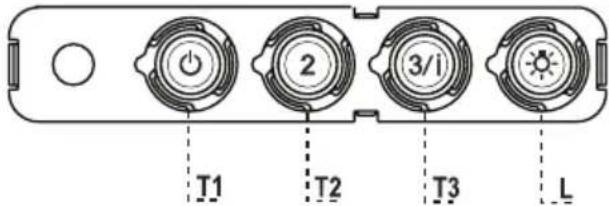

4. CONTROLS

T1 T2 T3 L

Button F	Functions Led
T1 Speed	Turns the Motor on at Speed one. On
	Turns the Motor off. -
T2 Speed	Turns the Motor on at Speed two. On
T3 Speed	When pressed briefly, turns the Motor on at Speed three. Fixed
	Pressed for 2 Seconds.Activates Speed four with a timer set to 6 minutes, after which it returns to the speed that was set previously. Suitable to deal with maximum levels of cooking fumes.	Flashing
L Light	Turns the Lighting System on and off. -

Warning: Button T1 turns the motor off, after first passing to speed one.

5. LIGHTING

- For replacement contact technical support ("To purchase contact technical support").

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

T1 T2 T3 L

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

T1 T2 T3 L

Illustration of a hand holding a small electronic device on a screen, with letter 'Z' and no visible text or symbols.

T1 T2 T3 L

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

T1 T2 T3 L

T1 T2 T3 L

Illustration of a hand interacting with a device on a screen (no text or symbols)

T1 T2 T3 L

Illustration of a hand holding a small object over a flat surface, with letter 'Z' in the corner (no text or symbols on the diagram itself)

T1 T2 T3 L

Illustration of a hand holding a small object on a flat surface, with letter 'Z' in the corner (no text or symbols on the diagram itself)

T1 T2 T3 L

Knapp Funksjoner Led
T1Hastighet	Slår motoren på ved den første hastigheten. Tent
	Slår av motoren. -
T2Hastighet	Slår motoren på ved den andre hastigheten. Tent
T3Hastighet	Trykk kort på knappen for å slå motoren på ved den tredje hastigheten.	Tent konstant
	Trykk i 2 sekunder.Aktiverer den fjerde hastigheten i 6 minutter. Når tiden er utløpt gården automatisk tilbake til den tidligere innstilte hastigheten. Egnet tilå fjerne mye os.	Blinker
LLys	Tenner og slukker belysningen. -

Illustration of a hand holding a small object on a screen, with the letter 'Z' visible (no text or symbols on the diagram itself)

T1 T2 T3 L

Illustration of a hand holding a small object on a tablet screen, with the letter 'Z' visible (no text or symbols on the diagram itself)

T1 T2 T3 L

Illustration of a hand interacting with a small electronic device on a flat surface (no text or symbols)

T1 T2 T3 L

Illustration of a hand holding a small object on a flat surface, labeled 'Z' (no text or symbols on the diagram itself)

T1 T2 T3 L

Illustration of a hand pressing a button on a tablet screen (no text or symbols)

T1 T2 T3 L

Illustration of a hand holding a small object on a flat surface, labeled 'Z' (no text or symbols on the diagram itself)

T1 T2 T3 L

T1 T2 T3 L

Illustration of a hand interacting with a small electronic component on a screen (no text or symbols)

T1 T2 T3 L

T1 T2 T3 L

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols visible)

Z

T1 T2 T3 L

T1 T2 T3 L

T1 T2 T3 L

Illustration of a hand holding a small object on a tablet screen, with letter 'Z' in the corner (no text or symbols on the diagram itself)

- Očistite napu koristeći vlažnu krpu i neutralni tekući deterdžent.

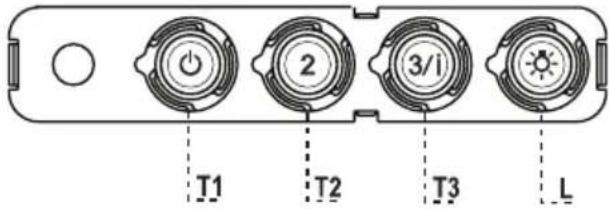

4. NAREDBI

T1 T2 T3 L

Tipka Funkcije Led
T1Brzina	Uključuje motor na prvu brzinu. Uključen
	Isključuje motor. -
T2Brzina	Uključuje motor na drugu brzinu. Uključen
T3Brzina	Kad se kratko pritisne uključuje motor na treću brzinu. Neprekidno
	Pritisnuto na 2 sekunde.Uključuje četvrtu brzinu tempiranu na 6 minuta, nakon čega se vraća na prethodno postavljenu brzinu. Prikladna za maksimalne emisije para od kuhanja.	Bljeskajuće
LSvjetlo	Uključuje i isključuje rasvjetni uređaj. -

Pažnja: Tipka T1 gasi motor prelazeći uvijek na prvu brzinu.

5. RASVJETA

- Za zamjenu kontaktirajte tehničku podršku ("Za kupnju se obratite tehničkoj podršci").

SI 1. VARNOSTNE INFORMACIJE

Illustration of a hand holding a small object on a tablet screen, with letter 'Z' in the corner (no text or symbols on the diagram itself)

T1 T2 T3 L

Illustration of a hand holding a small object on a flat surface, with the letter 'Z' in the corner (no text or symbols on the diagram itself)

T1 T2 T3 L

Illustration of a hand holding a small object on a tablet screen, with letter 'Z' in the corner (no text or symbols on the diagram itself)

T1 T2 T3 L

Two circular diagrams showing a person moving a device with directional arrows, labeled 'W' (no text or symbols on diagrams)

T1 T2 T3 L

T1 T2 T3 L

T1 T2 T3 L

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

T1 T2 T3 L

Illustration of a hand pressing a small square button on a flat surface (no text or symbols)

T1 T2 T3 L

Diagram illustrating a shopping cart with directional arrows and a mechanical device, likely illustrating a retail or inventory concept.

Illustration of a hand holding a smartphone with a finger pointing at it, no text or symbols present.

T1 T2 T3 L
