USER MANUAL IL1346W Royal Sovereign

Read & Fully Understand This Owner’s Manual Before Using This Machine. 9-163 When using this machine follow these safety precautions to reduce risk of fire, electric shock, or injury. SAFETY INSTRUCTIONS WARNING Operating 1. Do not allow foreign articles inside the machine. 2. Do not attempt to laminate items that exceed total recommended material thickness.

3. Do not insert pouch film with the back end first. (Front of film: sealed side, Back of film: open side)

This may cause the pouch to jam the rollers.

4. Do not cut pouches before inserting them into the laminator. This will cause the laminator to jam.

5. Do not laminate leaves, flower, clothes etc.

6. When unplugging the unit, please grip the plug body not the supply cord.

7. Do not place objects on the power cord and do not bend it excessively.

8. Because the laminator creates heat, keep out of the reach of children. This machine should not be

used by children.9. When not using the machine for long periods of time, unplug the power cord from the outlet. 10. Do not operate the machine for any other purpose other than its intended use.

11. The LED ready light may take longer to turn on in lower room temperature environments, less than

12. This unit is recommended to be used in a normal room temperature environment.

(68°F-77°F / 20°C-25°C) 13. This unit is intended for indoor use in a dry environment only.

14. In case of any personal injury or product damage, place the equipment on a suitable, stable table only.

15. To protect against fire, ensure that the cover ventilation of the unit is not obstructed during operation.

1. The machine should be placed near an electrical outlet so that the outlet is easily accessible.

2. Make sure the voltage meets the machine’s electricity requirements. 3. Do not operate if the electrical plug or power cord is damaged.4. Do not under any circumstances alter the electric plug in anyway.

5. To prevent the possibility of electrical shock, do not immerse the machine in water or permit liquid to

get inside the machine.

6. To protect against electric shock, fire, or injury, ensure that the power cord is inserted properly into the

electrical outlet.7. Turn off the power when unattended or not in use. CAUTION4 PRODUCT VIEW FEATURES Four Roller System

• The four roller system provides precise heat and pressure to ensure high quality lamination. To assist with jams, this unit is equipped with Auto-Reverse. Hot and Cold Lamination

• The laminator can easily be adjusted to handle both hot and cold lamination pouch film. Can accept documents up to 330mm (13 in.) wide. Touch Screen Temperature Control
• Use the touch screen display to switch settings for different film thicknesses from 3~7 Mil.
• When selected, the text setting will flash, which indicates that the machine is warming up. The text will turn solid and a beep will notify you when the machine is ready to laminate. Quick 60 second warmup. Fast speed

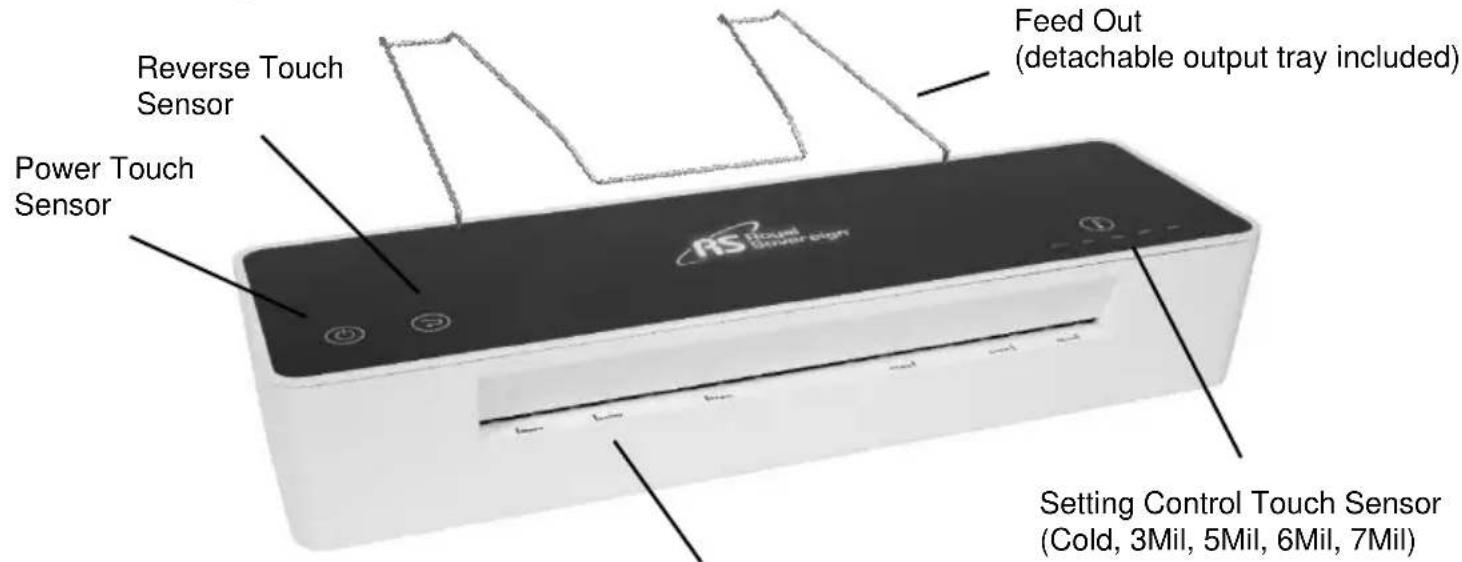

• Laminates up to 23.6” (600 mm) per minute. This machine is equipped with overheat protection and will automatically turn off the unit after 30 minutes of non-use. Feed Out (detachable output tray included) Feed In Power Touch Sensor Reverse Touch Sensor Setting Control Touch Sensor (Cold, 3Mil, 5Mil, 6Mil, 7Mil)5 PRODUCT OPERATION Before laminating important or unique documents, always test a pouch through the laminator using a similar document. Hot/Cold Lamination

1. Place the machine on a flat, sturdy surface and press the power touch sensor to turn on

2. Press the setting control touch sensor to toggle between Cold Lamination and Hot

Lamination options ranging from 3-7 Mil.

• For hot lamination, the machine will take approximately 60 seconds to warm-up. Hot lamination can begin when the desired film text is solid and has stopped flashing. The machine will beep to notify you when it is ready for use. NOTE: Standard temperature setting is based on 20lb/80g/m2 copy paper thickness. When laminating thicker materials, the temperature may not be high enough. In this case, please select the 5 Mil, 6 Mil or 7 Mil film setting depending on how thick the intended paper is.

• Cold lamination does not require any warm up. As soon as the unit is turned on, it is ready for use. NOTE: If the machine was previously used in hot mode, allow approximately 25 minutes to cool down.

3. Place the item to be laminated into the laminating pouch.

• For Cold Lamination you need adhesive Cold Laminating or Self-Seal Pouches. To laminate, place the item on the adhesive side of the cold film with the document face down.

4. Insert the pouch film into the front opening of the laminator. Make sure to place the sealed

end of the pouch film in first.

• For Cold Lamination remove the paper liner from the cold film slowly while the document is being inserted into the machine.TROUBLESHOOTING

Symptom Solutions Motor does not work • Check to make sure the machine is plugged in.• Check to make sure the power button is turned on.Pouches are not laminating correctly• Make sure that the machine is set to the correct hot setting.The rollers are moving, but the laminate item is not (Machine is jammed)• Hold the reverse icon until the entire pouch has exited the front of the machine. You may have to assist in pulling out the pouch through the front by hand. Try laminating again after 8 seconds. NOTE: For all replacements and repairs that need to be made, contact Royal Sovereign Customer Service at [phone] PRODUCT OPERATION (cont.) Before laminating important or unique documents, always test a pouch through the laminator using a similar document. Hot/Cold Lamination

5. The document or photo will then automatically feed out through the back of the machine.

NOTE: Laminated items exiting the machine may be too hot to touch.

6. If the item is not completely laminated, repeat steps 4-5.

NOTE: For Hot lamination, laminated items will be hot and will easily bend. To keep the item flat, place on a flat surface and allow to cool.

7. If you turn the unit off, the fan will continue to run to cool down the laminator. The fan will

automatically turn off when the unit is cool. This will take approximately 15-20 minutes.SPECIFICATIONS

MODEL IL-1346W Power Supply Voltage 120V (60 Hz) Power Consumption (W) 1500W Number of Rollers 4 Speed 23.6 in. (600 mm) per minute Maximum Entry Width 13 in. (330 mm) Pouch Mil. Thickness 3 Mil. – 7 Mil. Warm-up Time 60 seconds Unit Dimensions (W x D x H) 20.47” x 7” x 3.74” 520 mm x 178 mm x 95 mm Unit Weight 9.26 lbs. (4.2 kg) Certification cTUVusRoyal Sovereign International, Inc. warranties this product to be free from defects in material and workmanship for a period of one (1) year. This warranty is extended to the original purchaser only. This warranty only covers products that are properly installed, properly maintained, and properly operated in accordance with the instructions provided. This limited warranty does not cover any failures or operating difficulties due to normal wear and tear, accident, abuse, misuse, alteration, misapplication, improper installation, or improper maintenance and service by you or any third party. Returned product will not be accepted without a Return Authorization number. To request a Return Authorization number, please visit us at www.royalsovereign.com. All transportation costs for the return of damaged product or parts will be the responsibility of the purchaser. Return defective product, in original packaging, to the address below. Royal Sovereign International, Inc. requires reasonable proof of your date of purchase from an authorized retailer or distributor. Therefore, you should keep your receipt, invoice, or canceled check from the original purchase. The limited warranty shall be limited to the repair or replacement of parts which prove defective under normal use and service within the warranty period. Royal Sovereign International, Inc. (and its affiliated companies) SHALL HAVE NO LIABILITY WHATSOEVER TO PURCHASER OR ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT, PUNITIVE, INCIDENTAL,OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages so the above exclusion and limitations may not apply to you. For product support and warranty questions, please visit us at www.royalsovereign.com/CustomerSupport ROYAL SOVEREIGN INTERNATIONAL, INC. 2 Volvo Dr., Rockleigh, NJ 07647 USA

TEL: [phone]

Email: [e-mail]

20.47 in. x 7 in. x 3.74 in.
