USER MANUAL WFG320M0MW WHIRLPOOL

Use & Care Guide For questions about features, operation/performance, parts, accessories or service, call: 1-866-698-2538 or visit our website at www.whirlpool.com/owners. In Canada, call for assistance, installation or service, call:1-800-807-6777 or visit our website at www.whirlpool.ca/owners. W11682339A

En EE.UU. ...................................................................................41 En Canadá ..................................................................................41 Accesorios ..................................................................................414 RANGE SAFETY You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:follow instructions.instructions. DANGER WARNING

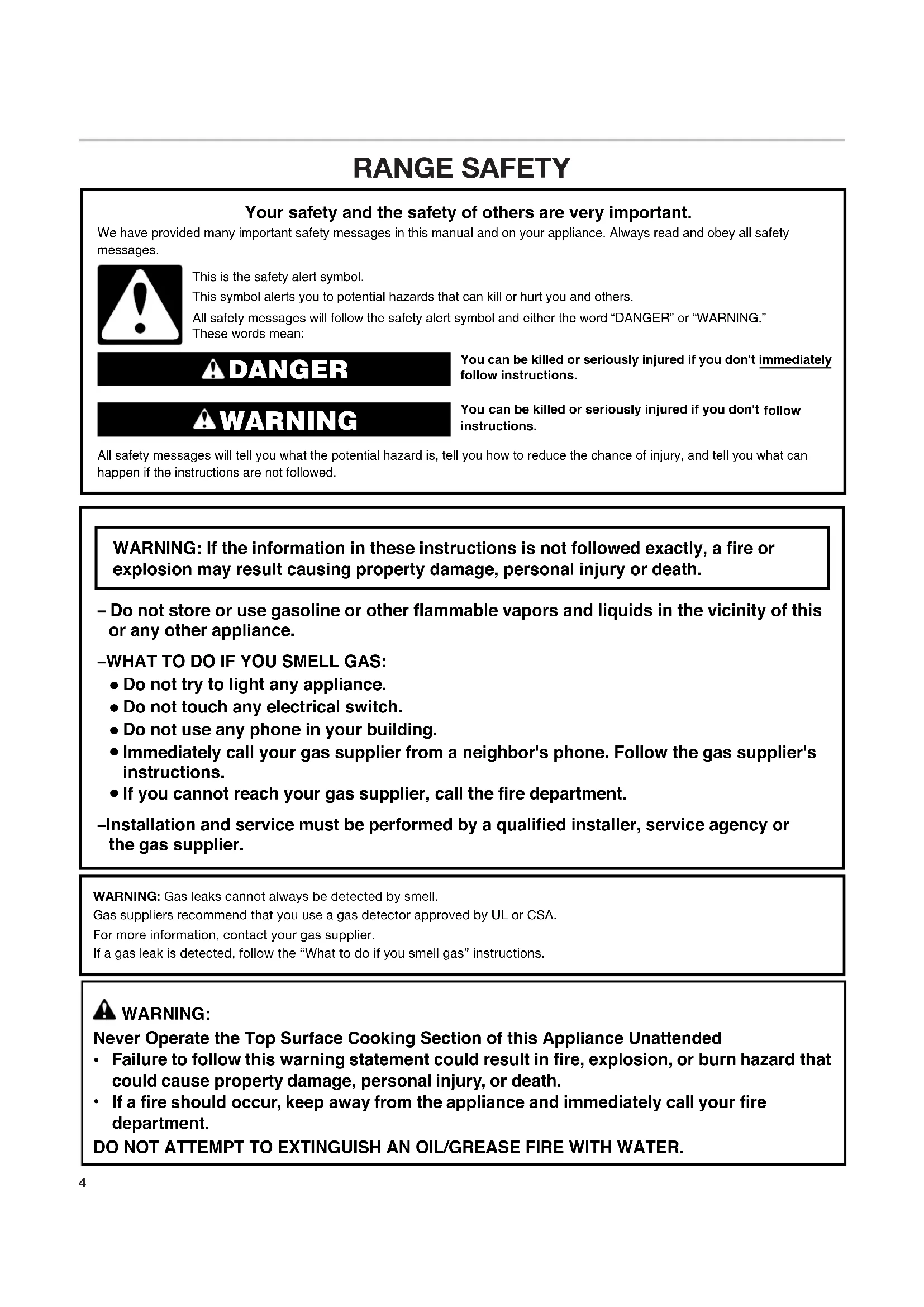

WARNING: If the information in these instructions is not followed exactly, a fire or

explosion may result causing property damage, personal injury or death. – Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. – WHAT TO DO IF YOU SMELL GAS:

Do not try to light any appliance.

Do not touch any electrical switch.

Do not use any phone in your building.

Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

If you cannot reach your gas supplier, call the fire department. – Installation and service must be performed by a qualified installer, service agency or the gas supplier. WARNING: Gas leaks cannot always be detected by smell.Gas suppliers recommend that you use a gas detector approved by UL or CSA.For more information, contact your gas supplier.If a gas leak is detected, follow the “What to do if you smell gas” instructions.

Never Operate the Top Surface Cooking Section of this Appliance Unattended

DO NOT ATTEMPT TO EXTINGUISH AN OIL/GREASE FIRE WITH WATER. Failure to follow this warning statement could result in fire, explosion, or burn hazard that could cause property damage, personal injury, or death. If a fire should occur, keep away from the appliance and immediately call your fire department.5 The Anti-Tip Bracket The range will not tip during normal use. However, the range can tip if you apply too much force or weight to the open door without the anti-tip bracket fastened down properly.Tip Over HazardA child or adult can tip the range and be killed.Verify the anti-tip bracket has been properly installed and engaged per installation instructions.Re-engage anti-tip bracket if range is moved.Do not operate range without anti-tip bracket installed and engaged.Failure to follow these instructions can result in death or serious burns to children and adults.To verify the anti-tip bracket is installed and engaged: WARNING

• Slide range forward.• Look for the anti-tip bracket securely attached to floor or wall.• Slide range back so rear range foot is under anti-tip bracket.• See installation instructions for details.Anti-TipBracketRange Foot

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electrical shock,

injury to persons, or damage when using the range, follow basic precautions, including the following:For self-cleaning ranges –

WARNING: TO REDUCE THE RISK OF TIPPING OF

WARNING: Danger of fire: do not store items on the cooking surfaces. Never leave anything on the surface when unattended and not in use. Never place flammable or plastic items on or near the surface.THE RANGE, THE RANGE MUST BE SECURED BYPROPERLY INSTALLED ANTI-TIP DEVICES. TO CHECKIF THE DEVICES ARE INSTALLED PROPERLY, SLIDERANGE FORWARD, LOOK FOR ANTI-TIP BRACKETSECURELY ATTACHED TO FLOOR OR WALL, ANDSLIDE RANGE BACK SO REAR RANGE FOOT IS UNDERANTI-TIP BRACKET.

WARNING: NEVER use this appliance as a space

heater to heat or warm the room. Doing so may result incarbon monoxide poisoning and overheating of the oven.

WARNING: NEVER cover any slots, holes or passages

in the oven bottom or cover an entire rack with materialssuch as aluminum foil. Doing so blocks air flow through theoven and may cause carbon monoxide poisoning.Aluminum foil linings may also trap heat, causing a firehazard. CAUTION: Do not store items of interest to children in cabinets above a range or on the backguard of a range –children climbing on the range to reach items could beseriously injured.

SAVE THESE INSTRUCTIONS

CAUTION: DO NOT LEAVE FOOD OR COOKINGUTENSILS, ETC., IN OVEN DURING THE PYROLYTICSELF-CLEANING MODE OF OPERATION.Before Self-Cleaning the Oven – Remove broiler pan andother utensils. Wipe off all excessive spillage beforeinitiating the cleaning cycle.Proper Installation – The range, when installed, must beelectrically grounded in accordance with local codes or, inthe absence of local codes, with the National Electrical Code, ANSI/NFPA 70 . In Canada, the range must beelectrically grounded in accordance with CanadianElectrical Code. Be sure the range is properly installed andgrounded by a qualified technician.This range is equipped with a three-prong grounding plugfor your protection against shock hazard and should beplugged directly into a properly grounded receptacle. Donot cut or remove the grounding prong from this plug.Disconnect power before servicing.Injuries may result from the misuse of appliance doors ordrawers such as stepping, leaning, or sitting on the doorsor drawers.Maintenance – Keep range area clear and free fromcombustible materials, gasoline, and other flammablevapors and liquids.Storage in or on the Range – Flammable materials shouldnot be stored in an oven or near surface units.Top burner flame size should be adjusted so it does notextend beyond the edge of the cooking utensil.6

PRODUCT REGISTRATION AND OWNER INFORMATION

YOUR QR CODE UNLOCKS… product registration and warranty information, installation instructions, how-to videos, and additional accessories to get the most out of your product. If you purchased a smart appliance, your QR code will provide instructions on how to download the app and connect. You can access the full Installation, User Maintenance and Operating Instructions, Warranty details, and more by visiting our website at www.whirlpool.com/owners or www.whirlpool.ca/owners. This may save you the cost of a service call. To receive a free printed copy of the information online, call us at 1-866-698-2538 (U.S.A.)/1-800-807-6777 (Canada) or write to us at: Whirlpool Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022–2692Whirlpool Brand Home Appliances Customer eXperience Centre Unit 200–6750 Century Ave. Mississauga, Ontario L5N 0B7Register to access warranty information and receive important notications related to your product. Scan the Photo Registration Card or QR code to register your product.Product registration How-to videos Product guides

roubleshootingmaterials YOUR QR CODE UNLOCKSElectric igniters automatically light the surface burners when control knobs are turned to LITE. Before setting a control knob, place lled cookware on the grate. Do not operate a burner using empty cookware or without cookware on the grate. IMPORTANT: Do not lift the cooktop on sealed burner models. Lifting the cooktop can lead to damage and improper operation of the range.To Set Burner Temperature:1. Push in and turn knob counterclockwise to LITE. All surface burners will click. Only the burner with the control knob turned to LITE will produce a ame.2. Turn knob to anywhere between High and Low. The clicking will stop. Use the following chart as a guide when setting heat levels.

SETTING RECOMMENDED USE

LITE ■ Light the burner.High ■ Start food cooking. ■ Bring liquid to a boil.Med (medium) ■ Hold a rapid boil. ■ Quickly brown or sear food. ■ Fry or saute foods. ■ Cook soups, sauces and gravies. ■ Stew or steam foods.Low ■ Keep food warm. ■ Simmer (use smallest burners). Power failure In case of prolonged power failure, the surface burners can be lit manually. Hold a lit match near a burner and turn knob counterclockwise to LITE. After burner lights, turn knob to setting.A. Surface burner locator B. Left rear burner control knob C. Left front burner control knob D. Right front burner control knob E. Right rear burner control knob COOKTOP USE Cooktop Controls

WARNING Fire HazardDo not let the burner flame extend beyond the edge of the pan.Turn off all controls when not cooking.Failure to follow these instructions can result in death or fire.7 Surface Burners IMPORTANT: Do not obstruct the ow of combustion and ventilation air around the burner grate edges. Burner cap: Always keep the burner cap in place when using a surface burner. A clean burner cap will help avoid poor ignition and uneven ames. Always clean the burner cap after a spillover and routinely remove and clean the caps according to the “General Cleaning” section. Gas tube opening: Gas must ow freely throughout the gas tube opening for the burner to light properly. Keep this area free of soil and do not allow spills, food, cleaning agents or any other material to enter the gas tube opening. Keep spillovers out of the gas tube by always using a burner cap. Burner ports: Check burner ames occasionally for proper size and shape as shown above. A good ame is blue in color, not yellow. Keep this area free of soil and do not allow spills, food, cleaning agents or any other material to enter the burner ports. To Clean: IMPORTANT: Before cleaning, make sure all controls are off and the oven and cooktop are cool. Do not use oven cleaners, bleach or rust removers.

1. Remove the surface grates.

2. Remove the burner cap from the burner base and clean

according to “General Cleaning” section.

3. Clean the gas tube opening with a damp cloth.

4. Clean clogged burner ports with a straight pin as shown.

Do not enlarge or distort the port. Do not use a wooden toothpick. If the burner needs to be adjusted, contact a trained repair specialist.

5. Replace the burner cap, making sure the alignment pins are

properly aligned with the burner cap.

6. Replace the surface grates.

7. Turn on the burner. If the burner does not light, check cap

alignment. If the burner still does not light, do not service the burner yourself. Contact a trained repair specialist. Home Canning When canning for long periods, alternate the use of surface burners between batches. This allows time for the most recently used areas to cool. ■ Center the canner on the grate above the burner. ■ Do not place canner on 2 surface burners at the same time. ■ For more information, contact your local agricultural department. Companies that manufacture home canning products can also offer assistance. Cookware IMPORTANT: Do not leave empty cookware on a hot surface cooking area, element or surface burner. Ideal cookware should have a at bottom, straight sides and a well-tting lid, and the material should be of medium-to-heavy thickness. Rough nishes may scratch the cooktop or grates. Aluminum and copper may be used as a core or base in cookware. However, when used as a base they can leave permanent marks on the cooktop or grates. Cookware material is a factor in how quickly and evenly heat is transferred, which affects cooking results. A nonstick nish has the same characteristics as its base material. For example, aluminum cookware with a nonstick nish will take on the properties of aluminum. Cookware with nonstick surfaces should not be used under the broiler. Use the following chart as a guide for cookware material characteristics. COOKWARE CHARACTERISTICS Aluminum ■ Heats quickly and evenly. ■ Suitable for all types of cooking. ■ Medium or heavy thickness is best for most cooking tasks. Cast iron ■ Heats slowly and evenly. ■ Good for browning and frying. ■ Maintains heat for slow cooking. Ceramic or Ceramic glass ■ Follow manufacturer’s instructions. ■ Heats slowly, but unevenly. ■ Ideal results on low to medium heat settings. A. Burner capB. Burner baseC. Alignment pinsD. IgniterE. Gas tube openingA. 1-1½" (2.5-3.8 cm)B. Burner ports

A. IncorrectB. Correct8 COOKWARE CHARACTERISTICS Copper ■ Heats very quickly and evenly. Earthenware ■ Follow manufacturer’s instructions. ■ Use on low heat settings. Porcelain enamel-on-steel or cast iron ■ See stainless steel or cast iron. Stainless steel ■ Heats quickly, but unevenly. ■ A core or base of aluminum or copper on stainless steel provides even heating. ELECTRONIC OVEN CONTROL Display When power is rst supplied to the appliance, a ashing time will appear on the display. Press CANCEL to clear ashing time from the display. If ashing time appears, a power failure has occurred. Press CANCEL and reset the clock if needed. When the oven is not in use, the display shows the time of day. When performing a cook or timer function, the display will show either hours and minutes, or minutes and seconds. Oven Indicator Lights The indicator lights are located on both sides of the display. The indicator lights light up or ash when the oven is in one of the following modes: Bake, Broil or Timer. START START begins any oven function. If START is not pressed within 5 seconds after pressing a function pad, the Push to START (“PSH”) indicator light will ash and the push to start tone will sound as a reminder. If START is not pressed within 1 minute after pressing a function pad, the oven display will return to the time of day mode and the programmed function will be canceled. CANCEL CANCEL stops any function except the Clock, Timer and Control Lock. Clock This is a 12 hour clock and does not show a.m. or p.m. To Set: Before setting, make sure the oven and Timer are off. Press CANCEL to cancel the oven, and press Timer Set/Off twice to cancel the timer.

2. Press the Temp/Time “up” or “down” arrow pads to set the

Tones Tones are audible signals, indicating the following: One tone ■ Valid pad press ■ Oven is preheated (long tone) ■ Function has been entered Three tones ■ Invalid pad press ■ Push to start reminder Cycling tones ■ End of cycle Fahrenheit And Celsius The temperature is preset at Fahrenheit, but can be changed to Celsius. To Change: Press and hold the Temp/Time up arrow keypad for 5 seconds. “°C” or “°F” will appear on the display. Repeat to change back to Fahrenheit. To exit mode, press CANCEL or wait 3 seconds. Timer The timer can be set in hours or minutes up to 12 hours and 59 minutes, and counts down the set time either in hours and minutes, or in minutes and seconds. The timer does not start or stop the oven. To Set:

1. Press Timer Set/Off. The timer indicator light will light up.

2. Press the Temp/Time “up” or “down” arrow pads to set the

3. Press START. When the set time ends, end-of-cycle tones will

4. Press Timer Set/Off. pad twice anytime to cancel the time

and reminder tones. If CANCEL is pressed, the oven will turn off and the cook function will be disabled. To display the time of day for 5 seconds when the timer is counting down, press Clock. If START is not pressed within 5 seconds after pressing Timer Set/Off or Temp/Time arrow pads, the “PSH” indicator light will ash and the push to start tone will sound as a reminder. If no action is taken after 1 minute, the display will return to the time of day or bake or broil mode. The timer can be reprogrammed to change the time while it is running.9 To Reprogram:

1. Press Timer Set/Off.

2. Press the Temp/Time “up” or “down” arrow pads to

1. Position the food on a at rack in the oven on rack position 4.

See the “Positioning Racks and Bakeware” section. NOTE: Cook only 1 package of frozen food at a time when using Frozen Bake™ Technology.

2. Press FROZEN BAKE Lasagna or Pizza.

3. Press the Temp/Time “up” or “down” arrow keypad to set the

temperature as recommended on the food packaging.

the maximum cook time as recommended on the food packaging.

6. Press START. The range will calculate the best cook time

based on the current oven temperature. NOTE: The cook time that appears in the display is the estimated required cook time as calculated by the oven control. It may be different than the time you entered. A beep will alert you to check the food’s doneness with at least 2 minutes remaining on the timer. To add more time, press the “up” arrow keypad and press START. The time entered is added to the remaining time.

7. Press START to start the calculated time.

8. At the end of the cook time, a beep will alert you to check

the food’s doneness. To add more time, press the “up” arrow keypad and press START. Unless more time is selected, the bake element turns off. NOTE: The convection fan will shut off when the oven door is opened. If the oven door remains open for too long, the heating elements will shut off until the oven door is closed. All timers, including any active Cook Time or Timed Cook functions, will continue to count down. Control Lock The Control Lock function blocks the control panel pads to avoid unintended use of cook functions. When the control is locked, only Clock, Oven Light and Timer Set/Off will function. To Lock/Unlock Control: Before locking, make sure the cook functions are off. Press and hold START for 3 seconds, and “Loc” will appear on the display. Repeat to unlock. “Loc” will disappear from the display. Oven Temperature Control IMPORTANT: Do not use a thermometer to measure oven temperature. Elements will cycle on and off as needed to provide consistent temperature but may run slightly hot or cool at any point in time due to this cycling. Most thermometers are slow to react to temperature change and will not provide an accurate reading due to this cycling. The oven provides accurate temperatures; however, it may cook faster or slower than your previous oven, so the temperature can be adjusted to personalize it for your cooking needs. It can be changed in Fahrenheit or Celsius. To Adjust Oven Temperature:

1. Press and hold the Temp/Time down arrow keypad for

5 seconds until the oven display shows the current setting, for example “0°F CAL” or “00.”

2. Press the Temp/Time up or down arrow keypad to increase

or to decrease the temperature in 5°F (3°C) amounts. The adjustment can be set between 30°F (18°C) and -30°F (-18°C).

3. Press the START keypad.

Odors and smoke are normal when the oven is used the rst few times, or when it is heavily soiled. IMPORTANT: The health of some birds is extremely sensitive to the fumes given off. Exposure to the fumes may result in death to certain birds. Always move birds to another closed and well-ventilated room. Aluminum Foil IMPORTANT: To avoid permanent damage to the oven bottom nish and the broiler door handle, do not line the oven bottom with any type of foil or liner. ■ On those models with bottom vents, do not block or cover the oven bottom vents. ■ For best cooking results, do not cover entire rack with foil because air must be able to move freely. ■ To catch spills, place foil on rack below dish. Make sure foil is at least 1/2" (1.3 cm) larger than the dish and that it is turned up at the edges. Positioning Racks and Backware IMPORTANT: To avoid permanent damage to the porcelain nish, do not place food or bakeware directly on the oven door or bottom. RACKS ■ Position racks before turning on the oven. ■ Do not move racks with bakeware on them. ■ Make sure racks are level. For best performance, cook on one rack. Place the rack so the top of food will be centered in the oven. To move a rack, pull it out to the stop position, raise the front edge, then lift out. FOOD RACK Cookies, Layer cakes, Biscuits 2-4 Quick bread, Angel food, Bundt cakes, Pies, Pizza

Mufns, Cupcakes, Brownies 4 Large roasts or Poultry 2 Casseroles 3 BAKEWARE To cook food evenly, hot air must be able to circulate. Allow 2" (5 cm) of space around bakeware and oven walls. Use the following chart as a guide. NUMBER OF PAN(S) POSITION ON RACK 1 Center of rack. 2 Side by side or slightly staggered. 3 or 4 Use racks 2 and 4. Position bakeware on racks as shown. OVEN USE

Bakeware The bakeware material affects cooking results. Follow manufacturer’s recommendations and use the bakeware size recommended in the recipe. Use the following chart as a guide.

BACKWARE/RESULTS RECOMMENDATIONS

Light colored aluminum ■ Light golden crusts ■ Even browning ■ Use temperature and time recommended in recipe. Dark aluminum and other bakeware with dark, dull and/or nonstick nish ■ Brown, crisp crusts ■ May need to reduce baking temperatures slightly. ■ Use suggested baking time. ■ For pies, breads and casseroles, use temperature recommended in recipe. ■ Place rack in center of oven. Insulated cookie sheets or baking pans ■ Little or no bottom browning ■ Place in the bottom third of oven. ■ May need to increase baking time Stainless Steel ■ Light, golden crusts ■ Uneven browning ■ May need to increase baking time. Stoneware/Baking stone ■ Crisp crusts ■ Follow manufacturer’s instructions. Ovenproof glassware, ceramic glass or ceramic ■ Brown, crisp crusts ■ May need to reduce baking temperatures slightly. The oven vent releases hot air and moisture from the oven, and should not be blocked or covered. Blocking or covering the oven vent will cause poor air circulation, affecting cooking and cleaning results. Do not set plastics, paper or other items that could melt or burn near the oven vent. Baking and Roasting IMPORTANT: To avoid damage to the interior nish, do not place food or cookware on the oven door or oven bottom. Before baking and roasting, position racks according to the “Positioning Racks and Bakeware” section. To Bake or Roast:

Press Temp/Time “up” or “down” arrow pads to set a temperature other than 350°F (175°C) in 5° amounts. The bake range can be set between 170°F and 500°F (75°C and 260°C).

The temperature can be changed at any time after this step by pressing the Temp/Time “up” or “down” arrow pads. START does not need to be pressed again. If baking/roasting while the Timer is counting down, the set baking/roasting temperature can be displayed for 5 seconds by pressing Bake.

3. Press CANCEL, when nished.

Preheating After START is pressed, the oven will enter a timed preheat cycle. The bake indicator light will light up. The Electronic Oven Control automatically selects the preheat cycle time based on the oven temperature selected. The cycle time will not change if the temperature is reset before the cycle countdown ends. Preheat is complete and the oven is ready to use when a 1 second tone sounds, the cycle countdown ends, and the set temperature is displayed. Preheat temperatures are affected by varying factors such as room temperature and peak energy usage times. It is normal for the temperature showing on the display and the actual oven temperature to differ. Waiting an additional 10 minutes after the preheat time ends to put food in the oven is suggested when baking foods with leavening ingredients, such as yeast, baking powder, baking soda and eggs. IMPORTANT: When the oven is baking, the burner in the broiler drawer will be on. Do not store anything in the broiler drawer. Broiling BROILER The broiler is located below the oven door. Use an oven rack for broiling. To remove a rack, pull it out to the stop position, raise the front edge, then lift out. Reverse the steps to replace a rack. Always broil with both the broiler and the oven doors closed. When broiling, preheat the oven for 5 minutes before putting food in unless recommended otherwise in the recipe. Position food on grid in a broiler pan. ■ To avoid damage to the broiler, do not step on or apply weight to the broiler door while it is open. ■ Preheat the broiler before use. Completely close broiler door during broiling. ■ Do not use broiler cavity for storage. ■ Broiling uses direct radiant heat to cook food. Changing the temperature when broiling allows more precise control when cooking. The lower the temperature, the slower the cooking. Thicker cuts and unevenly shaped pieces of meat, sh and poultry may cook better at lower broiling temperatures. ■ For best results, use a broiler pan and grid. It is designed to drain juices and help avoid spatter and smoke. If you would like to purchase a broiler pan, one may be ordered. Please refer to the cover for contact information. Ask for Part Number 4396923. OVEN VENT A. Oven vent A11 ■ Pull out the rack to the stop position before turning or removing food. Use tongs to turn food to avoid the loss of juices. Very thin cuts of sh, poultry or meat may not need to be turned. To Broil:

1. Open the broiler door and pull the rack out to the stop

2. Place food on a grid in a broiler pan, then place it in the center

3. Push the oven rack back to the original position. Close the

door to ensure proper broiling temperature.

4. Press Broil. The Broil indicator light will light up.

5. Press START. The indicator light will light up. The temperature

setting can be changed at any time during broiling. If broiling while the Timer is counting down, the set broiling temperature can be displayed for 5 seconds by touching Broil.

6. Press CANCEL when finished broiling.

Frozen Bake™ Technology Frozen Bake™ Technology can be used to cook prepackaged frozen food without needing to preheat the oven and without overbrowning the food. There are 2 preprogrammed food options to choose from: Pizza and Lasagna. Frozen Bake™ Technology should only be used for these foods. Cook only 1 package at a time when using Frozen Bake™ Technology. Use the recommended temperature and maximum recommended time from the packaging. A beep will alert you to check the food’s doneness before the cook time is completed and again at the end of the cook time. The display will prompt you to add to the cook time or end the cycle. IMPORTANT: Before cleaning, make sure all controls are off and the oven and cooktop are cool. Always follow label instructions on cleaning products. Do not wipe down any of the inside surfaces until the oven has completely cooled down. To avoid breaking the glass, do not apply a cool damp cloth to the inner door glass before it has completely cooled. Soap, water and a soft cloth or sponge are suggested rst unless otherwise noted.

EXTERIOR PORCELAIN ENAMEL SURFACES

(on some models) Food spills containing acids, such as vinegar and tomato, should be cleaned as soon as the entire appliance is cool. These spills may affect the nish. Cleaning Method: ■ Glass cleaner, mild liquid cleaner or non-abrasive scrubbing pad: Gently clean around the model and serial number plate because scrubbing may remove numbers. ■ Affresh

Kitchen and Appliance Cleaner Part Number W10355010 (not included): See the “Assistance or Service” section to order. COOKTOP CONTROLS To avoid damage to the cooktop controls, do not use steel wool, abrasive cleansers or oven cleaner. To avoid damage, do not soak knobs. When replacing knobs, make sure knobs are in the Off position. On some models, do not remove seals under knobs. Cleaning Method: ■ Warm, soapy water: Pull knobs straight away from control panel to remove. Gently clean cooktop controls because scrubbing may remove graphics or text. CONTROL PANEL To avoid damage to the control panel, do not use abrasive cleaners, steel-wool pads, gritty washcloths or abrasive paper towels. Cleaning Method: ■ Glass cleaner and soft cloth or sponge: Apply glass cleaner to soft cloth or sponge, not directly on panel. Gently clean control panel because scrubbing may remove graphics or text. ■ Affresh

Kitchen and Appliance Cleaner Part Number W10355010 (not included): See the “Assistance or Service” section to order.

PORCELAIN-COATED GRATES AND CAPS

Food spills containing acids, such as vinegar and tomato, should be cleaned as soon as the cooktop, grates and caps are cool. These spills may affect the nish. To avoid chipping, do not bang grates and caps against each other or hard surfaces such as cast iron cookware. Do not reassemble caps on burners while they are wet. Cleaning Method: ■ Nonabrasive plastic scrubbing pad and mildly abrasive cleanser: Clean as soon as cooktop, grates and caps are cool. ■ Dishwasher (grates only, not caps): Use the most aggressive cycle. Cooked-on soils should be soaked or scrubbed before going into a dishwasher. ■ Gas Grate and Drip Pan Cleaner Part Number 31617: See the “Assistance or Service” section to order. SURFACE BURNERS See the “Surface Burners” section.

Cleaning Method ■ Glass cleaner and a soft cloth or sponge: Apply glass cleaner to soft cloth or sponge, not directly on panel. Do not soak soft cloth or sponge. Gently clean door because scrubbing may remove nameplate. ■ Affresh

Kitchen and Appliance Cleaner Part Number W10355010 (not included): See the “Assistance or Service” section to order. OVEN CAVITY Food spills should be cleaned when oven cools. At high temperatures, foods react with porcelain and staining, etching, pitting or faint white spots can result. On some models, the oven door can be removed. See the “Oven Door” section rst. Cleaning Method: ■ Steel-wool pad ■ Oven cleaner: Follow product label instructions.

OVEN RACKS AND ROASTING RACKS

Cleaning Method: ■ Steel-wool pad RANGE CARE General Cleaning12 Oven Light The oven light is a standard 40 W appliance bulb. When the oven door is closed, press Oven Light to turn on the light. Before replacing, make sure the oven and cooktop are cool and the control knobs are off. To Replace: 1. Unplug range or disconnect power.2. Turn bulb counterclockwise to remove from socket.3. Replace bulb.4. Plug in range or reconnect power. Oven Door For normal range use, it is not suggested to remove the oven door. However, if removal is necessary, make sure the oven is off and cool. Then, follow these instructions. The oven door is heavy. To Remove: 1. Open the oven door. Insert the hinge locks into both hinge hangers. See following illustration. Do not unlock hinges while the door is removed from the range.2. Grasp the door on the sides with your ngers on the front of the door and your thumbs on the inside surface.3. Pull door straight up, then toward you. Do not unlock the hinges until the door is replaced on the range. To Replace: 1. Grasp the door on the sides with your ngers on the front of the door and your thumbs on the inside surface.2. Hold oven door so that the top edge of each door slot is horizontal. Insert door hinge into the hinge slots.3. Tilt top of door toward range. Insert bottom door hinge notch down onto front frame edge.4. Open the door completely and unlock the hinges.5. Close the door slowly to assure door side panel clearance and proper hinge engagement. Removing the Oven Bottom The oven bottom can be removed for standard cleaning of the oven.Before cleaning, make sure the oven is completely cool. To Remove: 1. Remove the oven racks.2. Place ngers in the slots in the bottom panel.3. Lift the rear of the panel up and back. The lip at the front of the panel should clear the front frame of the oven cavity.4. Lift the bottom up and out. To Replace: Reverse the previous steps 1-4. A. Hinge lock

A. Lip A13 TROUBLESHOOTING Try the solutions suggested here rst in order to avoid the cost of an unnecessary service call. Nothing will operate ■ Is the power outlet properly wired and polarized? Try another outlet to check for proper wiring and polarity. ■ Is the power supply cord unplugged? Plug into a properly grounded 3 prong outlet. ■ Has a household fuse been blown, or has a circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. ■ Is the main or regulator gas shutoff valve in the off position? See the Installation Instructions. ■ Is the range properly connected to the gas supply? Contact a trained repair specialist or see the Installation Instructions. Surface burner will not operate ■ Is this the rst time the surface burners have been used? Turn on any one of the surface burner knobs to release air from the gas lines. ■ Is the control knob set correctly? Push in knob before turning to a setting. ■ Are the burner ports clogged? See the “Surface Burners” section. Surface burner ames are uneven, yellow and/or noisy ■ Are the burner ports clogged? See the “Surface Burners” section. ■ Are the burner caps positioned properly? See the “Surface Burners” section. ■ Is the air/gas mixture correct? Contact a designated service technician to check the air/gas mixture, or see the Installation Instructions. ■ Is propane gas being used? The appliance may have been converted improperly. Contact a trained repair specialist. Surface burner makes popping noises ■ Is the burner wet? Let it dry. Gas range noises during Bake and Broil operations Noises that may be heard during the Bake and Broil operations: Whooshing, Poof, Clicking, Snaps, Pop. These sounds are normal operational noises that can be heard each time the Bake or Broil burners ignite during the cycle. ■ A pop can be heard when the gas valve is opening or cycling on and will make a single pop when it snaps open from the solenoid. It sounds similar to a suction cup being pulled off of a piece of glass. ■ The igniters will click several times until the ame is detected. These are short clicking sounds like tapping a nail onto a piece of glass. ■ A whooshing or poof sound is heard when the Bake or Broil burner ignites. ■ On some models, a clicking sound can be heard when the convection fan relay cycles on and off. Cookware not level on cooktop ■ Is the range level? Level the range. See the Installation Instructions. ■ Is the proper cookware being used? Use cookware with a at bottom. See the “Cookware” section. Excessive heat around cookware on cooktop ■ Is the cookware the proper size? Use cookware about the same size as the surface cooking area, element or surface burner. Cookware should not extend more than 1/2" (1.3 cm) outside the cooking area. Oven will not operate ■ Is the power outlet properly wired and polarized? Try another outlet to check for proper wiring and polarity. ■ Is this the rst time the oven has been used? Turn any one of the surface burner knobs on to release air from the gas lines. ■ Is the electronic oven control set correctly? See the “Electronic Oven Control” section. ■ On some models, is the Control Lock set? See the “Control Lock” section. ■ Is the main or regulator gas shutoff in the off position? Contact a designated service technician or see the Installation Instructions. Oven makes mufed ticking noise when in use ■ This is normal and occurs when the oven burner cycles on and off to hold the set oven temperature. Oven burner ames are uneven, yellow and/or noisy ■ Is propane gas being used? The appliance may have been converted improperly. Contact a trained repair specialist. ■ Is the air/gas mixture correct? Contact a designated service technician to check the air/gas mixture or see the Installation Instructions. Oven temperature too high or too low ■ Does the oven temperature calibration need adjustment? See the “Oven Temperature Control” section. WARNING Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock.14 Display shows messages ■ Is the display showing a ashing time? There has been a power failure. Press CANCEL to clear the display. Reset the clock, if needed. See the “Clock” section. ■ Is the display showing “F” followed by a number? Press CANCEL to clear the display. If an “F” code appears again, contact a trained repair specialist. Cooktop cooking results not what expected ■ Is the proper cookware being used? See the “Cookware” section. ■ Is the control knob set to the proper heat level? See the “Cooktop Controls” section. Baking results not what expected ■ Is the range level? Level the range. See the Installation Instructions. ■ Does the oven temperature calibration need adjustment? See the “Oven Temperature Control” section. ■ Was the oven preheated? Wait for oven to preheat before placing food in oven. ■ Is the proper oven temperature calibration set? See the “Oven Temperature Control” section. ■ Is the proper bakeware being used? See the “Bakeware” section. ■ Are the racks positioned properly? See the “Positioning Racks and Bakeware” section. ■ Is there proper air circulation around bakeware? See the “Positioning Racks and Bakeware” section. ■ Is the batter evenly distributed in the pan? Make sure batter is level in the pan. ■ Are baked items too brown on the bottom? Decrease oven temperature 10°F to 30°F (5°C to 15°C). ■ Are crust edges browning early? Use aluminum foil to cover the edge of the crust and/or reduce baking temperature. Slow baking or roasting ■ Was the oven preheated? Wait for oven to preheat before placing food in oven. ■ Is there proper air circulation around bakeware? See the “Positioning Racks and Bakeware” section. ■ Does the oven temperature calibration need adjustment? See the “Oven Temperature Control” section. ■ Is the proper length of time being used? Increase baking or roasting time. ■ Is the proper temperature set? Increase temperature by 25°F (15°C). ■ Has the oven door been opened while cooking? Oven peeking releases oven heat and can result in longer cooking times. Broiler burner fails to light ■ Is the ignition system broken? Contact a designated service technician to replace it. ■ Has a household fuse been blown, or has a circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.15

ASSISTANCE OR SERVICE

Before calling for assistance or service, please check “Troubleshooting.” It may save you the cost of a service call. If you still need help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. If you need replacement parts: If you need to order replacement parts, we recommend that you use only FSP

replacement parts. FSP

replacement parts will t right and work right because they are made with the same precision used to build every new WHIRLPOOL

appliance. To locate FSP

replacement parts in your area, call us or your nearest Whirlpool designated service center. In the U.S.A. Call the Whirlpool Customer eXperience Center toll-free: 1-866-698-2538 or visit our website at www.whirlpool.com/owners. Our consultants provide assistance with: ■ Features and specications on our full line of appliances. ■ Installation information. ■ Use and maintenance procedures. ■ Accessory and repair parts sales. ■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.). ■ Referrals to local dealers, repair parts distributors and service companies. Whirlpool designated service technicians are trained to fulll the product warranty and provide after-warranty service, anywhere in the United States. To locate the Whirlpool designated service company in your area, you can also look in your telephone directory Yellow Pages. For further assistance: If you need further assistance, you can write to Whirlpool with any questions or concerns at: Whirlpool Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692 Please include a daytime phone number in your correspondence. In Canada Call the Whirlpool Customer eXperience Center toll-free:1-800-807-6777 or visit our website at www.whirlpool.ca/owners. Our consultants provide assistance with: ■ Features and specications on our full line of appliances. ■ Use and maintenance procedures. ■ Accessory and repair parts sales. ■ Referrals to local dealers, repair parts distributors, and service companies. Whirlpool Canada LP designated service technicians are trained to fulll the product warranty and provide after-warranty service, anywhere in Canada. For further assistance: If you need further assistance, you can write to Whirlpool Canada LP with any questions or concerns at: Customer eXperience Centre Whirlpool Canada LP

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7 Please include a daytime phone number in your correspondence. Accessories Affresh

Stainless Steel Cleaner (stainless steel models) Order Part Number W10355016 Affresh

Kitchen and Appliance Cleaner Order Part Number W10355010 Gas Grate and Drip Pan Cleaner Order Part Number 31617 Broiler Pan Order Part Number 4396923 Griddle Order Part Number W1104339916
