Product Type	Rolling Storage Cart
Brand	Safco
Model	5209
Dimensions (L x D x H)	Approximately 76 x 46 x 102 cm
Product Weight	Approximately 22 kg
Maximum Load Capacity	150 kg
Material	High-resistance Plastic
Color	Black / Gray
Number of Drawers	3 drawers
Drawer Type	Sliding drawers with handles
Caster Type	4 swivel casters, 2 with brakes
Work surface	Non-slip flat surface
Assembly required	Yes, simple assembly
Warranty	Limited one-year warranty
Care and Cleaning	Wipe with a damp cloth and mild soap
Spare parts	Available on request from customer service
Repairability	Product repairable by a professional
General Information	Domestic and professional use

Frequently Asked Questions - 5209 Safco

How to assemble the Safco 5209 rolling storage cart?

Assembly is simple: attach the casters to the base, stack the drawers according to the instructions provided in the manual. Use the included tools.

What is the maximum weight supported by the cart?

The cart supports up to 150 kg evenly distributed.

How to clean the cart?

Wipe with a damp cloth and a mild soap. Avoid abrasive products.

Are the casters lockable?

Yes, two of the four casters are equipped with brakes to lock the cart.

Where can I find the manual in French?

The manual is available for free on notice-facile.com in PDF format.

Is the cart delivered assembled?

No, the cart is delivered as a kit with assembly instructions. Assembly takes about 15 minutes.

What is the warranty on the product?

Safco offers a limited one-year warranty against manufacturing defects.

Can I buy spare parts?

Yes, contact Safco customer service at 1-888-971-6225 to order replacement parts.

Is the cart suitable for professional use?

Yes, it is designed for domestic and professional use.

How to lock the drawers?

This model does not have a central locking system. Each drawer opens by handle.

USER MANUAL 5209 Safco

Line drawing of a multi-tiered rectangular cart with circular cutouts on the front panel, no text or symbols present.

PRODUCT WARRANTY is available online at: www.safcoproducts.com

• LA GARANTIE DU PRODUIT est

available Monday-Friday 7:30 AM to 5:00 PM (Central Time) (English-speaking operators)

TOOLS REQUIRED: Phillips Screwdriver

OUTILS REQUIS : Tournevis À Pointe Cruciforme

HERRAMIENTAS REQUERIDAS: Destornillador Phillips

PARTS LIST / LISTE DES PIÈCES / LISTA DE PIEZAS

CODE /CODIGO	DESCRIPTION / DESCRIPTION /DESCRIPCIÓN	QTY. /QUANTITÉ/GANTIDAD	PART NO. /N° DE PIECE / NO.DE PIEZA
A	Shelf Backer / Base / Base	1	420000048
B	Corner / Coin / Esquina	4	420000049
C	Handle Side / Côté Poignée / Lado De La Manija	1	420000050
D	Hook Side / Côté Crochet / Lado Del Gancho	1	420000051
E	Side A / Côté A / Lado A	1	420000052
F	Side B / Côté B / Lado B	1	420000053
G	Base Lip / Lèvre De Base / Labio Base	1	420000054
H	Writing Surface / Surface D'écriture / Superficie De Escritura	1	440000017
I	Top Shelf / Étagère Supérieure / Estante Superior	1	445000027
J	Middle Shelf / Étagère Du Milieu / Estante Medio	1	445000028
K	Bottom Shelf / Étagère Du Bas / Estante Inferior	1	445000029

Hardware Pack / Paquet Matériel / Paquete Material: 900000145

L	M
Screw #10x1/2”Vis #10x1/2”Tornillo #10x1/2”Qty. / Qte. / Cant.: 30#905000355	Screw M5x8mmVis M5x8mmTornillo M5x8mmQty. / Qte. / Cant.: 16#905000356
N	O
Screw M6x15mmVis M6x15mmTornillo M6x15mmQty. / Qte. / Cant.: 16#905000353	4mm Hex Key4mm Clé Hexagonale4mm Llave HexagonalQty. / Qte. / Cant.: 1#920000005

Hardware Pack / Paquet Matériel / Paquete Material: 900000150

PLocking CasterCôté DroitLado DerechoQty. / Qte. / Cant.: 2#970000046

QCasterRouletteEchadorQty. / Qte. / Cant.: 2#970000045

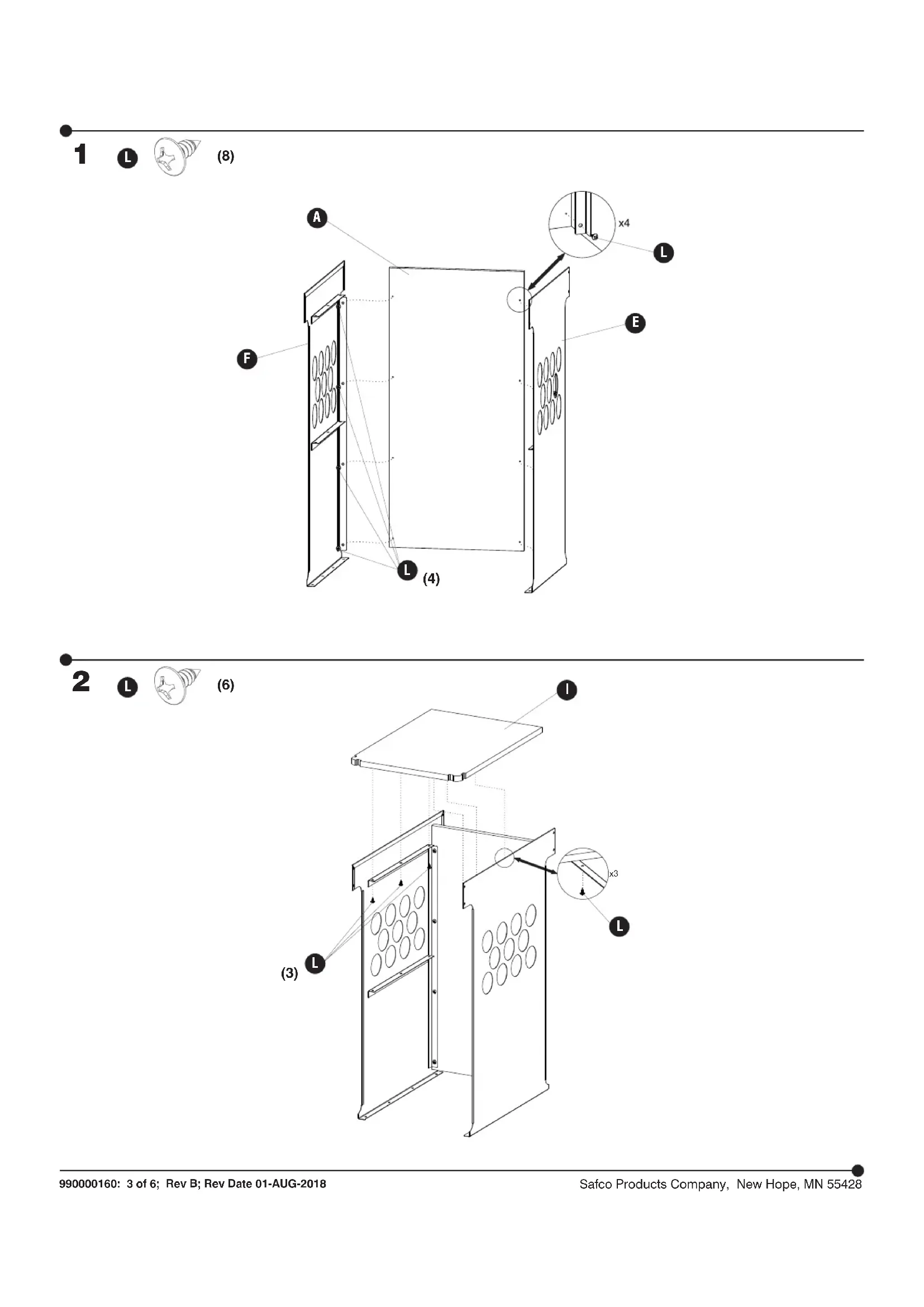

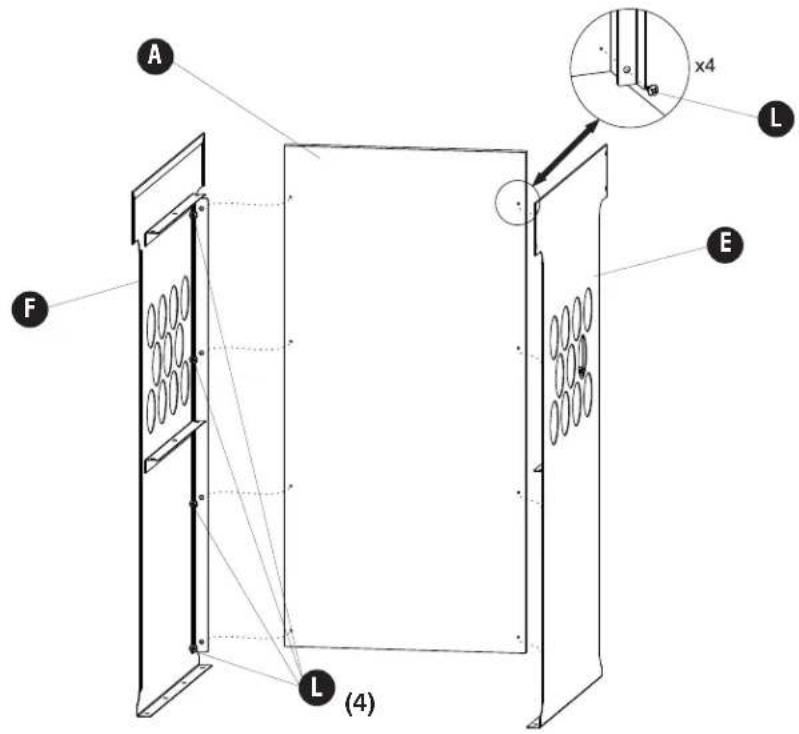

1 L (8)

2 L (6)

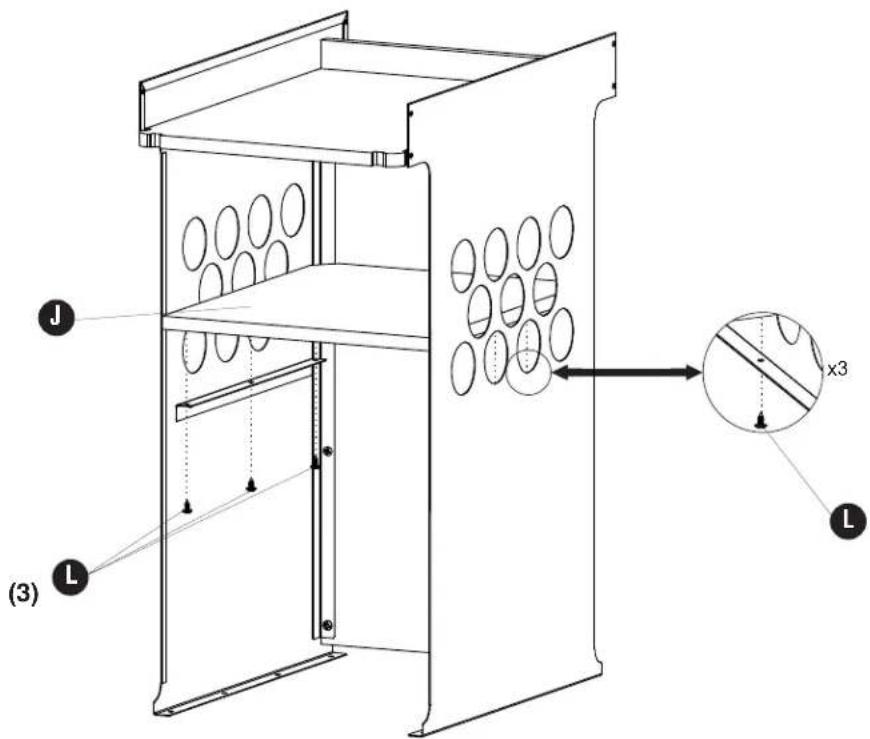

3
L

(6)

4
L

(8)

5
M

(8)

6
M

7

L

(2)

N

(16)

8

Technical line drawing of a multi-tiered cleaning or cart with circular components and a handle (no text or symbols)
