Product type	Combined microwave and grill cooker
Brand	AEG
Model	KMK721880W
Height at front of appliance	455 mm
Height at rear of appliance	440 mm
Width at front of appliance	595 mm
Width at rear of appliance	559 mm
Depth of appliance	567 mm
Built-in depth	546 mm
Depth with door open	882 mm
Required cabinet width	560 mm
Required cabinet depth	550 mm
Minimum cabinet height	444 mm (460 mm under worktop)
Installation type	Built-in
Power supply	230 V ~ 50 Hz (check rating plate)
Maximum microwave power	1000 W
Cooking functions	Microwave, Grill, Grill + Microwave, Defrost, Melt, Reheat, Popcorn, Liquids
Grill intensity levels	Low (Lo) and High (Hi)

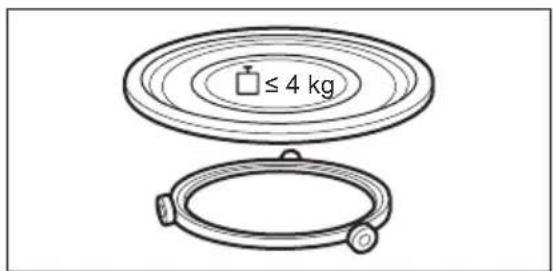

Turntable capacity	Up to 4 kg
Included accessories	Turntable set, Grill set
Cavity materials	Stainless steel or enamel (not specified)
Internal lighting	Energy efficiency class G bulb
Care and cleaning	Clean with a soft cloth and mild detergent. Do not use steam cleaner, abrasives or metal scrapers. Clean after each use.
Child safety	Yes, key lock and alphabetical code
Spare parts and repairability	Use only genuine spare parts. Contact authorized after-sales service.
General information	Warranty and support at www.aeg.com/support. Registration possible at www.registeraeg.com.

Frequently Asked Questions - KMK721880W AEG

How to use the microwave function?

Turn on the oven, press the cooking mode symbol, select microwave mode, set the power (100 to 1000 W) and duration, then press START. Maximum duration is 59 minutes for powers ≤ 600 W and 7 minutes for > 600 W.

How to use the grill?

Insert the top grid. Turn on the oven, go to the submenu, select Grill function, choose intensity (Lo for low, Hi for high), confirm with OK, then press START.

How to set the clock?

Press 'Current time' on the display, set the time, then press OK to confirm.

Which utensils are suitable for microwave?

Use only glass or porcelain containers without metal, heat-resistant plastic up to 200 °C, suitable cardboard and paper. Avoid metals, aluminum and unglazed ceramic with holes.

How to clean the appliance?

Clean after each use with a soft damp cloth and mild detergent. Never use steam cleaner, abrasive products or metal scrapers. Dry the cavity, turntable and door well.

What to do if an error code appears?

For codes F240/F439, clean the display surface. For F908, turn off and on the oven. If the problem persists, contact authorized after-sales service.

How to activate child safety?

Turn on the oven, select a cooking mode, then press simultaneously the ≡ and ☆ keys to activate/deactivate the lock. To deactivate, repeat the same action.

How to save a favorite program?

Turn on the oven, set the desired cooking mode and duration, press the My Programs symbol, select 'Save current settings', then press + to add. You can save up to 3 programs.

Why is the turntable making noise?

Food residues may be under the turntable assembly. Clean the turntable and roller support carefully.

How to save energy with this oven?

Keep the door closed during cooking, avoid opening it too often, do not preheat unless necessary, turn off the lighting during cooking and reduce intervals between cooking sessions.

USER MANUAL KMK721880W AEG

Simple line drawing of a cabinet or oven with no text or symbols

PRO DOKONALÉ VÝSLEDKY

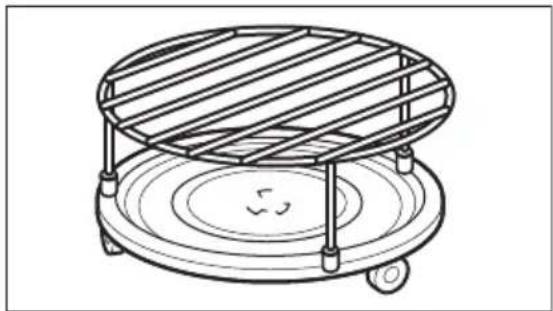

Line drawing of a circular metal tray with four legs and a central handle (no text or symbols)

4. JAK ZAPNOUT A VYPNOUT TROUBU

4.1 Ovládací panel

2.1 Installation....35

2.2 El-forbindelse....36

2.3 Brug.... 37

Line drawing of a circular metal grate with four legs and a central oval opening, no text or symbols present.

4. SÅDAN TÄENDES OG SLUKKES OVNEN

4.1 Betjeningspanel

Rur rundt i maden inden servering.

14.4 Undermenu for: Service

Undermenu Beskrivelse
Demo funktion Aktiverings- / deaktiveringskode: 2468
Softwareversion Oplysninger om softwareversion.
Nulstil alle indstillinger Gendanner fabriksindstillingerne.

15. DET ER NEMT!

3. BESCHRIJVING VAN HET PRODUCT.....67

12. PROBLEEMOPLOSSING....83

Line drawing of a circular metal tray with four legs and a central oval opening, no text or symbols present.

4. HET IN- EN UITSCHAKELEN VAN DE OVEN

12. PROBLEEMOPLOSSING

WAARSCHUWING!

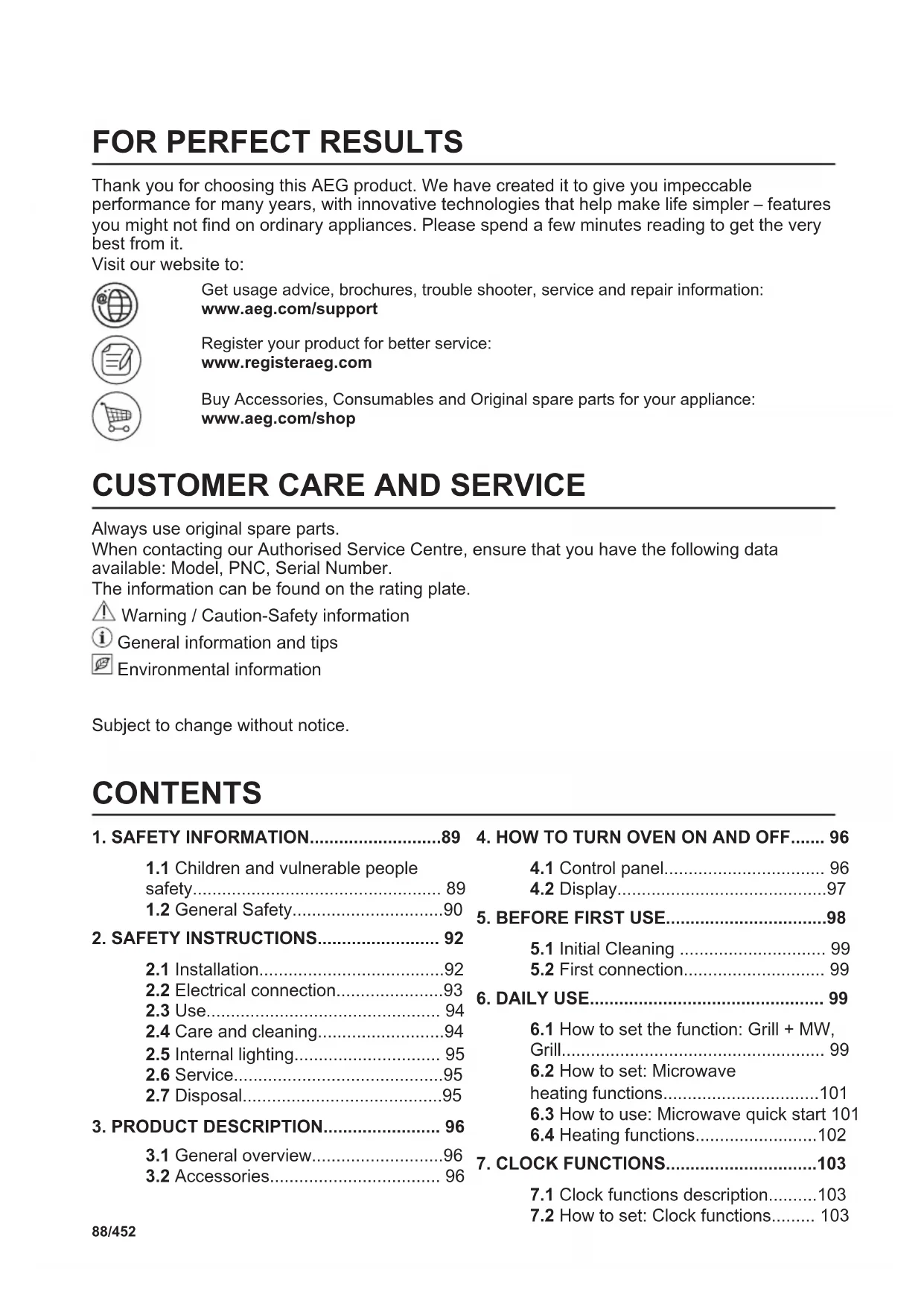

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information: www.aeg.com/support

Register your product for better service: www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......89

1.1 Children and vulnerable people safety.... 89
1.2 General Safety......90

2. SAFETY INSTRUCTIONS.... 92

2.1 Installation....92
2.2 Electrical connection....93
2.3 Use....94
2.4 Care and cleaning....94
2.5 Internal lighting.... 95
2.6 Service....95
2.7 Disposal....95

3. PRODUCT DESCRIPTION.... 96

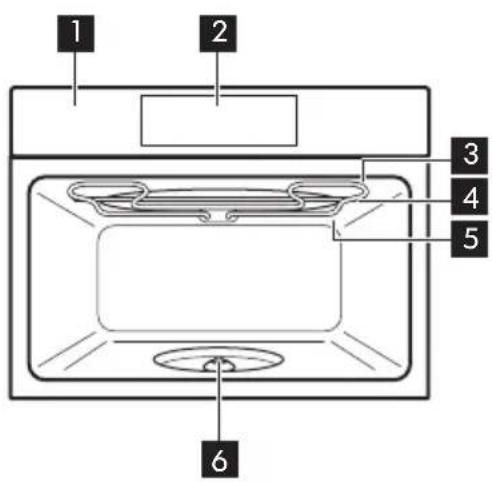

3.1 General overview....96
3.2 Accessories.... 96

4. HOW TO TURN OVEN ON AND OFF..... 96

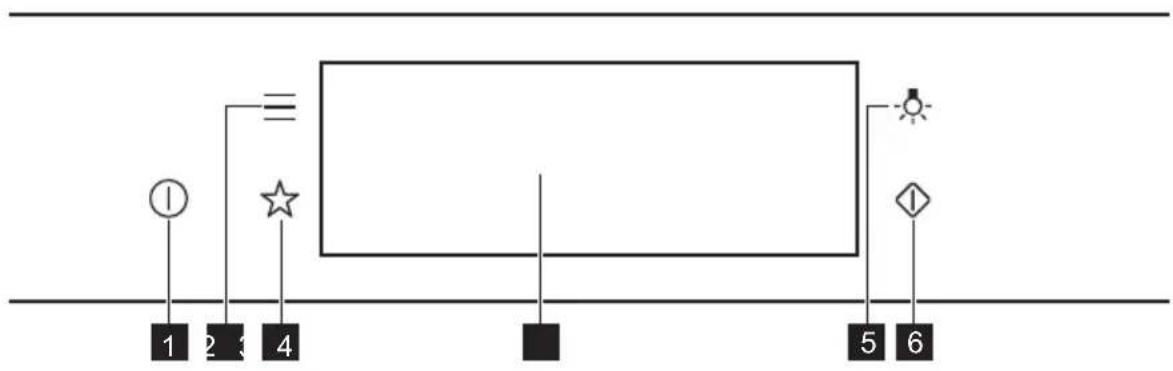

4.1 Control panel.... 96

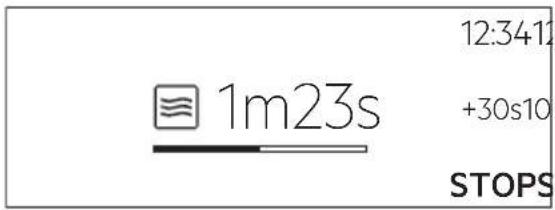

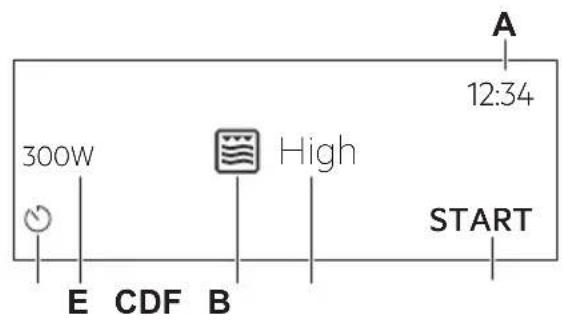

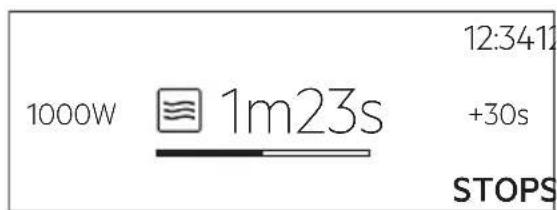

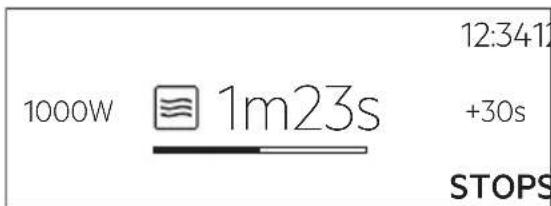

4.2 Display....97

5. BEFORE FIRST USE....98

5.1 Initial Cleaning 99
5.2 First connection.... 99

6. DAILY USE.... 99

6.1 How to set the function: Grill + MW, Grill....99
6.2 How to set: Microwave heating functions....101
6.3 How to use: Microwave quick start 101
6.4 Heating functions....102

7. CLOCK FUNCTIONS....103

7.1 Clock functions description.....103
7.2 How to set: Clock functions..... 103

1. HOW TO USE: ACCESSORIES......105
   8.1 Inserting accessories......105
2. ADDITIONAL FUNCTIONS...... 105
   9.1 How to save: Favourites...... 105
   9.2 Function lock....106
   9.3 Cooling fan....106
3. HINTS AND TIPS....106
   10.1 Cooking recommendations......106
   10.2 Microwave recommendations ...106
   10.3 Microwave suitable cookware and materials 107
   10.4 Recommended power settings for different kinds of food.... 108
   10.5 Cooking tables for test institutes 109
4. CARE AND CLEANING....110
   11.1 Notes on cleaning....110

1. ⚠SAFETY INFORMATION

1. TROUBLESHOOTING.....111

12.1 What to do if....111
12.2 How to manage: Error codes.....112
12.3 Service data....112

1. ENERGY EFFICIENCY......112

13.1 Energy saving....112

1. MENU STRUCTURE......113

14.1 Menu....113
14.2 Submenu for: Options....113
14.3 Submenu for: Setup....114
14.4 Submenu for: Service.... 114

1. IT'S EASY!...... 114

2. ENVIRONMENTAL CONCERNS......116

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.

• Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging away from children and dispose of it appropriately.

• WARNING: Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts become hot during use.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is for cooking purposes only.
• This appliance is designed for single household domestic use in an indoor environment.
• This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
• Only a qualified person must install this appliance and replace the cable.
• Do not use the appliance before installing it in the built-in structure.
• Disconnect the appliance from the power supply before carrying out any maintenance.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
• WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

• Always use oven gloves to remove or insert accessories or ovenware.

• Use only the turntable and the turntable support designed for this appliance.

• Do not activate the microwave function when the appliance is empty. Metal parts inside the cavity can create electric arcing.
• Metallic containers for food and beverages are not allowed during microwave cooking. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking.

- WARNING: If the door or door seals are damaged, the appliance must not be operated until it has been repaired by a qualified person.

- WARNING: Only a qualified person can carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

- WARNING: Do not heat liquids and other foods in sealed containers. They are liable to explode.

- Use only utensils that are suitable for use in microwave ovens.

- When heating food in plastic or paper containers, observe the appliance due to the possibility of ignition.

- The appliance is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

- If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

- Microwave heating of beverages can result in delayed eruptive boiling. Care must be taken when handling the container.

- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

• Eggs in their shell and whole hard-boiled eggs should not be heated in the appliance since they may explode, even after microwave heating has ended.
• The appliance should be cleaned regularly and any food deposits removed.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
• Failure to maintain the appliance in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
  • Install the appliance in a safe and suitable place that meets installation requirements.
• Keep the minimum distance from other appliances and units.
• Before mounting the appliance, check if the oven door opens without restraint.
• The appliance is equipped with an electric cooling system. It must be operated with the electric power supply.
• The built-in unit must meet the stability requirements of DIN 68930.

Cabinet minimum height (Cabinet under the work-top minimum height)	444 (460) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of the appliance 455 mm
Height of the back of the appliance 440 mm
Width of the front of the appliance 595 mm
Width of the back of the appliance 559 mm
Depth of the appliance 567 mm
Built in depth of the appliance 546 mm
Depth with open door 882 mm
Ventilation opening minimum size. Opening placed on the bottom rear side	560x20 mm
Mains supply cable length. Cable is placed in the right corner of the back side	1500 mm
Mounting screws 3.5x25 mm

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Do not let mains cables touch or come near the appliance door or the niche below the appliance, especially when it operates or the door is hot.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
• This appliance is supplied with a main plug and a main cable.

2.3 Use

WARNING!

Risk of injury, burns and electric shock or explosion.

• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance door while the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.
• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.
• Do not let sparks or open flames to come in contact with the appliance when you open the door.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not use microwave function to preheat the oven.

WARNING!

Risk of damage to the appliance.

• To prevent damage or discoloration to the enamel:
  – do not put aluminium foil directly on the bottom of cavity of the appliance.
  – do not put water directly into the hot appliance.
  – do not keep moist dishes and food in the appliance after you finish the cooking.
• be careful when you remove or install the accessories.
• Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.
  • Always cook with the appliance door closed.
• If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance operates. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

2.4 Care and cleaning

WARNING!

Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.

• Be careful when you remove the door from the appliance. The door is heavy!

• Make sure the cavity, the turntable and the door are wiped dry after each use. Steam produced during the operation of the appliance condensates on cavity walls and can cause corrosion.

• Clean regularly the appliance to prevent the deterioration of the surface material.
• Fat and food remaining in the appliance can cause fire and electric arcing when the microwave function operates.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, follow the safety instructions on its packaging.

2.5 Internal lighting

WARNING!

Risk of electric shock.

• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.
• This product contains a light source of energy efficiency class G.
• Use only lamps with the same specifications.

2.6 Service

• To repair the appliance contact the Authorised Service Centre.
- Use original spare parts only.

2.7 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the appliance.

3. PRODUCT DESCRIPTION

3.1 General overview

Control panel
Display
Heating element
Microwave generator
Lamp
Turntable shaft

3.2 Accessories

Turntable set

To prepare food.

Grill rack set

To grill.

Line drawing of a circular metal tray with four legs and a central slot, no text or symbols present

4. HOW TO TURN OVEN ON AND OFF

4.1 Control panel

1	ON / OFF Press and hold to turn the oven on and off.
2	Menu Lists the oven functions.
3	Favourites Lists the favourite settings.
4	Display Shows the current settings of the oven.
5	Lamp switch To turn the lamp on and off.
6	Microwave quick start	To turn on microwave function (1000 W and 30 seconds).

Press Move		;Press and hold
Touch the surface with finger-tip.	Slide fingertip over the surface.	Touch the surface for 3 seconds.

4.2 Display

After turning on, the display shows the main screen with the function and the default grill intensity.

A. Time of day
B. START/STOP
C. Grill intensity
D. Heating functions
E. Microwave power
F. Timer

	If you do not use the oven for 2 minutes, the display goes to standby.
	When you cook, the display shows the set functions and other available options.

Display indicators
Basic indicators - to navigate on the display.
OKTo confirm the selection / setting.	<To go one level back in the menu.	→To undo the last action.	→To turn the options on and off.
Sound alarm function indicators - when the set time of cooking ends, the signal sounds.
The function is on.	STOPThe function is on.Cooking stops automatically.		Sound alarm is off.
Timer indicators
To set the function: Delayed start.		×To cancel the setting.

5. BEFORE FIRST USE

WARNING!

Refer to Safety chapters.

5.1 Initial Cleaning

Step 1 Step 2 Step 3
Remove all accessories from the oven.	Clean the oven and the accessories with a soft cloth, warm water and a mild detergent.	Place the accessories in the oven.

5.2 First connection

The display shows welcome message after the first connection.

You have to set: Language, Display brightness, Key tones, Buzzer volume, Time of day.

6. DAILY USE

WARNING!

Refer to Safety chapters.

6.1 How to set the function: Grill + MW, Grill

The oven can make noises when using the function: Grill + MW. They are normal for this function.

Setting the function: Grill + MW
Step 1 Insert the low grill rack.
Step 2 Turn on the oven. The display shows the default heating function.
Step 3 Press the symbol of the heating function to enter the submenu.
Step 4 Select the function: ☐Press: . OK
Step 5 Select the grill intensity level.
Function Grill intensity level
Lo Low
Hi High
Step 6	Press: OK
Step 7	Press: $START
STOP - press to turn off the oven.
Step 8 Turn off the oven.

Microwave power is limited to 500 W when you use the function: Grill + MW.

Setting the function: Grill
Step 1 Insert the high grill rack.
Step 2 Turn on the oven. The display shows the default heating function.
Step 3 Press the symbol of the heating function to enter the submenu.
Step 4 Select the function: ☐Press: . OK
Step 5 Select the grill intensity level.
Function Grill intensity level
Lo Low
Hi High
Step 6	Press: OK
Step 7	Press: $START
STOP - press to turn off the function.
Step 8 Turn off the oven.

6.2 How to set: Microwave heating functions

Step 1 Turn on the oven.
Step 2 Press the symbol of the heating function to enter the submenu.
Step 3	Select the microwave heating function and press: OK The display shows: microwave power.
Step 4	Set: microwave power. Press: OK
Step 5	Press: $START
STOP - press to turn off the function.
Step 6 Turn off the oven.

The maximum time of microwave functions depends on microwave power you set:

MICROWAVE POWER MAXIMUM TIME
100 - 600 W 59 minutes
More than 600 W 7 minutes

If you open the door, the function stops. To start it again, press \$START

Take a shortcut!

6.3 How to use: Microwave quick start

Step 1	Press and hold: ⚠The microwave runs for 30 s.
Step 2 To	extend the cooking time:
	Press on the running time value to go to the time settings. Set the cooking time.	Press +30 s.
The microwave can be switched on at any time with: Microwave quick start.

6.4 Heating functions

STANDARD

Heating function Application
	To grill thin pieces of food and to toast bread.
Grill
	To cook food in a short time and to brown it. You can set 2 levels of grill intensity: low and high.
Grill + MW
	Heating up, cooking, power range: 100 - 1000 W
Microwave

MICROWAVE

Heating function Application
Defrost	Defrosting meat, fish, cakes, power range: 100 - 200 W
Melting	Melting chocolate and butter, power range: 100 - 400 W
Reheat	Heating up pre-prepared meals and delicate food, power range: 300 - 700 W
Popcorn	Preparing popcorn, power range: 700 - 1000 W
Liquid	Heating up drinks and soups, power range: 800 - 1000 W

7. CLOCK FUNCTIONS

7.1 Clock functions description

Clock function Application
Cooking time To set the length of cooking. Maximum is 23 h 59 min.
End action To set what happens when the timer ends counting.
Time extension To extend cooking time.
Reminder To set a count down. Maximum is 23 h 59 min. This function has no effect on the operation of the oven.
Uptimer Monitors how long the function operates. Uptimer - you can turn it on and off.

7.2 How to set: Clock functions

How to set the clock
Step 1 Press: Time of day.
Step 2	Set the time. Press: OK

How to set cooking time
Step 1 Choose the heating function.
Step 2	Press: ⏻
Step 3	Set the time. Press: OK

How to choose end option
Step 1 Choose the heating function.
Step 2	Press: ⏻
Step 3 Set the cooking time.
Step 4	Press: ⋆ ⋆ ⋆
Step 5 Press: End action.
Step 6 Choose the preferred: End action.
Step 7	Press: OK Repeat the action until the display shows the main screen.

How to extend cooking time

When 10% of cooking time is left and the food seems not to be ready, you can extend cooking time. You can also change the heating function.

Press +1min to extend the cooking time.

How to change timer settings
Step 1	Press: ⏻
Step 2 Set the timer value.
Step 3	Press: OK
You can change the set time during cooking at any time.

8. HOW TO USE: ACCESSORIES

8.1 Inserting accessories

Use only suitable cookware and material. Refer to "Hints and tips" chapter, Microwave suitable cookware and materials.

Turntable set:Always cook food on the turntable set.Place the roller guide around the turntable shaft. Place the turntable glass on the roll-er guide.Use only the turntable set supplied with the oven.
Grill rack set:Place the grill rack with the silicon caps down on the turntable set.

9. ADDITIONAL FUNCTIONS

9.1 How to save: Favourites

You can save your favourite settings, such as the heating function, the cooking time or the cleaning function. You can save 3 favourite settings.

Step 1 Turn on the oven.
Step 2 Select the preferred setting.
Step 3	Press:Select: Favourites.
Step 4 Select: Save current settings.
Step 5	Press + to add the setting to the list of: Favourites. Press OK
→ - press to reset the setting.✕ - press to cancel the setting.

9.2 Function lock

This function prevents an accidental change of the heating function.

Step 1 Turn on the oven.
Step 2 Set a heating function.
Step 3	≡, ☆press at the same time to turn on the function.
To turn off the function repeat step 3.

9.3 Cooling fan

When the oven operates, the cooling fan turns on automatically to keep the surfaces of the oven cool. If you turn off the oven, the cooling fan can continue to operate until the oven cools down.

10. HINTS AND TIPS

10.1 Cooking recommendations

i

The temperature and cooking times in the tables are guidelines only. They depend on the recipes and the quality and quantity of the ingredients used.

Your oven may cook differently to the oven you had before. The hints below show recommended heating functions and settings for cooking time for specific types of the food.

If you cannot find the settings for a special recipe, look for the similar one.

For more cooking recommendations refer to cooking tables on our website. To find the Cooking Hints check the PNC number on the rating plate on the front frame of the oven cavity.

10.2 Microwave recommendations

i Let's cook!

Do not place the food directly on the turntable. Always use the microwave suitable cookware. Place the cookware in the middle of the turntable.

Make sure that the food and cookware placed on the turntable is at the room temperature.

Contact with too hot or too cold items can break the turntable.

Turn or stir the food halfway through the defrosting and cooking time.

Stir liquid dishes from time to time.

Stir the food before serving.

Cover the food for cooking and reheating.

Put the spoon to the bottle or glass when heating drinks to ensure better heat distribution.

Put the food into the oven without packaging. The packaged ready meals can be put into the oven only when the packaging is microwave safe (check information on the packaging).

Microwave cooking

Cook food covered. If you want to keep a crust cook food without a cover.

Do not overcook the dishes by setting the power and time too high. The food can dry out, burn or cause fire.

Do not use the oven to cook eggs or snails in their shells, because they can burst. Pierce the yolk of fried egg before reheating it.

Pierce food with skin or peel several times before cooking.

Cut vegetables into similar-sized pieces.

After you turn off the oven, take the food out and let it stand for a few minutes to allow the heat distribute evenly.

Microwave defrosting

Put the frozen, unwrapped food on a small upturned plate with a container below it, or on a defrosting rack or plastic sieve so that the defrosting liquid can leak out.

Remove defrosted pieces subsequently.

To cook fruit and vegetables without defrosting them first, you can use a higher microwave power.

10.3 Microwave suitable cookware and materials

For the microwave use only suitable cookware and materials. Use below table as a reference. Check the cookware / material specification before use.

Cookware / Material
Ovenproof glass and porcelain with no metal components, e.g. heat-proof glass	√	√	√	√
Non-ovenproof glass and porcelain without any silver, gold, platinum or other metal decorations	√	XXX
Glass and glass ceramic made of ovenproof / frost-proof material	√	√	√	√
Ceramic and earthenware without any quartz or metal components and glazes which contain metal	√	√	X	X
Ceramic, porcelain and earth-enware with unglazed bottom or with small holes, e.g. on handles	XXXX
Heat-resistant plastic up to 200 °C	√	√	X	X
Cardboard, paper X X X	√
Clingfilm X X X	√
Roasting film with microwave safe closure	√	√	X	X
Roasting dishes made of metal, e.g. enamel, cast iron	X X X		√
Baking tins, black lacquer or silicon-coated	X X X		√
Cookware for microwave use, e.g. crisp pan	X X X	√
Grill rack set X X			√	√

10.4 Recommended power settings for different kinds of food

The data in the table is for guidance only.

800 - 1000 W
Searing at the start of the cooking process Heating liquids
500 - 700 W
Cooking veg-etables	Cooking egg dishes	Simmering stews	Simmering rice	Heating one-plate meals	Defrosting and heating frozen meals

300 - 400 W
Melting cheese, chocolate, butter	Cooking / Heating delicate food	Continuing cooking

100 - 200 W
[ST30]Heating baby food	Defrosting bread	Defrosting fruit and cakes	Defrosting cheese, cream, butter	Defrosting meat, fish

10.5 Cooking tables for test institutes

Information for test institutes

Tests according to IEC 60705.

MICROWAVE FUNCTION	(W)	(kg)		(min)
Sponge cake 600 0.475 Turntable			set	5 - 7 -
Meatloaf 500 0.9 Turntable			set	18 - 20 -
Egg custard 500 1 Turntable			set	15 - 17 -
Meat defrosting 200	0.5 Turntable		set	8 - 9 -

Use the function: Microwave grilling.Use the low grill rack.
MICROWAVE COMBI FUNCTION	(W) Grill intensity level		(min)
Potato gratin, 1.1 kg 300 low 30 - 35 -
Chicken, 1.1 kg 300 high 30 - 35 Put the meat in				round glass container.

11. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

11.1 Notes on cleaning

Cleaning Agents

Everyday Use	Clean the cavity after each use. Fat accumulation or other residue may cause fire. Clean the oven ceiling carefully from residue and fat.
	Do not store the food in the oven for longer than 20 minutes. Dry the cavity with a soft cloth after each use.

Accessories

Clean all accessories after each use and let them dry. Before cleaning, wait until the turntable is cold. There is a risk that the turntable can break. Use a soft cloth with warm water and a mild detergent. Do not clean the accessories in a dishwasher.

Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.

12. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

12.1 What to do if...

The oven does not turn on or does not heat up

Possible cause

Remedy

The oven Child Lock is on. Refer to "Menu" chapter, Submenu for: Options.

Components
Description Remedy
The lamp is burnt out. Replace the lamp, for details refer to "Care and Cleaning" chapter, How to replace: Lamp.
The turntable set makes noise. There is food residue below the turntable set.

12.2 How to manage: Error codes

When the software error occurs, the display shows error message.

In this section, you will find the list of the problems that you can handle on your own.

Code and description Remedy
F240, F439 - the touch fields on the display do not work properly.	Clean the surface of the display. Make sure there is no dirt on the touch fields.
F908 - the oven system cannot connect with the control panel.	Turn the oven off and on.

12.3 Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the oven cavity. Do not remove the rating plate from the oven cavity.

We recommend that you write the data here:
Model (MOD.)
Product number (PNC)
Serial number (S.N.)

13. ENERGY EFFICIENCY

13.1 Energy saving

The oven has features which help you save energy during everyday cooking.

Make sure that the oven door is closed when the oven operates. Do not open the oven door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position.

When possible, do not preheat the oven before cooking.

Keep breaks between baking as short as possible when you prepare a few dishes at one time.

Cooking with the lamp off

Turn off the lamp during cooking. Turn it on only when you need it.

14. MENU STRUCTURE

14.1 Menu

Press to open Menu.

Menu item Application
Favourites Lists the favourite settings.
Options To set the oven configuration.
Settings Setup To set the oven configuration.
		Service Shows the software version and con-figuration.

14.2 Submenu for: Options

Submenu Application
Light Turns the lamp on and off.
Child Lock Prevents accidental activation of the oven. When the option is on, the text "Child Lock" appears on the display when you turn on the oven. To enable the oven use, choose the code letters in the alphabetical order. Access to the timer, the remote operation and the lamp is available with the Child Lock on.
Time indication Turns the clock on and off.
Digital clock style Changes the format of the displayed time indication.

14.3 Submenu for: Setup

Submenu Description
Language Sets the oven language.
Display brightness Sets the display brightness.
Key tones Turns the tone of the touch fields on and off. It is not possible to mute the tone for: ➊
Buzzer volume Sets the volume of key tones and signals.
Time of day Sets the current time and date.

14.4 Submenu for: Service

Submenu Description
Demo mode Activation / deactivation code: 2468
Software version Information about software version.
Reset all settings Restores factory settings.

15. IT'S EASY!

Before first use you have to set:
Language	Display brightness	Key tones Buzzer volume Time of day

Familiarize yourself with the basic icons on the control panel and the display:
1ON / OFF Menu	≡Favourites	☆	💡Timer	START / STOP

Start using the oven
MW quick start Start Microwave at any time with default settings: 30 sec / 1000W.		Press: ◆

heating / cooking100 - 1000 W	cooking / browningintensity: low / high	cooking / browning	heating liquids800 - 1000 W
reheating300 - 700 W	defrosting100 - 200 W	melting100 - 400 W	preparing popcorn700 - 1000 W

Settings of the microwave Microwave tips
Microwave power: Maximum time:	Cover the food for cooking and reheating. Turn or stir the food halfway through the de-frosting and cooking time. Put the spoon to the dish when heating liquids. Put the food into the oven without packaging (only microwave safe).
100 - 600 W 59 min
>600 W 7 min

Start cooking
Step 1 Step 2	Step 3 Step 4 Step 5
[8625]- press to turn on the oven.	[8630]...- select the function.	W- set the micro-wave power.	OK- press to confirm.	START- press to start cooking.

Use quick functions to set the cooking time
10% Finish assistUse 10% Finish assist to add extra time when 10% of the cooking time is left.	To extend the cooking time press +1min.

16. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

TÄYDELLISIÄ TULOKSIA

7. KELLOTOIMINNOT.... 132

9. LISÄTOIMINNOT.... 134

1. ⚠TURVALLISUUSTIEDOT

Line drawing of a circular metal table with four legs and a central oval panel (no text or symbols)

4. UUNIN KYTKEMINEN PÄÄLLE JA POIS PÄÄLTÄ.

4.1 Käyttöpaneeli

2.1 Installation....150

Line drawing of a circular metal tray with four legs and a central oval opening, no text or symbols present.

4. COMMENT ALLUMER ET ÉTEINDRE LE FOUR

Line drawing of a circular metal grate with four legs and a central oval opening, no text or symbols present.

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Recycling symbol with three arrows forming a triangle (no text or labels)

Line drawing of a circular metal grate with four legs and a central oval opening, no text or symbols present.

4. COME ACCENDERE E SPEGNERE IL FORNO

Technical line drawing of a circular mechanical component with a base and top view, showing internal structure and assembly (no text or symbols)

Line drawing of a circular metal grate with a central base and wheels (no text or symbols)

Line drawing of a circular metal grate with four legs and a central oval opening, no text or symbols present.

4. WŁĄCZANIE I WYŁĄCZANIE PIEKARNIKA

Line drawing of a circular metal tray with four legs and a central oval opening, no text or symbols present.

4. COMO LIGAR E DESLIGAR O FORNO

4.1 Painel de comandos

Line drawing of a circular metal tray with four legs and a central slatted top (no text or symbols)

4. ВКЛЮЧЕНИЕ И ВЫКЛЮЧЕНИЕ.

1. ENERGETICKÁ ÚČINNOST .....357

13.1 Úspora energie.... 357

1. ŠTRUKTÚRA PONUKY....357

14.1 Ponuka....357
14.2 Podponuka pre: Voliteľné funkcie....357
14.3 Podponuka pre: Nastavenie..... 358
14.4 Podponuka pre: Servis...... 358

1. JE TO JEDNODUCHÉ!......358
2. OCHRANA ŽIVOTNÉHO PROSTREDIA...... 360

1. △BEZPEČNOSTNÉ INFORMÁCIE

Line drawing of a circular metal tray with four legs and a central slot, no text or symbols present

4. AKO ZAPNÚŤ A VYPNÚŤ RÚRU

4.1 Ovládací panel

Line drawing of a circular metal grate with a central base and wheels, no text or symbols present

9. DOPLNKOVÉ FUNKCIE

Technical line drawing of a circular metal grate with four legs and a central handle (no text or symbols)

4. CÓMO ENCENDER Y APAGAR EL HORNO

4.1 Panel de mandos

2.1 Installation....394

2.2 Elanslutning.... 395

2.3 Använd....395

Line drawing of a circular metal grate with four legs and a central oval opening, no text or symbols present.

4. SÅ HÄR SLÅR DU PÅ OCH STÄNGER AV UGNEN

4.1 Kontrollpanel

Line drawing of a circular metal tray with four legs and a central slot, no text or symbols present

Concentric circular lines diagram with a small curved symbol at the center (no text or labels)

Simple line drawing of a coiled tube or pipe with two ends and a central dashed line (no text or symbols)

Line drawing of a circular metal grate with a central water level and wheels (no text or symbols)

Five circular icons representing shopping and e-commerce activities: cart, printer, gear, and shopping cart (no text or symbols)

CE
