537008 - Juicer Emga - Free user manual and instructions
Find the device manual for free 537008 Emga in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product type | Electric beverage dispenser |
| Brand | Emga |
| Model | 537008 |
| Power supply | 220-240 V AC, adapted to DC 12 V (60 W/h) |
| Power consumption | 60 W/h |
| Cooling technology | Thermoelectric (cools or keeps cool) |
| Container capacity | Not specified (estimated: 2-5 liters) |
| Materials | Plastic (body, container, lid) |
| Safety | Do not immerse; do not expose base to liquids; use on a flat surface; unplug before cleaning; indoor use only |
| Maintenance | Clean the lid, plastic body, and drip tray with a mild detergent and soapy water, rinse and dry thoroughly. External surface: damp cloth. |
| Available spare parts | Container (PB2370), Lid (030510L), Tap (P2285), Strainer (B2358M), Drip tray (B2359M) |
| Recommended use | Pre-chilled drinks for optimal performance |
| Instructions | Do not use for hot drinks; do not obstruct ventilation holes |
| Weight | Not specified |
| Dimensions | Not specified |
| Warranty | Not specified |
Frequently Asked Questions - 537008 Emga
How to turn on the device?
Plug in the device, then press the on/off button to the 'I' position. The green light turns on and the device starts operating. To turn it off, set the button to the '0' position.
How to clean the device?
Make sure the on/off button is on '0' and unplug the device. Remove the lid, plastic body, and drip tray. Wash them with a mild detergent in soapy water, rinse thoroughly with clean water, and dry completely before reassembling. For the external surface of the base, use a damp cloth with a mild detergent.
Can I use the device for hot drinks?
No, this device is designed only for cold or room temperature drinks. Do not use it to dispense hot drinks.
What is the power consumption of the device?
The device consumes 60 W/h during operation, at a voltage of 220-240 V AC converted to 12 V DC.
How to properly connect the device?
Plug the supplied power adapter into a 220-240 V AC outlet. The adapter automatically steps down the voltage to 12 V DC. Make sure the ventilation holes are not obstructed and the device is on a flat surface.
What to do if the device does not cool sufficiently?
Check that the device is on (green light on). Make sure the drinks are pre-chilled for better performance. Check that the ventilation holes are not obstructed. If the problem persists, contact customer service.
Can the device be used outdoors?
No, this device is designed for indoor use only. Do not expose it to rain, moisture, or extreme temperatures.
How to maintain the tap?
The tap is a removable part (reference P2285). Clean it regularly with soapy water, rinse, and dry. If the tap leaks or is damaged, replace it with an original part.
Can I put other liquids than drinks (e.g., soup)?
It is not recommended to use the device for liquids other than drinks (juice, soda, water). Thick or hot liquids may damage the device.
Where can I find spare parts for this device?
The available spare parts are: container (PB2370), lid (030510L), tap (P2285), strainer (B2358M), and drip tray (B2359M). You can order them from the manufacturer or an authorized dealer.
User questions about 537008 Emga
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Juicer in PDF format for free! Find your manual 537008 - Emga and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 537008 by Emga.
USER MANUAL 537008 Emga
Line drawing of a cylindrical water heater with attached circuit board and sensor (no text or symbols)| Item nr. 537008 | |
| Vorm/kap | 5ltr |
| Maat 33,0(L)x22,0(W)x49,2(H)cm | |
| Spanning 220VAC,50/60hz | |
| Energieverbruik 60W | |
| AdapterDC12V | |
⚠ Waarschuwing

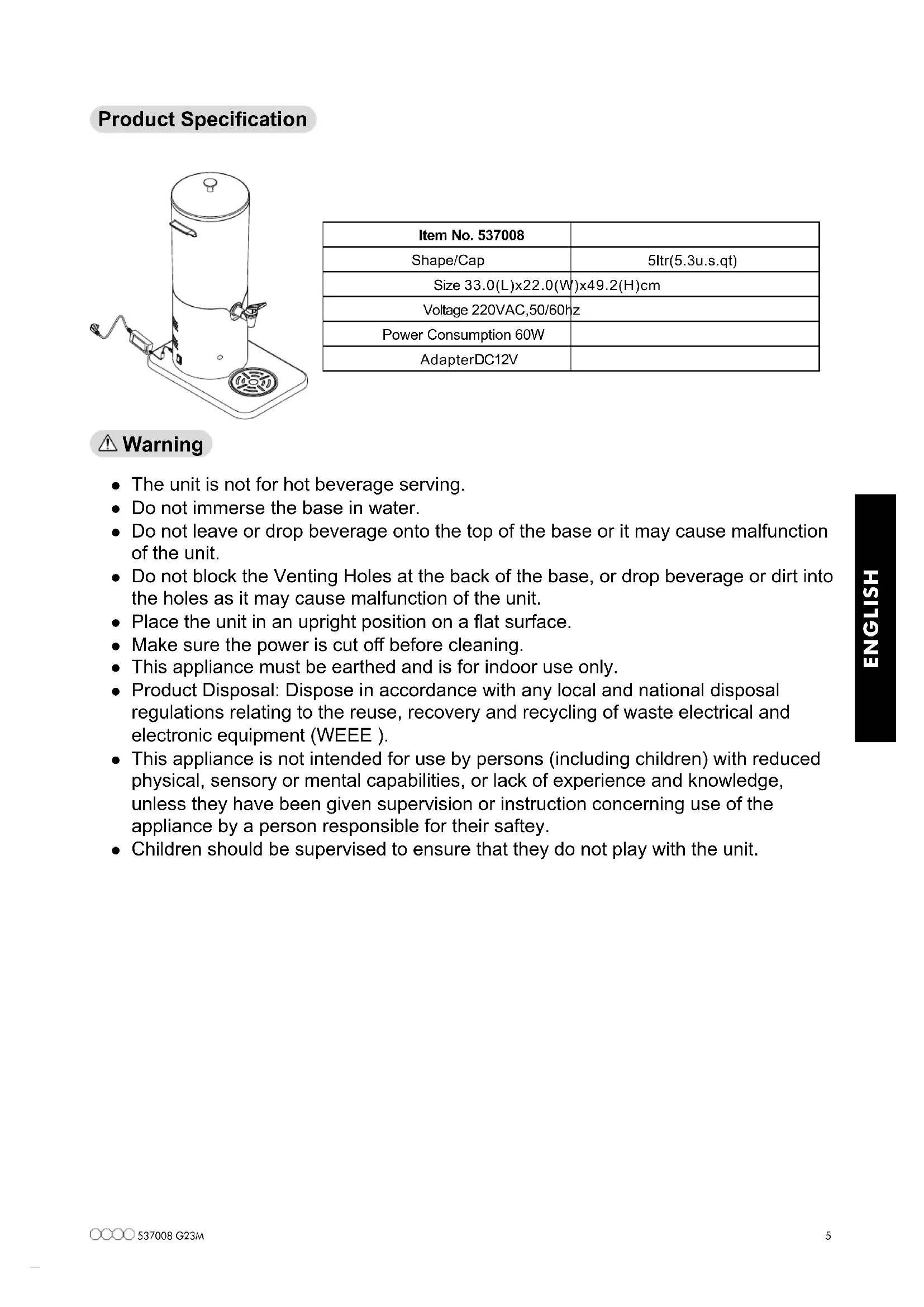

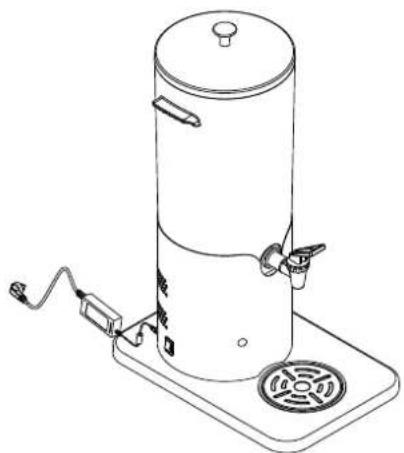

Product Specification
| Shape/Cap | 5ltr(5.3u.s.qt) |
| Size 33.0(L)x22.0(W)x49.2(H)cm | |
| Voltage 220VAC,50/60hz | |
| Power Consumption 60W | |
| AdapterDC12V | |
Warning
- The unit is not for hot beverage serving.
- Do not immerse the base in water.
- Do not leave or drop beverage onto the top of the base or it may cause malfunction of the unit.
- Do not block the Venting Holes at the back of the base, or drop beverage or dirt into the holes as it may cause malfunction of the unit.
- Place the unit in an upright position on a flat surface.
• Make sure the power is cut off before cleaning. - This appliance must be earthed and is for indoor use only.
- Product Disposal: Dispose in accordance with any local and national disposal regulations relating to the reuse, recovery and recycling of waste electrical and electronic equipment (WEEE).
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the unit.

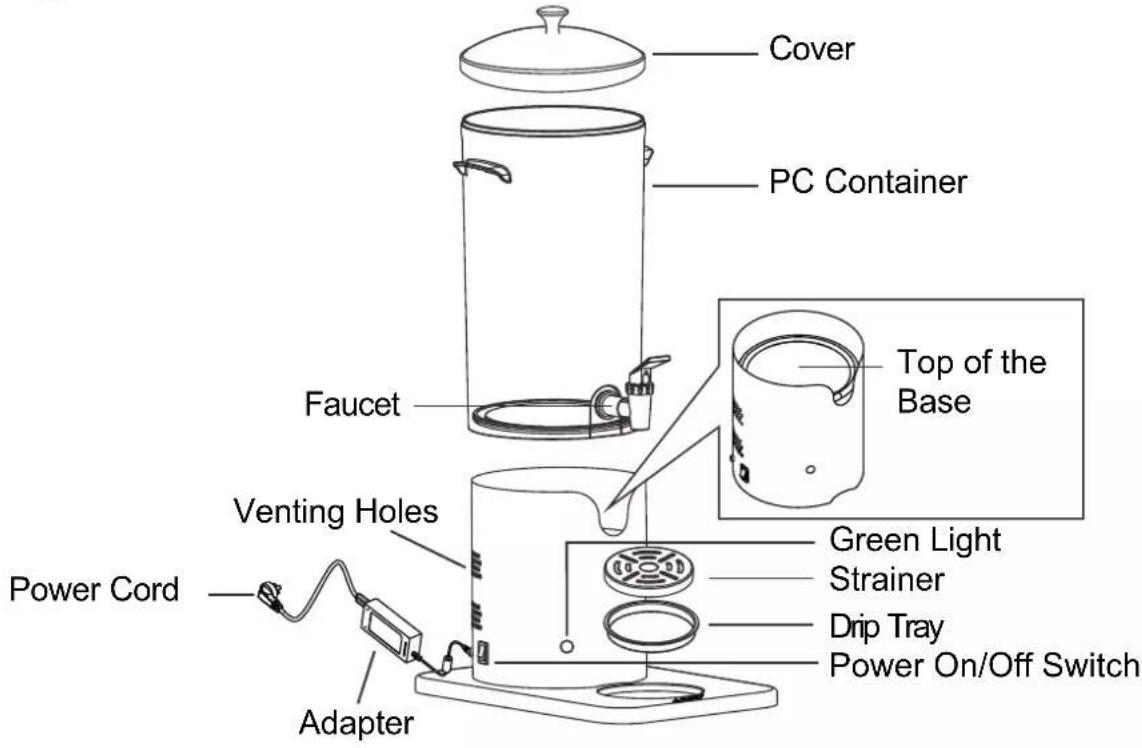

Product Drawing
Diagram 1


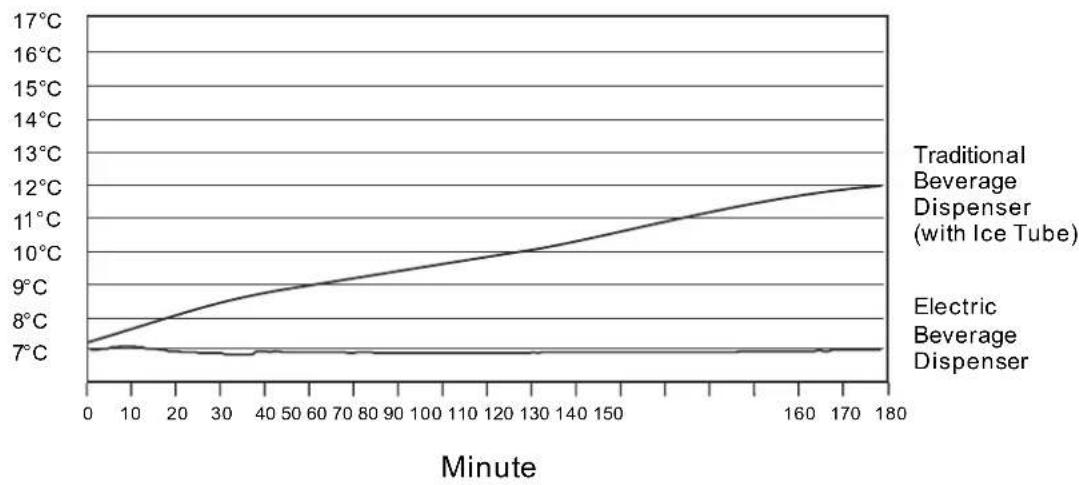

Diagram 2
Test area: at the bottom of the PC container
Room temperature: 25^ C
line
| Minute | Traditional Beverage Dispenser (with Ice Tube) | Electric Beverage Dispenser | | ------ | ----------------------------------------------- | --------------------------- | | 0 | 7°C | 7°C | | 180 | 12°C | 7°C |The Strengths of Electric Beverage Dispenser
• Economical and safe as it only consumes 60w / hour, DC12v.
- Save space as no need to have ice tube to contain ice.
- Convenient, hygienic and save cost as it keeps cool automatically, no need to refill ice.
How to Use
- Electric Beverage Dispenser is equipped with PN Junction Semi conductor to steadily keep beverage cool for a long time.
- To enable the dispenser to perform properly, it is necessary that the dispenser should be filled with cold or refrigerated beverage.
- When the dispenser is plugged in, the voltage 220 - 240vac will be converted to low voltage DC12v through the Adapter.
- When the Power On/Off Switch is turned on in "I" position, the Green Light is on and the dispenser starts keeping the beverage cool.
- When the Power On/Off Switch is turned off in "0" position, the Green Light is off and the Dispenser stops keeping the beverage cool
How to Clean
- Before cleaning, turn off the Power On/Off Switch to "0" position and unplug the unit.
- Remove the Cover, the PC Container, Strainer and Drip Tray, wash them with clean, soapy water using a mild detergent. Rinse thoroughly with clean water. Dry them completely before assembling the unit.
- For the outer surface of the Base, only wipe it over with a damp cloth using a mild detergent.
Optional Parts
| Picture Description | Part No. | ||
 | PC Container PB2370 | ||
 | Cover 030510L | ||
 | Faucet P2285 | ||
 | Strainer B2358M | ||
 | DripTray | B2359M | |
| Shape/Ferme | 5ltr(5.3u.s.qt) |
| Taille 33.0(L)x22.0(W)x49.2(H)cm | |
| Tension 220VAC,50/60hz | |
| Consommation Electrique 60W | |
| AdaptateurDC12V | |
⚠ Attention

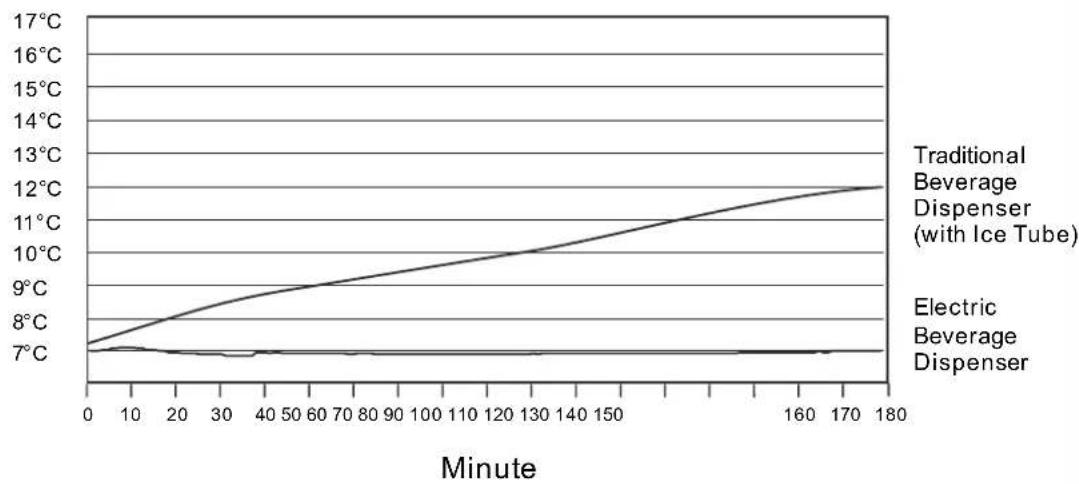

Schéma 2
Test area: at the bottom of the PC container
Room temperature: 25°C
