USER MANUAL 513030 Emga

Two outdoor heating units with visible heat sinks and a vertical stand (no text or symbols)

GEBRUIKSAANWIJZING INSTRUCTION MANUAL GEBRAUCHSANLEITUNG MANUEL D'UTILISATION

Gebruiksaanwijzing

Instruction manual

Gebrauchsanleitung

Exterior view of a heat exchanger unit (no signage or text on the device itself)

Exterior view of a portable outdoor heating lamp with a stand and label 'Q-time 2000S' (no other text or symbols visible)

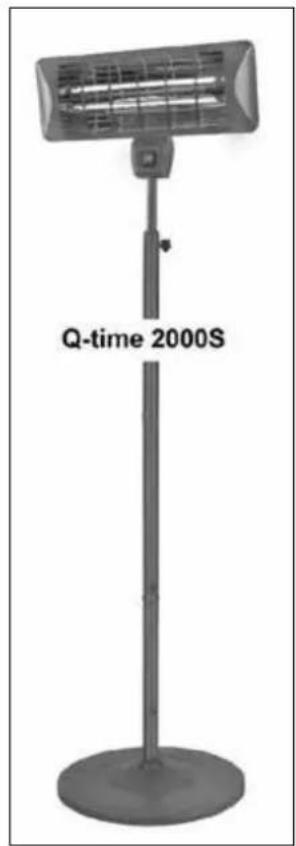

Q-time 2000 / 2000S

Art.nr. 334227 / Art.nr. 334203

334210 (Swiss plug)

Terrasstraler / Patioheater / Terrassenstrahler / Chauffage de terrasse

EUROM®

POWERFUL PRODUCTS

Row of seven gray square icons representing environmental or ecological symbols (no text or labels)

18-06-2019

Dank

Warning sign with no document and warning triangle indicating heat shock hazard

Labeled diagram of a portable air conditioner with numbered parts for identification

8 13 14 9 10 11 12 15 16

Voorzijde hoofd

Mechanical bracket assembly with mounting holes and a vertical support (no visible text or symbols)

Close-up of a mechanical clamp or fixture mounted on a metal base (no visible text or symbols)

Close-up of a mechanical component with a black arrow pointing to a small circular feature (no text or symbols visible)

Exterior view of a modern office building (no signage)

3D rendering of a mechanical device with a curved fan-like structure mounted on a stand (no text or symbols visible)

Simple line drawing of a trash bin with no text or symbols

Thank you very much for choosing for a Eurom device. You have made a good choice! We hope you will be satisfied about its functioning.

To get maximum profit from your panel, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.

Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your heater in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the Q-Time 2000!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The images used may differ.

Symbol statement

Warning sign with no document and heat exclamation symbol

Do not cover your device!

Be careful: hot surface!

Technical details

	Q-Time 2000	Q-Time 2000S
Heat output	1000-2000 W	1000-2000 W
Voltage	220-240V / 50Hz	220-240V / 50Hz
Protection class	IP24	IP24
Lamp	Quartz	Quartz
Reach	Max 14 m2	Max 14 m2
Model	Hanging at te wall	Standing on a standard
Oscillatable	± 35°↑	360° ↔ ± 35°↑
House	metal	metal
Dimensions	22 x 50 x 31 cm	22 x 50 x 200 cm
Weight	2,1 kg	9,5 kg

Important safety warnings

1. The patio heater may only be connected to a 220-240V / 50Hz, earthed socket. Connection to the incorrect voltage is hazardous and will invalidate the guarantee!
2. The patio heater must be exclusively used for the function for which it is designed, i.e. heating a patio or a similar location. Do not use it to dry textiles! The patio heater is not meant to be used commercially and is not to be used to heat buildings, greenhouses, sheds, etc.
3. The heating lamps are fragile so handle the patio heater with care. Avoid knocking the device, letting it fall etc.
4. The patio heater must be installed according to the instructions set out under 'installing the heater' (see later).
5. The patio heater is powerful and emits intense heat. We recommend that people (particularly the elderly, babies and the infirm) and animals are not exposed to direct heat.
6. The patio heater may not be installed or used in the immediate vicinity of flammable objects such as curtains, furniture etc. It may not be located too close to a socket and should not be used in a damp area such as a bath/shower room, by a swimming pool etc.
7. Do not run the cord underneath carpeting; do not cover it with mats, carpet strips, or similar and make sure it is not placed in any passageways. Make sure the cord cannot be stepped on and that no furniture is placed on top of it. Do not lead the cord around sharp corners and do not roll it up too tightly after use!

1. Do not use the patio heater outdoors during wet weather!
2. Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
3. Never cover the patio heater!
4. Prevent the cable coming into contact with the hot elements of the patio heater.
5. If possible, avoid the use of an extension cable. If an extension cable has to be used, it must have a capacity of at least 10A and 2000W. If you use an extension cable, it must be unrolled completely.
6. Never immerse the patio heater in any fluids.
7. Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. do not let bare skin come into contact with hot surfaces.
8. Never stick your fingers, pencils or any other object into the patio heater grille.
9. The heating element (and particularly the grille) gets hot during use. Do not touch this part of the device until the patio heater has cooled down!
10. Close supervision is necessary if the product is used near children or incapacitated persons. Close supervision is necessary if the product is used near children or incapacitated persons. Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
11. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

1. Switch the patio heater off and unplug before moving or cleaning.
2. Never try to repair the patio heater yourself.
3. If the patio heater, the electricity cable or the plug needs to be repaired, take the device to a recognised service point. Repairs by unauthorised individuals or modifications made to the device will invalidate the guarantee. Contact your supplier for repairs under guarantee.

Attention! This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

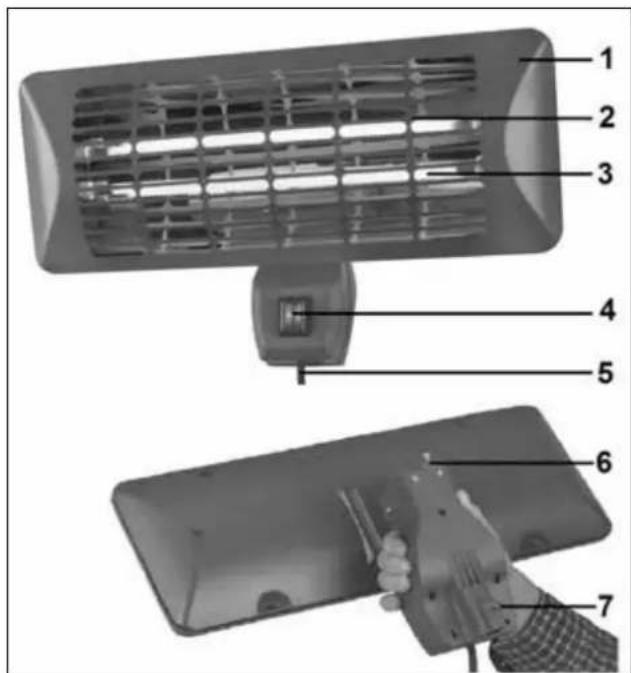

Description

Front heating element:

1. Heater housing
2. Grille
3. Quartz lamp (2x)
4. Operating switch (2x)
5. Electrical cable with plug

Back of heating element:

1. Bracket (for hanging the patioheater)

2. Hanging screw

A wall bracket, plugs and screws (not illustrated) are supplied for wall mounting

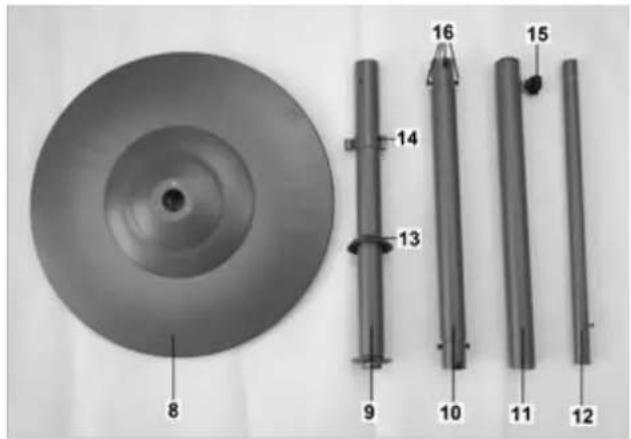

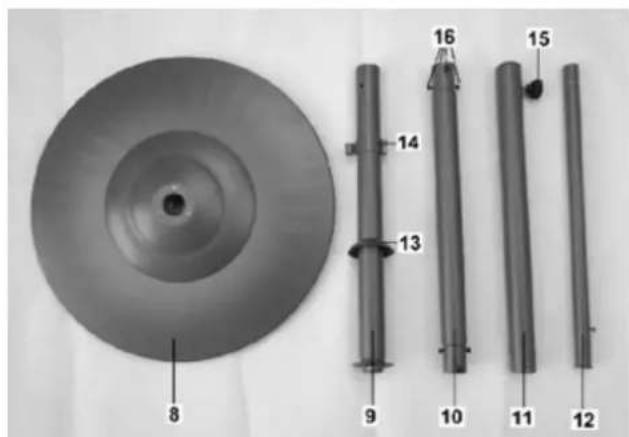

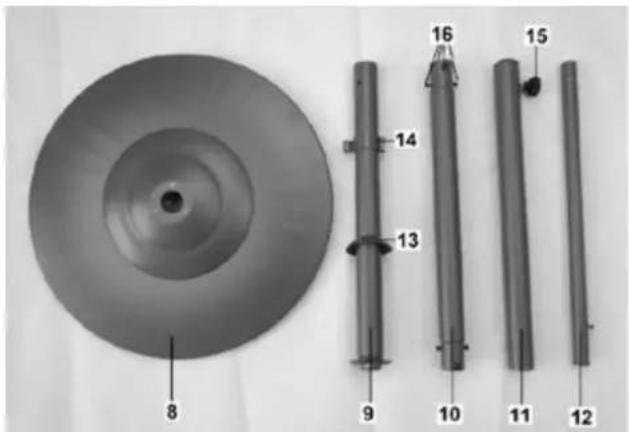

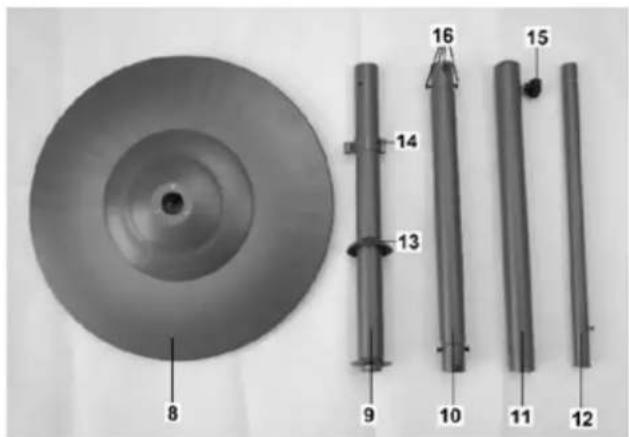

Standard (only S version):

1. Base
2. Stand, bottom section
3. Stand, middle section
4. Stand, top section
5. Stand, adjustable section
6. Protective cover
7. Cable guide
8. Black locking screw
9. Fixing screws for stand

Labeled diagram of a heating fan with numbered parts for identification

8 13 14 9 10 16 15 11 12

Installing the heater

Remove all package material (including the shock absorbing material around the bulb) before installing the heater and check the appliance, supply cord and the plug for signs of damage.

Carefully choose the right place to install your heater.

Before fastening, check that the minimum safe distances between the surroundings and the chosen location are respected:

Minimum distance lowest point of heater - floor: 1,8 metres

Minimum distance heater - heated object: 1 metre

Minimum distance top heater – fire-resistant ceiling: 0.3 metres

Minimum distance top heater - tent tarpaulin, parasol etc.: 0.35 metres

Minimum distance side heater - walls, obstacles, objects: 0.5 metres

If you suspend the device outside, ensure that it is protected from the wind.

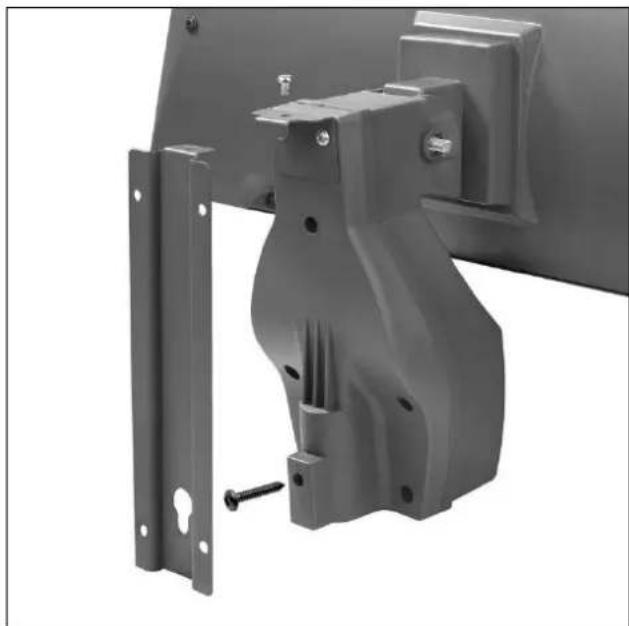

Wall mounting

- The housing of the heater (1) must be at least 30 cm from the ceiling, 50 cm from side-walls and 1.80 m above the floor.

- The patio heater must be affixed to a sturdy wall made of stone or cement. Never attach to walls made of wood or other flammable material! Attach using the bracket supplied; do not use any other supports or attachments!

- Drill four holes in the correct places for the plugs and attach the wall bracket to the wall using the screws. The curved part of the plate must be uppermost and the 'keyhole' must be located at the bottom of the support. The wall bracket must be horizontal.

Close-up of a metallic mechanical bracket with mounting holes and a metal frame (no text or symbols visible)

- Attach the bracket (6) using the two small screws on the patio heater, as shown.

- Turn the hanging screw (7) into the corresponding hole on the side of the patio heater, until it protrudes a maximum of 5 mm (see diagram).

- Hang the heater onto the wall support. The bracket at the back of the heater unit must fall into the curved part of the wall support; the hanging screw (7) must be placed into the round part of the 'keyhole' on the wall support and then pushed gently downwards until the patio heater is firmly affixed. Secure this with a bolt through both brackets (see diagram).

- Check that the patio heater is attached firmly and fully horizontally before use.

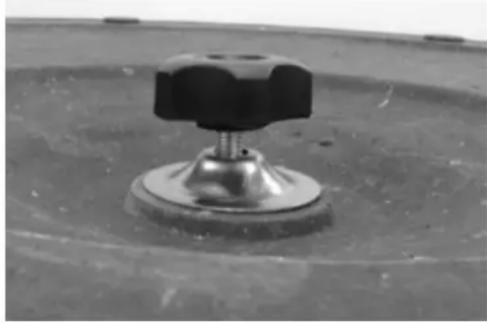

Assembling the stand (only S version)

- Place the bottom section of the stand (9, with the fastening plate) on the base (8), in such a way that the screw holes are aligned. Turn the foot over and screw the lower section of the stand from below with the plate and the locking nut (see diagram). Turn the base the right way up. Insert the 3 bolts through the double holes and tighten them firmly. Place the protective cover over the screw connection.

Close-up of a metallic mechanical component with a black cap and circular base (no visible text or symbols)

- Slide the adjustable, narrow section of the stand (12) from below through the top section of the stand (11), until it comes out again at the top (widening at the

base). Secure the adjustable section using the black locking screw (15) that is located at the top of the top section of the stand.

- Push the centre section of the stand (10) into the lower section (9), screw-hole to screw-hole. Secure with four fixing screws. In the same way, secure the upper section of the stand (11, with the adjustable part inside) over the central section.

- Screw the extra black colored screw (supplied) into the adjustable section of the stand so that it cannot, so that it cannot slide into the upper section (to secure the movable pipe).

- Then undo the hanging screw (7) almost entirely. Place the top of the patio heater over the top of the adjustable stand section so that the hanging screw falls precisely into the recess on the stand. Now tighten the screw firmly. The electrical cable can be secured in the cable holders on the stand.

- Check that all connections are completely secure and that the terrace heater is securely positioned before using it.

- The terrace heater must be placed at a distance of at least 1 metre from the nearest wall. The box with the radiator lights must be at least 30 cm from a ceiling and 1.80 metres above the ground. The terrace heater must be placed firmly on an even and completely horizontal surface.

Close-up of a mechanical component with a black arrow pointing to a small circular feature (no text or symbols visible)

Stand Q-Time 2000S

The stand that is supplied with the Q-Time 2000S is multifunctional. In the top of the narrow stand section, there is a threaded section; a suitable screw with a black top is also supplied. You can, therefore, also mount a lamp on the stand (see diagram).

Exterior view of a modern office building (no signage)

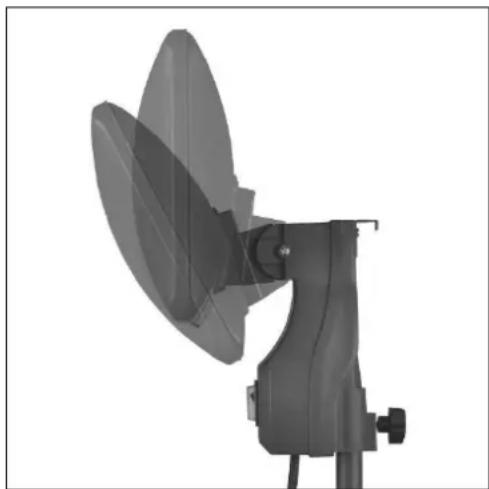

Patio heater functions

• The top of the patio heater can tilt to around 35^ ; set it to the position you prefer.
• The height of the heater top can be adjusted with the S-system. The black locking screw (15) on the upper stand section must be undone and the adjustable stand section can be pushed in/out of the upper section. Then tighten the screw up firmly. The heater head must always be kept at least 180 cm above the floor.

- Check that all of the safety requirements have been fulfilled.

- Now insert the plug into the socket (220-240V-50Hz).

- By pressing one of the two operating switches (I pressed), you can set the patio heater to half power (1000W). By pressing the other switch in too, you can also switch the second light on and the device works at full power (2000W). Switch off the lamps by pressing the switches again (O pressed).

- The patio heater does not have a thermostat and continues to give out heat until it is switched off. Always keep a close eye on the patio heater when it is switched on!

- Remove the plug from the socket when the patio heater is not in use.

3D rendering of a satellite dish antenna mounted on a tripod stand (no text or symbols visible)

Fall protection

The Q-Time 2000S is equipped a fall safeguard. It will automatically switch off if, despite the precautionary measures you have taken, the device falls over. In this event, unplug the device immediately.

Always check the patio heater carefully for damage, then put it upright again. Never use a damaged device but take it to your dealer or a recognised service point to be checked and/or repaired.

If you cannot find any damage, switch the patio heater off, insert the plug into the socket and put the device on again. Monitor the patio heater closely for the first fifteen minutes; if any defects occur, unplug immediately and take it to your dealer/service point to be repaired.

Cleaning

Always switch the patio heater off, allow the patio heater to cool down and unplug before cleaning. Clean using a damp cloth and, if necessary, a little cleaning fluid. Never use corrosive or abrasive cleaning agents!

After a while, dust and debris may gather behind the grille (2). You can try to remove this carefully using a thin, soft brush and a vacuum cleaner. Never use a compressor as this could damage the lamps or the reflector. Avoid touching the lamps.

Removal

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

CE-declaration

Undersigned: Eurom, Kokosstraat 20, 8281 JC Genemuiden-NL declares that the product below

product: Patio heaters

known under the brand: Eurom

types: Q-Time 2000 and 2000S

fulfils the requirements of the norms below:

LVD 2014/35/EU

EN 60335-1:2012+A11:2014

EN 60335-2-30:2009+A11:2012

EN 62233:2008

EMC 2014/35/EU

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

RoHS 2011/65/EU&(EU)2015/863

Genemuiden, 18-06-2019

W.J. Bakker, alg. dir.

akkar.
