Product Type	Wall-mounted Range Hood
Brand	KitchenAid
Model	KWCS100WSS
Width	91.4 cm (36 in)
Depth	50.8 cm (20 in)
Height with chimney	73.7 cm to 113 cm (29 in to 44 in)
Weight	18 kg
Power Supply	120 V, 60 Hz, 15 A, AC
Venting Type	6 in (15.2 cm) duct to the outside or recirculation with charcoal kit (optional)
Material	Stainless steel
Number of speeds	3
Lighting	Halogen lamp 12 V, 20 W max, MR11 base
Grease filters	Metal, dishwasher safe
Charcoal filters	Optional, replace every 4 months (part no. 4378623)
Thermal protection	Yes, automatic shut-off in case of overheating
Warranty	1 year limited (parts and labor)
Included accessories	Grease filters, mounting screws, chimney flanges
Repairability	Replacement parts available, authorized after-sales service

Frequently Asked Questions - KWCS100WSS KITCHENAID

How to install the KitchenAid KWCS100WSS range hood?

Installation must be performed by a qualified technician. Follow the provided installation instructions. Use a 6 in (15.2 cm) metal duct for external venting or a recirculation kit for ductless installation. Use the provided mounting screws and secure the hood to a wooden structure. Respect the minimum distances from the cooking surface (30 in minimum, 36 in recommended).

How to clean the metal grease filters?

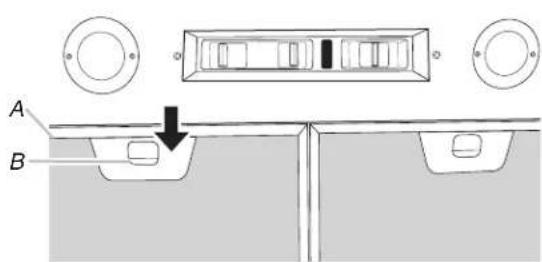

Remove the filters by pressing the tab and pulling down. Wash them in the dishwasher or by hand with warm detergent. Let them dry completely before reinstalling. Clean them frequently to prevent grease buildup.

How to replace the halogen lamp?

Turn off the hood and wait for the lamp to cool. Remove the two screws from the lighting bracket and gently pull the bracket. Replace with a halogen lamp of 12 V, 20 W max, MR11 base. Do not touch the lamp with bare fingers; use a glove or cloth.

Can I use the hood in recirculation mode (without external venting)?

Yes, you must purchase the chimney recirculation kit (part no. W10272172) and charcoal filters (part no. 4378623). Install the diverter fitting provided with the hood and the charcoal filters. The vapors are then recirculated and returned to the room.

What are the exact dimensions of the hood?

The hood has a width of 91.4 cm (36 in) and a depth of 50.8 cm (20 in). The total height with the chimney is adjustable from 73.7 cm to 113 cm (29 in to 44 in) depending on the ceiling height.

What to do if the hood stops suddenly during use?

The hood is equipped with a thermal protection device. Set the fan to off (position 0) and wait about 60 minutes for it to cool down. Then turn it back on. If the problem persists, check the circuit breaker or contact after-sales service.

What type of vent duct is recommended?

Use only a rigid metal duct with a diameter of 6 in (15.2 cm). Avoid flexible ducts that reduce performance. The maximum circuit length is 35 ft (10.7 m). Limit the number of 90° elbows to three maximum.

How often should the charcoal filters be replaced?

Replace the charcoal filters every 4 months under normal use, more often with heavy use. They are not washable and must be discarded. Follow the removal instructions: remove the grease filters, then turn the charcoal filters counterclockwise to remove them.

Is the hood compatible with a gas stove?

Yes, it can be installed over a gas stove. Maintain a minimum distance of 30 in (76.2 cm) between the cooking surface and the bottom of the hood. Ensure adequate ventilation and follow local codes.

What is the warranty for the KitchenAid KWCS100WSS range hood?

The hood is covered by a 1-year limited warranty from the date of purchase, for parts and labor. The warranty applies only in the United States and Canada. Keep the proof of purchase. For service, call 1-800-807-6777 in Canada.

USER MANUAL KWCS100WSS KITCHENAID

30" (76.2 CM) AND 36" (91.4 CM) WALL-MOUNT CANOPY HOOD

Installation Instructions and Use & Care Guide

For questions about features, operation/performance, parts, accessories or service, call: 1-800-422-1230

or visit our website at www.kitchenaid.com

In Canada, for assistance, installation and service, call: 1-800-807-6777

or visit our website at www.kitchenaid.ca

HOTTE DE CUISINIÈRE POUR MONTAGE MURAL 30" (76,2 CM) ET 36" (91,4 CM)

IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.

FOR RESIDENTIAL USE ONLY.

IMPORTANT:LIRE ET CONSERVER CES INSTRUCTIONS.

POUR UTILISATION RÉSIDENTIELLE UNIQUÉMENT.

TABLE OF CONTENTS

RANGE HOOD SAFETY 2

INSTALLATION REQUIREMENTS. 4

Tools and Parts 4
Location Requirements. 4
Venting Requirements. 5
Electrical Requirements 6

INSTALLATION INSTRUCTIONS. 6

Prepare Location. 6
Install Range Hood. 8
Make Electrical Connection 8
Install Chimney Covers 9
Complete Installation 9

RANGE HOOD USE. 10

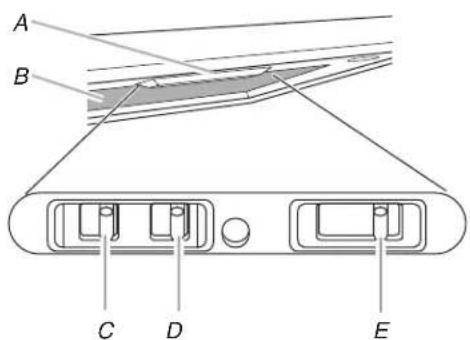

Range Hood Controls 10

RANGE HOOD CARE. 10

Cleaning. 10

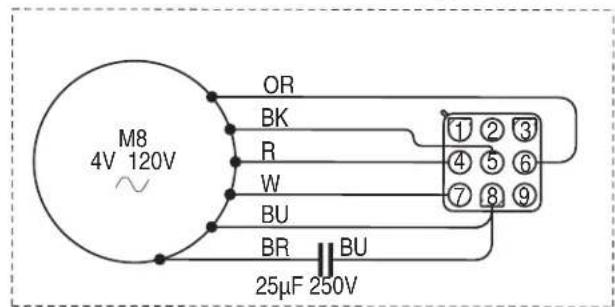

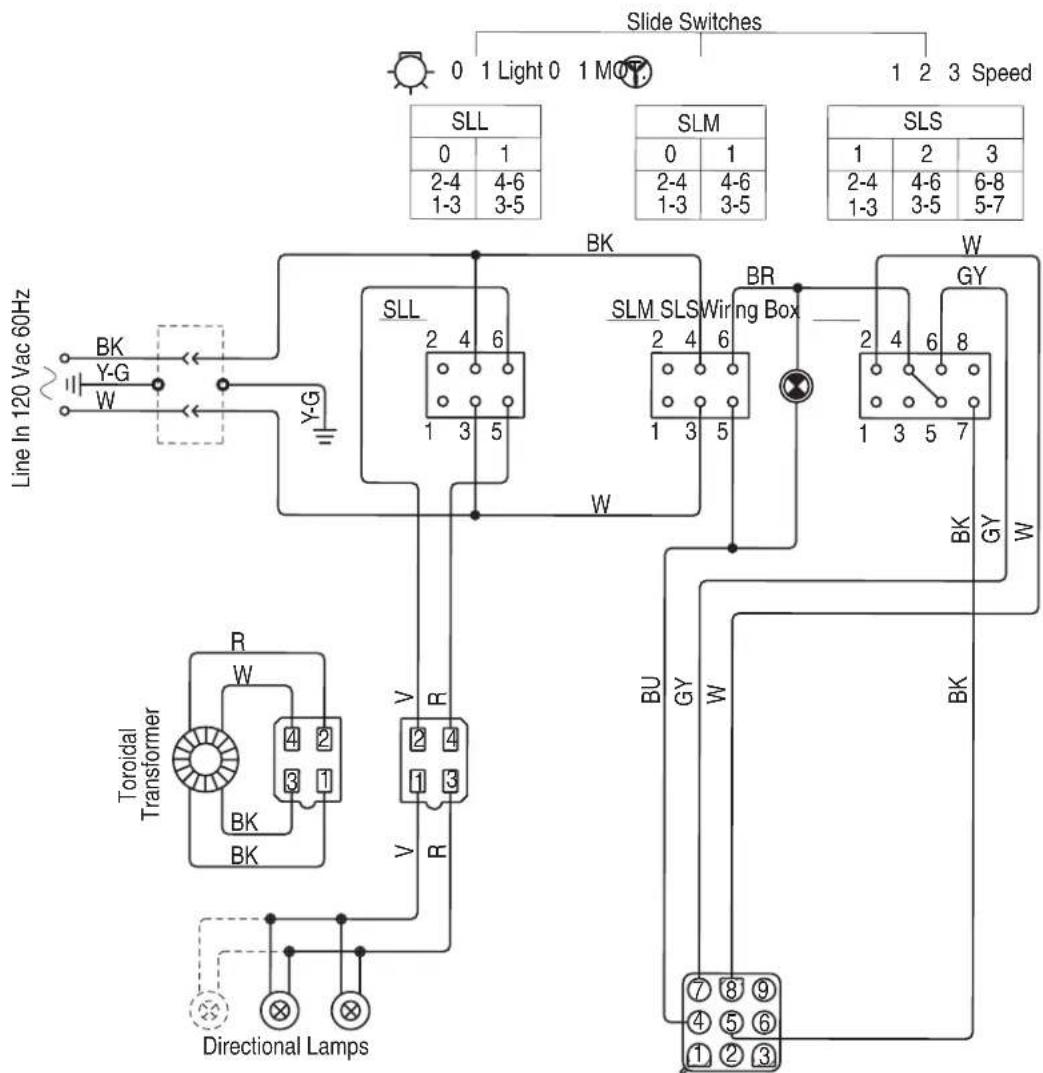

WIRING DIAGRAM 12

ASSISTANCE OR SERVICE. 13

In the U.S.A. 13
In Canada 13
Accessories. 13

WARRANTY 14

TABLE DES MATIÈRES

SECURITE DE LA HOTTE DE CUISINIÈRE 15
EXIGENCES D'INSTALLATION 17

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

ADANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

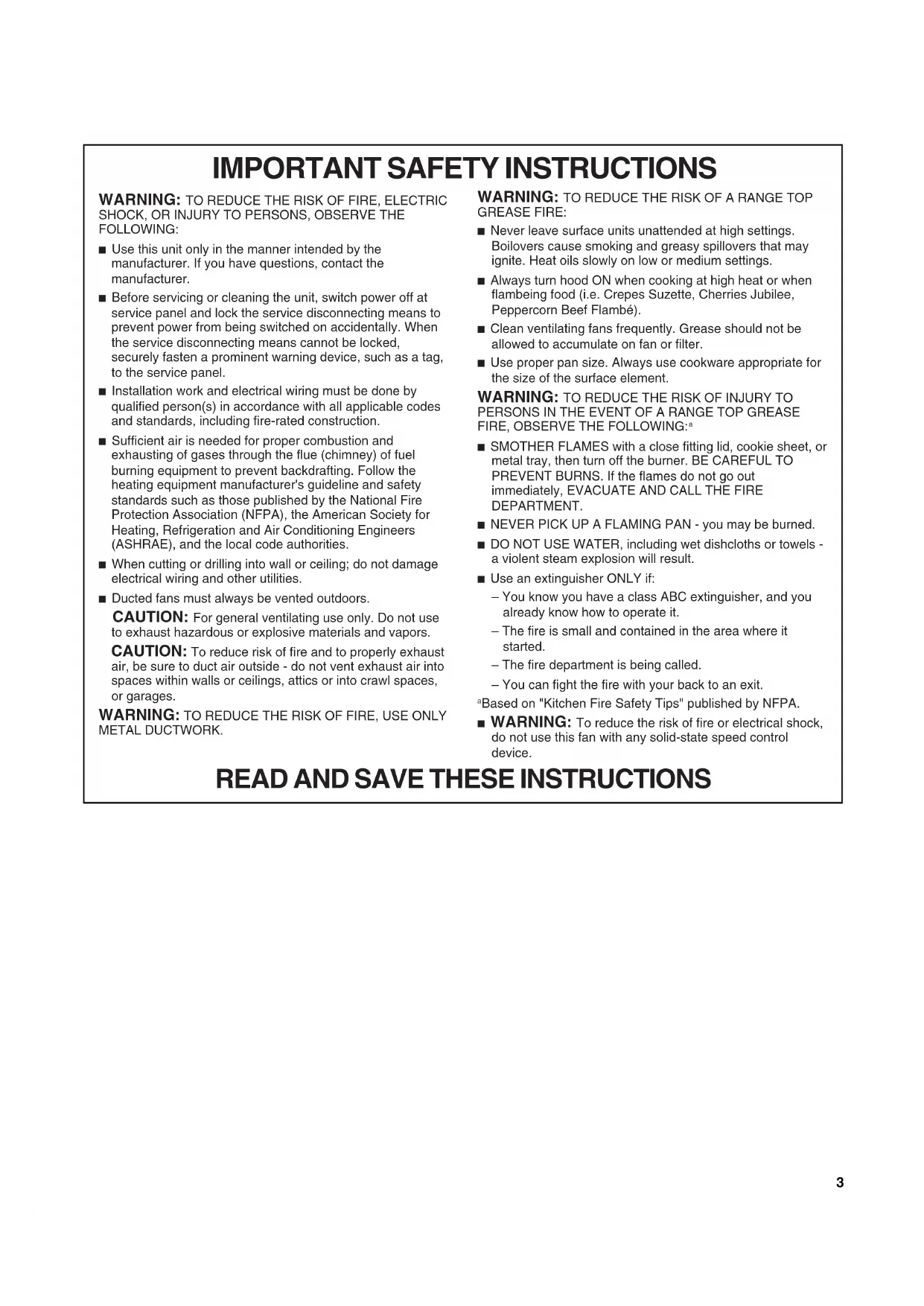

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
■ Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
- Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
- When cutting or drilling into wall or ceiling; do not damage electrical wiring and other utilities.
Ducted fans must always be vented outdoors.

CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings, attics or into crawl spaces, or garages.

WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

• Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
  Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
  Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
  Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:a

SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
NEVER PICK UP A FLAMING PAN - you may be burned.
DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
Use an extinguisher ONLY if:

• You know you have a class ABC extinguisher, and you already know how to operate it.
• The fire is small and contained in the area where it started.
• The fire department is being called.
• You can fight the fire with your back to an exit.

^a Based on "Kitchen Fire Safety Tips" published by NFPA.

WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.

READ AND SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

Level
■ Drill
1 14'' (3 cm) drill bit
32" (2.4 mm) drill bit
18" (3 mm) drill bit
■ Pencil
Wire stripper or utility knife
Tape measure or ruler
■ Pliers
Caulking gun and weatherproof caulking compound
Vent clamps
Jigsaw or keyhole saw
Flat-blade screwdriver
Metal snips
Phillips screwdriver
Scissors

Parts needed

Home power supply cable
1 - 1/2 (12.7 mm) UL listed or CSA approved strain relief
2 UL listed wire connectors

For vented installations, you will also need:

1 wall or roof cap
Metal vent system

For non-vented (recirculating) installations, you will also need:

Recirculating Kit Part Number W10272172 for non-vented (recirculating) installations only. See "Assistance or Service" section to order.

Parts supplied

Remove parts from packages. Check that all parts are included.
■ 2 metal grease filters for 30^ (76.2 cm) models 3 metal grease filters for 36^ (91.4 cm) models
2-chimney mounting brackets
- 6 - #10 Phillips head mounting screws
4 - Chimney cover mounting screws
Upper chimney cover
Lower chimney cover
Damper

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

Have a qualified technician install the range hood. It is the installer's responsibility to comply with installation clearances specified on the model/serial rating plate. The model/serial rating plate is located inside the range hood on the rear wall of the range hood.

Canopy range hood location should be away from strong draft areas, such as windows, doors and strong heating vents.

Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance.

Grounded electrical outlet is required. See "Electrical Requirements" section.

The canopy range hood is factory set for venting through the roof or through the wall. For non-vented (recirculating) Installation see "Non-vented (recirculating) Installations" in "Prepare Location" section. Recirculating Kit Part Number W10272172 is available from your dealer or an authorized parts distributor.

All openings in ceiling and wall where canopy range hood will be installed must be sealed.

For Mobile Home Installations

The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A*, or latest edition, or with local codes.

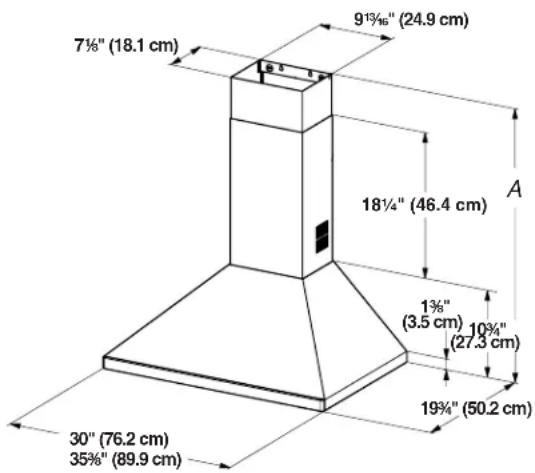

Product Dimensions

A. Min. for vented installation - 29" (73.7 cm)
Min. for non-vented installation - 32½" (82.6 cm)
Max. 44½" (113.0 cm)

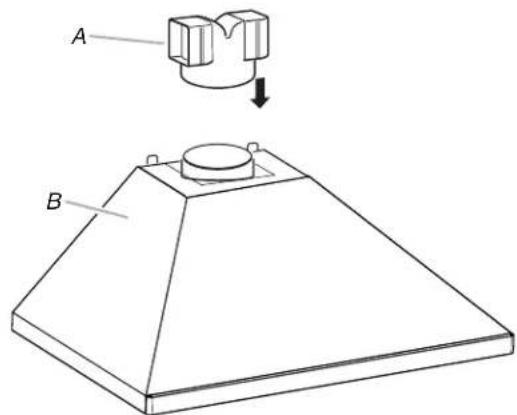

Non-vented (recirculating) Installations

For non-vented (recirculating) installations, a Recirculating Kit Part Number W10272172 is required. See "Assistance or Service" section to order.

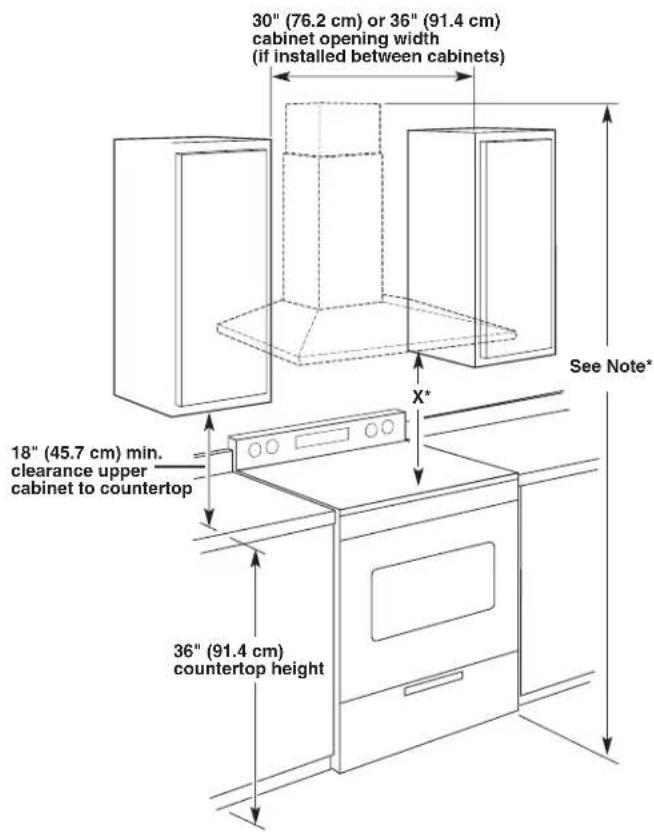

Installation Dimensions

*NOTE: The range hood chimneys are adjustable and designed to meet varying ceiling or soffit heights depending on the distance "X" between the bottom of the range hood and the cooking surface. The chimney extension replaces the upper chimney shipped with the range hood. See "Assistance or Service" section to order.

IMPORTANT:

Minimum distance "X": 24" (61.0 cm)

Suggested maximum distance "X": 36" (91.4 cm)

The chimneys can be adjusted for ceilings between 7^5^ (2.26 m) with dimension "X" at 24" (61.0 cm) and 9^812^ (2.96 m) with dimension "X" at 36" (91.4 cm).

Venting Requirements

(Vented Models Only)

• Vent system must terminate to the outdoors, except for nonvented (recirculating) installations.
• Do not terminate the vent system in an attic or other enclosed area.
• Do not use 4'' (10.2 cm) laundry-type wall caps.
  Use metal vent only. Rigid metal vent is recommended. Plastic or metal foil vent is not recommended.
  The length of vent system and number of elbows should be kept to a minimum to provide efficient performance.

For the most efficient and quiet operation:

Use no more than three 90^ elbows.
Make sure there is a minimum of 24^ (61.0 cm) of straight vent between the elbows if more than 1 elbow is used.
- Do not install 2 elbows together.

Use clamps to seal all joints in the vent system.
The vent system must have a damper. If the roof or wall cap has a damper, do not use the damper supplied with the range hood.
Use caulking to seal exterior wall or roof opening around the cap.
The size of the vent should be uniform.

Cold weather installations

An additional back draft damper should be installed to minimize backward cold air flow and a thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break.

The break should be as close as possible to where the vent system enters the heated portion of the house.

Makeup air

Local building codes may require the use of make up air systems when using ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale.

Consult your HVAC professional for specific requirements in your area.

Venting Methods

This canopy range hood is factory set for venting through the roof or through the wall.

A 6'' (15.2 cm) round vent system is needed for installation (not included). The hood exhaust opening is 6'' (15.2 cm) round.

NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that greatly reduce performance.

Vent system can terminate either through the roof or wall. To vent through a wall, a 90^ elbow is needed.

Rear discharge

A 90^ elbow may be installed immediately above the hood.

For non-vented (recirculating) installations

If it is not possible to vent cooking fumes and vapors to the outside, the hood can be used in the non-vented (recirculating) installation by fitting the charcoal filters and the diverter to the range hood. Fumes and vapors are recycled through the vent slots in the lower chimney.

Roof Venting Wall Venting Non-vented
(recirculating)
A. Roof cap
B. 6'' (15.2 cm)
round vent

A. Wall cap
B. 6'' (15.2 cm)
round vent

A. Diverter
6" (15.2 cm)
round vent

Calculating Vent System Length

To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system.

Vent Piece 6'' (15.2 cm) Round

45^ elbow 2.5 ft

(0.8 m)

90^ elbow 5.0 ft

(1.5 m)

Maximum equivalent vent length is 35 ft (10.7 m).

Example vent system

The following example falls within the maximum recommended vent length of 35 ft (10.7 m).

1-90°elbow=5.0ft(1.5m)

1 - wall cap = 0.0 ft (0.0 m)

8 ft (2.4 m) straight = 8.0 ft (2.4 m)

Length of system = 13.0 ft (3.9m)

Electrical Requirements

Observe all governing codes and ordinances.

Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

One Batterymarch Park

Quincy, MA 02269

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

A 120 Volt, 60Hz AC only, 15-amp, fused electrical circuit is required.
If the house has aluminum wiring follow the procedure below:

1. Connect a section of solid copper wire to the pigtail leads.
2. Connect the aluminum wiring to the added section of copper wire using special connectors and/or tools designed and UL listed for joining copper to aluminum.

Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

Wire sizes and connections must conform with the rating of the appliance as specified on the model/serial rating plate. The model/serial plate is located behind the filter on the rear wall of the range hood.
Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

INSTALLATION INSTRUCTIONS

Prepare Location

It is recommended that the vent system be installed before hood is installed.
Before making cutouts, make sure there is proper clearance within the ceiling or wall for exhaust vent.
Check your ceiling height and the hood height maximum before you select your hood.

1. Disconnect power.

2. Determine which venting method to use: roof, wall, or non-vented.

3. Select a flat surface for assembling the range hood. Place covering over that surface.

WARNING

Excessive Weight Hazard

Use two or more people to move and install range hood.

Failure to do so can result in back or other injury.

1. Using 2 or more people, lift range hood onto covered surface. Tip the hood on its back and remove filters and set aside. See the "Range Hood Care" section.

Range Hood Mounting Screws Installation

1. Determine and mark the centerline on the wall where the range hood will be installed.

Based on the ceiling or soffit height, determine the distance "X" (30" [76.2 cm] min, suggested 36" [91.4 cm] max) needed between the cooking surface and the bottom of the range hood. To this distance, add 1112 (28.9 cm) and draw a horizontal line (A) about 24" (61.0 cm) long centered on the vertical centerline (D) at this distance.

A. Horizontal line
B. 11% (28.9 cm)
C. Distance "X" (30" [76.2 cm] min, suggested 36" [91.4 cm] max)
D. Vertical centerline
E. Cooking surface

1. Mark 2 points on each side of the horizontal line 312 (8.9 cm) from the vertical centerline.
2. Drill 2 - 132 (2.4 mm) pilot holes for installation into wood. The screws provided are for mounting the range hood into wood; mounting into drywall or plaster is not recommended.

A. Horizontal line
B. Vertical centerline
C. 3 12^ (8.9 cm)

1. Install the 2 - #10 Phillips head mounting screws. Leave a 14 (6.4 mm) gap between the wall and the back of the screw head to slide range hood into place.

Chimney Support Bracket Installation

1. Place one of the chimney brackets against the wall so that its top edge is 116 (2.0 mm) from the ceiling or soffit and level.

Align the center notches of the bracket and the centerline. Mark the centers of the bracket holes.

A. Vertical centerline
B. Center notches
C. 1 / 36 (1.6 mm)

1. Place the other chimney bracket on the wall so that its lower edge is 16116 (40.8 cm) from the ceiling or soffit and level. Align the center notches of the bracket and the centerline. Mark the centers of the bracket holes.

1. Drill 4 - 3132 (2.4 mm) pilot holes.
2. Attach each bracket to the wall with 2 - #10 Phillips head mounting screws. Tighten screws securely.

Complete Preparation

1. Determine and make all necessary cuts in the wall for the vent system. Install the vent system before installing the range hood. See the "Venting Requirements" section.
2. Determine and mark the location where the hole will be drilled for the power supply cable to be run through the wall.

A. Distance “X” + 3" (7.6 cm)
B. 1 14'' (3.2 ~cm) diameter
C. 7 14'' (18.4 cm) for 30" (76.2 cm) models
81/4" (21.0 cm) for 36" (91.4 cm) models
D. Distance "X" (30" [76.2 cm] min, suggested 36" [91.4 cm] max)
E. Vertical centerline
F. Cooking surface

1. Drill a 114 (3.2 cm) hole at this location.

2. Pull enough power supply cable through the wall to allow for easy connection to the terminal box.

3. Remove terminal box cover.

4. Remove the knockout in the range hood back cover and install a UL listed or CSA approved 1 / 2 strain relief with the strain relief clamping screws on the inside of the terminal box.

Install Range Hood

Vented Installations

1. Install damper on top of the exhaust opening. Check that the damper opens freely.
2. Go to "Mount the Range Hood" in this section.

Non-vented (recirculating) Installations

NOTE: Recirculating Kit Part Number W10272172 is required. See the "Assistance or Service" section to order.

1. Install the non-vented (recirculating) diverter supplied with the recirculating kit.
2. Fit the diverter over the vent motor exhaust outlet and push down to seat on outlet. Check that the diverter exhaust outlets are parallel with the vent motor sides so that they will align with the vent cover openings in the lower chimney.

A. Diverter
B. Vent canopy

1. Install the charcoal filters included with the recirculating kit. See the "Range Hood Care" section.

Mount the Range Hood

WARNING

Excessive Weight Hazard

Use two or more people to move and install range hood.

Failure to do so can result in back or other injury.

1. Using 2 or more people, lift the range hood and place the mounting hood brackets over the mounting screws.

1. Run the home power supply cable (black, white and green wires) through the strain relief in the back of the range hood and into the terminal box.
2. Push the range hood into its mounted position. The 12 strain relief should fit into the 114 diameter hole when the range hood is seated into position.
3. Securely tighten the mounting screws.

Make Electrical Connection

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

1. Disconnect power.
2. Use UL listed wire connectors and connect black wires (B) together.
3. Use UL listed wire connectors and connect white wires (D) together.

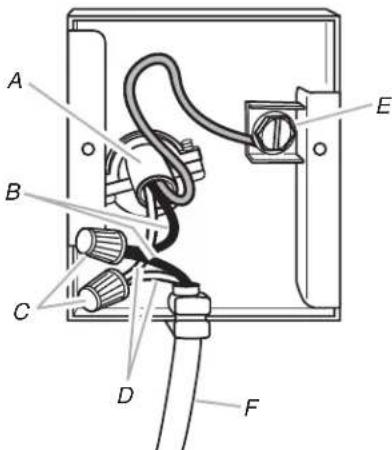

A. Home power supply cable
B. Black wires
C. UL listed wire connectors
D. White wires
E. Green (or bare) ground wire from home power supply connected to green ground screw
F. Range hood power supply cable

WARNING

Fire Hazard

Electrically ground the blower.

Use copper wire.

Connect ground wire to green ground screw in terminal box.

Failure to do so can result in death, fire, or electrical shock.

1. Connect green (or bare) ground wire from home power supply to the unused green ground screw (E) in the terminal box. Tighten the ground screw.
2. Push excess home supply cable back through the strain relief and tighten strain relief screws. Use caulking to seal openings.
3. Install terminal box cover.
4. Check all light bulbs to make sure they are secure in their sockets.
5. Reconnect power.

Install Chimney Covers

For Vented Installations

1. Connect the vent system and seal all connections with clamps.

Install Upper Chimney Cover

1. Slightly spread the sides of the cover apart and hook them behind the chimney mounting brackets.
2. Attach the cover to the brackets with 4 mounting screws.
3. Securely tighten screws.

A. 4 mounting screws

Install Lower Chimney Cover

1. Slightly spread the sides of the cover apart and hook them behind the upper chimney and the wall. Slide the lower chimney down to fit securely into the top of the range hood.

NOTE: For vented installations, the lower chimney cover can be installed with the vent slots at the top. For non-vented (recirculating) installations, the lower chimney cover must be installed with the vent slots at the bottom.

View shown with vent slot at the bottom for non-vented (recirculating) installation

Complete Installation

1. Replace grease filters. See the "Range Hood Care" section.
2. Check the operation of the range hood fan and light. See "Range Hood Use" section.

If range hood does not operate, check to see whether a circuit breaker has tripped or a household fuse has blown. Disconnect power and check wiring connections.

NOTE: To get the most efficient use from your new range hood, read the "Range Hood Use" section.

RANGE HOOD USE

The range hood is designed to remove smoke, cooking vapors and odors from the cooktop area. For best results, start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen.

The hood controls are centered on the front underside of the range hood.

A. Controls
B. Filters
C. Light switch
D. Fan switch
E. Fan speed switch

Range Hood Controls

Operating the light

1. Move the light switch to the "1" position to turn range hood light ON.
2. Move the light switch to the "0" position to turn range hood light OFF.

Operating the fan

1. Move the fan switch to the "1" position to turn the fan ON. The fan will begin operating at the speed set on the fan speed switch.
2. Move the fan switch to the "0" position to turn the fan OFF.

Adjusting the fan

The fan has 3 speed controls. Move the fan speed switch to "1" position for low speed, "2" position for medium speed or "3" position for high speed.

Thermal Protector

The range hood is equipped with a thermal protector to avoid overheating conditions. If the range hood shuts off while in use, move fan slider switch to the "0" position to turn off the range hood. Wait approximately 60 minutes, then move slider to the "On" position to restart the range hood.

RANGE HOOD CARE

Cleaning

IMPORTANT: Clean the hood and grease filters frequently according to the following instructions. Replace grease filters before operating hood.

Be sure lights are cool before cleaning the hood.

Exterior Surfaces

Clean the range hood with a mild detergent and soft cloth. To avoid damage to the exterior surface, do not use abrasive cleanser or steel-wool pads.

Metal Grease Filters

The filters should be washed frequently. Place metal filters in dishwasher or hot detergent solution to clean.

Drain water and let each filter dry thoroughly before replacing it.

To Remove Metal Grease Filters

NOTE: Use 2 hands to remove the filters: one to press in the tab and pull down on the front of the filter, and the other to hold the filter so that it does not fall.

1. Turn off fan and lights. Check that halogen lamp is cool.
2. Press the tab toward the rear of the hood and pull down the front of the filter.

A. Retaining channel B. Tab

1. Slide the filter down and away from the front retaining channel.
2. Repeat steps 2 and 3 for the remaining filters.

To Replace Metal Grease Filters

NOTE: Use 2 hands to install the filters: one to insert the filter into the rear channel so that it does not fall, and the other to press in the tab and push up on the front of the filter.

1. Insert back edge of filter into rear channel of the filter opening.
2. Pull in on the tab and push the front of the filter up into position. Release the tab. The filter will lock into place.
3. Repeat steps 1 and 2 for remaining filters.

Charcoal Filters - For Non-Vented (recirculating) Installations

The charcoal filter is not washable nor reusable.

It should be changed every 4 months in normal use or more frequently in heavy use. To order a new Charcoal Filter Kit, see the "Assistance or Service" section.

The charcoal filter captures unpleasant cooking odors.

To Install Charcoal Filters

1. Turn fan and lights off. Check that halogen lamp is cool.
2. Remove the metal grease filters. See "Metal Grease Filters" section.
3. Set metal grease filters aside.
4. Place charcoal filter onto blower cover and rotate clockwise. Repeat for the other side of the blower.

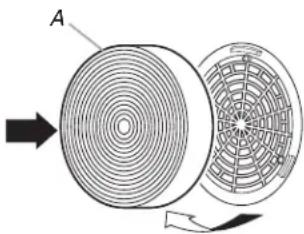

A. Charcoal filter

1. Replace metal grease filters. See "Metal Grease Filters" in this section.

To Replace Charcoal Filters

1. Turn fan and lights off. Check that halogen lamp is cool.
2. Remove the metal grease filters. See "Metal Grease Filters" in this section.
3. Set metal grease filters aside.
4. Remove charcoal filter. Rotate the filter counter-clockwise and pull away from blower cover. Repeat removal of charcoal filter on other side of blower.
5. Discard the used charcoal filters.
6. Place charcoal filter onto blower cover and rotate clockwise. Repeat for the other side of the blower.
7. Replace metal grease filters. See "Metal Grease Filters" in this section.

Replacing a Halogen Lamp

Turn off the range hood and allow the halogen lamp to cool. To avoid damage or decreasing the life of the new bulb, do not touch bulb with bare fingers. Replace bulb, using tissue or wearing cotton gloves to handle bulb.

If new lamps do not operate, make sure the lamps are inserted correctly before calling service.

1. Disconnect power.
2. Remove the 2 screws holding the lighting support.
3. Gently pull the lighting support out of the range hood.
4. Remove the light from the lighting support and replace with a 12-volt, 20-watt maximum, halogen lamp made for a MR11 base.

Check that the 2 pins are properly inserted in the lamp holder socket holes.

1. Replace the lighting support. Replace 2 screws and tighten.

WIRING DIAGRAM

ASSISTANCE OR SERVICE

When calling for assistance or service, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

If you need replacement parts

If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new appliance. To locate factory specified replacement parts in your area, call us or your nearest designated service center.

In the U.S.A.

Call the KitchenAid Customer eXperience Center toll free: 1-800-422-1230.

Our consultants provide assistance with:

Features and specifications on our full line of appliances.
■ Installation information.
Use and maintenance procedures.
■ Accessory and repair parts sales.
Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).
Referrals to local dealers, repair parts distributors and service companies. KitchenAid designated service technicians are trained to fulfill the product warranty and provide afterwarranty service, anywhere in the United States.

To locate the KitchenAid designated service company in your area, you can also look in your telephone directory Yellow Pages.

For further assistance

If you need further assistance, you can write to KitchenAid with any questions or concerns at:

KitchenAid Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

In Canada

Call the KitchenAid Canada Customer eXperience Centre toll free: 1-800-807-6777.

Our consultants provide assistance with:

Features and specifications on our full line of appliances.
Use and maintenance procedures.
■ Accessory and repair parts sales.
Referrals to local dealers, repair parts distributors and service companies. KitchenAid Canada designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada.

For further assistance

If you need further assistance, you can write to KitchenAid

Canada with any questions or concerns at:

Customer eXperience Centre

KitchenAid Canada

1901 Minnesota Court

Mississauga, Ontario L5N 3A7

Please include a daytime phone number in your correspondence.

Accessories

Charcoal Filter Kit

(for non-vented installations only)

Order Part Number 4378623

Recirculating Kit

(for non-vented installations only)

Order Part Number W10272172

KITCHENAID® VENTILATION WARRANTY

LIMITED WARRANTY

For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, KitchenAid brand of Whirlpool Corporation or Whirlpool Canada LP (hereafter "KitchenAid") will pay for Factory Specified Parts and repair labor to correct defects in materials or workmanship. Service must be provided by a KitchenAid designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. Outside the 50 United States and Canada, this limited warranty does not apply. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCUSED FROM WARRANTY

This limited warranty does not cover:

1. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty coverage.
3. Repairs when your major appliance is used for other than normal, single-family household use or when it is used in a manner that is contrary to published user or operator instructions and/or installation instructions.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of consumables or cleaning products not approved by KitchenAid.
5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to KitchenAid within 30 days from the date of purchase.
6. Costs associated with the removal from your home of your major appliance for repairs. This major appliance is designed to be repaired in the home and only in-home service is covered by this warranty.
7. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
8. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized KitchenAid servicer is not available.
9. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.
10. Major appliances with original model/serial numbers that have been removed, altered or cannot be easily determined. This warranty is void if the factory applied serial number has been altered or removed from your major appliance.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTY; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTY, INCLUDING WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. KITCHENAID SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

If outside the 50 United States and Canada, contact your authorized KitchenAid dealer to determine if another warranty applies. If you need service, first see the "Troubleshooting" section of the Use & Care Guide. After checking "Troubleshooting," you may find additional help by checking the "Assistance or Service" section or by calling KitchenAid. In the U.S.A., call 1-800-422-1230. In Canada, call 1-800-807-6777. 9/07

Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.

Write down the following information about your major appliance to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product.

Dealer name

Address

Phone number.

Model number

Serial number

Purchase date

SECURITE DE LA HOTTE DE CUISINIÈRE

National Fire Protection Association

One Batterymarch Park

Quincy, MA 02269

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

1901 Minnesota Court

Mississauga, Ontario L5N 3A7
