KSC6222ACS - Multi-cooker KITCHENAID - Free user manual and instructions

Brand	KitchenAid
Model	KSC6222ACS
Product Type	Multi-cooker (slow cooker)
Capacity	6 quarts (5.7 L)
Material of the cooking pot	Removable ceramic, dishwasher safe
Housing material	Stainless steel
Lid	Hinged lid with locking handles
Main functions	Slow cook (low, medium, high), keep warm, programmable timer up to 24 h
Display	Dual LED (on/off, countdown)
Timer	Programmable in 30-minute increments, up to 24 hours
Automatic keep warm	Yes, after cooking, for up to 4 hours
Automatic shut-off	Yes, after 24 hours of continuous operation
Power	Not specified in the manual
Voltage / Frequency	120 V / 60 Hz (3-prong grounded plug)
Dimensions (approximate)	Approximately 35 x 30 x 25 cm
Weight (approximate)	Approximately 4.5 kg
Care and cleaning	Cooking pot and lid are dishwasher safe; wipe housing with a damp cloth
Safety	Polarized grounding plug, do not immerse housing
Warranty	1 year limited (USA, Canada, Puerto Rico)
Customer service	USA: 1-800-541-6390; Canada: 1-800-807-6777

Frequently Asked Questions - KSC6222ACS KITCHENAID

Can I use the slow cooker without the ceramic pot?

No, the ceramic pot is essential for cooking. Never cook directly in the metal housing.

What is the maximum capacity of the ceramic pot?

The pot has a capacity of 6 quarts (5.7 L). For best results, fill it at least half full.

Can the lid go in the oven?

No, the lid should not be placed in the oven. Only the ceramic pot can go in the oven up to 149°C (300°F) to keep warm, but not for cooking.

How do I set the timer?

Press POWER, select the temperature, then use the + or - buttons to set the cooking time in 30-minute increments, up to 24 hours. The appliance automatically switches to keep warm after cooking.

Can I leave the slow cooker unattended?

Yes, it is designed for that. However, follow safety instructions: use on a stable surface, do not let the cord hang, and do not leave children unattended.

What if white residues appear on the ceramic pot?

These are calcium deposits. Clean with a mixture of water and vinegar, rinse, and dry.

Can I use frozen food in the slow cooker?

No, always thaw meat and poultry before placing them in the slow cooker. Frozen foods can extend cooking time and compromise food safety.

How do I clean the lid gasket?

Remove the three circular gaskets before washing the lid in the dishwasher. Wash them by hand. To reinstall, the notched side must face down.

What to do if the appliance does not turn on?

Check that it is plugged into a 3-prong grounded outlet. Inspect the fuse or circuit breaker. If the problem persists, contact an authorized service center.

Does the slow cooker turn off automatically?

Yes, if using the non-programmed mode, it turns off after 24 hours. In programmed mode, it switches to keep warm for 4 hours, then turns off.

USER MANUAL KSC6222ACS KITCHENAID

Close-up of a sandwich with meat and sauce served on a plate (no visible text or symbols)

Slow Cooker

INSTRUCTIONS

Pour Mijoteuse

INSTRUCTIONS

Cocimiento Lento

INSTRUCCIONES

Welcome to the world of KitchenAid®

We're committed to helping you create a lifetime of delicious meals for family and friends. To help ensure the longevity and performance of your appliance, keep this guide handy. It will empower you with the best way to use and care for your product. Your satisfaction is our #1 goal. Remember to register your product online at www.kitchenaid.com, or by using the attached Product Registration Card.

USA: 1.800.541.6390

Canada: 1.800.807.6777

KitchenAid.com

KitchenAid.ca

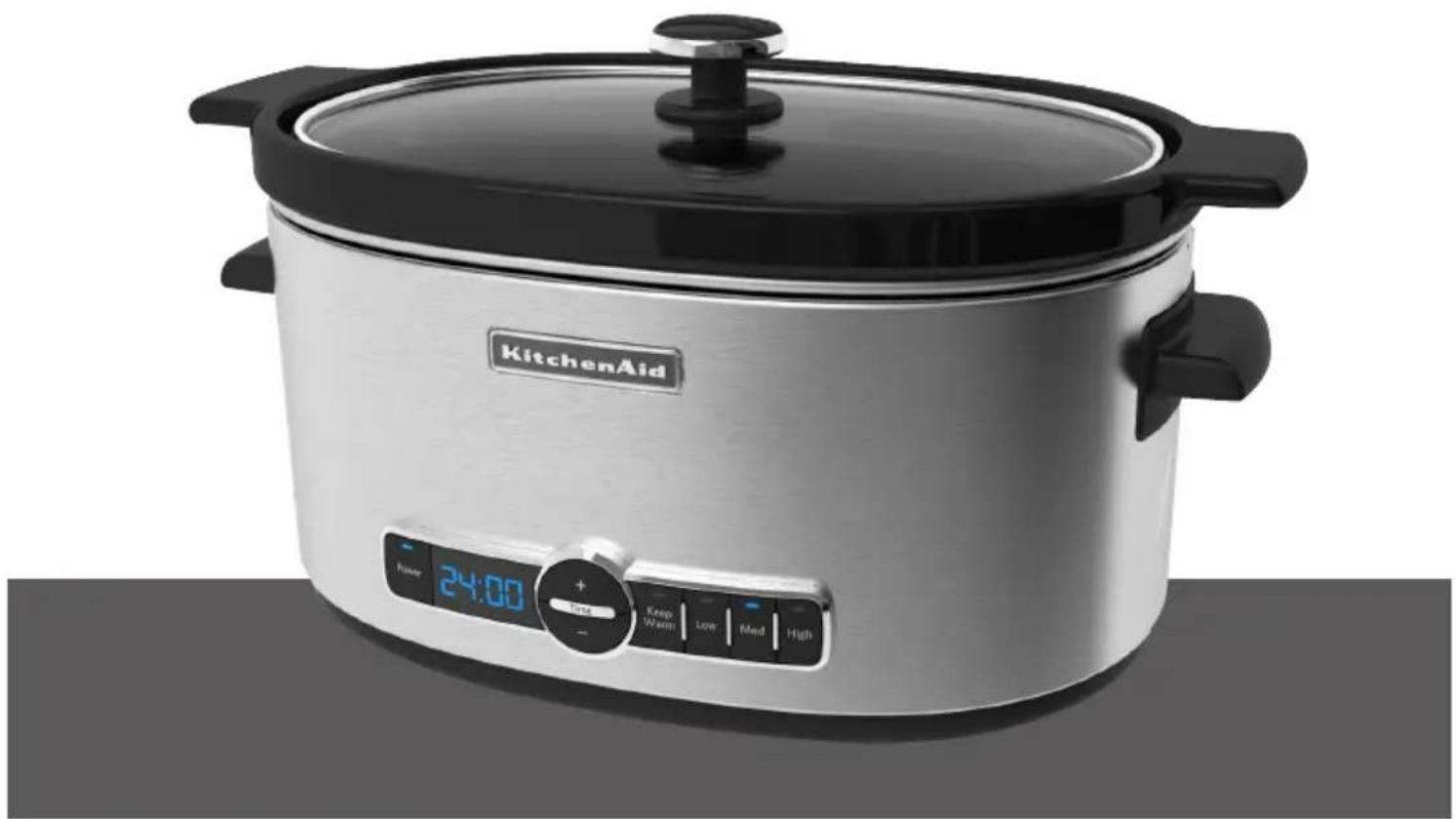

KitchenAid kitchen cooktop with digital display showing 24:00 time and control buttons (no text-heavy elements)

Table of Contents

SLOW COOKER SAFETY

Important Safeguards....4

Electrical Requirements....5

FEATURES AND OPERATION

Slow Cooker Parts and Features....6

Preparing the Slow Cooker 8

Operating the Slow Cooker....9

Slow Cooker Setting Guidelines....10

Slow Cooking Tips....II

CARE AND CLEANING

Care and Cleaning 12

Troubleshooting....13

WARRANTY AND SERVICE INFORMATION

KitchenAid ^® Slow Cooker Warranty....14

PROOF OF PURCHASE & PRODUCT REGISTRATION

Always keep a copy of the sales receipt showing the date of purchase of your Slow Cooker. Proof of purchase will assure you of in-warranty service. Before you use your Slow Cooker, please fill out and mail your product registration card packed with the unit. This card will enable us to contact you in the unlikely event of a product safety notification and assist us in complying with the provisions of the Consumer Product Safety Act. This card does not verify your warranty. Please complete the following for your personal records:

Model Number

Serial Number

Date Purchased

Store Name ____

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:

I. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To avoid electrical shock do not immerse cord, plugs, or the slow cooker base in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest Authorized Service Facility for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by KitchenAid ^® may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
II. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
12. Do not use appliance for other than intended use.
13. This product is designed for household use only.
14. To disconnect, turn any control to "OFF," then remove plug from wall outlet.

SAVE THESE INSTRUCTIONS

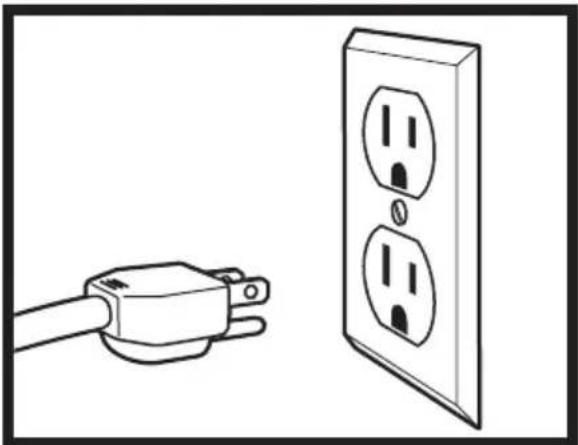

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Failure to follow these instructions can result in death, fire, or electrical shock.

Line drawing of a hand holding an electrical outlet with two outlets, no text or symbols present

Volts: 120 V.A.C.

Hertz: 60 Hz

NOTE: This slow cooker has a 3 prong grounded plug. To reduce the risk of electrical shock, this plug will fit in an outlet only one way. If the plug does not fit in the outlet, contact a qualified electrician. Do not modify the plug in any way.

If a longer extension cord is used:

• The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance.
• The extension cord should be a grounding-type 3-wire cord.
• The cord should be arranged so it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

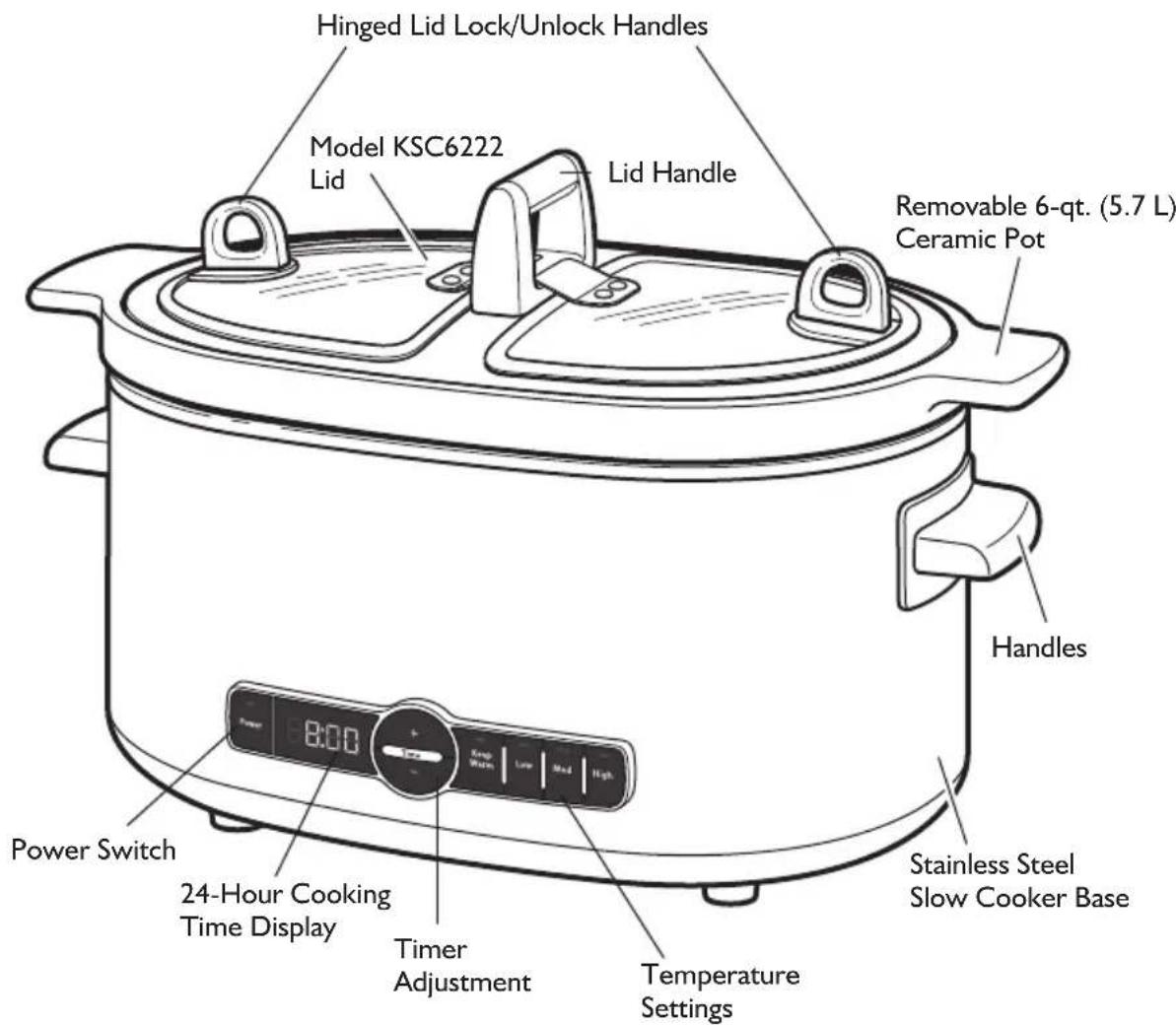

24-Hour Cooking Time Display

Large easy-to-read display shows two modes. If the Slow Cooker is turned on, the display will read “On” and will run for 24 hours before automatically turning off. The second mode is programmed – the display will count down from the programmed time. It can be programmed for up to 24:00 hours. In addition, once the program runs through the programmed time, it will automatically default to Keep Warm for 4:00 hours. When this happens, the display will count up from 0:00 to 4:00 hours before automatically shutting off.

Removable 6-qt. (5.7 L) Ceramic Pot

Dishwasher-safe pot makes an attractive serving dish at the dinner table. While the ceramic pot is not recommended for oven use, it is oven safe up to 300^ F/140°C, and may be used to keep cooked food warm up to an hour.

The ceramic pot should also not be used in the microwave or on the stove top.

NOTE: Pouring may be difficult if pot is full or nearly full, so it is recommended that you ladle the contents out of the pot.

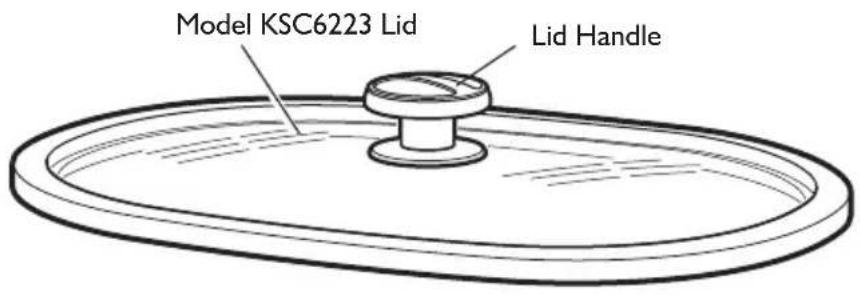

Glass Lid (Model KSC6223)

Glass lid helps with viewing while food is cooking.

Hinged Lid (Model KSC6222)

Innovative hinged lid design allows easy serving options with less heat loss. Large twisting handles on both hinged panels ensure easy one-handed operation for locking and unlocking.

NOTE: Lids are not oven safe.

Lid Handle

The lid handle is large for easy lifting, plus the material and design help reduce heat transfer from the lid.

Handles

The exterior base side handles are large, so the 6-qt. slow cooker can be lifted easily, even with oven mitts.

Stainless Slow Cooker Base

Provides stable and easy to clean support for the ceramic pot. The sides of the slow cooker base may get very warm during operation. Always use handles on base when moving Slow Cooker. Use oven mitts to remove the ceramic pot.

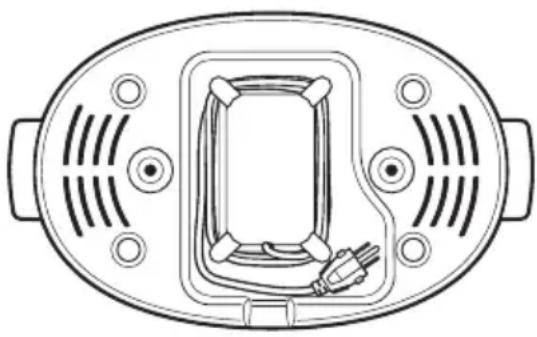

Integrated Cord Storage

The power cord, which includes a 3 prong grounded plug, stores neatly on the bottom of the slow cooker base.

Top-down schematic of an electronic device casing with ventilation slots and a central connector (no text or symbols)

Before First Use

Before using your slow cooker for the first time, wipe the metal base and cord with a clean, damp cloth. Wash the ceramic pot and glass lid in hot soapy water, then rinse and dry. The ceramic pot and glass lid can also be washed in the dishwasher.

Slow Cooker Assembly

I. Place the ceramic pot in the metal base. Do not cook anything in the metal base without the ceramic pot in place. Avoid sudden temperature changes such as adding refrigerated foods into heated pot. The ceramic pot must be placed in the metal base, and food placed in the ceramic pot for cooking.
2. For best cooking results always operate your Slow Cooker with the lid on.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug into a grounded 3 prong outlet. Slow Cooker is now ready for operation.

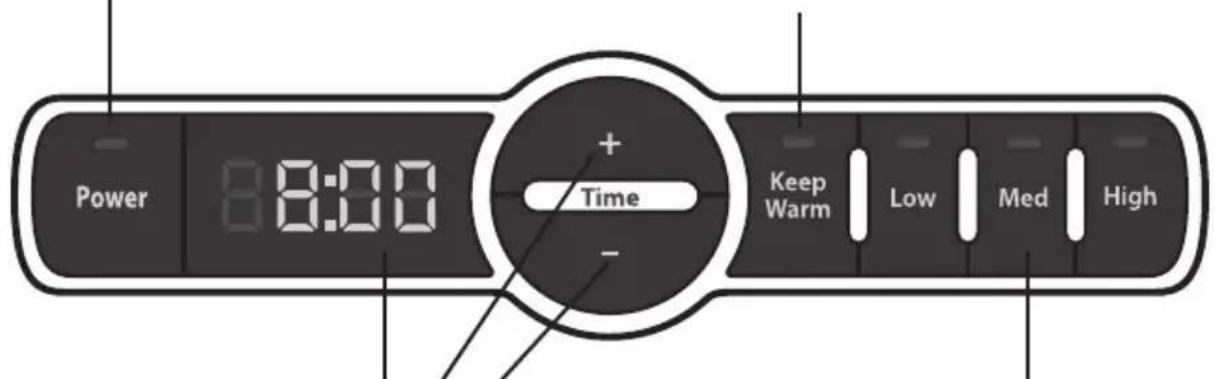

Operating Your Slow Cooker

Once the Slow Cooker has been plugged in, pressing "POWER" will illuminate both the LED display for the timer and the "Power" indicator.

When the "Keep Warm" mode is selected the timer will display "On".

NOTE: Do not attempt to cook in "Keep Warm" mode. It is intended only for keeping food at a safe temperature after it has finished cooking.

The timer allows you to program a specific cooking time up to 24 hours. By pressing “+” the time will increase by 30 minutes. By pressing “-” the time will decrease by 30 minutes. The time set will be displayed and counted down to zero.

Temperature control featuring three heat levels for perfect results.

NOTE: "On" will be displayed when a temperature is selected without entering a cook time on the timer. The Slow Cooker will operate for up to 24 hours, if uninterrupted; and then automatically shut off.

Getting Started

I. Plug in Slow Cooker (ensure ceramic pot is in Slow Cooker base).
2. Push "POWER" button.
3. Select Temperature.
4. If programming is desired use the “+ or -” buttons select desired cooking time (using the timer is optional and not required for Slow Cooker operation).
5. Make sure lid is on ceramic pot.

Slow Cooker Setting Guidelines

The multiple Slow Cooker settings allows the kind of cooking, or serving, that lets you prepare a variety of foods on different settings, so you can adapt your recipes to your changing schedule.

In general, use lower settings for longer cook times. Try a higher setting when you start food preparation later in the day and want to serve the food that same evening.

“High” – Try using this setting when a shorter cooking time is desired or for recipes that are typically baked.
ApplesauceBeans and riceBroth-based soupChicken/turkey piecesCobbler/fruit dessert	DumplingsEgg-based strataGingerbreadHot beveragesPudding/steamed cake	Roasted meatsSteamed potatoesWild rice casserole

“Medium” – Appropriate for most recipes when there is time for long, slow cooking. It’s an ideal setting for food started before going to work in the morning and served for dinner in the evening.
Baked potatoesBeef chuck roastBeef roastBeef rollsBeef short ribsCheeseCheese or cream based soupChicken or turkey	CasseroleChicken wingsChicken/turkey piecesCornish hensDressing/stuffingDried beans/lentilsEgg bakePoached pearsPork chops	Pork ribsPotato casserolePuddingsRice puddingSplit pea soupStewStewed chickenWild rice casserole

“Low”— Good for slow cooking recipes or less tender cuts of meats that require longer cooking times to develop full flavor.
Baked egg based puddings	Chicken/turkey pieces	Pork roast
Beef roast	Dressing/stuffing	Soups with less tender cuts of meat
Beef rolls	Dried beans/lentils
Beef short ribs	Hard squashes	Split pea soup
Cheese or cream	Lamb shanks	Stew
based soup	Pork chops	Stewed chicken
Chicken wings	Pork ribs

Over the past few decades, as schedules have become more hectic and lifestyles more fast-paced, more and more people have turned to slow cookers to help them get a better handle on their time.

This KitchenAid ^® Slow Cooker offers refinements in control that help the cooker be a more useful tool and power to add responsiveness and peace of mind.

Sure and Steady Cooking

A Slow Cooker is designed for you to put food into it, walk away from it without a worry, and return to a well-cooked meal. So it's important to let it do its job. That means you should always cook with the ceramic pot and glass lid in place, because removing the lid reduces the temperature inside the slow cooker and increases cooking time.

Except where a Slow Cooker recipe specifically directs you to remove the lid, do not remove or lift the lid until the minimum suggested recipe-cooking time has elapsed. If you want to view the food you're cooking, tap the glass lid to remove the condensation that has collected, and look through the lid.

Start With Food at the Right Temperature

Common sense is a good guide to knowing the right temperature for food when you start cooking in a Slow Cooker. Foods typically stored in the refrigerator should be added at their refrigerated temperature. Frozen food, on the other hand, should be thawed. And if you need to sear meat or poultry, do that just before adding it to the Slow Cooker – do not partially cook meat or poultry and then refrigerate before using.

Avoid adding liquids colder than normal refrigerated temperatures. Adding near-freezing liquids to a warm or hot pot may cause the pot to crack.

A Slow Cooker is a Moist Environment

Slow Cookers use a food's own moisture to cook the food. With the lid kept on while cooking, very little moisture evaporates and natural juices from the food accumulates. For that reason, use less liquid when using your favorite traditional recipes for slow cooking.

Enhancing Texture and Flavor

The amount of seasonings, types of ingredients, and when you add ingredients can improve the texture and flavor of your slow-cooked meals.

As a general rule for using your favorite recipes in the slow cooker, increase the amounts of herbs and seasonings to offset the effect of longer cooking times.

Add garnishes, fresh herbs, and quick-cooking vegetables toward the end of the cooking cycle. For example, you can add peas, corn and freshly sliced squash in the last 10 to 20 minutes.

Also consider the differences between related ingredients when cooking for extended times. Dark meat poultry will retain moisture better than white meat in recipes cooked more than 7 to 9 hours. Whole-grain rice, such as brown or wild rice, retains its texture better than white rice when it's slow cooked. Over extended periods, white rice can overcook and become mushy.

When cooking soups and stews, leave a 2-inch (5 cm) space between the top of the ceramic pot and the food so the recipe can come to a simmer without spilling over.

Do not use frozen, uncooked meat in the slow cooker. Always thaw meats prior to slow cooking.

Some foods are not suited for extended cooking. Pasta, seafood, milk, cream or sour cream should be added 2 hours before serving.

If cooking a vegetable-type casserole, there will need to be a liquid in the recipe to prevent scorching on the sides of the ceramic pot.

Cut Food to Proper Size

The size you cut food into can affect its taste and texture. To assure uniformity of cooking, cut vegetables of similar density, such as potatoes, carrots, and parsnips into similar-sized pieces. In general, dense vegetables should be slightly smaller than more tender vegetables.

Cutting meats into large pieces allows longer cooking times and avoids overcooking.

Care and Cleaning

I. Check that the slow cooker is switched off and unplugged before cleaning.
2. Allow the slow cooker to cool completely before cleaning.

NOTE: Do not immerse the metal base in water to clean any part of the slow cooker.

NOTE: Do not use abrasive cleaners or scouring pads.

1. Wipe the metal base and cord with a clean damp cloth.
2. Wash the ceramic pot and glass lid in hot soapy water, then rinse and dry. The ceramic pot and glass lid can also be washed in the dishwasher.

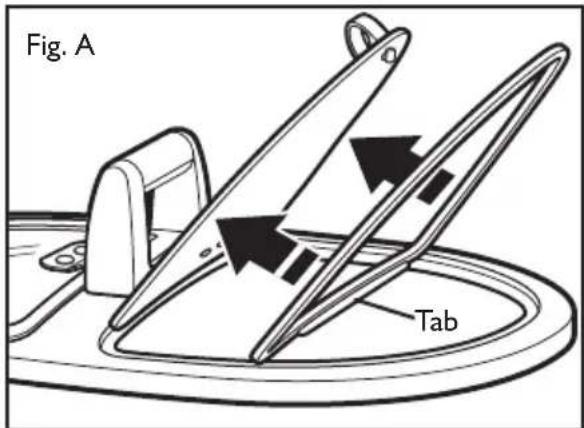

NOTE: It is recommended that you remove the three seals from around the lid before washing the glass lid in the dishwasher. The seals are hand washable.

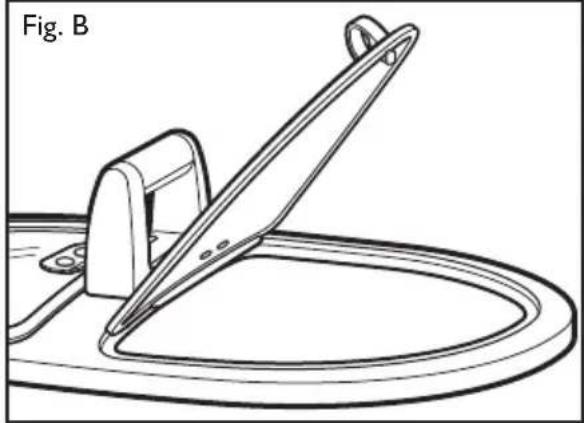

To replace the hinged lid seals, make sure that the tabbed edge is facing downward (see Fig. A), and slowly work the edges of the seal back onto the glass lid (see Fig. B).

Line drawing of a kitchen sink with a knife inserted, labeled Fig. B (no text or symbols on the diagram itself)

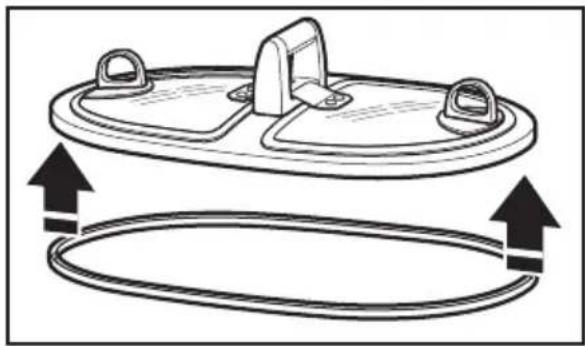

To replace the seal around the edge of the full lid, slowly work the edges of the seal back onto the lid from one end to the other. This seal will fit tightly against both sides of the lip around the bottom of the lid, and will stretch to fit in place.

Diagram of a mechanical component with two circular loops and directional arrows indicating motion or force (no text or symbols)

NOTE: When cooking very thick mixtures, such as polenta or many desserts, the ceramic pot may be lightly coated with no-stick cooking spray before cooking. This coating will help make cleanup easier after cooking.

Ceramic Pot Care

Here are a few simple tips to assure your slow cooker gives you years of service.

• This is a large-capacity slow cooker and it is recommended that you cook with at least 1 qt (1 L) of food in the ceramic pot.
• Do not store the ceramic pot in the refrigerator.
• If the ceramic pot has been inadvertently left in the refrigerator, do not immediately fill with hot or warm liquids. Wait until the pot is at room temperature.
• If assembling a recipe in advance of cooking, store ingredients in a covered, separate container.
• After each use, always follow the "Care and Cleaning" instructions.

- For best results, the ceramic pot should be at least half-filled. If less than half filled, check for appropriate temperature 1 to 2 hours earlier than recipe states.

To clean white residue from the ceramic pot

Small amounts of calcium in wash water may leave a white residue in the ceramic pot after it has been washed. To clean the residue, follow this procedure:

I. Pour a small amount of vinegar into the pot and dilute it with an equal amount of water.
2. Wipe the inside surfaces of the pot with a soft pad. Be sure to wipe the vinegar/water solution sufficiently over all the affected areas.
3. Empty the pot, rinse with water, and dry with a soft cloth or towel.

Troubleshooting

If your slow cooker should fail to operate, check the following:

- See if the slow cooker is plugged into a proper electrical outlet. If it is, unplug the slow cooker.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Failure to follow these instructions can result in death, fire, or electrical shock.

- If the slow cooker still does not work, check the household fuse or circuit breaker on the electrical circuit the slow cooker is connected to and make sure the circuit is closed.

If the problem cannot be corrected:

- Return appliance to the nearest Authorized Service Facility for examination, repair, or adjustment.

- Plug in slow cooker.

Length of Warranty:	KitchenAidWill Pay For:	KitchenAidWill Not Pay For:
50 United States, the District of Columbia, Canada, and Puerto Rico:One-year limited warranty from date of purchase.	50 United States, the District of Columbia and Canada:Hassle-free replacement of your slow cooker. See the following page for details on how to arrange for replacement.ORIn Puerto Rico:The replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid®Service Center. To arrange for service, see the following pages.	A. Repairs when slow cooker is used in other than normal single family home use.B. Damage resulting from accident, alteration, misuse or abuse or use with products not approved by KitchenAid®.C. Replacement parts or repair labor costs for slow cooker when operated outside the country of purchase.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.

IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID® AND KITCHENAID® CANADA LP DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

Hassle-Free Replacement Warranty - 50 United States and District of Columbia

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your slow cooker should fail within the first year of ownership, KitchenAid® will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original slow cooker returned to us. Your replacement unit will also be covered by our one year limited warranty. Please follow these instructions to receive this quality service.

If your KitchenAid® Slow Cooker should fail within the first year of ownership, simply call our toll-free Customer eXperience Center at 1-800-541-6390 Monday through Friday, 8 a.m. to 8 p.m. (Eastern Time), or saturday, 10 a.m. to 5 p.m. Give the consultant your complete shipping address. (No P.O. Box numbers, please.)

When you receive your replacement slow cooker, use the carton and packing materials to pack up your original slow cooker. In the carton, include your name and address on a sheet of paper along with a copy of the proof of purchase (register receipt, credit card slip, etc.).

Hassle-Free Replacement Warranty - Canada

We're so confident the quality of our products meets the exacting standards of the KitchenAid® brand that, if your slow cooker should fail within the first year of ownership, KitchenAid® Canada will replace your slow cooker with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty. Please follow these instructions to receive this quality service.

If your KitchenAid® Slow Cooker should fail within the first year of ownership, take the slow cooker or ship collect to an Authorized KitchenAid® Service Centre. In the carton include your name and complete shipping address along with a copy of the proof of purchase (register receipt, credit card slip, etc.). Your replacement slow cooker will be returned prepaid and insured. If you are unable to obtain satisfactory service in this manner call our toll-free Customer eXperience Centre at 1-800-807-6777. Or write to us at:

Customer eXperience Centre

Whirlpool Canada LP

Unit 200-6750 Century Ave

Mississauga, ON L5N 0B7

How To Arrange for Warranty Service in Puerto Rico

Your KitchenAid ^® Slow Cooker is covered by a one-year limited warranty from the date of purchase. KitchenAid ^® will pay for replacement parts and labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid ^® Service Center.

Take the slow cooker or ship prepaid and insured to an Authorized KitchenAid® Service Center. Your repaired slow cooker will be returned prepaid and insured. If you are unable to obtain satisfactory service in this manner, call toll-free 1-800-541-6390 to learn the location of a Service Center near you.

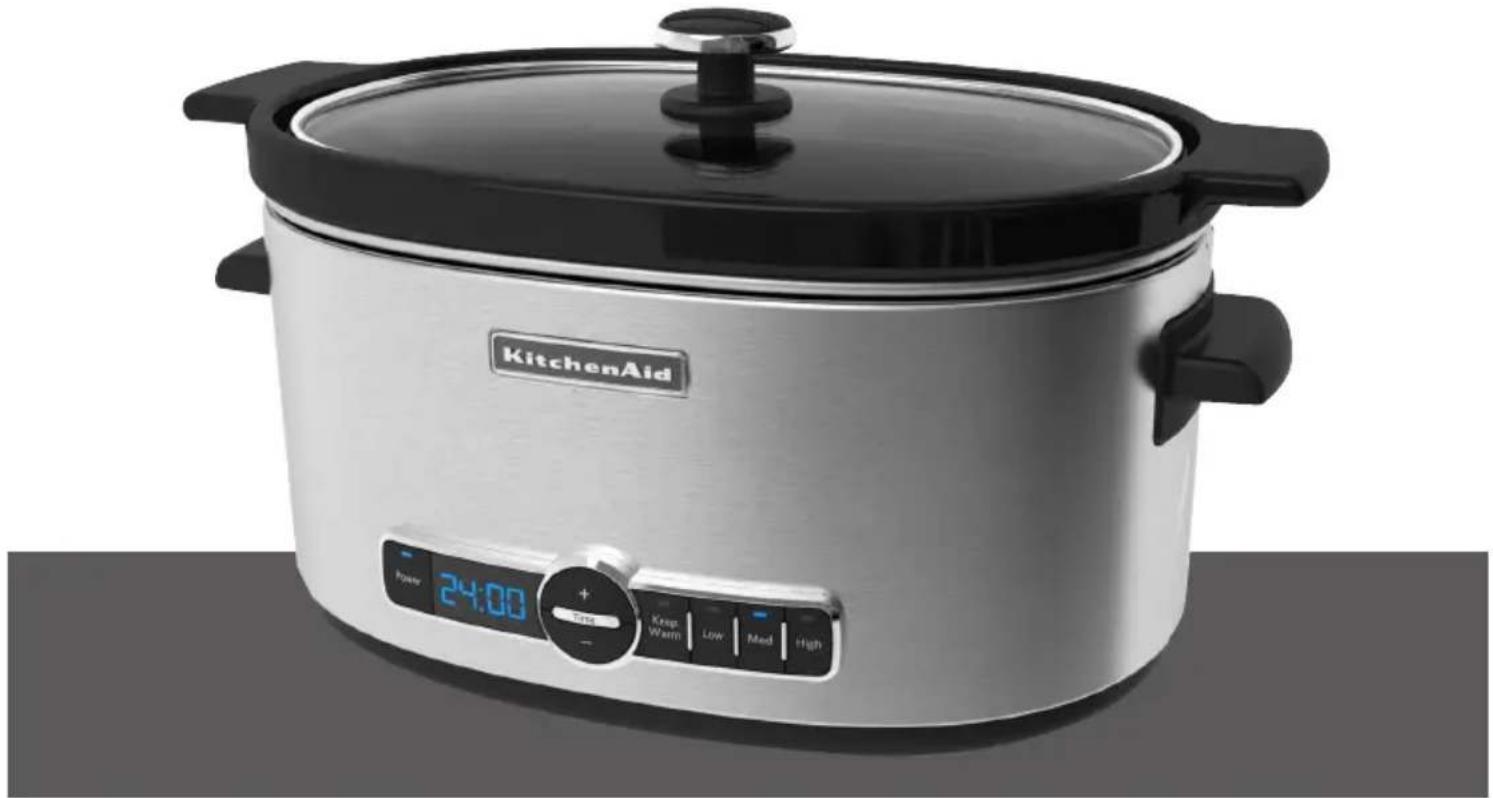

Exterior view of a KitchenAid cooking pot with digital display and control buttons (no text-heavy elements)

Table des matières

SÉCURITÉ DE LA MIJOTEUSE

Consignes de la mijoteuse....18

Line drawing of an electrical outlet with two outlets and a plug, no text or symbols present

Volts: 120 V.A.C.

Hertz: 60 Hz

Top-down schematic of an electronic device casing with ventilation slots and a central connector (no text or symbols)

Line drawing of a mechanical component with a lever and base, labeled Fig. B (no text or symbols on the diagram itself)

Diagram of a mechanical component with two circular loops and directional arrows indicating motion or force (no text or symbols)

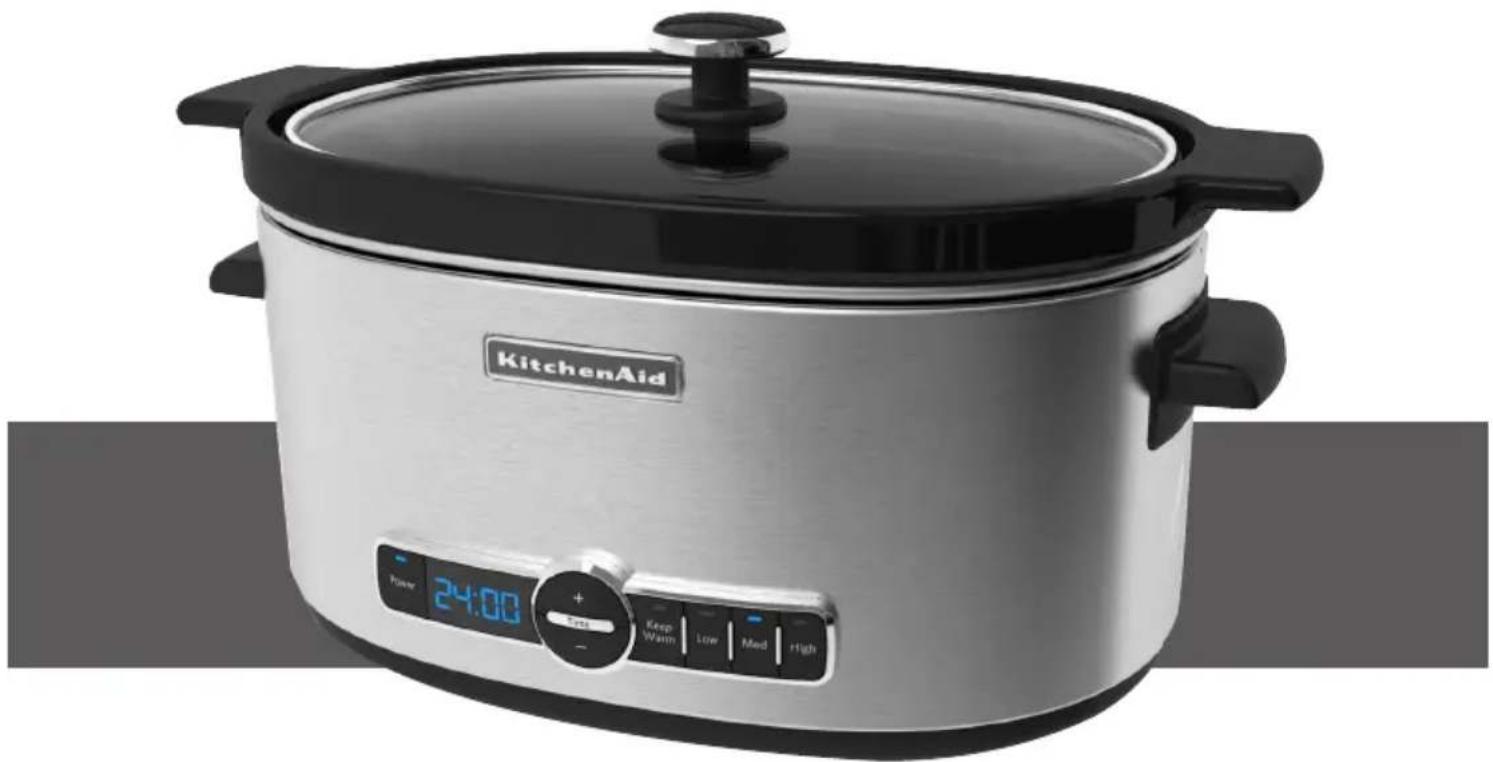

KitchenAid kitchen cooktop with digital display and control buttons (no visible text or symbols on the device itself)

Índice

SEGURIDAD DE LA OLLA ELÉCTRICA DE COCIMIENTO LENTO

Salvaguardias Importantes ....33

Line drawing of a cable connected to a wall-mounted electrical outlet (no text or symbols)

Voltios: 120 V.A.C.

Hertzios: 60 Hz

Top-down schematic of an electronic device casing with ventilation slots and a central connector (no text or symbols)

Line drawing of a mechanical device with a flat blade and handle, labeled Fig. B (no text or symbols on the diagram itself)

Diagram showing a mechanical component with two circular ends and an oval body, each with bidirectional arrows indicating rotation or movement (no text or symbols present)

® Registered trademark/™ Trademark/The shape of the mixer is a registered trademark of KitchenAid, U.S.A.
