USER MANUAL UXT4236AYB KITCHENAID

30" (76.2 CM) AND 36" (91.4 CM) RANGE HOOD

Installation Instructions and Use & Care Guide

For questions about features, operation/performance, parts, accessories or service, call: 1-800-253-1301

or visit our website at www.whirlpool.com

In Canada, call 1-800-807-6777 or visit our website at www.whirlpool.ca

HOTTE D'ASPIRATION DE

30" (76,2 CM) ET 36" (91,4 CM)

Au Canada, pour assistance, installation ou service, composer

Simple line drawing of a rectangular object with two circular marks at the bottom (no text or symbols)

Models/Modèles:

UXT4230AY/UXT4236AY

IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.

FOR RESIDENTIAL USE ONLY.

IMPORTANT : LIRE ET CONSERVER CES INSTRUCTIONS.

POUR UTILISATION RÉSIDENTIELLE UNIQUEMENT.

TABLE OF CONTENTS

RANGE HOOD SAFETY 2

INSTALLATION REQUIREMENTS......4

Tools and Parts 4

Location Requirements....4

Venting Requirements....5

Electrical Requirements ....7

INSTALLATION INSTRUCTIONS....7

Prepare Location....7

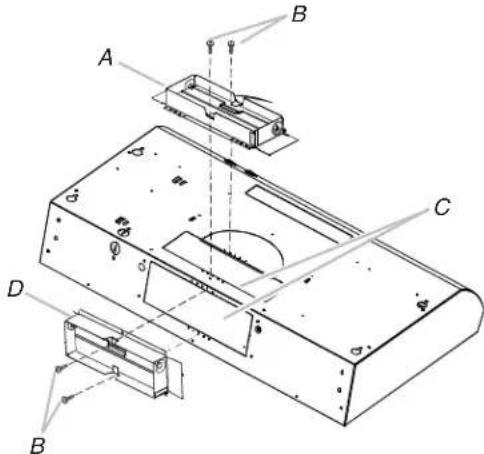

Install Range Hood....9

Make Electrical Connection 12

Complete Installation 12

RANGE HOOD USE....13

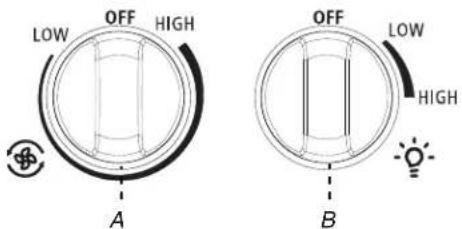

Range Hood Controls 13

RANGE HOOD CARE....13

Cleaning....13

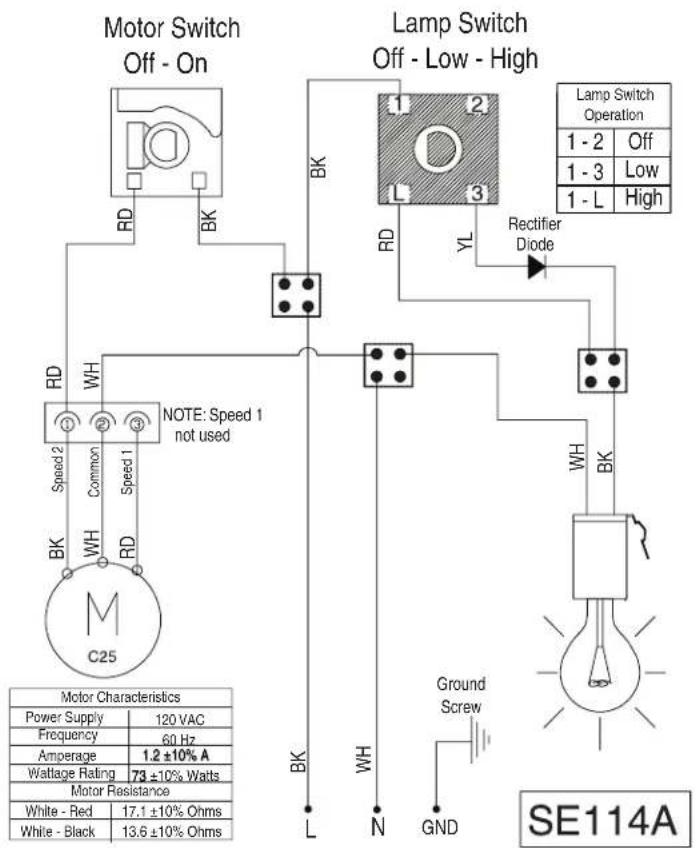

WIRING DIAGRAM 14

ASSISTANCE OR SERVICE....15

In the U.S.A. 15

In Canada 15

Accessories....15

WARRANTY ....16

TABLE DES MATIÈRES

SÉCURITÉ DE LA HOTTE DE CUISINIÈRE....17

EXIGENCES D'INSTALLATION....19

INSTRUCTIONS D'INSTALLATION....23

ASSISTANCE OU SERVICE....31

Au Canada....31

Accessoires ....31

GARANTIE....31

RANGE HOOD SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

! DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

■ Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
■ Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
■ Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
■ Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.

■ Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

■ When cutting or drilling into wall or ceiling; do not damage electrical wiring and other utilities.

■ Ducted fans must always be vented outdoors.

CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings, attics or into crawl spaces, or garages.

WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

■ Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
■ Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
■ Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
■ Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING: ^a

■ SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

■ NEVER PICK UP A FLAMING PAN - you may be burned.

■ DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.

■ Use an extinguisher ONLY if:

• You know you have a class ABC extinguisher, and you already know how to operate it.
• The fire is small and contained in the area where it started.
  – The fire department is being called.
• You can fight the fire with your back to an exit.

^a Based on "Kitchen Fire Safety Tips" published by NFPA.

■ WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.

READ AND SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

Drill
■ 1¼" (3.0 cm) drill bit
■ 18 " (3.0 mm) drill bit for pilot holes
■ Pencil
■ Wire stripper or utility knife
■ Tape measure or ruler
■ Caulking gun and weatherproof caulking compound
■ Flat-blade screwdriver
■ Phillips screwdriver
■ Saber or keyhole saw
■ Metal snips
■ Compass or 8" (20.3 cm) circle template

Parts supplied

Remove parts from package. Check that all parts are included.

■ 2 - 3.5 x 9.5 mm screws

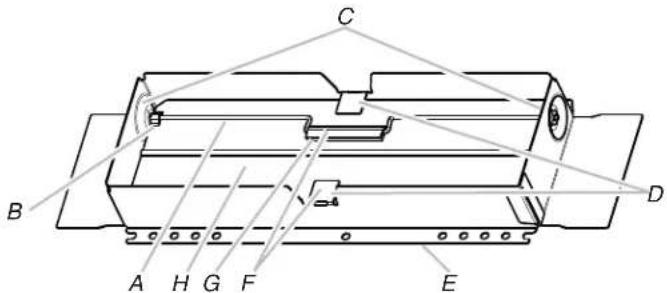

■ 3 ^1/4 " x 10" (8.3 x 25.4 cm) rectangular vent damper
■ T-10 ^ Torx ^ adapter
■ 4 - 4.5 x 13 mm mounting screws

Parts needed

■ 1 - 75W max, 120V incandescent light bulb
■ Wall or roof cap with damper to match vent system
■ 3 - UL listed wire connectors
■ Vent clamps/duct tape as required

For cabinets with recessed bottoms:

■ Two 2" (5.1 cm) wide filler strips. Length and thickness determined by recess dimensions.
■ Four flat head wood screws or machine screws with washers and nuts (to attach filler strips)

For 7" (17.8 cm) round vented installations:

■ 7" (17.8 cm) round metal vent system
■ 7" (17.8 cm) round damper. For information on ordering, see the "Accessories" section.
■ 7" (17.8 cm) round vent mounting plate. For information on ordering, see the "Accessories" section.

For 3 ^1/4 " x 10" (8.3 x 25.4 cm) rectangular vented installations:

■ 3 ^1/4 " x 10" (8.3 x 25.4 cm) rectangular metal vent system

For non-vented (recirculation) installations:

■ Charcoal filter kit. For information on ordering, see the "Accessories" section.

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

• It is the installer's responsibility to comply with installation clearances specified on the model/serial rating plate. The model/serial rating plate is located inside the range hood on the left wall.
  ■ Range hood location should be away from strong draft areas, such as windows, doors and strong heating vents.
  ■ Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance. Consult the cooktop/range manufacturer installation instructions before making any cutouts.
  ■ Grounded electrical outlet is required. See “Electrical Requirements” section.
  ■ All openings in ceiling and wall where range hood will be installed must be sealed.
  These range hoods are factory set for vented installations. Models that are capable of being installed as non-vented (recirculating) require charcoal filters. See the "Accessories" section to order charcoal filter kit.

For Mobile Home Installations

The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A, or latest edition, or with local codes.

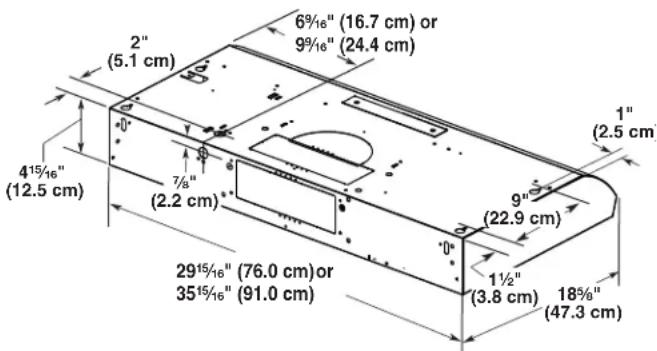

Product Dimensions

2" (5.1 cm) 6½" (16.7 cm) or 9½" (24.4 cm) 4½" (12.5 cm) 7/8" (2.2 cm) 9" (22.9 cm) 0" 1½" (3.8 cm) 18¾" (47.3 cm) 29½" (76.0 cm) or 35½" (91.0 cm)

†®TORX and T10 are registered trademarks of Acument Intellectual Properties, LLC.

Installation Clearances

Technical diagram of a double-door oven with labeled dimensions A, B, C, D, and E for installation or assembly.

A. 18" (45.7 cm) min. clearance - upper cabinet to countertop
B. 24" (61.0 cm) minimum - bottom of range hood to cooking surface
C. 30" (76.2 cm) min. cabinet opening width for 30" (76.2 cm) models and 36" (91.4 cm) min. cabinet width for 36" (91.4 cm) models
D. 12" (30.5 cm) minimum cabinet depth
E. 36" (91.4 cm) base cabinet height

Venting Requirements

■ Vent system must terminate to the outdoors, except for non-vented (recirculating) installations.
■ Do not terminate the vent system in an attic or other enclosed area.
■ Do not use a 4" (10.2 cm) laundry-type wall cap.
■ Use a 7" (17.8 cm) round metal vent or a 3¼" x 10" (8.3 x 25.4 cm) rectangular metal vent, depending on your installation requirements. Rigid metal vent is recommended. Plastic or metal foil vent is not recommended.
■ The length of vent system and number of elbows should be kept to a minimum to provide efficient performance.

For the most efficient and quiet operation:

■ Use no more than three 90° elbows.
■ Make sure there is a minimum of 24" (61 cm) of straight vent between the elbows if more than 1 elbow is used.
■ Do not install 2 elbows together.
■ Use clamps or duct tape to seal all joints in the vent system.

The vent system must have a damper. If roof or wall cap has a damper, remove the damper flap from the vent damper supplied with the range hood. (See "Damper Flap Removal for 3½" x 10" [8.3 x 25.4 cm] Vent Connector" in the "Install the Range Hood" section.)
NOTE: If a damper is used, the range hood may not meet California Title 24 compliance.
■ Use caulking to seal exterior wall or roof opening around the cap.

Cold Weather Installations

An additional back draft damper should be installed to minimize backward cold air flow and a thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break.

The break should be as close as possible to where the vent system enters the heated portion of the house.

Makeup Air

Local building codes may require the use of makeup air systems when using ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale.

Consult your HVAC professional for specific requirements in your area.

Venting Methods

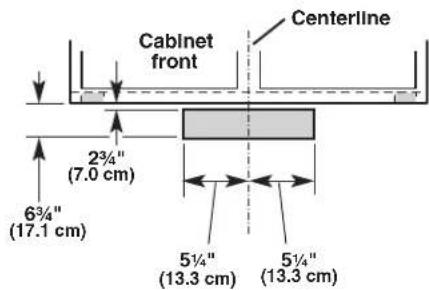

Vent system can terminate either through the roof or wall. Use 3¼" x 10" (8.3 x 25.4 cm) rectangular with a maximum vent length of 35 ft (10.7 m) or 7" (17.8 cm) or larger round vent with a maximum length of 50 ft (15.2 m) for vent system.

NOTE: Flexible vent is not recommended. Flexible vent creates both back pressure and air turbulence that greatly reduce performance.

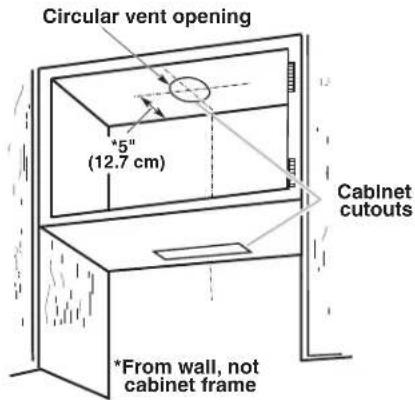

Roof Venting Wall Venting

A B C

A B C

A. 7" (17.8 cm) round vent through roof (purchased separately) 3¼" x 10" (8.3 x 25.4 cm) rectangular vent through the roof (purchased separately)
B. Roof cap with damper (purchased separately)
C. 24" (61.0 cm) min. above the cooking surface

A. 7" (17.8 cm) round vent out the top and through the wall (purchased separately) 3¼" x 10" (8.3 x 25.4 cm) rectangular vent through the wall or out the top (purchased separately)
B. Wall cap with damper (purchased separately)
C. 24" (61.0 cm) min. above the cooking surface

Calculating Vent System Length

To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system.

7" (17.8 cm) Round Vent System

Vent Piece Round
45° elbow 2.5 ft	(0.8 m)
90° elbow 5.0 ft	(1.5 m)
7" (17.8 cm) wall cap 0.0 ft	(0.0 m)
31⁄4" x 10" (8.3 cm x 25.4 cm) to 7" (17.8 cm)	4.5 ft (1.4 m)
31⁄4" x 10" (8.3 cm x 25.4 cm) to 7" (17.8 cm) 90° elbow	5.0 ft (1.5 m)

Example vent system

7" (17.8 cm) round 90° elbow 6 ft (1.8 m) Wall cap 2 ft (0.6 m)

Maximum Recommended Length = 50 ft (15.2 m)

1 - 90° elbow = 5.0 ft (1.5 m)

1 - wall cap = 0.0 ft (0.0 m)

8 ft (2.4 m) straight = 8.0 ft (2.4 m)

Length of 7" (17.8 cm) system = 13.0 ft (3.9 m)

3¼" x 10" (8.3 cm x 25.4 cm) Vent System

Vent Piece
31⁄4" x 10" (8.3 cm x 25.4 cm)90° elbow	5.0 ft(1.5 m)
31⁄4" x 10" (8.3 cm x 25.4 cm)flat elbow	12.0 ft(3.7 m)
31⁄4" x 10" (8.3 cm x 25.4 cm)wall cap	0.0 ft(0.0 m)

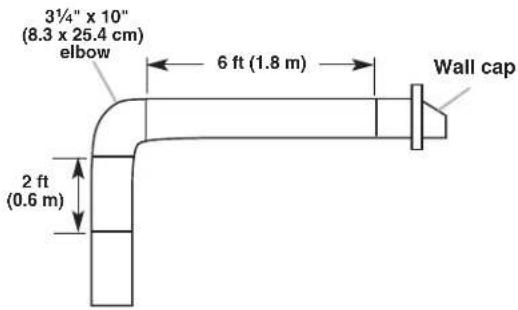

Example vent system

3¼" x 10" (8.3 x 25.4 cm) elbow 6 ft (1.8 m) 2 ft (0.6 m) Wall cap

Maximum Recommended Length = 35 ft (10.7 m)

1 - 90° elbow = 5.0 ft (1.5 m)
8 ft (2.4 m) straight	= 8.0 ft (2.4 m)
1 - wall cap	= 0.0 ft (0.0 m)
Length of 3 14 " x 10" (8.3 cm x 25.4 cm) system	= 13.0 ft (3.9 m)

Electrical Requirements

Observe all governing codes and ordinances.

Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association 1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

■ A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required.
■ If the house has aluminum wiring, follow the procedure below:

1. Connect a section of solid copper wire to the pigtail leads.
2. Connect the aluminum wiring to the added section of copper wire using special connectors and/or tools designed and UL listed for joining copper to aluminum.

Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

■ Wire sizes and connections must conform with the rating of the appliance as specified on the model/serial rating plate. The model/serial plate is located behind the filter on the rear wall of the range hood.
■ Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

INSTALLATION INSTRUCTIONS

Prepare Location

NOTE: It is recommended that the vent system be installed before hood is installed.

Before making cutouts, make sure there is proper clearance within the ceiling or wall for exhaust vent.

1. Disconnect power.
2. Depending on your model, determine which venting method to use: roof, wall or non-vented (recirculating).
3. Select a flat surface for assembling the range hood. Place covering over that surface.
4. Lift the range hood and set it upside down onto covered surface.

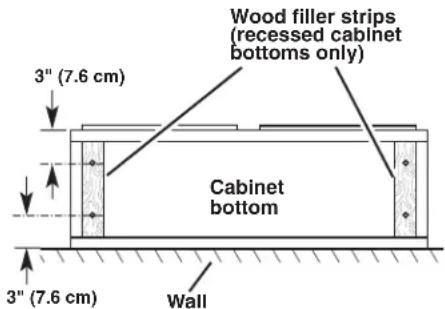

5. If cabinet has recessed bottom, add wood filler strips on each side. Install screws to attach filler strips in locations shown.

Wood filler strips (recessed cabinet bottoms only) 3" (7.6 cm) Cabinet bottom 3" (7.6 cm) Wall

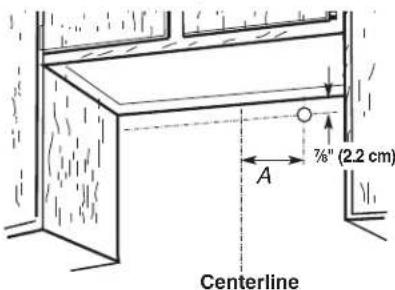

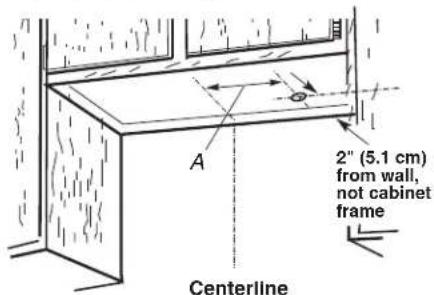

Determine Wiring Hole Location

Cut only one 1¼" (3.2 cm) diameter wiring access hole.

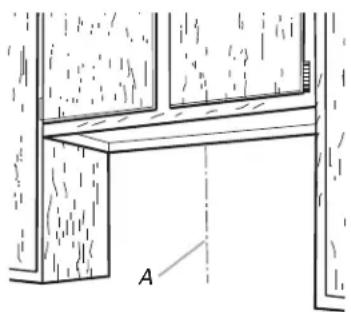

1. Determine and clearly mark a vertical centerline on the wall and cabinet in the area the vent opening will be made.

Architectural cross-section diagram showing structural components with labeled point A (no text or symbols beyond label)

A. Centerline

To wire through top:

1. Mark a line distance "A" from the right of the centerline on the underside of the cabinet. Mark the point on this line that is 2" (5.1 cm) from back wall. Drill a 1¼" (3.2 cm) diameter hole through the cabinet at this point.

2" (5.1 cm) from wall, not cabinet frame Centerline

A. 8 ^3/8 " (21.3 cm)

To wire through wall:

1. Mark a line distance "A" from the right of the centerline on the underside of the wall. Mark the point on this line that is 78" (2.2 cm) from the underside of the cabinet. Drill a 114" (3.2 cm) diameter hole through the rear wall at this point.

7/8" (2.2 cm) A Centerline

A. 8 ^3/8 " (21.3 cm)

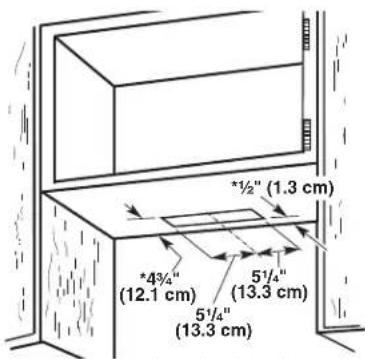

Style 1 - Cut Openings for 3^1/4 x 10" (8.3 cm x 25.4 cm) Rectangular Vent System

Roof Venting

To make a 414 " x 1012 " (10.8 cm x 26.7 cm) rectangular cutout on the underside of cabinet top and bottom:

1. Mark lines 12 " (1.3 cm) and 434 " (12.1 cm) from the back wall on the centerline of the underside of cabinet.
2. Mark lines 5¼" (13.3 cm) to the right and left of the centerline on the underside of cabinet.
3. Use saber or keyhole saw to cut a rectangular opening for vent.
4. Repeat steps 1-3 for the underside of the top of the cabinet.

Cabinet cutouts *1/2" (1.3 cm) *43/4" (12.1 cm) 51/4" (13.3 cm) 51/4" (13.3 cm)

*From wall, not cabinet frame

Wall Venting

To make a 312 " x 1012 " (8.9 cm x 26.7 cm) rectangle in the wall:

1. Make 2 lines by measuring 38'' (0.9 cm) and 378'' (9.8 cm) down from underside of cabinet and mark on the centerline on the back wall.
2. Mark lines 5¼" (13.3 cm) to the right and left of the centerline on the wall.
3. Use saber or keyhole saw to cut a rectangular opening in the wall for the vent.

Cabinet front Centerline 2¾" (7.0 cm) 6¾" (17.1 cm) 5½" (13.3 cm) 5½" (13.3 cm)

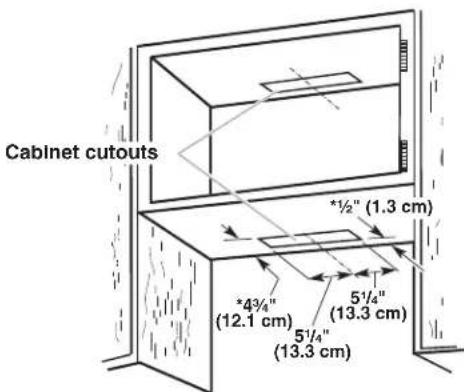

Style 2 - Cut Openings for 3^1/4 x 10" (8.3 x 25.4 cm) Rectangular Vent to Round Vent Transition

Roof Venting

To make a 414 " x 1012 " (10.8 cm x 26.7 cm) rectangular cutout on the underside of cabinet bottom:

1. Mark lines 12 " (1.3 cm) and 434 " (12.1 cm) from the back wall on the centerline of the underside of cabinet.
2. Mark lines 5¼" (13.3 cm) to the right and left of the centerline on the underside of cabinet.
3. Use saber or keyhole saw to cut a rectangular opening for vent.

1/2" (1.3 cm) 4/3/4" (12.1 cm) 5/1/4" (13.3 cm) 5/1/4" (13.3 cm)

*From wall, not cabinet frame

To make a circular vent opening on the underside of the cabinet top:

1. Mark a centerline on the underside of the top of cabinet.
2. Mark a line 5" (12.7 cm) from the back wall on the underside of the top of cabinet.

3. Use a compass or a circle template to draw a circle with a diameter that is 14 " (0.64 cm) larger than the vent.

4. Use saber or keyhole saw to cut the circular vent opening.

Circular vent opening "5" (12.7 cm) Cabinet cutouts *From wall, not cabinet frame

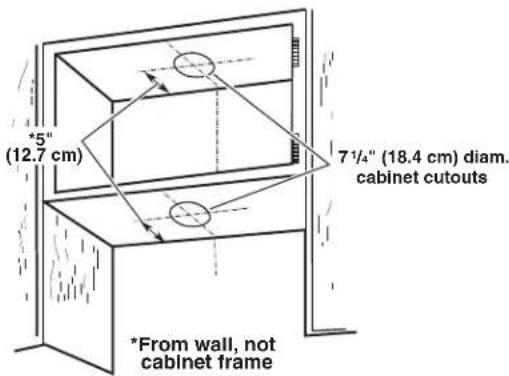

Style 3 - Cut Openings for 7" (17.8 cm) Round Vent

To make a circular vent openings on the underside of the cabinet top and bottom:

1. Mark a centerline on the underside of the top of cabinet.
2. Mark a line 5" (12.7 cm) from the back wall on the underside of the top and bottom of cabinet.
3. Use a compass or a circle template to draw a circle with a diameter that is 14 " (0.64 cm) larger than the vent.
4. Use saber or keyhole saw to cut the circular vent opening.

"5" (12.7 cm) 7 1/4" (18.4 cm) diam. cabinet cutouts *From wall, not cabinet frame

Install Vent System

1. Install vent through the vent opening in upper cabinet or wall. Complete venting system according to the selected venting method. See "Venting Requirements" section.
2. Use caulking to seal exterior wall or roof opening around the cap.

Install Range Hood

NOTE: Your model will have a 3¼" x 10" (8.3 x 25.4 cm) rectangular vent damper on the inside of the range hood.

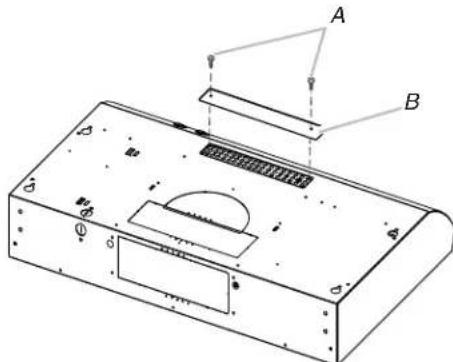

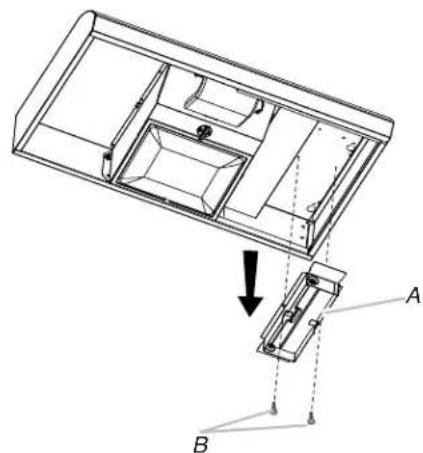

1. Remove the 3¼" x 10" (8.3 x 25.4 cm) rectangular vent damper attached with 3.5 x 9.5 mm screws on the inside your range hood. Use these screws to install the rectangular vent damper.

Technical diagram of a mechanical assembly with labeled components A and B, showing internal components and directional arrows.

A. 314 " x 10" (8.3 x 25.4 cm) rectangular vent damper
B. 3.5 x 9.5 mm screws

1. Lift the range hood up under cabinet and determine final location by centering beneath cabinet. Mark on the underside of cabinet the location of the 4 keyhole mounting slots on the range hood. Set range hood aside on a covered surface.

Simple line drawing of a spoon inside a rectangular container (no text or symbols)

A. Keyhole slot

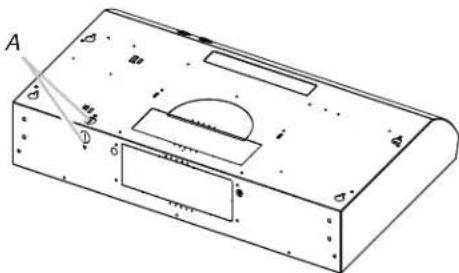

1. Use 18 " (3 mm) drill bit and drill 4 pilot holes as shown.

A. Drill pilot hole.

1. Install the 4 - 4.5 mm x 13 mm mounting screws in pilot holes. Leave about 14 " (6.4 mm) space between screw heads and cabinet to slide range hood into place.

1. Remove vent knockouts depending on your installation requirements.

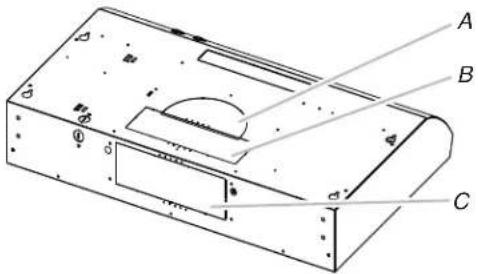

Technical diagram of a mechanical component with labeled parts A, B, and C

A. Round vent knockout
B. Top rectangular vent knockout
C. Rear rectangular vent knockout

Round vent system installations - Remove top rectangular and round vent knockouts.

Rectangular vent system installations - For roof installations, remove the top rectangular vent knockout. For wall installations, remove the rear rectangular vent knockout.

Non-vent (recirculating) installations - Do not remove any knockouts.

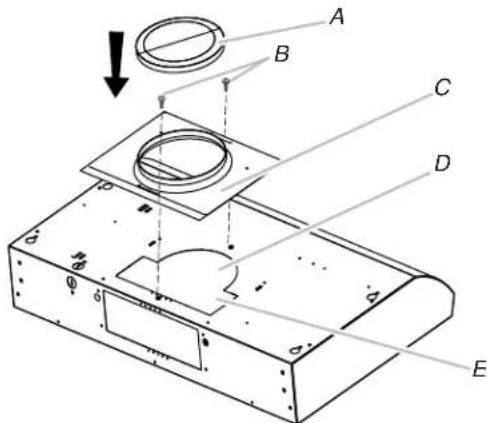

1. Install 7" (17.8 cm) round vent mounting plate or 3 ^1/4 " x 10" (8.3 x 25.4 cm) vent damper, depending on your vent system installation. Attach to range hood 3.5 x 9.5 mm screws provided.

NOTE: The 7" (17.8 cm) round vent mounting plate is not supplied. An optional 7" (17.8 cm) round damper is also available as an accessory. For information on ordering, see the "Accessories" section.

Technical diagram of a mechanical assembly with labeled components A, B, C, D, and E

A. 7" (17.8 cm) Round damper (see "Accessories" section)
B. 3.5 x 9.5 mm screws
C. 7" (17.8 cm) round vent mounting plate. For information on ordering, see the "Accessories" section.
D. Round vent knockout
E. Rectangular vent knockout

NOTE: The 7" (17.8 cm) round vent mounting plate and 3¼" x 10" (8.3 x 25.4 cm) rectangular vent damper can be installed up to 1" (2.5 cm) on either side of the hood center to accommodate off center ductwork.

Technical diagram of a device with labeled components A, B, C, D and internal features

A. Vertical damper
B. 3.5 x 9.5 mm screws
C. Vent knockouts
D. Horizontal damper

■ If a vent damper is installed with a wall cap with damper, check that they do not interfere with each other. Remove the vent connector damper flap if they interfere.

■ Non-vented (recirculating) installations - No vent attachments. Removal of the recirculation cover plate is required. Remove the two screws from the recirculation cover plate and remove.

Technical diagram of a device casing with labeled components A and B, showing internal structure and mounting points.

A. Recirculation cover plate

B. Screws

Damper Flap Removal for 3½" x 10" (8.3 x 25.4 cm) Vent Connector

1. Bend retainer wire out of damper flap catch tab.

C B A H G F E D

A. Retainer wire

B. Damper flap wire guide

C. Plastic end caps

D. Stop tabs

E. Vent connector housing

F.Foam

G. Damper flap catch tab

H. Damper flap

1. Slide retainer wire to the side to allow one end of retainer wire to come out of the damper flap wire guide and plastic end cap.

2. Lift end of retainer wire and slide it out of the other damper flap wire guide and plastic end cap to remove.

3. Push the small end of the plastic end caps out of vent connector housing.

4. Lift the damper flap out of the vent connector housing.

5. Remove the foam from the stop tab.

6. Bend the stop tabs so they are flush with the damper side walls.

7. Discard the retainer wire, plastic end caps, damper flap and the foam.

Power Supply Cable Installation

1. For direct wire installations, run the home power supply cable according to the National Electric Code or CSA standards and local codes and ordinances. There must be enough wiring from the fused disconnect (or circuit breaker) box to make the connection in the hood electrical terminal box. For optional power supply cord kit installations, follow the instructions in the "Make Electrical Connection" section.

NOTES:

■ Use only with range hood cord connection kits that have been investigated and found acceptable for use with this model range hood.

■ Do not reconnect power until the installation is complete.

1. Remove the screw from the terminal box cover. Remove terminal box cover and set aside.

Technical diagram showing a door with labeled parts A and B, including a mesh-patterned panel on the left.

A. Terminal box cover
B. Screw

1. Remove the power supply knockout from the top or rear of the vent hood (depending on the incoming location of your home power supply cable), and install a UL listed or CSA approved 12 " strain relief.

Isometric technical drawing of a rectangular electronic component with internal components and mounting holes (no text or symbols)

A. Power supply knockout

1. Using 2 or more people, lift the hood into final position. Feed enough electrical wire through the 12'' UL listed or CSA approved strain relief to make connections in the terminal box. Tighten the strain relief screws.

2. Position the range hood so that the large end of the keyhole slots are over the mounting screws. Then push the hood toward the wall so that the screws are in the neck of the slots. Tighten the mounting screws, making sure the screws are in the narrow neck of slots.

3. Connect ventwork to hood. Seal joints with vent clamps or duct tape to make secure and airtight.

4. Check that back draft dampers work properly.

Make Electrical Connection

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

1. Disconnect power.

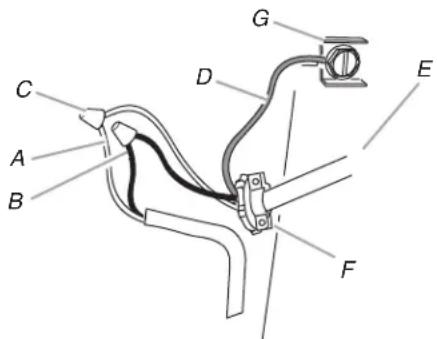

Technical diagram of a mechanical or electrical component with labeled parts A through G

A. White wires
B. Black wires
C. UL listed wire connector
D. Green (or bare) ground wire

E. Home power supply cable or power cord accessory kit
F. UL listed or CSA approved 12 " strain relief
G. Green ground screw

1. Use UL listed wire connectors and connect white wires (A) together.
2. Use UL listed wire connectors and connect black wires (B) together.

WARNING

Fire Hazard

Electrically ground the blower.

Use copper wire.

Connect ground wire to green ground screw in terminal box.

Failure to do so can result in death, fire, or electrical shock.

1. Connect green (or bare) ground wire from power supply to green ground screw in terminal box and securely tighten.
2. Install terminal box cover.
3. Reconnect power.

Complete Installation

1. Install the 75W (max.) Incandescent light bulb. See "Replacing the Incandescent Light Bulb" in the "Range Hood Care" section.
2. Replace grease filter if removed. See the "Range Hood Care" section.
3. Check the operation of the range hood fan and light. See "Range Hood Use" section.

If range hood does not operate, check to see whether a circuit breaker has tripped or a household fuse has blown. Disconnect power and check wiring connections.

NOTE: To get the most efficient use from your new range hood, read the "Range Hood Use" section.

RANGE HOOD USE

The range hood is designed to remove smoke, cooking vapors and odors from the cooktop area. For best results, start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen.

The hood controls are located on the front panel of the range hood.

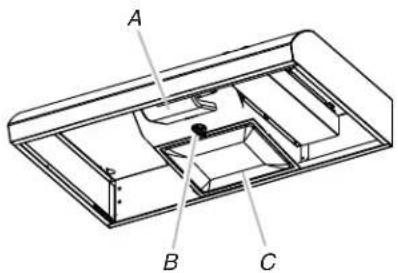

A B C

A. Incandescent light housing and cover
B. Grease filter retainer
C. Grease filter

Range Hood Controls

LOW OFF HIGH A OFF LOW HIGH B

A. Fan speed switch
B. On/Off light switch

Operating the light

Turn the light switch to the right 1 position for Low (night light).

Turn the light switch to the right 2 positions for High.

Operating the fan

The fan is variable speed. Rotate the fan switch to the right to turn the fan to the ON position. Continue to rotate the switch to the desired fan speed.

To turn the fan OFF, rotate the fan speed switch to the left to the OFF position.

RANGE HOOD CARE

Cleaning

IMPORTANT: Clean the hood and grease filters frequently according to the following instructions. Replace grease filter before operating hood.

Exterior Surfaces:

IMPORTANT: Do not use soap-filled scouring pads, abrasive cleaners, Cooktop Polishing Creme, steel wool, gritty washcloths or paper towels.

To avoid damage to the stainless steel, do not use cleaners that contain chlorine.

Cleaning Method:

■ Rub in direction of grain to avoid scratching or damaging the surface.
For stainless steal models, Stainless Steel Cleaner and Polish Part Number 31462A (not included): See "Assistance or Service" section to order.
■ Liquid detergent or all-purpose cleaner: Rinse with clean water and dry with soft, lint-free cloth.
■ Glass cleaner to remove fingerprints.

Metal Grease Filter

For vented installations:

1. Remove screw from the grease filter retainer.
2. Turn the grease filter retainer to release filter.

Diagram of a fan or vent with a labeled component (A), showing internal blades and airflow direction (no text or symbols)

A. Filter retainer

1. Wash metal filters as needed in dishwasher or hot detergent solution.
2. Reinstall the filter by placing the back edge in the channel at rear of hood. Push filter into place, turn the filter retainer to secure filter to range hood.
3. Replace screw in the grease filter retainer.

For non-vented (recirculating) installations:

The charcoal filter is not washable. It should last up to 6 months with normal use.

1. Replace metal grease filter with a charcoal filter. For information on ordering, see the "Accessories" section.

To replace filter:

1. Remove screw from the grease filter retainer.
2. Turn the grease filter retainer to release filter.
3. Reinstall the filter by placing the back edge in the channel at rear of hood. Push filter into place, turn the filter retainer to secure filter to range hood.
4. Replace screw in the grease filter retainer.

Replacing the Incandescent Light Bulb

Turn off the range hood and allow the light bulb to cool.

1. Disconnect power.
2. Squeeze the plastic lens cover and remove it from the hood.

Technical diagram showing a hand operating a tool labeled A and B to handle a mechanical component or fixture.

A. Light bulb socket
B. Lens cover

1. Screw light bulb into socket.
2. Replace lens cover by squeezing cover and inserting tabs into slots.
3. Reconnect power.
   If new light does not operate, make sure the lamp is inserted correctly before calling service.

WIRING DIAGRAM

Motor Switch Off - On Lamp Switch Off - Low - High Lamp Switch Operation 1 - 2 Off 1 - 3 Low 1 - L High RD BK RD YL Rectifier Diode RD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD HD MD M C25 Speed 2 Common Speed 1 NOTE: Speed 1 not used Power Supply 120 VAC Frequency 60 Hz Amperage 1.2 ±10% A Wattage Rating 73 ±10% Watts Motor Resistance White - Red 17.1 ±10% Ohms White - Black 13.6 ±10% Ohms SE114A

ASSISTANCE OR SERVICE

If you need service

Please refer to the warranty page in this manual.

If you need replacement parts

If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new appliance.

To locate factory specified replacement parts in your area, call the following customer assistance telephone number or your nearest designated service center.

In the U.S.A.

Call the Whirlpool Customer eXperience Center toll free:

1-800-253-1301 or visit our website at www.whirlpool.com.

Our consultants provide assistance with:

■ Scheduling of service. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States.
■ Features and specifications on our full line of appliances.
■ Referrals to local dealers.
■ Installation information.
■ Use and maintenance procedures.
■ Accessory and repair parts sales.
■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).

For further assistance

If you need further assistance, you can write to Whirlpool

Corporation with any questions or concerns at:

Whirlpool Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

In Canada

Call the Whirlpool Canada LP Customer eXperience Centre toll free: 1-800-807-6777 or visit our webpage www.whirlpool.ca.

Our consultants provide assistance with:

■ Scheduling of service. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada.
■ Features and specifications on our full line of appliances.
■ Referrals to local Whirlpool dealers.
■ Use and maintenance procedures.
■ Accessory and repair parts sales.
■ Referrals to local dealers, repair parts distributors, and service companies. Whirlpool Canada LP designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada.

For further assistance

If you need further assistance, you can write to Whirlpool

Canada LP with any questions or concerns at:

Whirlpool Brand Home Appliances

Customer eXperience Centre

Whirlpool Canada LP

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Please include a daytime phone number in your correspondence.

Accessories

Stainless Steel Cleaner and Polish

Order Part Number 31462A

Charcoal Filter Kit

Order Part Number W10355450

Power Cord Kit

Order Part Number W10355452

7" (17.8 cm) Round Damper

Order Part Number W10355451

7" (17.8 cm) Round Vent Mounting Plate

Order Part Number W10388168

WHIRLPOOL® MAJOR APPLIANCE LIMITED WARRANTY

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.

Please have the following information available when you call the Customer eXperience Center:

■ Name, address and telephone number
■ Model number and serial number
■ A clear, detailed description of the problem
■ Proof of purchase including dealer or retailer name and address

IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting or Problem Solver section of the Use and Care Guide, scan the QR code on the right to access additional resources, or visit www.whirlpool.com/product_help.
2. All warranty service is provided exclusively by our authorized Whirlpool Service Providers. In the U.S. and Canada, direct all requests for warranty service to:

Whirlpool Customer eXperience Center

In the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777.

If outside the 50 United States or Canada, contact your authorized Whirlpool dealer to determine whether another warranty applies.

www.whirlpool.com/product_help

ONE YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED

For one year from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter "Whirlpool") will pay for Factory Specified Replacement Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit's warranty period.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. Commercial, non-residential, multiple-family use, or use inconsistent with published user, operator or installation instructions.
2. In-home instruction on how to use your product.

3. Service to correct improper product maintenance or installation, installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses or water inlet hoses).

4. Consumable parts (i.e. light bulbs, batteries, air or water filters, preservation solutions, etc.).

5. Conversion of products from natural gas or L.P. gas.

6. Damage from accident, misuse, abuse, fire, floods, acts of God or use with products not approved by Whirlpool.

7. Repairs to parts or systems to correct product damage or defects caused by unauthorized service, alteration or modification of the appliance.

8. Cosmetic damage including scratches, dents, chips, and other damage to the appliance finishes unless such damage results from defects in materials and workmanship and is reported to Whirlpool within 30 days.

9. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.

10. Food or medicine loss due to product failure.

11. Pick-up or delivery. This product is intended for in-home repair.

12. Travel or transportation expenses for service in remote locations where an authorized Whirlpool servicer is not available.

13. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or replacement of the product.

14. Service or parts for appliances with original model/serial numbers removed, altered or not easily determined.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Whirlpool makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Whirlpool or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

SÉCURITÉ DE LA HOTTE DE CUISINIÈRE

Technical diagram of a double-door oven with labeled dimensions A, B, C, D, and E for installation or assembly.

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

Technical line drawing of a structural joint or bracket with labeled point A (no text or symbols beyond label)

A. Axe central

A 7/8" (2,2 cm) A. 8 3/8" (21,3 cm)

Technical diagram of a mechanical assembly with labeled components A and B, showing internal components and directional arrows.

Simple line drawing of a curved object inside a rectangular frame, labeled 'A' with no text or symbols beyond the label.

Technical diagram of a device casing with labeled components A, B, and C

Technical diagram of a mechanical assembly with labeled components A, B, C, D, E and an arrow indicating direction or force.

Technical diagram of a mechanical assembly with labeled components A, B, C, D and directional arrows indicating motion or assembly.

Technical diagram of a device with labeled components A and B, showing internal structure and mounting points.

C B A H G F E D

Technical diagram of a door frame with labeled components A and B, showing internal structure and window pattern.

Technical line drawing of a rectangular electronic component with internal components and mounting holes (no text or symbols)

C A B D G E F

LOW OFF HIGH A

OFF LOW HIGH B

Diagram of a fan or radiator component with a hand holding a pointer labeled 'A' (no text or symbols on the fan itself)

Technical diagram showing a hand operating a tool with labeled parts A and B, likely illustrating a mechanical or electrical setup.

ASSISTANCE OU SERVICE
