PARKB36HY - Cooker THERMADOR - Free user manual and instructions

USER MANUAL PARKB36HY THERMADOR

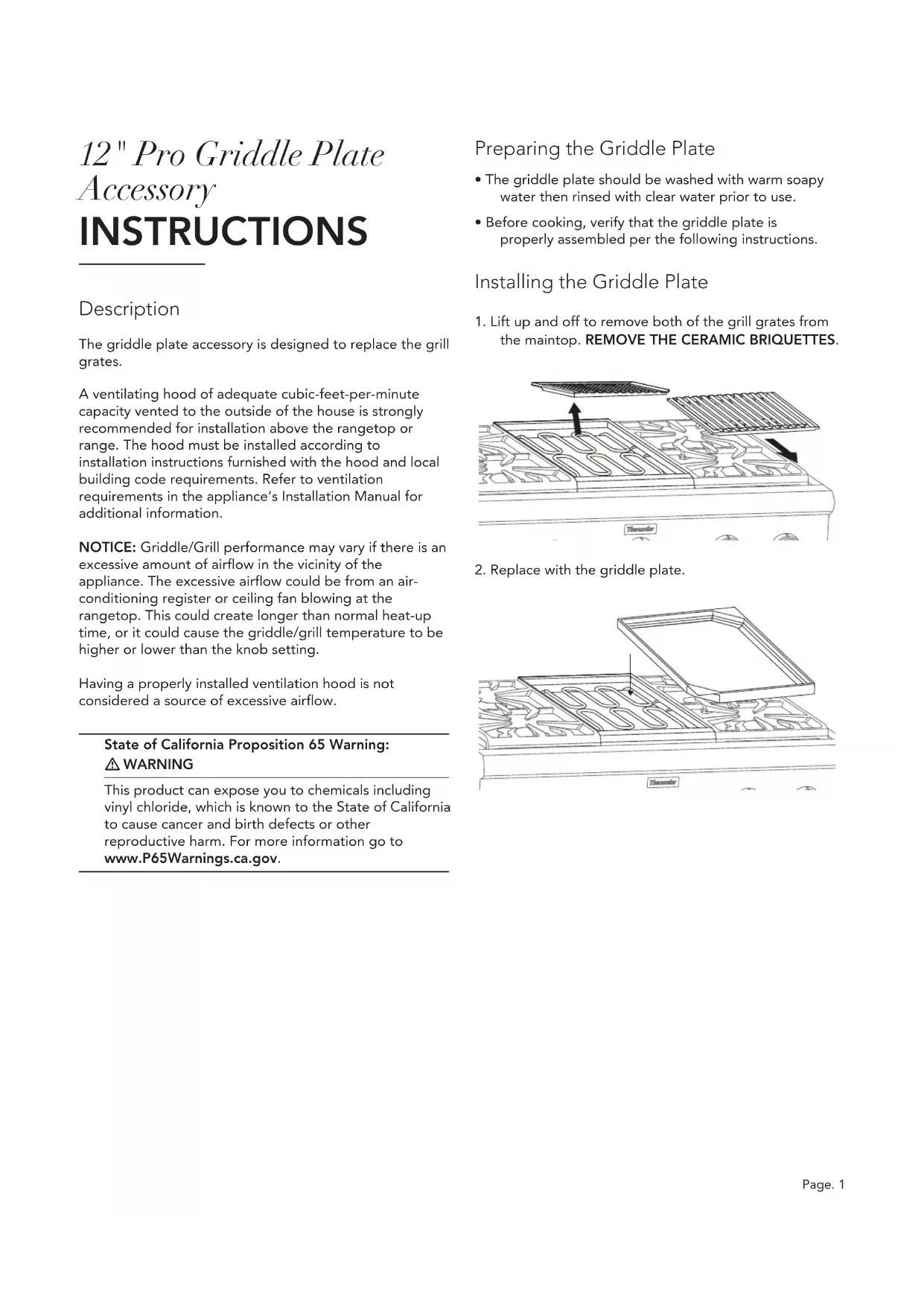

Page. 1 12" Pro Griddle Plate Accessory INSTRUCTIONS Description The griddle plate accessory is designed to replace the grill grates. A ventilating hood of adequate cubic-feet-per-minute capacity vented to the outside of the house is strongly recommended for installation above the rangetop or range. The hood must be installed according to installation instructions furnished with the hood and local building code requirements. Refer to ventilation requirements in the appliance’s Installation Manual for additional information. NOTICE: Griddle/Grill performance may vary if there is an excessive amount of airflow in the vicinity of the appliance. The excessive airflow could be from an air- conditioning register or ceiling fan blowing at the rangetop. This could create longer than normal heat-up time, or it could cause the griddle/grill temperature to be higher or lower than the knob setting. Having a properly installed ventilation hood is not considered a source of excessive airflow. State of California Proposition 65 Warning: WARNING This product can expose you to chemicals including vinyl chloride, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Preparing the Griddle Plate

• The griddle plate should be washed with warm soapy water then rinsed with clear water prior to use.

• Before cooking, verify that the griddle plate is properly assembled per the following instructions. Installing the Griddle Plate

1. Lift up and off to remove both of the grill grates from

the maintop. REMOVE THE CERAMIC BRIQUETTES.

2. Replace with the griddle plate.Page. 2

Operating the Griddle WARNING

• To avoid risk of injury, NEVER operate grill/griddle plate without the grates or griddle plate accessory installed.

• NEVER use the grill or griddle plate in a manner that is not prescribed by the Use and Care Guide.

• DO NOT use ceramic briquettes, wood chips, lava rocks, or charcoal briquettes.

• The elements are hot after use. Allow sufficient time for components to cool before cleaning.

1. Before operating, ensure that ceramic briquettes are

removed and that the griddle plate is correctly fitted.

2. Press and turn the knob to the temperature setting.

• The two heating elements can be regulated separately.

3. For best results, before placing food on the griddle

plate allow the plate to preheat for ten minutes. Griddle Cooking Recommendations Care and Cleaning the Griddle Plate

• NEVER flood a hot griddle plate with cold water. This can damage the griddle plate.

• DO NOT clean the griddle plate in a self-cleaning oven.

• Care should be taken to avoid scratching or gouging the surface.

• DO NOT cut food directly on the griddle plate.

• DO NOT use metal utensils.

• Use plastic or wood utensils to avoid scratching the non-stick surface.

• The griddle plate is dishwasher safe, however, hand washing the griddle plate is recommended. Use the lowest cooking temperature possible. Recipes may need to be modified as the non-stick coating browns and sears at lower temperatures. Seasoning the Griddle Plate If the griddle plate seems to lose its non-stick abilities over time, the following instructions should help regain the griddle’s non-stick properties. For optimal performance and long life of your griddle plate, follow these simple cleaning and seasoning instructions. Prepping the Griddle for Seasoning The griddle plate must be clean and all residue removed before the griddle plate is seasoned.

1. Use a mixture of coarse salt and a small amount of

white vinegar to buff off any residue from the griddle plate.

2. Rinse well with clean water. Dry the griddle plate

thoroughly. FOOD SETTING Eggs LOW Bacon, Breakfast Sausage MED HIGH Toasted Sandwiches MED HIGH Boneless Chicken Breasts MED HIGH Boneless Pork Chops, 1" thick MED HIGH Steaks, 1" (25.4 mm) thick HIGH Ground Beef Patties, 6 ounces MED HIGH Ground Turkey Patties, 6 ounces HIGH Hot Dogs MED HIGH Ham Slices, ½'' (12.7 mm) thick MED HIGH Pancakes, French Toast HIGH Potatoes, Hash Browns HIGHPage. 3 Griddle Seasoning Seasoning is a process by which a layer of animal fat or vegetable oil is applied and baked into the cookware. The seasoning layer provides a non-stick surface for cooking.

1. Use a paper towel to apply a thin, even coating of

, or olive oil to the griddle surface.

2. Bake the griddle plate in a 350 °F oven for 1 hour.

3. Remove the griddle plate from the oven and allow to

cool to room temperature.

4. Apply a second layer of fat or oil and bake at 350 °F

5. Repeat process at least one additional time – making

3 coats of oil or fat. After Seasoning

1. After cooking on your seasoned griddle, allow to cool

and wipe clean with a damp cloth. Allow to dry.

2. Add a thin coating of oil or fat before storing your

griddle in a cool, dry place.

3. Repeating this process will season the griddle and

maintain non-stick properties. Performance will improve over time with more seasoning.

4. To strip the griddle to re-season, a mixture of salt and
