USER MANUAL SCBL15 SCHNEIDER

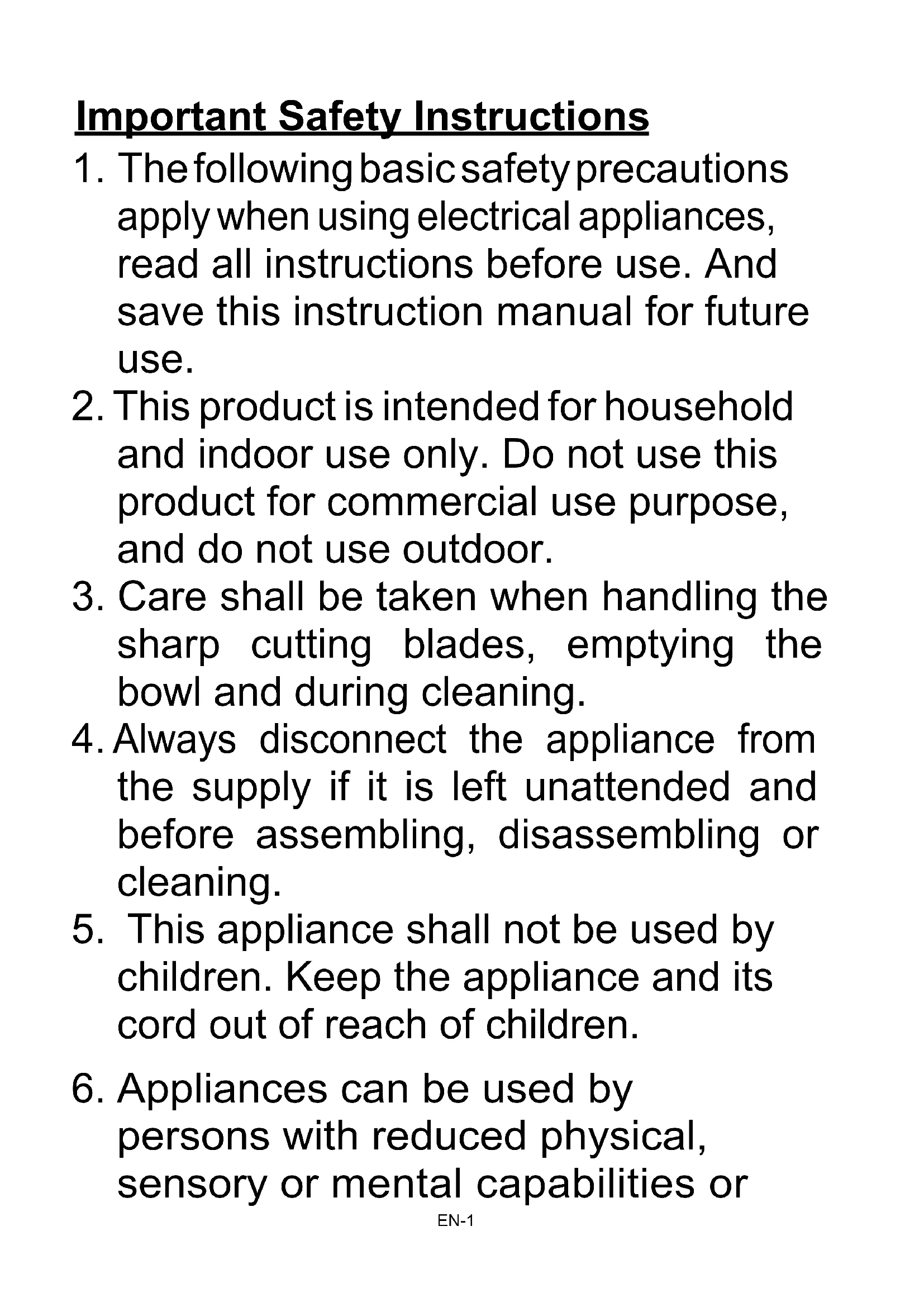

1. The following basic safety precautions

apply when using electrical appliances, read all instructions before use. And save this instruction manual for future use.

2. This product is intended for household

and indoor use only. Do not use this product for commercial use purpose, and do not use outdoor.

3. Care shall be taken when handling the

sharp cutting blades, emptying the bowl and during cleaning.

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

5. This appliance shall not be used by

children. Keep the appliance and its cord out of reach of children.

Appliances can be used by persons with reduced physical, sensory or mental capabilities orEN-2 lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

8. CAUTION: Ensure the blender is

switched off before removing it from the stand.

9. Switch off the appliance and

disconnect from supply before changing accessories or approaching parts that move in use.

10. If the supply cord is damaged, it must

be replaced by the manufacturer, its service agent. or similarly qualified persons in order to avoid a hazard.

11. Cleaning the appliance please

use the dry cloth, do not use water cleaning the motor base, itEN-3 may cause the potential injury from misuse.

12. The blade accessory is very

sharp, please paid attention for handing the sharp cutting blades during cleaning, emptying the bowl and user maintenance.

13. This appliance is not intended to be

operated by means of an external timer or separate remote-control system.

14. This product is for indoor and

15. Be careful if hot liquid is poured into

the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.

16. Always switch off the product and

disconnect from supply if it is left unattended and before assembling, disassembling, cleaning or approaching parts that move in use.EN-4

17. Do not immerse the product or allow

the supply cord and plug come into contact with water or other liquid.

The use of accessory attachments, including canning jars, not recommended by the appliance manufacturer may cause a risk of fire, electric shock or injuries to persons.

20. Do not place on or near a hot gas

or electric burner or in a heated oven.

21. Extreme caution must be used when

moving an appliance containing hot oil or other hot liquids.

22. Where applicable, always attach

plug to appliance and check that the control is OFF before plugging cord into wall outlet. To disconnect, turn the control to OFF, then remove plug from wall outlet.EN-5

23. Do not use appliance for other than

24. Avoid contacting moving parts.

Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the power blender. A scraper may be used but must be used only when the blender is not running (does not apply to an acceptable scraper integral with the appliance).

26. Do not use the product if the blade is

27. Never operate the product without

any liquid in the jar or empty.

28. Never try to defeat the interlock

switch mechanism, make sure the accessory is completely installed before operation.

29. Do not overfill the jar.

30. Always operate blender with cover

32. Do not blend any hot liquid in this

33. The maximum continue operation

time is 2 mins and then requires 1 min to cool down. (This is one cycle; if it needs to continuous use, operation time for 2 mins then rest for 1 min, max is 3 cycles, then rest 20 mins.)

34. WARNING: Risks of injuries if you

don't use this appliance correctly.

35. Regarding the instructions for cleaning

surfaces in contact with food, thanks to refer to the section “Cleaning and Maintenance” in page 13.

36. Regarding the operating times and

speed setting, thanks to refer to the section “Operation instruction” in page 11 of the manual.

37. This appliance is intended to be used

in household and similar applications such as:EN-7 – staff kitchen areas in shops, offices and other working environments; – farm houses; – by clients in hotels, motels and other residential type environments; – bed and breakfast type environments

38. WARNING: Do not try remove

the blending jar form the motor base during operation or the blade still rotating. After use product, must let the blade stop rotating, and then pick up the jar from motor base. Suitable for use in contact with food.EN-8 IMPORTANT It is forbidden to replace the power cable by yourself. In case of damage, it should be repaired by the after-sales service of local distributors, the manufacturer or similar qualified person. If the appliance is dropped, please ask professional qualified person to check before using it again. Internal damage may cause accidents. For any kind of problems or repairs, please contact the after- sales service of local distributors, the manufacturer or similar qualified person in order to prevent any risks. Disposal and Environmental Responsibility: In order to be environmentally friendly, we encourage you to dispose of the appliance. You can contact local authorities or recycling centers for more information. Read the instruction manual before using this device. Save these instructions for future reference. This product complies with the essential requirements of directives 2014/35/EU. (repealing Directive 73/23/EEC as amended by Directive 93/68/EEC) and 2014/30/EU (repealing Directive 89/336/EEC).EN-9 Product Overview

Jug cover Rubber seal

1) Remove all packaging and clean the jug, measuring cup and lid

thoroughly before using for the first time. Only clean the main unit with a damp cloth. Never immerse the unit in water or place under running water. The blender should be placed on flat surface before operation.

WARNING: the blade is very sharp. Wash with care and

never touch the blade with your fingers.

2) Do not plug in the appliance before assembling.

3) Place the appliance on a flat surface.

4) Place the glass jug on to the motor unit and lock into place by turning

5) Put the lid on top of the jug and push it down. Insert the measuring cup

into the cover and turn until it locks into place.

6) Make sure the appliance is turned off before plugging in.

1) Before plugging in ensure that the mains voltage matches that shown on

2) This unit has a safety design; it will not work if the jug is not installed onto

the main body properly.

3) Turn the control dial to position 0 in order to make sure the unit is turned

4) Place ingredients into the jug, do not exceed the maximum 1.5L capacity.

Stop the blender before adding new ingredients or use the measuring cup to add ingredients while running. IMPORTANT: Do not operate without any ingredients. IMPORTANT: Do not open the lid while the blender is working.

6) Put the cover on top of the jug ensuring it is fitted correctly.

7) Turn the control dial clockwise to your desired speed as you need, or use

the pulse function by turning dial anticlockwiseEN-11 Operation Instruction

1. Prepare the carrot juice (or any other fruit or vegetable)

<for recipes using liquids such as water, juice, etc. >

600g of carrots + 900ml of water. B) Cut the carrots (fruits or vegetables) into small cubes (15 mm × 15 mm × 15 mm) after washing and peeling them. Put them in the glass bowl. The ratio of water to food is 2 to 3. The mixture should not exceed the max capacity mark. on the glass bowl. C) The maximum duration of continuous operation is 2 minutes. The appliance must then cool for 1 minute (this is a cycle, if it is to be used continuously, the operating time must be 2 minutes, then stand for 1 minute, 3 cycles maximum, then 20 minutes of rest). Note for use

1. You can add ingredients during use through the center hole. The dosing

cap can be replaced if necessary. Align the center of the hole with the measuring cup, then press to snap the measuring cup into place.

2. Turn the dial to “0” after the food is mixed as desired.

3. Remove the glass bowl from the base of the machine, then remove the lid

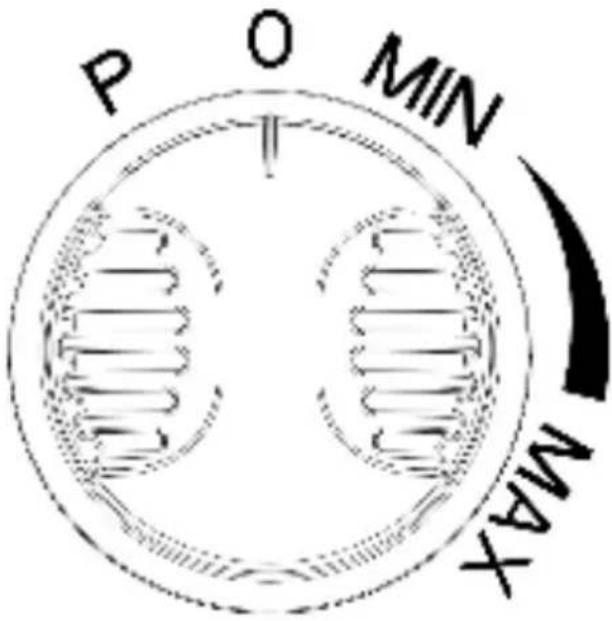

to pour the juice.EN-12 IMPORTANT NOTICE: Please do not use boiled liquid. Please do not working when the jug is empty. Control Settings Make sure the knob is on “0” position. Switch the knob to your desired setting, there are four settings: P，O，MIN，MAX。 MIN is the lowest speed. MAX is the highest speed. Switch the knob to “P” position and let is keep on “P” position. Motor working at the highest speed. Return the knob to ”0” position. Product stops working.EN-13 IMPORTANT ● If preparing food for babies or young children, always check that the ingredients are thoroughly blended before feeding. ● Do not run the machine continuously for longer than 3 minutes, leave to cool for 20 minutes between each operation. ● Do not operate the machine with an empty blending jar. ● Always allow hot food to cool before processing. ● Do not place any part of the machine into a microwave. Hints

• If you insert too much food from the blending jar, remove part of the mixture and continue processing in several batches, otherwise you risk damaging the engine.

• Remember that blending hard foods such as coffee beans, spices, chocolate or ice will wear the blades faster.

• Beware of over processing some ingredients. Stop and check the consistency frequently. Cleaning and Maintenance ● In addition to the following you must refer to the safety precautions. ● Before starting cleaning, make sure that the power switch and cruise control are in the "0" position, and disconnect the power plug from the electrical outlet. ● Clean the pure glass bowl, without chemicals or any other type of cleaning liquid. ● Never use wet cloth clean the motor base, or immerse the motor base into water. ● If the device operates with abnormal noise, or severe shaking, stop using it and return it to the service agent for examination. Never repair it yourself. ● Do not clean motor main body, power cord and plug with water. ● Clean the main body with a soft, damp cloth and some mild cleaning agent. ● Fill the jug half-full with warm water and a little cleaning agent. Let the unit run on max. speed until the jug is clean. ● Ensure the jug and blades are clean, rinse and dry well before re-using. ● Do not place the lid and measuring cup into a dishwasher or boiling water, the lid may deform. ● Never use aggressive cleaning agents.EN-14

WARNING: the glass bowl blades are very sharp.

IMPORTANT: Always unplug the main housing and remove the complete jug assembly before attempting to unscrew the blade housing. IMPORTANT: Never place or store the blade housing on the main unit whilst removed from the jug. IMPORTANT: Do not disassemble the housing by yourself, please send to after-sales services if any problems with the main housing. Storage ● After use the product, please repack the product, and store it in a dry place and avoid sun exposure. ● Make sure the children could not reach the product. ● Keep the product dry before repack. Technical Specifications Voltage: 220-240V~ Frequency: 50-60Hz Power: 800W Rated capacity of blender: 1.5LEN-15 We decline any liability for defects due to improper use of the appliance and damage caused by service or repair made by a third party or due to installation of unauthorized parts. This logo affixed to the product indicates that is an appliance of which the waste processing falls within the framework of the 2012/19/EC, on Waste Electrical and Electronic Equipment (WEEE). The presence of hazardous substances in electrical and electronic equipment may have potential effects on the environment and human health in the reprocessing cycle of the product. Thus, at the end of the life of this appliance, it should not be disposed of with unsorted household waste. As a consumer, your role is crucial in the cycle of reuse, recycling and other forms of recovery of electrical and electronic equipment. Waste reception center and collection facilities are implemented at your disposal by local communities (recycling facilities) and distributors. You have the responsibility to use the selective waste collection systems at your disposal. The warranty does not cover the wear parts of the product, nor the problems or damage resulting from: (1) Surface deterioration due to normal wear and tear of the product; (2) Defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects; (3) Any incident, abuse, misuse, alteration, disassembly or Unauthorized repair (4) Improper maintenance, improper use Concerning the product or connection to an incorrect voltage; (5) Any use of accessories not supplied or not approved by the manufacturer. The guarantee will be cancelled if the nameplate and / or serial number of the product are removed. Imported by: SOFAREM O.I. 23, rue Charles Darwin – ZAE 2000 – 97420 Le Port Tél : [phone] Exported by: SCHNEIDER CONSUMER GROUP 12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCEDE-1 Wichtige Sicherheitshinweise
