USER MANUAL KHM7212QGA KITCHENAID

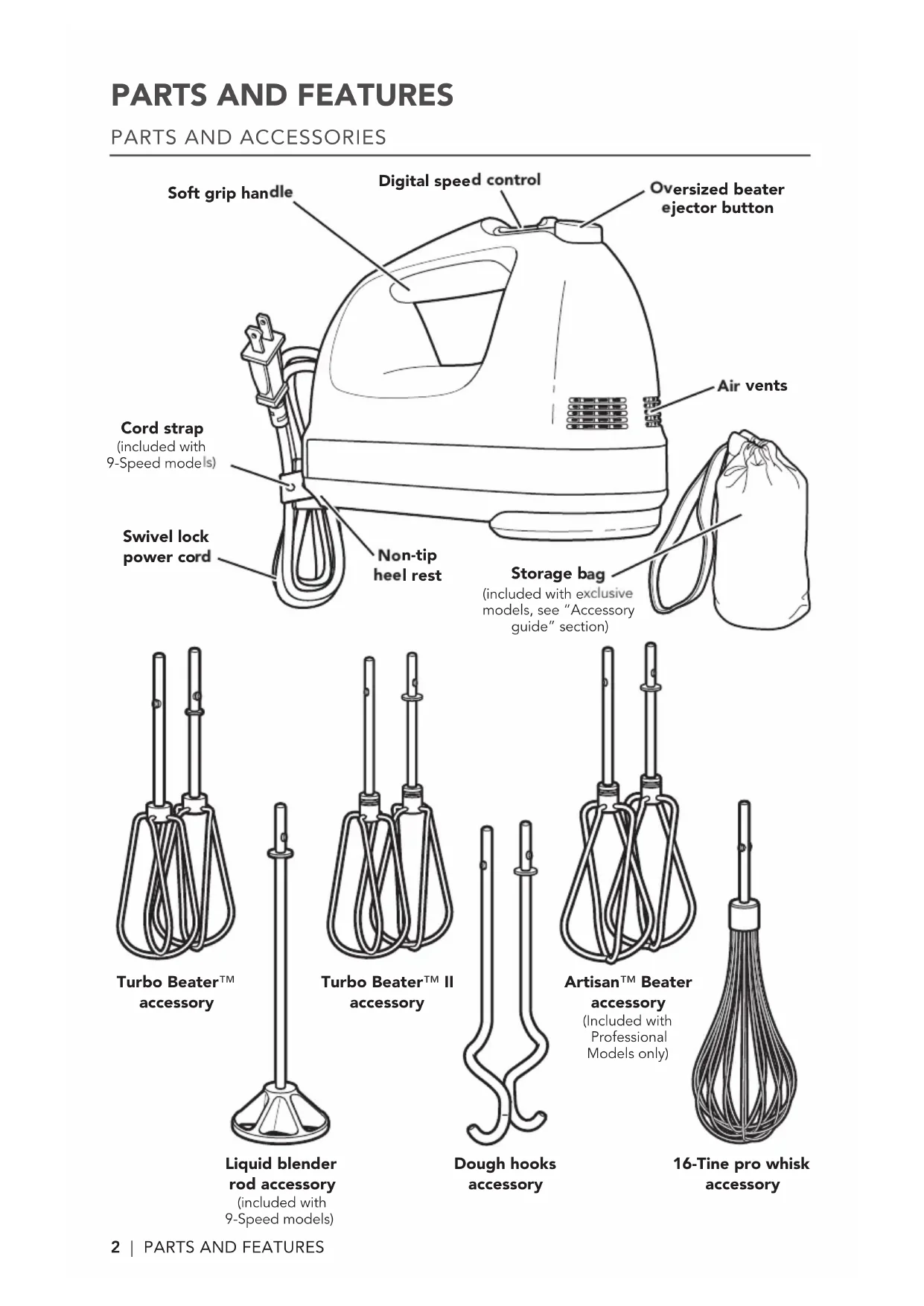

KHM72 KHM92 W10885900A_Final.indd 1 4/26/16 11:26 AM2 | PARTS AND FEATURES Swivel lock power cord Soft grip handle Oversized beater ejector button Digital speed control Air vents Non-tip heel rest Cord strap (included with 9-Speed models) Storage bag (included with exclusive models, see “Accessory guide” section)

PARTS AND ACCESSORIES

Liquid blender rod accessory (included with 9-Speed models) Artisan™ Beater accessory (Included with Professional Models only) Turbo Beater™ accessory Turbo Beater™ II accessory Dough hooks accessory 16-Tine pro whisk accessory W10885900A_Final.indd 2 4/26/16 11:26 AMENGLISH

IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.

2. To protect against risk of electrical shock, do not put Hand Mixer in water

3. Close supervision is necessary when any appliance is used by

4. Unplug Hand Mixer from the outlet when not in use, before putting

on or taking off parts, and before cleaning.

5. Avoid contacting moving parts. Keep hands, hair, clothing, as well as

spatulas and other utensils away from all accessories during operation to reduce the risk of injury to persons and/or damage to the Hand Mixer.

6. Do not operate the Hand Mixer with a damaged cord or plug, or after the

Hand Mixer malfunctions, or is dropped or damaged in any manner. Return the Hand Mixer to the nearest Authorized Service Center for examination, repair, or electrical or mechanical adjustment. W10885900A_Final.indd 3 4/26/16 11:26 AM4 | TROUBLESHOOTING

7. The use of attachments not recommended or sold by KitchenAid

may cause re, electric shock, or injury.

8. Do not use the Hand Mixer outdoors.

9. Do not let cord hang over edge of table or counter.

10. Do not let cord contact hot surface, including the stove.

11. Remove any accessories from Hand Mixer before washing.

SAVE THESE INSTRUCTIONS

ELECTRICAL REQUIREMENTS Volts: 120 A.C. only. Hertz: 60 Hz NOTE: This Hand Mixer has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way. This product is designed for household use only. TROUBLESHOOTING

1. Is the Hand Mixer plugged in?

2. Is the fuse in the circuit to the Hand

Mixer in working order? If you have a circuit breaker box, make sure the circuit is closed.

3. Try unplugging the Hand Mixer, then

01-800-902-31-00 (Industrias Birtman) See the "Warranty and service" section for additional details. Do not return the Hand Mixer to the retailer – they do not provide service. First try the solutions suggested here and possibly avoid the cost of service. W10885900A_Final.indd 4 4/26/16 11:26 AMENGLISH

ACCESSORY GUIDE ACCESSORY USES

KHM7210 KHM7211 KHM7212Q KHM926 KHM929 KHM9212Turbo Beater™ cookie dough, cake batter Turbo Beater™ II cookie dough, cake batter Artisan™ Beater † cookie dough, cake batter Liquid blender rod smoothies, diet drink mixes, chocolate milk, iced tea, milkshakes, soups, sauces Dough hooks yeast bread, doughs 16-Tine pro whisk whipped cream, whipped egg whites, sauces, puddings Storage bag†† to store accessories † Not sold as an accessory. †† Please note, the storage bag referenced is not included with model KHM926Q. To order these accessories In USA: visit www.shopkitchenaid.com, or call 1-800-541-6390. In Canada: call 1-800-807-6777. W10885900A_Final.indd 5 4/26/16 11:26 AM6 | USING THE HAND MIXER

For slow stirring, combining, and starting all mixing procedures. Use this speed to stir in nuts, chocolate chips, shredded cheese, onions, olives, and other chunky ingredients. Mix flour and other dry ingredients with liquids or other moist mixtures. Helps prevent ingredients from splashing out of bowl.

Combine heavy mixtures, such as cookie dough. Mix light cream cheese spreads. Stir batters and gelatin mixtures.

Combine heavy cream cheese mixtures. Mash potatoes or squash.

Mix muffins, quick breads, batter breads, cake batters, and frostings. Blend butter and sugar.

Whip heavy cream and mousse mixtures.

Beat egg whites and meringue mixtures. NOTE: Beater accessories are not designed for mixing and kneading bread dough. Special dough hook attachments are available. See the “Accessory guide” section for details and ordering information. The 7-Speed Hand Mixer always starts on the lowest speed (Speed 1). Move to higher speeds as needed; the speed setting indicator control will light up with the corresponding number for each speed. W10885900A_Final.indd 6 4/26/16 11:26 AMENGLISH

For slow stirring, combining, and starting all mixing procedures. Use this speed to stir in nuts, chocolate chips, shredded cheese, onions, olives, and other chunky ingredients. Helps prevent ingredients from splashing out of bowl.

Mix flour and other dry ingredients with liquids or other moist mixtures.

Combine heavy mixtures, such as cookie dough. Mix light cream cheese spreads. Stir batters and gelatin mixtures.

Mix muffins and quick breads. Combine heavy cream cheese mixtures. Mash potatoes or squash.

Mix batter breads. Blend butter and sugar. Mix frostings.

Finish mixing cake and other batters. Whip heavy cream and mousse mixtures.

Beat egg whites. Whip heavy cream and mousse mixtures.

Beat meringue mixtures. NOTE: Beater accessories are not designed for mixing and kneading bread dough. Special dough hook attachments are available. See the “Accessory guide” section for details and ordering information. The 9-Speed Hand Mixer always starts on the lowest speed (Speed 1). Move to higher speeds as needed; the speed setting indicator control will light up with the corresponding number for each speed. W10885900A_Final.indd 7 4/26/16 11:26 AM8 | USING THE HAND MIXER

IMPORTANT: Be sure to read and follow the specific instructions in this manual for proper use of the Hand Mixer. NOTE: An accessory shaft without a collar may be used in either opening (A or B). Those with a collar may only be used in the larger opening (B).

Unplug the Hand Mixer from the electrical outlet. Paired accessories (beaters, optional dough hooks) include one accessory with a collar (D), and one without (C). Single accessories come with a collar (D) (liquid blending rod) or without (C) (whisk).

Insert the accessory shaft with the collar (D) into the larger opening (B) of the Hand Mixer. Align the flanges on the shaft with the slots in the opening. Push to lock into place.

Insert the accessory without a collar (C) into the smaller opening (A). Align and push to lock into place.

Press the ejector button to release the accessories from the Hand Mixer, then remove them.

USING THE HAND MIXER

REMOVING THE ACCESSORIES

If the Hand Mixer is running, stop the Hand Mixer by sliding the Power switch to the “O” (Off) position.

Slide the Power switch to the “I” (ON) position. The motor will automatically start at Speed 1, and the “1” on the speed indicator control will light up.

Touch the “UP (arrow)” button to increase the mixing speed to the desired setting. If necessary, touch the “DOWN (arrow)” button to decrease the mixing speed. See the “Speed control guide” for more information. NOTE: The Hand Mixer automatically starts at Speed 1 every time it is turned on, regardless of the Speed setting at the time the Hand Mixer is shut off.

When mixing job is finished, slide the Power switch to the “O” (Off) position. Unplug the Hand Mixer before removing accessories.

Hand Mixer will beat faster and more thoroughly than most other electric hand mixers. Therefore, the beating time in most recipes must be adjusted to avoid over-beating. Beating time is faster due to larger beater sizes. To help determine the ideal beating time, observe the batter or dough and beat only until it has the desired appearance described in your recipe, such as “smooth and creamy”. To select the best beating speeds, use the “Speed control guide” section.

Plug the Hand Mixer into an electrical outlet. W10885900A_Final.indd 10 4/26/16 11:26 AMENGLISHCARE AND CLEANING | 11

Always unplug Hand Mixer before cleaning. Wipe power cord and cord strap with damp cloth. Dry with a soft cloth.

Wipe Hand Mixer with a damp cloth. Dry with a soft cloth.

CLEANING THE ACCESSORIES

CLEANING THE STORAGE BAG

NOTE: Do not immerse Hand Mixer in water. Electrical Shock Hazard Do not put in water. Doing so can result in death or electrical shock. Always remove accessories from Hand Mixer before cleaning. Wash in dishwasher, or by hand in warm, soapy water. Rinse and wipe dry. Machine wash warm, tumble dry low; or wipe clean with a warm soapy cloth. W10885900A_Final.indd 11 4/26/16 11:26 AM12 | WARRANTY AND SERVICE

This warranty extends to the purchaser and any succeeding owner for Hand Mixers operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada. Length of Warranty: One Year Full Warranty from date of purchase. KitchenAid Will Pay for Your Choice of: Hassle-Free Replacement of your Hand Mixer. See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at 1-800-541-6390.

The replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center. KitchenAid Will Not Pay for: A. Repairs when your Hand Mixer is used in other than normal single family home use. B. Damage resulting from accident, alteration, misuse or abuse. C. Any shipping or handling costs to deliver your Hand Mixer to an Authorized Service Center. D. Replacement parts or repair labor costs for Hand Mixers operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada. DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER’S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specic legal rights and you may also have other rights which vary from state to state or province to province. W10885900A_Final.indd 12 4/26/16 11:26 AMENGLISH

WARRANTY AND SERVICE | 13

®/™ © 2016 All rights reserved. KITCHENAID and the design of the Stand Mixer are trademarks in the U.S. and elsewhere. Used under license in Canada. In the United States and Puerto Rico: For service information, or to order accessories or replacement parts, call toll-free at 1-800-541-6390 or write to: Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218 Outside the United States and Puerto Rico: Consult your local KitchenAid dealer or the store where you purchased the Hand Mixer for information on how to obtain service. For service information in Canada: Call toll-free 1-800-807-6777. For service information in Mexico: Call toll-free 01-800-0022-767. We’re so condent the quality of our products meets the exacting standards of KitchenAid that, if your Hand Mixer should fail within the rst year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Hand Mixer returned to us. Your replacement unit will also be covered by our one year limited warranty. If your Hand Mixer should fail within the rst year of ownership, simply call our toll-free Customer eXperience Center at 1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address. (No P.O. Box numbers, please.) When you receive your replacement Hand Mixer, use the carton, packing materials, and prepaid shipping label to pack up your original Hand Mixer and send it back to KitchenAid. We’re so condent the quality of our products meets the exacting standards of the KitchenAid brand that, if your Hand Mixer should fail within the rst year of ownership, we will replace your Hand Mixer with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty. If your Hand Mixer should fail within the rst year of ownership, simply call our toll-free Customer eXperience Center at 1-800-807-6777 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address. When you receive your replacement Hand Mixer, use the carton, packing materials, and prepaid shipping label to pack up your original Hand Mixer and send it back to KitchenAid.

HASSLE-FREE REPLACEMENT WARRANTY – CANADA

ARRANGING FOR SERVICE AFTER THE WARRANTY EXPIRES,

OR ORDERING ACCESSORIES AND REPLACEMENT PARTS

INCLUS AVEC LE MODÈLE

PRODUCT QUESTIONS OR RETURNS
