USER MANUAL KTTS505EBL KITCHENAID

THANK YOU for purchasing this high-quality product. If you should experience a problem not covered in TROUBLESHOOTING, please visit our website at www.kitchenaid.com or call us at 1-800-422-1230. You will need your model and serial number located on the right-hand side, behind the compactor drawer.

WARNING: When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using the compactor.Close supervision is necessary when used by or near children. Do not allow to be used as a toy, or to run unattended at any time. Lock Key Switch when not in use and store key out of reach of children.Do not touch moving parts.Do not operate with a damaged cord set, plug, motor, or after damage in any manner. Have the compactor examined, repaired or adjusted by an authorized serviceperson.Use only for intended use as described in this manual. Do not use other than manufacturer's recommended attachments.oily rags and insect sprays. Do not compact lighted cigarettes, cigars, or other hot or burning items. Do not overload the compactor. Do not take apart the compactor. Incorrect reassembly can cause electric shock when subsequently used. Handle a loaded trash bag with care. Sharp objects can pierce the bag and cause injury. Do not overload trash bag with heavy material such as glass.This compactor is intended for household use only.Unplug the compactor before servicing.Do not modify the plug attached to the compactor; use only with a grounded receptacle.

SAVE THESE INSTRUCTIONS

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other

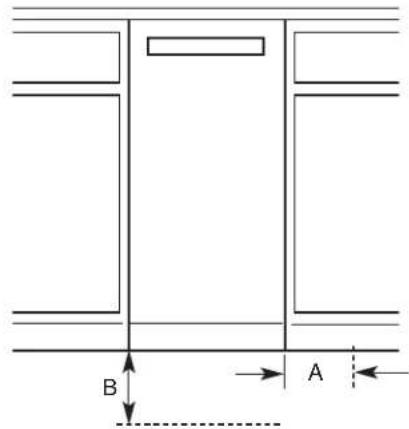

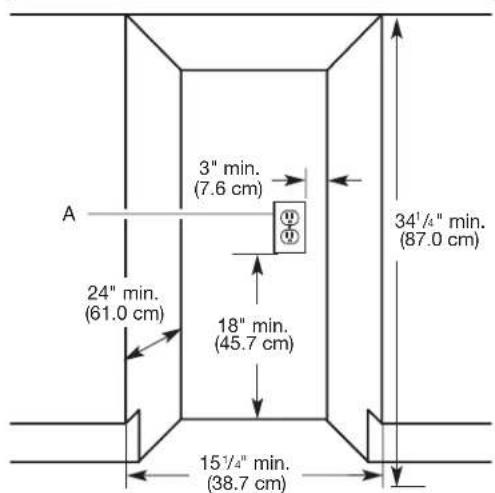

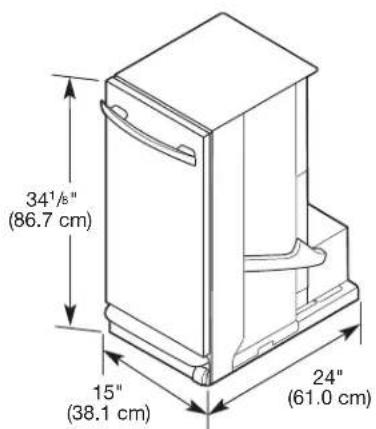

(86.7 cm) 15" (38.1 cm) Cutout Dimensions A. Grounded electrical outlet must be a minimum of 3" (7.6 cm) away from surrounding cabinets or nearby walls as shown. It can be placed either to the left or the right side of the compactor.

A. Leave 6" (15.2 cm) of clearance space to the right side of the compactor in order to remove the compactor bags. B. Leave 23" (58.4 cm) of clearance in front of the compactor in order to fully open or remove the compactor drawer. Electrical Requirements Recommended Grounding Method This compactor is for use on a single phase, 115 volt, 60 Hz, AC only, 15 or 20 amp fused and properly grounded circuit and is equipped with a grounding plug as shown. It is recommended that a separate circuit serving only this appliance be provided. This compactor must be grounded while in use to reduce the risk of electric shock. The compactor is equipped with a three-conductor cord and 3 prong grounding-type plug to t the proper grounding-type receptacle. The green (or green and yellow) conductor in the cord is the grounding wire. Do not connect the green (or green and yellow) wire to a live terminal. Do not modify the plug attached to the compactor; use with a grounded receptacle.4 INSTALLATION INSTRUCTIONS Tools Installer: Leave User Instructions with the homeowner. Homeowner: Keep User Instructions for future reference and for local electrical inspector’s use if required. Tools needed: Gather the required tools and parts before starting installation. ■ Level ■ Tape measure ■ Pliers ■ Scissors ■ Phillips No. 2 screwdriver ■ Flat-head screwdriver ■ 5/16" box-end wrench ■ Utility knife Unpacking WARNING Excessive Weight Hazard Use two or more people to move and install compactor. Failure to do so can result in back or other injury. Begin in the room where the compactor will be located.

1. Remove compactor from shipping carton. Follow the

instructions on the shipping carton.

2. Remove all packaging materials such as tape and shipping

residue caused by shipping material.

4. Dry thoroughly with a soft cloth. For more information, see

the “Cleaning” section.

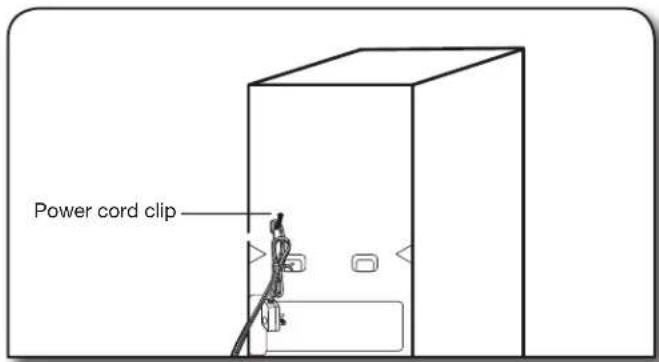

5. Be sure the power cord is attached to the cord clip on the

rear of the compactor.

6. Place two of the four corner posts from the packaging on the

oor near the compactor.

7. Press the foot pedal to open the compactor drawer and

remove any shipping materials or other items from the drawer. NOTE: Do not remove the compactor bag.

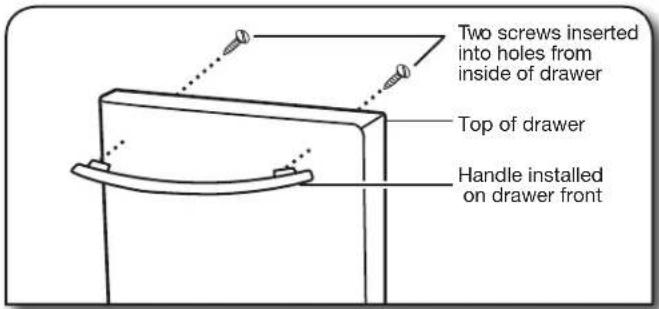

8. If the compactor has a full front panel, install the handle. The

handle is located inside the drawer. Power cord clip To install handle: ■ Insert screws into the holes from the inside of the drawer. ■ Place handle on the front of the drawer and align handle screw holes with screw ends. ■ Tighten screws snugly.Two screws inserted into holes from inside of drawerTop of drawerHandle installed on drawer front

9. Grasp the front of the drawer and tilt it backwards slightly

while pulling forward to clear the drawer stops.

10. Grasp the drawer handle or sides of drawer and lift drawer

11. Place the drawer on the two corner posts.

12. Place the other two corner posts on the oor to the side of

13. Grasp the sides of the compactor cabinet and place

compactor on its side on top of the corner posts.

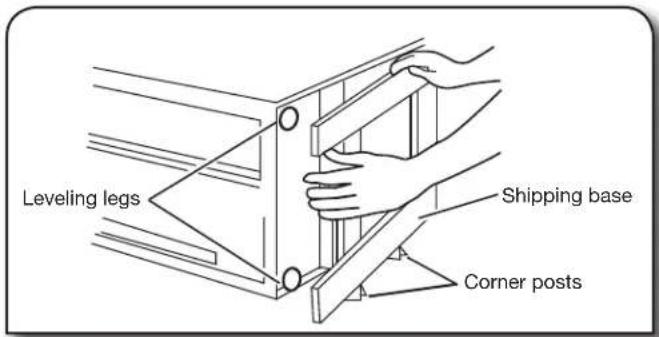

14. Remove the shipping base from the bottom of the

compactor. Corner postsShipping baseLeveling legs NOTE: Before returning the compactor to the upright position, adjust the height of the compactor as necessary using the following “Height Adjustment” instructions.5 Height Adjustment (optional)

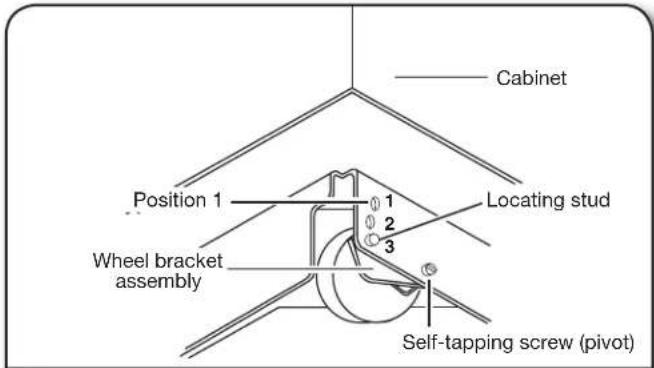

1. Measure the height of your cabinet opening. The top of the

compactor mounting screw head should be at least 1/8" (3 mm) from the top of the cabinet opening. The rear wheels are preset for a cabinet height of 34

(87 cm). See Position “1” in the following picture. To adjust for cabinet opening heights greater than 34

(87 cm): ■ Loosen self-tapping screw just enough to clear stud from hole in Position “1”. ■ Move the rear wheel and stud to Position “2” or “3” as needed for your cabinet opening measurement: Position “2”: 34

" (87.5 to 88.1 cm) Position “3”: 34

" to 35" (88.4 to 88.9 cm) NOTE: To level the compactor in position “3”, you may need to add shims under the front leveling legs. The shims should be approximately 1/4" (6 mm) thick. ■ Tighten screw.

2. Stand the compactor upright. If you are changing the rear

wheel height, move the corner posts to the opposite side and lay the compactor on its other side. Adjust the other rear wheel.

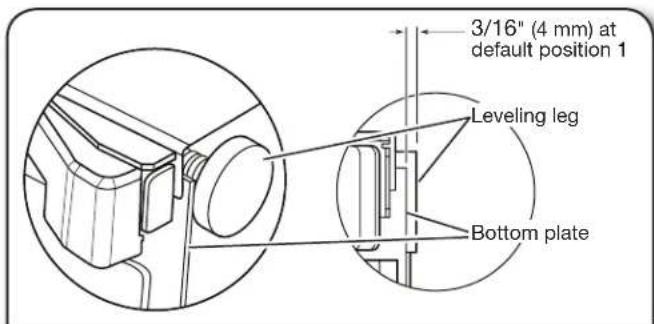

3. Use pliers to lower the front leveling legs away from the

compactor cabinet. Adjust the leveling legs to agree with the position of the rear wheels. Rear Wheel position: “1”: 3/16" (4 mm) from bottom plate “2”: 9/16" (14 mm) from bottom plate “3”: 3/4" (19 mm) from bottom plate Leveling leg 3/16 " (4 mm) at default position 1 Bottom plate

4. Stand the compactor upright. Dispose of/recycle all

packaging materials. Undercounter Installation Proper installation is your responsibility. Make sure you have everything necessary for correct installation. It is the personal responsibility and obligation of the customer to contact a qualied installer to assure that electrical installation meets all national and local codes and ordinances. IMPORTANT: ■ To avoid damaging oor covering, slide compactor onto cardboard or hardboard before moving compactor across oor. ■ Do not allow the rear frame of the compactor to touch the oor covering when lifting or moving compactor.

1. Move the compactor close to its nal location.

2. Remove cord clip from the back of the compactor. Plug into

a grounded 3 prong outlet.

3. Determine if you want the compactor cabinet frame or

drawer front ush with the kitchen cabinet face.

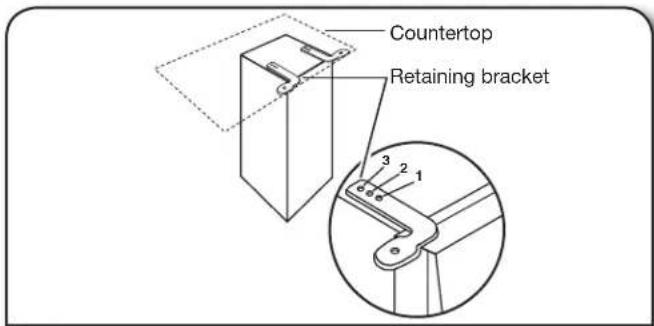

4. Rotate the two top retaining brackets 180°.

The screws are supplied in position “2”. If desired, adjust the brackets to position “1” or “3” as described below: ■ If the compactor frame is to be ush with the cabinet front, place retaining bracket screws through “1”. ■ If the compactor drawer front is to be ush with the cabinet front, place retaining bracket screws through “3”. ■ If the compactor is to be midway between “1” and “3”, leave the retaining bracket screws through “2”.

Countertop Retaining bracket

5. Slowly lift the front slightly and roll compactor into the

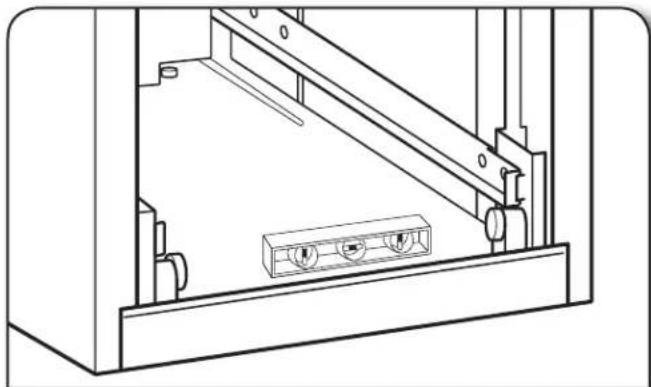

6. Adjust the leveling legs until the compactor is level and

stable. Place a level inside the bottom of the cabinet as shown. Check the compactor leveling side to side and back to back.

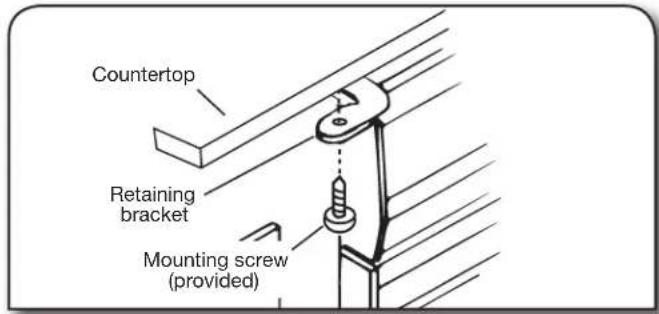

7. Using the two #8-18 x 1/2" (13 mm) screws (provided), fasten

the retaining brackets to the countertop with the mounting screws.6 Countertop Mounting Countertop Retaining bracket Mounting screw (provided) NOTE: If the retaining brackets cannot be attached to the underside of countertop, see the “Cabinet-face Mounting” section. Cabinet-face Mounting (use if countertop mounting is not possible) Mounting clip (provided) Cabinet face Retaining bracket Screw (provided)

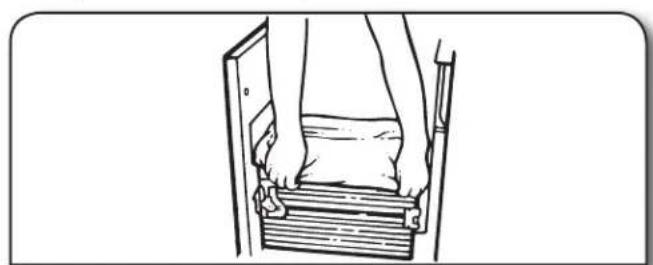

8. Grasp sides of compactor drawer and place the wheels of

the drawer into the tracks. Lift at the handle so drawer will go over drawer stops. Close the drawer. Make sure the drawer opens and closes freely. If the toe guard rubs against oor, see the “Adjusting the Toe Guard” section for further instructions. Adjusting the Toe Guard If the toe guard rubs the oor covering, the toe guard clearance may be changed as follows:

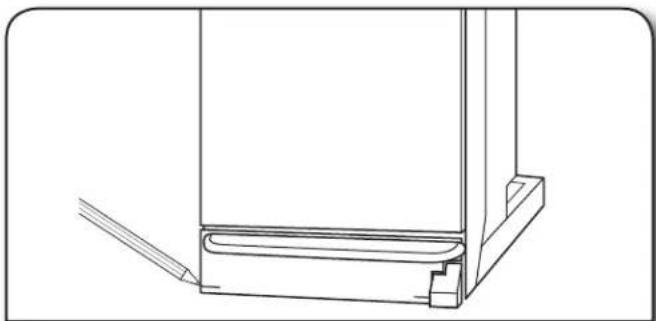

1. Mark on each side of the toe guard the amount of toe guard

that rubs the oor covering.

2. Remove the drawer from the compactor. (See steps 9 and 10

in the “Unpacking” section.)

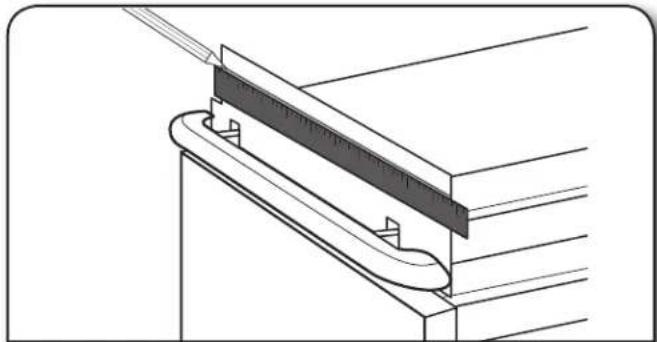

3. Use a ruler and a pencil or chalk to draw a line between the

marks on each side of toe guard. Use scissors or a utility knife to cut toe guard along line.

4. Replace drawer. If toe guard still rubs oor covering, repeat

steps 1-3. Installing a Custom Panel Dimensions Use these dimensions to create a custom panel. The panel should be a minimum of 1/2" (1.3 cm) thick. Installation

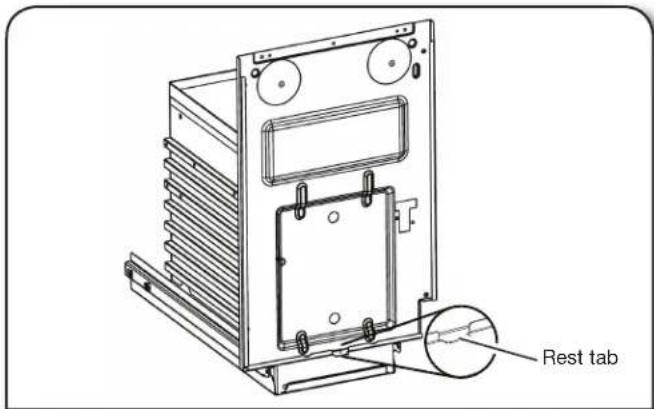

1. Align the bottom of the custom panel with the bottom of the

exterior drawer front and rest the panel on the rest tab. NOTE: The bottom of the custom panel should not extend below the bottom rest tab which is located at the lower center of the exterior drawer front.

(74.6 cm) 15" max (38.1 cm) Rest tab7 Secure the custom panel to the exterior drawer front by using four #8 x 1" wood screws from the inside drawer front. There are seven holes available for use.

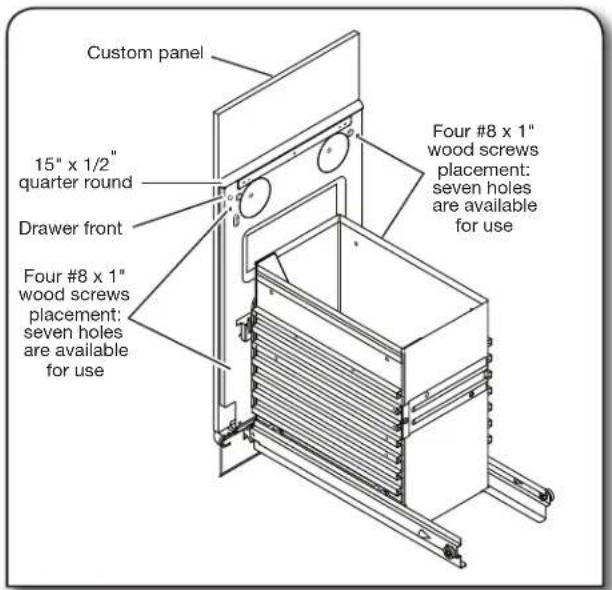

2. Attach a 15" x 1/2" (38.1 cm x 13 mm) quarter-round ller

along the top inside edge of the drawer front using glue or screws. COMPACTOR USE How Your Compactor Works The compacting ram is the part of the compactor which compresses the trash. IMPORTANT: The compacting ram stops 7" (18 cm) from the bottom of the drawer. You will not see compacting of trash until the drawer is more than 1/2 full. You may hear a noise when glass breaks. Strong glass bottles may not break. The trash in a full compactor bag will be about 1/4 the size of its original bulk. Custom panel 15" x 1/2

quarter round Drawer front Four #8 x 1" wood screws placement: seven holes are available for use Four #8 x 1" wood screws placement: seven holes are available for use WARNING Cut Hazard Do not push items down into compactor with hands Doing so can result in cuts. or feet. NOTE: You will not see compacting of trash the rst few times you load the compactor. The compactor drawer should be at least 1/2 full before the compactor can begin compressing the load.

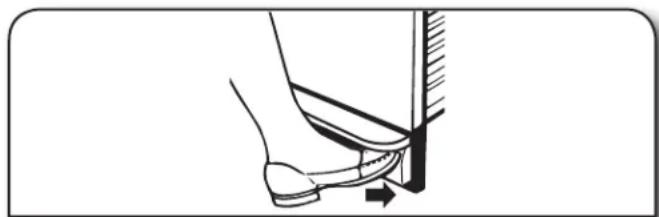

1. Open the drawer. Lift and pull the handle or press the foot

pedal to open the drawer. NOTE: Pressing the foot pedal opens the drawer only 3" to 6" (7.6 cm to 15.2 cm), dependent upon the load. WARNING Cut Hazard Cover glass items when compacting to better contain fragments. Failure to do so can result in cuts.

2. Place trash in compactor.

■ Wrap or cover wet or messy trash. ■ Do not compact items that may develop offensive odors such as raw meat, sh, grapefruit rinds, disposable diapers, or personal hygiene items. ■ Load bulky trash in the center of the drawer. ■ Load bottles and cans on their sides in the center of the drawer. Do not load bottles in an upright position.

3. Close the drawer.8

1. Lift and pull the handle or press the foot pedal to open the

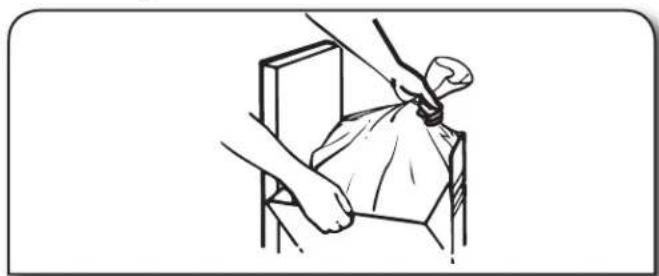

2. Remove top of bag from bag retainer buttons. Pull up all four

bag cuffs. Close bag with a twist tie. WARNING Excessive Weight Hazard Two people may be required to remove and transport compacted bag. Unlock latch to assist in the removal of the bag. Failure to do so can result in back or other injury. When the trash is compacted to the top of the drawer, remove the bag. If the bag is too heavy, compact less trash before emptying it in the future. WARNING Cut Hazard Do not push items down into compactor with hands Doing so can result in cuts. or feet. Starting Your Compactor

1. Open drawer. Load trash.

2. Turn the Key-knob to the ON position.

cycle switch to OFF.

NOTE: The Key-knob is removable. Remove the Key-knob to disallow children to operate the compactor. Press the foot- actuated Start button in with your toe to start the compacting cycle. Using Solid Pack

(Locked) Cycle The Solid Pack

(locked) cycle extends the use of the bag by putting constant pressure on the trash to keep it from springing back. Regular use of a Solid Pack

cycle can increase bag capacity up to 25 percent. During the Solid Pack

cycle, the ram will stay in the down position for extra compacting. The drawer is locked and cannot be opened when the ram is down. IMPORTANT: During the Solid Pack

cycle, the drawer remains locked until you press the foot-actuated Start button to raise the ram. For best results, use the Solid Pack

cycle for at least 30 minutes at a time.

1. Lift and pull the handle or press the foot pedal to open the

4. Press the foot-actuated Start button in with your toe to start

the compacting cycle.

5. Press the foot-actuated Start button to raise the ram and

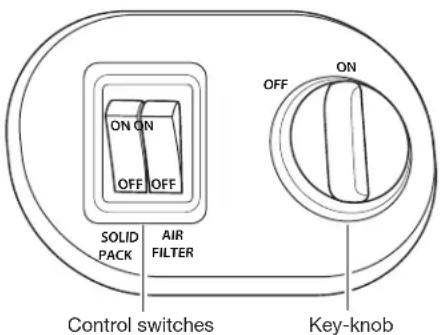

allow the drawer to be opened. SOLIDPACK AIR FILTERON ON OFF OFF Control switches Key-knob OFF

in the compactor for odor removal. NOTES: ■ The Air Filter only works when the Key-knob is in the On position. ■ If you hear noise while the compactor is not in use, it might be the fan has been left on.

2. Set the Air Filter switch to OFF to turn off the fan.

Removing a Filled Bag SOLID PACK AIR FILTER OFF

3. Release drawer side latch. Tilt drawer to the right. This

releases pressure on the bag making it easier to remove the bag.

5. Latch the drawer if it was unlatched.

Installing a New Bag Do not use any kind of bag other than those designed specically for use in your compactor. Order replacement compactor bags through your local dealer or by calling the toll-free number on the cover or in the “Assistance or Service” section. IMPORTANT: Before installing a new bag, be sure: ■ The drawer latch is securely locked. ■ The drawer is clean and free of debris. NOTE: An unlatched drawer can cause the drawer monitor switch to stay open. This will make the ram return and the compactor will continue to run. Attempt to push the drawer inwards to stop the compactor. The continuous running of the compactor can also be attributed to debris in the drawer area. If it is difcult to open or close the drawer this may be due to either the drawer latch not being locked or debris in the drawer area.

1. Place folded bag into the drawer. Open bag and pull top

edges over the drawer top.

2. Lock bag in place by pulling the four pre-punched holes over

the bag retainer buttons. Holes will expand over the buttons without damaging the bag.

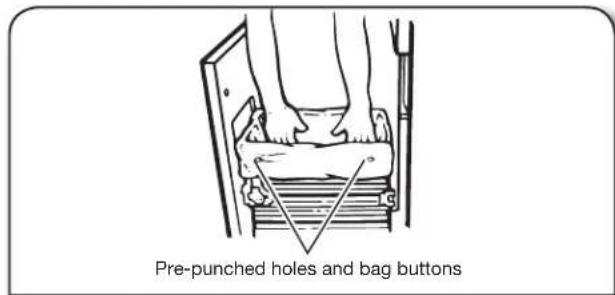

3. Press inside of bag against the drawer bottom, sides and

corners for a smooth t. Pre-punched holes and bag buttons NOTE: The ram can and will tear improperly installed bags. COMPACTOR CARE Your new compactor is designed to give you many years of dependable service. However, there are a few things you are expected to do in order to properly maintain your compactor. This section will tell you how to clean and care for your compactor. Before changing the air lter, open the drawer and turn the Key-knob to the OFF position and remove it. NOTE: Any services other than those outlined in this section should be performed by an authorized service representative. Cleaning Changing the Air Filter It is recommended that you use the charcoal air lter located under the lter cover. To order the correct replacement charcoal lters, call the toll-free number listed on the cover or in the “Accessories” section.

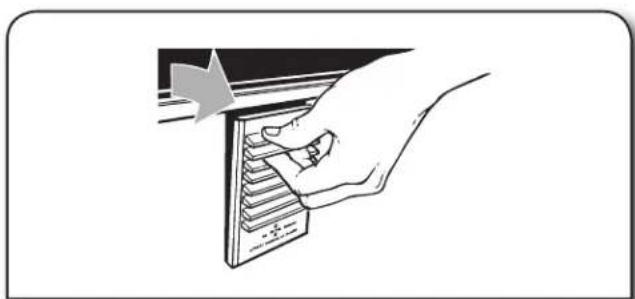

1. Insert ngertips in the air lter cover and pull until the side

tabs release. Lift the cover to release the bottom tabs. Filter

3. To replace air lter, push the replacement lter into place.

4. Insert the bottom tabs of the air lter cover and push in until

the side tabs snap into place.

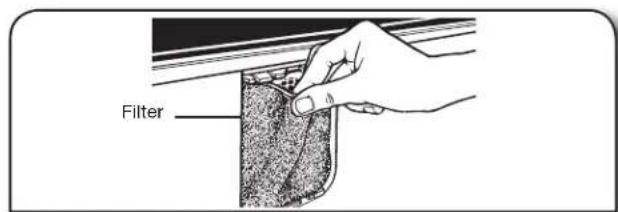

2. Remove the air lter by pulling the top edge of the lter. The

lter should pull out easily. Throw away the used lter.10 Cleaning Before cleaning the compactor, open the drawer and turn the Key-Knob to the OFF position and remove it. Cleaning Inside the Drawer

1. Pull drawer out until it stops.

2. Remove the bag. See the “Removing a Filled Bag” section.

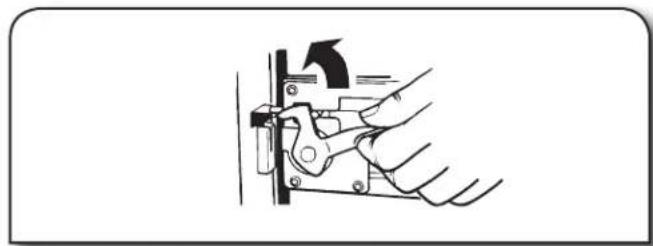

3. Optional: Remove the drawer side. Hold the drawer latch

open and tilt the side of the drawer out until the latch clears the drawer front. Remove the drawer side by lifting it out of the drawer.

4. Wash the interior of the drawer with a clean sponge or soft

cloth and a mild detergent in warm water. Rinse and dry thoroughly with a soft cloth.

5. If the drawer side was removed, slide it back into the tilted

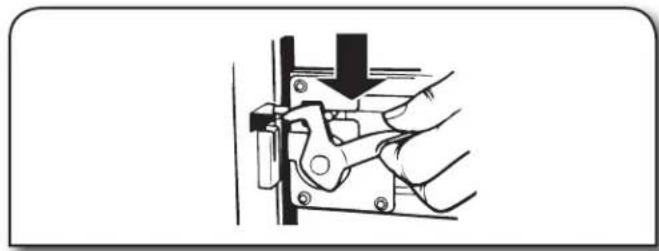

6. Press the drawer latch down while pushing the drawer side

to the upright position.

7. Latch the drawer side.

8. Close the drawer.

Cleaning Inside the Cabinet

1. Pull the drawer out until it stops.

NOTE: Look to see how the drawer rollers move in the tracks and disengage. It will be easier to replace the drawer after you have nished cleaning.

2. Lift the front of the drawer to clear the stops.

3. Grasp the handle or drawer on the sides and pull it out the

rest of the way. Set the drawer down gently. Vacuum the inside of the cabinet. Liquid spills or wet trash should be cleaned up by hand, or by using a vacuum designed to pick up liquids.

4. Wash the inside of the cabinet with a clean sponge or soft

cloth and a mild detergent in warm water. Rinse and dry thoroughly with a soft cloth.

5. To replace the drawer, grasp it by the sides and insert the

rollers onto the tracks.

6. Lift the front of the drawer and push it in fully past the stops.

WARNING Cut Hazard Wear gloves when cleaning inside the drawer or cabinet, or the ram. Failure to do so can result in cuts.11 Cleaning Exterior Surfaces

1. Wash exterior surfaces (including stainless steel) with a clean

sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Rinse and dry thoroughly with a soft cloth.

2. Wipe up spills immediately. Some foods can damage the

nish if left on the compactor surface. Cleaning the Ram

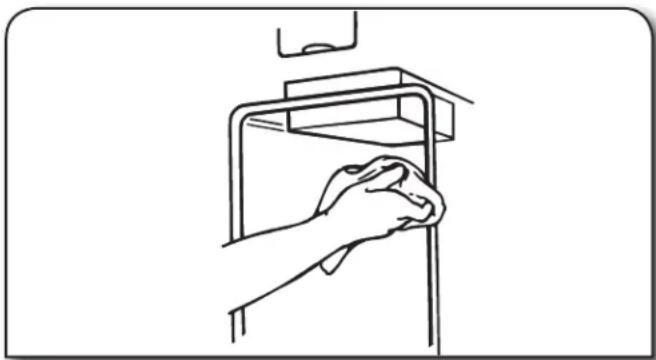

1. Wipe glass particles off of the ram cover with a cloth or

paper towels. Throw the towel away.

2. Remove foods with a clean sponge or soft cloth and a mild

detergent in warm water. Rinse and dry thoroughly with a soft cloth. Cleaning Before a Vacation If you will be away for more than a couple of days, remove the compactor bag. Remove the Key-knob and store it out of children’s reach. Accessories To order, contact your local authorized dealer. In the U.S.A. visit our webpage www.kitchenaid.com or call 1-800-422-1230. In Canada, visit our webpage www.kitchenaid.ca. or call: 1-800-807-6777. Replacement bags 15-pack - Part Number W10165295RP 60-pack - Part Number W10165294RB 180-pack - Part Number W10165295BU Charcoal air lter Part Number 4151750 Bag Carrier Part Number 776989 Panels and Handles: Panels Part Number W10714558 (Stainless Steel) Part Number W10714559 (White) Part Number W10714560 (Black) Handles: Part Number W10483828 (Stainless Steel Handle)12 TROUBLESHOOTING Try the solutions suggested here rst in order to avoid the cost of an unnecessary service call. PROBLEM SOLUTION

OPERATE Check that the power supply cord is plugged into a grounded 3 prong outlet. Check the type of wall plug the compactor is plugged into. It is possible the compactor power cord is plugged into an outlet controlled by a wall switch. This can occur when the wall switch was meant for a garbage disposal outlet. A household fuse may have blown, or a circuit breaker tripped. Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. Make sure the drawer is completely closed. Open the drawer to ensure the latch is locked. Close the drawer rmly and start the compactor. Check that the Key-knob is set to ON. See the “Starting Your Compactor” section. Press the foot-actuated start button. See the “Starting Your Compactor” section.

COMPACTING Drawer must be more than half full before trash is compacted. The ram stops 7" (17.8 cm) from the bottom of the drawer. DRAWER WILL NOT OPEN The Solid Pack

Cycle may be engaged. The drawer will remain locked until you reset by pressing the foot-actuated Start button. Turn the Solid Pack

Cycle off by pushing the Solid Pack

switch to OFF. Push on the drawer front in an attempt to raise the ram. Be sure the latch is locked. Press the foot-actuated Start button. See the “Starting Your Compactor” section.13 PROBLEM SOLUTION

Compacting works best when the Solid Pack

cycle is used. Keep trash compressed for a minimum of 30 minutes. BOTTLES DO NOT BREAK Factors that affect bottle breakage: Bottles will not break every time. The thickness of the bottle’s glass and the content of the trash load below it may keep the bottle from breaking.

TURN OFF Push on the drawer front to attempt to engage the drawer monitor switch. Open drawer and be sure the latch is locked. The foot actuated Start switch may not be engaged or the lever that pushes the Start switch in may be bent. Push on the lever to stop the compactor. If needed, bend the lever back into position. Debris in the drawer area will cause the door to disengage from the drawer monitor switch causing the compactor to keep running. This can also keep the compactor from starting.

DRAWER IS HITTING THE

CABINET The cabinet opening should be 15

" (38.7 cm) minimum with at least an 1/8" (3.2 mm) clearance on either side. Make sure the compactor is centered in the cabinet opening. Make sure the latch is locked. An unlatched drawer will cause the front door to be wobbly and offset from center. Check for debris on the drawer tracks or under the drawer. Debris may cause the drawer to lean to one side or not sit properly on the tracks. The compactor may be set too high or not level. The compactor can be raised or lowered with front leveling. Ensure the drawer is located on the tracks. If it is not, remove the drawer and reinstall. COMPACTOR MOVING DURING OPERATION Check that the retaining brackets are installed to the cabinet. See the “Countertop Mounting” or “Cabinet-front Mounting” sections.

LOOSE NOTE: By design, it is normal for the drawer to move slightly side to side. An unlatched door will wobble more than normal. Check that the door latch is in the locked position. The screws on the drawer front (door) may be loose. With a Phillips screwdriver, check to ensure the screws holding the door to the drawer are secure. COMPACTOR IS NOISY The noise could be normal operation: The compactor is driven by a steel chain and steel sprockets. The fan will make a humming noise when on. Set the air lter switch to OFF to turn the fan off.14 IF YOU NEED SERVICE: 1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed withoutservice. Please take a few minutes to review the Troubleshooting or Problem Solver section of the Use and Care Guide, or visithttp:// kitchenaid.custhelp.com. 2. All warranty service is provided exclusively by our authorized KitchenAid Service Providers. In the U.S. and Canada, direct all requests for warranty service to:KitchenAid Customer eXperience CenterIn the U.S.A., call 1-800-422-1230. In Canada, call 1-800-807-6777. If outside the 50 United States or Canada, contact your authorized KitchenAid dealer to determine whether another warranty applies. KITCHENAID

COMPACTOR LIMITED WARRANTY ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TOOBTAIN WARRANTY SERVICE.Please have the following information available when you call the CustomereXperience Center: ■ Name, address and telephone number ■ Model number and serial number ■ A clear, detailed description of the problem ■ Proof of purchase including dealer or retailer name and address

ONE YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED ONE YEAR LIMITED WARRANTY For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, KitchenAid or KitchenAid Canada (hereafter “KitchenAid”) will pay for factory specied parts and repair labor to correct defects in materials or workmanship. Service must be provided by a KitchenAid designated service company.30 DAY LIMITED WARRANTY ON THE CHARCOAL FILTER AND AIR FRESHENERFor thirty days from the date of purchase, when the compactor is installed, operated and maintained according to instructions attached to or furnished with the product, KitchenAid will provide a replacement lter or air freshener if the original lter or air freshener fails due to defects in materials or workmanship.YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a KitchenAid designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. Commercial, non-residential, multiple-family use, or use inconsistent with published user,

operator or installation instructions.2. In-home instruction on how to use your product.

3. Service to correct improper product maintenance or installation, installation not in accordance

with electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses or water inlet hoses).

4. Consumable parts (i.e. light bulbs, batteries, air or water lters, preservation solutions, etc.).

5. Defects or damage caused by the use of non-genuine KitchenAid parts or accessories.6. Damage from accident, misuse, abuse, re, oods, acts of God or use with products not approved by KitchenAid.

7. Repairs to parts or systems to correct product damage or defects caused by unauthorized

service, alteration or modication of theappliance.

8. Cosmetic damage including scratches, dents, chips, and other damage to the appliance nishes

unless such damage results from defects in materials and workmanship and is reported to KitchenAid within 30 days.

9. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments

including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.10. Pick-up or delivery. This product is intended for in-home repair.

11. Travel or transportation expenses for service in remote locations where an authorized KitchenAid

servicer is not available.

12. Removal or reinstallation of inaccessible appliances or built-in xtures (i.e. trim, decorative

panels, ooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or replacement of the product.

13. Service or parts for appliances with original model/serial numbers removed, altered or not easily

determined.The cost of repair or replacement under these excluded circumstances shall be borne by the customer. 11/14DISCLAIMER OF IMPLIED WARRANTIESIMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or tness, so this limitation may not apply to you. This warranty gives you specic legal rights, and you also may have other rights that vary from state to state or province to province.DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY KitchenAid makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask KitchenAid or your retailer about buying an extended warranty. LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGESYOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. KITCHENAID SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specic legal rights, and you also may have other rights that vary from state to state or province to province.15 NOTESNous vous REMERCIONS d’avoir acheté ce produit de haute qualité. Si vous rencontrez un problème non couvert dans la section DÉPANNAGE, veuillez visiter notre site Web à l’adresse www.kitchenaid.com ou appelez-nous au 1800422-1230 pour de plus amples renseignements. Il vous faudra les numéros de modèle et de série qui se trouvent derrière le tiroir du compacteur, côté droit.
