Product Type	Toaster oven
Brand	KitchenAid
Model	KCO275OB
Power	1800 W
Voltage	120 V
Frequency	60 Hz
Toasting Capacity	Up to 6 slices of bread
Cooking Modes	9 modes: Bake, Roast, Broil, Keep Warm, Reheat, Cookie, Pizza, Toast, Bagel
Temperature Range	150°F – 450°F (66°C – 232°C)
Additional Options	Convection and Frozen
Display	High contrast LCD
Interior Coating	Nonstick CeramaShield™
Included Accessories	Oven rack, grill rack, nonstick multipurpose pan, removable crumb tray
Number of Rack Positions	3 positions
Browning Level (Toast/Bagel)	1 (light) to 8 (dark)
Maximum Timer	60 minutes (depending on mode)
Safety	Automatic shut-off after 2 hours, grounded plug
Cleaning	Hand washing recommended, some accessories are dishwasher safe

Frequently Asked Questions - KCO275OB KITCHENAID

How to preheat the oven before cooking?

Select the desired cooking mode, then press Start/Cancel. The oven preheats automatically. A beep sounds when the temperature is reached. Then place the food and press Start/Cancel again to start the timer.

How to use Toast mode to toast bread?

Place the bread directly on the middle rack (position 2). Turn the selector to Toast. Set the browning level from 1 to 8 using the control knob. Press Start/Cancel. The bread is toasted without needing to flip it.

What to do if the oven does not turn on?

Check that the oven is plugged into a grounded 3-prong outlet. Ensure the fuse or circuit breaker is working. Try unplugging and replugging the appliance. If the problem persists, contact customer service.

How to clean the interior of the oven?

Unplug the oven and let it cool. The interior walls have a nonstick CeramaShield™ coating. Use a non-metallic sponge dampened with warm water to remove residues. Do not use abrasive cleaners or metal scouring pads. Dry with a soft cloth.

Can I use metal utensils in the oven?

Avoid inserting oversized foods or metal utensils that could touch the heating elements. Prefer containers made of metal, oven-safe glass, ceramic, or silicone. The door must be fully closed.

How to switch the display from Fahrenheit to Celsius?

Press and hold the Convection and Frozen buttons simultaneously for 3 seconds. The display switches between °F and °C.

Which rack position to use for a pizza?

For a pizza, use rack position 1 or 2. Place the pizza directly on the rack for a crispier crust, or use the multipurpose pan. The Pizza mode includes a final broil step.

The oven turns off by itself after a while, is that normal?

Yes, the oven has an automatic shut-off after 2 hours of continuous operation. If the indicator light flashes rapidly, it means the automatic shut-off has activated. You can restart the oven if needed.

How to use the Convection function?

The Convection function activates a fan to circulate hot air. It is available for most modes except Toast and Bagel. Press the Convection button after selecting the mode. Cooking can be up to 30% faster, so check doneness earlier.

How to use the Bagel mode?

Place the bagel halves on the middle rack, cut side up. Select the Bagel mode. Set the browning level and the number of bagels. Press Start/Cancel. The mode lightly heats the outside while toasting the top.

USER MANUAL KCO275OB KITCHENAID

We're committed to helping you create a lifetime of delicious meals for family and friends. To help ensure the longevity and performance of your appliance, keep this guide handy. It will empower you with the best way to use and care for your product. Your satisfaction is our #1 goal. Remember to register your product online at www.kitchenaid.com or by mail using the enclosed Product Registration Card.

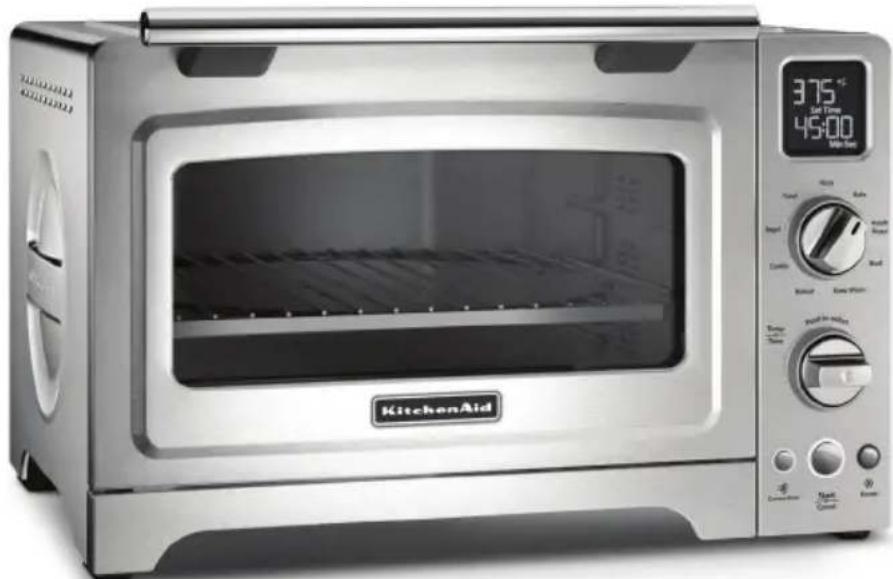

Exterior view of a KitchenAid oven with digital display and control knobs (no text or symbols on main body)

Join us in the kitchen at www.kitchenaid.com.

TABLE OF CONTENTS

COUNTERTOP OVEN SAFETY 4

Important safeguards....5

Electrical requirements 6

PARTS AND FEATURES

Parts and accessories....7

Control panel features....8

Selecting oven rack positions....8

COOKING MODES GUIDE

Cooking Modes 9

Toast and Bagel Modes 9

COOKING MODES....10

TOASTING MODES 13

ADDITIONAL FUNCTIONS

Convection option.... 14

Frozen option....14

Changing between Fahrenheit and Celsius 14

GETTING STARTED

Before first use 15

Using the Countertop Oven.... 15

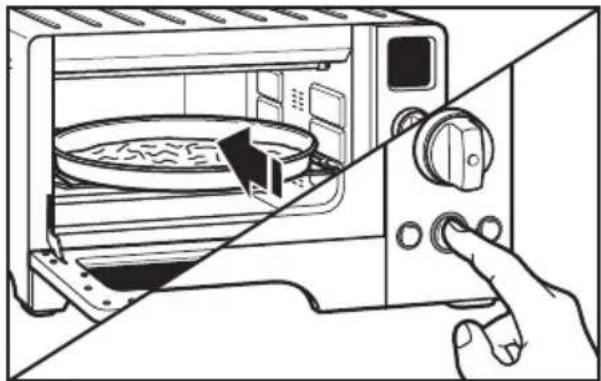

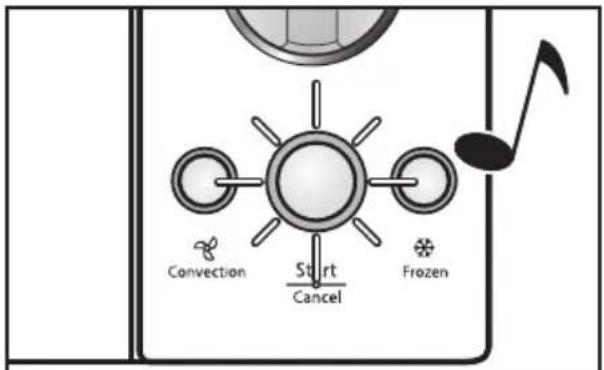

OPERATING THE COUNTERTOP OVEN

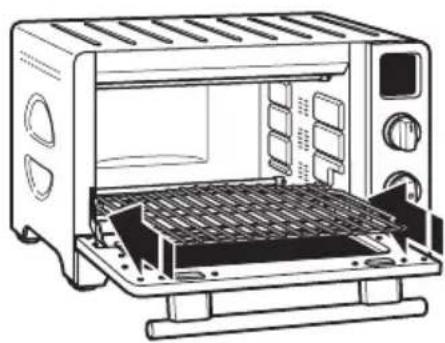

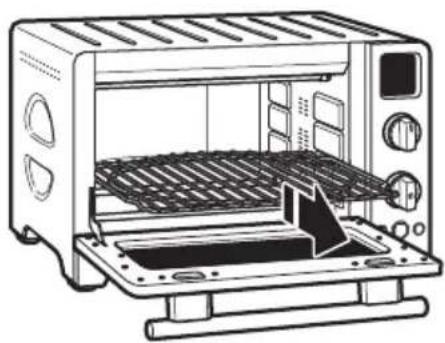

Adjusting the rack position.... 16

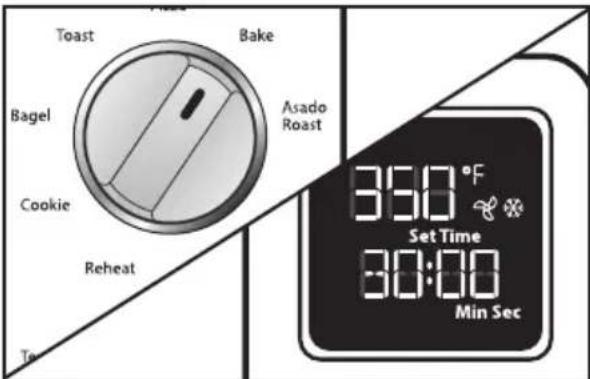

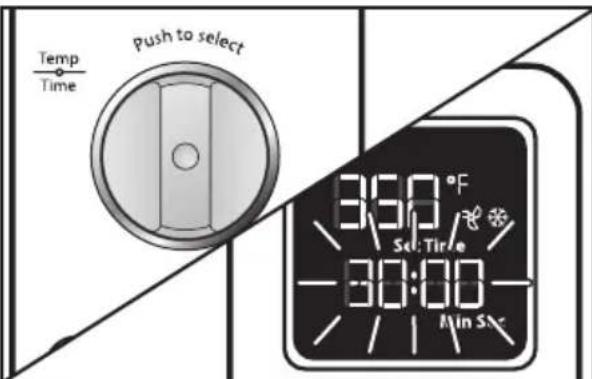

Setting a cooking mode 16

Preheating.... 17

TIPS FOR GREAT RESULTS

Countertop Oven use tips.... 18

Food cooking tips....18

Choosing bakeware for Countertop Oven use....18

CARE AND CLEANING

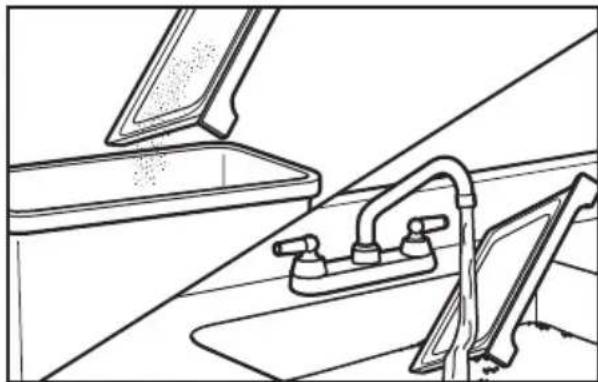

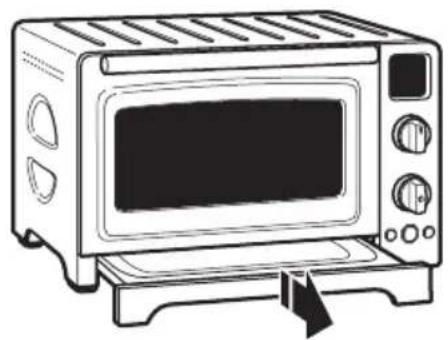

Removing and cleaning the crumb tray 19

Cleaning your Countertop Oven.... 19

TROUBLESHOOTING

If your Countertop Oven malfunctions or fails to operate....20

WARRANTY 21

PROOF OF PURCHASE & PRODUCT REGISTRATION

Always keep a copy of the itemized sales receipt showing the date of purchase of your Countertop Oven. Proof of purchase will assure you of in-warranty service. Before you use your Countertop Oven, please fill out and mail your product registration card packed with the unit, or register online at www.kitchenaid.com. This card will enable us to contact you in the unlikely event of a product safety notification and assist us in complying with the provisions of the Consumer Product Safety Act. The completion and submission of product registration information is not required to obtain your product warranty. Please complete the following for your personal records:

Model Number

Serial Number

Date Purchased

Store Name

COUNTERTOP OVEN SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

I. Read all instructions prior to first use.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock, do not immerse cord, plugs, or any parts of the oven in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest Authorized Service Facility for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not let cord hang over edge of table or counter, or touch hot surfaces.
9. Do not place on or near a hot gas or electric burner, or in a heated oven.
10. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
II. Use extreme caution when removing broiler pan tray or disposing of hot grease.
12. Oversize foods or metal utensils must not be inserted in a Countertop Oven as they may create a fire or risk of electric shock.
13. A fire may occur if Countertop Oven is covered or touching flammable material, including curtains, draperies, walls and the like, when in operation. Do not store any item on top of the appliance when in operation.
14. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.
15. Extreme caution should be exercised when using containers constructed of materials other than metal or glass.
16. Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
17. Do not place any of the following materials in the oven: paper, cardboard, plastic, or anything similar.
18. Do not cover crumb drawer or any part of the oven with metal foil. This will cause overheating of the oven. Foil is permitted in the multipurpose pan to catch grease.
19. To disconnect, turn oven off by pressing Start/Cancel button, then remove plug from wall outlet.
20. Do not use outdoors.
21. Do not use appliance for other than intended use.
22. This product is designed for household use only.

SAVE THESE INSTRUCTIONS

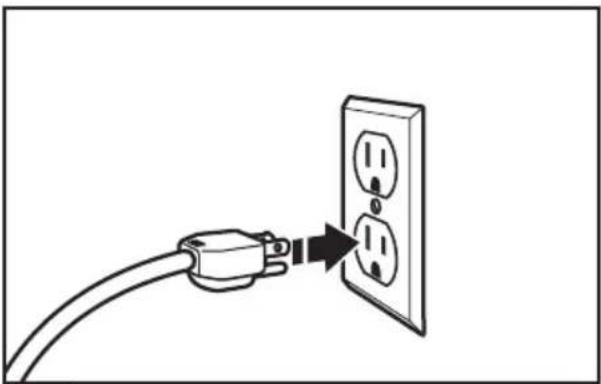

Electrical requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Voltage: 120 VAC

Frequency: 60 Hz

Wattage: 1800 Watts

NOTE: This countertop oven has a

3 prong grounded plug. To reduce the risk of electrical shock, this plug will fit in an outlet only one way. If the plug does not fit in the outlet, contact a qualified electrician.

Do not modify the plug in any way.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or technician install an outlet near the appliance.

A short power supply cord (or detachable power supply cord) should be used to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

Longer detachable power supply cords or extension cords are available and may be used if attention is exercised in their use.

If a longer detachable power supply cord or extension cord is used:

• The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
• The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord.

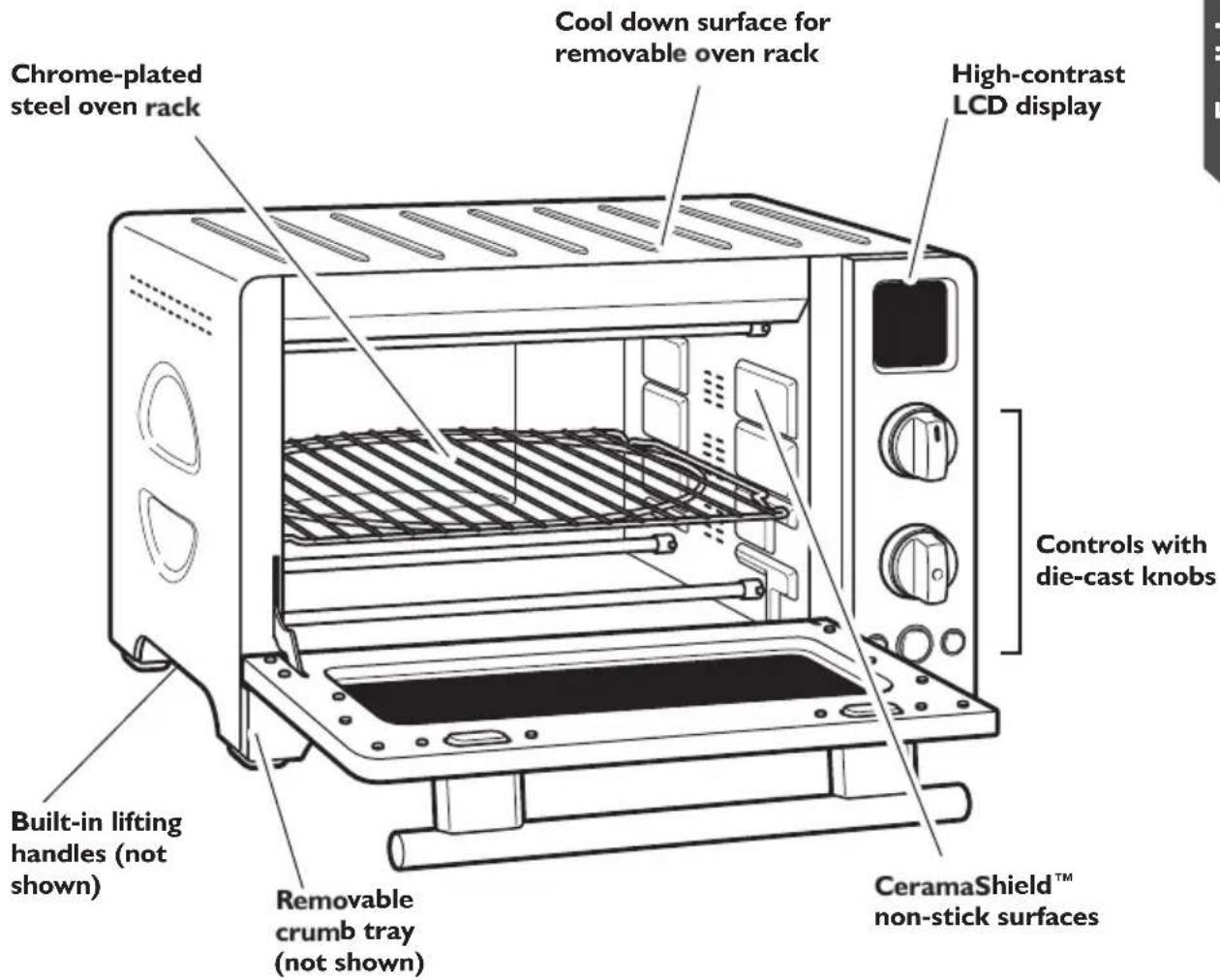

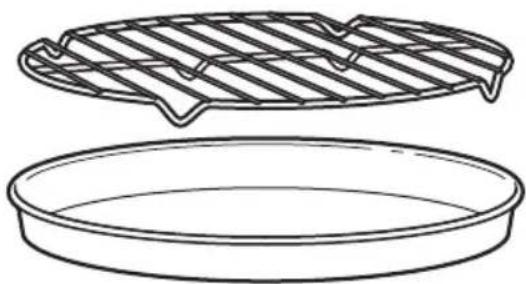

Parts and accessories

Line drawing of a lid and petri dish (no text or symbols)

Chrome-plated steel broiling rack

Nonstick multipurpose pan

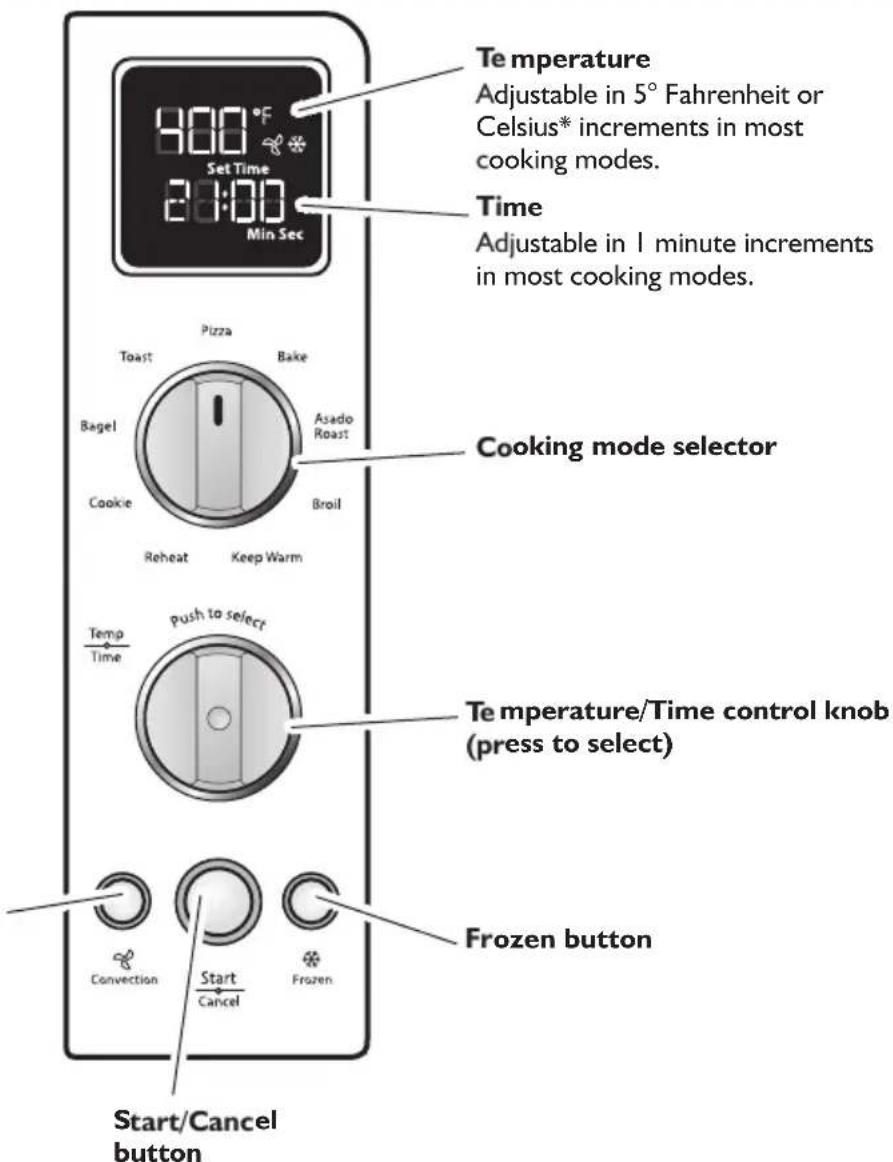

Control panel features

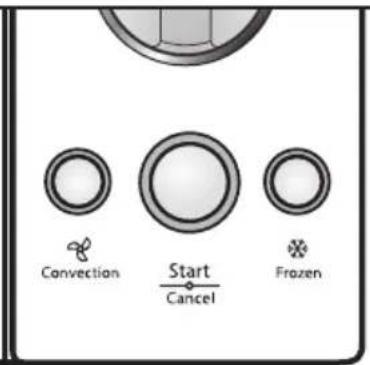

Convection button

The convection fan circulates air faster and more evenly, for better surface browning and crisping.

* Hold convection button and frozen button down at the same time for 3 seconds to change temperature to Celsius mode.

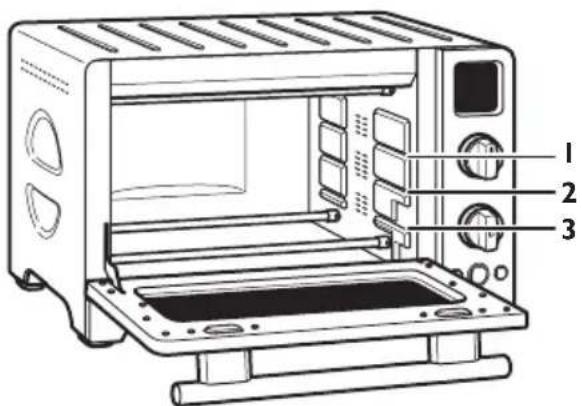

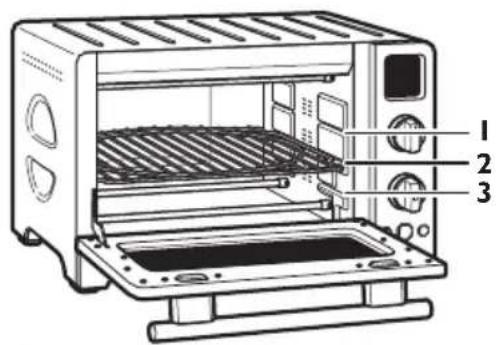

Selecting oven rack positions

Follow these guidelines to position rack:

I (Top)

Use for broiling most meats.

2 (Middle)

Optimal for most baking and cooking operations, including pizza, reheating, general cooking, and convection baking. Must use this setting for toast. Suitable for broiling some taller items.

3 (Bottom)

The bottom rack position leaves plenty of height for cooking taller items. Use this position for Asado Roast mode, and for reheating and warming.

Your Countertop Oven features 9 cooking modes specially designed for a variety of cooking tasks. Each uses the KitchenAid® Even-Heat™ system to control a combination of elements, applying heat where it's needed for optimal results. Memory settings allow you to customize the

time and temperature in each mode to fit your specific needs. The Countertop Oven will remember all your settings for the next use (until unplugged). The additional Convection and Frozen functions (available on certain cooking modes) allow you to take countertop cooking to a whole new level.

Refer to the quick guide below for Cooking Mode options, or see detailed explanations and tips for each cooking mode on the following pages.

COOKING MODES

Preheat is not required for Keep Warm, Reheat, Broil modes.

Cooking Mode	Rack Position	Preset Temp. in °F (°C)	Temp. Range in °F (°C)	Preset Time (in minutes)	Convection Available?
Bake 2 or 3 350°F (177°C) 150–450°F			(66–232°C)	30 Yes
Asado Roast Stage 1	3	450°F (232°C)	450 °F (232°C)	10	Auto
Stage 2	3	325°F (163°C)	150–450°F (66–232°C)	45	N/A
Broil* 1 or 2 450°F (232°C) 350°F (177°C)			or 450°F (232°C)	8 Yes
Keep Warm 2 or 3 170°F (77°C) 150–200°F			(66–93°C)	60	N/A
Reheat	2 or 3 300°F (149°C) 150–450°F			15	Auto
Cookie	1	375°F (190°C) 150–450°F (66–232°C)		10	Yes**
Pizza***	1 or 2 400°F (204°C) 150–450°F (66–232°C)			17 Yes

* Broil mode allows selection between 350°F (177°C) and 450°F (232°C) options only.
** When using Convection with Cookie mode, cooking temperature is automatically adjusted down by 25°F.
*** Pizza mode includes a 30 second Broil time at the end of the cooking cycle to brown cheese.

Preheat is not required for Toast or Bagel modes.

Cooking Mode	Rack Pos.	Preset Shade	Shade range (light to dark)	Preset Slices	Range (Number of Slices)
Toast	2	4	1–8	2	1–6
Bagel	2	4	1–8	2	1–6

What is Even-Heat™ technology?

The KitchenAid ^® Even-Heat ^™ system helps provide consistent cooking results, without cold spots or overcooking. By cycling different heating elements on and off, and using certain elements for only part of the cooking cycle, Even-Heat ^™ allows tender, juicy roasts or pizzas with deliciously browned cheese—automatically.

Bake

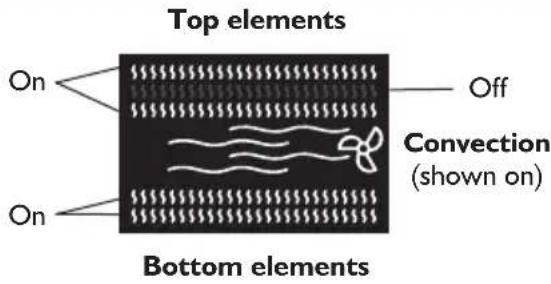

In Bake mode, the Even-Heat ^™ system distributes power to the top and bottom heating elements to maintain the desired oven temperature. The top center element will be off.

Bake mode tip

- Food may finish cooking up to 30% faster when using Convection mode. Check baked goods such as cakes, muffins, and pastries before the expected finish time to avoid over-cooking.

Pure diagram of wave patterns with no text, numbers, or symbols

NOTE: For temperature and time settings and options in Bake mode, see the "Cooking modes" chart.

Asado Roast

The Asado Roast mode uses staged cooking to allow larger items like whole chickens or pork roasts to develop a crispy crust while slowly cooking the interior. The Even-Heat ^™ system distributes power to the top and bottom heating elements to maintain the desired oven temperature. The convection fan will operate in the first stage to assist with crisping the roast exterior, and will then turn off to prevent over-drying.

Temperature & time information

In Asado Roast mode, the time and temperature is set in 2 stages.

Stage I (Crisping) During Stage I, the outer layer of your roast will crisp as the interior begins to warm. The convection fan will default to ON to assist with crisping the roast exterior, but may be turned off, if desired. Smaller cuts of meat may require less crisping than larger roasts; please consult your recipe.

Abstract pattern of wavy lines and a propeller shape on dark background (no text or symbols)

Stage 2 (Roasting) Temperature is reduced in Stage 2 to allow heat to slowly and evenly reach the center of your food until it arrives at the desired finish temperature. The convection fan will turn OFF to prevent overdrying the outside.

NOTE: For temperature and time settings and options in Asado Roast mode, see the "Cooking modes" chart.

Broil

Broiling uses direct radiant heat to cook food from above. The Even-Heat ^™ system will distribute power to all three top heating elements to deliver two levels of efficient broiling. The bottom elements will not be on.

Convection mode can be used with thin cuts of fish, eliminating the need for flipping.

Broil mode tips

• For best results, use the 12" (30 cm) multipurpose pan and rack. It is designed to drain juices and help avoid spatter and smoke.
• For proper draining, do not cover the rack with foil. Instead, the bottom of the multipurpose pan may be lined with aluminum foil for easier cleaning.
• Foods cooked under the broiler will burn very quickly if not monitored near the end of their cooking times.

Abstract pattern with wavy lines and a small flower-like shape on the right (no text or symbols)

• Pull oven rack out before turning or removing food. Use tongs to turn food to avoid the loss of juices. Very thin cuts of fish, poultry, or meat may not need to be turned.
  • After broiling, remove the pan and food from the oven. Drippings will bake on the pan if left in the heated oven, making cleaning more difficult.

NOTE: For temperature and time settings and options in Broil mode, see the "Cooking modes" chart.

Keep Warm

In Keep Warm mode, the Even-Heat ^™ system distributes power to the top and bottom elements to keep food warm before serving.

Keep Warm Tips

- The preset temperature is 170^ F ( 77^ C), but you may wish to adjust this depending on the item being warmed.

IMPORTANT: Food must be at serving temperature before it is placed in the oven to keep warm.

Abstract pattern of repeating dollar signs and a knot on dark background (no text or symbols)

NOTE: For temperature and time settings and options in Keep Warm mode, see the "Cooking modes" chart.

Reheat

The Even-Heat ^™ system distributes power to the top and bottom elements to bring food to serving temperature. (The top center element is off.)

Reheat mode tips

• The preset suggested temperature is 300^ F ( 149^ C), but you may need to adjust this depending on the item being reheated.
• Reheating too long may over-cook or dry out food.

Abstract pattern of wavy lines and a propeller icon on dark background (no text or symbols)

NOTE: For temperature and time settings and options in Reheat mode, see the "Cooking modes" chart.

Cookie

In Cookie mode, the Even-Heat ^™ system distributes power to the top and bottom heating elements to maintain the desired oven temperature. The top center element will be off.

When using Convection in Cookie mode, EasyConvect™ Conversion automatically reduces oven temperature by 25°F (14°C) to prevent overcooking.

Convection tips for Cookie mode

• Cookies will cook faster and more efficiently in Convection Mode because their surface area is relatively small.
• Keep heat loss to a minimum by opening the oven door only when necessary.

Abstract pattern of wavy lines and a small fan-like shape on a dark background (no text or symbols)

- Cookies may finish cooking up to 30% faster when using Convection Mode. Check cookies before the expected finish time to avoid overcooking.

NOTE: For temperature and time settings and options in Cookie mode, see the "Cooking modes" chart.

Pizza

In Pizza mode, the Even-Heat ^™ system distributes power to the top and bottom heating elements to maintain the desired oven temperature. The top center element is off until the end of this mode. The last stage of this mode will finish off the cheese by browning with high heat.

Frozen Mode

Pizza setting will default to frozen mode. You may use the Frozen button to provide extra time for frozen pizzas to cook, or deselect it when cooking freshly prepared pizzas.

Pizza mode tips

• For frozen pizzas, it is recommended to follow time and temperature directions included on the food packaging.
• Thin crust pizzas will cook faster and more efficiently in Convection Mode because their surface area is relatively small. Place thin crust pizzas directly on the oven rack for crispier crust. Please keep in mind that convection can speed up cooking time by up to 30%. You should check pizza often in the final minutes to ensure optimal results with this feature. Once you determine optimal time, reset your memory setting to the new desired time.

Abstract pattern of wavy lines and a small flower-like shape on dark background (no text or symbols)

Abstract pattern of wavy lines and a small butterfly on dark background (no text or symbols)

Cooking stage Browning stage

• Thick crust, self-rising, or deep-dish pizzas will require longer cooking times. Use the 12" (30 cm) nonstick pan for fresh or deep-dish pizzas to maintain shape and keep sauce contained.
• Pizzas may need to be rotated during cooking to ensure even results.

NOTE: For temperature and time settings and options in Pizza mode, see the "Cooking modes" chart.

Toast

In Toast mode, the Even-Heat ^™ system distributes power between the top and bottom heating elements to deliver fast and even toasting.

Use the Toast mode for bread, toaster pastries, frozen waffles. If reheating pastries, use the Reheat function.

Toast mode tips

• Place bread directly on the middle position. It does not need to be flipped during the toasting cycle.
• Select the Frozen option to allow frozen bread or similar items extra time to thaw while cooking.

Abstract pattern of repeating dollar signs and a butterfly on dark background (no text or symbols)

English

NOTE: For temperature and time settings and options in Toast mode, see the "Toast and bagel modes" chart.

Bagel

In Bagel mode, the Even-Heat ^™ system distributes power between the top and bottom heating elements to nicely brown the top of cut bagels while gently warming the outside.

Bagel mode tips

• Place bagels directly on the oven rack with the cut sides facing UP. Bagels

do not need to be flipped during the Bagel cycle.

- Select the Frozen option to allow frozen bagels extra time to thaw while cooking.

Abstract pattern of repeating zigzag lines and a butterfly-like shape on dark background (no text or symbols)

NOTE: For temperature and time settings and options in Bagel mode, see the "Toast and bagel modes" chart.

Convection option

Convection

Convection cooking uses a fan to circulate air inside the oven to provide faster, more even cooking. The Convection option is available on most cooking modes. On Reheat and Stage I of Asado Roast, Convection will default to ON automatically. Convection is NOT available on Toasting modes.

When using Convection in Cookie mode, EasyConvect™ Conversion automatically reduces oven temperature by 25°F (14°C) to prevent overcooking.

Convection Mode Tips

• Thinner foods will cook faster and more efficiently in Convection Mode because their surface area is relatively small.
• Food may finish cooking up to 30% faster when using Convection Mode. Check baked goods such as cakes, muffins, and pastries before the expected finish time to avoid overcooking.
• Don't cover foods with lids or aluminum foil so that surface areas remain exposed to the circulating air, allowing browning and crisping.
• Use pans with lower sides to promote better airflow.

Frozen option

Frozen

The Frozen option adds additional cycle time to the selected cooking mode to allow for thawing and proper cooking. The additional time varies depending on the selected cooking mode.

NOTE: The Frozen option is NOT available on Broil, Asado Roast, Reheat, or Keep Warm.

Changing between Fahrenheit and Celsius

To change between degrees Fahrenheit and degrees Celsius, press and hold Convection and Frozen at the same time for about 3 seconds.

Before first use

I. Place the Countertop oven on a dry, flat, level surface such as a countertop or table.

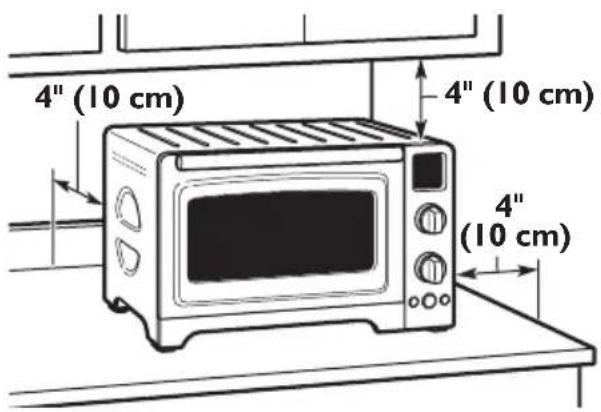

2. Be sure the sides, back, and top of the oven are at least 4" (10 cm) away from any walls, cabinets, or objects on the counter or table.
3. Remove all accessories and wash in hot, sudsy water. Dry thoroughly before placing in the oven.
4. Remove all packaging materials and labels, if present.

NOTE: Upon first use, the oven may produce light smoke. This is normal.

Using the Countertop Oven

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Line drawing of an electrical outlet with a cable inserted, showing two outlets and a power plug (no text or symbols)

Plug into a grounded 3 prong outlet. The Countertop Oven should be the only appliance operating on the circuit. The Countertop Oven is now ready to use.

Adjusting the rack position

Line drawing of a microwave oven with cooling unit and side-mounted dish (no text or symbols)

To adjust oven rack position, slide the oven rack out completely.

Line drawing of a microwave oven with control panel and tray (no text or symbols)

2 Align the sides of the oven rack with the grooves for the desired position and slide straight in.

Setting a cooking mode

Make sure there will be enough clearance between the top of the food item to be cooked and the top elements. If necessary, adjust oven rack position. Close the door.

2 Rotate the Mode knob to select the desired cooking mode. The preset temperature and time (shade and number of slices for Bagel and Toast mode) will be displayed.

3 Adjust the Temperature/Time control knob, if desired (See "Cooking Modes" and "Toast and Bagel Modes" charts for options). Press the knob to change between temperature and time. The selected field will blink in the display.

4 Select CONVECTION or FROZEN options, if desired.
NOTE: Options not available with all Cooking Modes. See "Cooking Modes" chart and "Toast and Bagel Modes" chart for more information.

OPERATING THE COUNTERTOP OVEN

5 To preheat the oven, press START/CANCEL. Once the oven reaches the desired temperature, a tone will sound.

NOTE: Preheating is not available on Broil, Keep Warm, Reheat, Toast, or Bagel modes.

Line drawing of a microwave oven with a hand operating the right pan (no text or symbols)

6 Open the door, place the food to be cooked in the oven, and close the door. Press START/CANCEL again and the timer will begin counting down.

English

NOTE: If START/CANCEL is not pressed within 5 minutes of the Preheating complete tone, the oven will automatically turn off.

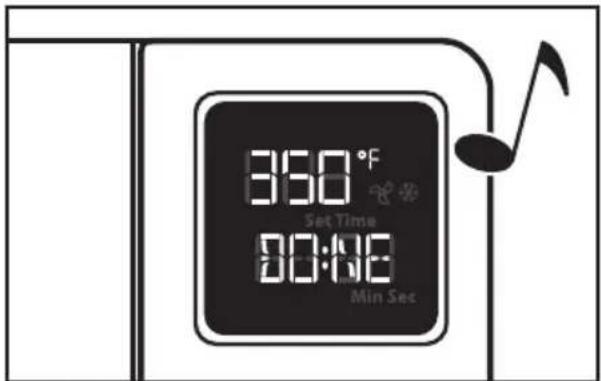

7 When the cooking cycle is complete, a tone will sound.

Preheating

Preheating your Countertop Oven is important for consistent and even results. Once you select your desired cooking mode and any other settings, and press START, Even-Heat™ Preheat saturates the oven walls and cooking racks above the oven's set temperature to remove cold spots that draw heat away from food. This also helps the oven stay at the desired temperature when the door is opened for short periods of time.

During preheating, the light ring around the Start/Cancel button will be on, and the Preheat indicator will show on the LCD. Once the oven has reached the set temperature, a tone will sound to let you know you can insert food and begin cooking. Preheating is NOT necessary in all cooking modes.

Countertop Oven use tips

Are guesstimates for Toast Mode OK?

Experience will teach you how much time to use for toasting various kinds of bread. Frozen, dark, or whole-grain breads require a longer time. Rye breads are the most susceptible to over-toasting and spot charring. Fresh, soft, or white breads require a shorter time.

For foods that melt

When cooking small pieces of food or foods that will melt, use the multipurpose pan. This will keep food from falling onto the cooking elements.

To minimize cleanup

Spray the multipurpose pan with nonstick cooking spray for easier cleanup when cooking wet or sticky foods. Wash pan

thoroughly after each use to avoid buildup of cooking spray.

Size limits for food and cooking containers

For best results, food and/or oven-safe containers (see “Food Cooking Tips” section) must fit into the Countertop Oven without touching the cooking elements or inside walls of the Countertop Oven. The door must close completely. This allows air to circulate around the food, helping ensure consistent cooking temperature.

For extended use

When cooking for a long time at high temperatures, you may detect a slight odor from the Countertop Oven insulation materials. This is normal.

Food cooking tips

• Check food cooking progress through the clear, tempered glass door window. Your Countertop Oven will perform better and be more energy efficient if you open the door less often.
• If top of food item browns too fast, lower the oven rack position or reduce temperature. If bottom of food item browns too fast, raise rack position or reduce temperature. Please remember that adding the convection option could reduce the needed cooking time by up to 30%.

• Remove all plastic and/or paper wrappers from foods before cooking.

• Use only loosely covered oven-safe containers. Airtight containers may cause food to boil over or splatter.

• Although more energy efficient and faster than traditional ovens, countertop oven surfaces can become hot during cooking. Touch only the door handle and knobs during oven operation.
• Do not place items on top or near Countertop Oven while in use. Only use the included cooling rack to gently cool food on the top of this oven.
• Replace cardboard, glass, or plastic lids with aluminum foil for use in the Countertop Oven.

Choosing bakeware for Countertop Oven use

• The nonstick multipurpose pan included with the Countertop Oven is suitable for items such as cookies, rolls, biscuits, nachos, and pork chops.
• A variety of standard baking dishes, such as a 9" (23 cm) round or square cake pan, a 6-cup (1.5 L) muffin pan, small baking sheets, and 1 and 2 qt (0.95 mL and 1.9 L) round, square, and rectangular casserole dishes, may be used. The door must close completely.

• Choose bakeware made of metal, ovensafe glass, ceramic, or silicone.

• Use lowest oven rack position when using deep, oven-safe glass or ceramic containers and allow at least 1" (2.5 cm) clearance between the top of the container and the upper cooking elements.

• Do not use glass lids. If a cover is desired, use a loosely fitted sheet of aluminum foil shiny side up or down.
• Many convenience foods are packaged in nonmetallic containers only suitable for use in microwave ovens. Check package directions to determine whether the container is suitable for use in a regular oven.

Removing and cleaning the crumb tray

The crumb tray should be emptied and cleaned at least after every few cooking cycles, or after any spills.

Line drawing of a microwave oven with control panel and tray (no text or symbols)

To remove the crumb tray, grasp the grip underneath and slide straight out.

Line drawing of a kitchen sink with faucet and drain (no text or symbols)

2 Empty and wash in warm, soapy water, if needed. Dry with a soft cloth and slide back into place.

Cleaning your Countertop Oven

Unplug your Countertop Oven from the wall socket before cleaning.

- Allow Countertop Oven and accessories to cool completely before cleaning.

Interior:

- For easy cleaning, the inside walls of the Countertop Oven feature Ceramashield™, a nonstick ceramic coating. Remove heavy spatter after use with a nylon or polyester mesh pad, sponge, or cloth dampened with warm water. Dry with a paper towel or soft, dry cloth.

IMPORTANT: Do not use cleaning agents, cleansers, or metal scouring pads on the inner oven coating as they may reduce its effectiveness. The ceramic nonstick coating inside the oven is scratch-resistant. However, dropping or hard impacts can chip or crack the ceramic coating.

- Hand washing is recommended for racks and pan. Remove all items from the Countertop Oven. Wash the oven rack, broiling rack, and multipurpose pan in hot, sudsy water. Rinse and dry thoroughly.

NOTE: The oven rack, multipurpose pan, and broiling rack are dishwasher safe, but hand washing is recommended.

Exterior:

• Do not use abrasive cleaners or metal scouring pads. They could scratch the surface.
• For painted surfaces: Wipe the outside of the Countertop Oven with a clean, damp cloth and dry thoroughly.
• For stainless steel surfaces: Wipe the outside of the Countertop Oven with a clean, damp cloth and dry thoroughly. A nonabrasive liquid cleaner may be used for stubborn stains. KitchenAid recommends the use of affresh® stainless steel cleaner for all stainless steel surfaces. affresh® cooktop cleaner and scrubbing pads are also recommended for cleaning the toughest baked-on residue on stainless steel and glass surfaces. Ensure all surfaces are completely dry before using your oven. Please visit www.affresh.com to learn more.

If your Countertop Oven malfunctions or fails to operate

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

- Is the Countertop Oven plugged into a grounded 3 prong outlet?

Plug the Countertop Oven into a grounded 3 prong outlet.

• Is the fuse in the circuit to the Countertop Oven in working order?

If you have a circuit breaker box, make sure the circuit is closed. Try unplugging the Countertop Oven, then plug it back in.

• Upper cooking elements visibly glow, but bottom cooking elements do not.

The upper cooking elements use higher power for better browning performance. The lower cooking elements are on, but may not visibly glow like the upper cooking elements. This is normal and your Countertop Oven is working properly.

• Power on light is flashing rapidly.

The Countertop Oven has a 2-hour auto shutoff feature. If the constant on feature is being used, the Countertop Oven will automatically shut off after 2-hours and the power on indicator light will flash rapidly.

• If the problem cannot be corrected:

See the "KitchenAid Warranty and Service" sections. Do not return the Countertop Oven to the retailer – retailers do not provide service.

KitchenAid® Countertop Oven Warranty for the 50 United States, the District of Columbia, Puerto Rico, and Canada

This warranty extends to the purchaser and any succeeding owner for Countertop Ovens operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Warranty: One Year Full Warranty from date of purchase.

KitchenAid Will Pay Hassle-Free Replacement of your Countertop Oven. for Your Choice of: See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at 1-800-541-6390.ORThe replacement parts and repair labor costs to correct defect in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center.

KitchenAid Will A. Repairs when Countertop Oven is used in other than Not Pay for: normal single family home use.B. Damage resulting from accident, alteration, misuse or abuse.C. Any shipping or handling costs to deliver your Countertop Oven to an Authorized Service Center.D. Replacement parts or repair labor costs for Countertop Ovens operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIESIMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

Hassle-Free Replacement Warranty – 50 United States, District of Columbia, and Puerto Rico

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Countertop Oven should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Countertop Oven returned to us. Your replacement unit will also be covered by our one year limited warranty. If your Countertop Oven should fail within the first year of ownership, simply call our toll-free Customer eXperience Center at

I-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address. (No P.O. Box numbers, please.) When you receive your replacement Countertop Oven, use the carton, packing materials, and prepaid shipping label to pack up your original Countertop Oven and send it back to KitchenAid.

Hassle-Free Replacement Warranty – Canada

We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Countertop Oven should fail within the first year of ownership, we will replace your Countertop Oven with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty.

If your Countertop Oven should fail within the first year of ownership, simply call our toll-free Customer eXperience Center

at I-800-807-6777 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address.

When you receive your replacement Countertop Oven, use the carton, packing materials, and prepaid shipping label to pack up your original Countertop Oven and send it back to KitchenAid.

Arranging for Service after the Warranty Expires, or Ordering Accessories and Replacement Parts

In the United States and Puerto Rico:

For service information, or to order accessories or replacement parts, call toll-free at 1-800-541-6390 or write to:

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the store where you purchased the Countertop Oven for information on how to obtain service.

For service information in Canada:

Call toll-free I-800-807-6777.

For service information in Mexico:

Call toll-free 01-800-0022-767.

BIENVENUE DANS LE MONDE DE KITCHENAID.

Exterior view of a KitchenAid oven with digital display and control knobs (no text or symbols on main body)

TABLE DES MATIÈRES

SÉCURITÉ DU FOUR POSABLE 25

Line drawing of a lid and petri dish (no text or symbols)

Abstract pattern of wavy lines and a stylized flower on dark background (no text or symbols)

Pure diagram of wave patterns with a propeller, no text or symbols present

Abstract pattern of wavy lines and a small propeller icon on dark background (no text or symbols)

Pure decorative pattern with repeating dollar signs and a butterfly on the right (no text or symbols)

Abstract pattern with wavy lines and a small propeller icon on the right (no text or symbols)

Diagram showing wave patterns with a propeller and wavy lines, no text or symbols present

Étape de cuisson

Abstract pattern with wavy lines and a butterfly-like shape on dark background (no text or symbols)

Black background with repeating dollar symbols and a small decorative swirl (no text or labels)

Abstract pattern of repeating dollar signs and a butterfly on dark background (no text or symbols)

Line drawing of a cable inserted into an electrical outlet with two outlets (no text or symbols)

Line drawing of a microwave oven with a rack inside and a handle, no text or symbols present

Line drawing of a microwave oven with control panel and tray (no text or symbols)

Line drawing of a microwave oven with a hand operating the lid and control panel (no text or symbols)

6

Line drawing of a microwave oven with control knobs and a screen (no text or symbols)

Line drawing of a kitchen sink with faucet and drain (no text or symbols)

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Exterior view of a KitchenAid oven with digital display and control knobs (no text or symbols on main body)

Line drawing of a dish with a lid and a petri dish (no text or symbols)

Control panel features

Abstract pattern of wavy lines and a small flower-like shape on dark background (no text or symbols)

Abstract pattern of wavy lines and a stylized flower icon on dark background (no text or symbols)

Abstract pattern with wavy lines and a small flower-like shape on the right (no text or symbols)

Abstract pattern of repeating dollar symbols and a butterfly on dark background (no text or symbols)

The Even-Heat ^™ system distributes power to the top and bottom elements to bring food to serving temperature. (The top center element is off.)

Abstract pattern of wavy lines and a stylized flower-like shape on dark background (no text or symbols)

Abstract pattern of wavy lines and a stylized flower-like shape on a dark background (no text or symbols)

Diagram showing a ship flying with wavy lines and dollar bill bars above, no text or symbols present.

Cooking stage Browning stage

Abstract pattern of repeating zigzag lines and a butterfly shape on dark background (no text or symbols)

Abstract pattern of repeating white dollar signs on a dark background with a small butterfly icon (no text or symbols)

Line drawing of an electrical outlet with a plug inserted, showing three outlets and a cable (no text or symbols)

Line drawing of a microwave oven with cooling unit and tray (no text or symbols)

Line drawing of a microwave oven with control panel and tray (no text or symbols)

Line drawing of a microwave oven with a hand operating the lid and pointing at the right pan (no text or symbols)

6

®/™ © 2015. All rights reserved. Used under license in Canada.
