Tropicano Bagno - Heating TAURUS - Free user manual and instructions

Brand	TAURUS
Model	Tropicano Bagno
Category	Heating
Product type	Fan heater
Nominal heat output	1.8 - 2.0 kW
Minimum heat output (indicative)	1.00 kW
Maximum continuous heat output	2.0 kW
Auxiliary electricity consumption (nominal)	0.01 kW
Auxiliary electricity consumption (minimum)	0.01 kW
Standby consumption	0.000 kW
Power supply	Mains, 220-240 V (check rating plate)
Main functions	Fan, fan heating
Temperature control	Mechanical thermostat
Safety	Anti-tilt device, safety thermal protection
Usage recommendation	Well-insulated premises or occasional use
Maintenance and cleaning	Unplug and let cool, clean with damp cloth, do not immerse
Spare parts and repairability	Contact an authorized technical support service
Warranty	Compliant with current legislation

Frequently Asked Questions - Tropicano Bagno TAURUS

What is the heating power of the Tropicano Bagno?

The nominal heat output is 1.8 to 2.0 kW, with a minimum output of 1.00 kW and a maximum continuous output of 2.0 kW.

Can I use the appliance in a bathroom?

Yes, but it must be placed away from water (bathtub, shower) and unplugged after use even for a short absence. Do not use with wet hands.

How to clean the heater?

Unplug the appliance and wait for it to cool down. Clean with a damp cloth and a little detergent. Never immerse in water or use abrasive products.

The appliance turns off and on by itself, is this normal?

This may be due to the ambient thermostat or overheating. Check that the ventilation grilles are not obstructed. If the problem persists, unplug for 15 minutes then plug back in.

What safety distance should be observed?

Place the appliance at least 50 cm away from any combustible material (curtains, furniture). Do not cover the appliance.

Can I use the appliance with a timer or programmer?

No, the appliance must not be used with a programmer, timer, or any automatic start-up device to avoid risks of overheating.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by a TAURUS authorized technical support service.

Can the appliance be used to dry clothes?

No, do not use to dry clothes or on animals.

How does the anti-tilt device work?

In case of tipping, the appliance automatically turns off to avoid any danger. It turns back on once returned to an upright position.

Where to find spare parts?

Contact a TAURUS authorized technical support service. Use only original parts.

USER MANUAL Tropicano Bagno TAURUS

Line drawing of a portable electric heater with two top outlets and a circular vented area (no text or symbols)

EN: This product is only suitable for well insulated spaces or occasional use.

Technical diagram of a portable electric heater with labeled components C and D

Español

Calefactor

Tropicano Bagno

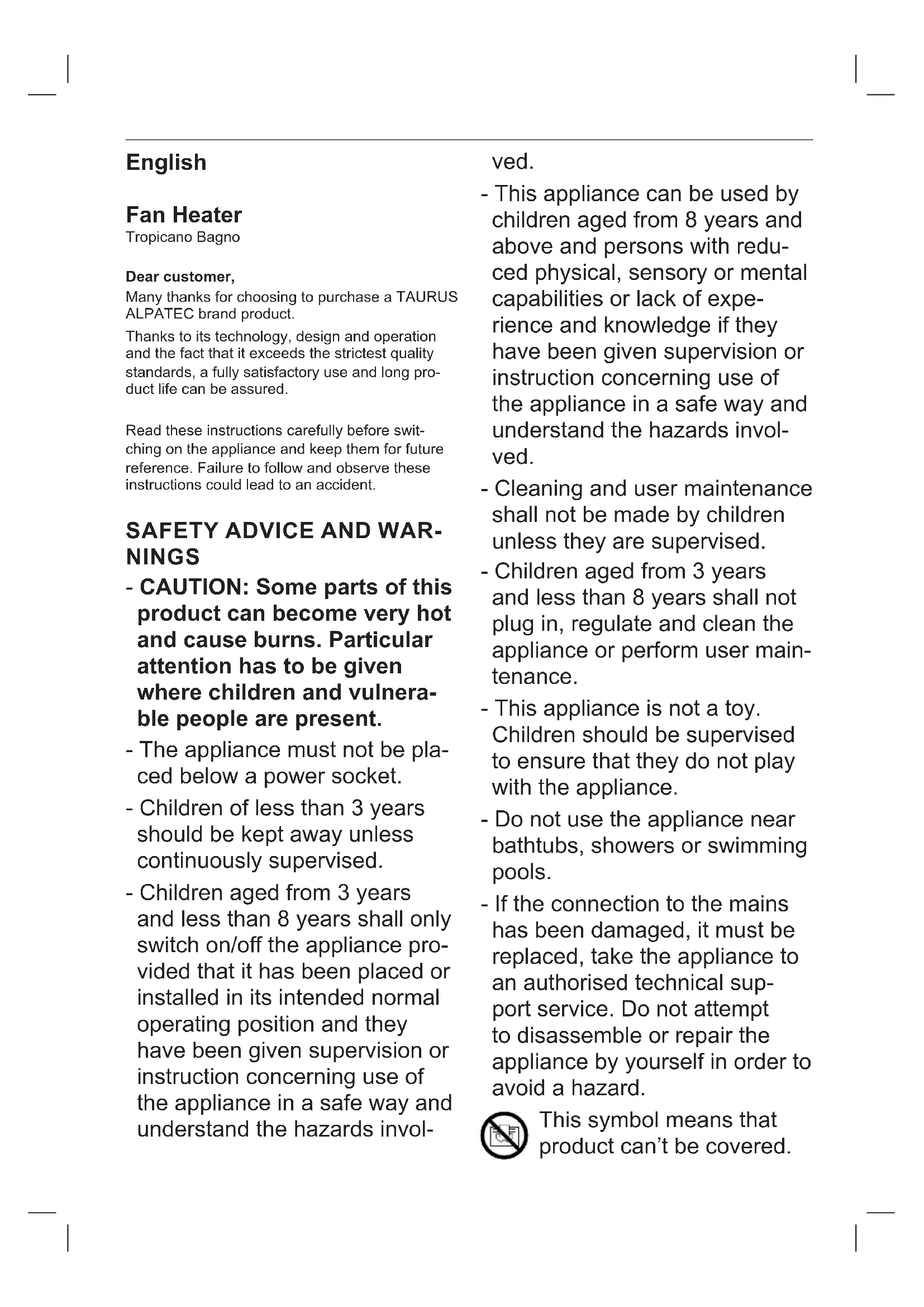

Many thanks for choosing to purchase a TAURUS ALPATEC brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WAR- NINGS

- CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- The appliance must not be placed below a power socket.

- Children of less than 3 years should be kept away unless continuously supervised.

- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards invol-

ved.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are supervised.
• Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
• Do not use the appliance near bathtubs, showers or swimming pools.
• If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

This symbol means that product can't be covered.

- CAUTION: In order to prevent overheating do not cover the appliance.

- Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.

- Connect the appliance to a socket that can supply a minimum of 10 amperes.

- The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.

- Use the appliance in a well ventilated area.

- If other gas or fuel appliances can be used at the same time in the room where the appliance is to be used, that room must be well ventilated.

- The appliance must be used and placed on a flat, stable surface.

- Place the appliance a minimum distance of 50cm away from combustible materials, such as curtains, furniture ...

- Ensure that neither the air access nor exit become either totally or partially covered by drapery, clothing, etc., as this increases the risk of fire.

- Do not use the appliance in association with a programmer, timer or other device that automatically switches it on.

- Do not use the appliance if the cable or plug is damaged.

- If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

- CAUTION: Maintain the appliance dry.

- Do not use the appliance with damp hands or feet, or when barefooted.

- Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.

- Do not wrap the power cord around the appliance.

- Do not clip or crease the power cord.

- Do not allow the power cord to come into contact with the appliance's hot surfaces.

- Keep the appliance well away from heat sources, oil, sharp edges or moving parts.

- Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.

- The appliance is not suitable for outdoor use.

- Supply cord should be regularly examined for signs of damage, and if the cord is damaged,

the appliance must not be used.

• As an additional protection to the electrical supply for the appliance, it is advisable to have a differential current device with a maximum sensitivity of 30 mA. Ask for advice from a competent installer.
• Do not use or store the appliance outdoors.
• Do not touch the plug with wet hands.
• Do not use the appliance in the case of persons insensitive to heat (the appliance has heated surfaces).
• The temperature of the accessible surfaces may be high when the appliance is in use.

USE AND CARE:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if the on/off switch does not work.
• Do not move the appliance while in use.
• Use the appliance handle/s, to catch it or move it.
• Do not use the appliance if it is tipped up and do not turn it over.
• Do not turn the appliance over while it is in use or connected to the mains.
• If you use the appliance in a bathroom or similar place, unplug the appliance from the mains when it is not in use, even if it is only for a short while, as proximity to water involves a risk, even if the appliance is disconnected.
• Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
• This appliance is for household use only, not professional, industrial use.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Do not store the appliance if it is still hot.
• Do not store the appliance on areas where the temperature could be lower than 2^ C.
• Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.
• Never leave the appliance unattended while in use.
• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
• Do not use the appliance to dry pets or animals.

• Do not use the appliance to dry textiles of any kind.

• CAUTION: User can't sleep when appliance is under use; there is a risk of injuries.

• Turn the thermostat control to the minimum (MIN) setting. This does not mean that the iron is switched off permanently.

SERVICE:

• Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.
• CAUTION: There is a risk of fire if the appliance's cleaning is not done according to these instructions.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

DESCRIPTION

A Selection function/Off knob
B Thermostat control knob
C Pilot light
D Difusing grille
E Transport handle

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

INSTRUCTIONS FOR USE BEFORE USE:

- Make sure that all products' packaging has been removed.

USE:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.
• Guide the appliance to direct the flow of air in the desired direction.
• Turn the appliance on, by using the selection knob (A).
• During the appliance's use the pilot light (D) will come on and off automatically, indicating the heating elements are working, and therefore maintaining the desired temperature.

FAN FUNCTION:

• Select the fan position.
• Check that the thermostat button is set to the maximum.

HEATER FUNCTION:

• Select the heater position.
• Select the desired heating power.
• Check that the thermostat control is set to the temperature required.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Stop the appliance, selecting position 0 on the selector control (A).
• Unplug the appliance from the mains.
• Clean the appliance.

CARRY HANDLE/S:

- This appliance has a handle on the back to make it easy and convenient to transport. (E)

ANTI-TIPPING SAFETY DEVICE:

- The appliance has an anti-tipping safety device that turns it off if the working position is not the correct one.

SAFETY THERMAL PROTECTOR:

• The appliance has a safety device, which protects the appliance from overheating.
• When the appliance switches itself on and off repeatedly, for reasons other than the thermostat control, check to ensure that there are no obstacles that impede correct air entry or expulsion.
• If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorised technical assistance.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably

affect the duration of the appliance's useful life and could become unsafe to use.

- Remark: When the appliance is used as a heater after long periods in storage or after having been used solely as a fan a small amount of smoke may be produced. This is not important and is due to the heater burning dust deposits which have accumulated on the heating element. This phenomenon may be avoided by cleaning the inside of the appliance beforehand through the grill with a vacuum cleaner or pressurised air.

ANOMALIES AND REPAIR

- Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

Model: Tropicano Bagno
Heat output
Nominal heat output P_nom	1,8 - 2,0 kW
Minimum heat output (indicative) P_min	1,00 kW
Maximum continuous heat output P_max,c	2,0 kW
Auxiliary electricity consumption
At nominal heat output eI_max	0,01 kW
At minimum heat output eI_min	0,01 Kw
In standby mode eI_SB	0,000 kW
Type of heat input, for electric storage local space heaters only
Manual heat charge control, with integrated thermostat	No
Manual heat charge control with room and/or outdoor temperature feedback	No
Electronic heat charge control with room and/or outdoor temperature feedback	No
Fan assisted heat output	No
Type of heat output/room temperature control
Single stage heat output and no room temperature control	No
Two or more manual stages, no room temperature control	No
With mechanic thermostat room temperature control	Yes
With electronic room temperature control	No
Electronic room temperature control plus day timer	No
Electronic room temperature control plus week timer	No
Other control options
Room temperature control, with presence detection	No
Room temperature control, with open window detection	No
With distance control option	No
With adaptive start control	No
With working time limitation	No
With black bulb sensor	No
Contact details "ELECTRODOMÉSTI-	COS TAURUS, S.L. Avda. Barcelona S/N 25790 Oliana, Lleida, Spain"

Français

Chauffage soufflant

Tropicano Bagno

Cher Client,

HANDVAT(EN) VOOR VERPLAATSEN:

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/

Français

GARANTIE ET ASSISTANCE TECHNIQUE

COUNTRY ADDRESS PHONE

Algeria Zone d'Activite, N° 62, Constantine 213770777756
Argentina Av. del Libertador 1298,(B1638BEY), Vicente López (Pcia. Buenos Aires)		541153685223
Belgium Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Benin 359 Av. Steinmetz, 1930, Cotonou 0299-21313798
Bulgaria 265,Okolovrasten Pat, Mladost 4, 1766, Sofia 35929211120 / 35929211193
Burkina Faso Avenue Bassawarga, 01 BP915, Ouagadougou 226 25301038
Congo (Republic of) 98 Blvd General Charles de Gaulle, Pointe Noire		242066776656
Cyprus	20, Bethlehem Str. / P.O.Box 20430, 2033, Strovolos	35722711300
Czech Republic	Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Democratic Republic of the Congo	AV. Pont Canale N° 3440, Kinshasa	00243-991223232
Equatorial Guinea	SN Av Patricio Lumumba y C/ Jesus B, Bata	00240 333 082958 / 00240 333 082453
Equatorial Guinea	Calle de las Naciones Unidas, PO box 762, Malabo	240333082958 / 240333082453
España	Avda Barcelona, S/N, 25790 Oliana (Lleida) [e-mail]	902 118 050
Ethiopia Lideta Sub City Kebele 10 H.NO 124, Addis Ababa		[phone]
France Za les bas musats 18, 89100, Malay-le-Grand		03 86 83 90 90
Gabon	BP 574, Port-Gentil Centre-ville	24101552689 / 24101560698
Ghana	Ederick Place, Accra-Ghana	302682448 / 302682404
Gibraltar 11 Horse Barrack Lane, 54000, Gibraltar 00350 200 75397 / 00350 200
		41023
Greece Sapfous 7-9, 10553, Athens [phone]
Guinea BP 206, GN, Conakry (224) 622204545
Hong Kong Unit H,13/F., World Tech Centre, Hong kong (852) 2448 0116 / 9197 3519
Hungary Késmárk utca 11-13, 1158, Budapest [phone]
India C-175, Sector-63, Noida, Gautam Budh Nagar - 201301, Delhi		([phone]
Ivory Coast 01 Rue Des Carrossiers-Zone 3, B.P 3747, Abidjan 01 (RCI)		22521251820 / 225 21 353494
Jordan 28 Basman St Down town, Amman	[phone]
Kuwait	P.O. BOX 3379 hawally, 32034, Hawally	[phone]
Lebanon	Damascus Highway; Sciale Building, Jamhour	9615922963
Luxembourg	Mariëndonkstraat 5, 5154 EG, Elshout	31620401500
Mali	BP E2900, Dravela Bolibana	223227216 / 223227259
Marruecos	Big distribution society 4 Rue 13 Lot. Smara Oulfa, Casablanca	([phone]
Mauritania	134 Avenue Gamal Abdener Ilot D, Nouakchott	2225254469 / 2225251258
Mexico	Rosas Moreno N° 4-203 Colonia de San Rafael C.P. 06470 – Delegación Cuauhtémoc, Ciudad de México	([phone]
Montenegro	Rastovac bb, 81400, Niksic	[phone]
Netherlands	Mariëndonkstraat 5, 5154 EG, Elshout	31620401500
Nigeria	8, Isaac; John Str,G.R.A Ikeja Lagos	23408023360099
Paraguay	Denis Roa 155 c/ Guido Spano, Asunción	21665100
Peru	Calle los Negocios 428, Surquillo, Lima	[phone]
Portugal	Avenida Rainha D. Amélia, n°12-B, 1600-677, Lisboa	[phone]
Romania	Dudesti Pantelimon 23, 410554, Bucharest	031.805.49.58
Serbia	Rastovac bb, 81400, Niksic	[phone]
Slovakia Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Southafrica Unit 25 & 26, San Croy Office Park, Die Agora Road, Croydon, Kempton Park, 1619, Johannesburg		([phone]
Tunisia	2, Rue de Turquie, Tunis	21671333066
Ukraine	Block 6, Ap Housing Estate Topol-2, B, 49000, Dnepropetrovsk	380563704161 / 380563704161
United Arab Emirates	P.O.BOX 8543, Dubai	14506246200
Uruguay	Luis Alberto de Herrera 3468, 11600, Montevideo	598 2209 28 00
Vietnam	Lot 7 Ind. Zone for, Ha Noi	84437658111 / 84437658110
