TF3000 - Fan TAURUS - Free user manual and instructions

Brand	Taurus
Model	TF3000
Device Type	Tower Fan
Power Supply	220-240 V ~ 50/60 Hz
Rated Power	39.30 W
Maximum Airflow	18.38 m³/min
Sound Pressure Level	60.59 dB(A)
Maximum Air Speed	1.89 m/s
Number of Speeds	3
Oscillation Angle	75°
Timer	Yes, programmable
Transport Handle	Yes, integrated
Mounting	Screw-on base
Materials	Plastic
Weight (estimated)	2.5 kg
Dimensions (estimated)	Height 80 cm, base diameter 30 cm
Maintenance	Clean with a damp cloth, do not immerse
Safety	Overheat protection (auto shut-off)
Warranty	In accordance with applicable legislation
Certifications	CE, compliance with European directives
Usage	Domestic use only
Included Accessories	Base, screws, manual

Frequently Asked Questions - TF3000 TAURUS

How to assemble the base of the TF3000 fan?

Place the appliance upside down, attach the base to the body, then secure it with the provided screws. Turn the appliance right side up and check stability.

How to clean the Taurus TF3000 fan?

Unplug the appliance and let it cool down. Clean it with a damp cloth and mild detergent. Never immerse it in water or use abrasive products.

How to use the timer on the TF3000?

Turn the timer knob (F) to select the desired operating time. Once the time has elapsed, the appliance automatically stops.

How to activate the fan oscillation?

Press the oscillation button (E) to activate the 75° movement. Press again to deactivate.

The fan does not turn on, what should I do?

Check that the appliance is plugged into a working outlet. Ensure the speed selector is on a position other than 0 and that the timer is not set to OFF. If the problem persists, contact an authorized technical service.

Can I use the TF3000 fan outdoors?

No, this appliance is designed for indoor domestic use only. Do not expose it to rain, moisture, or weather.

Is the fan safe for children?

Children over 8 years old may use it under supervision. Do not let them play with the appliance. Cleaning should not be done by children without supervision.

What is the power consumption of the TF3000?

The power used is 39.30 W, which corresponds to a consumption of about 0.039 kWh per hour at full speed.

How to store the fan in winter?

Unplug it, clean it, then store it in a dry place, away from dust and sunlight. Keep it out of reach of children.

Where can I find replacement parts for the TF3000?

Contact an authorized Taurus technical support service. Only use original parts to ensure safety.

USER MANUAL TF3000 TAURUS

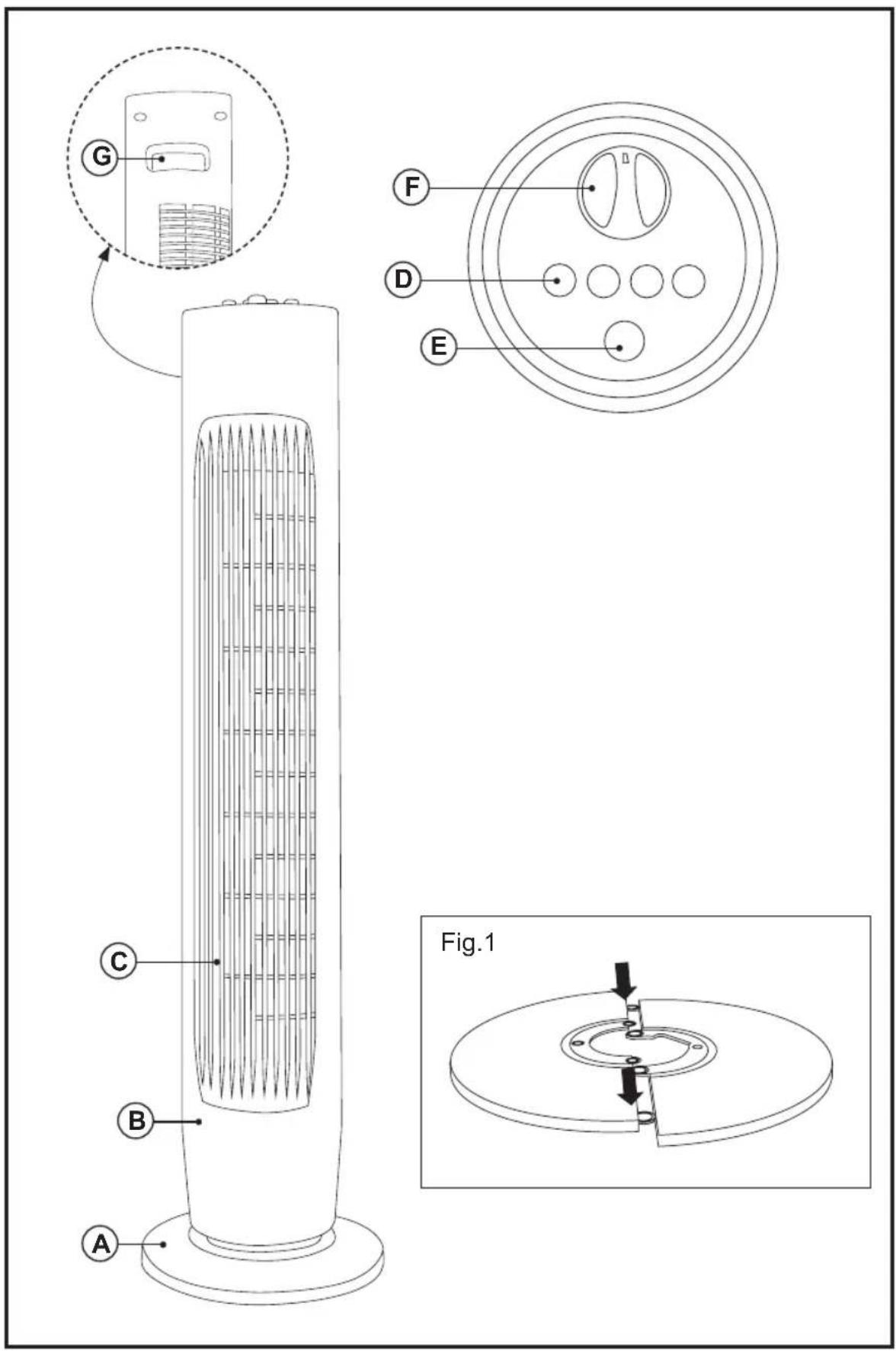

Line drawing of a vertical cylindrical device with internal grid pattern (no text or symbols)

_

| _

一

1

G F D E C B A Fig.1

Technical diagram of a mechanical component with concentric rings and mounting holes, labeled Fig.1 (no text or symbols on the diagram itself)

Español

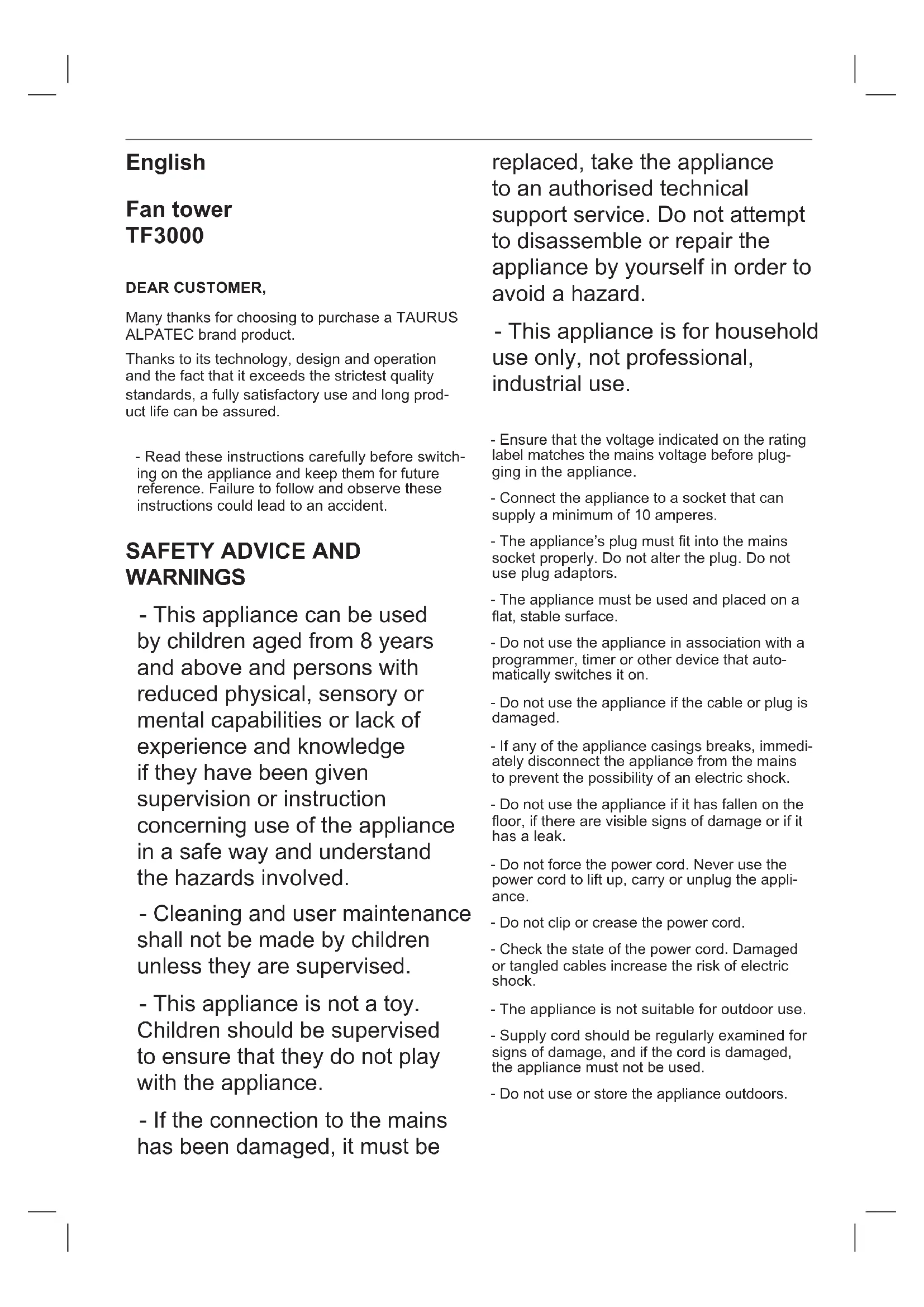

Many thanks for choosing to purchase a TAURUS ALPATEC brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WARNINGS

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and user maintenance shall not be made by children unless they are supervised.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- If the connection to the mains has been damaged, it must be

replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

- This appliance is for household use only, not professional, industrial use.

- Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.

- Connect the appliance to a socket that can supply a minimum of 10 amperes.

- The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.

- The appliance must be used and placed on a flat, stable surface.

- Do not use the appliance in association with a programmer, timer or other device that automatically switches it on.

- Do not use the appliance if the cable or plug is damaged.

- If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

- Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

- Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.

- Do not clip or crease the power cord.

- Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.

- The appliance is not suitable for outdoor use.

- Supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used.

- Do not use or store the appliance outdoors.

- Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.

- Do not touch the plug with wet hands.

USE AND CARE:

- Fully unroll the appliance's power cable before each use.

- Do not use the appliance if the on/off switch does not work.

- Do not use the appliance if it is tipped up and do not turn it over.

- Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.

- Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

- Keep the appliance in a dry, dust-free place, out of direct sunlight.

- Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.

- Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

SERVICE:

- Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.

- CAUTION: There is a risk of fire if the appliance's cleaning is not done according to these instructions.

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

DESCRIPTION

- A Base

- B Body

- C Fan grill

- D Speed buttons

- E Oscillation button

- F Timer knob

- G Handle

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

INSTALLATION

- Be sure to remove all packaging material from inside the appliance.

ASSEMBLING THE BASE:

- To fix the base into the appliance, place the appliance face down.

- Fit the base on the main body of the appliance.

- Fix the base using the screws provided (Fig.1).

- Stand the appliance up again so as to check that the base works properly.

INSTRUCTIONS FOR USE

BEFORE USE:

- Make sure that all products' packaging has been removed.

- Prepare the appliance according to the function you wish to use:

USE:

- Connect the appliance to the mains.

- Guide the appliance to direct the flow of air in the desired direction.

- Turn the appliance on, by using one of the speed selection buttons.

- Select the desired speed.

TIMER FUNCTION:

- The appliance's operating time can be controlled.

- To program the operating time simply select it using the (F) knob.

- After the selected time the appliance will switch off automatically.

OSCILLATION FUNCTION:

- The oscillation function makes it possible to direct the flow from the apparatus so that it automatically alternates over a range of 75^ .

- To activate this function, press the (E) switch.

- To deactivate this function, follow the procedure for switching it on in reverse.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Stop the appliance, selecting position 0 on the selector control and the OFF position of the timer.
• Unplug the appliance from the mains.

CARRY HANDLE/S:

- This appliance has a handle on the upper part of the body, which facilitates comfortable transportation (G).

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.

ANOMALIES AND REPAIR

- Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

The following information details the features related to ecodesign.

TF3000
Maximum fan flow rate (F)	18,38 m^3/min
Fan power input(P) 39,30 W
Service value (SV) (according to IEC 60879)	0,47 ( m^3/min )/W
Standby power consumption (PSB)	N/A
Fan sound power level (LWA)	60,59 dB(A)
Maximum air velocity(c)	1,89 metres/sec

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

Français

NIEPRAWIDŁOWOŚCI I NAPRAWA

ت Connectivity Optimize the first-time Tolerance of the Internet.

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/
