Product type	Fan heater
Brand	Taurus
Model	Tropicano 5CR
Nominal thermal power	1.5 kW
Minimum thermal power	1.0 kW
Power supply	230 V ~ 50 Hz
Functions	Fan heating (2 powers), fan only, oscillation
Control type	Function/power selector + mechanical thermostat
Oscillation angle	75°
Anti-tip safety	Yes, automatic shut-off
Thermal protection	Yes, safety device against overheating
Protection rating	IPX2 (splash-proof)
Recommended use	Well-insulated rooms or occasional use
Maintenance and cleaning	Clean with a damp cloth, do not immerse
Carrying handle	Yes, integrated on top
Warranty	Compliant with applicable legislation

Frequently Asked Questions - Tropicano 5CR TAURUS

What are the available heating powers?

The device offers two heating powers: 1.0 kW (minimum) and 1.5 kW (maximum). You can select them using the rotary knob.

How to use the fan-only function?

Set the function selector to the fan position and set the thermostat to maximum. The appliance will blow cold air.

Can the appliance oscillate?

Yes, the appliance has an oscillation function that directs the airflow over an angle of 75° automatically.

How to set the desired temperature?

Turn the thermostat knob to the desired position. Once the temperature is reached, the indicator turns off and then on again to maintain the set point.

What to do if the appliance turns off by itself?

Check that no obstacle blocks the air inlets/outlets. If the problem persists, unplug the appliance, wait 15 minutes, then plug it back in. Contact customer service if necessary.

Can I use the appliance in a bathroom?

Yes, but only if you unplug it after use. Do not use it near a bathtub, shower, or swimming pool.

How to clean the appliance?

Unplug it and wait for complete cooling. Clean the exterior with a damp cloth. Do not use solvents or immerse the appliance.

Is the appliance safe for children?

Children under 3 years old must be kept away. Children aged 3 to 8 can turn it on/off under supervision. Do not let children play with the appliance.

What does the 'do not cover' symbol mean?

It indicates that the appliance should not be covered to avoid overheating. Do not place any clothing or objects on it.

Where to find spare parts?

Contact an authorized Taurus technical support service. Use only original parts.

USER MANUAL Tropicano 5CR TAURUS

EN: This product is only suitable for well insulated spaces or occasional use.

Technical line drawing of a mechanical device with a textured handle and three circular ports, no text or symbols present.

Technical line drawing of a mechanical device with a textured cylindrical component and a black arrow pointing to it (no text or symbols present)

Fig.2

x II / 0

Español

Ventilador calefactor

Tropicano 5C / Tropicano 5CR

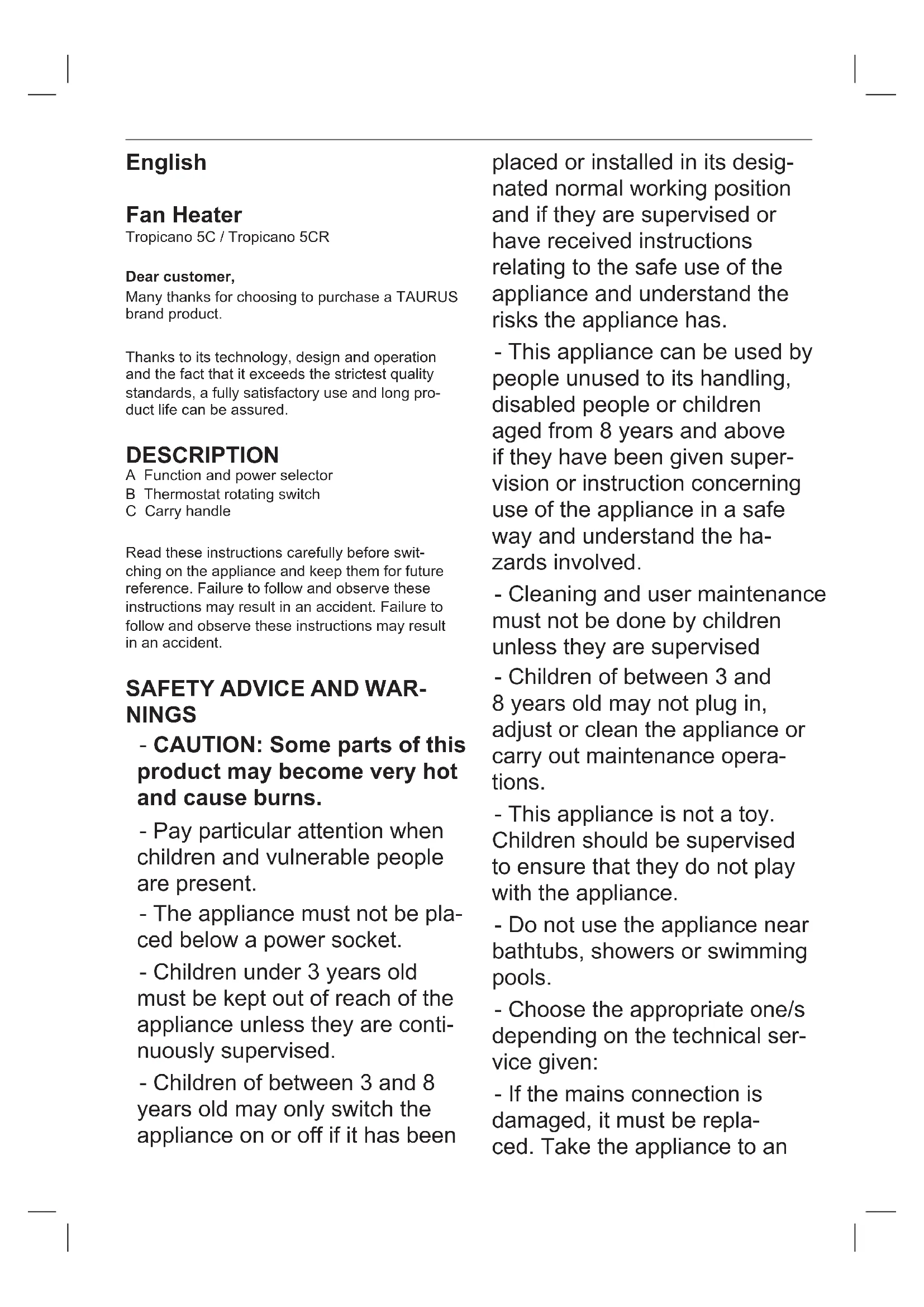

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

DESCRIPTION

A Function and power selector

B Thermostat rotating switch

C Carry handle

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions may result in an accident. Failure to follow and observe these instructions may result in an accident.

SAFETY ADVICE AND WAR- NINGS

- CAUTION: Some parts of this product may become very hot and cause burns.

- Pay particular attention when children and vulnerable people are present.

- The appliance must not be placed below a power socket.

- Children under 3 years old must be kept out of reach of the appliance unless they are continuously supervised.

- Children of between 3 and 8 years old may only switch the appliance on or off if it has been

placed or installed in its designated normal working position and if they are supervised or have received instructions relating to the safe use of the appliance and understand the risks the appliance has.

- This appliance can be used by people unused to its handling, disabled people or children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and user maintenance must not be done by children unless they are supervised

- Children of between 3 and 8 years old may not plug in, adjust or clean the appliance or carry out maintenance operations.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- Do not use the appliance near bathtubs, showers or swimming pools.

- Choose the appropriate one/s depending on the technical service given:

- If the mains connection is damaged, it must be replaced. Take the appliance to an

authorised Technical Assistance Service. Do not try to dismantle or repair without assistance, as this may be dangerous.

- This device is only intended for domestic use, not for professional or industrial use.

s symbol means that the appliance must not be covered.

- WARNING: In order to prevent overheating, do not cover the appliance.

• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Use the appliance in a well ventilated area.
• Make sure the room is adequately ventilated if other appliances are used in the same room and at the same time that are powered by gas or other types of fuel.
• Keep children and bystanders away when using this appliance.
• The appliance must be used and placed on a flat, stable surface.
• Keep the appliance away from flammable material such as textiles, cardboard or paper, etc.
• Do not place combustible materials near the appliance.
• Ensure that neither the air access nor exit become either totally or partially covered by drapery, clothing, etc., as this increases the risk of fire.
• Do not use the appliance in association with a programmer, timer or other device that automatically switches it on.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

• WARNING: Maintain the appliance dry.

• WARNING: Do not use the appliance near water.

• Do not use the appliance with damp hands or feet, or when barefooted.
• Do not force the electrical wire. Never use the electric wire to lift up, carry or unplug the appliance.
• Do not wrap the cable around the appliance.
• Ensure that the electric cable does not become trapped or tangled.
• Do not allow the connection cable to come into contact with the appliance's hot surfaces.
• Keep the appliance well away from heat sources, oil, sharp edges or moving parts.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• The power cord must be regularly examined for signs of damage and if damaged, the appliance must not be used.
• Do not use or store the appliance outdoors.
• Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Do not use the appliance, in the case persons insensitive to heat (the appliance has heated surfaces).
• Do not touch metal parts or the body when it is operating, as it may cause serious burns.

USE AND CARE:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if the on/off switch does not work.
• Do not move the appliance while in use.
• Use the appliance handle/s, to catch it or move it.
• Do not use the appliance if it is tipped up and do not turn it over.
• Do not turn the appliance over while it is in use or connected to the mains.
• If you use the appliance in a bathroom or similar place, unplug the appliance from the mains when it is not in use, even if it is only for a short while, as proximity to water involves a risk, even if the appliance is disconnected.
• Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
• This appliance is for household use only, not

professional or industrial use.

• This appliance should be stored out of reach of children and/or the disabled.
• Keep the appliance in a dry, dust-free place, out of direct sunlight.
• Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.
• Never leave the appliance unattended while in use.
• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
• Do not use the appliance on any part of the body of a person or animal.
• Do not use the appliance with pets or animals.
• Do not use the appliance to dry textiles of any kind.
• WARNING: Do not sleep while using this appliance, as there is risk you could be harmed.
• Turn the thermostat control to the minimum (MIN) setting. This does not mean that the iron is switched off permanently.

SERVICE:

• Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

INSTALLATION

• Be sure to remove all packaging material from inside the appliance.
• Ensure that the appliance is level with respect to the floor.

INSTRUCTIONS FOR USE

BEFORE USE:

• Make sure that all the product's packaging has been removed.
• Some parts of the appliance have been lightly greased. Consequently, the first time the appliance is used a light smoke may be detected. After a short time, this smoke will disappear.
• Prepare the appliance according to the function you wish to use.

USE:

• Unroll the cable completely before plugging it in.

• Connect the appliance to the mains.

• Guide the diffuser of the appliance to direct the flow of air in the desired direction.

• Turn the appliance on, by using the function and speed selection control.
• The pilot light (C) comes on.
• Select the function you want the appliance to carry out.
• Select the desired speed.
• Turn the thermostat control to the desired temperature position.
• During use the pilot light (C) will automatically flash on and off, thus indicating that the heating elements are operating in order to maintain the desired temperature.

OSCILLATION FUNCTION:

The oscillation function allows directing the flow of air leaving the device so that it alternately and automatically covers a radius of up to 75^ (Fig.2).

FAN FUNCTION:

• Select the fan position.
• Check that the thermostat button is set to the maximum.

HEAT FUNCTION:

• Select the desired heating power.
• Check that the thermostat control is set to the temperature required

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Stop the appliance, selecting position 0 on the speed and function selector.
• Unplug the appliance from the mains.
• Clean the appliance

CARRY HANDLE/S:

- The device has a handle on the upper part so it can be transported easily and comfortably. (Fig. 1).

ANTI-CAPSIZE SAFETY DEVICE

- The appliance has an anti-capsize safety device which disconnects the appliance if the working position is incorrect.

SAFETY THERMAL PROTECTOR:

• The appliance has a safety device, which protects the appliance from overheating.
• When the appliance switches itself on and off repeatedly, for reasons other than the ther-

mostat control, check to ensure that there are no obstacles that impede correct air entry or expulsion.

- If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorised technical assistance.

CLEANING

• Disconnect the appliance from the mains and let it cool before undertaking any cleaning task.
• Clean the equipment using a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.
• NB: When the appliance is used as a heater after long periods in storage or after having been used solely as a fan a small amount of smoke may be produced. This is not important and is due to the heater burning dust deposits which have accumulated on the heating element. This phenomenon may be avoided by cleaning the inside of the appliance beforehand through the grill with a vacuum cleaner or pressurised air.

ANOMALIES AND REPAIR

- Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN THE CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

This appliance complies with Directive 2014/35/EC on Low Voltage, Directive 2014/30/EC on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

Model:	Tropicano 5C / Tropicano 5CR
Heat output
Nominal heat output P_nom	1,5 kW
Minimum heat output (indicative) P_min	1,0 kW
Maximum continuous heat output P_max,c	1,5 kW
Auxiliary electricity consumption
At nominal heat output el_max	N/A
At minimum heat output el_min	N/A
In standby mode el_SB	0 kW
Type of heat input, for electric storage local space heaters only
Manual heat charge control, with integrated thermostat	No
Manual heat charge control with room and/or outdoor temperature feedback	No
Electronic heat charge control with room and/or outdoor temperature feedback	No
Fan assisted heat output	No
Type of heat output/room temperature control
Single stage heat output and no room temperature control	No
Two or more manual stages, no room temperature control	No
With mechanic thermostat room temperature control	Yes
With electronic room temperature control	No
Electronic room temperature control plus day timer	No
Electronic room temperature control plus week timer	No
Other control options
Room temperature control, with presence detection	No
Room temperature control, with open window detection	No
With distance control option	No
With adaptive start control	No
With working time limitation	No
With black bulb sensor	No
Contact details "ELECTRODOMÉSTICOS	TAURUS, S.L.Avda. Barcelona S/N25790 Oliana, Lleida, Spain"

Français

OSZILLATIONSFUNKTION:

HANDVAT(EN) VOOR VERPLAATSEN:

VOOR PRODUCTEN AFKOMSTIG UIT DE EUROPESE UNIE EN/OF INDIEN DE WETGEVING VAN HET LAND WAARUIT HET PRODUCT AFKOMSTIG IS DIT VEREIST:

MILIEUVRIENDELIJKHEID EN RECYCLEER-BAARHEID VAN HET PRODUCT

استخدام #: Manufacturer: Consumer Relationship between the Internet and Internet.

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/

Français

GARANTIE ET ASSISTANCE TECHNIQUE

COUNTRY ADDRESS PHONE

Algeria Zone d'Activite, N° 62, Constantine 213770777756
Argentina Av. del Libertador 1298,(B1638BEY), Vicente López (Pcia. Buenos Aires)		541153685223
Belgium Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Benin 359 Av. Steinmetz, 1930, Cotonou 0299-21313798
Bulgaria	265,Okolovrasten Pat, Mladost 4, 1766, Sofia	35929211120 / 35929211193
Burkina Faso Avenue Bassawarga, 01 BP915, Ouagadougou 226 25301038
Congo (Republic of) 98 Blvd General Charles de Gaulle, Pointe Noire 242066776656
Cyprus	20, Bethlehem Str. / P.O.Box 20430, 2033, Strovolos	35722711300
Czech Republic	Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Democratic Republic of the Congo	AV. Pont Canale N° 3440, Kinshasa	00243-991223232
Equatorial Guinea	SN Av Patricio Lumumba y C/ Jesus B, Bata	00240 333 082958 / 00240 333 082453
Equatorial Guinea	Calle de las Naciones Unidas, PO box 762, Malabo	240333082958 / 240333082453
España Avda Barcelona, S/N, 25790 Oliana (Lleida) [e-mail]		902 118 050
Ethiopia Lideta Sub City Kebele 10 H.NO 124, Addis Ababa		[phone]
France	Za les bas musats 18, 89100, Malay-le-Grand	03 86 83 90 90
Gabon	BP 574, Port-Gentil Centre-ville	24101552689 / 24101560698
Ghana	Ederick Place, Accra-Ghana	302682448 / 302682404
Gibraltar 11 Horse Barrack Lane, 54000, Gibraltar 00350 200 75397 / 00350 200
		41023
Greece Sapfous 7-9, 10553, Athens [phone]
Guinea BP 206, GN, Conakry (224) 622204545
Hong Kong Unit H,13/F., World Tech Centre, Hong kong (852) 2448 0116 / 9197 3519
Hungary Késmárk utca 11-13, 1158, Budapest [phone]
India C-175, Sector-63, Noida, Gautam Budh Nagar - 201301, Delhi		([phone]
Ivory Coast 01 Rue Des Carrossiers-Zone 3, B.P 3747, Abidjan 01 (RCI)		22521251820 / 225 21 353494
Jordan 28 Basman St Down town, Amman [phone]
Kuwait	P.O. BOX 3379 hawally, 32034, Hawally	[phone]
Lebanon Damascus Highway; Sciale Building, Jamhour	9615922963
Luxembourg	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Mali	BP E2900, Dravela Bolibana	223227216 / 223227259
Marruecos	Big distribution society 4 Rue 13 Lot. Smara Oulfa, Casablanca	([phone]
Mauritania	134 Avenue Gamal Abdener Ilot D, Nouakchott	2225254469 / 2225251258
Mexico Rosas Moreno N° 4-203 Colonia de San Rafael C.P. 06470 – Delegación Cuauhtémoc, Ciudad de México		([phone]
Montenegro	Rastovac bb, 81400, Niksic	[phone]
Netherlands	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Nigeria 8, Isaac; John Str,G.R.A Ikeja Lagos	23408023360099
Paraguay	Denis Roa 155 c/ Guido Spano, Asunción	21665100
Peru	Calle los Negocios 428, Surquillo, Lima	[phone]
Portugal Avenida Rainha D. Amélia, n°12-B, 1600-677, Lisboa		[phone]
Romania	Dudesti Pantelimon 23, 410554, Bucharest	031.805.49.58
Serbia	Rastovac bb, 81400, Niksic	[phone]
Slovakia Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Southafrica	Unit 25 & 26, San Croy Office Park, Die Agora Road, Croydon, Kempton Park, 1619, Johannesburg	([phone]
Tunisia	2, Rue de Turquie, Tunis	21671333066
Ukraine	Block 6, Ap Housing Estate Topol-2, B, 49000, Dnepropetrovsk	380563704161 / 380563704161
United Arab Emirates	P.O.BOX 8543, Dubai	14506246200
Uruguay	Luis Alberto de Herrera 3468, 11600, Montevideo	598 2209 28 00
Vietnam Lot 7 Ind. Zone for, Ha Noi		84437658111 / 84437658110

_

| _

一

1

_

| _

一

1
