Product Type	Hand Mixer (Manual Mixer)
Brand	WestBend
Model	SHHM100
Manufacturer	Focus Electrics, LLC
Power Supply	120 V ~, 60 Hz (polarized plug)
Power	Not specified in manual (estimated: 150-250 W)
Number of Speeds	5 speeds
Included Accessories	2 chrome beaters
Dimensions (L x W x H)	Approximately 20 x 10 x 12 cm (estimated)
Weight	Approximately 0.8 kg (estimated)
Cord Length	Short (approximately 0.6 m), designed to prevent accidents
Main Functions	Beat, mix, whisk, purée, sauces, pastries
Beater Material	Chrome-plated steel
Cleaning	Beaters washable in warm soapy water (by hand); base wiped with a damp cloth
Maintenance	Rinse and dry beaters after each use; do not immerse motor
Safety	Polarized plug; do not use with damaged cord; unplug before cleaning; keep out of reach of children
Warranty	1 year (limited to defects in parts and workmanship)
Customer Service	Phone: [phone] / Email: [e-mail]
Spare Parts	Available online at www.focuselectrics.com
Intended Use	Household use only
Compatibility Zone	USA and Canada

Frequently Asked Questions - SHHM100 WestBend

How to assemble the beaters on the mixer?

Make sure the speed lever is on OFF and unplug the appliance. Align the beaters' notches with the slots at the base of the mixer, then push until they click into place. Insert the second beater in the same way.

What are the available speeds and what are they used for?

The mixer has 5 speeds: 1 for incorporating liquids or beating egg whites; 2 for purée, sauces, puddings; 3 for cake batters or sugar-butter mixtures; 4 for smooth mixtures; 5 for whipped cream, egg whites, or mashed potatoes.

How to clean the Soho hand mixer?

Unplug the appliance. Eject the beaters by pressing the ejection button. Wash the beaters in warm soapy water, rinse and dry. Wipe the base and cord with a soft damp cloth. Never immerse the motor.

Can I use an extension cord with this mixer?

Using an extension cord is not recommended, but if necessary, choose a cord with a power rating at least equal to that of the appliance. For a grounded appliance, use a 3-wire extension cord. Arrange it to avoid tripping hazards.

What to do if the mixer does not work?

Check that the plug is properly inserted and the outlet works. Make sure the speed lever is not on OFF. If the problem persists, unplug the appliance and contact customer service at [phone].

How to eject the beaters?

Hold the beater stems and press the ejection button located on top of the mixer. The beaters will then release. Perform this operation after unplugging the appliance.

Is the mixer under warranty?

Yes, it has a limited 1-year warranty from the date of purchase, covering defects in parts and workmanship. Proof of purchase is required. The warranty does not cover damage due to misuse.

Can I order spare parts?

Yes, spare parts are available at www.focuselectrics.com or by contacting customer service. Specify model number SHHM100 and the desired part.

Can the mixer be used for kneading dough?

This hand mixer is not designed for kneading thick doughs. It is intended for mixing, beating, and whisking light to medium preparations.

How to store the mixer?

After cleaning, wrap the cord around the handle for storage. Store the mixer in a dry and safe place, out of reach of children.

USER MANUAL SHHM100 WestBend

WEST BEND®

SOHO® HAND MIXERInstruction Manual

Register this and other Focus Electrics products through our website:www.focuselectrics.com

Important Safeguards......2Assembling Your Soho® Hand Mixer......3Using Your Soho® Hand Mixer ......4Cleaning Your Soho® Hand Mixer ......4Warranty......5

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed including the following:

• Read all instructions, including these important safeguards and the care and use instructions in this manual.
• To protect against electrical shock, do not put the cord, plug or the motor assembly in water or other liquid.
• Close supervision is necessary when this appliance is used by or near children.
• Unplug the appliance from outlet when not in use, before putting on or taking off parts and before cleaning.
• Avoid contact with moving parts.
• Do not operate this appliance with a damaged cord or plug, after the appliance malfunctions or if the appliance is dropped or damaged in any manner. If you experience any problems with your appliance, unplug it immediately from the electrical outlet. For service information see warranty page.
• The use of accessory attachments, not recommended or sold by Focus Electrics may cause fire, electric shock or injury.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter.
• Do not let the cord come into contact with hot surfaces, including a stove.
• Do not place on or near a hot gas or electrical burner or in a heated oven.
• Do not use this appliance for other than its intended use.
• Keep hands, hair, clothing, as well as spatulas and other utensils away from beaters during operation to reduce risk of injury to persons and/or damage to hand mixer.
• Be sure to turn switch to "OFF" position after each use.
• To disconnect, grip plug and pull from wall outlet. Never pull on cord to disconnect.
• Never leave the house while the appliance is on.
• A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

• Longer, detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. While use of an extension cord is not recommended, if you must use one, the marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance. If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord. The cord should be arranged so that it will not hang over the counter top or tabletop where it can be pulled by children or tripped over.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
  • For household use only.

SAVE THESE INSTRUCTIONS

ASSEMBLING YOUR SOHO® HAND MIXER

To use your Soho ^® Hand Mixer, begin by assembling the unit.

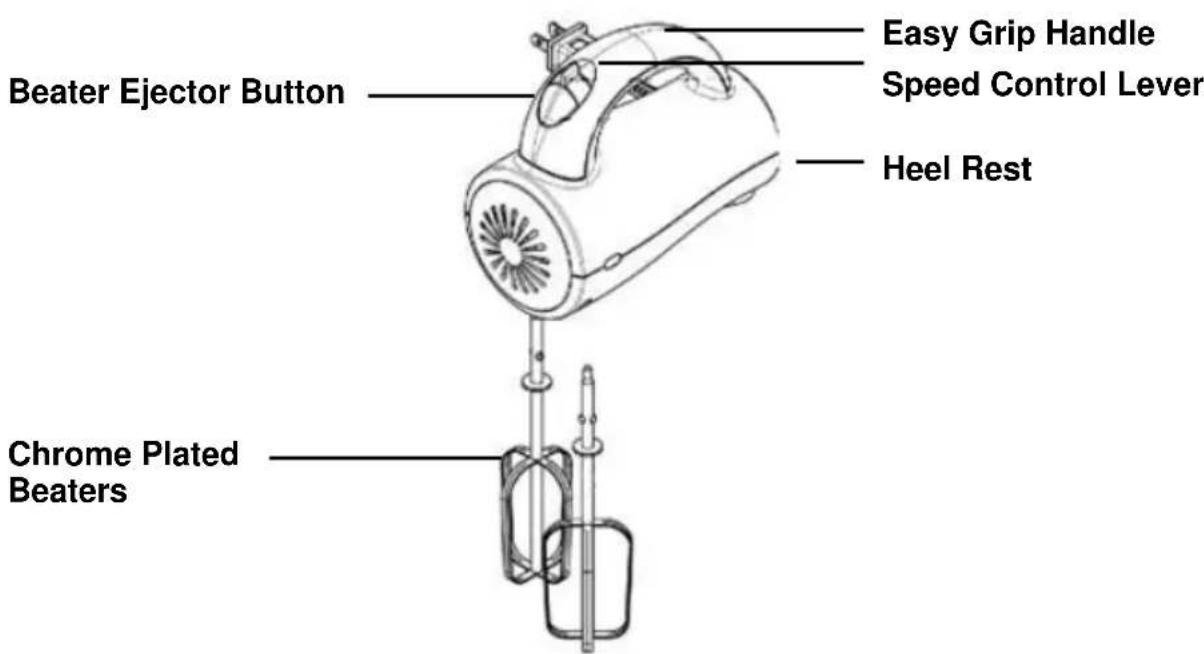

Beater Ejector Button Easy Grip Handle Speed Control Lever Heel Rest Chrome Plated Beaters

WARNING: Unplug appliance from electrical outlet before assembling, removing parts or cleaning. Never place motor or cord in water or other liquids.

1. Before using the first time, wash beaters in warm, soapy water. Rinse and dry thoroughly.
2. Move speed control lever to "OFF" position.
3. Align notches on beater with slots inside hole on bottom of mixer. Push beater into the opening until it clicks into position. Insert other beater in same manner.
4. Insert plug into outlet.
5. Place beaters in food to be mixed, firmly holding onto mixer handle.
6. Move speed control lever to the desired speed.
7. When finished, turn speed control lever to "OFF" and unplug from outlet.
8. To eject beaters, grasp stems of beaters and press down firmly on the beater ejector button.
9. Clean after each use (See Cleaning Your Soho ^® Hand Mixer).

Use the chart below to help determine the proper speed control setting for mixing.

SPEED CONTROL	PROCEDURE
1 Use to mix dry ingredients and to fold in liquid ingredients, egg whites and whipping cream.
2 Use to cream, stir, make sauces, gravies, pudding and quick breads.
3 Use for all-purpose mixing, preparing packaged cakes and creaming sugar and butter together.
4 Use for smooth batters.
5 Use to whip cream, beat egg whites or mash potatoes.

CLEANING YOUR SOHO® HAND MIXER

Care and Cleaning

WARNING: Unplug appliance before cleaning. Never place any part of appliance or cord in water or other liquids.

1. Move speed control lever to "OFF" position.
2. Unplug from outlet.
3. Grasp stems of beaters and press down on beater ejector button.
4. Wash, rinse and dry beaters by hand after each use.
5. Wipe body and cord of mixer with a soft, damp cloth. Do not use harsh detergents or abrasive cleaners.
6. Wrap cord around handle for storage.

PRODUCT WARRANTY

Appliance 1 Year Limited Warranty

Focus Electrics, LLC (“Focus Electrics”) warrants this appliance from failures in the material and workmanship for one (1) year from the date of original purchase with proof of purchase, provided the appliance is operated and maintained in conformity with the provided Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at Focus Electrics discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by Focus Electrics if the appliance is damaged through accident, misuse, abuse, negligence, scratching, or if the appliance is altered in any way.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCLUDED. IN NO EVENT SHALL FOCUS ELECTRICS, LLC BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE, CONSEQUENTIAL, OR SPECIAL, ARISING OUT OF OR IN CONNECTION WITH ITS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, please contact the Focus Electrics Customer Service Department at (866) 290 –1851 or e-mail us at [e-mail]. Return shipping fees are non-refundable. A receipt proving original purchase date will be required for all warranty claims. Hand-written receipts are not accepted. Focus Electrics, LLC is not responsible for returns lost in transit.

Valid only in USA and Canada

REPLACEMENT PARTS

Replacement parts, if available, may be ordered directly from Focus Electrics, LLC online at www.focuselectrics.com. Or you may call or e-mail the service department at the number/e-mail address listed above, or by writing to us at:

Focus Electrics, LLC

Attn: Customer Service

P. O. Box 2780

West Bend, WI 53095

Be sure to include the catalog/model number of your appliance (located on the bottom/back of the unit) and a description and quantity of the part you wish to order. Along with this include your name, mailing address, Visa/MasterCard number, expiration date and the name as it appears on the card. Checks can be made payable to Focus Electrics, LLC. Call Customer Service to obtain purchase amount. Your state's sales tax and a shipping/processing fee will be added to your total charge. Please allow two (2) weeks for delivery.

This manual contains important and helpful information regarding the safe use and care of your new Focus Electrics, LLC product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift:

Where purchased and price, if known:

Item number and Date Code (shown bottom/back of product) ____

WEST BEND®

MÉLANGEUR MANUEL SOHO®

Mode d'emploi

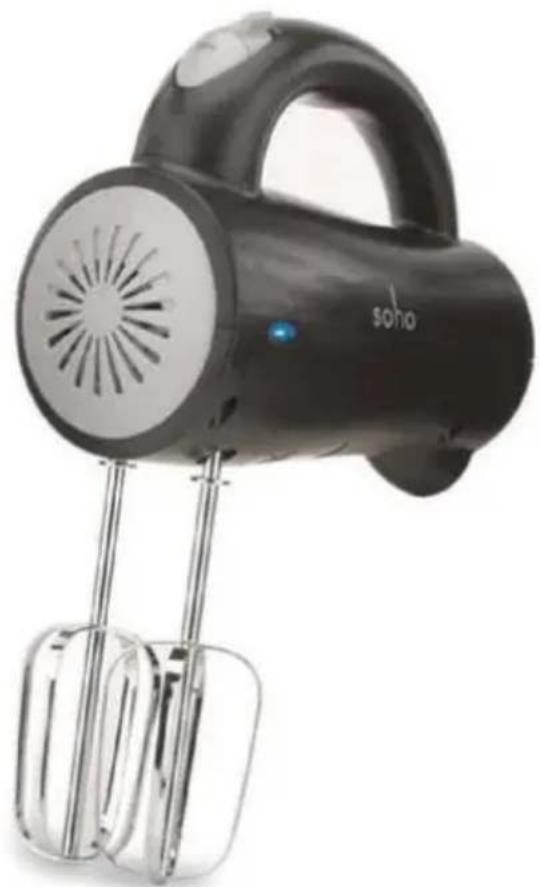

Black and white photo of a modern electric blender with a hand mixer, no visible text or symbols on the device itself.
