USER MANUAL CEN-700 BRANDT

FR MANUEL D'INSTRUCTION

EN INSTRUCTION MANUAL

Centrifugeuse

Juicer

CEN-700

Brandt

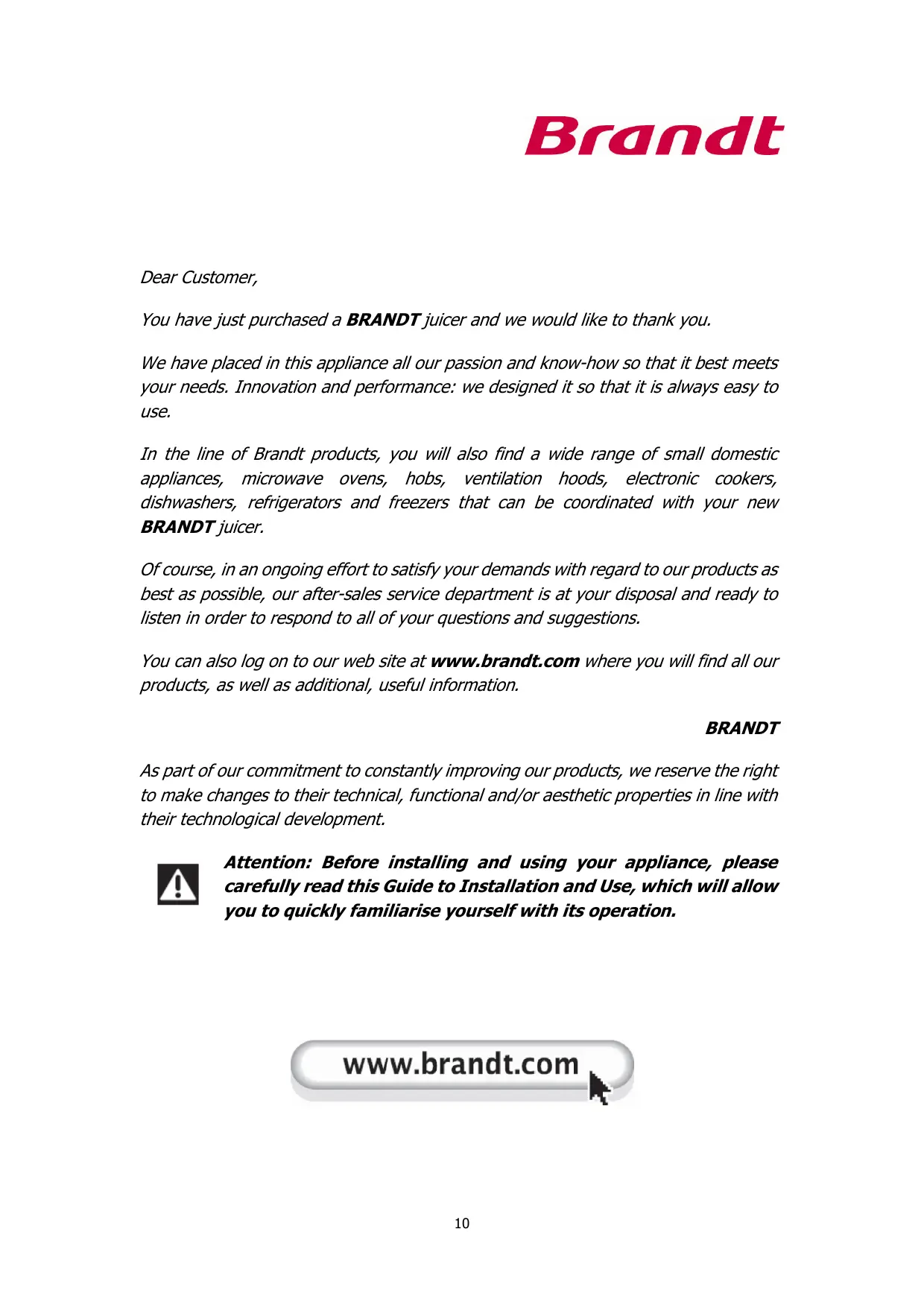

Chère Cliente, Cher Client,

ENGLISH INSTRUCTION MANUAL 10

You have just purchased a BRANDT juicer and we would like to thank you.

We have placed in this appliance all our passion and know-how so that it best meets your needs. Innovation and performance: we designed it so that it is always easy to use.

In the line of Brandt products, you will also find a wide range of small domestic appliances, microwave ovens, hobs, ventilation hoods, electronic cookers, dishwashers, refrigerators and freezers that can be coordinated with your new BRANDT juicer.

Of course, in an ongoing effort to satisfy your demands with regard to our products as best as possible, our after-sales service department is at your disposal and ready to listen in order to respond to all of your questions and suggestions.

You can also log on to our web site at www.brandt.com where you will find all our products, as well as additional, useful information.

BRANDT

As part of our commitment to constantly improving our products, we reserve the right to make changes to their technical, functional and/or aesthetic properties in line with their technological development.

Attention: Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

www.brandt.com

TABLE OF CONTENTS P

1/ INFORMATION FOR THE USER 12

A. Safety recommendations 12
B. Technical data 12
C. Protecting the environment 13

2/ PREPARING YOUR APPLIANCE 13

A.Description of the juicer 13
B.Preparing for use 13
C. Assembling the juicer 14
D. Installing the juicer 14

3/ USING YOUR APPLIANCE 15

A. Operating instructions 15
B. Tips for use 16

4/ CARING FOR AND CLEANING YOUR APPLIANCE 17

A. Cleaning the juicer 17
B. Troubleshooting 17
C. Warranty and after sales service 17

A. Safety recommendations

1. This appliance is intended for household use only.
2. Read all instructions before use, and see all diagrams, and keep these instructions for further reference.
3. Don't operate the appliance for more than 40 seconds at a time when juicing heavy loads and let it cool down sufficiently afterwards.
4. Check if the voltage indicated on the base of the appliance corresponds to the local mains voltage before you connect the appliance.
5. Don't let cord hang over edge of table or counter, do not let cord contact hot surface, including the stove.
6. Never use accessories or parts made by other manufacturers not recommended or sold, they may cause a risk of injury to persons.
7. Do not use the appliance if its power cord, plug, blade or other part is damaged. In the event of any damage to the power cord or blade of this product, it can only be replaced with a special one for use with this product. For the purpose of replacement, contact the distributor of this product.
8. Before turning the appliance on make sure that the lid is firmly in place and that the safety lock handle has been locked into place. Never release the safety lock handle whilst the appliance is in use.
9. If the safety lock handle is not locked properly, with the lid and the filter correctly in place, the juicer will not operate.
10. Make sure that the motor of the appliance has stopped completely and unplug the power cable before releasing the safety lock handle and removing the lid.
11. Never push food into the juicer with your hands or with other objects; only use the pusher.
12. Do not use the appliance if the filter, the lid or the safety lock handle are in a bad condition.
13. The filter is very sharp; handle it very carefully to avoid cutting yourself.
14. The user should not leave the juicer unattended whilst it is in use.
15. Store the juicer well out of reach of children.
16. When you are not using the appliance, unplug it from the power socket.
17. Do not blend bananas, avocados, papayas, mangos or aubergines.
18. Don't operate the appliance for more than 40 seconds at a time when juicing heavy loads and let it cool down sufficiently afterwards.

B. Technical Data

Model no.	CEN-700
Power supply	220-240V 50Hz
Energy consumption	700W
Capacity	1250ml
Dimensions	400 x 260 x 500 mm
Net weight	5 Kg

C. Protecting the environment

At the end of its working life, the product must not be disposed with household waste. It must be taken to a special local authority waste collection centre or to a company providing this service. Disposing household appliances separately avoids possible

negative effects on the environment and health and enables the constituent materials to be recycled which saves energy and resources.

To remind you that you must dispose of this appliance correctly the symbol shown above appears on the product warning you not to dispose of it with household waste.

For further information, contact your local authority or the shop where you bought the product.

2/ PREPARING YOUR APPLIANCE

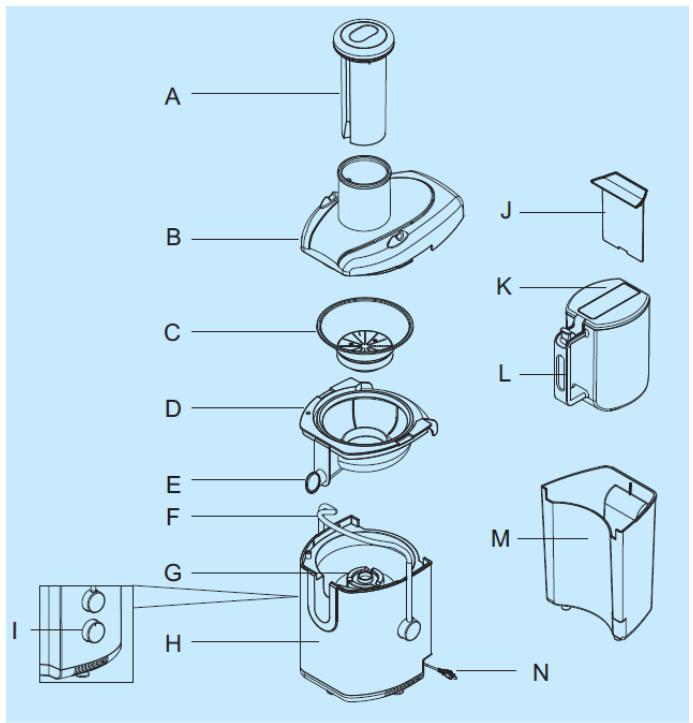

A. Description of the juicer

A、Pusher
B、Lid
C、Filter
D、Juice collector
E、Spout
F、Handle
G、Clutch
H、Motor base
I、Control knob
J、Foam separator
K、Jug lid
L、Juice jug
M、Pulp container
N、Power cord

B. Preparing for use

Before using the juicer for the first time, wash the pusher, the lid, the filter, the filter holder and the container and rinse thoroughly. To dismantle the appliance, follow the assembly instructions in reverse.

C. Assembling the juicer

1. Pull the power cord out of the cord storage compartment at the back of the appliance.

2. Place the juice collector into the appliance

3. Put the filter on the motor base. Make sure the filter is fitted securely onto the clutch ("click").

The filter is very sharp; handle it very carefully to avoid cutting yourself

1. Place the pulp container on the appliance. Insert the top first and then push the bottom end.
2. Put the lid on and raise the safety lock handle over the lid. Push it gently until it locks the lid firmly in place.
3. Slide the pusher into the feeding tube by aligning the groove in the pusher with the small protrusion on the inside of the feeding tube.

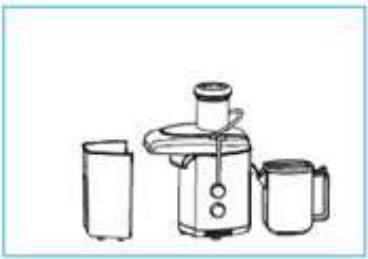

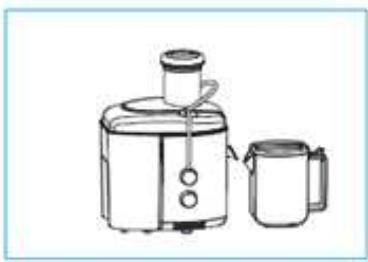

4. Place the juice jug under the spout. Place the lid on the juice jug to avoid splattering or if you want to store the juice in the refrigerator.
5. To separate the foam from the juice when pouring the juice into a glass, insert the foam separator by sliding it into the juice jug.

D. Installing the juicer

1. Place the assembled juicer on a flat, stable surface.
2. Set the control knob to position 0
3. Before plugging in the juicer, make sure the parts are correctly fitted and in place on the motor base.

The juicer has a safety lock system to ensure the appliance can only be connected if the accessories are correctly fitted to the unit.

A. Operating instructions

1. Plug the juicer to the power supply

2. Select the appropriate speed for the kind of fruit or vegetable you are going to blend.

3. High speed: Turn the control knob to position II to blend the harder fruits and vegetables, for example, pineapples, apples, lemons, peppers or carrots.

4. Low speed: Turn the button to position I to blend soft fruits or vegetables such as watermelons or melons.

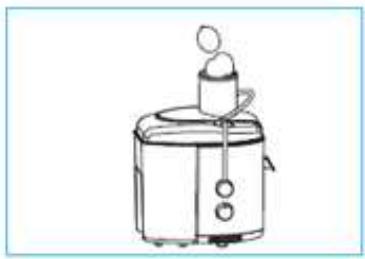

1. Pour into the feed tube hole the fruits and/or vegetables that you wish to blend, once they have been cut and, if necessary, after the stones (cherries, apricots, peaches, plums, etc.) or the peel (citrus fruits, watermelons, pineapples, kiwis, etc.) have been removed.

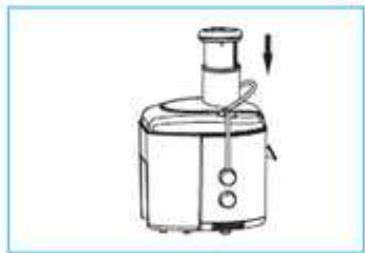

1. Using the food pusher, insert the food into the juicer, applying gentle pressure. The extracted juice will pour into the glass

Never use your fingers to push the food into the juicer.

1. Once the food has been processed, turn the control knob to position 0 to turn the juicer off.

1. Unplug the juicer and clean it.

Never release the safety lock handle whilst the appliance is in use.

To separate the foam from the juice when pouring the juice into a glass, insert the foam separator by sliding it into the juice jug.

B. Tips for use

Turn the appliance on before inserting the food.

• Always choose fresh fruits and vegetables and wash them thoroughly.
• Peel citrus fruits, watermelons, pineapples, cucumbers, etc.
• Remove the stones from cherries, apricots, peaches, plums, etc.
• Juice cannot be extracted from bananas, avocados, papayas, mangos, aubergines, as they are not water-based foods.
• Cut the fruits and vegetables so that they can be inserted into the feed tube.
• Never push food into the juicer with your hands or with other objects; only use the pusher.
• After blending 500 grams of grapes or tomatoes, clean the filter.
• Once the filter becomes misshapen, do not use it any more and replace it with another.
• To extract the maximum amount of juice, always press the pusher down slowly.
• The juicer is not suitable for processing very hard and/or fibrous/starchy fruits or vegetables such as sugar cane.
• Apple juice may turn brown quickly. A few drop of lemon juice will slow down the process.
• Drink the juice immediately after you have extracted it, if it is exposed to air for some time, the juice will lose its taste and nutritional value.

A. Cleaning the juicer

1. Always unplug the juicer before cleaning it.
2. To prevent the remnants from drying onto the container, dismantle the appliance and clean the components immediately after use.
3. Dismantle the appliance and empty the container, the filter holder and any remnants of food from the filter.
4. Wash all these parts with the cleaning brush in warm water with warm soapy water and rinse them under the tap. You can also wash them in the dishwasher

1. Use a slightly dampened cloth to clean the motor.

Never immerse the motor in water or in any other liquid.

Do not use abrasive cleaning products or solvents to clean the juicer.

Handle the filter very carefully to avoid cutting yourself!

B. Troubleshooting

1. If, during use, the product is subjected to such abnormality as noise, smell, smog and increased temperature, disconnect the power supply and stop the use.
2. In case the appliance fails to work, please check whether the power supply is properly connected, whether the switch is rotated to the on position and whether the fittings are in place.
3. If the appliance can not still function well after the above in actions, consult the after sale service of your retailer.

C. Warranty and after-sale service

This product is covered by a 2-year warranty from your retailer. For more details, please refer to the warranty conditions supplied by your retailer.
