Limitless X7 XR1770 - Shaver REMINGTON - Free user manual and instructions

Product Type	Electric Shaver
Brand	Remington
Model	Limitless X7 XR1770
Power Supply	Rechargeable via USB cable
Full Charge Time	90 minutes
Runtime	Up to 60 minutes
Quick Charge	5 minutes for 1 shave (3 minutes)
Water Use	Yes, in the bathtub or shower
Pivoting Head	Yes
Flexible Heads	3 individually flexible heads
Precision Trimmer	Yes, removable
Turbo Mode	Yes, for thick beard
Charge Indicators	2 red indicators (level) and 1 green indicator (charge complete)
Hair Reservoir	Yes
Included Accessories	USB cable, cleaning brush, protective cap, travel case
Cleaning	Rinse with water and brush after each use
Lubrication	Every 6 months on the trimmer teeth
Safety	Do not use if cord damaged, do not handle with wet hands, keep out of reach of children
Recycling	Battery and device to be disposed of at an official collection point

Frequently Asked Questions - Limitless X7 XR1770 REMINGTON

How to charge the Remington Limitless X7 XR1770 shaver?

Ensure the device is off. Connect the USB cable to the shaver and then to a powered USB port. Full charge takes 90 minutes and provides up to 60 minutes of runtime. A quick charge of 5 minutes allows a 3-minute shave.

Can this shaver be used in the shower?

Yes, the Remington Limitless X7 XR1770 can be used in the bathtub or shower. It is designed for wet or dry use. After use with shaving gel, rinse the head under warm water.

How to clean the shaver?

Unplug the shaver. Open the head by pressing the release button. Rinse under running water to remove hairs, then brush the blades. Close the head. Do not remove individual blades for cleaning.

What to do if the shaver does not turn on?

If the lower LED indicators flash rapidly for 5 seconds, the battery is empty. Recharge the shaver. If the problem persists, check the USB cable and outlet. For any other malfunction, contact consumer service.

How to use the precision trimmer?

Turn off the shaver. Remove the head/blade unit by pulling upward. Attach the precision trimmer to the body. Use it for finishing or edging. Lubricate the teeth every 6 months with a drop of sewing machine oil.

What is Turbo mode?

Turbo mode increases the shaver's power to shave thick stubble. Press the turbo button to activate (the button lights up green), press again to deactivate.

How to get a close shave?

Hold the shaver at a right angle to the skin with equal pressure on both heads. Make slow, circular movements, especially on the neck and chin. Do not press too hard to avoid irritation.

How to remove the battery for recycling?

It is recommended to call a professional. Unplug the device. Remove the head, separate the front panel, unscrew the screws, extract the circuit board and disconnect the battery. Do not reuse the shaver after opening. Dispose of the battery at an official recycling point.

Can the shaver be used with shaving gel?

Yes, you can use shaving gel. Follow the same instructions as for dry shaving. After use, thoroughly rinse the head and blades under warm water to remove any gel residue.

How to maintain the battery to extend its life?

Every 6 months, let the battery fully discharge, then recharge it for 24 hours to preserve its lifespan.

USER MANUAL Limitless X7 XR1770 REMINGTON

Black Remington electric shaver with three rotary dials and control buttons (no visible text or symbols on body)

X7 Limitless Rotary Shaver XR1770

Line drawing of a hairpin with ridges and a square label containing the number 7 (no text or symbols on the main diagram)

Technical line drawing of a three-bladed device with a labeled section A (no text or symbols on the device itself)

Diagram of a hairbrush and a hand tool, showing the brush tip and handle mechanism (no text or symbols)

Diagram of a three-cylinder electric shaver with an arrow pointing to the base (no text or symbols)

Diagram of a biological structure with internal circular patterns and a directional arrow, no text or symbols present

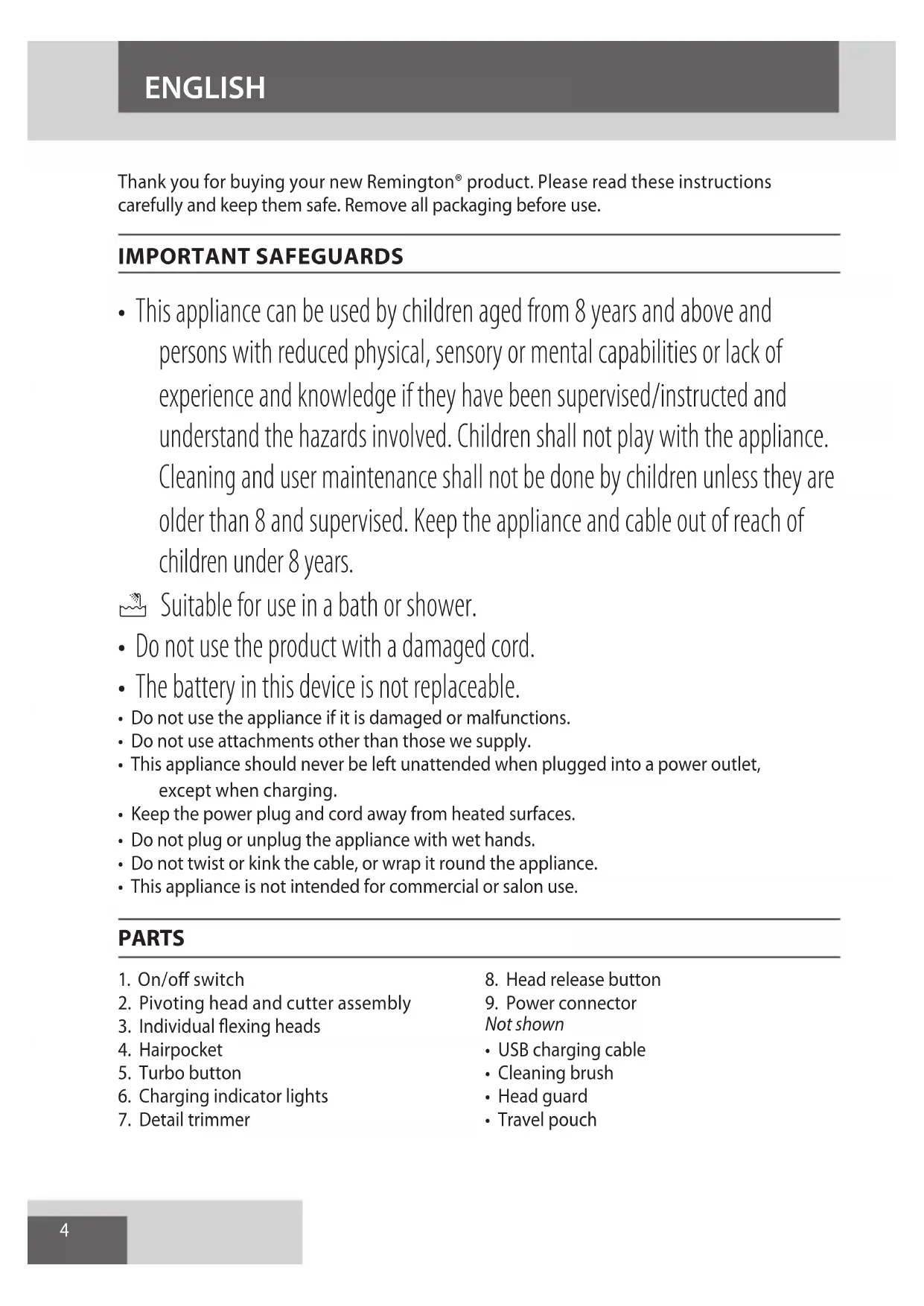

Thank you for buying your new Remington ^® product. Please read these instructions carefully and keep them safe. Remove all packaging before use.

IMPORTANT SAFEGUARDS

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the appliance and cable out of reach of children under 8 years.

Suitable for use in a bath or shower.

• Do not use the product with a damaged cord.
• The battery in this device is not replaceable.
• Do not use the appliance if it is damaged or malfunctions.
• Do not use attachments other than those we supply.
• This appliance should never be left unattended when plugged into a power outlet, except when charging.
• Keep the power plug and cord away from heated surfaces.
• Do not plug or unplug the appliance with wet hands.
• Do not twist or kink the cable, or wrap it round the appliance.
• This appliance is not intended for commercial or salon use.

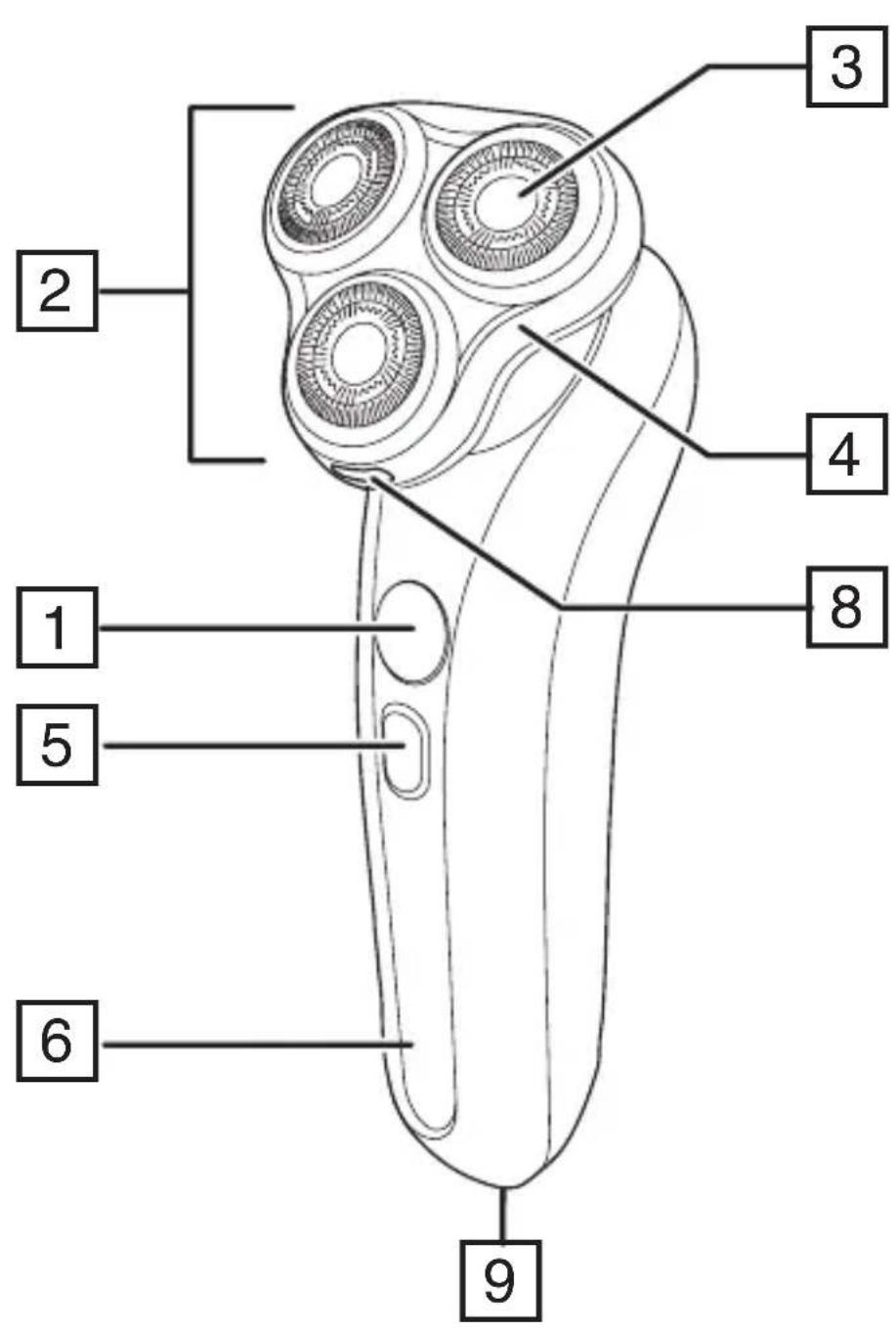

PARTS

1. On/off switch
2. Pivoting head and cutter assembly
3. Individual flexing heads
4. Hairpocket
5. Turbo button
6. Charging indicator lights

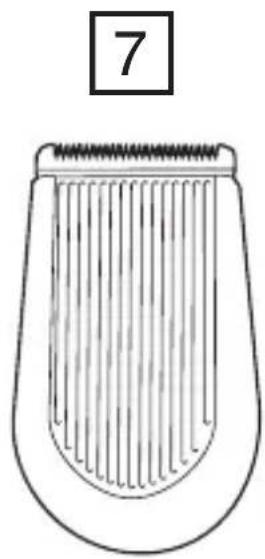

7. Detail trimmer
8. Head release button
9. Power connector
   Not shown
10. USB charging cable
11. Cleaning brush
12. Head guard
13. Travel pouch

GETTING STARTED

CHARGING

• It is recommended to fully charge your product before using for the first time.
• Ensure the product is switched off.
• Connect the product to the USB cable and then to the USB end of the cable to a powered USB port.

CHARGING INDICATOR LIGHTS

• The bottom two (red) lights show charging status during charging. When the charging level is below 50%, the bottom light will fade on and off. When charging is over 50%, the bottom light will stay on and the next light will fade on and off. Once charging is complete, the green light will turn on briefly, then switch off.
• If your shaver does not run when you switch it on, and the bottom two leds flash rapidly for 5 seconds, your shaver needs charging.
• Run time from fully charged is up to 60 mins.
• Charge time from empty is 90 mins.
• Do not recharge your product after each use as this will shorten the life of the battery.
• Note: To preserve the life of your batteries, let them run out every 6 months then fully charge.

QUICK CHARGE FEATURE

- Your shaver has a 5 minute quick charge feature that will provide enough charge for 1 shave (3 minutes).

INSTRUCTIONS FOR USE

SHAVING

1. Switch the shaver on by pressing the on/off button.
2. Stretch the skin with your free hand so the hairs stand upright.
3. Only apply light pressure on the shaving head while shaving (pressing too hard can cause skin irritation).
4. Use short, circular strokes.

SHAVING WITH SHAVING GEL

• Follow the same instructions as dry shaving if using shaving gel.
• CAUTION After use with shaving gel, please rinse the head and cutters under warm water to clean away any excess gel and debris.

TURBO FEATURE

- Use the Turbo feature to shave thick stubble. Press the turbo button to operate the shaver in Turbo mode. The turbo button will light up green. Press the turbo button again to deactivate turbo mode.

DETAIL TRIMMER ATTACHMENT

To fit the detail trimmer attachment:

1. Switch off your shaver.

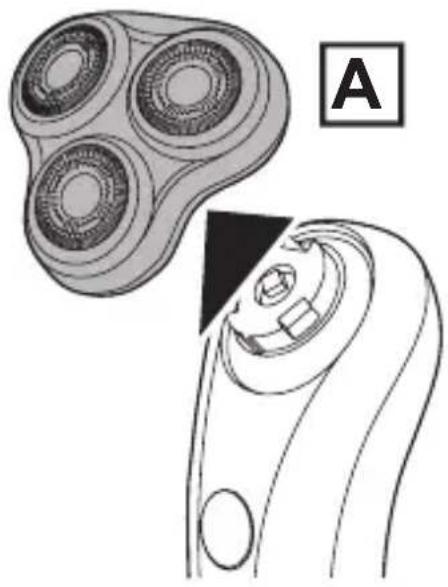

2. Pull the head and cutter assembly away from the body of your shaver (Fig A).

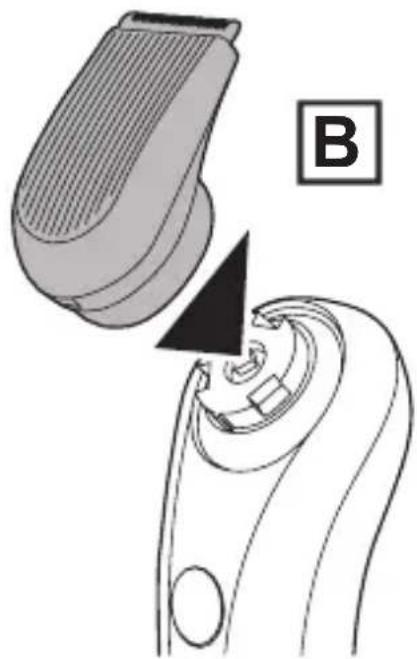

3. Clip the detail trimmer onto the body of your shaver (Fig. B).

TIPS FOR BEST RESULTS

• Always hold the shaver at right angles to the skin so that all three heads are touching the skin with equal pressure.
- Use moderate to slow stroking movements. The use of short circular motions in stubborn areas may obtain a closer shave, especially along the neck and chin line.
- DO NOT press hard against the skin in order to avoid skin irritation.

CARE FOR YOUR SHAVER

Care for your appliance to ensure a long lasting performance. We recommend you clean your appliance after each use.

• Ensure the appliance is switched off and unplugged from the mains before cleaning.

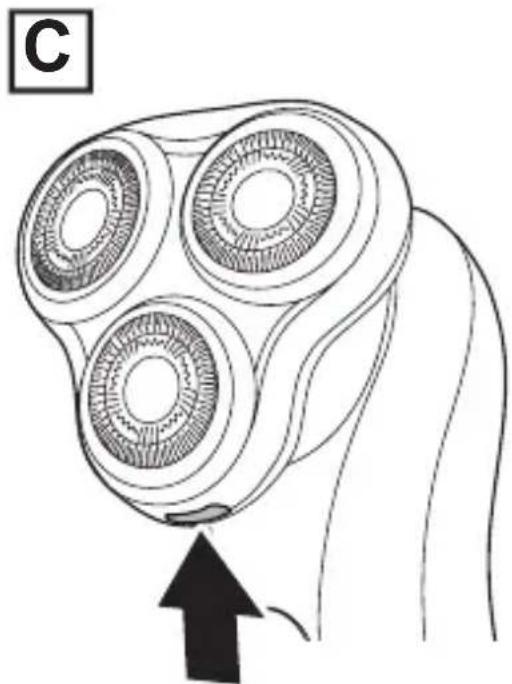

• Open the shaver head by pressing the release button (Fig. C).

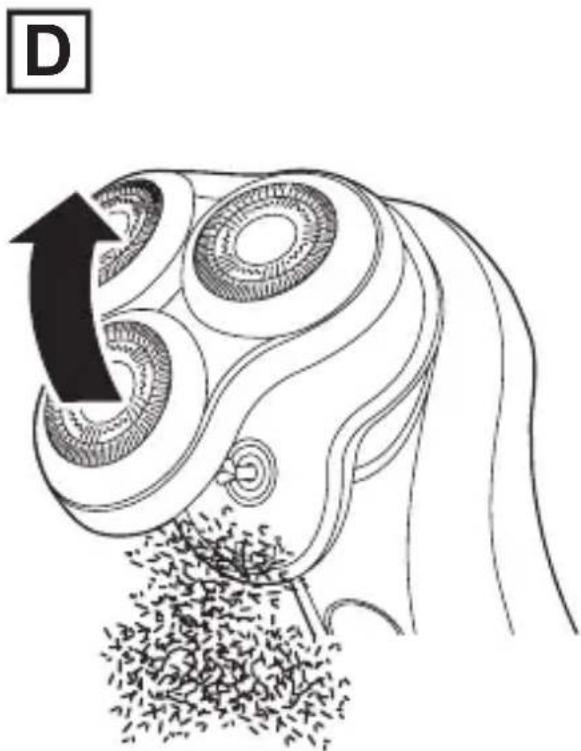

• The head assembly will open (Fig. D).
• Rinse under a tap to wash away hair trimmings.
• Carefully brush away any hairs from the cutters.
• Close the head assembly.
  Note: The individual cutters are designed to be permanently retained in the shave head and flushed out with water. Do not remove the individual cutters for cleaning.

DETAIL TRIMMER

Lubricate the teeth of the detail trimmer every six months with a drop of sewing machine oil.

REMOVING THE RECHARGEABLE BATTERY

We strongly recommend that a professional removes the rechargeable battery. Parts of the shaver case, and tools have sharp edges and may cause injury if not handled correctly.

- The rechargeable battery must be removed from the appliance before it is scrapped.

- Disconnect the charging adapter before removing the battery.

1. Remove the shaver head (pull the head up and off).
2. Using a small screwdriver, pry the front panel off the handle.

3. Unscrew the 3 screws located on front of shaver.

4. Using a small flat screwdriver, pry the front housing from the body.

5. Unscrew the 6 screws to open the inner housing.
6. Take out the circuit board.
7. Disconnect the battery from the circuit board.
8. Do not attempt to operate the shaver once you have opened it.
9. The battery must be disposed of at an appropriate official recycling/collection point.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.

SNELLE OPLAADFUNCTIE

SNELLE OPLAADFUNCTIE:

UW APPARAAT VERZORGEN

Solid gray rectangular shape with no text, symbols, or discernible features

Ref. No. XR1770

Type No. R34A

Remington ^® is a Registered Trade Mark of Spectrum Brands, Inc., or one of its subsidiaries

Russell Hobbs Deutschland GmbH, Am Unisyspark 1, 65843 Sulzbach, Germany remington-europe.com
