USER MANUAL R4 Style R3600 REMINGTON

I remington-europe.com Style Series Rotary Shaver R3600f

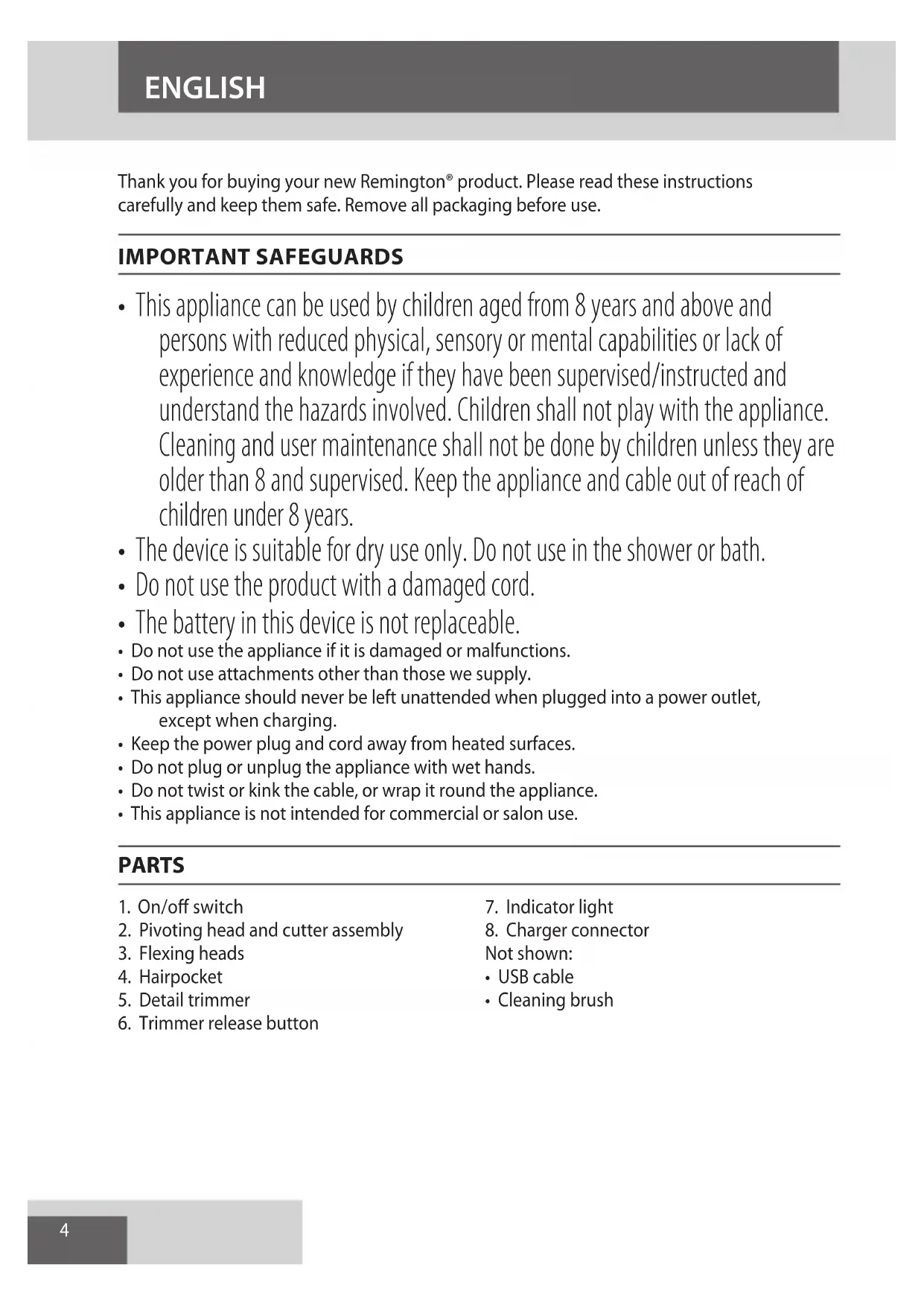

Thank you for buying your new Remington® product. Please read these instructions carefully and keep them safe. Remove all packaging before use. IMPORTANT SAFEGUARDS

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the appliance and cable out of reach of children under 8 years.

• The device is suitable for dry use only. Do not use in the shower or bath.

• Do not use the product with a damaged cord.

• The battery in this device is not replaceable.

• Do not use the appliance if it is damaged or malfunctions.

• Do not use attachments other than those we supply.

• This appliance should never be left unattended when plugged into a power outlet, except when charging.

• Keep the power plug and cord away from heated surfaces.

• Do not plug or unplug the appliance with wet hands.

• Do not twist or kink the cable, or wrap it round the appliance.

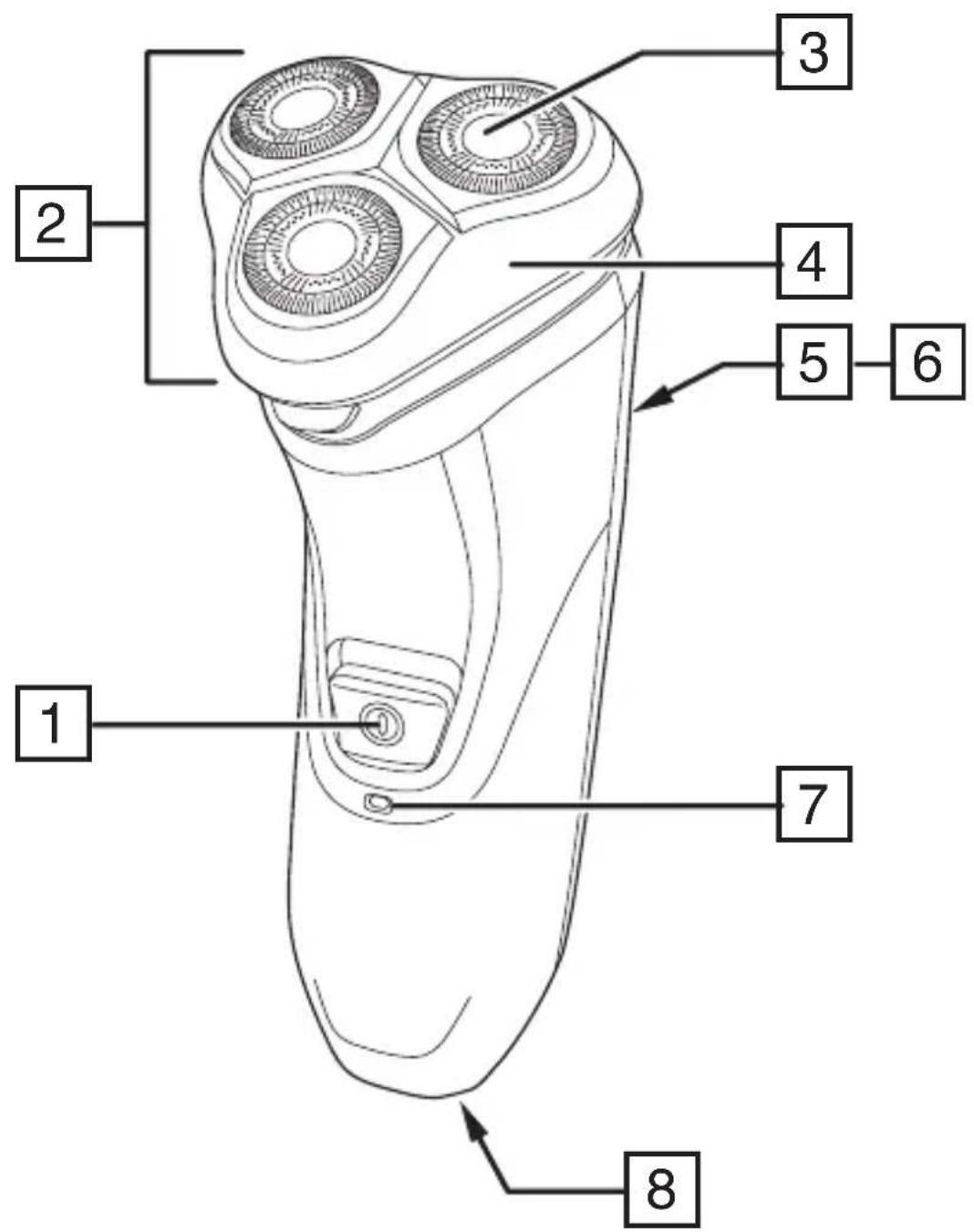

• This appliance is not intended for commercial or salon use. PARTS

2. Pivoting head and cutter assembly

8. Charger connector

1. Ensure the product is switched o.

2. Connect the product to the USB cable and then to the USB end of the cable to a

3. The indicator light below the power switch will light up to indicate the product is

• Run time from fully charged is up to 40 minutes.

• Charge time from empty is 16 hours.

• To preserve the life of your batteries, let them run out every 6 months then recharge for 24 hours.

• Switch the shaver on.

• Stretch the skin with your free hand so the hairs stand upright.

• Only apply light pressure on the shaving head while shaving (pressing too hard can damage the heads and make them vulnerable to breakage).

• Use short, circular strokes. TRIMMING

• Push the trimmer button to release the detail trimmer.

• Hold the trimmer at a right angle to your skin.

• Place the trimmer at desired trim line for a quick, easy, professional trim.

• To retract the trimmer, push down until it locks into position.

TIPS FOR BEST RESULTS

• Always hold the shaver at right angles to the skin so that all three heads are touching the skin with equal pressure.

• Use moderate to slow stroking movements. The use of short circular motions in stubborn areas may obtain a closer shave, especially along the neck and chin line.

• DO NOT press hard against the skin in order to avoid damage to the rotary heads.

• Care for your appliance to ensure a long lasting performance. We recommend you clean your appliance after each use.

• Ensure the appliance is switched o and unplugged from the mains before cleaning.

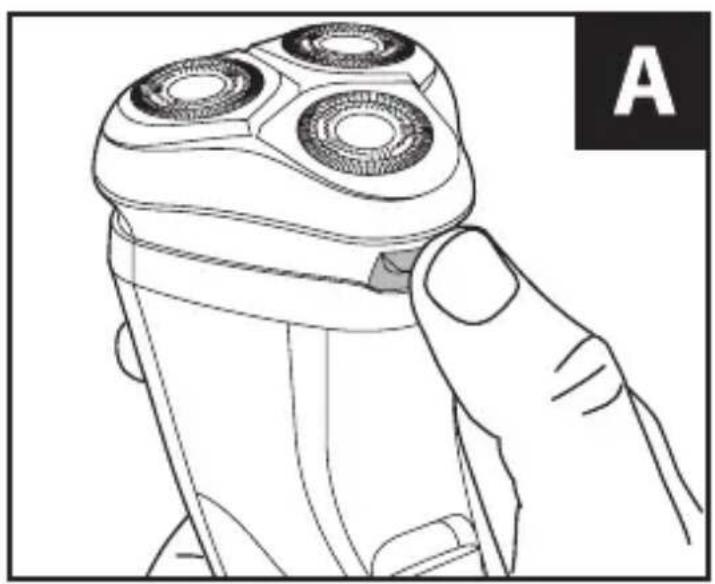

1. Open the shaver head by pressing the release button (Fig. A).

2. Empty out any hair clippings.

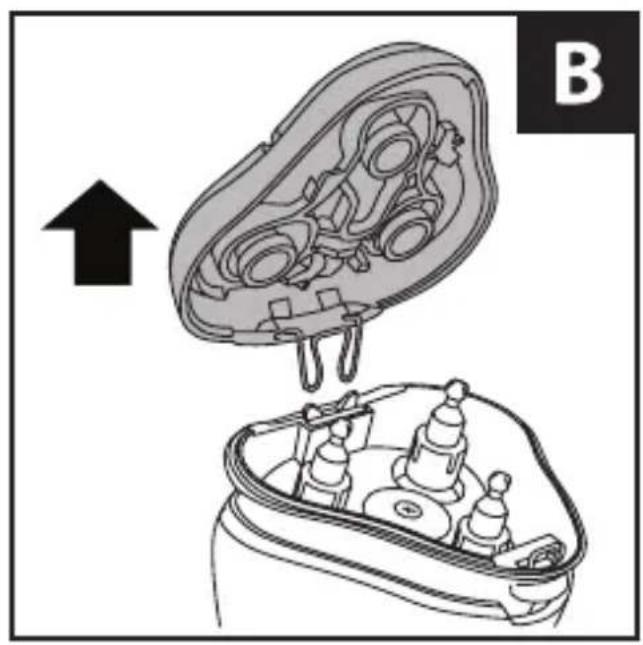

3. Pull the shaver head upwards to remove it from the body (Fig. B).

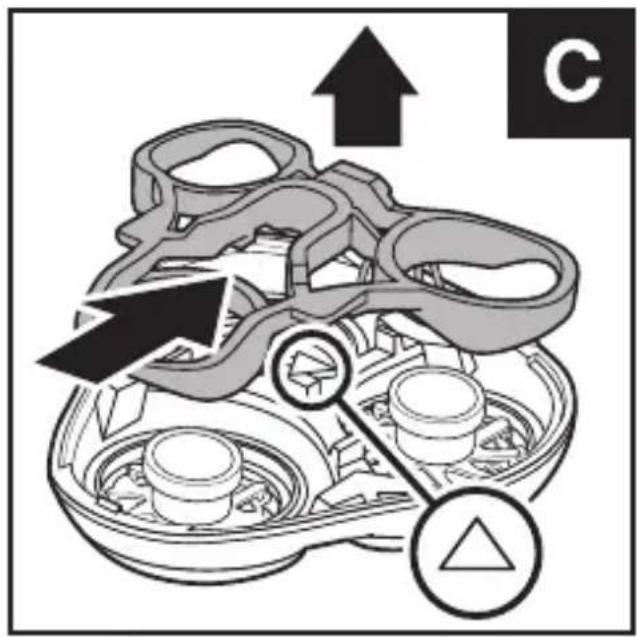

4. Locate the centre arrow and slide the retainer in the opposite direction to release it.

Once released, lift it out of the shaver head (Fig. C). Make a note of the correct orientation of the retainer to make retting easier.

5. Carefully brush away any hairs from the cutters.

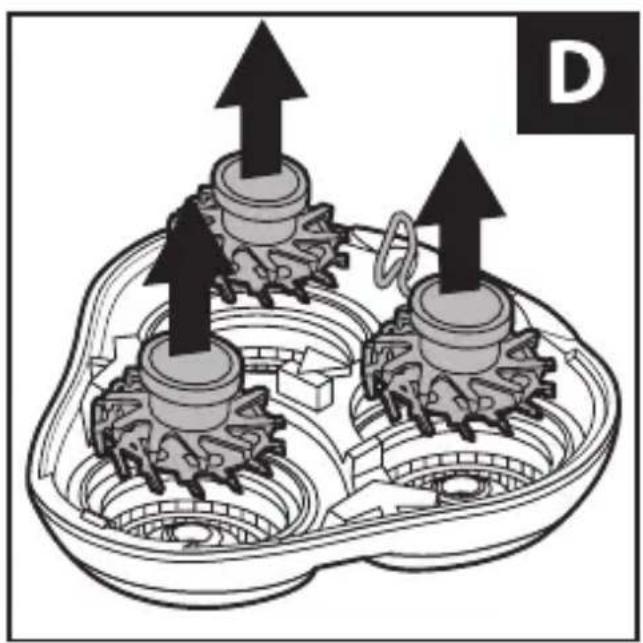

6. For a more thorough cleaning, lift out the three cutters (Fig. D).

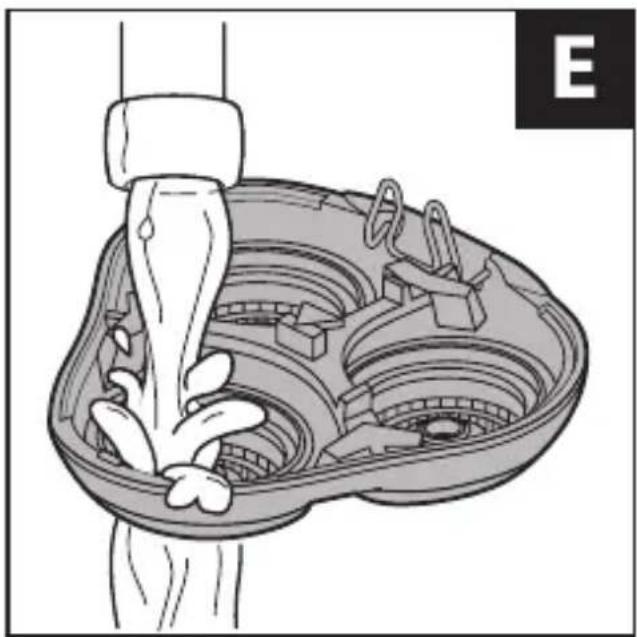

7. Wash the shaving head under running water (Fig. E). Allow to dry thoroughly.

8. Carefully ret the three cutters.

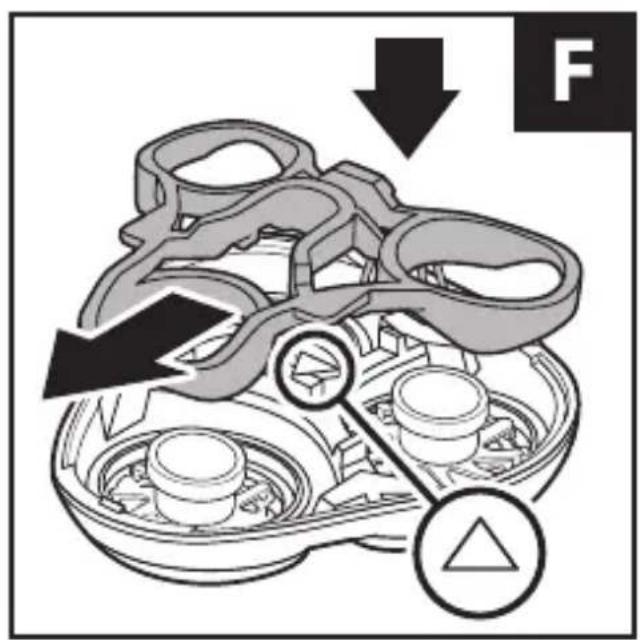

9. Ret the retainer. Locate the centre arrow and slide the retainer in the same direction

as the arrow until it clicks into place (Fig. F).

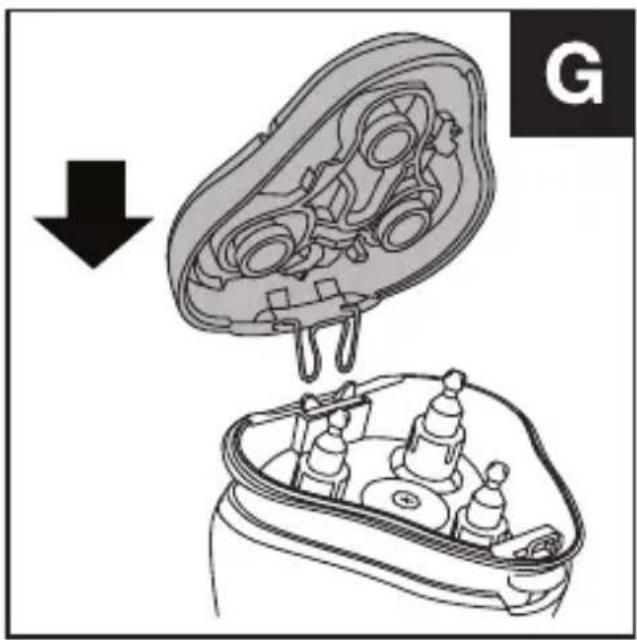

10. Once the shaver head is assembled, align the spring hinge with the slot at the back of

the hair pocket and press into place (Fig. G). Snap the head assembly closed. TRIMMER Lubricate the teeth of the trimmer every six months with a drop of sewing machine oil.

REMOVING THE RECHARGEABLE BATTERY

We strongly recommend that a professional removes the rechargeable battery. Parts of the shaver case, and tools have sharp edges and may cause injury if not handled correctly.

• The rechargeable battery must be removed from the appliance before it is scrapped.

• Disconnect the charging adapter before removing the battery.

1. Run the shaver until the motor stops.

2. Unplug the shaver.

3. Unscrew the 2 screws on rear housing (one is located under the trimmer).

4. Pry o the rear housing and expose the battery.

5. Lift the battery carrier and circuit board out of the shaver body then cut the tabs

holding the batteries to the circuit board.

• Used batteries must be removed from the appliance and disposed of at an appropriate ocial recycling/collection point.

• Do not attempt to operate the shaver once you have opened it.7 ENGLISH RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate ocial recycling/ collection point.
