KAM353ME - Food Processor KENWOOD - Free user manual and instructions

Product type	Kitchen machine (grater/slicer attachment)
Brand	Kenwood
Model	KAM353ME
Main material	Plastic, metal (sharp discs)
Included discs	Disc No. 2 (fine grater), No. 3 (coarse grater), No. 4 (thin slicer), No. 5 (thick slicer), No. 6 (thin french fry cutter), No. 7 (standard french fry cutter)
Functions	Grating, slicing, cutting into fries
Compatible foods	Vegetables, fruits, cheese, chocolate, nuts
Compatibility	Kenwood stand mixers (models KM070, KM08, KCC90 and others)
Recommended speed	Speed 3
Safety	Sharp discs - handle with care; use pushers; do not remove lid before stopping; unplug before disassembly
Disc cleaning	Wash with warm soapy water or in dishwasher (top rack)
Drive unit cleaning	Do not immerse in water; wipe with a damp cloth
Included accessories	2 pushers (large and small), lid, base, axle, sweep, outlet extension
Warranty	Compliant with legal provisions; after-sales service via Kenwood approved centers
Design origin	United Kingdom
Country of manufacture	China

Frequently Asked Questions - KAM353ME KENWOOD

How to use the Kenwood KAM353ME grater/slicer?

Place the drive unit on the machine, insert the chosen disc onto the axle, add the sweep, close the lid and secure the assembly. Plug in, set to speed 3, then push foods into the chute with the pusher. Never use fingers.

What discs are supplied with the KAM353ME?

Six discs: No. 2 (fine grater), No. 3 (coarse grater), No. 4 (thin slicer), No. 5 (thick slicer), No. 6 (thin french fry cutter), No. 7 (standard french fry cutter). Each disc has a number on top.

How to clean the attachment discs?

The discs can be washed with warm soapy water or in the dishwasher (top rack). Handle with care as they are very sharp.

Can I wash the drive unit in the dishwasher?

No, never immerse the drive unit in water or put it in the dishwasher. Simply clean it with a damp cloth.

What to do if the disc does not turn?

Check that the attachment is correctly installed and that the lid is properly closed and locked. Make sure the machine is on and set to speed 3. If the problem persists, consult the Kenwood website.

Can I use the attachment without the sweep?

No, the sweep is essential. Without it, food accumulates under the disc and may damage the attachment. Always install the sweep before use.

How to install the outlet extension?

Firmly push the extension onto the food outlet. It is mandatory for models KM070, KM08 and KCC90, but can be used with other models to direct foods into the bowl.

What foods can I grate or slice with this attachment?

You can grate and slice firm vegetables (carrots, cucumbers, cabbage), cheese, nuts, chocolate. The french fry discs are suitable for potatoes and other firm fruits and vegetables.

How to prevent foods from getting stuck in the chute?

Use fresh ingredients and do not cut them too small. Fill the width of the large chute to prevent them from sliding. For small ingredients, use the small chute built into the large pusher.

Where can I find spare parts for the KAM353ME?

Visit www.kenwoodworld.com to locate a Kenwood approved repair center. Parts can be obtained from these centers or via customer service.

USER MANUAL KAM353ME KENWOOD

Technical line drawing of a mechanical component with no visible text or symbols

English 2 - 4

Nederlands 5 - 8

Français 9 - 12

Deutsch 13 - 16

Italiano 17 - 20

Português 21 - 24

Español 25 - 28

Dansk 29 - 32

Svenska 33 - 36

Norsk 37 - 39

Suomi 40 - 43

Türkçe 44 - 46

Česky 47 - 50

Magyar 51 - 54

Polski 55 - 58

Русский 59 - 62

Казакша 63 - 66

Ελληνικά 67 - 70

Slovenčina 71 - 74

Українська 75 - 78

Eestl 79 - 82

Lietuvių 83 - 86

Latviešu 87 - 90

عربية ٩٣-٩١

Kenwood Ltd

New Lane

Havant

Hampshire

POS 2NA

kenwoodworld.com

© Copyright: 2022 Kenwood Limited. All rights reserved 19337/4

Exploded view diagram of a kitchen appliance with numbered parts for identification

1 2 3 4 5 6 7

Technical diagram showing step-by-step assembly of a mechanical component with numbered callouts and directional arrows.

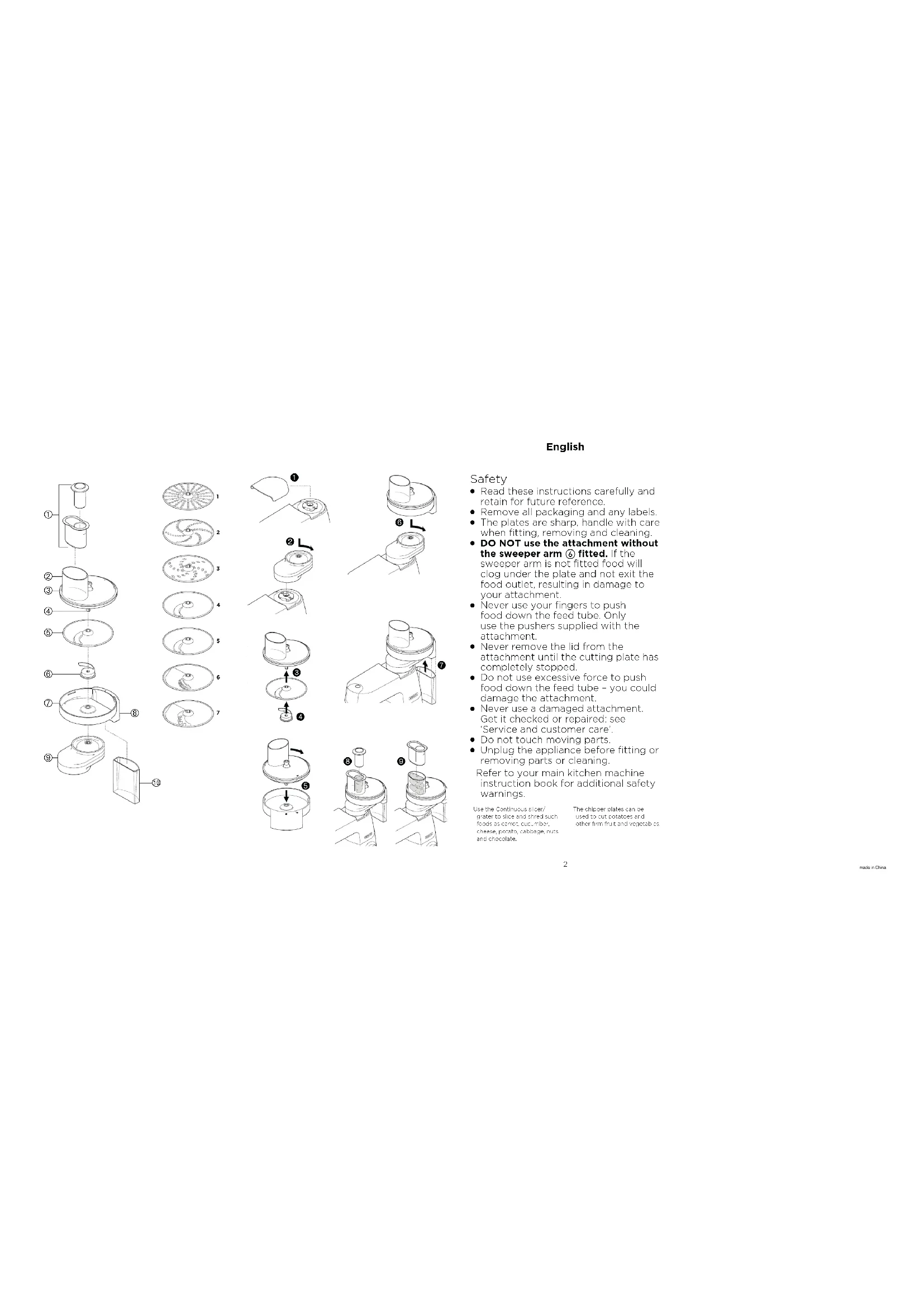

English

Safety

• Read these instructions carefully and retain for future reference.
• Remove all packaging and any labels.
• The plates are sharp, handle with care when fitting, removing and cleaning.
• DO NOT use the attachment without the sweeper arm ⑥ fitted. If the sweeper arm is not fitted food will clog under the plate and not exit the food outlet, resulting in damage to your attachment.
• Never use your fingers to push food down the feed tube. Only use the pushers supplied with the attachment.
• Never remove the lid from the attachment until the cutting plate has completely stopped.
• Do not use excessive force to push food down the feed tube - you could damage the attachment.
• Never use a damaged attachment. Get it checked or repaired: see 'Service and customer care'.
• Do not touch moving parts.
• Unplug the appliance before fitting or removing parts or cleaning.
  Refer to your main kitchen machine instruction book for additional safety warnings.

Use the Continuous slice/grater to slice and shred such foods as carrot, cucumber, cheese, potato, cabbage, nuts and chocolates.

The chipper plates can be used to cut potatoes and other firm fruit and vegetables.

- This appliance conforms to EC Regulation 1935/2004 on materials and articles intended to come into contact with food.

Before using for the first time

1 Wash the parts: see 'Cleaning'.

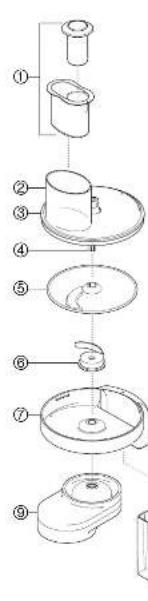

Key

① Pushers: large and small
② Feed tube
③ Lid
④ Shaft
⑤ Cutting plate
⑥ Sweeper
⑦ Body
⑧ Food outlet
⑨ Gearbox assembly
⑩ Extension chute

The cutting plates available

The range of plates listed below are included in pack and can be identified by the numbers marked on the plate as follows:-

Plate No 1 - extra fine shredding. For parmesan cheese, chocolate and nuts eg hazelnuts.

Plate No 2 - fine shredding. For cheese, chocolate, nuts and firm fruit or vegetables.

Plate No 3 - coarse shredding. For cheese and firm fruit or vegetables.

Plate No 4 - thin slice. For cheese and firm fruit or vegetables.

Plate No 5 - thick slice. For cheese and firm fruit or vegetables

Plate No 6 - thin (julienne style) chipper. Cuts potatoes for super thin French Fries and ingredients for salads, casseroles and stir fries (eg carrot, courgette and cucumber)

Plate No 7 - standard chipper. Cuts potatoes for thin French Fries and ingredients for casseroles and dips (eg cucumber, apple and pear.)

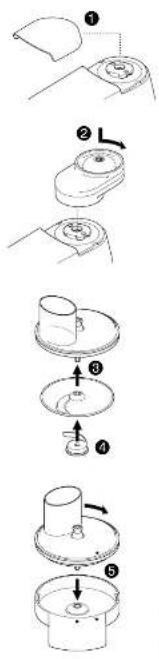

Assembly and use

1 Remove the high speed outlet cover ①.
2 Fit the gearbox assembly onto the mixer ②.
3 Push the desired cutting plate onto the shaft ③. Each plate is numbered for identification and the number should be uppermost when the plate is pushed onto the shaft.
4 Fit the sweeper onto the shaft ④, with the flat surface of the sweeper against the plate.
- For best results when using the slicing/chipping plates, the sweeper arm should be positioned opposite the blade, as shown below.

5 Attach the lid assembly to the body, line up the ▼ symbol on the lid with □ on the body. Then turn to 🔒 symbol to lock into place ⑤.

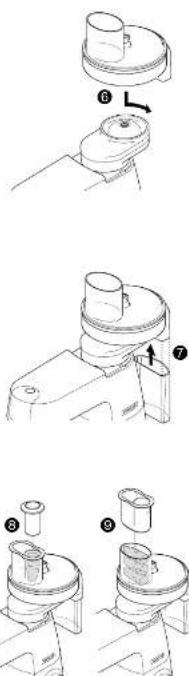

6 Fit the assembled attachment onto the gearbox and turn to lock into position 6.

7 If required fit the extension chute into the food outlet and push firmly into place ⑦. The extension chute MUST be fitted when the attachment is used with the KM070/TYPE KM08/TYPE KCC90 but can also be used with all other mixers to direct the food into the collecting bowl.

8 Connect the mixer to the power supply and place a bowl under the food outlet.

9 Choose which feed tube you want to use. The pusher contains a smaller feed tube for processing individual items or thin ingredients.

To use the small feed tube - first put the larger pusher inside the feed tube 8.

To use the larger feed tube - use both pushers together ⑨.

10 Put the food inside the feed tube.

11 Switch the mixer onto speed 3 and at the same time push down evenly with the pusher - never put your fingers in the feed tube.

- At the completion of the processing operation, raising and lowering the pusher several times may help to reduce the amount of food left on the cutting plate.

12 Switch off and unplug.

Hints

• Always use fresh ingredients
- Don't cut food up too small. Fill the width of the large feed tube fairly full. This prevents the food from slipping sideways during processing. Alternatively, use the small feed tube.
- When using a chipper plate, place thin ingredients horizontally.
- When slicing or shredding, food placed upright comes out shorter than food placed horizontally.

Cleaning

● Always switch off and unplug before removing the attachment from the kitchen machine.
- Dismantle the attachment fully before cleaning.
- For easier cleaning always wash the parts immediately after use.
- Handle the cutting plates with care - they are extremely sharp.
- Never immerse the gearbox assembly in water or allow it to get wet.

All remaining parts can be washed in hot soapy water, then dried thoroughly. Take care as the cutting plates are sharp. Alternatively wash in the dishwasher (top rack only).

Service and customer care

UK only

If you need help with:

• using your attachment
• servicing or repairs (in or out of guarantee)

call Kenwood Customer Care on 023 9239 2333.

• spares and attachments

call 0844 557 3653.

other countries

• If you experience any problems with the operation of your attachment, before requesting assistance visit www.kenwoodworld.com.
• Please note that your product is covered by a warranty, which complies with all legal provisions concerning any existing warranty and consumer rights in the country where the product was purchased.
• If your Kenwood product malfunctions or you find any defects, please send it or bring it to an authorised KENWOOD Service Centre. To find up to date details of your nearest authorised KENWOOD Service centre visit www.kenwoodworld.com or the website specific to your Country.
• Designed and engineered by Kenwood in the UK.
• Made in China.
