200254 - Food Warmers BARTSCHER - Free user manual and instructions

Product type	Hot plate with dry resistance (without water)
Applicable models	BMS1781, BMS1783, BMS1785, CTS1757, CTS1759, CTS1761, CSS1750, CSS1752, CSS1754, CLS2760C, CLS2770C
Intended use	Keeping food at constant temperature (min. 65 °C)
Structure material	Stainless steel AISI 304 18/10
Rated power	2000 W
Electrical supply	230 V ~ 50 Hz, single-phase
Protection degree	IPX4
Protection class	Class I (mandatory grounding)
Dimensions (model BMS1781)	650 x 550 x 450 mm (W x D x H)
Net weight (BMS1781)	14 kg
Operating temperature	0 to 35 °C
Max. relative humidity	80% at 20 °C
Temperature control	Adjustable thermostat 0-90 °C with heating indicator
Installation type	On counter (BMS) or floor (CTS, CSS, CLS)
Mobility (trolleys)	4 swivel casters
Cleaning	With neutral products, damp sponge; do not use water jet
Safety instructions	Do not immerse, do not open, disconnect before cleaning
Estimated lifespan	10,000 operating hours
Spare parts	Available from authorized dealer
Compliance standards	73/23/CEE, 93/68/CEE, 93/44/CEE, 89/336/CEE, 89/109/CEE

Frequently Asked Questions - 200254 BARTSCHER

How to connect the Bartscher 200254 hot plate?

Connection must be carried out by a professional. Check that the voltage (230 V ~ 50 Hz) and frequency match the nameplate. Use a grounded outlet and a residual current device.

Can water be put in the hot plate tray?

No, it is a dry resistance model. Never pour water into the internal tray. This would damage the appliance and pose a danger.

What temperature to set to keep food warm?

Set the thermostat to at least 65 °C to ensure food safety. The red indicator lights up when the heating element heats and goes off at the desired temperature.

What to do if the appliance does not heat?

First check that the main switch is on. If the problem persists, contact after-sales service. Do not disassemble the appliance yourself.

How to clean the hot plate at the end of the day?

Disconnect the appliance and wait for it to cool. Use a damp sponge with a neutral product. Do not use steel wool or abrasive detergents, and avoid water jets.

What models are covered by this manual?

The following models: BMS1781, BMS1783, BMS1785, CTS1757, CTS1759, CTS1761, CSS1750, CSS1752, CSS1754, CLS2760C and CLS2770C.

What is the electrical power of the hot plate?

The rated power is 2000 W for all models.

Where to find spare parts for the Bartscher 200254?

Spare parts are available from the authorized dealer. Use only original parts.

How to store the appliance in case of prolonged inactivity?

Turn off the main switch, clean the appliance thoroughly, and cover it with a cloth to protect it from dust.

What is the weight of the BMS1781 model?

The net weight of the BMS1781 is 14 kg and the weight with packaging is 17 kg.

USER MANUAL 200254 BARTSCHER

Exterior view of a large industrial storage unit with three compartments and cooling fans (no visible text or symbols)

Exterior view of a black industrial machine with wheels and handle (no visible text or symbols)

200.255

Exterior view of a stainless steel multi-level food cart with wheels and control panel (no text or symbols visible)

Exterior view of a stainless steel industrial machine with wheels and control panel (no visible text or symbols)

200.254

HEIZTISCHE – THERMOWAGEN MIT TROCKEN- HEIZELEMENT LUNCH COUNTER – THERMAL TROLLEY WITHDRIED HEATING ELEMENT TABLES CHAUFFEES – CHARIOTS TERMIQUES AVEC RESISTANCE A SEC WARMHOUDTAFELS-BAIN-MARIES MET DROOG VERWARMINGELEMENT STOLY GRZEWCZE – BEMARY Z SUCHA GRZALKA

Operation and maintenance manual

Exterior view of a large industrial storage unit with three compartments and control knobs (no visible text or symbols)

Exterior view of a gray industrial machine tool with wheels and handle (no visible text or symbols)

Exterior view of a stainless steel multi-wheeled cart with wheels and control panel (no visible text or symbols)

Exterior view of a stainless steel industrial machine with wheels and handle (no text or symbols visible)

Illustration of a forklift loading a package onto a pallet (no text or symbols)

Line drawing of a portable electrical box connected to an outlet, with wheels and cable (no text or symbols)

Exterior view of a gray industrial cart with wheels and a handle (no visible text or symbols)

Exterior view of a large industrial enclosure or storage unit with three panels and control buttons (no visible text or symbols)

Exterior view of a metal multi-wheeled storage cart with wheels and control panel (no visible text or symbols)

Exterior view of a gray rectangular industrial machine with wheels and handle (no visible text or symbols)

LUNCH COUNTER – THERMAL TROLLEY WITH DRIED HEATING ELEMENT CONTENTS

1 GENERAL INFORMATION

Purpose of the manual.... 4

Manufacturer and machine identification.... 4

Lunch counter – thermal trolley with dried heating element description.... 5

Technical specifications.... 5

Overall dimensions.... 6

Safety information.... 6

2 INSTALLATION INFORMATION

Packaging and unpacking.... 7

Installation area.... 7

Electrical connections 7

3 USE AND CLEANING INFORMATION

Control descriptions.... 8

Recommendations for use 8

Lunch counter – thermal trolley with dried heating element use 8

End of the day cleaning 8

Extended periods of disuse 8

4 TROUBLE SHOOTING, RECYCLING

Introduction.... 9

Problems, causes, solutions.... 9

Disposal and recycling.... 9

ATTACHMENTS

Spare parts catalogue

Wiring diagram

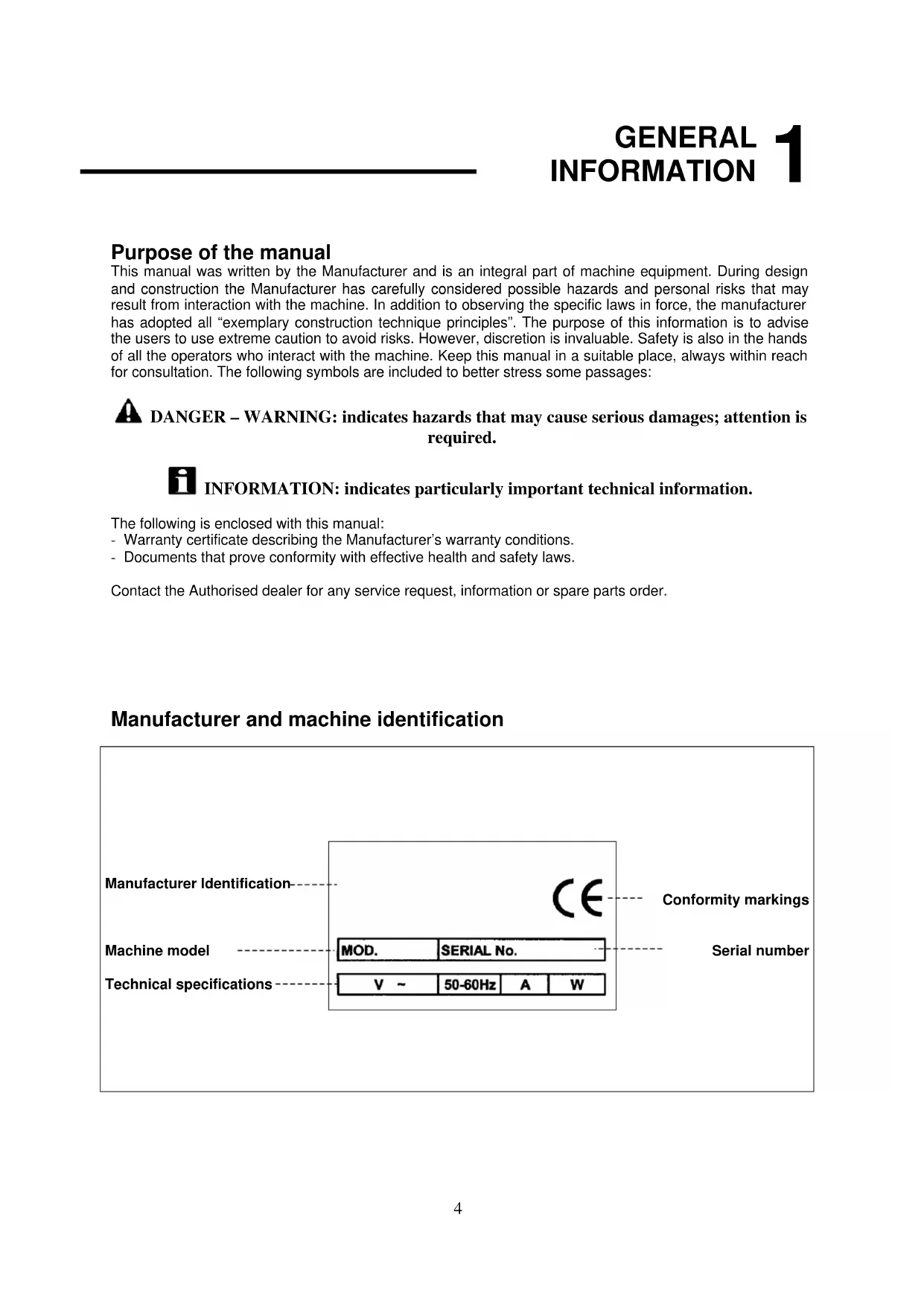

Purpose of the manual

This manual was written by the Manufacturer and is an integral part of machine equipment. During design and construction the Manufacturer has carefully considered possible hazards and personal risks that may result from interaction with the machine. In addition to observing the specific laws in force, the manufacturer has adopted all “exemplary construction technique principles”. The purpose of this information is to advise the users to use extreme caution to avoid risks. However, discretion is invaluable. Safety is also in the hands of all the operators who interact with the machine. Keep this manual in a suitable place, always within reach for consultation. The following symbols are included to better stress some passages:

DANGER – WARNING: indicates hazards that may cause serious damages; attention is required.

INFORMATION: indicates particularly important technical information.

The following is enclosed with this manual:

• Warranty certificate describing the Manufacturer's warranty conditions.
• Documents that prove conformity with effective health and safety laws.

Contact the Authorised dealer for any service request, information or spare parts order.

Manufacturer and machine identification

Manufacturer Identification CC Conformity markings Machine model MOD. SERIAL No. Serial number Technical specifications V ~ 50-60Hz A W

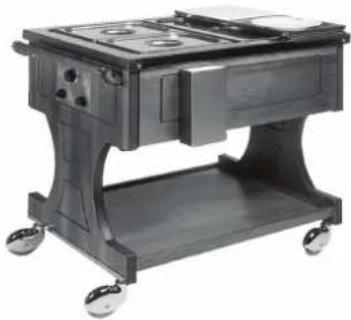

Lunch counter – Thermal trolley with dried heating elements description

This equipment is specifically designed to keep temperature of food constant and over 65^ C. It is characterised by a highly simplified construction in order to reduce the possibility of malfunctions to a minimum and facilitate maintenance.

Their structure is fully constructed with AISI 304 18/10 stainless steel sheet metal, while bain-marie basins are double walled to keep the heat produced by the heating system. The internal basin has been designed to hold G.N. trays for up to 200 hours or other types of food containers.

The top of thermal trolleys mod. CSS1750/1752/1754 has a compass type cover to guarantee a better heat insulation.

All models of thermal trolleys have four castor wheels to allow easy movement.

Note : Absolutely do not pour water in the internal basin of lunch counters and thermal trolleys.

Technical specifications

Descriptions Unit of measure	BMS1781 BMS1783 BMS1785
Nominal power W 2000 2000	2000
Net weight Kg 14 20 30
Packaged weight Kg 17 24 35
Installation		Counter
Descriptions	Unit of measure	CTS1757	CTS1759		CTS1761
Nominal power W 2000 2000	2000
Net weight Kg 24 32 45
Packaged weight Kg 27 36 50
Installation		Stand-alone
Descriptions	Unit of measure	CSS1750	CSS1752		CSS1754
Nominal power W 2000 2000	2000
Net weight Kg 26 35 48
Packaged weight Kg 29 39 53
Installation		Stand-alone
Descriptions Unit of measure	CLS2760C CLS2770C
Nominal power W	2000	2000
Net weight Kg	55	70
Packaged weight Kg	67	82
Installation		Stand-alone
Power supply	V Hz Ph	230V 50Hz 1Ph
Protection level		IPX4
Electrical shock protection		Class I
Conformity with directives and norms		73/23/EEC - 93/68/EEC - 93/44/EEC - 89/336/EEC 89/109/EEC

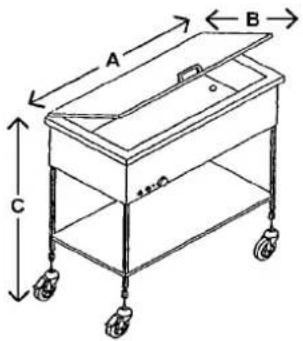

Overall dimensions

mm	A	B	C
BMS1781	650	550	450
BMS1783	850	650	450
BMS1785	1150	650	450
CTS1757	650	550	450
CTS1759	850	650	450
CTS1761	1150	650	450
CSS1750	650	550	450
CSS1752	850	650	450
CSS1754	1150	650	450
CLS2760C	890	650	950
CLS2770C	1230	650	950
mm	A	B	C
BMS1781	600	490	320
BMS1783	780	600	320
BMS1785	1100	600	320
CTS1757	650	560	850
CTS1759	840	650	850
CTS1761	1170	650	850
CSS1750	650	560	850
CSS1752	840	650	850
CSS1754	1170	650	850
CLS2760C	890	650	950
CLS2770C	1230	650	950

Safety information

- Careful consultation of this manual before installation and use is essential. Continual observance of the indications found in the manual guarantee personal and machine safety.

- Never tamper with safety devices for any reason.

- Strict observance of the work safety regulations issued by the responsible organisations in each country is strongly recommended.

• The manufacturer is not liable for damages to persons or things due to the neglect of safety regulations.

- Correct machine placement, illumination and cleanliness are important conditions for personal safety.

- Do not expose the machine to the elements.

• Machine connections and start-up must only be performed by qualified technicians.

- Make sure that the system specifications of the room where the machine is installed correspond to the information printed on the plate.

- Make sure the machine is connected to a grounding system.

- The work area around the machine must always be kept clean and dry.

- Use the garments foreseen by work safety regulations.

• This machine must only be used for its specific purpose; any other use is considered improper and therefore hazardous.

- Do not overload the machine.

- Introducing objects, tools, hands or other within hazardous parts is forbidden.

- Keep the machine away from children.

- Disconnect the power cord from the electrical socket when the machine is not in use.

• In the event of malfunctions and/or problems, do not attempt to repair the machine. Contact the authorised dealer.

- Use original spare parts.

• Before cleaning the machine, disconnect the power supply by unplugging the machine.

- Do not clean with running water.

INSTALLATION INFORMATION 2

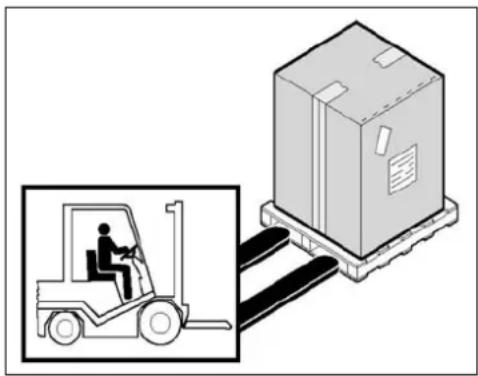

Packaging and unpacking

The machine is packaged in cardboard with polystyrene inserts to guarantee full integrity during transport.

• Handle the packaging according to the instructions.
• Open the packaging and check the integrity of all components. Keep packaging for future moves.
• Lift the machine as indicated and place it in the installation area.

Illustration of a forklift loading a cardboard box onto a pallet (no text or symbols)

Installation area

The arranged area must be suitably illuminated and an electrical socket must be available. The resting surface must be sufficiently ample, even and dry. The machine must be installed in rooms with non-explosive environments. In any case, installation must also be performed in consideration of the work safety laws in force.

Room conditions table

Descriptions Values
Working temperature 0÷35 °C (32÷95 °F)
Storage temperature -15 to +65 °C (from -6.8 to +149 °F)
Relative humidity	Maximum 80% with 20 °C room temperatureMaximum 50% with room temperature between 20÷60 °C
Dustiness Less than 0.03 g/m3

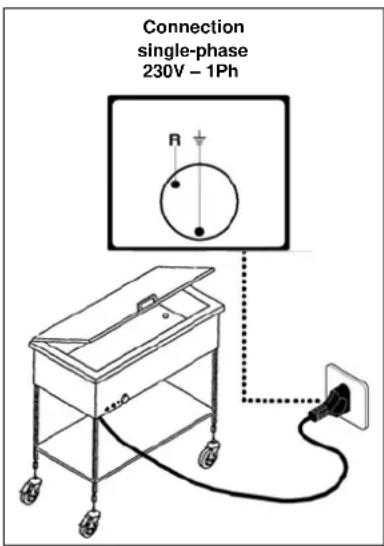

Electrical connections

DANGER – WARNING: Electrical connections to the supply mains must be performed by qualified personnel.

Verify the efficiency of the grounding system in the building. Make sure that line voltage (V) and frequency (Hz) correspond to those of the machine (See the identification plate and wiring diagram). The machine is equipped with a power cord that connects to a multi-polar plug. The plug is to be connected to a wall switch equipped with a circuit breaker.

Connection single-phase 230V - 1Ph

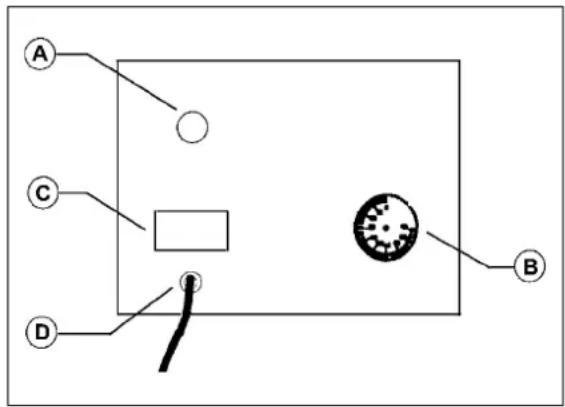

Control descriptions

• Temperature indicator light (A)
• Adjustment thermostat 0°- 90°C (B)
• Loaded circuit breaker (C) with voltage led
• Power cord inlet (D) + cord

A C D B

Recommendations for use

Before using the machine remove, if found, the special protective film.

Unpleasant odours produced during the first minutes of operation are due to the presence of processing grease residues.

On first use, heat the machine to the maximum temperature.

Lunch counter and thermal trolley with dried heating elements use

Note: absolutely do not pour water in the basins since these lunch counters and thermal trolleys have dried heating elements.

The equipment must be installed connecting the power cords to the proper sockets foreseen in the working environment where they must be placed. To turn the machine on, press the main switch -it will light up- and turn the thermostat knob to set the required temperature (al least 65^ C); the red led will light up indicating that the resistance is working correctly. Once the required temperature has been reached, the led will turn off and it will turn back on when the temperature decreases enough (approximately 5^ C) to justify resistance functions.

At the end of the day, turn the main switch off, leaving the temperature set.

End of the day cleaning

• Remove the plug from the electrical socket at the end of the day.
• Accurately clean using neutral products.
• Clean external machine parts with a damp sponge when the machine is fully cooled.
• Do not use metallic pads and abrasive detergents.
• To avoid hazards caused by contact with high temperature parts, only access heating parts after maintenance operations have been completed.

Extended periods of disuse

For extended periods of disuse, turn off the main wall switch, clean the machine and cover it with a cloth to protect if from dust.

Introduction

In the event of breakdown or malfunctioning, disconnect the plug from the socket and contact your Dealer's service centre. Avoid dismantling internal machine parts.

The manufacturer is not liable for any machine tampering!

Problems, causes, solutions

Problem Cause Solution
The machine does not heat	Main switch off Turn on main switch
	No voltage on the power supply Contact your dealer's service centre
	Resistance or thermostat broken Contact your dealer's service centre

Disposal and recycling

The machine was designed and constructed to work for an average of 10.000 hours. When finished using the machine, follow national laws for disposal and recycling.

Please contact the environmental authorities or authorised organisations.

BMS1781 – BMS1783 – BMS1785

CTS1757 - CTS1759 - CTS1761

CSS1750 - CSS1752 - CSS1754

CLS2760C - CLS2770C

F

Exterior view of a large industrial storage unit with three compartments and cooling fans (no visible text or symbols)

Exterior view of a gray industrial cart with wheels and handle (no visible text or symbols)

Exterior view of a modern office building (no signage)

Exterior view of a gray industrial machine with wheels and handle (no text or symbols visible)

TABLES CHAUFFEES – CHARIOTS THERMIQUES AVEC RESISTANCE A SEC

INDEX

1 INFORMATIONS GENERALES

But du manuel.... 4

Illustration of a forklift loading a cardboard box onto a pallet (no text or symbols)

Zone d'installation

Inconvénients, causes, remèdes

Exterior view of a gray industrial cart with wheels and top panel (no visible text or symbols)

Exterior view of a large industrial storage unit with three panels and cooling fans (no visible text or symbols)

Exterior view of a modern office building (no signage)

Exterior view of a stainless steel industrial machine with wheels and control panel (no visible text or symbols)

WARMHOUDTAFELS - BAIN-MARIES MET DROOG VERWARMINGSELEMENT INHOUDSOPGAVE

1 ALGEMENE INFORMATIE

Illustration of a forklift loading a cardboard box onto a pallet (no text or symbols)

Installatieplaats
