ALKGG600HDW - Heating Alkari - Free user manual and instructions

Product type	Hybrid infrared and convection heater
Brand	Alkari
Model	ALKGG600HDW
Supply voltage	230 V ~ 50 Hz
Protection rating	IP20
Radiation angle	~170°
Surface temperature	50 °C - 105 °C
Overheat protection	Yes (integrated safety switch)
Thermostat	3 power levels
Mounting method	Wall-mounted, fixed (with supplied brackets)
Housing material	Metal
Heating technology	Infrared and convection (hybrid)
Included accessories	Heater, fixed plug, 2 wall brackets, manual
Recommended cleaning	Microfiber cloth, no harsh detergents; do not immerse
Maintenance and repair	Repair only by manufacturer
Warranty	2 years from date of purchase
Safety instructions	Do not cover the appliance; keep out of reach of children under 3 years

Frequently Asked Questions - ALKGG600HDW Alkari

How to install the wall heater?

Use the supplied wall brackets. Drill 4 holes according to the measured spacing, insert suitable wall plugs, then screw in the brackets. Hang the heater on the brackets. Make sure the wall contains no water or electrical pipes.

What is the power of the device?

The exact power is not indicated for this model. Refer to the manual or the label on the device for the precise value.

Can this heater be used in a bathroom?

The device has a protection rating of IP20, meaning it is not protected against water splashes. It should not be mounted near pools, bathtubs, or showers. For use in a damp room, consult a professional.

How to clean the heater?

Unplug the device and let it cool down. Use a dry or slightly damp microfiber cloth. Do not use harsh detergents or abrasive sponges. Never immerse the device in water.

What to do if the device does not heat?

Check that the thermostat is set to a position other than 0, that the plug is properly inserted, and that the outlet works. If the problem persists, contact your dealer or the manufacturer. Do not attempt to repair it yourself.

Is the warranty valid in case of breakdown?

The 2-year warranty covers defects in materials and workmanship, provided the device was used and installed according to the manual. Damages caused by improper use, personal repair, or negligence are not covered.

Can the heater be painted?

No, it is forbidden to paint or stick anything on the heater. This could damage the device and pose a fire risk.

Does the device make noise?

The hybrid heater operates silently, as it uses natural convection and infrared radiation, without a fan. No annoying noise is generated.

How long does it take to heat a room?

The device reaches full power in 10 to 15 minutes. The feeling of warmth is rapid thanks to infrared technology. For a cold room, allow a longer heating time.

Are there risks of burns?

Yes, the surface temperature can reach 105 °C. Do not touch hot elements with bare fingers. Use insulating gloves if you need to handle the device while operating. Keep children away.

USER MANUAL ALKGG600HDW Alkari

we are glad that you choose the infrared hybrid heater of our Hybrid series. The hybrid heater combines two heating technologies into one unit - the latest infrared technology combined with proven convection technology. It can be used universally, for example in your favorite place, winter garden or in your office and home. Hybrid series means maximum efficiency with low energy consumption. And it has a plain and simple appearance.

Safety instructions

Please read this guide carefully and keep it in a safe place for everyone to access.

User Manual content:

a - Basic safety instructions
b - Accessories
c - Installation Instructions
d - Operation (cleaning, maintenance, service, and repair)
e - Warranty.

Advantages of hybrid series:

1. Built-in thermostat for automatic temperature control
2. Modern simple appearance made of metal
3. Flat design
4. Fast full power
5. Latest infrared technology.

Technical data

Hybrid Series Voltage: 230V \~ 50 Hz

Ray angle: 170^

Surface temperature: about 50 ° to 105 ° C

IP protection class: IP20

Overheat protection: yes

Thermostat: yes, 3 stages

Model Power Dimensions in mm Overheat protection
ALK-HBH-500 500 Watt	600 x 600 x 40	Yes
ALK-HBH-900 900 Watt	600 x 1000 x 40	Yes
ALK-HBH-1200 1200 Watt	600 x 1400 x 40	Yes
ALK-HBV-900 900 Watt	1000 x 600 x 40	Yes
ALK-HBV-1200 1200 Watt	1400 x 600 x 40	Yes

Safety:

EN

In case of overheating of the heater, there are safety switches on the inside where the hybrid heating is switched off.

Purpose of application and proper use:

Alkari infrared hybride heating is designed as a wall heater and is suitable for this purpose. Infrared hybrid heaters are intended for use and installation on interior walls only. Installation in damp rooms should be carried out by a specialist company in accordance with VDE regulations.

IMPORTANT SAFETY INSTRUCTIONS:

Below is a summary of the most important safety instructions to avoid possible hazards such as injury, fire or electric shock when working with electrical equipment.

Please read them carefully before commissioning the device. Please always observe the following safety instructions:

• Never cover the heater with a blanket or other combustible objects.
• It can't be glued or painted with sticky materials
• The heater is designed for wall mounting.
• Please be careful when working with water. The heater should not be near swimming pools, bathtubs or showers. They should be placed in a way not to be dropped into the bathtubs, showers, liquids or similar containers.
• Never touch the power plug with wet hands and make sure the socket is clean and dust free.
• Always hold the plug from the bottom to insert or remove the plug. Never pull the cable.
• When repositioning, servicing or installing the heater, always turn the unit off completely and always disconnect the power plug from the outlet
• Periodically check the power cord and outlet to see if it is in good condition
• Be aware of possible damage to the heater. In particular, if the device has been dropped or damaged, immediately close the unit and remove it from the power supply.
• Use the heater only for its intended purpose as described in the user manual!
  Deviations from it can harm people and injure animals and property.
  These inevitably result in the cancellation of the guarantee and the seller, manufacturer and / or importer will not accept any liability for it.

WARNING:

• Danger of burning!
• During use, the housing of the heating modules becomes very hot and may cause burns.
• Do not touch the hot parts of the heating modules with bare fingers during operation.
• Always use a heat-insulated glove or pot holder to touch the heating modules and parts.

• They are dangerous for children and people with reduced physical, sensory or mental abilities (for example partially disabled, with limited physical and mental ability) or lack of experience and knowledge.

• Heating modules may be used by children under the age of eight years and who have low physical, sensory or mental abilities or lack of experience and knowledge if supervised or instructed when the heating modules are used safely and when the safety measures are understood.
  EN

• Children are not allowed to play with heating modules. Cleaning and user maintenance should not be carried out by children who are not under supervision.
• Keep children under the age of 3 years away from the heating modules and the connection line, unless they are monitored continuously.
• Children between 3 and 8 years of age can only switch heating modules on and off if they are supervised or instructed to use the heating modules safely and understand the risks involved.
• The prerequisite is that the heating modules are installed or fitted in their normal operating positions.
• Children between 3 and 8 years old should not plug in, clean the heating modules and / or maintenance should be carried out by the user.
• Do not leave heating modules unattended during operation.
• Do not let the children play with the packaging film. They can be swallowed and suffocate when playing.

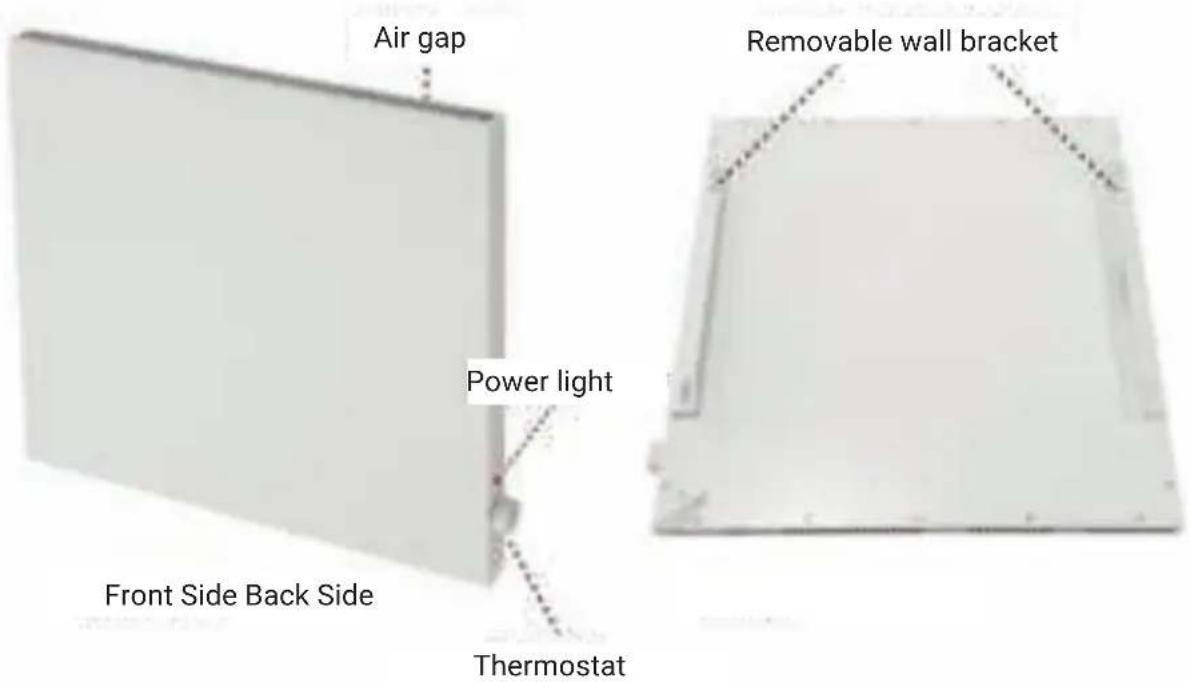

The supply scope of the heater consists of the following components:

1. 1x metal hybrid heater and stationary electrical plug

2. 2x Wall bracket for wall connection

3. 1x User manual.

In case of damage or missing components, please contact your dealer directly.

Installation instructions

EN

• Remove the heater from its packaging and remove all packaging material from the device and its accessories. If you perform a functional test before installation, wait for the unit to cool and then mount the unit.
• First, carefully select an appropriate area to mount the heater on the wall.
• The heater can only be mounted on the wall using the bracket supplied with the product.
• The direct connection of the heater to the power supply can only be carried out by an authorized person (electrician).
• Be careful not to damage the water or power lines on the wall during drilling.

Mounting of the heating

• First, test how the brackets hang the heater properly. Measure the hole spacing of the brackets to size the wall required for mounting.
• When you specify the size distance, place the brackets on the wall to mark the holes to be drilled in the wall.
• Drill 4 holes in the wall. Be sure to use the correct plugs for the solid walls, hollows, gypsum walls, etc. Depending on the condition of your wall Use 4 6x80 mm screws and screw the bracket wall tightly. We recommend that you use the washers so that the screws can be tightened securely. Now install the heater.

Operating:

1. Connect the power plug to a standard household type 230 V \~ 50 Hz AC socket.
2. With the thermostat, the heating can be switched on and off and the heating power can be adjusted in three stages.
3. It takes about 10-15 minutes to fully experience the heating and feel the temperature.

Note!

1- The first use may cause odor. This is a design requirement and not an error. Provide adequate ventilation.
2- If the room is completely cold, the room may take some time to warm up.

Cleaning, maintenance and service

• Turn off the heat and remove the power plug before cleaning. Only clean it when it's cold. Use a microfiber cloth to clean and avoid using aggressive cleaning products and scrub pads.
• After cleaning, leave the appliance dry before using it again. Never immerse the appliance in water. The heater generally does not require maintenance. It should not be opened by unauthorized people! If you believe that something is not going right, please contact your dealer.

Service and Repair

• If there is any damage or inconsistency in your heating system, it should only be checked and repaired by the manufacturer. Any unauthorized repair, modification, improper use, negligence or improper or inadequate maintenance will void the warranty.
• Dealers and manufacturers are not responsible.

Warranty.

EN

Our products are subject to strict quality controls. However, if your hybrid heater is not working properly, we request you to contact your dealer. If the instructions in this manual were used during installation and operation, we provide a 2-year warranty from the date of purchase. In the event of malfunction or damage caused by improper use or installation, the warranty service will not be entitled. During the warranty period, equipment with defects due to material and manufacturing defects will be repaired or replaced at our discretion. The warranty does not extend the warranty period or give a new warranty. Warranty claims must be made immediately after the defect is recognized within the warranty period.

Warranty card

Name:

Adress:

Phone:

Email:

Description defect
