Product type	Multimedia car stereo / GPS navigator
Brand	Alpine
Model	iLXF115T6
Screen size	11 inches (diagonal)
Screen resolution	1280 x 720 pixels (2764800 elements)
Screen type	Active matrix TFT color LCD with LED backlight
Chassis dimensions	178 mm (W) x 50 mm (H) x 149.6 mm (D)
Weight	2.6 kg
Power supply	14.4 V DC (11-16 V allowed)
Audio output power	50 W x 4 (max)
Supported audio formats (USB)	MP3, WMA, AAC, FLAC, WAV, APE
Supported video formats (USB)	MP4, MOV, FLV, MKV
Radio tuner	FM (87.5-108 MHz), AM (531-1602 kHz), DAB/DAB+/DMB
Wireless connectivity	Bluetooth V4.2, Wi-Fi 2.4/5 GHz
Bluetooth profiles	HFP, OPP, PBAP, SPP, A2DP, AVRCP
Smartphone functions	Apple CarPlay (wireless), Android Auto (wireless)
USB ports	1 x USB 2.0 (2.4 A) data/charging, 1 x USB (1.5 A) charging only
Video input	Front and rear camera (RCA), HDMI input
Preamp outputs	Front, rear, subwoofer (4 V max)
GPS receiver	Integrated GNSS antenna (1575.42 MHz)
Maintenance and cleaning	Use a soft, dry cloth. Do not use chemical products.
Safety	Do not watch video while driving. Professional installation required.
Spare parts and repairability	Contact an authorized Alpine dealer for any repairs.
General information	Designed for iPhone 6s and later, Android 6.0+

Frequently Asked Questions - iLXF115T6 ALPINE

How to connect my iPhone to Apple CarPlay?

Make sure your iPhone is compatible (6s or later) and Apple CarPlay is enabled. Connect your iPhone via USB Lightning cable to the 2.4 A USB port, or use wireless Bluetooth/Wi-Fi connection. On the home screen, press the Apple CarPlay button.

How to use Android Auto on this device?

Your Android smartphone must run Android 6.0 or later and Android Auto app must be installed. Connect the phone via USB to the 2.4 A port or wirelessly. Press the Android Auto button on the home screen.

How to pair a Bluetooth phone for hands-free calling?

From the home screen, go to Settings > Device > Device List > Add New Device. Turn on Bluetooth on your phone and select the Alpine device. Confirm the PIN shown on both screens.

What audio formats can I play via USB?

The device supports MP3, WMA, AAC, FLAC, WAV and APE files. FAT16/32 and exFAT file systems are compatible. For videos, MP4, MOV, FLV and MKV formats are accepted.

How to adjust the screen tilt?

Rotate the screen by holding it at the top and bottom center. Do not place your hands on the right and left edges to avoid damage. The tilt can be adjusted after installation.

Can I connect a rearview camera?

Yes, the device has an input connector for a rear camera (RCA) and a connector for a front camera. The rear camera activates automatically when shifting into reverse.

How to disable the screen or sound?

To mute the screen, briefly press the MUTE button. Hold it for 2 seconds to turn off the lighting. To mute the sound, press the MUTE button.

What to do if the device does not turn on?

Check that the power cable (yellow) is connected to the battery and the switched power wire (red) is connected to an ACC source. Make sure the fuse is not blown. If the problem persists, contact an Alpine dealer.

How to reset the device?

Press and hold the HOME button for at least 2 seconds to turn off the device. For a full reset, disconnect the vehicle battery for a few minutes. Refer to the manual for details.

Where can I find the full manual?

The full manual is available for free download in PDF format at notice-facile.com or on the Alpine website (https://www.alpine-europe.com). You can also request a translation by email.

USER MANUAL iLXF115T6 ALPINE

7-INCH DIGITAL MEDIA STATION

iLX-705D

HALO9 9-INCH DIGITAL MEDIA STATION

iLX-F905D

HALO11 11-INCH DIGITAL MEDIA STATION

iLX-F115D

9-INCH SEPARATE DIGITAL MEDIA STATION

i905

QUICK REFERENCE GUIDE

KURZANLEITUNG

GUIDE DE RÉFERENCE RAPIDE

KPATKOE CINPABOUHOO PYKOBOJCTBO

Works with Apple CarPlay

Made for

iPhone

works with androidauto

CERTIFIED

HIGH-DEFINITION MULTIMEDIA INTERFACE

Bluetooth

Contents

WARNING 2
CAUTION 3
Getting Started 4
Apple CarPlay Operation (Optional) 8
Android AutoTM (Optional) 8
Radio/RDS Operation 9
DAB/DAB+/DMB Operation 9
USB Flash drive Operation (Optional) 10
iPod mode on iPhone (Optional) 11
Hands-Free Phone Control 12
Installation 13

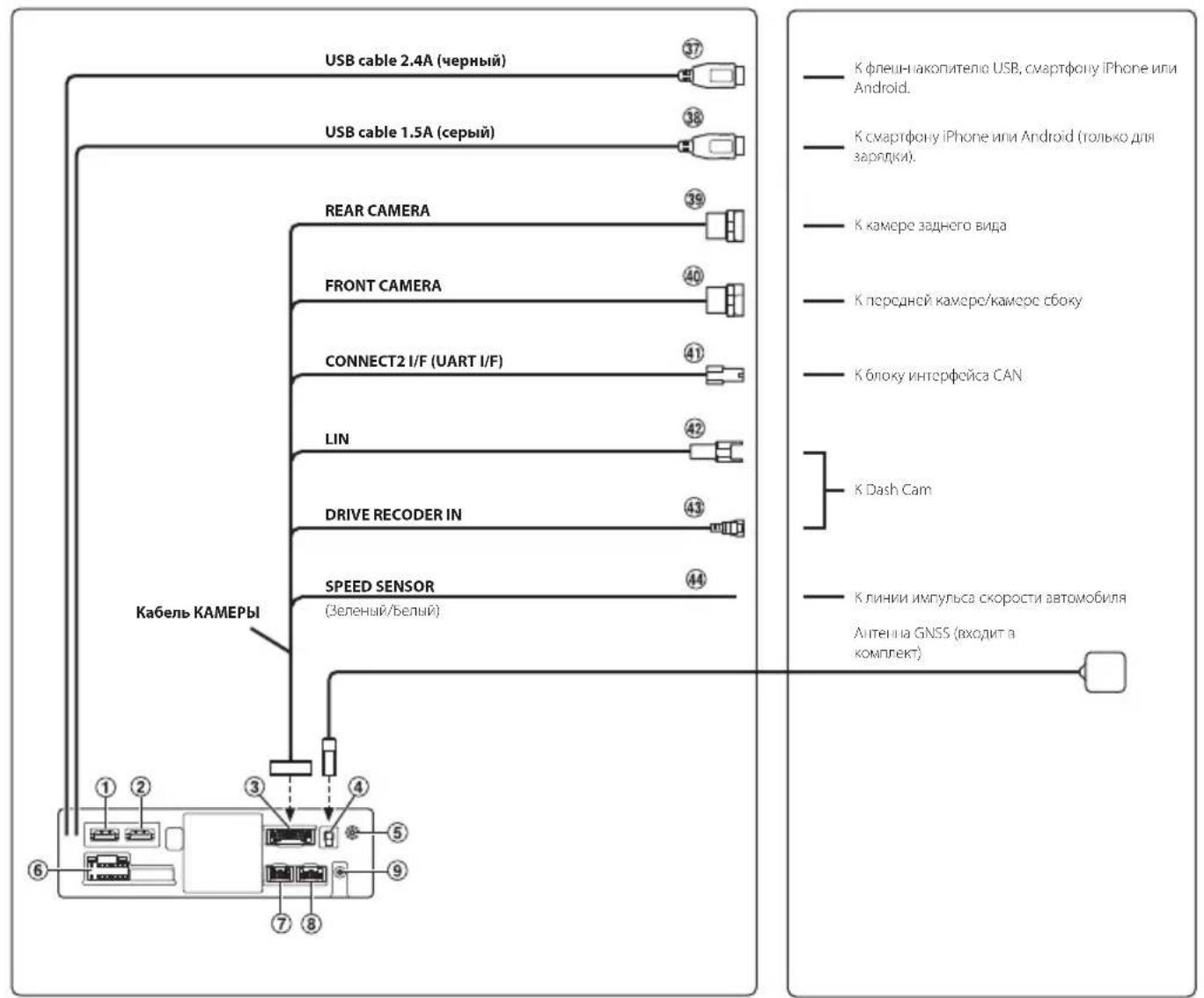

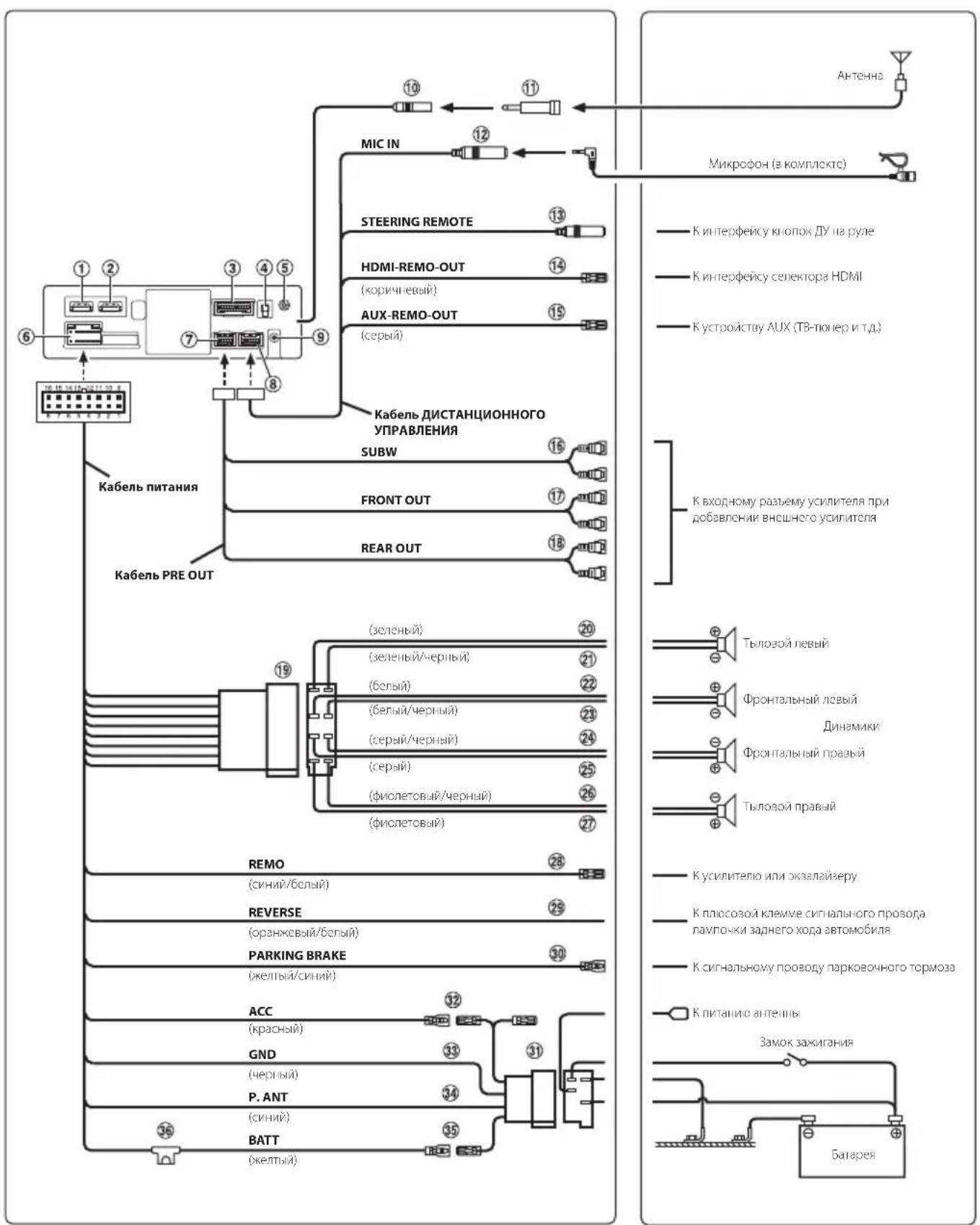

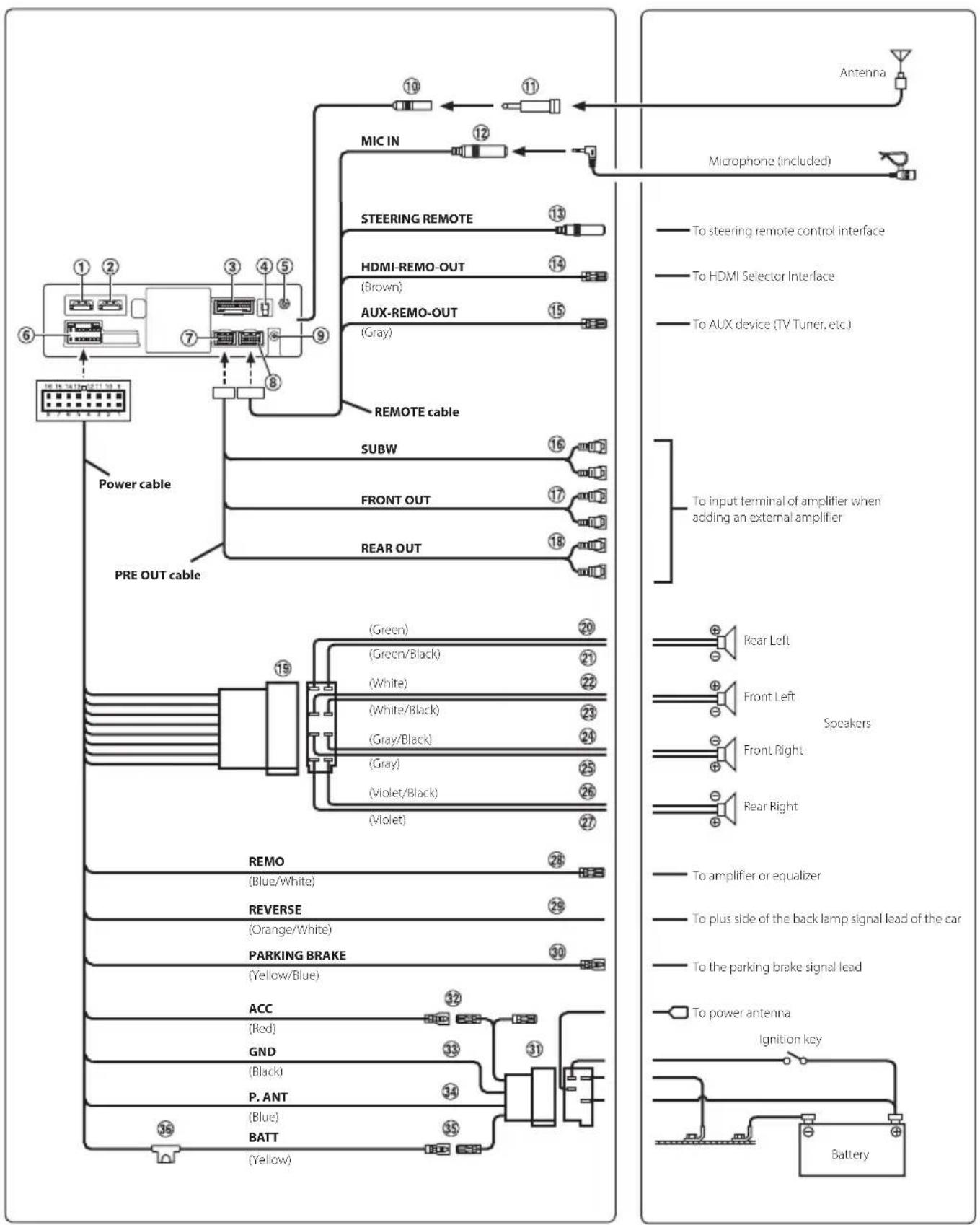

Connections 18
Specifications 21

IMPORTANT

Please record the serial number of your unit in the space provided below and keep it as a permanent record.

SERIAL NUMBER:

ISO SERIAL NUMBER: AL

INSTALLATION DATE:

INSTALLATION TECHNICIAN:

PLACE OF PURCHASE:

For details on all functions, refer to the Owner's Manual published on our website at https://www.alpine-europe.com/alpine-europe.html If required, an ALPINE dealer will readily provide you with a print out of the Owner's Manual published on the website.

WARNING

This symbol means important instructions. Failure to heed them can result in serious injury or death.

INSTALL THE PRODUCT CORRECTLY SO THAT THE DRIVER CANNOT WATCH TV/VIDEO UNLESS THE VEHICLE IS STOPPED AND THE PARKING BRAKE IS APPLIED.

It is dangerous for the driver to watch TV/Video while driving a vehicle. Installing this product incorrectly enables the driver to watch TV/Video while driving. This may cause a distraction, preventing the driver from looking ahead, thus causing an accident. The driver or other people could be severely injured.

DO NOT WATCH VIDEO WHILE DRIVING.

Watching the video may distract the driver from looking ahead of the vehicle and cause an accident.

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.

Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the vehicle in a safe location before performing these functions. Failure to do so may result in an accident.

KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR OUTSIDE NOISES WHILE DRIVING.

Excessive volume levels that obscure sounds such as emergency vehicle sirens or road warning signals (train crossings, etc.) can be dangerous and may result in an accident. LISTENING AT LOUD VOLUME LEVELS IN A CAR MAY ALSO CAUSE HEARING DAMAGE.

MINIMIZE DISPLAY VIEWING WHILE DRIVING.

Viewing the display may distract the driver from looking ahead of the vehicle and cause an accident.

DO NOT DISASSEMBLE OR ALTER.

Doing so may result in an accident, fire or electric shock.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may result in fire, etc.

KEEP SMALL OBJECTS SUCH AS SCREWS OUT OF THE REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed, consult a physician immediately.

USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES.

Failure to do so may result in fire or electric shock.

DO NOT BLOCK VENTS OR RADIATOR PANELS.

Doing so may cause heat to build up inside and may result in fire.

USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.

Use for other than its designed application may result in fire, electric shock or other injury.

MAKE THE CORRECT CONNECTIONS.

Failure to make the proper connections may result in fire or product damage.

BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY TERMINAL.

Failure to do so may result in electric shock or injury due to electrical shorts.

DO NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS.

Arrange wiring and cables in compliance with the manual to prevent obstructions when driving. Cables or wiring that obstruct or hang up on places such as the steering wheel, gear lever, brake pedals, etc. can be extremely hazardous.

DO NOT SPLICE INTO ELECTRICAL CABLES.

Never cut away cable insulation to supply power to other equipment. Doing so will exceed the current carrying capacity of the wire and result in fire or electric shock.

DO NOT DAMAGE PIPE OR WIRING WHEN DRILLING HOLES.

When drilling holes in the chassis for installation, take precautions so as not to contact, damage or obstruct pipes, fuel lines, tanks or electrical wiring. Failure to take such precautions may result in fire.

DO NOT USE BOLTS OR NUTS IN THE BRAKE OR STEERING SYSTEMS TO MAKE GROUND CONNECTIONS.

Bolts or nuts used for the brake or steering systems (or any other safety-related system), or tanks should NEVER be used for installations or ground connections. Using such parts could disable control of the vehicle and cause fire etc.

DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER VEHICLE OPERATION, SUCH AS THE STEERING WHEEL OR SHIFT LEVER.

Doing so may obstruct forward vision or hamper movement etc. and results in serious accident.

CAUTION

This symbol means important instructions. Failure to heed them can result in injury or material property damage.

HALT USE IMMEDIATELY IF A PROBLEM APPEARS.

Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or the nearest Alpine Service Center for repairing.

HAVETHEWIRINGANDINSTALLATIONDONEBYEXPERTS.

The wiring and installation of this unit requires special technical skill and experience. To ensure safety, always contact the dealer where you purchased this product to have the work done.

USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM SECURELY.

Be sure to use only the specified accessory parts. Use of other than designated parts may damage this unit internally or may not securely install the unit in place. This may cause parts to become loose resulting in hazards or product failure.

ARRANGE THE WIRING SO IT IS NOT CRIMPED OR PINCHED BY A SHARP METAL EDGE.

Route the cables and wiring away from moving parts (like the seat rails) or sharp or pointed edges. This will prevent crimping and damage to the wiring. If wiring passes through a hole in metal, use a rubber grommet to prevent the wire's insulation from being cut by the metal edge of the hole.

DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST.

Avoid installing the unit in locations with high incidence of moisture or dust. Moisture or dust that penetrates into this unit may result in product failure.

Getting Started

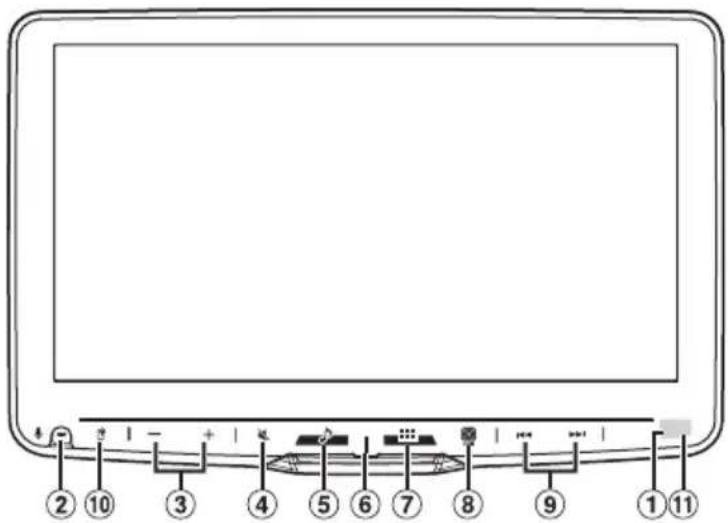

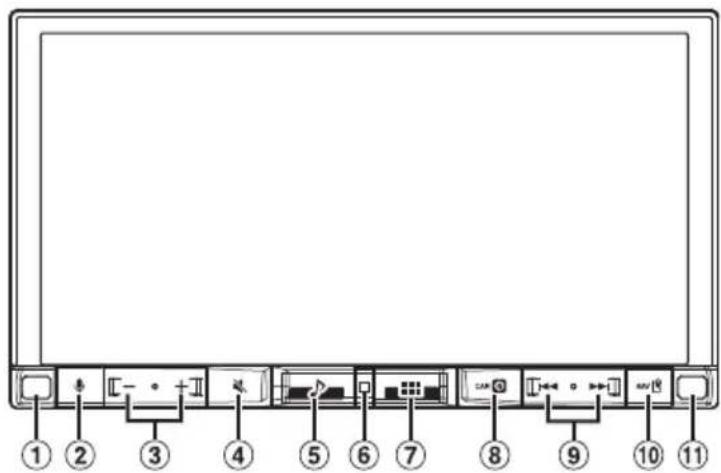

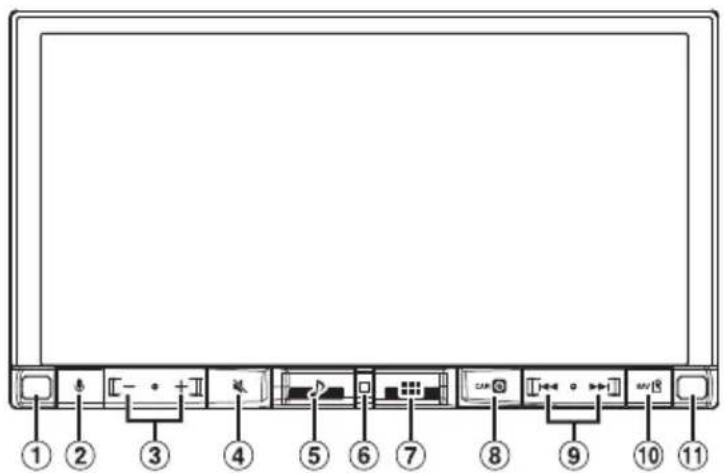

Controls Position

The screen design used in the Quick Reference Guide may differ from the actual screen.

iLX-705D

iLX-F905D/iLX-F115D

① Dimmer Sensor

Sense the brightness of the car interior.

② button

Activate Siri function or voice recognition mode while Apple CarPlay or Android Auto is connected.

③ -/DOWN/UP) button

Adjusts the volume.

MUTE button

Activates/deactivates MUTE mode.

Press and hold this button for at least 2 seconds to turn off the screen/button illumination.

⑤ Audio button

Displays the Audio playback screen.

Audio sources can be switched while the Audio playback screen is displayed.

⑥ Power indicator

⑦ ⑧ (HOME) button

Activates the HOME screen.

The Sound Setup screen is displayed while the HOME screen is displayed.

Press and hold this button for at least 2 seconds to turn the power off.

8 (CAM) button

Displays the image of Camera2 (Front/Side/Other) or Camera1 (Rear).

Press for 1 second or more to return to the previous screen.

9

Press to seek up/down a station in radio mode or up/ down a track, etc., in other audio/visual sources.

10 (MAP) button

Displays the map screen for Apple CarPlay / Android Auto when Apple CarPlay or Android Auto is connected.

Remote Sensor

Point the remote control transmitter towards the remote sensor within a range of 2 meters.

Turning Power On or Off

1 Turn the ignition key to the ACC or ON position.

The system is turned on.

• When using the system for the first time, the HOME screen is displayed.

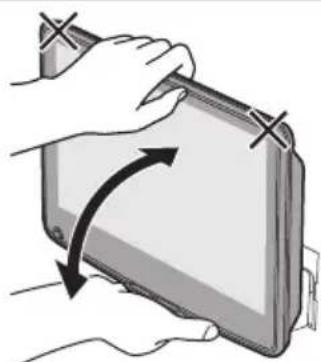

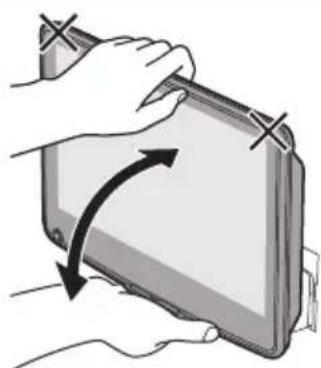

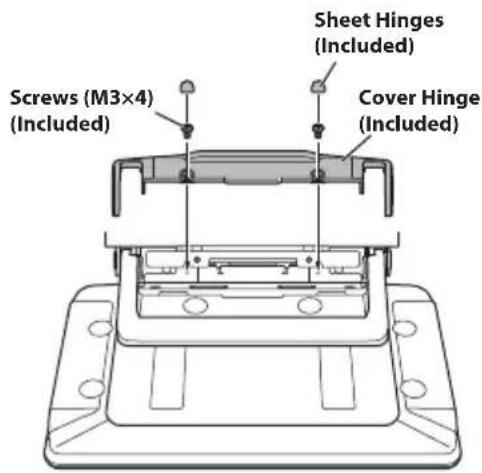

CAUTION (iLX-F905D/iLX-F115D only)

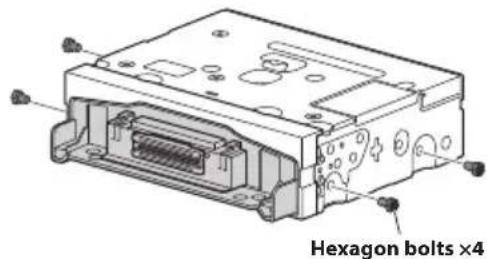

To adjust the display angle, hold the center of the top and bottom of the display to move it. To protect the display, do not hold the left and right ends to move it.

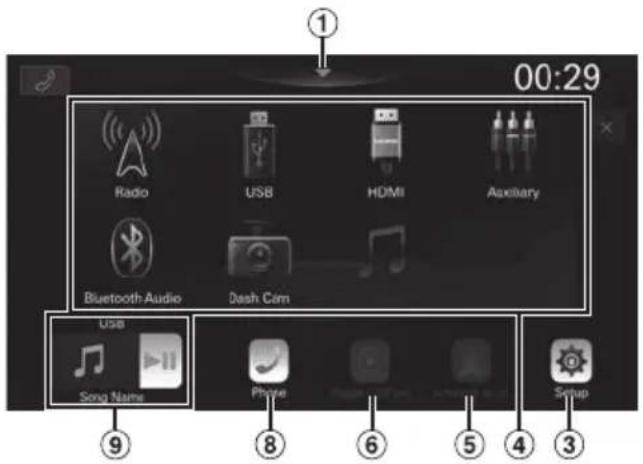

Select the audio source on the HOME screen to perform various settings and operations of the function.

1 Press the (HOME) button.

The HOME screen is displayed.

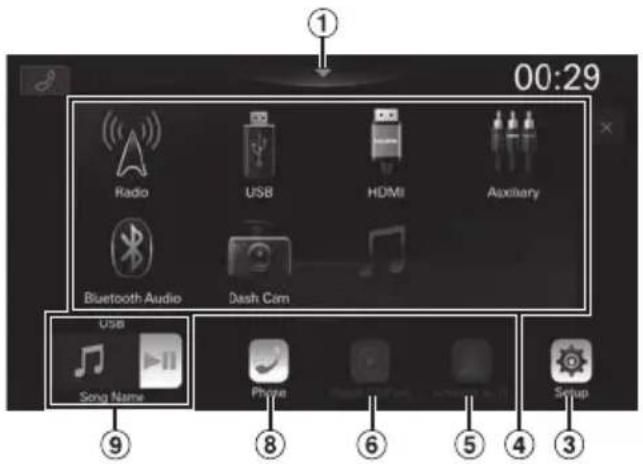

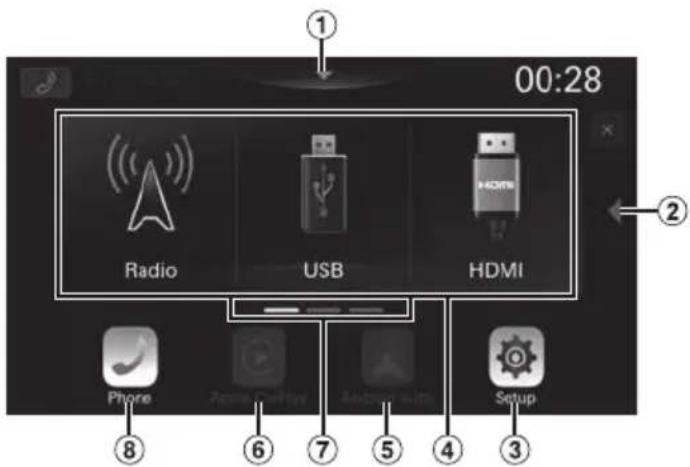

Normal mode screen example

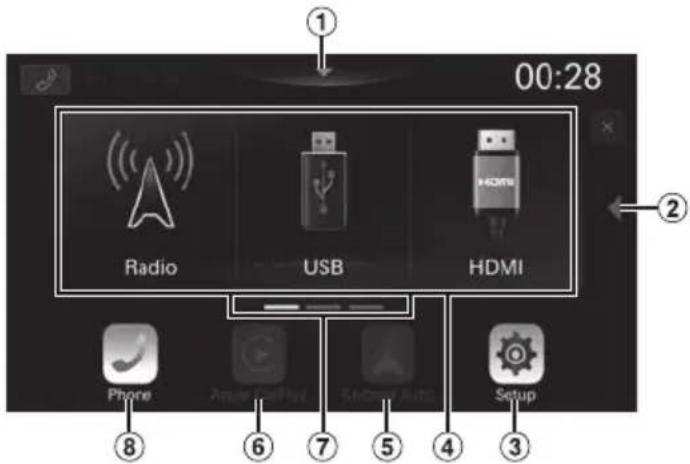

Enhanced Text mode screen example

① Touch to display the Sound Setup screen.
② Touch to change the page.

Pages can also be changed by swiping the HOME screen horizontally with your finger.

③ Setup button

Displays the Setup screen.

Audio source select area

Touch your desired source icon to change the audio source.

5 Android Auto button

Displays the Android Auto screen, high light displayed when an Android Smartphone installed Android Auto App is connected.

6 Apple CarPlay button

Displays the Apple CarPlay screen, high light displayed when Apple CarPlay is turned on and an iPhone 6s or later is connected.

⑦ HOME screen navigation

Phone button

Displays the Phone menu screen.

The Device List screen is displayed when a Hands-free Phone, Apple CarPlay or Android Auto device is not connected.

9 Thumbnail window for the current source

Source name, artwork and title information are displayed. Touch the artwork to display the source screen. Touch [▶] to play/pause a track or video.

The Home screen can be changed to the Enhanced Text mode.

1 Press the (HOME) button.

The HOME screen is displayed.

2 Touch [Setup].

The Setup screen is displayed.

3 Touch [System].

4 Touch [Home Screen Type].

5 Touch [Normal] or [Enhanced Text].

Apple CarPlay Operation (Optional)

Apple CarPlay is a smarter, safer way to use your iPhone in the car. Apple CarPlay takes the things you want to do with your iPhone while driving and puts them right on this unit. You can get directions, make calls, send and receive messages, and listen to music, all in a way that allows you to stay focused on the road.

1 Press the (HOME) button.

The HOME screen is displayed.

2 Touch [Apple CarPlay].

The Apple CarPlay screen is displayed.

Refer to "Apple CarPlay" in the Owner's Manual for information on how to operate Apple CarPlay.

Owner's manual Android AutoTM (Optional)

Android Auto™ (Optional)

Android Auto brings your favorite smartphone apps into one place, making it easier for drivers to access their favorite navigation, media, and communication apps on the road while minimizing the distractions. Talk to Google on Android Auto™ and get things done with your voice so you can keep your eyes on the road and hands on the wheel. Easily send messages, get directions, control media and more. Just short-press or long-press the voice control button on your steering wheel.

1 Press the (HOME) button.

The HOME screen is displayed.

2 Touch [Android Auto].

The Android Auto screen is displayed.

• Refer to "Android Auto" in the Owner's Manual for information on how to operate Android Auto.

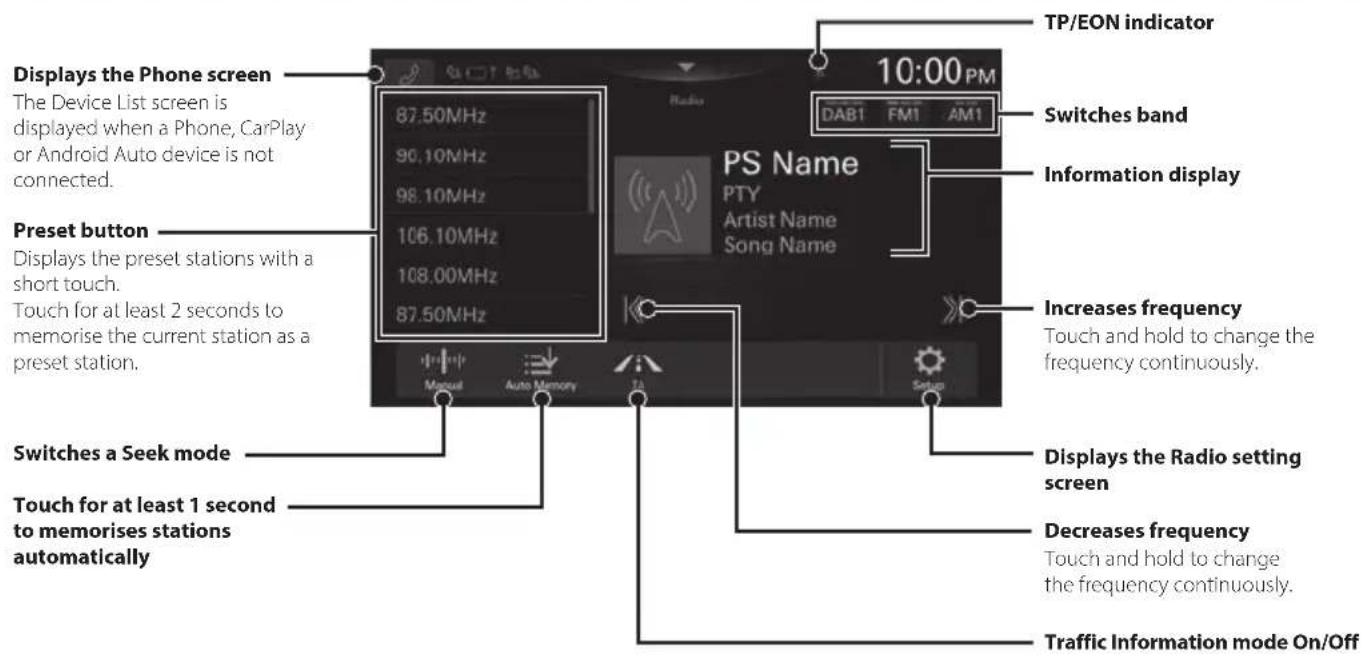

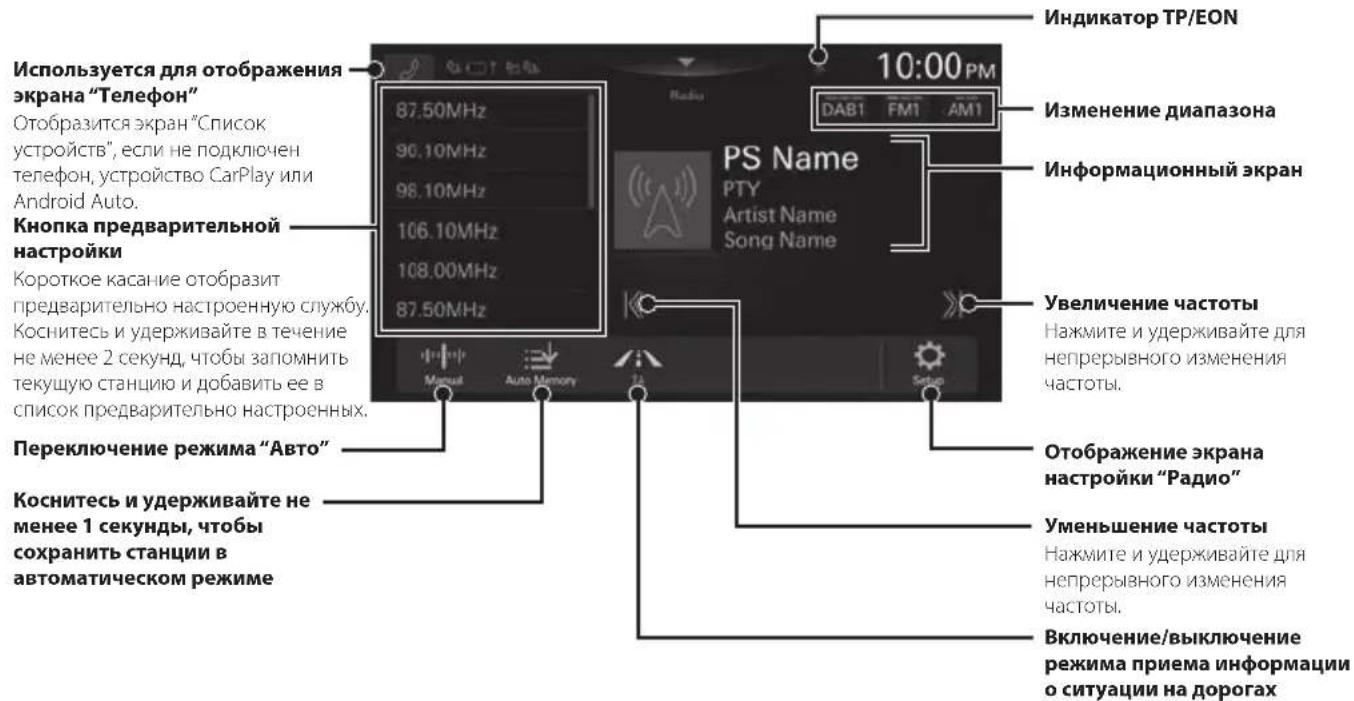

Radio/RDS Operation

• The patterns of some keys in the Quick Reference Guide may differ from the actual screen.

Owner's manual DAB/DAB+/DMB

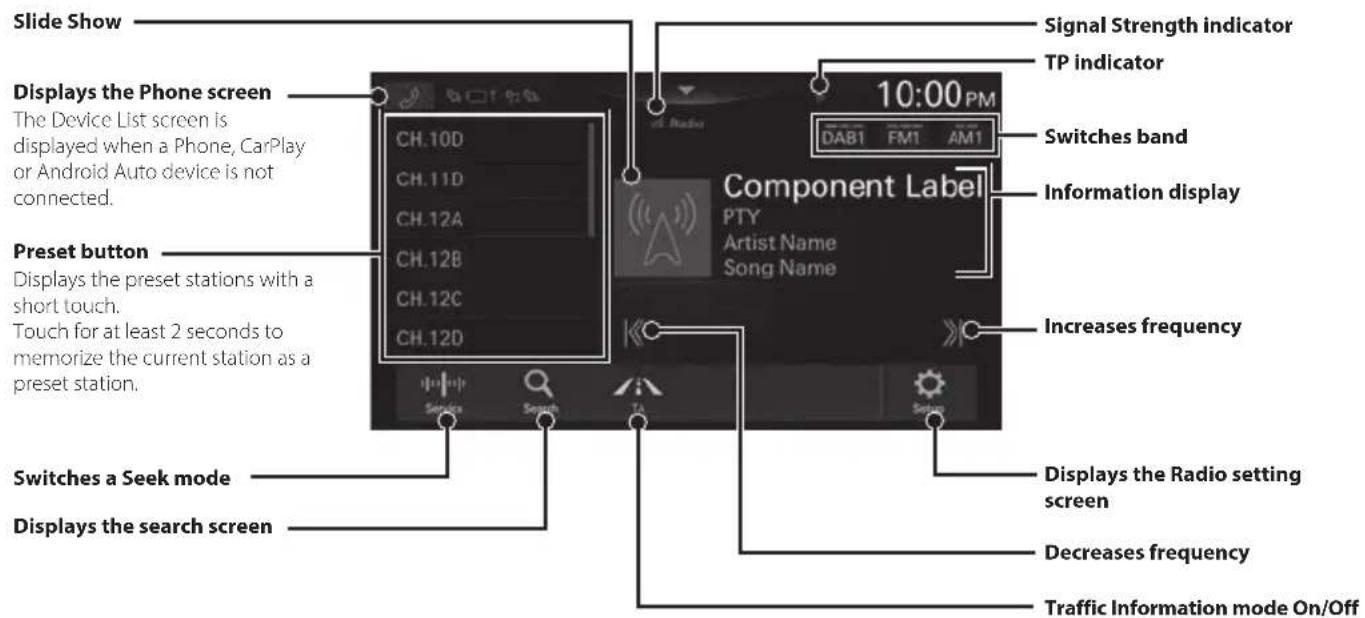

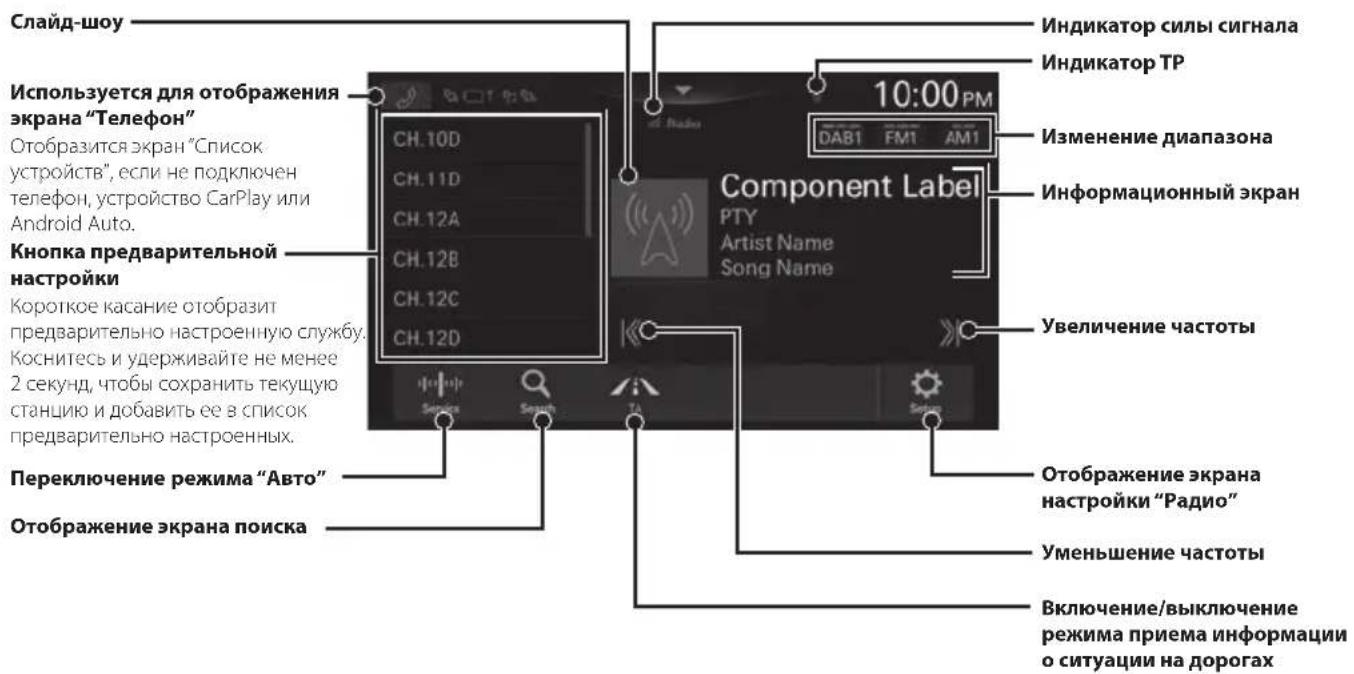

DAB/DAB+/DMB Operation

• The patterns of some keys in the Quick Reference Guide may differ from the actual screen.

USB Flash drive Operation (Optional)

You can play back music files (MP3/WMA/AAC/FLAC/WAV/APE) and video files (MP4/MOV/FLV/MKV) stored in a USB flash drive on the internal player of this system.

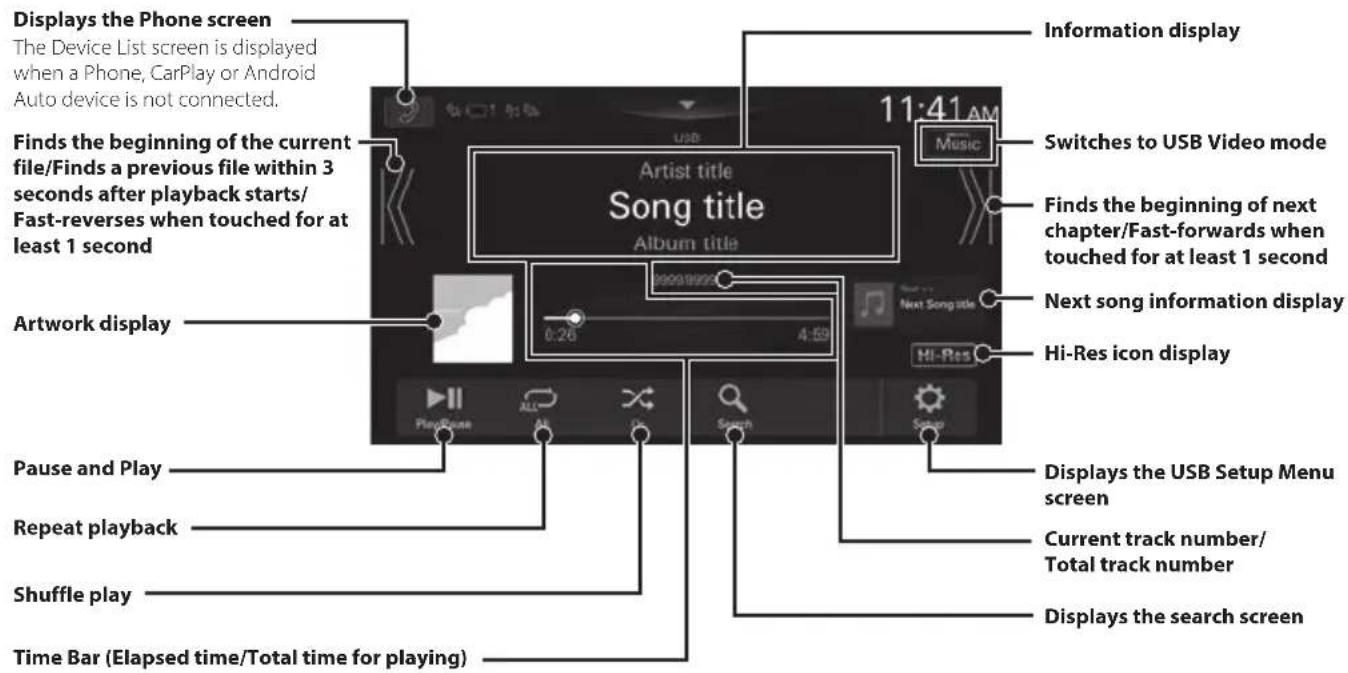

USB Audio main screen example

• The patterns of some keys in the Quick Reference Guide may differ from the actual screen.

Searching for a Music File

For example: Searching by Artist name

1 Touch [ (Search)] during playback.
2 Touch [Artists].

3 Touch the desired artist's name.

4 Touch the desired album's name.
5 Touch the desired song's name. The selected song is played back.

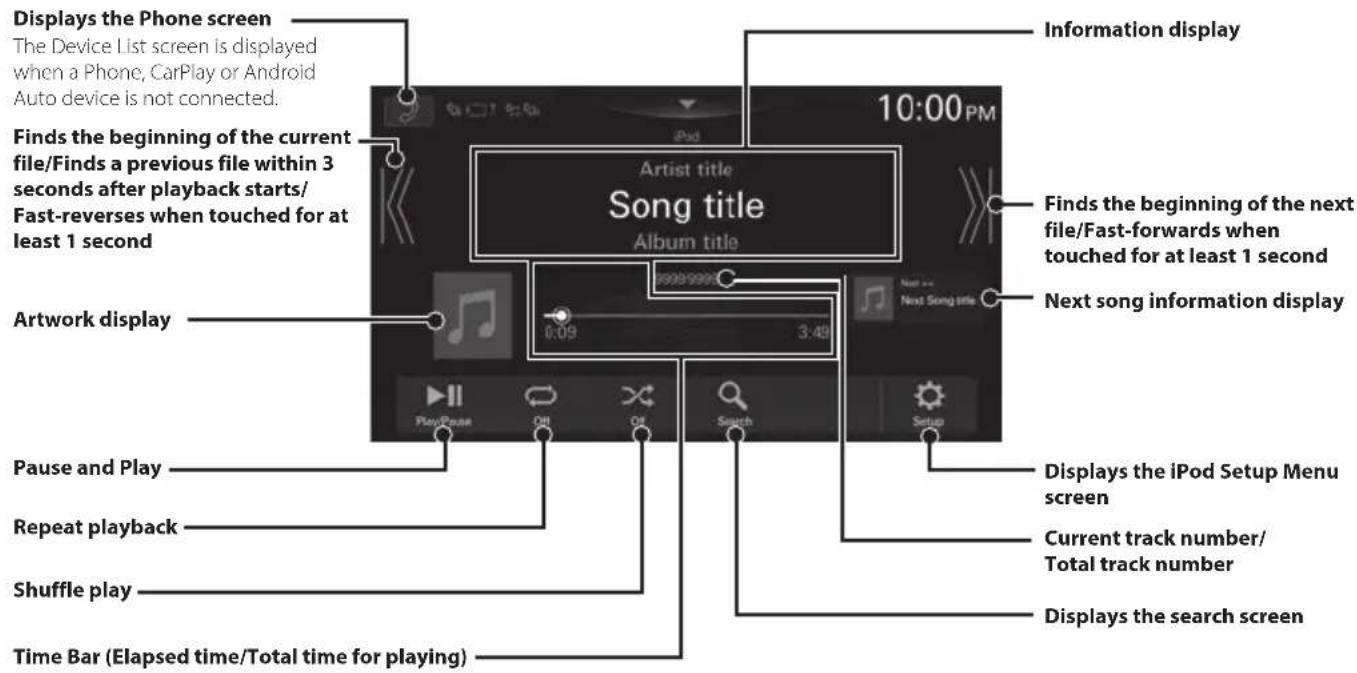

iPod mode on iPhone (Optional)

A separately sold Lightning to USB cable is required depending on the type of iPhone.

• This unit supports iPhone (iPhone 6s or later) only. For using music playback only, set the "Apple CarPlay" setting to "Off" before connecting with your iPhone.
• The patterns of some keys in the Quick Reference Guide may differ from the actual screen.

Searching for a Music File

For example: Searching by Artist name

1 Touch [ (Search)] during playback.
2 Touch [Artists].

3 Touch the desired artist's name.

4 Touch the desired album's name.
5 Touch the desired song's name.

The selected song is played back.

Hands-Free Phone Control

The unit can connect with up to two hands-free phones.

How to connect to a Bluetooth compatible device (Pairing)

To display the Setup HOME screen:
- Bring your vehicle to a complete stop at a safe location. Engage the parking brake.
1 Touch [Setup] on the HOME screen.
2 Touch [Device].

3 Touch [Device List].
4 Touch [Add New Device] to search for a new device.

The Select Function screen is displayed.

5 Select the function of the connecting device on the Select Function screen, and touch [OK].

A check mark is displayed for the selected function.

• Hands Free1: The device is used as the first hands-free phone.
• Hands Free2: The device is used as the second hands-free phone.
• Bluetooth Audio: The device is used as an Bluetooth Audio device.
• Apple CarPlay*: The device is used as Apple CarPlay.
• If you want to use Apple CarPlay mode without displaying [Apple CarPlay] on the Select Function screen, select [Hands Free1] or [Hands Free2] to connect your device.

6 When a code is displayed on the device, check that the code is the same as the one on the screen of the unit, and touch [Yes].
7 When the device connection is complete, a message appears and the device returns to normal mode.

• You can register up to 10 Bluetooth compatible mobile phones.

Answering a Call

1 An incoming call triggers the ringtone and an incoming call display.

2 Touch[].

The call starts.

Hanging up the Telephone

1 Touch [ ] (End Call).

The call finishes.

Installation

Note on installation

• Install at an angle between horizontal and 30^ . Note that installing at an angle outside of this range will result in a loss of performance and possible damage.

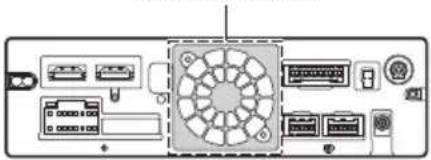

• Do not block the unit's heat sink, which would prevent air circulation. If blocked, heat will accumulate inside the unit and may cause a fire.

Air ventilation hole
Rear of the Unit

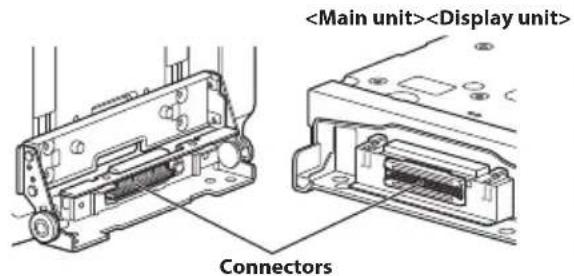

• When installing the display unit and main unit, do not touch the connectors with your hands. (iLX-F905D/iLX-F115D only)

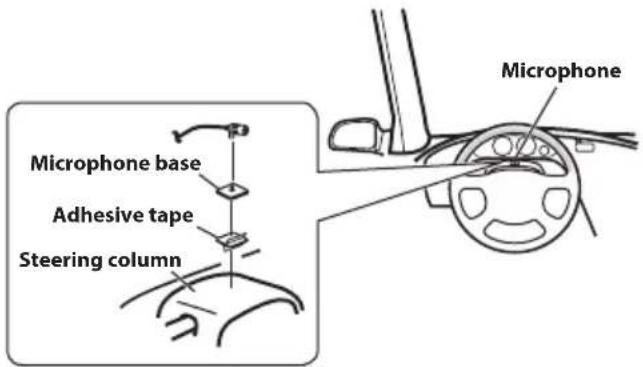

Mounting the Microphone

For safe use, make sure of the following:

• Location is stable and firm.
• Driver's view and operations are not obstructed.
• Microphone is located where the driver's voice can be easily picked up.

When you speak into the microphone, you should not have to change your driving posture. This may cause a distraction, taking your attention away from safely driving your vehicle. Carefully consider direction and distance while mounting the microphone. Confirm that the driver's voice can be easily picked up at the selected location.

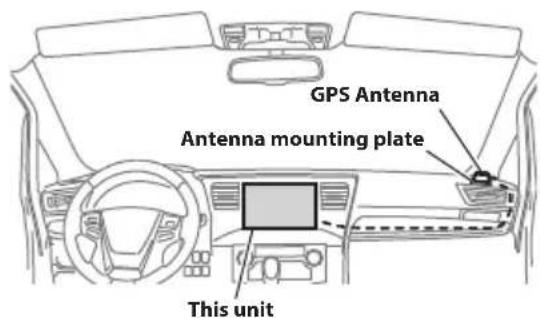

Mounting the GPS Antenna inside the vehicle

1 Clean the mounting location.
2 Put on the GPS Antenna mounting plate.
3 Mount the GPS Antenna.

• Do not mount the GPS Antenna inside the centre console.

• Mount the GPS Antenna on a flat plane of the dash board or rear tray.

• Make sure the GPS Antenna is not covered (obstructed) by any metallic surface or object.

• If the GPS Antenna is mounted near the unit, the reception becomes poor, and the location of your vehicle may not be displayed correctly.

• Mount the GPS Antenna far away enough from the unit.
• Bundle the GPS Antenna cable away from the rear of the unit.
• Some thermal reflection type or thermal absorption type glass may interrupt high frequency waves. If reception is poor with the antenna installed inside the car, try to mount the antenna outside the car.

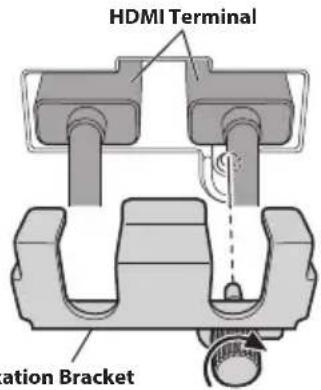

Note on using HDMI Connection Cables

When using HDMI connection cables, secure the cables to the HDMI Terminals with the supplied HDMI Fixation Bracket.

1 Secure the HDMI Fixation Bracket with the screw (A).

HDMI Fixation Bracket (Included)

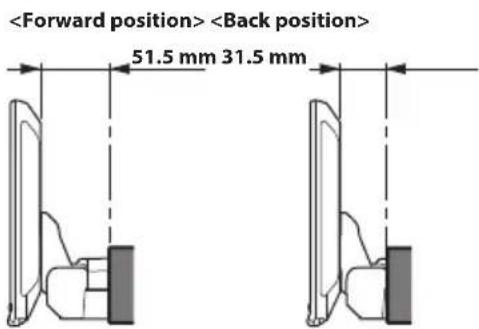

Adjusting the display position (iLX-F905D/iLX-F115D)

Depending on the vehicle, the front-back display position differs. To adjust the front-back position, set the slider to the forward position.

Default setting: Back position

Front-back position

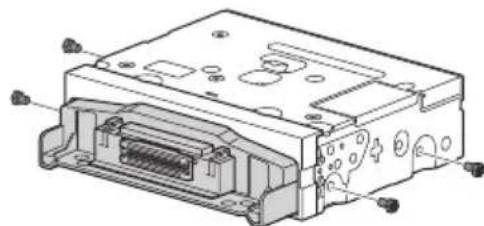

1 Remove 4 hexagon bolts from both sides of the unit.

2 Pull out the slider to the forward position. (To return the slider to the back position, push it in.)

3 Install 4 hexagon bolts to secure the slider.

Installing the Unit (iLX-705D)

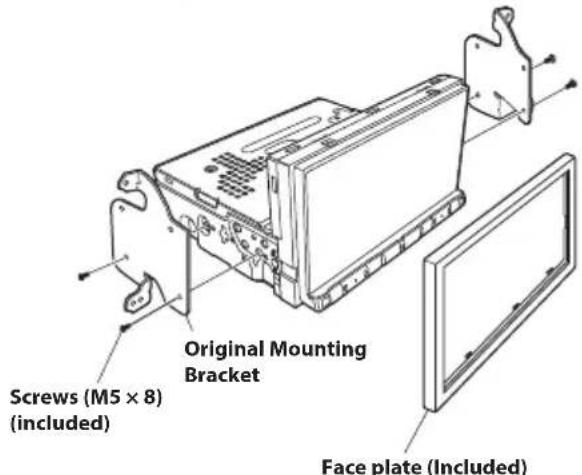

1 Mount the original mounting bracket to the unit using the supplied screws.

If you do not have the original mounting bracket, mount the Double din KIT* (provided with the side mounting bracket), etc. to the main unit.

• Sold separately.

2 Connect all other leads of the unit according to details described in the "Connections" (page 18).

3 Mounting the unit in a car.

Fix the cables carefully. Do not damage them by tucking them into movable parts, such as a seat rail, or by locating them against sharp or pointed edges.

Installing the Unit (iLX-F905D/ iLX-F115D)

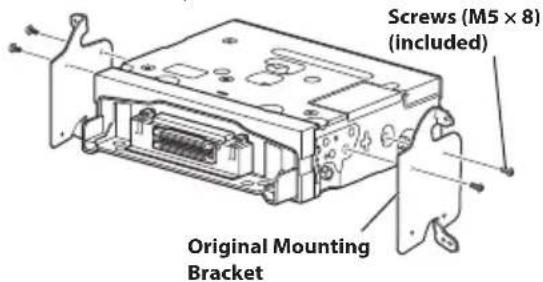

1 Mount the original mounting bracket to the main unit using the supplied screws.

If you do not have the original mounting bracket, mount the Double din KIT (provided with the side mounting bracket), etc. to the main unit.
Sold separately.

2 Connect all other leads of the main unit according to details described in the "Connections" (page 18).

3 Mount the unit in a car.

Fix the cables carefully. Do not damage them by mounting them into movable parts, such as the seat rail, or by locating them against sharp or pointed edges.

Adjust the up-down position of the Display unit (iLX-F905D/iLX-F115D)

Adjust the up-down position of the display according to the mounting position on the vehicle before mounting the display unit. Default setting: 0 mm

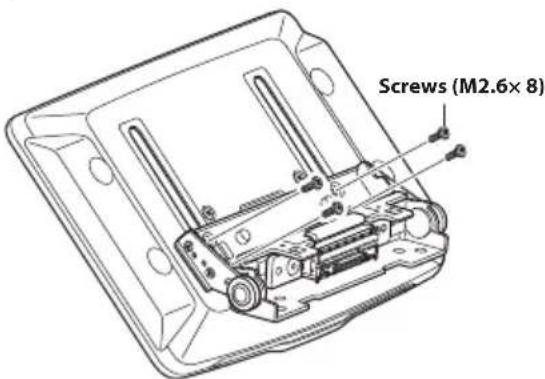

1 Remove the 4 screws on the rear of the display unit, then adjust the up-down position.

2 Attach the Sheet Rear in a position that aligns with the up-down position of the display unit.

Sheet Rear (Included)	up-down position
2×50 mm: for up-down position 0 mm or -60mm
2×35 mm: for up-down position -15 mm or -45mm
2×20 mm: for up-down position -30 mm

0mm

-15mm

-30mm

-45mm

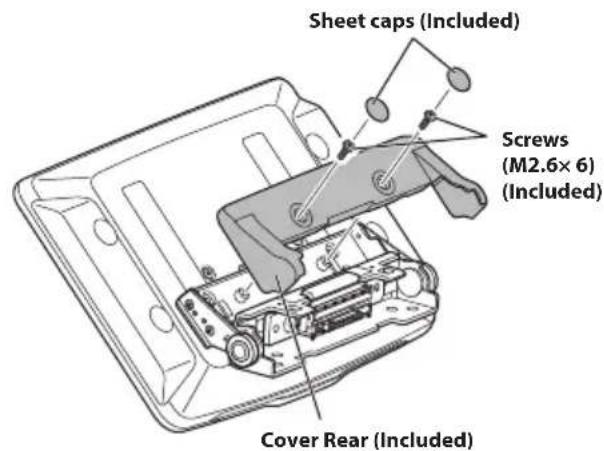

3 Attach the Cover Rear to the rear of the display unit using 2 screws (M2.6×6). Secure the screws, then attach the Sheet caps.

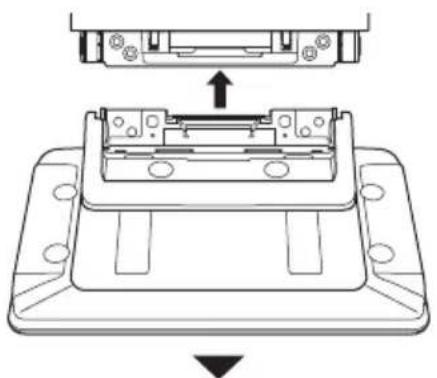

Install the display unit (iLX-F905D/ iLX-F115D)

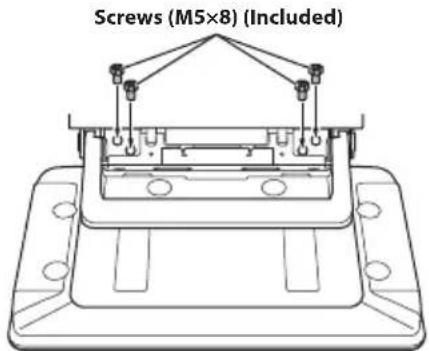

Fix the Display unit to the slider of the main unit using 4 screws (M5× 8)

CAUTION

Do not adjust the display angle when the display unit is not fixed to the slider of the main unit using 4 screws (M5× 8) . Doing so may not turn power on.

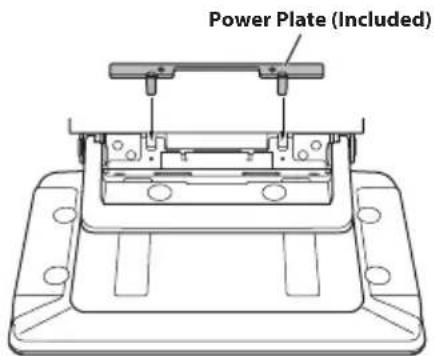

2 Mount the Power Plate.

• If the Power Plate is not mounted, the display unit may not be turned power on. Make sure to mount it.

3 Mount the Cover Hinge using 2 screws (M3× 4) Secure the screws, then attach the Sheet Hinges.

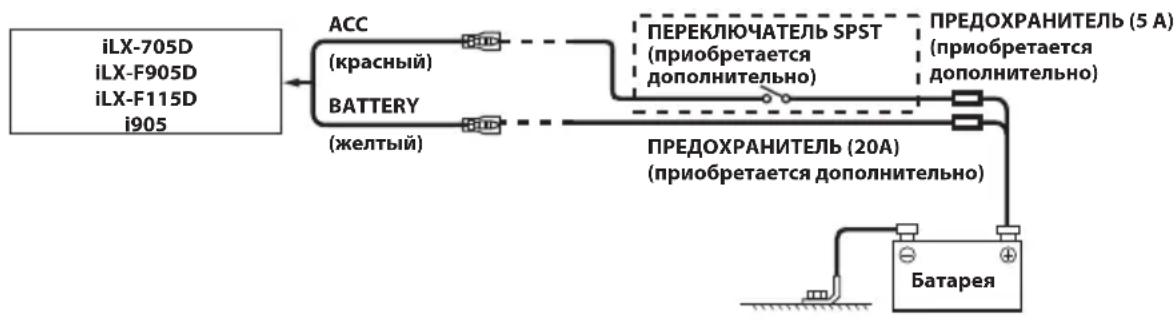

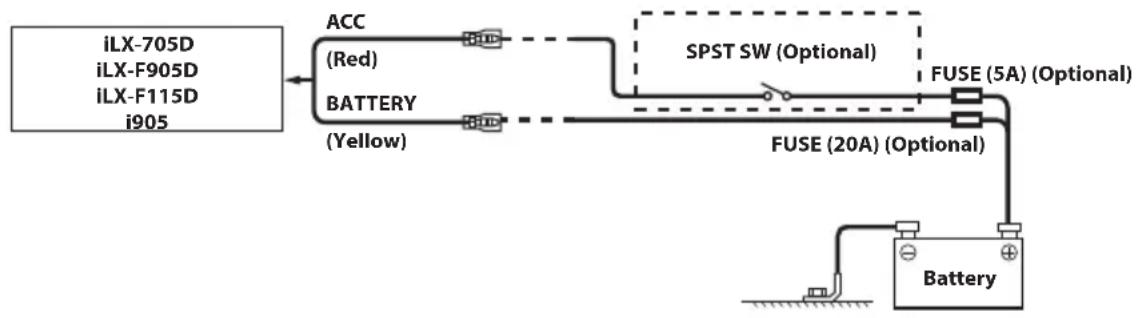

(If the ACC power supply is not available)

If your vehicle has no ACC power supply, add an SPST (Single-Pole, Single-Throw) switch (sold separately) and fuse (sold separately).
- The diagram and the fuse amperage shown above are in the case when the unit is used individually.
- If the switched power (ignition) lead of the unit is connected directly to the positive (+) post of the vehicle's battery, the unit draws some current (several hundred milliamperes) even when its switch is placed in the OFF position, and the battery may be discharged.

Connections

Connection 1

① HDMI Input Connector
HDMI Output Connector
③ CAMERA Connector
GPS Antenna Receptacle Connect to GPS antenna (Included).
AUX Input Connector Input lead for AUX audio signal.
6 Power Supply Connector
PRE OUT Connector
⑧ REM Connector
DAB Antenna Connector To DAB Antenna (sold separately).
10 Radio Antenna Receptacle

ISO/JASO Antenna Adapter (sold separately) ISO/JASO Antenna Adapter may be required, depending on the vehicle.
MIC Input Connector To microphone (included).
13 Steering Remote Control Interface Connector To steering remote control interface. For details about connections, consult your nearest Alpine dealer.
HDMI-REM-OUT Lead (Brown) Connect this lead to the remote input lead of your HDMI Selector Interface.
15 AUX-REM-OUT Lead (Gray) Connect this lead to the remote input lead of your AUX device.

16 Subwoofer RCA Connectors

RED is right and WHITE is left.

17 Front Output RCA Connectors

Can be used as Front Output RCA Connectors. RED is right and WHITE is left.

18 Rear Output RCA Connectors

Can be used as Rear Output RCA Connectors. RED is right and WHITE is left.

ISO Connector (Speaker Output)
20 Left Rear (+) Speaker Output Lead (Green)
21 Left Rear (-) Speaker Output Lead (Green/Black)
22 Left Front (+) Speaker Output Lead (White)
23 Left Front (-) Speaker Output Lead (White/Black)
Right Front (-) Speaker Output Lead (Gray/Black)
Right Front (+) Speaker Output Lead (Gray)
Right Rear (-) Speaker Output Lead (Violet/Black)
Right Rear (+) Speaker Output Lead (Violet)
Remote Turn-On Lead (Blue/White)

Connect this lead to the remote turn-on lead of your amplifier or signal processor.

29 Reverse Lead (Orange/White)
30 Parking Brake Lead (Yellow/Blue)

Connect this lead to the power supply side of parking brake switch to transmit the parking brake status signals to the unit.

ISO Power Supply Connector
Switched Power Lead (Ignition) (Red)

Connect this lead to an open terminal on the vehicle's fuse box or another unused power source that provides (+) 12V only when the ignition is turned on or in the accessory position.

33 Ground Lead (Black)

Connect this lead to a good chassis ground on the vehicle.

Make sure the connection is made to bare metal and is securely fastened using the sheet metal screw provided.

34 Power Antenna Lead (Blue)

Connect this lead to the + terminal of your power antenna, if applicable.

• This lead should be used only for controlling the vehicle's power antenna. Do not use this lead to turn on an amplifier or a signal processor, etc.

35 Battery Lead (Yellow)

Connect this lead to the positive (+) post of the vehicle's battery.

36 Fuse Holder (15A)

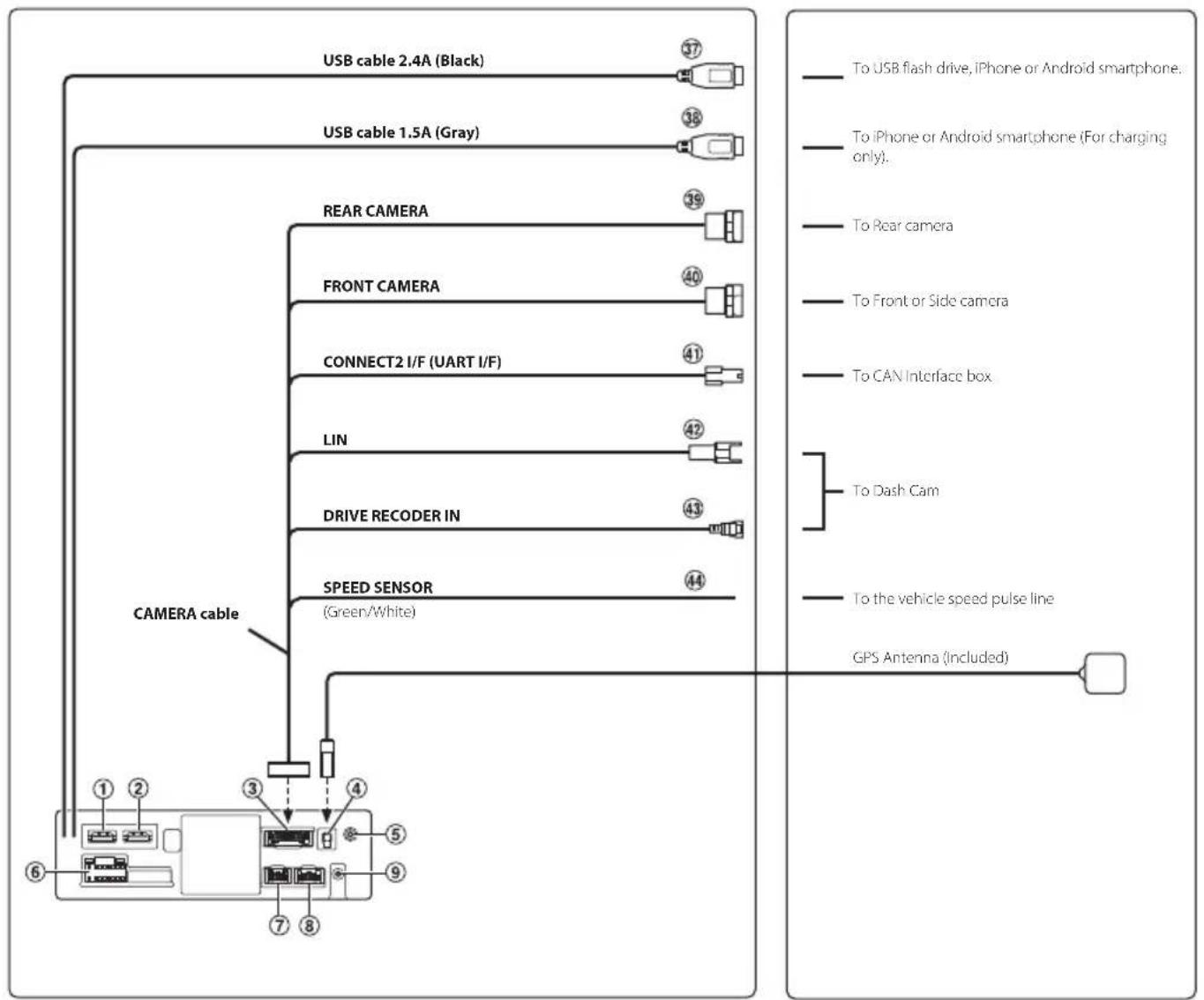

USB Connector (2.4A)

To USB flash drive, iPhone or Android smartphone.

38 USB Connector (1.5A)

To iPhone or Android smartphone (For charging only).

39 REAR CAMERA Input Connector

Use when connecting a rear camera.

40 FRONT CAMERA Input Connector

Use when connecting a front camera or side camera.

41 Connect2 (UART) Connector

To Interface Box.

42 LIN Connector

Connect this lead to the LIN connector of the Dash Cam.

43 Drive Recoder Input Connector

Input lead for Dash Cam video signal.

4 Speed Sensor Lead (Green/White)

Improper connection of the speed pulse line may cause important safety features of the vehicle to fail (such as the brakes or air bags). Such failures may result in an accident and loss of life. We strongly recommend that the installation be performed by a trained, authorized Alpine dealer.

Specifications

MONITOR SECTION

Screen Size 7^th (iLX-705D)

9" (iLX-F905D)

11" (iLX-F115D)

9" (1905)

Operation System TFT active matrix

Number of Picture Elements 2,764,800 pcs.

(1280× 720× RGB)

Effective Number of Picture Elements

99% or more

Color system NTSC / PAL

Illumination System LED

FM TUNER SECTION

Tuning Range 87.5 - 108.0 MHz

Mono Usable Sensitivity 8.1 dBf (0.7 V/75 ohms)

50 dB Quieting Sensitivity 12 dBf (1.1 V/75 ohms)

Alternate Channel Selectivity 80 dB

Signal-to-Noise Ratio 65 dB

Stereo Separation 35 dB

AM TUNER SECTION

Tuning Range 531 - 1,602 kHz

Usable Sensitivity 25.1 V / 28 dBf

DAB SECTION

Tuning Range 174.928 - 239.2 MHz

Usable Sensitivity -100 dBm

Signal-to-Noise Ratio 90 dB

USB1 SECTION

USB requirements USB 2.0

Max. Power Consumption 2,400 mA

USB Class USB (Mass Storage)

File System FAT16/32,exFAT

Number of Channels 2-Channels (Stereo)

Frequency Response*1 5-40,000 Hz (±1 dB)

Total Harmonic Distortion 0.005% (at 1 kHz)

Dynamic Range 95 dB (at 1 kHz)

Signal-to-Noise Ratio 95 dB

Channel Separation 90 dB (at 1 kHz)

*1 Frequency response may differ depending on the encoder software/bit rate.

USB2 SECTION

Max. Power Consumption 1,500 mA (CDP Support)

USB Class Charge only

HDMI SECTION

Input Format 720p/480p/VGA

Output Format 720p/480p

Bluetooth SECTION

Bluetooth Specification Bluetooth V4.2 (2,402 - 2,480 MHz)

Output Power +4.0dBm / 2.51mW Ave.

(Power class 2)

Profile HFP (Hands-Free Profile)

OPP (Object Push Profile)

PBAP (Phone Book Access Profile)

SPP (Serial Port Profile)

A2DP (Advanced Audio

Distribution Profile)

AVRCP (Audio/Video Remote

Control Profile)

GPS SECTION

Reception Frequency 1575.42 +/ - 1.023 MHz

Reception sensitivity (Search) -136 dB max.

Wi-Fi SECTION

Frequency Ranges IEEE 802.11 b/g/n (2.4 GHz)

IEEE 802.11 a/n/ac (5 GHz)

Channels 1-13 ch (2.4 GHz)

149-165 ch (5 GHz)

Frequency Band 2401-2483MHz(2.4GHz)

5725-5850MHz(5GHz)

Output Power (2.4 GHz) Max. 18 dBm

Output Power (5 GHz) Max. 13 dBm (11 a)

Max. 12 dBm (11 n/ac)

Security Protocols WPA3/WPA2-PSK (TKIP, AES)

GENERAL

Power Requirement 14.4 VDC

(11-16 Vallowable)

Operating temperature -20°C to +60°C

Power Output 50Wx4

Maximum Current Consumption

1

15A

Audio output level

Preout (Front, Rear): 4V/10k ohms (max.)

Preout (Subwoofer): 4V/10k ohms (max.)

Weight 1.4 kg (iLX-705D)

2.3 kg (iLX-F905D)

2.6 kg (iLX-F115D)

1.7 kg (1905)

CHASSIS SIZE

	iLX-705D	iLX-F905D	iLX-F115D i905
Width	178 mm	178 mm	178 mm	178 mm
Height	50 mm	50 mm	50 mm	50 mm
Depth	149.6 mm	149.6 mm	149.6 mm	142 mm

DISPLAY SIZE

	iLX-705D	iLX-F905D	iLX-F115D	i905
Width	171 mm	232.5 mm	268.9 mm	214.7 mm
Height	96 mm	151.1 mm	178 mm	136.6 mm
Depth	17.7 mm	54.7 mm	54.7 mm	29.9 mm

• Due to continuous product improvement, specifications and design are subject to change without notice.

• The LCD panel is manufactured using an extremely high precision manufacturing technology. Its effective pixel ratio is over 99.99% . This means that there is a possibility that 0.01% of the pixels could be either always ON or OFF.

• Windows Media, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

• Apple, iPhone, iPod, Lightning and Siri are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
• Use of the Made for Apple and Works with Apple badges means that an accessory has been designed to connect specifically to the Apple product(s) identified in the Made for Apple badge and to work specifically with the technology identified in the Works with Apple badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
• Use of the Apple CarPlay logo means that a vehicle user interface meets Apple performance standards. Apple is not responsible for the operation of this vehicle or its compliance with safety and regulatory standards. Please note that the use of this product with iPhone may affect wireless performance.
• Google, Android, Google Play and Android Auto are trademarks of Google LLC. To use Android Auto on your car display, you'll need an Android phone running Android 6.0 or higher, an active data plan, and the Android Auto app.
• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
• The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by ALPS ALPINE CO., LTD. is under license.
• The Wi-Fi CERTIFIED™ Logo is a registered trademark of Wi-Fi Alliance®.
• LDAC and LDAC logo are trademarks of Sony Corporation.
  The product with this logo is conformed to HighResolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.

Made for iPhone SE (2nd generation), iPhone 11 Pro Max, iPhone 11 Pro, iPhone 11, iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s.

Inhalt

PBAP (Phone Book Access Profile)

SPP (Serial Port Profile)

A2DP (Advanced Audio

Distribution Profile)

AVRCP (Audio/Video Remote

Control Profile)

GNSS

Empfangsfrequency 1.575,42+/-1,023MHz

DATE D'INSTALLATION:

TECHNICIEN D'INSTALLATION :

LIEU D'ACHAT:

ATTENTION (iLX-F905D/iLX-F115D equation)

Au microphone (fourni).

DIMENSIONS DE L'ECRAN

	iLX-705D	iLX-F905D iLX-F115D	i905
Largeur	171 mm	232,5 mm	268,9 mm
Hauteur	96 mm	151,1 mm	178 mm
Profondeur	17,7 mm	54,7 mm	54,7 mm

37 Conector USB (2.4A)

A la unidad flash USB, iPhone o smartphone Android.

38 Conector USB (1.5A)

Al iPhone o smartphone Android (solo para carga).

39 Conector de entrada CAMARA TRASERA

Utilíce lo when conecte una camarara trasera.

40 Conector de entrada FRONT CAMERA

41 Conector Connect2 (UART)

PBAP (Phone Book Access Profile)

SPP (Serial Port Profile)

A2DP (Advanced Audio

Distribution Profile)

AVRCP (Audio/Video Remote

Control Profile)

SECCION GPS

Frecuencia de recepcion 1575,42+/-1.023 MHz

Sensibilitad de recepcion (buseseda)

-136 dB max.

SECCION Wi-Fi

Rangos de Frequencia IEEE 802.11 b/g/n (2,4 GHz)

IEEE 802.11 a/n/ac (5 GHz)

Canales

1-13 canales (2,4 GHz)

149-165 canales (5 GHz)

Banda de Frequencia

2.401-2.483 MHz (2,4 GHz)

5.725-5.850MHz(5GHz)

PBAP (Phone Book Access Profile)

SPP (Serial Port Profile)

A2DP (Advanced Audio

Distribution Profile)

AVRCP (Audio/Video Remote

Control Profile)

SEZIONEGPS

Pre-out (subwoofer): 4V/10k ohms (max.)

Peso 1,4 kg (iLX-705D)

2,3 kg (iLX-F905D)

2,6 kg (iLX-F115D)

1,7 kg (i905)

DIMENSIONI DEL TELAIO

	iLX-705D	iLX-F905D	iLX-F115D	i905
Larghezza	178 mm	178 mm	178 mm	178 mm
Altezza	50 mm	50 mm	50 mm	50 mm
Profondità	149,6 mm	149,6 mm	149,6 mm	142 mm

DIMENSIONDELDISPLAY

	iLX-705D	iLX-F905D	iLX-F115D	i905
Larghezza	171 mm	232,5 mm	268,9 mm	214,7 mm
Altezza	96 mm	151,1 mm	178 mm	136,6 mm
Profondità	17,7 mm	54,7 mm	54,7 mm	29,9 mm

HEYCTAHABJINBAIYE YCTPOICTBO B MECTAX CBICOKIM YPOBHEM BJIAXHOCTN JIN 3ANbILEHHOCTN.

136eraTe yctaHaBnBaTb yCTPOCTBO B MecTx C BmCOKM yPOBHeM BAnKHOCTN HIN 3aIIbIeHHOCTN. IIpoHnKaIOJIne B yCTPOCTBO BnAra N IIbIb MOrYT BbIbTaT eTO HcNcPpABHOCTb.

PpncTynpaK pa6oTe

PacnoIoxKeHne 3JeMeHTOB ynpaBHeHHa

BHeHn BnD 3KpaHOB, NcNoJIb3yEmbIX B "KpaTkom CnpaBOUHOM pyKOBoDCTBe", MoKeT OTNIuHaTbcr OT peaIbHbIX 3KpaHOB.

iLX-705D

iLX-F905D/iLX-F115D

1 DaTnK dmmepa
OnpeJenTCTeHbOCBeHcHcHcTaCaHOaABTOMO6nI.
② Khonka
BknIOuHTe fynKcIIO Siri nnpeXn pacNo3HaBaHnra roIocApn noKnIOueHnn Apple CarPlay nn Android Auto.
③ Khonka→（BHN3/BBEPX）
HacTpoIka yPobNra pomKocTn.
④ KhonKa (OTKJIIOUHNE 3BYKA)
BknioueHne/BbIKnIOueHne pekmAmOTKnIOueHn 3Byka (MUTE).
HaKMTe n ydepKnBaIte 3Ty KhoNky He MeHee 2 CEkyH, YTO6bI OTKnIOuHTb NOcBETky kpaHa/KhoNkn.
⑤ Khonka(Ayduo)
OTo6paKeHHe 3KpaHa BOCnpon3BeJeHHa 3ByKa. AyIOIOCTOuHNMOxHOpeKNOUaTb, NOKa OTo6paKaeTc 3KpaH BOCnpon3BeEHnA 3ByKa.
6 HdmKaTOp nHTaHm
⑦ KhonkaAHAJIbHbIHKPAH)
AKNBaHnHaayJIbHOgKpaHa.
Korda oTo6paKaaeTc HauaIbHbI eKpaH, TaKke oTo6paKaaeTc eKpaH "HaCtpoKa 3Byka".
HaxMMTE uYdepxnBaIte 3Ty KHONky He MeHee 2 CEkyu, yTO6bl OTKnIOHTb NITaHne.

8 Khonka (AM)

VcnoB3yeTcIgBKnUoyehnHn3o6paKeHnC kamepb2 (pepeHnE/c60ky/dpyra) nnn KaMepb1 1 (3aHnE).

Haxmte u yepkmbaTe B TeueHne 1 ckyHdb, yTo6bBepHybcn PpeDbNyUeMy kpaHy.

9 Khonka

HaKMTe, yTo6bI nepeiTu Bn3/BBepx No cnccky paAnocTahuB peKmE paNIO uNn nepeiTu Bn3/ BBepx NO cncKy DOpOKe K T.D. BApYROM NCTouHKe ayDNo/BnDeo.

10 KHonka MAP)

Отображени忡а Крана Kapы ДдгApple CarPlay / Android Auto npи полоченnApple CarPlay nnn Android Auto.

11 DaTUnk DnCTaHcUHOHOrO ynpabJIeHmJ

HanpaBte nepedaTnK nybTa nCTaHNoHHoro ynpabHeHnHa daTnK Dc pacctoHndo 2 MeTPOB.

BkIoueHne N BbIKIOUeHne NITaHnA

1 NobepnTe KJIou 3aXnraHnB nOIoKeHne ACC nn ON.

CnCTema BKNIOHHTCA.

• Ipu nepbom ucnonb3obaenu cucmembi omobpaKaemc HAYA/1bHbI 3KPAH.

BHIMAHNE (ToIbko Ix-F905D/

iLX-F115D)

IpyerynipOBKn yrna oTo6paXeHnnyepKmbaTe HaxaTbIM ueHTp BepxHei n HxHHeuacteNkpaHa dnnpeMeueHn.

ДяЗаuntbI duCnner He DepeKntecb 3a NeByIO npabyU qactn dЯ nepemuehen.

Bb6epnte aydnoCTouHk Ha hauhOBm 3KpaHe IJy BblONHHeHn pa3nnHbIX HAcTpoE K ynpabInHn yHKLmN.

1 HaXMMTe KhONKy (HbAJIbHbI INKPAH).

OTo6pa3nTc HauAJIbHbI 3KPAH.

Приимеръкраhalpeхиma"Hopmalьно"

Приимер ekрана рек imma "BbIDeJIeHHI TeKCT"

1 HaxmTeIraOTo6paKeHnE3KpHa "HacrpoKa 3Byka".
Haxmte nI3MeHeHnCTpaHnUbl.

CtpaHnCbTaKaKe MoXHO N3MeHnTb, npOBeJa nAbeM no HauAlbHOMy 3KPAHY no rOpN0HTaHn.

③ Khonka“Hactpokka”

OTo6paXeHHe 3KpaHa"HaTpoKa".

④ 06NaCTb BbIbOpa nCToUHnKa 3ByKa

HaxMMTe 3HaQK Heo6xOJIMORO ICTOUHnKa nIa N3MeHeHHN ICTOUHnKa 3Byka.

5 Khonka Android Auto

OTo6paXeHne 3KpaHa Android Auto npn
IOaIKIoueHH cMaprfoHa Android cytaHOBHeHHbIM
npuioXeHneM Android Auto.

6 Khonka Apple CarPlay

OTo6paKeHne 3KpaHa Apple CarPlay,ecnBKnUoyeHa
fYHKuAaAppleCarPlaynnoKluyeHiPhone6snn
cMaprfoh6oone no3dHeBepnn.

7 Haburaqua no haayabHomy kpaHy

8 Khonka"TeneoH

OTo6paKeHHe 3KpaHa MeHIO "TenefoH".
OTo6pa3ntcra 3KpaH "CnncOK yctpoiCTB",ecnn He
noKnIuoye HteFooH c FyHKUne "Cbo6oHbIe pyKn",
yctpoiCTBO Apple CarPlay nII Android Auto.

9 OKHO 3CKN3OB dna Tekyuero nCTOCHMa

OTo6paKaetcHMaNCTOChHnKa,06NoKKa N CBeHeHn O Ha3BaHn. KocHTecb N3o6paKeHn O6NoKKn DnA oTo6paKeHn 3KpaHa NCTOChHnKa.HaxMnte [II]DnB BocPOn3BedeHn/NpNOCTaHOBKn DOpOxKn HnBVDJeO.

PexKIM HaayalbHoro 3kpaHa MoXHO N3MeHHTb Ha peXIM "BbIeJIeHHb TeKT".

1 HaXMMTe KhONKy (HaTAAJIbHbI IN 3KPAH).

OTo6pa3nTc HauAJIbHbI 3KPAH.

2 KocHTecb [HactpoKa].

ÖkpoeTcŋ ឃkpən "Hactpoɪka".

3Kochntecb [Cnctema].

4 KocHTecb [Tn rnaBHoro 3KpaHa].

5 KocHTecb [HopMaIbHo] nII [BbIeJIeHHbI TeKCT].

Pa6ota c Apple CarPlay (onця)

CnCTema Apple CarPlay denaet 6oonee 300fektnbim n 6e3oNaChbIM npimeHene yctpoiCTBa iPhone b aTOMobnne. C nomoou Apple CarPlay BO BpeM BAxDHeNMAOHO Bb6paTb Heo6xoDmBle 3IemeHTb C yCTpoiCTBa iPhone n nepeDaTB nX HENOCPeIcTBeHHo Ha daHHoe yctpoiCTBO. MoKHO npOKnaDbIbA Tb Mapspyt, DeNaTb TeNefoHHbte 3BOHKn, NocblaTb n NOnyauTb COo6uEHN, a TAKKe CnyuTaMb My3bIKy n Pn ETOm OCTaBaTbcA cOcreDoToeHHbIM Ha dopore.

1 HaxmTe KhoNky (HauJIbHbI INKPAH).

OTo6pa3ntcHAAJIbHbI 3KPAH.

2 KocHTecb [Apple CarPlay].

OTo6pa3nTc3 ekpaH Apple CarPlay.

• Infpopmaua no ucnno3obauu no fynkuuu Apple CarPlay npedcmaeneha b pa3dene "Apple CarPlay" pykoobodcma nonb3obameia.

PykoBocToBO noJIb3ObaTeNa Android AutoTM (onu)

Android Auto™ (onця)

CnCTema Android Auto no3BONJET BODNTENI NOJb3OBAbCS CmblIM NOnyIaRbIMN fYHKUHMn CMaprTfoHa,
ObecneuBaB 6e3oNaChbI DocTyN K npINIOXeHnM HABnraCnM, MylbTmMeDnA n CpeIcTBam CBa3N BO BpEm
DBnKeHn I He OTBNeKAB BODNTeIa OT dopOrn. Obpatntecb K Google Ha Android AutoTM uynpaBnIte
PnpINOxeHnMn C NOMOsbIg rOLOCObIX KOMaHd, He OTBNeKaIcB OT dopOrn I He OTPbIBaR pyk OT pyJIeBOrO
KoneCa. Bbl MoKeTe 6e3 Tpyda OTnpabIaTb COo6UeHn, IpOKnaDbIbATb MapIpytB I HABnIraTope, ynpabIaTb
MylbTmEduHn CnCTeMoI MHORe dpyRo. PpocTo HaxMtTe I DOJIro ydePknBaIte KNOpKy rOLOcoBOrO
ynpabLeHnHa puJeBom Konece.

1 HaxmTe KhoNky (HbHbHbI 3KPAH).

OTo6pa3ntcHauAJIbHbI 3KPAH.

2 KocHTecb [Android Auto].

ОтобразИСТЯКран Android Auto.

• Infpopmau no ucnolb3obauho fyHKuu Android Auto npedcmaaeneha 6 pa3dene "Android Auto" pykoobocma no1b3obameia.

Функця"Радио"/RDS

BneuHui bud hekomopbix 3eMeHmOB, ucnonb3yEmbIX 6 "KpamKOM cnpabouHom pykoobodcmbe", moKem omnuambcR om peaibhix 3eMeHmOB ha ekpahe.

PykoBocBo nonb3oBaTeNa DAB/DAB+/DMB

Pa6oTa C DAB/DAB+/DMB

Bneunu bud hekomopbix 3nemehmo6, ucnonb3yembix b "KpamkOM cnpabouHOM pykoobodmee", moKem omnuambc on peanbix 3nemehmo6 na ekpane.

Pa6oTa c φπeš-нakоитelenm USB (onця)

Moxno Bocnpon3Bovntb ayinofaai (MP3/WMA/AAC/FLAC/WAV/APE) n Bndeofoai (MP4/MOV/FLV/MKV), 3aHcHbHe Ha fneuHaKoNteIe USB, Hb CTePoEHOM PHepe daHHoCNCTeMbI.

(Ecnn nctouhNk nntaHnA ACC HeoctyneH)

• Ecnu 6 abmomohe ycmanohen ucmouhuk numanua ACC, ycmanohume npuoobema ble dononhumenho nepekioamelb SPST (Single-Pole, Single-Throw) u npedoxpanumelb.
• Ioka3aHbIe bIue cxema noDknouenu u cuna moka npedoxpahume npuemehomc 6 cnyae uhdubuyalbucnoIb3oBaHua ycmpoicma.
• Ecnu nepeknioaemb bbood numanue (3aKuzaHue) ycmpoicmba Hanpmyo nodKnouen K noIOKumelbHomy (+) nonocy abmomoobnbHO2O aKKymnnapo, nompebnem Heobbuoi moK (heckoBko comeMuIuaamnp) daKe npu bblknoehuu nepeknouameJn numahua, u aKKymnnapo moKem pa3pndumbcra.

CoeHHen

CoeHHneHne 1

1 Bxodno pa3bemHDMI
BbIXOHOpa3bemHDMI
3 Pa3bem KAMEPA
4 Pa3bem aHTehHbI GNSS

PoiKJIIOUHTe aHTeHHy GNSS (npunaraetc).

5 BxoHoi pa3bem AUX

BxOД ayDnOscnHana AUX.

6 Pa3bem mCTOuHnka nHTaHn
⑦ Pa3bEM PRE OUT
8 Pa3bEM REM
Pa3bem aHTeHHbDAB

KaHTeHHe DAB (nPno6peaetc IOnIOJIHNTeIbHO).

10 Pa3bemahTeHHbI"PaHNO

11 AnteHHbI aanTep ISO/JASO (npno6peTaetcdoonHHTebHO)

B 3aBNCMOCTN OT aBTOMO6nna MoKeT nOTpe6oBaTbca aHTeHHb aanTepe ISO/JASO.

12 Bxodno pa3bem MIC

K MInkpofoHy (B KOMnJIeKeTe).

13 INHTepfeiChbI coeHHntB nI npKIOUeHn IHTbIX KHOJOK YHa pyne

K INTEPfeCy KHOPOK DyHa pyne.
IINyueHn DOONHHTeBHO INHOpMaun O
BO3MOXHOCTx NODKNIOUeHn O6paaeTeCb K
CBOEmy 6bnkaiWemy dInepy Alpine.

14 BbIOd HDMI-REM-OUT (kopnueBbI)

IIOKJIIOHTe 3TOT BbIOJ KO BXOy DuctaHcUNOHOro ynpabneHn HDMI ceneKTopa.

15 BbIOAUX-REM-OUT (cepbl)

IOnKIOHHTe 3OT BbBOJ KO BXOy DnCTaHUNOHORy npabHeHH yCtpoNCTBa AUX.

Pa3beMbI RCA ca6ByΦepa
KPACHbl-mpaBoro,BEnbl- nneBoro.
17 BbIXoHbIe pa3beMbI RCA φpoHTaJIbHbIX dHaMnKOB
Moryt nOJb3OBaTbC B KaueCTBe BbIXoHbIX pa3bEmOB RCA pOHTaJIbHbIX dINHAMKOB. KPACHbl -nnpaboro, BELbl -nna neBoro.
18 BbIXoHbIe pa3beMbI RCA tbIOBbIX dmHaMKOB
Moryt nCnoB3oBaTbC8 B KaucctBe 3aDnHx BbXOHBix pa3bEmOB RCA. KPACHbl - nn npaboro, EJIbl - nna neBOrO.
ISO-pa3bem(BbIXoHa dHaAMnKn)
20 BbIOaHa neBbI TbIOBOu DNHAMK (+) (3eHbI)
21 BbIOJ Ha neBbI TbIOBOI dHAMNK (-) (3eHbI/YepHbI)
22 BbIOHaJIeBbIΦpoHTaJIbHbIДnHaMUK（+） (6eJIbI)
23 BbIOd Ha IeBbI φpoHTaJIbHbI dINHaMnK (-) (6eNbI/YepHbI)
24 BbIOd Ha npaBbI φpoHTaBbHbI dHAmK (-) (cepbi/uepbbl)
25 BbIOHa npaBbIΦpoHTaHbI dHAmK（+） (cepbl)
26 BbIBoHa npaBbI TbIOBOI dHAMK (-) (moneTob/ephbl)
27 BbIOd Ha npaBbI TbIOBOI dHAmK (+) (fmonetobbl)
BbIBoD nCTaHIOHOHorO BKIOUeHnra (CNH/6JIbI)
IIOKIOHNTe 3OT BIBOD K BXOy ydaJIeHHORBKKIOUeyHnYcUNITeNnnnpouecoppa cnHAnOB.
29 BbIOd Ia KaMepbI 3aHrero Bua (opaHKeBbI/6enbl)
30 BbIBoN napKOBOHbI TOPMO3a (KENTbI/CnHN)
IopknIOUHTe 3OT BbIOJ K pa3bemy NITAHnnepeKnIOuATeJI npKOBOCHORo TOPMO3dI nepeDAcHcIHAnOB COCTOHHNn NapKOBOOHOrO TOPMO3aYCTPOINCTBY.
ISO-pa3bem MCTOCHNKA NITAHNA
32 BbIOJ npepbIbATEJI NITAHN (3aXnraHne) (KpachbI)

IopKIOUHTe 3OT BbBOD K OTKpBToN KJIEMMe 6JOKa IJIABKINX PpeOxpaHNTeNE ABTOMO6NJN INIK DpyrOMy CBO6OHOMy NCTOCHNY NITAHN, O6ecneuBAIOeMу 3aKnraHnC hAnpKaHeHm 12 B

(+) TOIbKO npn BkJIIOueHHOM 3aXJrHaHIN ININB DONONHHTeJIbHOM NOJOKeHHN.

33 BbIbO 3a3eMneHn (epHybI)

TuatelbHO 3a3eMMITE 3OT BbBOH Ha Maccy. y6eINTEcB TOM, UTO COEINHEHNE BbIOJIHeHO Ha ORoJIeHHo METaJIInueCKO NOBepxHOCTN HAdexHO 3aΦNKcnpoBaHO C NOMouI ppeIOCTABJIeHHOrO BnHTa DnI INCTOBORo MetaIIa.

34 BbIBoNnTahnAHTehHbI (CNHm)

PnKIOHTe 3OT BbBOK K KneMMe +B nHTAHn aHTEHbI (ecnn npmehmo).

3TOT BbBOD CnEpyET NcONb3OBaTB TOnbKO DnY npabHeHnN nHTaHnEM aHTeHHb. He nCnONb3yTe 3TOT BBOD dN BkNoUeHn yCnNTenr nnnpouecccopa CnHaIOB nT.D.

35 BbIO4 6atapen (xentby)

CnCTema LiBeTOBOCpON3BcEHHa NTSC/PAL

CnCTema nOcBETKINLED

FM-TIOHEP

Dnana3OHnactponKn87,5-108,O M

IoporOBaYyBCTBnTeBHOCTbOHHoKaHaJa

8.1 έBΦBΓ(0,7 MKB/75 OM)

Ioporobar yBCTBntenbHocb 50 dB 12dbΦBT(1,1MKB/75OM)

U36npaTeJIbHOCTaJIbTePHaTbHBOKaHaJa

80d

OTHOWEHNE CnHnAn/7yM 65D6

PepexoHoe 3aTyxahne Mekjy CtepeokHaHaAM

356

AM-TIOHEP

Dnanaoh NahtpOkn 531-1602K

Ioporobar yBCTBtEnbHocTh 25,1MKB/28 dΦMBT

DAB

IloporOBa yBCTbntbHOCTb-100dM

OTHOWeHHe CnHaI/7yM 90 d6

USB1

Tpe6oBaHnK USB USB 2.0

MaKcImaJIbHaNoTpe6nIeMaI MoUHOCTb

2400 mA

Knacc USB USB (Knacc Maccoboi namrtn)

KoIueCTBO KaHaNoB 2-KaHaIbHbI 3Byk (cTepeo)

YactoTHaXapakTepeCTnka*1 5-40000Tu(±1d5)

CymmaHbIKoOxOuINeHTrapMOHNueCKNXNCKaXeHH

0.005% (npn 1 kU)

HnHaMueeckm Dnana30H 95b (npn1KfU)

OTHOWEHNE CINHAN/7yM 95 D6

Pa3deneHne KaHaNoB 90n5 (npn1 KfU)

*1 TactoTHa XapaKTePncTnKa MoKeT OTnHaTbcB 3aBnCmOCTn OT IpoIpaMMHOrO O6ecHeueHn yCtpoNCTBa KOIMPOBaHN /CKOPcTN HepeJauH 6NTOB.

USB2

MaKcImaJIbHaNoTpe6nReMaMoUHocTb

1500 mA (noideprkka CDP)

Knacc USB TOnbko 3apraKa

HDMI

BxodnohΦopmat

720p/480p/VGA

BbIXoHNOHΦOpMaT

720p/480p

Bluetooth

TexHHueckme xapaKTepeNCTnKn Bluetooth

Bluetooth Bercnn 4.2 (2402-2480 Mf)

BbIXOHHaMOUHOCb+4,0D5M/2,51MBTcpeH

(KNaCCMOUHOCTN2)

PpOoHb

HFP (npoΦnIb raphNtypbl)

UyBCTBNTeBHOCTb npHEma (NONCK)

-136 AB MaKc.

Wi-Fi

Dnana3OHBYaCTOT

IEEE 802.11 b/g/n (2,4 ITU)

IEEE 802.11 a/n/ac (5 ITU)

KaHaJIbI

1-13 KaHaIaIOB (2,4TtU)

149-165 KaHaoB(5TtL)

HnnaT3OHyACTOT

2401-2483MΓu(2,4Γu)

5725-5850Mf（5Mf）

BbIXoHAR MOUHOCTb (2,4TfU)

MaKc.18bM

BbIXOHaHMAOHHOCtB(5TTL)

MaKc.13D5M(11a)

MaKc.12Bm(11n/ac)

Ppoedypbfoecepehen6e3oanachoctn

WPA3/WPA2-PSK (TKIP,AES)

OBSUE

Notpe6nma MOuHOCb

14.4B noctoHHoro HanpJxHn

（Donyckaetc11-16B）

BbIXoHnHa MoHnOCTb 50 Bt X4

MaKc. nontpeBneHne 3eKtpoHepn

YpOBeHb BbIXoHOra ayDIOcHnHa

PpeBapntbHbBbXoN (pepeHne,3aHne):

4B/10KOM(MaKC.)

PepBbapntbHbN BbXoJ (ca6byepe):

4 B/10 KOM (MaKc.)

Bec

1,4 Kr (iLX-705D)

2,3 Kr (iLX-F905D)

2,6 Kr (iLX-F115D)

1,7Kr (1905)

PA3MEP KOPNYCA

	iLX-705D	iLX-F905D	iLX-F115D	i905
ШирINA	178 MM	178 MM	178 MM	178 MM
Вы科协а	50 MM	50 MM	50 MM	50 MM
ПунбиHA	149,6 MM	149,6 MM	149,6 MM	142 MM

PA3MEP DUCNIIER

	iLX-705D	iLX-F905D	iLX-F115D	i905
Ширupsа	171 MM	232,5 MM	268,9 MM	214,7 MM
Выкова	96 MM	151,1 MM	178 MM	136,6 MM
Глобина	17,7 MM	54,7 MM	54,7 MM	29,9 MM

Cpok cnjxkb-3r0na.

• H3-3a HenpepbibH02o coBepuehCmbobAnu npodykma e2o mexHuueckue xapakmepucmu u du3aun Moey mU3menMbca 63 npedabapumelbH02o yBedomienu.
  IIaHeb LCD u3eomobena no cbepxmoohou mexhoouu. Kounuecmbo 0ffekemuubhx nuKceneu npebuaem 99,99% .Mo 03nauaem, umo cyuecmbyem bepoamnoctb 0,01% hauuur nuKceneu, komopbte bceda bkluenbu unu bceda bblkluenbI.
• Windows Media and Windows ABJIOCT TOBAPHbIMN 3HaKaMn INIIN 3apeINCTPnPObAHbIMN TOBAPHbIMN 3HaKaMn Microsoft Corporation B CUSA IN/ ININ DpyrNX CTpaHax.
• Apple, iPhone, iPod, Lightning and Siri Hebrew TobaPbIMN 3HaKaAMN KopnopaAMN Apple Inc., 3apernctpnpoBaHHbIMN B CUSA and pyrnx cTpaHax. Apple CarPlay ABnEeTcTobaPbIMN 3HaKOM KopnpaAMN Apple Inc.
• O6o3HaueHn Made for Apple n Works with Apple (Cobmectnmoctb c Apple) 03haaot, yTo daHHoe 3neKtpOHoe yCTPOINCTBO 6blno pa3pa6OtaHO CneuAIBHO dnn noNkIOUeHn K npOyKTam Apple, yKa3aHHbIM B o6o3HaueHn Made for Apple, n CneuAIBHO dnn pa6OtBI NO TEXHOIOrn, yKa3aHHoB BO6o3HaueHn Works with Apple, a TakKe 6blno ceTnФHnUPOBaHO pa3pa6OHTuKOM Ha COOTBeTCTBHe pa6OuNX xapaKTePncTNIcTaNapTy Apple. Kopnpauir Apple He Hecet OTBeTCTBeHHocTn 3a pa6Otu 3TO rO yCTPOINCTBa n 3a erO COOTBeTCTBne CTaHdApTaM TexHnKn 6e3OnaCHOCTn N HopMaTHNBHM akTAm. O6paNTte BHHMaHHe Ha To, yTo nCNoJIb3OBaHne DaHHoro yCTPOINCTBa C yCTPOINCTBOM Apple moKet NOBnraTb Ha pa6Otu 6ecnpoBOJHO CETn.
• Hanuhe Iorotuna Apple CarPlay 03hauaet, yTo nIb3OBateBckn INTEpfeic B aBTOMObnE OTBeuaET kCNlyataUHOHHbIM CTahdaptAm Apple. Kopnpaunr Apple He HecET OTBetCTBeHHoCTN 3a pa60Ty 3TO r ABTOMObNJn I 3a eRO COOTBETCTBne CTAHdaptAm TexHNI 6e3ONaCHOCTN I HopMaTINBHbIM AKTaM. ImeTe B BVNy, YTO NCIOB3OBaHne DaHHoro yCTpoiCTBa C iPhone MOxET NOBnIbTB Ha pa60Ty 6ecnpoBOJHO CB83N.
  Google,Android,Google Play n Android Auto abnnotc TOBapbIMn 3HaKaAMn Google LLC. UTo6bI uCNoB3OBaTb Android Auto Ha DnCnnee abTomO6nla, Bam noHao6ntc TelefoH Android noD ynpabHeHem Android 6.0 nn6one no3dneB cepnn, AKTNBBhI TapnphiHb I NaH n npInoxKeHne Android Auto.
• TepMinHbI HDMI n HDMI High-Definition Multimedia Interface n Ilorotn HDMI rBnIOTc TOBapHbIMn 3HaKamn nn 3apeRncTpnpoBaHHbIMn TOBapHbIMn 3HaKamn HDMI Licensing Administrator, Inc. B CoeINHeHHbx UtaTax n npynx cTpaHax.

CenahoTannanhe

CNoBeChbI 3HaK IIOrOtnbI Bluetooth® ABJIaOTc 3apeHnCTpnpoBaHHbIMN TOBapHbIMN 3HaKaAMN Kopnpaunn Bluetooth SIG, Inc. n cnoJb3yOTcR Kopnpauee ALPS ALPINE CO., LTD. no liuceH3nn.
- Ionotun Wi-Fi CERTIFIED™ ABnetaTc3apeHCTpnpoBaHHbIM TOBapHbIM 3HaKOM Wi-Fi Alliance®.
- LDAC n IorotnLDAC aBIAOTcTobapHbIMN 3HaKaAMN Sony Corporation.
- Пюдукс с takим лоротиnom COOTBetCTByet CTaHdapTy High-Resolution Audio, установлениму Japan Audio Society. Этот лоротин Истовьется по лисип ot Japan Audio Society.

CdenaHOnIiPhone SE (2-ro nokolneH),iPhone 11 Pro Max,iPhone 11 Pro,iPhone 11,iPhone XS Max,iPhone XS, iPhone XR,iPhone X,iPhone 8 Plus,iPhone 8,iPhone 7 Plus,iPhone 7,iPhone SE,iPhone 6s Plus,iPhone 6s.

OOO «KoMaHnBaBoHaH3a»

HhopmaunOcebpncbIX ceHTpax

DocTyHa Ha caIe www.alpine.ru

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, ALPS ALPINE EUROPE GmbH (https://www.alpine.de/) declares that the radio equipment type ILX-705D/ iLX-F905D/iLX-F115D/i905 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

http://www.alpine.com/e/research/doc/

Compliant with UNECE Regulation 10 (E-Mark)

Hereby, ALPS ALPINE EUROPE GmbH (https://www.alpine.co.uk/) declares that the radio equipment type ILX-705D/ iLX-F905D/iLX-F115D/i905 is in compliance with Radio Equipment Regulations 2017.

The full text of the declaration of conformity is available at the following internet address:

http://www.alpine.com/e/research/doc/

[EN] English	Hereby, ALPS ALPINE EUROPE GmbH declares that the radio equipment type ILX-705D/ iLX-F905D/ILX-F115D/i905 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.alpine.com/e/research/doc/
[BG] Bulgarian	С насточто ALPS ALPINE EUROPE GmbH декларира, чу тоши тин радиос воръжени ILX-705D/ILX-F905D/ILX-F115D/i905 в сбotingгост绛е с Диретима 2014/53/EC.ЦалостниотTekст на EC декларида за сбotingгост绛е може за симерни на следни.Intерnetадpres: http://www.alpine.com/e/research/doc/
[CZ] Czech	Timto ALPS ALPINE EUROPE GmbH prohlasuje, ze typ rádiového zařizení ILX-705D/ILX-F905D/ iLX-F115D/i905 je v souladu se směrnici 2014/53/EU. Üplné zněné EU prohlaseni o shodě je k dispozici na títo internetové adrese: http://www.alpine.com/e/research/doc/
[DA] Danish	Hermed erklærer ALPS ALPINE EUROPE GmbH, at radioudystyrstypen ILX-705D/ILX-F905D/ iLX-F115D/i905 er i overensstemmelse med direktiv 2014/53/EU. EU-overensstemmelseserklaeringens fulde tekst kan findes på følgende internetadresse: http://www.alpine.com/e/research/doc/
[DE] German	Hiermit erklärert ALPS ALPINE EUROPE GmbH, dass der Funkanlagentyp ILX-705D/ILX-F905D/ iLX-F115D/i905 der Richtlinie 2014/53/EU entspricht. Der vollständige Text der EU-Konformitätserkäußerung ist unter der folgenden Internetadresse verfügbar: http://www.alpine.com/e/research/doc/
[EL] Greek	Мέ την παρούσα o/η ALPS ALPINE EUROPE GmbH, δηλώνει ὄτι ο ραδιοεξοπλισμός ILX-705D/ iLX-F905D/ILX-F115D/i905 πληροί την σθηγία 2014/53/EE. To πλήρες κείμενο της δηλωσός συμμόρωσός EE διατιθεται στην ακόλουθη τοτο σελίδα στο διαδίκτού: http://www.alpine.com/e/research/doc/
[ES] Spanish	Por la presente, ALPS ALPINE EUROPE GmbH declara que el tipo de equipoaradioelectrico ILX-705D/ILX-F905D/ILX-F115D/i905 es conforme con la Directiva 2014/53/UE. El texto completo de la declaración UE de conformidad está disponible en la direction InternetoSigueiente: http://www.alpine.com/e/research/doc/
[ET] Estonian	Käesolevaga deklareerib ALPS ALPINE EUROPE GmbH et kääseslev raadioseadme tüpp ILX-705D/ILX-F905D/ILX-F115D/i905 vastab direktiivi 2014/53/EL nõuetele. ELi vastavusdeklaratsiooni täielik tekst on kättesaadav järgmisel internetiaadressil: http://www.alpine.com/e/research/doc/
[FI] Finnish	ALPS ALPINE EUROPE GmbH vakuuttaa,että radiolaitetyppi ILX-705D/ILX-F905D/ILX-F115D/ i905 on direktiivin 2014/53/EU mukainen. EU-vaatimustenmukaisuusvakuutuksen tãysimittainen teksti on saatavilla seuraavassa internetosoitteessa: http://www.alpine.com/e/research/doc/
[FR] French	Le soussigné, ALPS ALPINE EUROPE GmbH, déclare que l'équipmentment radioé lectrique du type ILX-705D/ILX-F905D/ILX-F115D/1905 est conforme à la directive 2014/53/UE. Le texte complèt de la déclaration UE de conformité est disponible à l'adresse internet suivante: http://www.alpine.com/e/research/doc/
[HR] Croatian	ALPS ALPINE EUROPE GmbH ovime izjavljube da je radijska oprema tipa ILX-705D/ILX-F905D/ILX-F115D/1905 u skladu s Direktivom 2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: http://www.alpine.com/e/research/doc/
[HU] Hungarian	ALPS ALPINE EUROPE GmbH igazolja, hogy a ILX-705D/ILX-F905D/ILX-F115D/1905 típusú radióberendezé s megfel et a 2014/53/EU irányelnek. Az EU-megfeleloségyi nyilatkozat teljes szövege elérhető a következő internetes címen: http://www.alpine.com/e/research/doc/
[IS] Icelandic	Hér, ALPS ALPINE EUROPE GmbH lýsjir yfir að radióbúnáður tegund ILX-705D/ILX-F905D/ILX-F115D/1905 er i samræmi við tilskipun 2014/53/ESB. The fullur texti af ESB-samræmisfyfirlésing er i boði á aftirfarandi veffangi: http://www.alpine.com/e/research/doc/
[IT] Italian	Il fabbricante, ALPS ALPINE EUROPE GmbH, dichiara che il tipo di apparecchiatura radio ILX-705D/ILX-F905D/ILX-F115D/1905 è conforme alla direttiva 2014/53/UE. Il testo completo della dichiarazione di conformità UE è disponibile al segunte indirizzo Internet: http://www.alpine.com/e/research/doc/
[LT] Lithuanian	Aš, ALPS ALPINE EUROPE GmbH, patvirtinu, kad radijo jrenginiu tipas ILX-705D/ILX-F905D/ILX-F115D/1905 atitinka Direktyvä 2014/53/ES. Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu: http://www.alpine.com/e/research/doc/
[LV] Latvian	Ar šo ALPS ALPINE EUROPE GmbH deklarek, ka radioiekárta ILX-705D/ILX-F905D/ILX-F115D/1905 atbilst Direktivai 2014/53/ES. Pilns ES atbilstibas deklaracijas teksts ir pieejams šādā interneta vietnē: http://www.alpine.com/e/research/doc/
[MT] Maltese	B'dan, ALPS ALPINE EUROPE GmbH, niddikjara li dan it-tip ta' taghmir tar-radju ILX-705D/ILX-F905D/ILX-F115D/1905 huwa konformi mad-Direttiva 2014/53/UE. It-test kollu tad-dikjarazzjoni ta' konformità tal-UE huwa disponibbli f'dan l-indirizz tal-Internet li gej: http://www.alpine.com/e/research/doc/
[NL] Dutch	Hierbij verklaar ik, ALPS ALPINE EUROPE GmbH, dat het type radioapparatuur ILX-705D/ILX-F905D/ILX-F115D/1905 conform is met Richtlijn 2014/53/EU. De volledige tekst van de EU-conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres: http://www.alpine.com/e/research/doc/
[NO] Norwegian	Herved ALPS ALPINE EUROPE GmbH erkräerer at radioutstyr type ILX-705D/ILX-F905D/ILX-F115D/1905 er i samsvar med direktiv 2014/53/EU. Den fullstendige teksten i EU-erklæring er tilgjengelig på følgende internettadresse: http://www.alpine.com/e/research/doc/
[PL] Polish	ALPS ALPINE EUROPE GmbH ninejszym oświadczna, ze typ urzadzenia radiowego ILX-705D/ILX-F905D/ILX-F115D/1905 jest zgodny z dyrektywą 2014/53/UE. Pełny tekst deklaracji zgodnosci UE jest dostepny pod następućnym adresem internetwym: http://www.alpine.com/e/research/doc/
[PT] Portuguese	O(a) abaixo assinado(a) ALPS ALPINE EUROPE GmbH declares que o presente tipo de equipamento de rádio ILX-705D/iLX-F905D/iLX-F115D/i905 está em conformidade com a Diretiva 2014/53/UE. O texto integral da declaração de conformidade está disponível no segunte endereço de Internet: http://www.alpine.com/e/research/doc/
[RO] Romanian	Prin prezenta, ALPS ALPINE EUROPE GmbH declaresça típul de echipamente radio ILX-705D/ iLX-F905D/iLX-F115D/i905 este în conformitate cu Diretiva 2014/53/UE. Textul integral al declarações UE de conformitate este disponible la următoarea adresă internet: http://www.alpine.com/e/research/doc/
[SK] Slovak	ALPS ALPINE EUROPE GmbH támto vyhlasuje,Že rádiové zariadenie typu ILX-705D/iLX-F905D/ iLX-F115D/i905 je v súlade so smernicou 2014/53/EÜ. Üplné EU vyhlásenie o zhode je k disposzícii na tejto internetovej adrese: http://www.alpine.com/e/research/doc/
[SL] Slovenian	ALPS ALPINE EUROPE GmbH potrjuje,da je tip radijske opreme ILX-705D/iLX-F905D/ iLX-F115D/i905 skladen z Direktivo 2014/53/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spljetnem naslovu: http://www.alpine.com/e/research/doc/
[SV] Swedish	Härmed fösakrar ALPS ALPINE EUROPE GmbH attenna typ av radioutrustning ILX-705D/ iLX-F905D/iLX-F115D/i905 överensstämmer med direktiv 2014/53/EU. Den fullständiga texten till EU-fösakran om överensstammelse finns på följande webbadress: http://www.alpine.com/e/research/doc/
[TR] Turkey	Işbu beyanca, ALPS ALPINE EUROPE GmbH radyo ekipmani tipinin ILX-705D/iLX-F905D/ iLX-F115D/i905, Directive 2014/53/EU yönergesine uyduğunu ilan eder. EU uyumluk ilanının tam metnine (Declaration of Conformity) aşağidaki internet adresinden ULAŞilabilir. http://www.alpine.com/e/research/doc/

ENGLISH

Information on Disposal of Old Electrical and Electronic Equipment and Battery (applicable for countries that have adopted spearate waste collection systems)

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment.

DEUTSCH

Auburn Hills, Michigan 48326, U.S.A.

Phone 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF AUSTRALIA PTY. LIMITED

161-165 Princes Highway,

Hallam Victoria 3803, Australia

Phone [phone]

ALPS ALPINE EUROPE GmbH

Ohmstrasse 4, 85716 Unterschleissheim, Germany

Phone: [phone]

For contact information on your respective country,

please visit www.alpine-europe.com.

ALPS ALPINE EUROPE GmbH

Aurora House, Deltic Avenue

Rooksley, Milton Keynes, MK13 8LW

United Kingdom

Phone: [phone]

The 9th Towers, Tower B, 24th Floor, Unit TNB01-03

33/4 Rama 9 road, Huay Kwang, Bangkok, 10310, Thailand

Phone [phone]

20-1 Yoshima Industrial park,

Iwaki, Fukushima, Japan 970-1192

Phone [phone]
