Product type	Children's climbing frame (climber)
Brand	Playtive
Model	IAN 369527
Intended use	Outdoor, private domestic use
Minimum age	12 months
Maximum user weight	50 kg
Maximum number of users	1
Category	Toy
Compliance	Directive 2009/48/EC on toy safety
Date of manufacture	04/2021
Contents of delivery	64 tubes, 5 angle connectors, 6 T-connectors, 15 3-way connectors, 8 4-way connectors, 2 cross connectors, 3 5-way connectors, 132 screws, 2 wrenches, 4 ground anchors, 1 assembly instruction, 1 user manual
Assembly type	Assembly by adult, screwing with wrench
Minimum safety distance	2 meters from obstacles
Recommended mounting surface	Grass or soft ground (avoid concrete, asphalt)
Maintenance	Clean with water, wipe with a soft cloth
Storage	Dry, clean place at room temperature
Warranty	3 years
After-sales service	Delta-Sport Handelskontor GmbH, Phone: [phone] (Switzerland)
Repairability	Spare parts available during warranty period
Number of pages in manual	44
Available languages	French, German, English, Italian
IAN code	369527
Included accessories	2 wrenches, 4 ground anchors

Frequently Asked Questions - IAN 369527 Playtive

How to secure the climbing frame to the ground?

Use the four provided ground anchors (10). Secure the article on all four sides as shown in the assembly instructions (fig. A and D). Make sure the ground is suitable (grass or soft ground).

What is the minimum age and maximum weight to use this product?

The minimum age is 12 months and the maximum user weight is 50 kg. Only one child at a time can use the frame.

Can I install the frame on concrete or asphalt?

No, it is not recommended to install the article on concrete, asphalt or other hard surfaces. Prefer soft ground like grass to ensure stability and safety.

How to maintain and clean the climbing frame?

Clean the article only with water and wipe it with a cleaning cloth. Never use aggressive cleaning products. Store it in a dry, clean place when not in use.

Can I add extensions like a slide or swing?

No, adding additional elements (slides, platforms, etc.) is prohibited. Use only the provided parts for assembly according to the variants shown in the instructions.

How to disassemble the frame?

First remove the ground anchors (10). Use the wrench (9) to remove the screws (8) by turning them a quarter turn counterclockwise. Then disassemble all connectors (1-6) and tubes (7).

What to do if a part is missing or damaged?

Contact the after-sales service of Delta-Sport Handelskontor GmbH. For Switzerland, call 0842 665566 (0.08 CHF/min) or send an email to [e-mail]. Spare parts are available during the warranty period.

What is the warranty period?

The article comes with a 3-year warranty from the date of purchase, covering material and manufacturing defects. Keep the original receipt.

Can I leave the frame outside all year?

It is recommended to disassemble the article if you do not use it for an extended period. Store it in a dry, clean place at room temperature to avoid weather-related wear.

How many children can use the frame at the same time?

Only one child at a time (maximum number of users: 1). The frame is designed for individual use to ensure safety.

USER MANUAL IAN 369527 Playtive

3D model of a modular lattice structure made of gray rods (no text or symbols)

PDF ONLINE www.lidl-service.com

KINDERKLETTERGERÜST

DE AT CH

KINDERKLETTERGERÜST

Gebrauchsanweisung

IT CH

STRUTTURA PER ARRAMPICARSI PER BAMBINI

Istruzioni d'uso

FR CH

STRUCTURE D'ESCALADE POUR ENFANT

Instructions for use

CE

IAN 369527_2010

A 5x 1 6x 2 15x 3 64x 7 8x3x4 2x 5 6 132x 8 2x 9 4x 10

B 7 7

C 8 7 9 90°

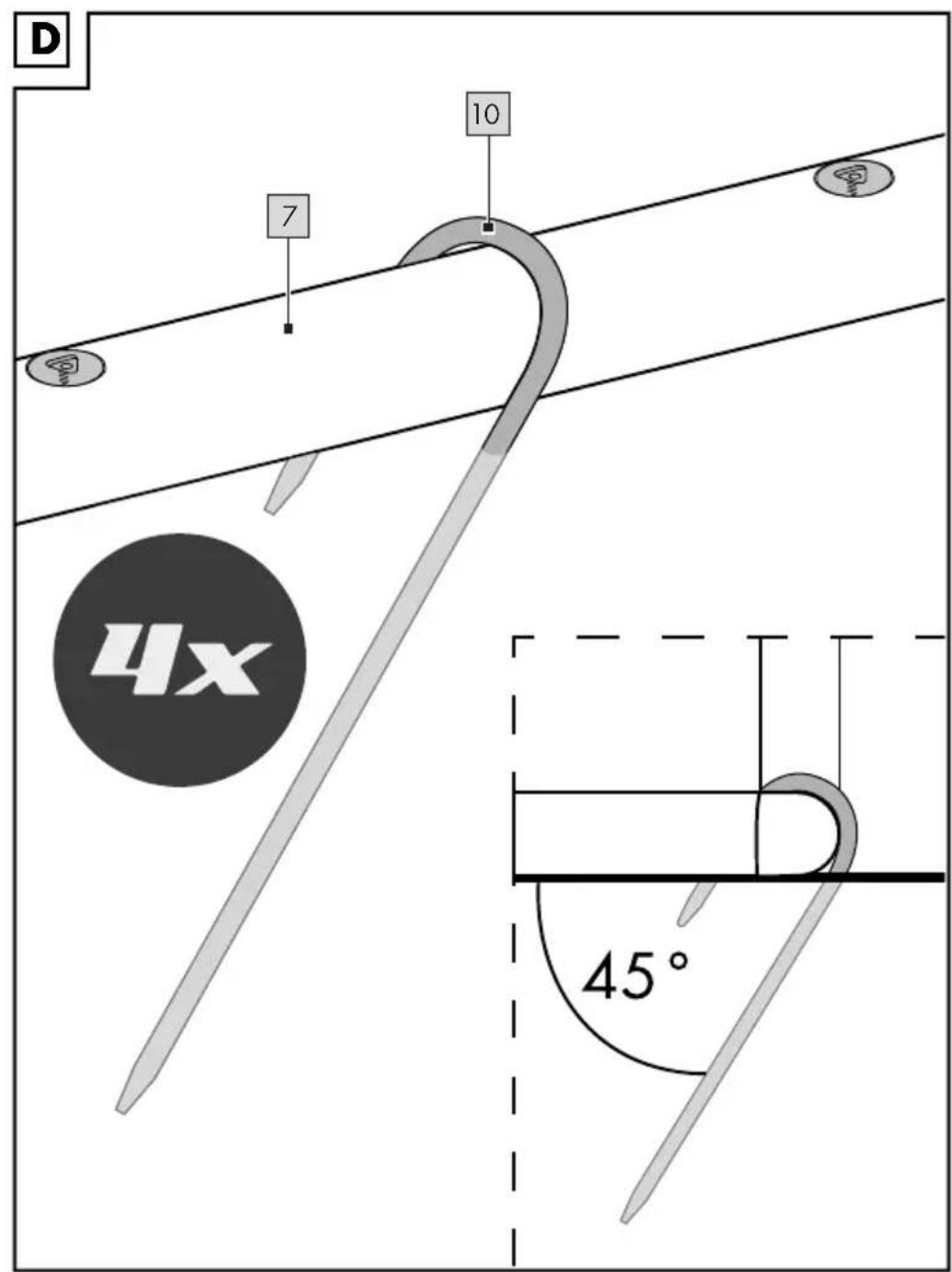

D 7 10 4x 45°

Illustration of a blue modular structure made of blocks on a sandy field, with green hills and trees in the background (no text or symbols)

BG

ДЕТСКА КАТЕРУШКА

Assembly instructions

LV

KAPELEŠANAS SASTATNES BĚRNIEM

Salikšanas pamācība

DK

KLATRESTATIV TIL B∅RN

Fasten the product to the ground with one ground anchor (10) on each of the four sides (Fig. A).

GR CY

ΠΡΟΕΙΔΟΠΟΙΗΣΗ!

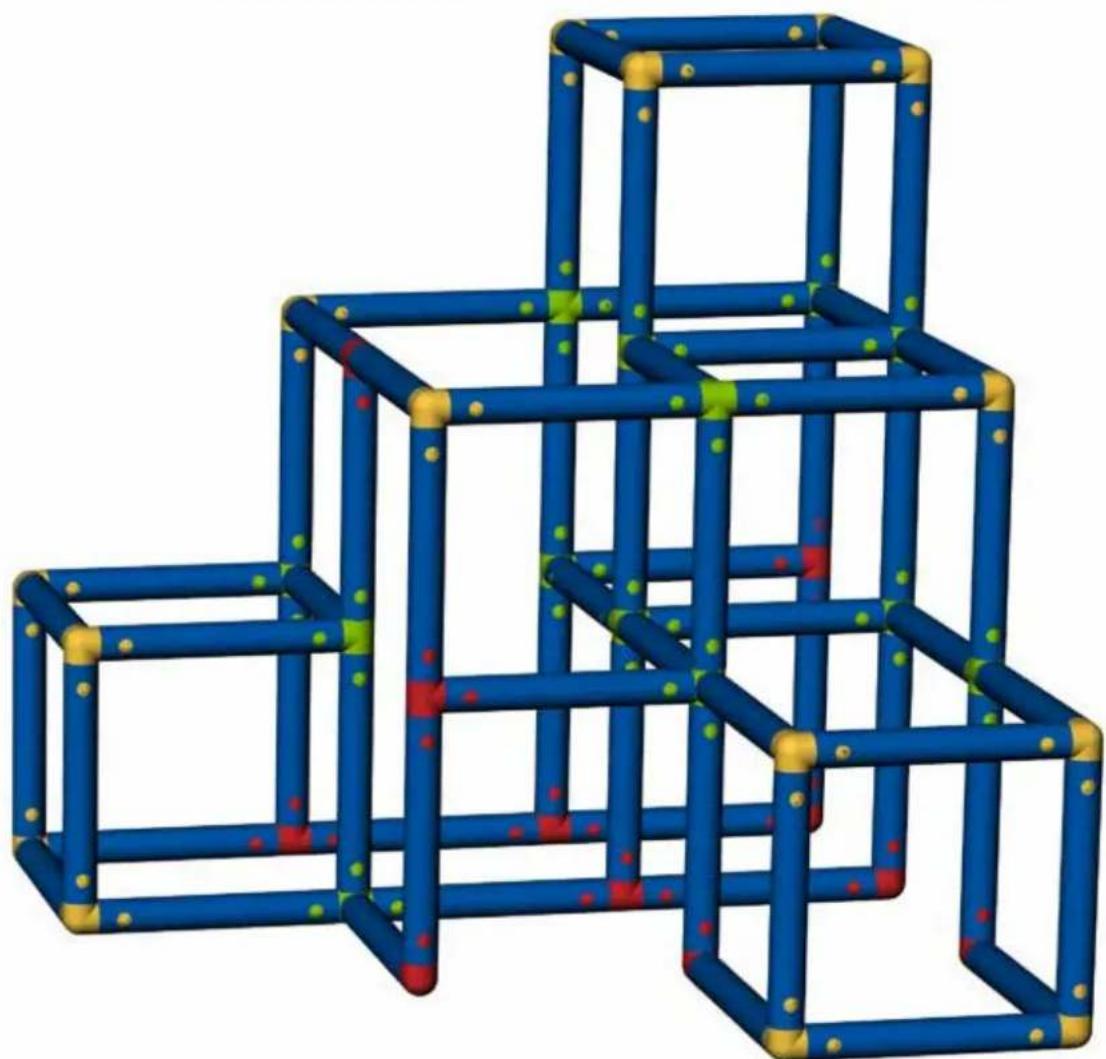

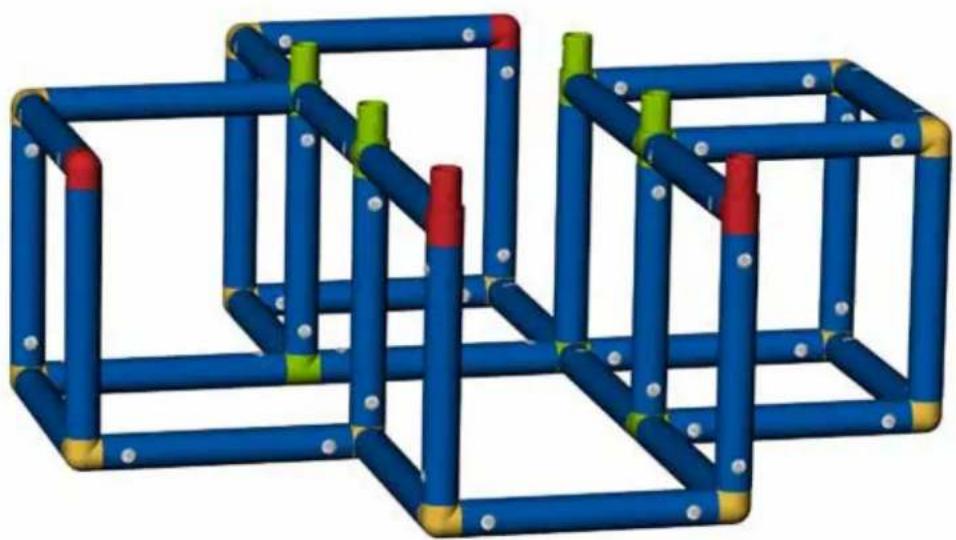

3D model of a modular lattice structure made of blue rods with colored nodes, no text or symbols present

5x

6x

15x

Yellow abstract Y-shaped geometric shape on white background (no text or symbols)

8x

Three green abstract geometric shapes arranged in a cross pattern (no text or symbols)

64x

Solid blue rectangular shape with two small circles on the top (no text or symbols)

2x

3x

Green three-petal flower-like shape with no text or symbols

1

3D rendering of blue and red pipes with yellow connectors, no text or symbols present

2

3D diagram of a modular structure made of blue rods with yellow connectors and red dots, no text or symbols present.

3

3D diagram of a modular lattice structure with blue and yellow rods, featuring red and green dots indicating points or defects (no text or symbols)

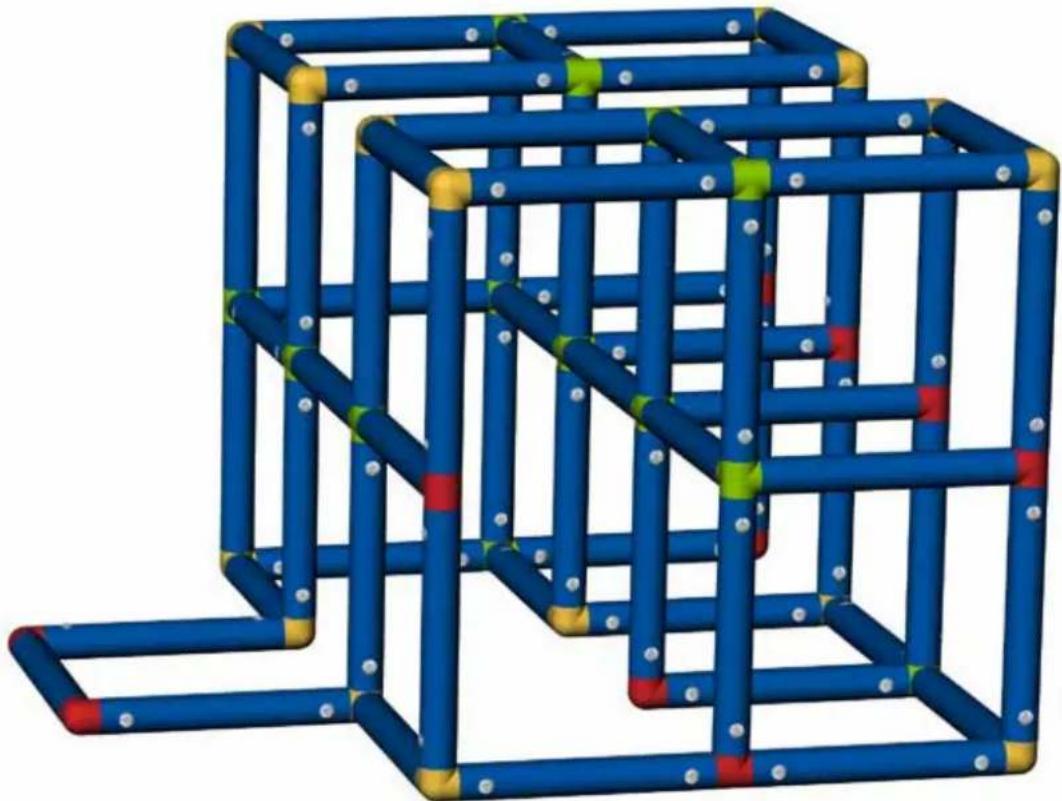

4

3D model of a modular structure made of blue rods with yellow connectors and red dots, no text or symbols present.

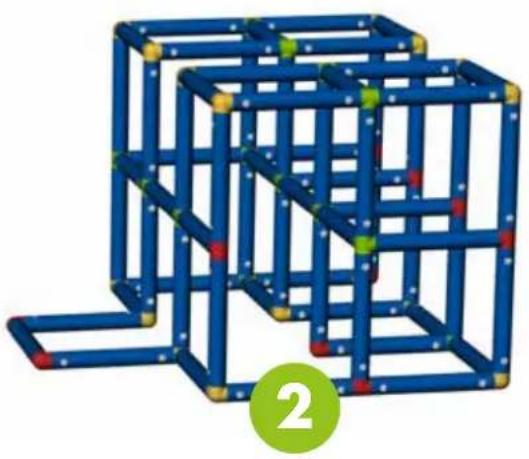

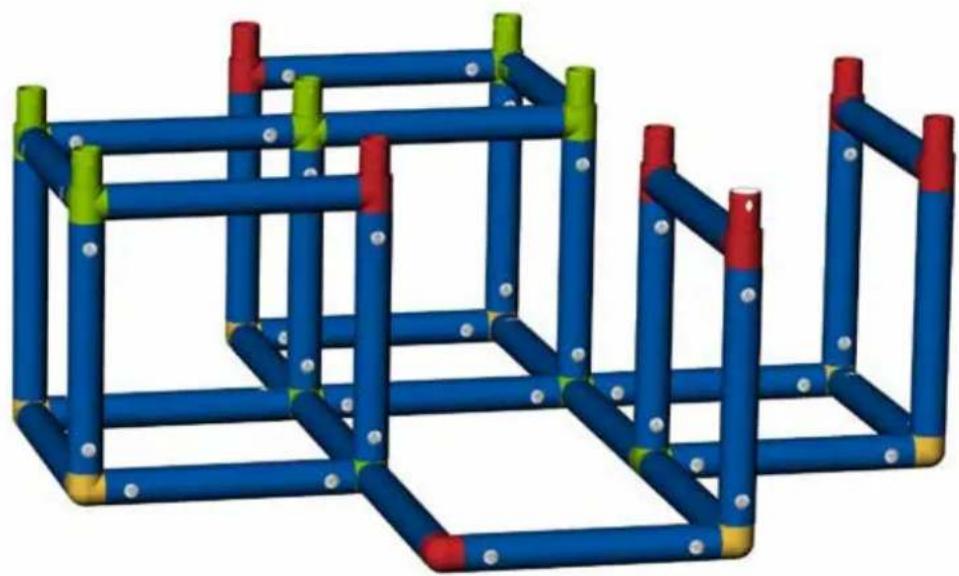

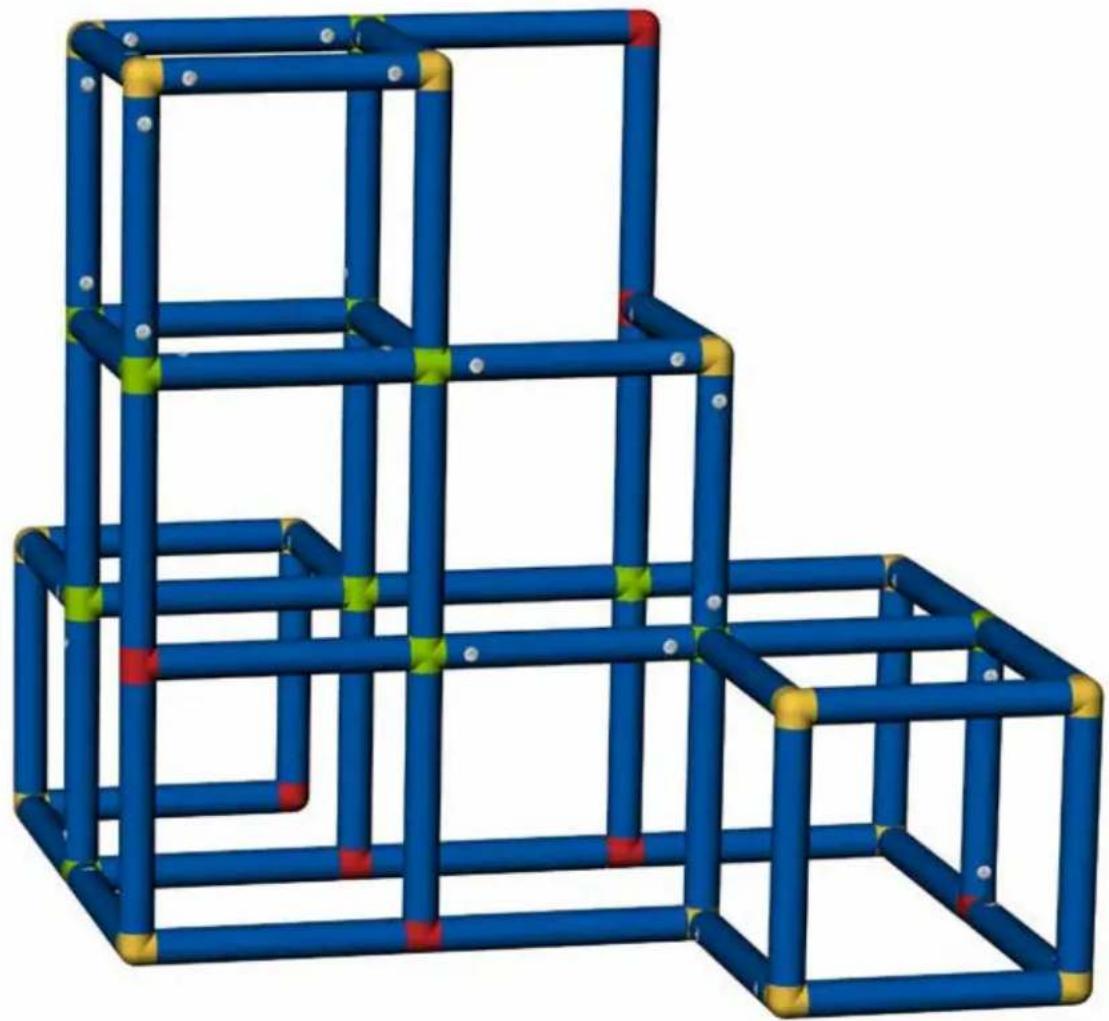

3D wireframe model of a modular lattice structure with blue and yellow components, no text or symbols present

4x (-1)

6x

15x

Yellow abstract Y-shaped geometric shape on white background (no text or symbols)

8x

Three green abstract geometric shapes arranged in a Y-shape (no text or symbols)

63x (-1)

Solid blue rounded rectangle with two small circles in the top-left corner (no text or symbols)

2x

3x

Green three-petal flower-like shape with no text or symbols

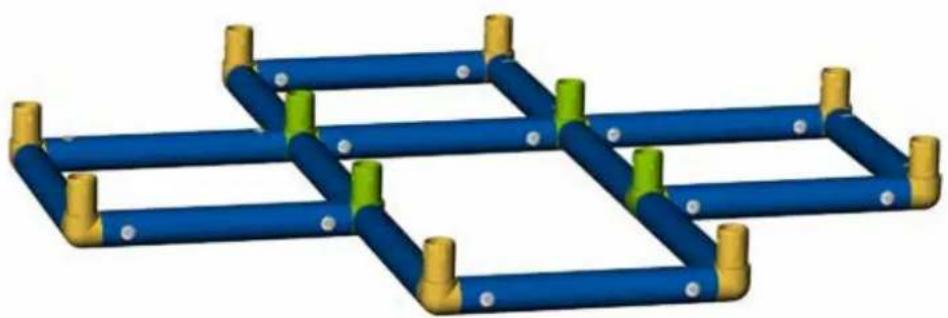

1

3D diagram of a multi-layered mechanical structure with blue, yellow, and red components (no text or symbols)

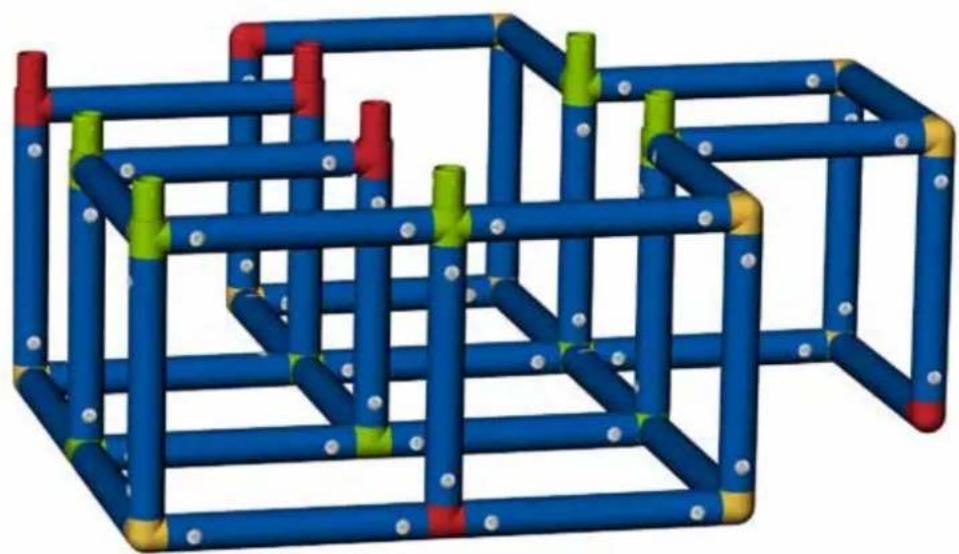

2

3D diagram of a modular structure made of blue and red pipes with green connectors (no text or symbols)

3

3D structural model of a blue lattice framework with red and green components, no text or symbols visible

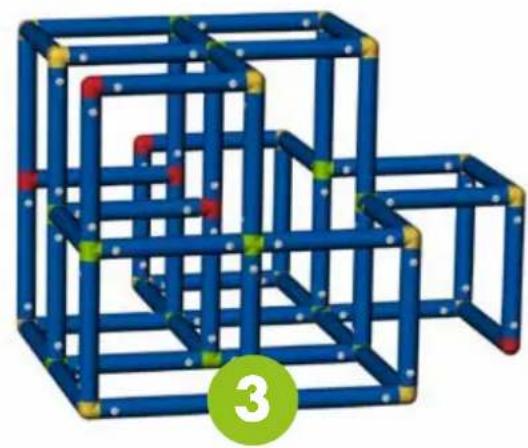

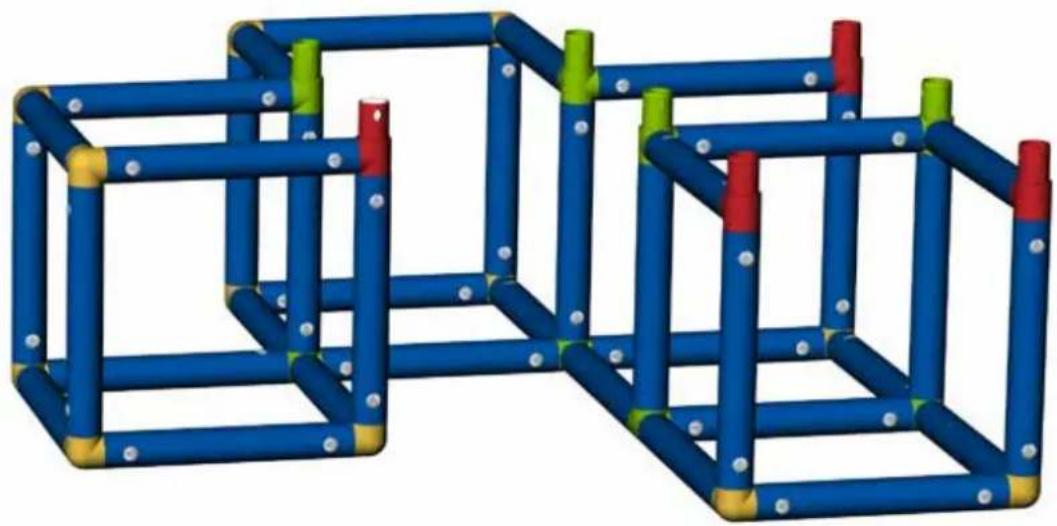

3D diagram of a blue lattice structure with colored nodes and a green circle labeled '3' (no text or symbols on the structure itself)

3x4x (-2)

(-2)

15x

Yellow abstract Y-shaped geometric shape on white background (no text or symbols)

8x

Three green abstract geometric shapes resembling a stylized 'X' or similar T-shape (no text or symbols)

57x (-7)

Solid blue rounded rectangle with two small circles in the top-left corner (no text or symbols)

1x (-1)

3x

Green abstract geometric shape resembling a three-leaf clover or cross (no text or symbols)

1

3D diagram of a multi-lane road structure with blue, green, and red pipes (no text or symbols)

2

3D structural model of a multi-layered framework with blue, green, and red components (no text or symbols)

3

3D structural model of a modular lattice framework with blue and yellow rods, no text or symbols present

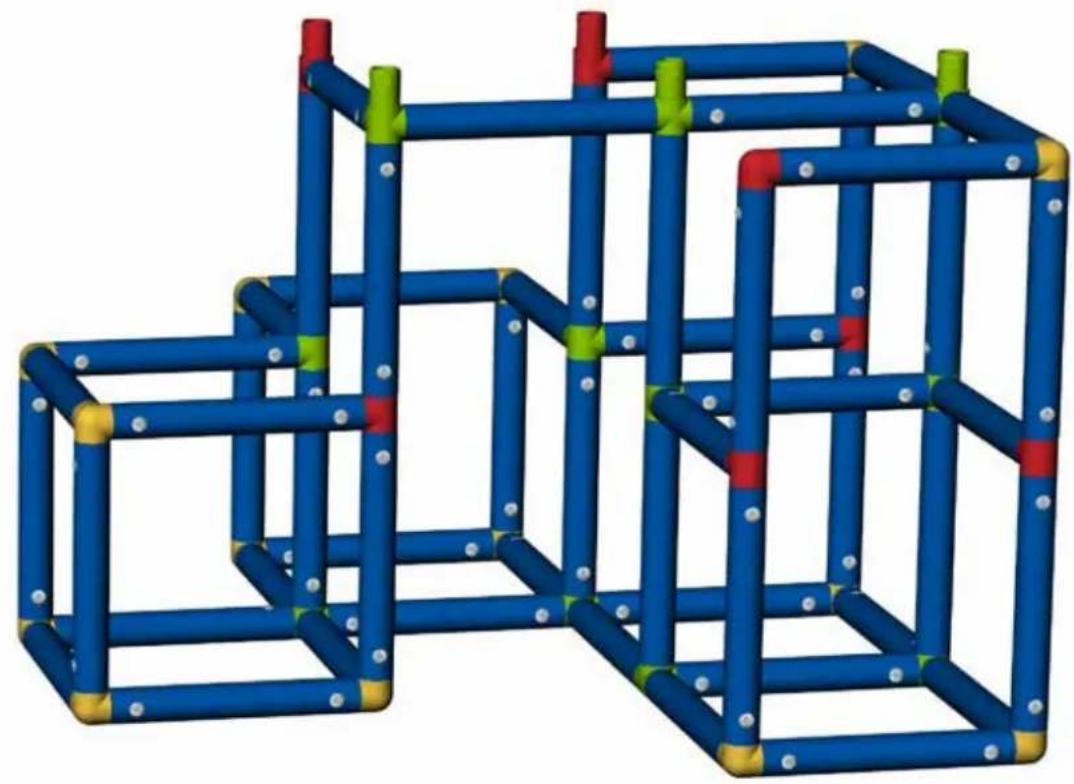

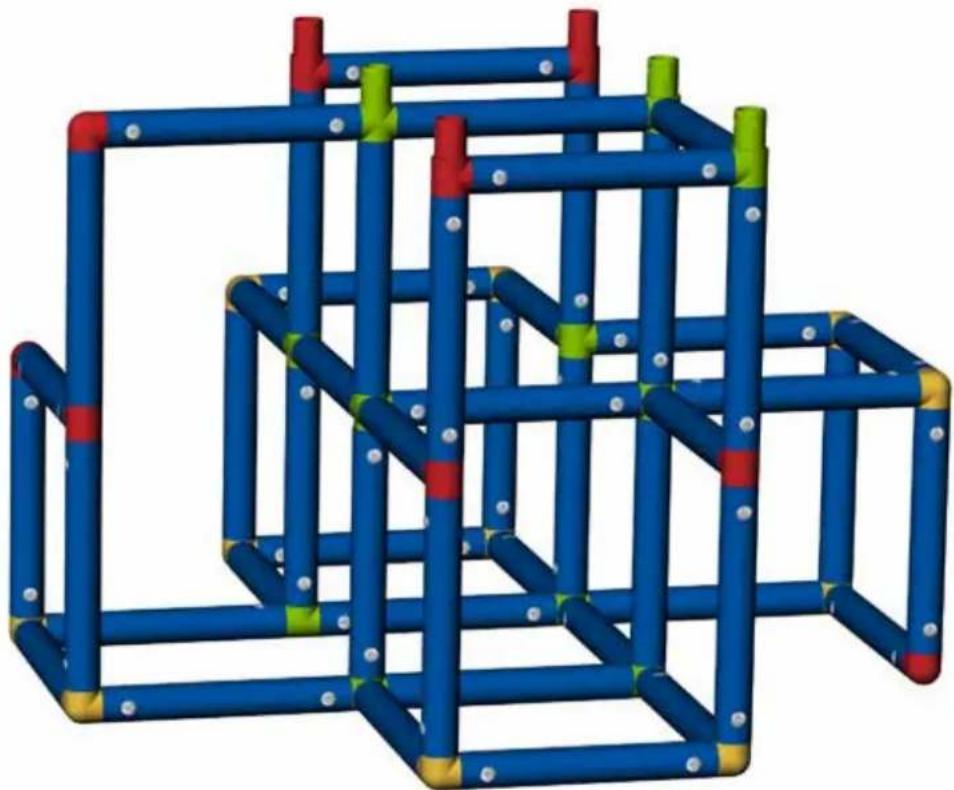

3D structural model of a modular lattice framework with blue and red components, no text or symbols present

4x6x (-1)

15x

Yellow three-leaf clover-shaped graphic (no text or symbols)

8x

Three green abstract geometric shapes resembling a stylized 'X' or similar puzzle (no text or symbols)

63x (-1)

2x

3x

Green three-petal flower-like shape with no text or symbols

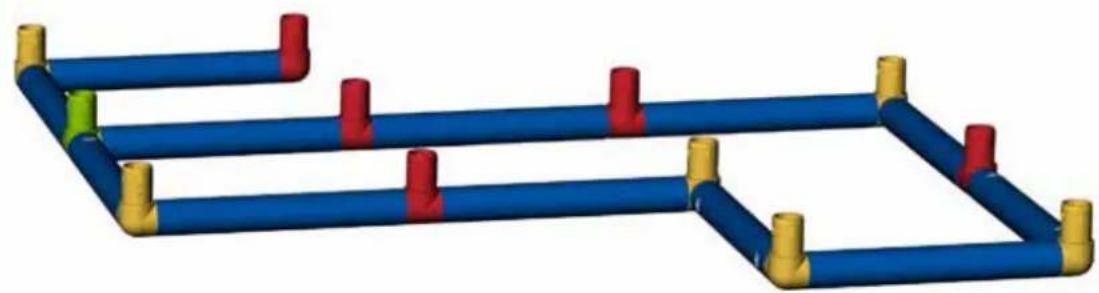

1

3D diagram of a blue and green mechanical structure with yellow cylindrical elements, no text or symbols present

2

3D diagram of a modular structure made of blue rods with red and green connectors, no text or symbols present.

3

3D structural model of a modular lattice framework with blue rods, green connectors, and red/red markers (no text or symbols)

4

3D structural model of a multi-story building made of blue pipes with yellow and red components (no text or symbols)

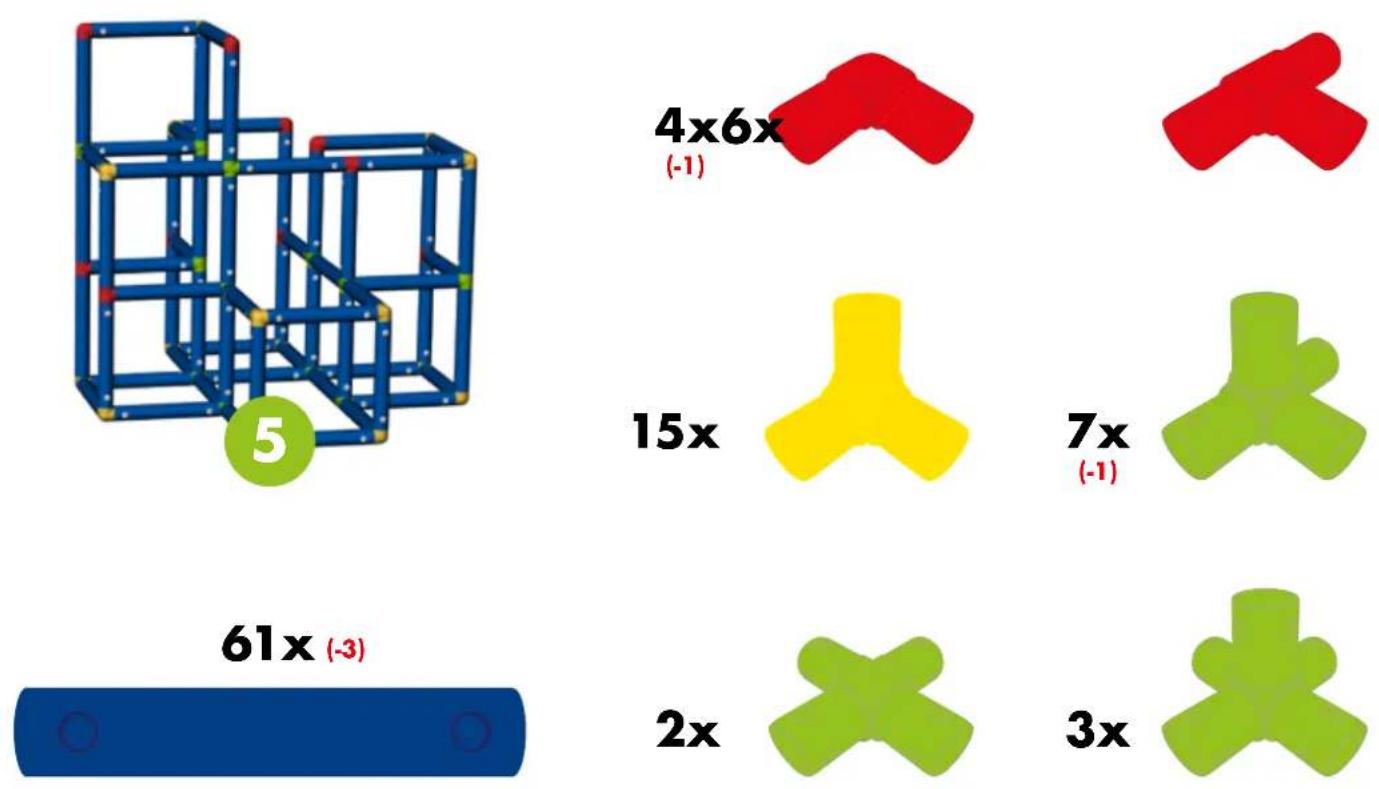

15x

7x (-1)

61x (-3)

2x

3x

1

3D diagram of a blue and yellow pipe structure with green connectors (no text or symbols)

2

3D model of a modular structure made of blue pipes with yellow connectors and red/green components (no text or symbols)

3

3D structural model of a modular lattice framework with blue and yellow rods, no text or symbols visible

4

3D structural model of a blue framework with yellow connectors and white spherical elements (no text or symbols)

15x

8x

1x (-1)

3x

1

3D rendering of a blue and yellow mechanical structure with green cylindrical elements (no text or symbols)

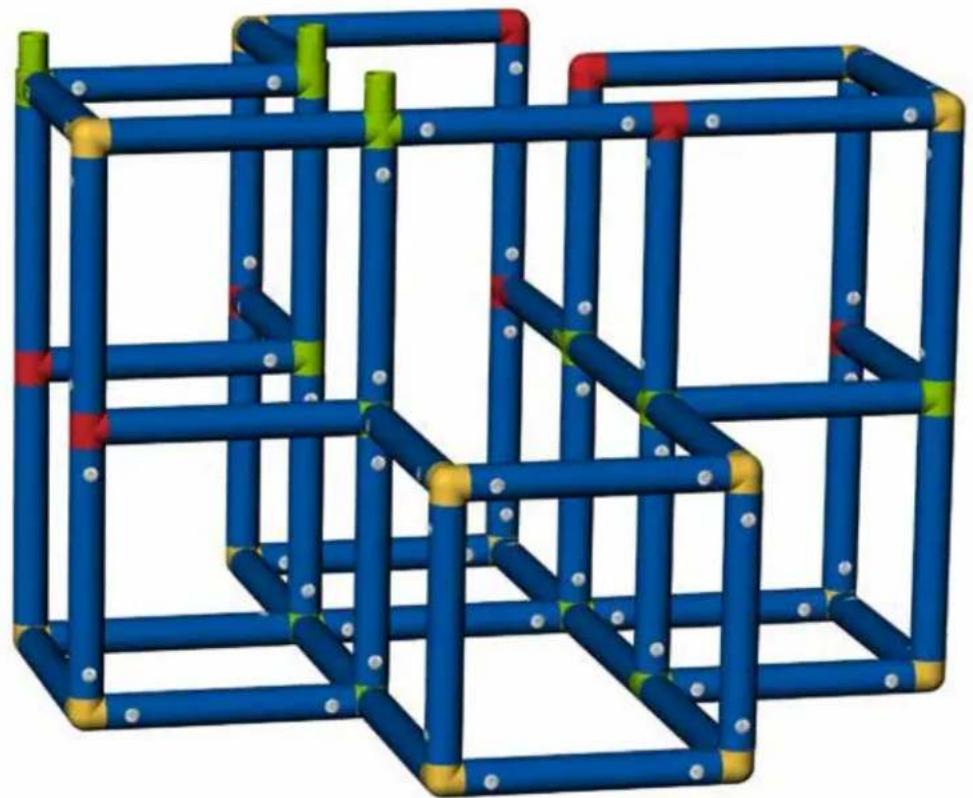

2

3D rendering of a blue and yellow structural framework with red and green components (no text or symbols)

3

3D structural model of a modular framework made of blue rods with yellow connectors and red/green markers (no text or symbols)

4

3D structural model of a multi-story building made of blue rods with green and red markers (no text or symbols)

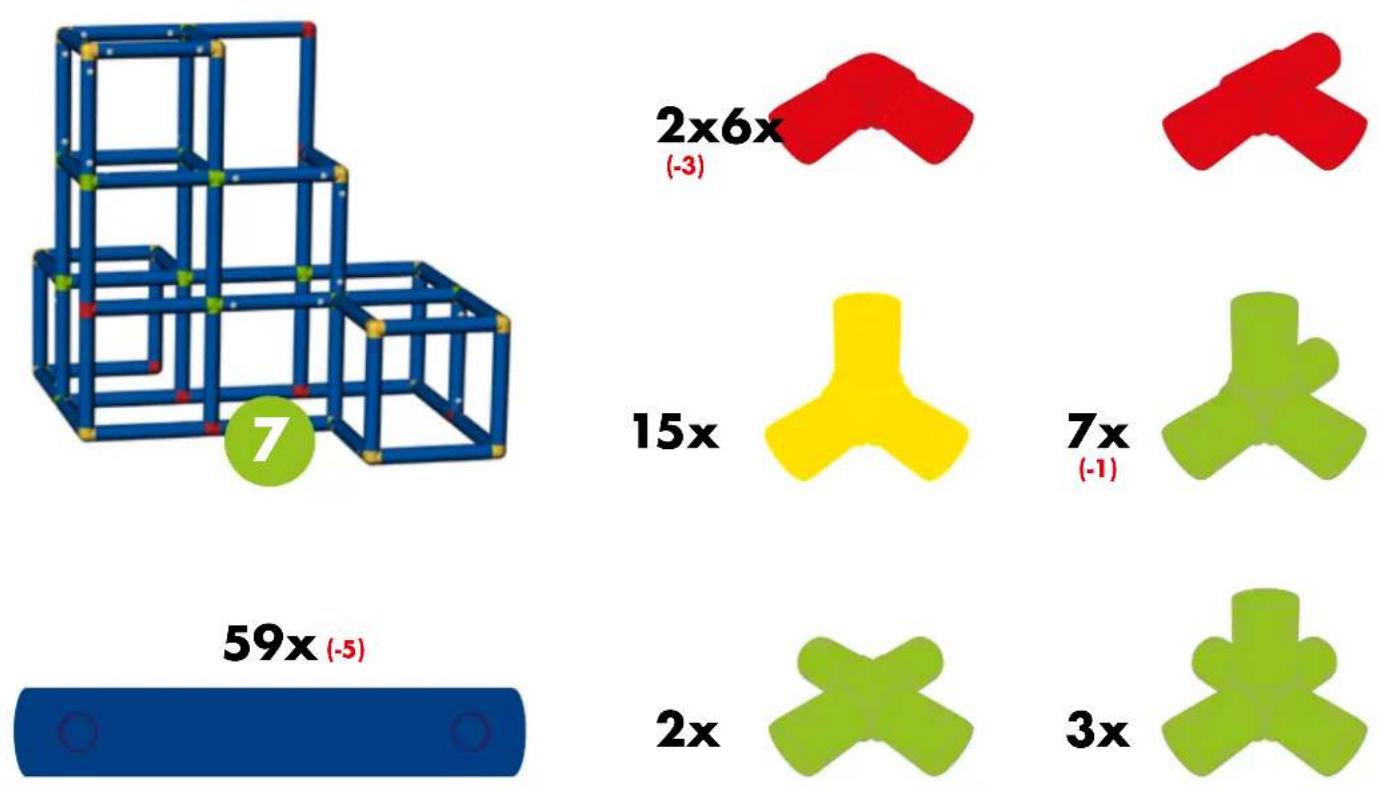

15x

7x (-1)

59x (-5)

2x

3x

1

3D diagram of a blue and yellow pipe structure with red cylindrical components, no text or symbols present

2

3D diagram of a modular structure made of blue pipes with yellow connectors and red markers (no text or symbols)

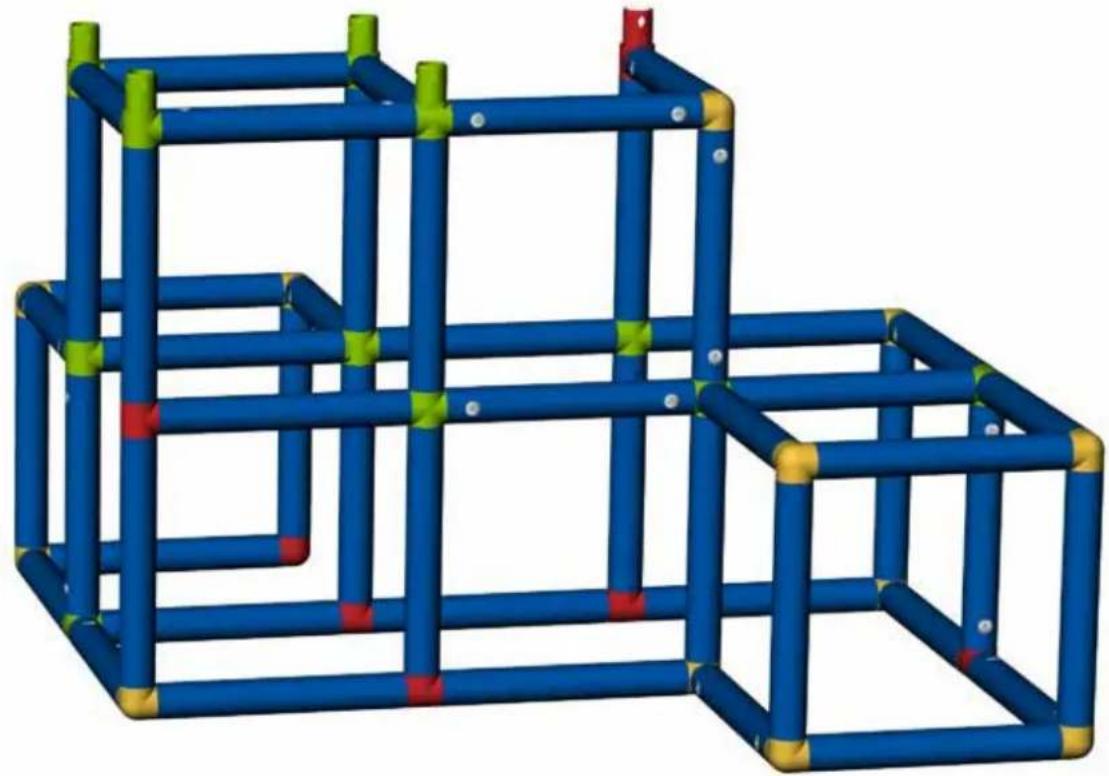

3

3D model of a modular structure made of blue pipes with green and yellow connectors, no text or symbols present

4

3D model of a blue and yellow modular structure made of rods, no text or symbols present

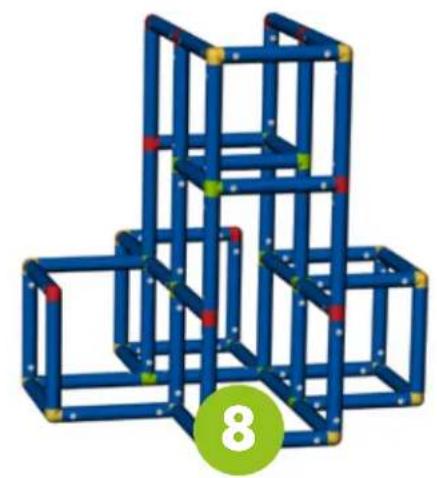

3D model of a modular lattice structure made of blue rods with yellow connectors, featuring a green circular badge labeled '8' (no text or symbols on the structure itself)

4x6x (-1)

15x

Yellow three-leaf clover-shaped graphic (no text or symbols)

7x (-1)

Three green abstract geometric shapes arranged in a cross pattern (no text or symbols)

59x (-5)

Solid blue rounded rectangle with two small circles in the top-left corner (no text or symbols)

1x (-1)

3x

Three green abstract geometric shapes arranged in a cross pattern (no text or symbols)

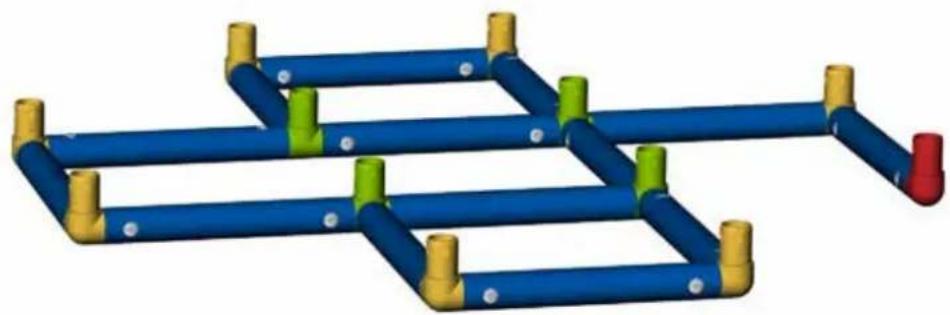

1

3D diagram of a blue and yellow pipe structure with green connectors (no text or symbols)

2

3D diagram of interconnected blue and yellow pipes with red and green segments (no text or symbols)

3

3D model of a modular structure made of blue pipes with red and green segments, no text or symbols present

4

3D structural model of a multi-story building made of blue pipes with yellow accents, no text or symbols visible

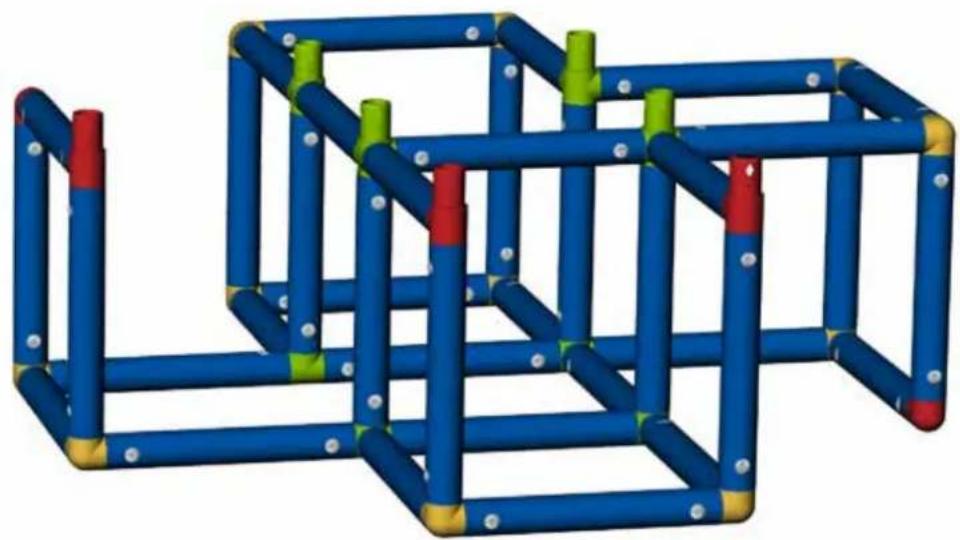

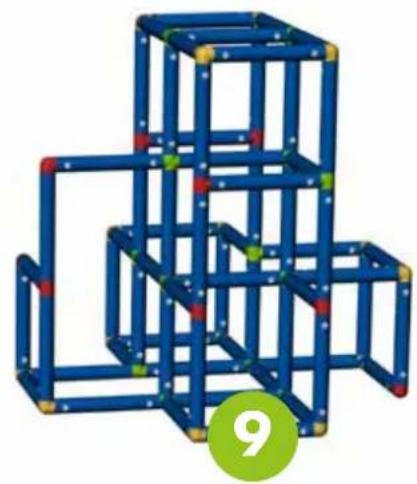

3D model of a blue modular lattice structure with red and yellow connectors, marked with a green circle containing the number 9 (no text or symbols on the structure itself)

3x6x (-2)

15x

Yellow abstract Y-shaped geometric shape on white background (no text or symbols)

8x

Abstract green three-petal shape on white background (no text or symbols)

62x (-2)

2x

3x

Green three-petal flower-like shape with no text or symbols

1

3D diagram of a multi-lane road structure with blue, yellow, and green pipes and a red terminal block (no text or symbols)

2

3D diagram of a modular structure made of blue rods with red and green segments, no text or symbols present

3

3D structural model of a modular framework made of blue pipes with red and green components, no text or symbols visible

4

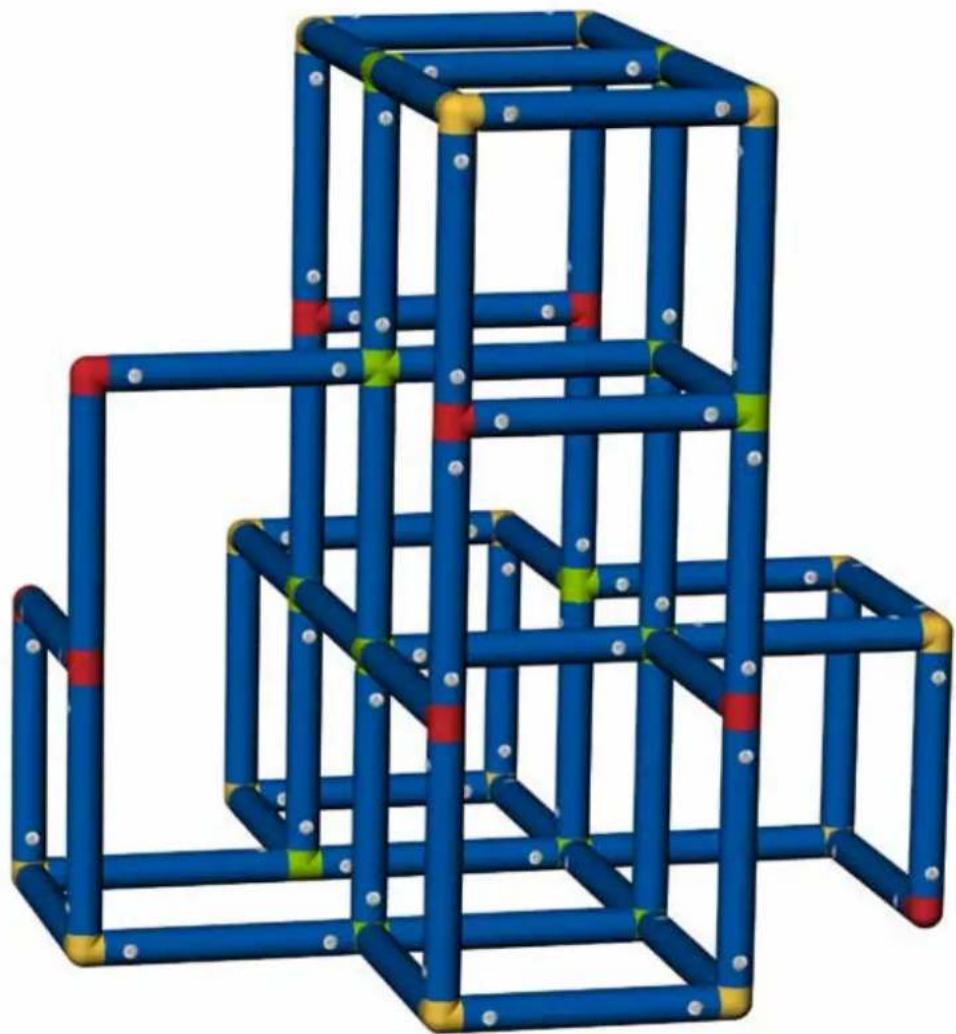

3D structural model of a multi-story building made of blue pipes with yellow accents, no visible text or symbols

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6 • DE-22397 Hamburg

GERMANY

04/2021

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Package contents (Fig. A)

5 x elbow connector (1)
6 x T-connector (2)
15 x 3-way connector (3)
8 x 4-way connector (4)
2 x cross connector (5)
3 x 5-way connector (6)
64 x tube (7)

132 x screw (8)

2 x key (9)

4 x ground anchor (10)

1 x assembly instructions

1 x instructions for use

Technical data

Max. user weight: 50kg

Date of manufacture (month/year): 04/2021

For outdoor use only

Delta-Sport Handelskontor GmbH hereby declares that this product meets the following basic

requirements, as well as other important regulations:

2009/48/EC - Toy Safety Directive

Intended use

This product is a toy for children 12 months of age and older, for private outdoor use only. The product must not be used in public places such as playgrounds, schools, etc.

Safety information

Important: read these instructions for use carefully and keep them in a safe place!

• Due to small parts, the product must be assembled by an adult.
  The product and all of its components must be fully assembled before being given to a child.
  • Children may only play with the product under adult supervision.
• Warning. None of the packaging or fastening materials are part of the toy itself and must be removed for safety reasons before the product is given to children to play with.
• Warning. Only for domestic use.

Risk of injury!

• Warning. Minimum user age: 12 months!
• Warning. Maximum user weight: 50kg!
• Warning.Max. number of users: 1 person!
• The product may only be used by one person at a time.
• Be aware that the product can heat up in intense sunlight.
• Ensure there is enough space between the product and objects and other people so that no one can get injured.

Preventing damage and injury!

• The product must be assembled by an adult.
• Only assemble the product according to one of the variants in the assembly instructions provided separately. Only then can optimal stability be ensured. The product must not be placed on a different side.
• Keep the instructions for use and the assembly instructions in a safe place for future reference.
• Only the components provided with the product may be used during assembly. Any expansion or addition with other elements, platforms, slides, etc., is prohibited.
• Do not assemble the product near stairs or landings.
• Do not assemble the product on concrete, asphalt or other hard surfaces.

• Ensure there are no sharp-edged or hard objects in the usage area.

• The product should be a suitably safe distance of at least 2m away from buildings, stairs, fences, walls, water, overhanging branches, washing lines, electrical wires and other obstacles.
  • After assembly, the stability of the product must be checked by an adult.

• No technical alterations may be made to the product.
• Dismantle the product when it is no longer in use.

Dangers due to wear and tear!

• Protect the product from extreme temperatures, sun and moisture.
  Improper storage and use of the product could lead to premature wear and tear, which could result in injuries.
• Regularly inspect the product and all screw connections.
  The product can become a hazard if it is not regularly inspected for safety.
• Check the product for damage or wear before each use. Only use the product if it is in perfect condition!

Assembly

This product must always be assembled by an adult.

The separate assembly instructions contain steps for a suitable structure. You can make various structures with the images provided. Only assemble the product according to one of the variants in the assembly instructions provided separately. Only then can optimal stability be ensured. The product must not be placed on a different side. However, make sure to assemble the product as follows:

1. Place each end of the tube (7) onto a connector (1-6) of your choosing (Fig. B).

Note: make sure that the small opening in the tube is exactly over the recess of the connector. Take care not to pinch your fingers when connecting them.

1. Insert one screw (8) into each of the overlapping openings on the connectors and tubes.

2. Insert the key (9) into the screw and make one quarter of a rotation clockwise (Fig. C).

3. Fasten the product to the ground with one ground anchor (10) on each of the four sides (Fig. D).

Dismantling

Dismantle the product if you do not wish to use it for an extended period of time. To do this, follow the steps below:

1. Remove the anchors (10) from the ground.
2. Loosen the screws (8) with the spanner (9) by rotating the screws one quarter of a rotation anti-clockwise.
3. Disconnect all connectors (1-6) and tubes (7).

Storage, cleaning

When not in use, always store the product clean and dry at room temperature.

Clean only with water and wipe dry afterwards with a cloth.

IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol

- which is meant to reflect the recycling cycle - and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions.

The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances.

Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt. The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts.

If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice.

Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.

IAN: 369527_2010

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6 • DE-22397 Hamburg GERMANY

04/2021
