USER MANUAL HENERGY 700 HE720PET 011 HOOVER

*Certain Models Onl y **May vary according to models PRINTED IN P.R.C.

*Certain Models Only **May vary according to models *Certain Models Only **May vary according to models H60 HOOVER

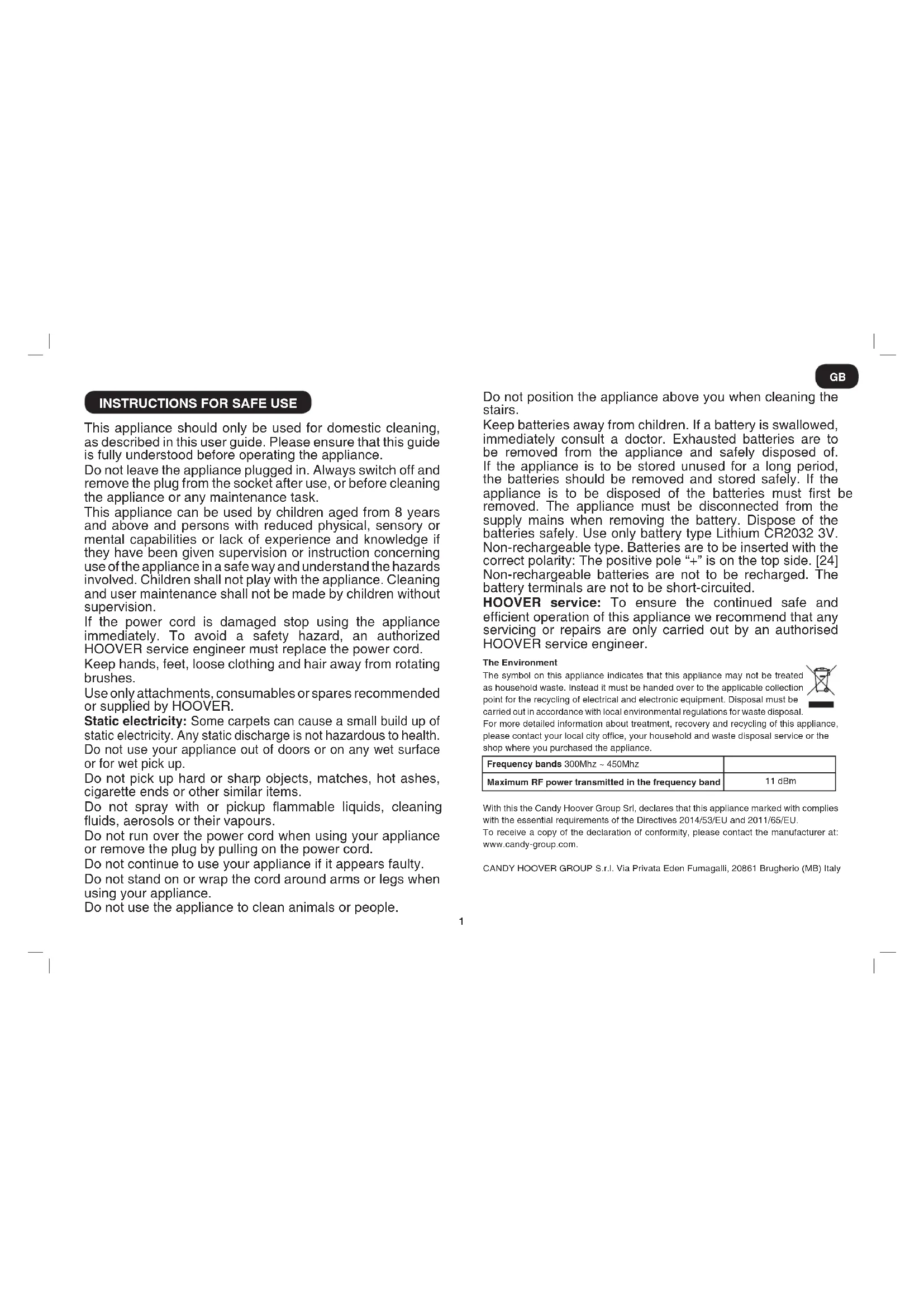

This appliance should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance. Do not leave the appliance plugged in. Always switch off and remove the plug from the socket after use, or before cleaning the appliance or any maintenance task. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorized HOOVER service engineer must replace the power cord. Keep hands, feet, loose clothing and hair away from rotating brushes. Use only attachments, consumables or spares recommended or supplied by HOOVER. Static electricity: Some carpets can cause a small build up of static electricity. Any static discharge is not hazardous to health. Do not use your appliance out of doors or on any wet surface or for wet pick up. Do not pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items. Do not spray with or pickup ammable liquids, cleaning uids, aerosols or their vapours. Do not run over the power cord when using your appliance or remove the plug by pulling on the power cord. Do not continue to use your appliance if it appears faulty. Do not stand on or wrap the cord around arms or legs when using your appliance. Do not use the appliance to clean animals or people. Do not position the appliance above you when cleaning the stairs. Keep batteries away from children. If a battery is swallowed, immediately consult a doctor. Exhausted batteries are to be removed from the appliance and safely disposed of. If the appliance is to be stored unused for a long period, the batteries should be removed and stored safely. If the appliance is to be disposed of the batteries must rst be removed. The appliance must be disconnected from the supply mains when removing the battery. Dispose of the batteries safely. Use only battery type Lithium CR2032 3V. Non-rechargeable type. Batteries are to be inserted with the correct polarity: The positive pole “+” is on the top side. [24] Non-rechargeable batteries are not to be recharged. The battery terminals are not to be short-circuited. HOOVER service: To ensure the continued safe and efcient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised HOOVER service engineer. The Environment The symbol on this appliance indicates that this appliance may not be treated as household waste. Instead it must be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this appliance, please contact your local city ofce, your household and waste disposal service or the shop where you purchased the appliance. With this the Candy Hoover Group Srl, declares that this appliance marked with complies with the essential requirements of the Directives 2014/53/EU and 2011/65/EU. To receive a copy of the declaration of conformity, please contact the manufacturer at: www.candy-group.com. CANDY HOOVER GROUP S.r.l. Via Privata Eden Fumagalli, 20861 Brugherio (MB) Italy

Frequency bands 300Mhz ~ 450Mhz Maximum RF power transmitted in the frequency band 11 dBm2

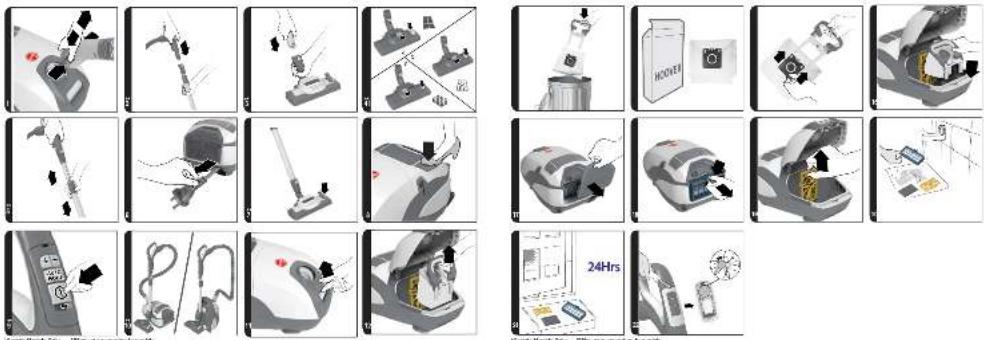

ASSEMBLING YOUR CLEANER

Remove all components from the packaging.

1. Connect the hose to the cleaner main body, ensuring it clips and locks into position.

To release the hose: simply press the two latches on the hose end and pull. [1]

2. Connect the hose handle to the upper tube end. [2]

3. Connect the tube lower end to the carpet and oor nozzle**. [3**]

1. Extract power cord and plug it into the power supply. Do not pull the cord beyond

2. After connecting the telescopic tube lower end to Carpet and Floor Nozzle**, press

the oor type selector pedal on the nozzle to select the ideal cleaning mode for the oor type. [4] Hard Floor: Brushes are lowered to protect the oor. Carpet: Brushes are raised for deeper cleaning. *Certain Models Only ** May vary according to model

Adjust the telescopic tube to the desired height by moving the telescopic tube adjuster up and raise or lower the handle to the most comfortable cleaning position . [5**] Carpet & Floor nozzle** : - Hard Floor Cleaning: Press the pedal on the nozzle to switch to Hard Floor mode and adjust the suction control slider on the nozzle to MAX (maximum). In this position brushes are lowered to protect hard oors. [4a] - Standard Carpet: Press the pedal on the nozzle to switch to Carpet mode and adjust the suction control slider on the nozzle to MAX (maximum). In this position brushes are raised. [ 4b] - Long Pile Carpet: Press the pedal on the nozzle to switch to Carpet mode and adjust the suction control slider on the nozzle to MIN (minimum). It can also be used to reduce the operating push force. [ 4c]

4. Switch the cleaner on by pressing the On/Off Pedal on the cleaner main body [8] or

by pressing the On/Off button [Sc] onto the Hi-Controller Handle with Settings*. [9] AUTO MODE FUNCTION: This vacuum cleaner features smart sensors able to detect the amount of dust and debris on your oors and automatically adjust the power level. When the cleaner detects a big quantity of dust will increase the power. And when the cleaner recognizes the oor is clean, the power will automatically decrease. The cleaner starts in AUTO MODE, on display Auto Mode will be illuminated. POWER LEVEL REGULATION: Power level can be also regulated manually from the Hi-Controller Handle with Settings* or from the cleaner control panel. From the Hi-Controller Handle with Settings** [S] : - AUTO MODE is illuminated on the display. Press AUTO MODE on/off button [Sb] on the handle and +/- buttons [Sa] to adjust the power according to your need. On the display MANUAL MODE will be illuminated. - MANUAL MODE is illuminated on the display. Press AUTO MODE on/off button on the handle to return to AUTO MODE function. [Sb] From the cleaner control panel : - Press MANUAL MODE Activation button on the control panel [D2], on display Manual Mode will be illuminated. Then you can press the manual button to choose the desired power setting. Press AUTO MODE Activation button to return to AUTO MODE function.

5. Switch the cleaner off at the end of use by pressing the On/Off Pedal or On/Off

Button on the Hi-Controller Handle with Settings**. Unplug and rewind the power cord by pressing the cord rewind pedal.

6. The tube can be parked for temporary storage while in use, or in the storage position

when not in use. [10] A. Main Cleaner B. Bag Door C. Exhaust Filter Cover D. LED Display with power control, Auto and Manual modes, bag check indicator and lter cleaning indicator D1. Auto mode activation button D2. Manual mode activation button E. On/Off Pedal F. Cord Reel Pedal G. Carry Handle H. Bag

GB3 *Certain Models Only ** May vary according to model

CLEANER MAINTENANCE Both full bag check and lter cleaning indicators are signaled by a red light on the display. Replacing the Dust Bag Please check the bag, if necessary, replace it.

1. Press the bag door release latch and open the bag door. [11]

2. Lift the handle of the bag holder up. [12]

3. Hold the bag with the holder over a dust bin. Press the red button to automatically

release the bag without any contact with dust. [13]

4. Fold a new bag and insert the collar into the bag holder. [14,15]

5. Ret the bag with holder back into the appliance. [16]

6. Close the bag door.

WARNING: The bag door will NOT close if the dust bag and/or the bag holder are not

assembled to the cleaner. Always ensure the bag is present when closing the bag door. REMEMBER: The bag check indicator also turns red onto the display [D] if an obstruction has occurred. In this case refer to ‘Remove a Blockage from the System’. Cleaning the Filters To ensure constant optimum cleaning performances, please wash the lters when the lter indicator red light is on and then press the MANUAL MODE activation button for 3 seconds to turn off the red indicator light. Cleaning the pre-motor lter:

1. Lift the bag door release latch to open bag door and remove the bag. [11,12]

2. Remove the pre-motor lter frame from the cleaner. [19]

3. Remove the lter from the pre-motor lter frame. [20]

4. Wash the pre-motor lter and the pre-motor lter frame using warm water, and allow

it to dry thoroughly before inserting into the cleaner. [20,21] Cleaning the exhaust lter:

1. Unclip the exhaust lter cover and remove the exhaust lter pack. [17,18]

2. Wash the exhaust lter pack under warm water, and allow it to dry thoroughly before

inserting into the cleaner. [20,21] Remember: Do not use hot water or detergents. In the unlikely event of the lters becoming damaged, t a Genuine Hoover replacement. Do not try and use product without dust bag or lters tted. Cleaning the permanent cloth dust bag* (*Certain model only) To maintain optimum performance we recommended that you wash the permanent cloth dust bag after every 5 full bags. Empty the contents of the bag into a bin, wash the bag under warm water, remove excess water and leave to dry fully before replacing. Removing a blockage from the system If the bag check indicator remains lit on the display [D]:

1. Check if the bag is full. If so refer to ‘Replacing the Dust Bag’.

2. If it is not full, then

A. Do the lters need cleaning? If so refer to ‘Cleaning the Filters’. B. Check if there is any other blockage in the system. - Use a cord or a stick to remove any blockage from the telescopic tube or exible hose. Warning - The bag check indicator will remain red if the cleaner is used when the bag is full, if there is a blockage or if the lters are dirty. If the cleaner is used for a signicant period of time with the bag check indicator illuminated, an thermal cut out will switch the cleaner off to prevent overheating. The bag check indicator turns off once the cleaner has switched off to signal that the thermal cut out has been activated. If this should happen, switch the cleaner off, unplug and correct the fault. It will take about 30 minutes for the cut out to automatically reset. Replacing the battery of the handle remote control* [22] If the remote controls on the handle do not respond when pressing any buttons, please change the battery:

1. Use screw driver to release remote control from handle.

2. Remove the exhaust battery by pushing aside the clip and replace with a new one.

Use only battery type Lithium CR2032 3V. ACCESSORIES To obtain the best performance and efciency it is recommended that the correct nozzles are used for the main cleaning operations. These nozzles are indicated in the diagrams by the letters GP, HF or CA. A nozzle type GP can be used to clean both carpet and hard oor. A nozzle type HF is suitable for use only on hard oor. A nozzle of type CA is suitable for use only on carpet. The other nozzles are accessories for specialist cleaning tasks and are recommended for occasional use only. Integrated Accessories on Hi-Controller Handle with Settings** This handle features convenient integrated accessories:

Built-in Crevice Tool: The hose handle end can be used as a crevice tool to reach narrow spaces.

Furniture Tool: Press the latches on both sides of the handle and slide downwards to release the furniture tool to clean soft surfaces and textiles (curtains, upholstery). [S1]

Dusting Brush: Press the latches on both sides of the and slide downwards then push the slider to the end to release the built-in dusting brush. Ideal for hard surfaces (bookshelves, keyboards, skirting boards). [S1] Mini Turbo Dual Action Allergen Remover Nozzle* – Use the mini turbo nozzle on stairs or for deep cleaning on textile surfaces and other hard to clean areas, particularly suitable for allergen removal. [T] Long 2in1 Tool* – Crevice tool and dusting brush - It allows to clean hard-to-reach areas such as bookshelves and high corners. [U] It can be tted to the end of the hose handle or to the end of the xed tube. Parquet Extra Care nozzle* – For parquet oors and other delicate oors. [V] IMPORTANT: Do not use mini turbo nozzles on rugs with long fringes, animal hides and carpet pile deeper than 15mm. Do not keep the nozzle stationary while brush is rotating.4

USER CHECKLIST Should you have a problem with the product, complete this simple user checklist before calling your local Hoover service.

• Is there a working electricity supply to the cleaner? Please check with another electrical appliance.

• Is the Bag over-lled? Please refer to ‘Cleaner Maintenance’.

• Is the lter blocked? Please refer to ‘Cleaner Maintenance’.

• Is the hose or nozzle blocked? Please refer to ‘Removing a blockage from the system’.

• Has the cleaner overheated? If so, it will take approximately 30 minutes to automatically reset. Doesn’t the remote control on the handle respond? Please refer to ‘Replace the battery of handle remote handle’. IMPORTANT INFORMATION Hoover spares and Consumables Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering parts always quote your model number. Hoover Service Should you require service at any time, please contact your local Hoover Service Ofce. Quality HOOVER’s factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001. Your Guarantee The guarantee conditions for this appliance are as dened by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee. Subject to change without notice.
