VFI7300WLWH - Fridge VIKING - Free user manual and instructions

Product Type	Built-in Refrigerator
Brand	Viking
Model	VFI7300WLWH
Series	Series 7
Framing Dimensions (min)	Height: 213.4 cm, Width: depends on combination, Depth: 63.5 cm
Framing Dimensions (max)	Height: 216.3 cm
Power Supply	115 V, 60 Hz (separate outlet for each unit)
Water Supply	Connection possible (water and ice dispenser)
Anti-Tip System	Safety bracket with 12 holes, at least 4 fasteners required
Assembly Kit Included	Connecting plates (front, rear), center rod, connecting heater, fasteners
Required Tools	Drill, Phillips/Torx bits, 1/4 and 5/16 in sockets, 1/8 in Allen key, rubber mallet
Installation	Requires two or more people to handle the appliance
Connecting Heater	Installed on top of right unit, plugged into outlet next to switch
Heater Activation	Press VAC and UP buttons for 5 seconds on the control panel
Adjustable Height	Leveling legs for adjustment (up to 4 turns at a time with manual ratchet)
Multiple Combination	Possibility to assemble multiple units (widths 18, 24, 30, 36 in)
Optional Protective Plate	Custom protective plate to be installed at the rear bottom

Frequently Asked Questions - VFI7300WLWH VIKING

How to assemble two Viking refrigerators side by side?

Use the provided assembly kit including connecting plates, center rod, and heater. Follow the preparation steps: remove the side rods from the sides to be joined, install the center rod brackets, attach the heater to the right unit, then plug it in. Next, position the units, attach the connecting plates at the top and back, connect the power, slide the assembly into the opening, adjust the leveling legs, secure the anti-tip bracket, and insert the center rod.

What are the required framing dimensions for a VFI7300WLWH refrigerator?

The framing height must be between 213.4 cm and 216.3 cm, the depth is 63.5 cm. The width depends on the number of units installed. For a single unit, refer to the individual installation guide provided with the appliance.

How to install the connecting heater?

Attach the heater (item #1) to the three holes on top of the right unit using 8-18 x 1/2 in fasteners (item #7). Then plug the heater into the outlet next to the on/off switch of the right unit.

How to activate the heater after installation?

On the control panel of the right unit, simultaneously press the VAC and UP arrow buttons for 5 seconds. An alarm beep confirms activation. Note that the panel may vary by model.

How to attach the rear connecting plate?

Attach the rear connecting plate (item #5) to the threaded holes behind the units with 1/4 in-20 x 3/4 in fasteners (item #6). Do not use a drill; use a manual Allen key. Loosely attach the bracket by pivoting it to avoid misalignment.

How many people are needed for installation?

Two or more people are required to install and move the appliance due to weight and tipping risk. Keep the doors closed until fully secured.

What tools are needed for assembly?

You will need a drill, 3 in drill bits, Phillips (PH2) bits, Torx (T15 and T20) bits, 1/4 in and 5/16 in hex sockets, a 3/8 in wrench, a 1/8 in Allen key, and a rubber mallet.

How to adjust the height of the refrigerators during installation?

Use the leveling legs located under each unit. Rotate the legs using a manual ratchet, performing only 4 turns at a time to ensure uniform lifting. Make sure the units are level with each other.

Where to connect the power supply of the refrigerators?

Each unit must be plugged into a separate electrical outlet, 115 V, 60 Hz. The outlets should be located in the opening as shown on the cutout dimension diagram.

How to remove the side rods to assemble two units?

Remove the rods from the unit edges on the sides that will be in contact (rod A). Leave the rods on the sides that contact the opening. Keep the removed screws to secure the center rod in the next step.

USER MANUAL VFI7300WLWH VIKING

Multi-Unit Refrigeration Connector Kit

CKVBI

Table of Contents

NOTE: These instructions include information on how to install multiple 7 Series refrigeration units. For information on dimensions, specifications, and installation of single units, please refer to the installation guide included with the appliances.

Parts Included 2

Tools Needed 2

Cutout dimensions 3

Specifications 4

Anti-tip location 7

Preparing Units for Installation 8

Installation 10

WARNING

TIP OVER HAZARD

Appliance is top heavy and tips easily when not completely installed. Keep doors closed until appliance is completely installed and secured per installation instructions.

Use two or more people to move and install appliance. Failure to do so can result in death or serious injury.

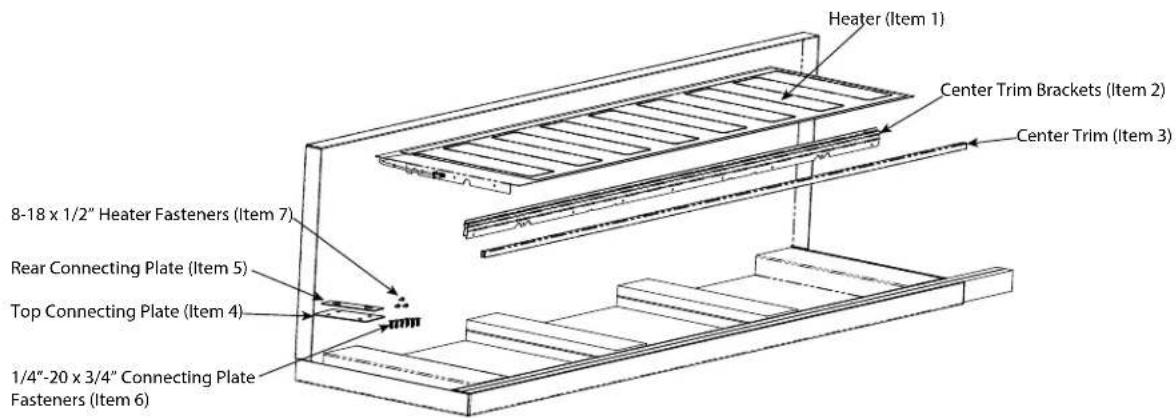

Parts included Tools Needed

Heater (1)

Center Trim Brackets (2)

Center Trim (1)

Top Connecting Plate (1)

Rear Connecting Plate (1)

1/4"-20 x 3/4" Connecting Plate Fasteners (6)

8-18 x 1/2" Heater Fasteners (3)

Drill (Not to be used on the leveling feet)

Drill Bits - 3" Phillips (PH2), Torx (T15 & T20)

1/4" & 5/16" Hex Drive

Rubber Mallet

3/8" Wrench

1/8" Allen Wrench

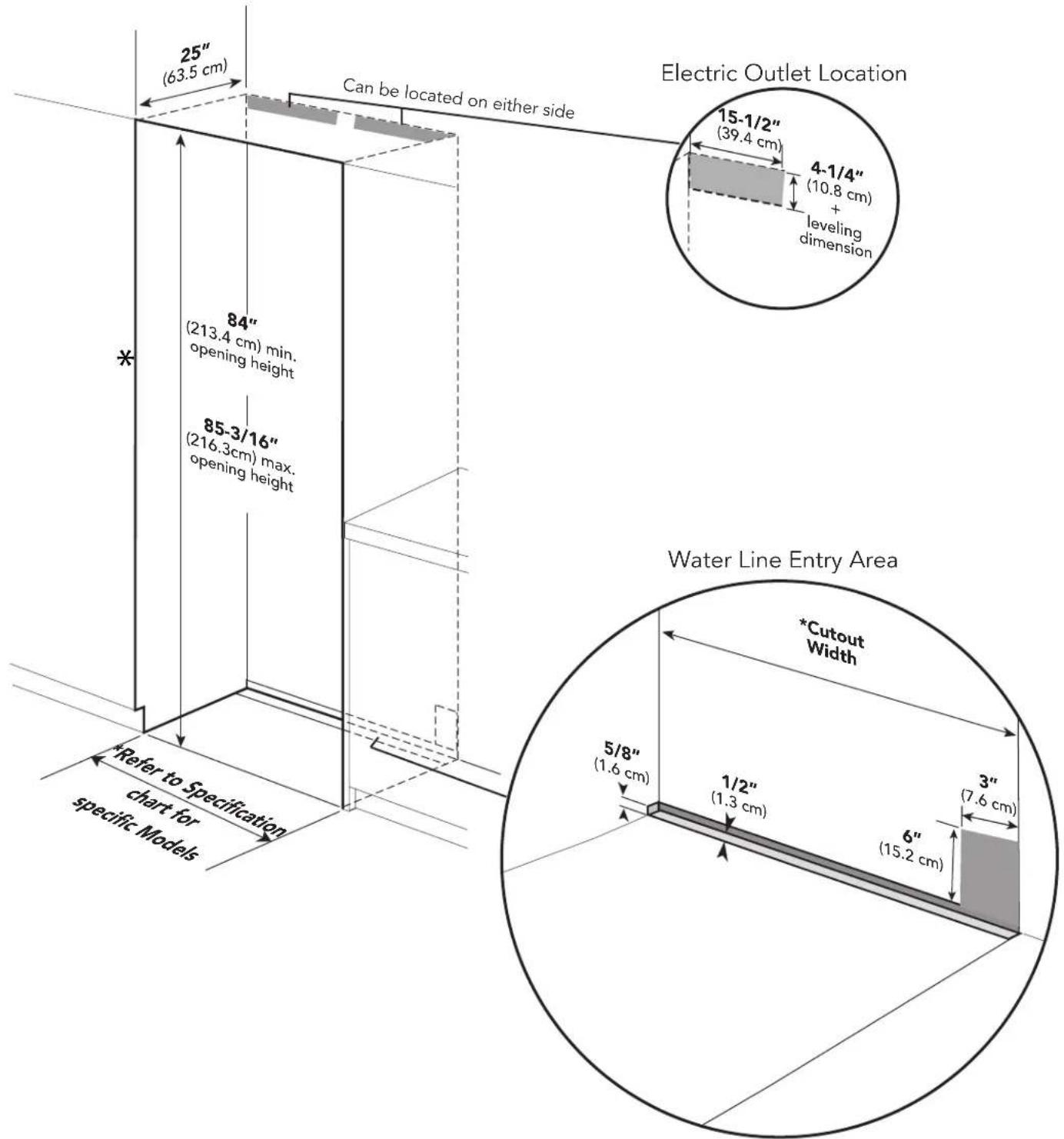

Cutout Dimensions

*Note: For all models, 3" back from the front of the cabinet on both sides needs to be finished like the outside of the cabinets

Specifications

Refer to Installation Guides included with unit for individual dimensions.

Below is a common install chart for reference.

Size Combination Cabinet Cutout Width		Cabinet Cutout Height (same for all)	Cabinet Cutout Depth (same for all)	Optional Kickplate
18" W / 24"W Models 42" (106.7 cm)		84" (213.4 cm) min 85-3/16" (216.3 cm) max	25" (63.5 cm)	TKK742SS
18" W / 30"W Models 48" (121.9 cm) TKK748SS
18" W / 36"W Models 54" (137.2 cm) TKK754SS
24" W / 24"W Models 48" (121.9 cm) TKK748SS
24" W / 30"W Models 54" (137.2 cm)" TKK754SS
24" W / 36"W Models 60" (152.4 cm) TKK760SS
30" W / 30"W Models 60" (152.4 cm) TKK760SS
30" W / 36"W Models 66" (167.6 cm) TKK766SS
36" W / 36"W Models 72" (182.9 cm) TKK772SS

For muti-unit installation, add the width of the units together for cabinet cutout width.
For example: 18'' + 24'' + 24'' = 66'' W.

Anti-tip Location

Anti-tip Bracket

Simple line drawing of a rectangular plate with a grid pattern and two side supports (no text or symbols)

The anti-tip bracket has several holes set up on a grid in order to better locate a wall stud. At least 4 places must be used. Anti-tip Bracket must be centered in cutout - side to side.

NOTE: Number and type of fasteners must be suitable in order to prevent tipping. For example: use wood screws into wall studs or masonry anchors if attaching to stone, brick or concrete.

If a wall stud can not be found or when installing the 18" model, use the lower section of the bracket and mount to the base board

Simple line drawing of a rectangular plate with a dotted pattern and two side supports, no text or symbols present.

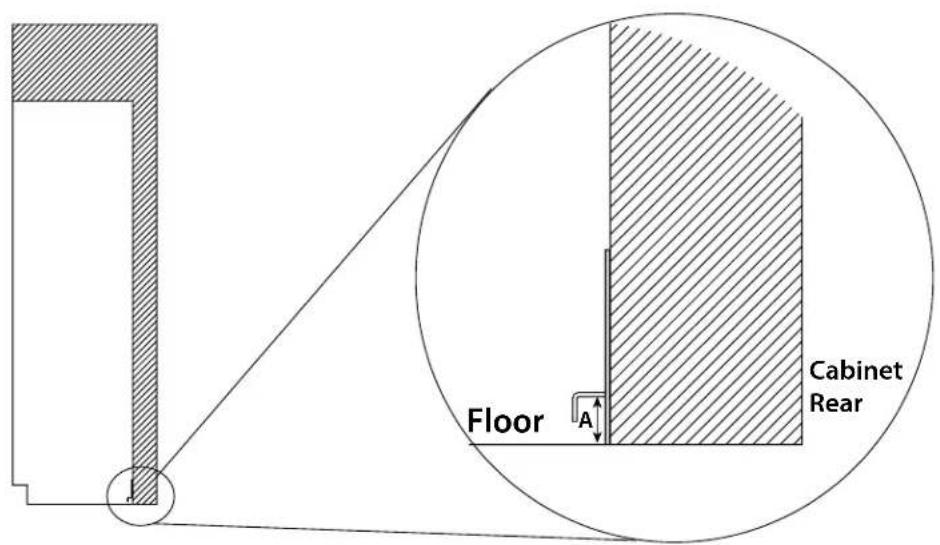

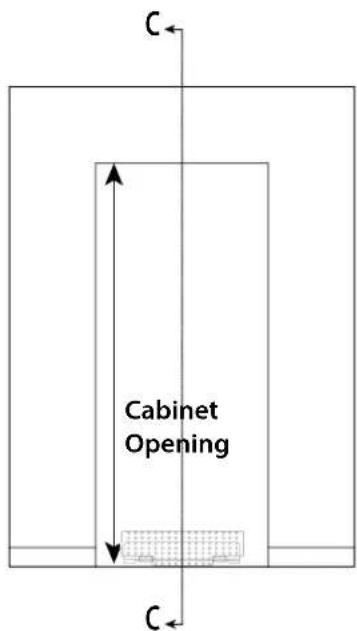

Dimension A = Cabinet opening minus the refrigerator height + 1-1/4" (3.2 cm)

Ex. - Cabinet opening height - 85"

Minimum refrigerator height (sitting on rollers) - 83 15/16"

$$ A = 8 5 ^ {\prime \prime} - 8 3 - 1 5 / 1 6 ^ {\prime \prime} + 1 - 1 / 4 ^ {\prime \prime} = 2 - 5 / 1 6 ^ {\prime \prime} $$

Preparing Units for Installation

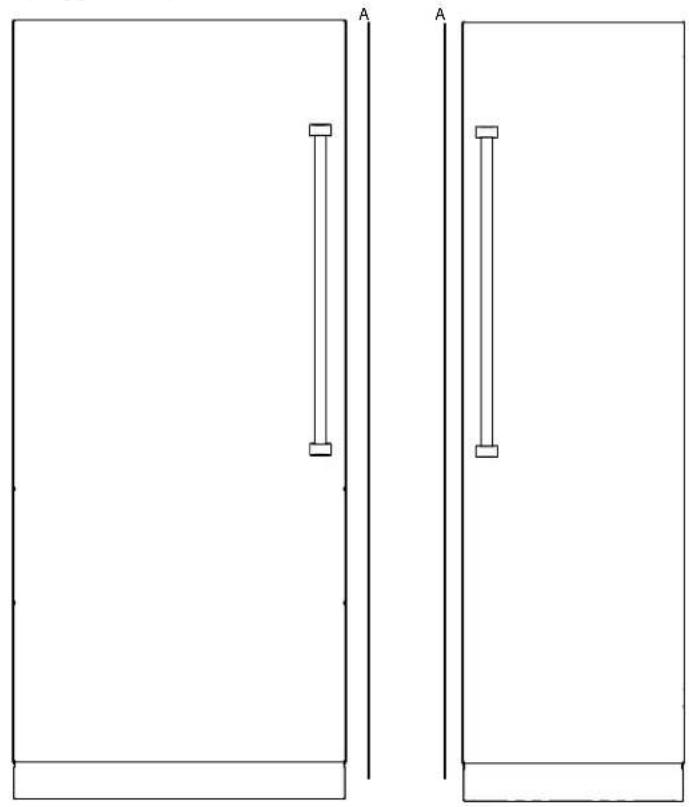

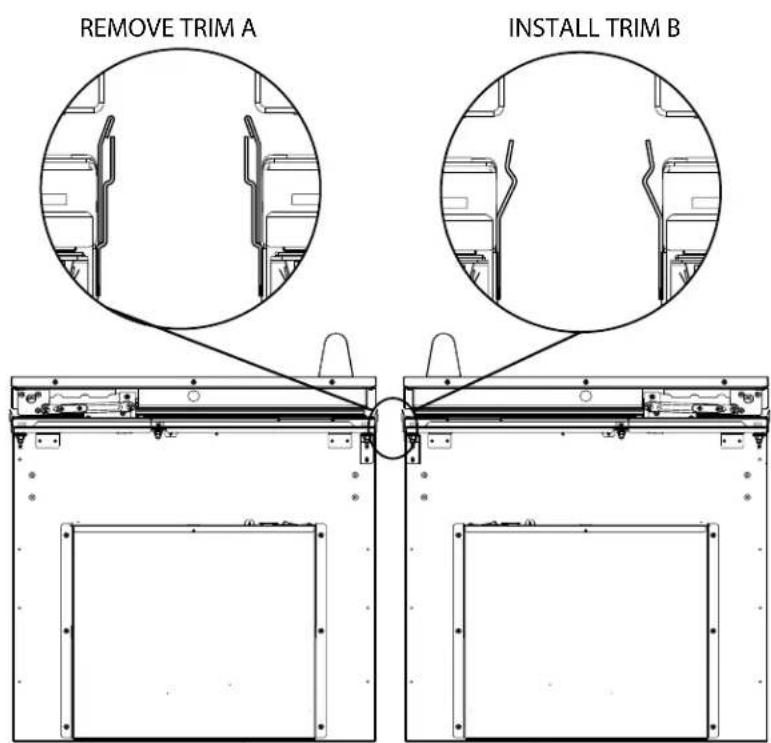

Before removing units from pallet, remove the side trim from each unit, install center trim brackets and connection heater (steps 1 thru 4). Make sure units are unplugged and powered off.

Two simple rectangular panels with vertical supports, labeled 'A', no text or symbols present.

Look closely at the trim already installed on the unit. If the trim resembles that in Trim A, it will need to be removed and replaced with Trim B. If the trim already resembles Trim B, leave as is.

Preparing Units for Installation

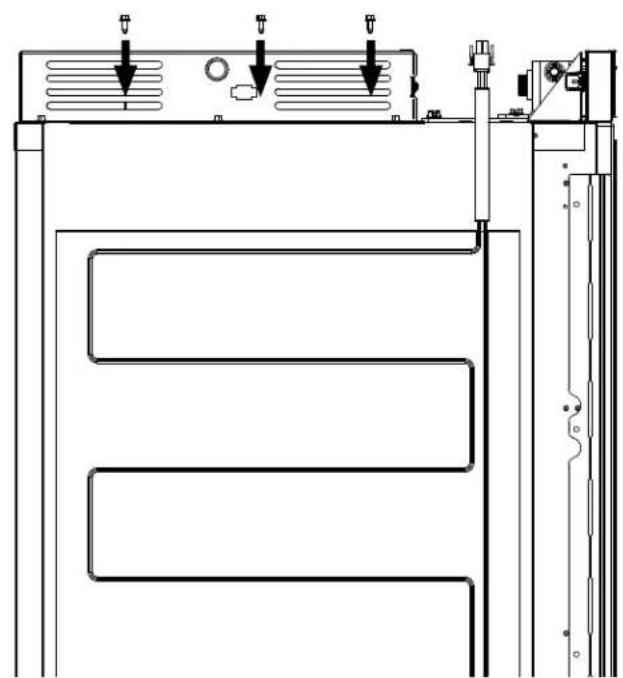

1. Fasten heater (Item #1) to the three mounting holes on top of the right hand unit using the #8-18 x 1/2" fasteners (Item #7) provided.

Pure diagram of a mechanical or electrical component with directional arrows, no text or symbols present

Technical line drawing of a mechanical or electrical component with three parallel channels and mounting brackets (no text or symbols)

1. Plug heater terminal into right hand unit using the plug located next to the unit on/off switch.

Diagram of an electrical outlet with a cable and switch, enclosed in a circular frame (no text or symbols)

WARNING

TIP OVER HAZARD

Appliance is top heavy and tips easily when not completely installed. Keep doors closed until appliance is completely installed and secured per installation instructions.

Use two or more people to move and install appliance. Failure to do so can result in death or serious injury.

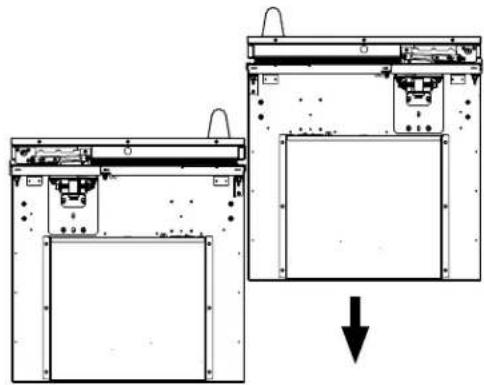

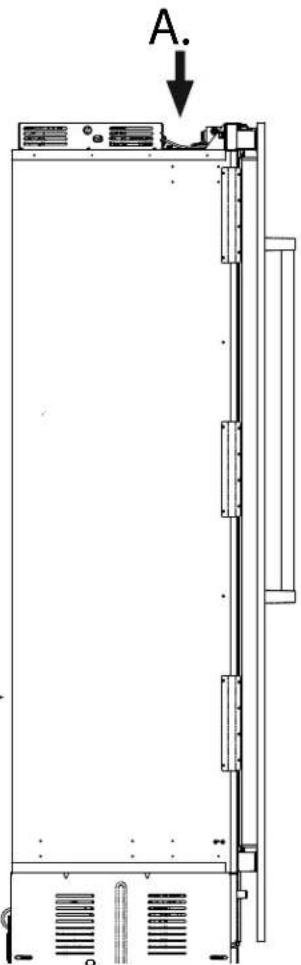

1. Remove units from pallets and position together outside of the cabinet so that top connecting plate (Item #4) can be installed. If installing on uneven surfaces, use unit leveling feet to adjust units to that they are at the same height.

Diagram showing two views of a device with internal components and a downward arrow indicating a process (no text or symbols present)

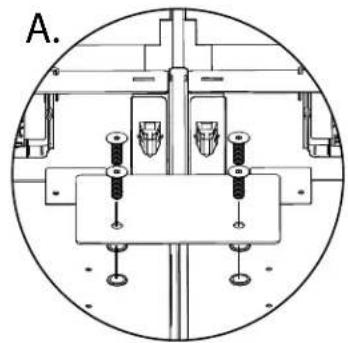

1. Install top connecting plate to the threaded mounting holes provided on the top of the cabinet using the 1/4"-20 x 3/4" (Item #6) fasteners. DO NOT install using a drill. Use manual allen wrench. (See Illustration A)

Technical diagram of a mechanical assembly with mounting holes and a central frame (no text or labels)

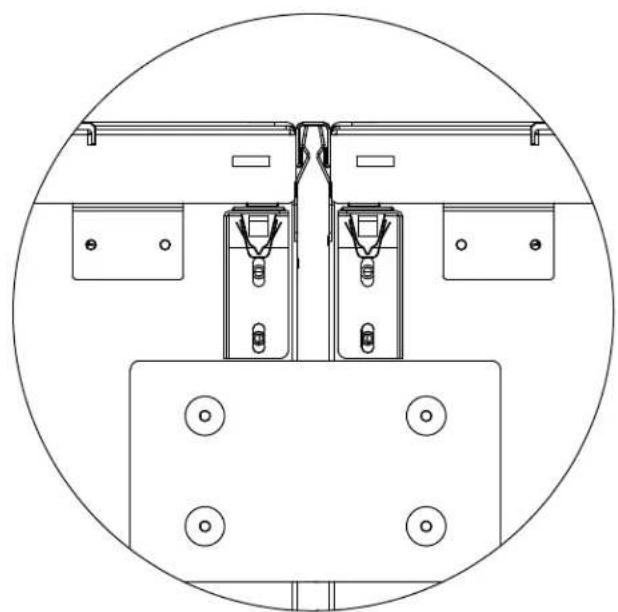

1. Fasten rear connecting plate (Item #5) to the threaded mounting holes provided on the rear of the unit using the 1/4"-20 x 3/4" (Item #6) fasteners. DO NOT install using a drill. Use manual allen wrench. (See Illustration B). Loosely attach the bracket allowing it to pivot. Tightening the screws will result in the bracket bending and causing misalignment of the rear of the units.

Note: *If one or both units have (4) screw holes, attach using the top two holes.

Simple diagram of a mechanical or electrical component inside a circular boundary, with no visible text, numbers, or symbols.

Installation

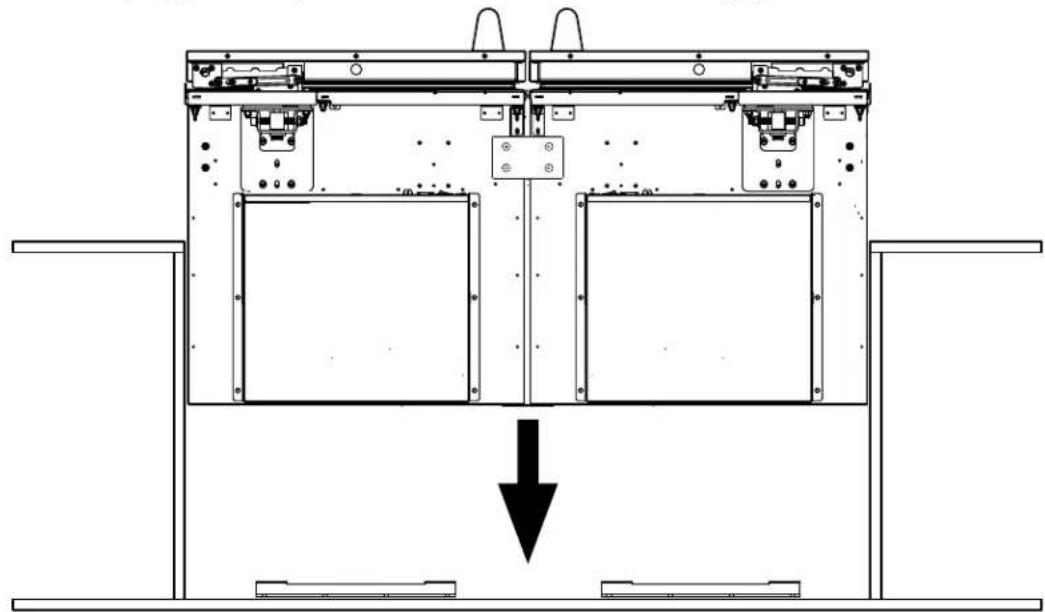

1. If unit leveling feet were used, lower units back onto rollers. Plug in electrical supply and roll connected units into cabinet cutout. Units must be plugged into separate electric outlets. Connect water supply to each unit.

Technical line drawing of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols)

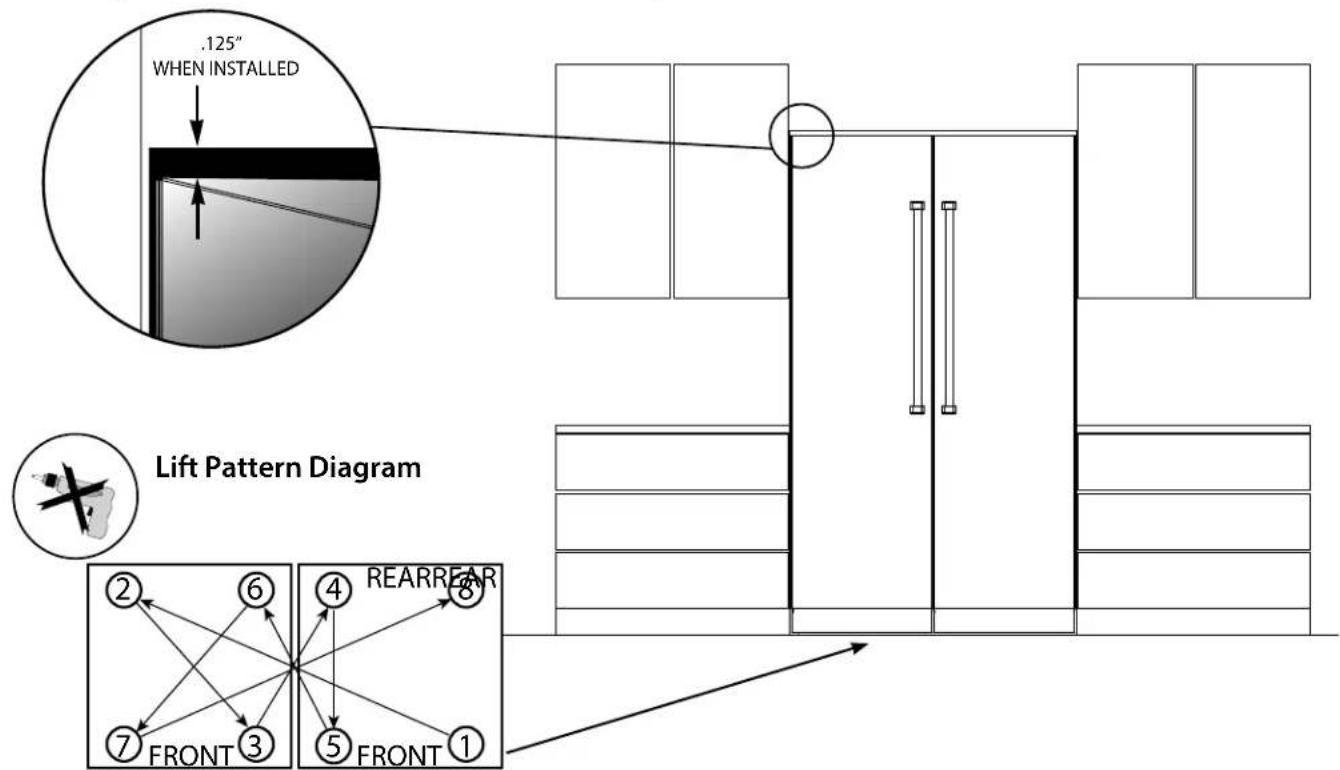

1. Lift units to desired height using 5/16" socket and hand ratchet. DO NOT USE A DRILL-(refer to lift pattern diagram below to ensure that units are gradually lifted together.) **IMPORTANT** - Only make 4 turns at a time with the hand ratchet**. Attach units to cabinet side trim and fasteners included with the units. Install stainless magnetic side trim once fastened. (Use installation guide included with individual units as a reference.)

Installation

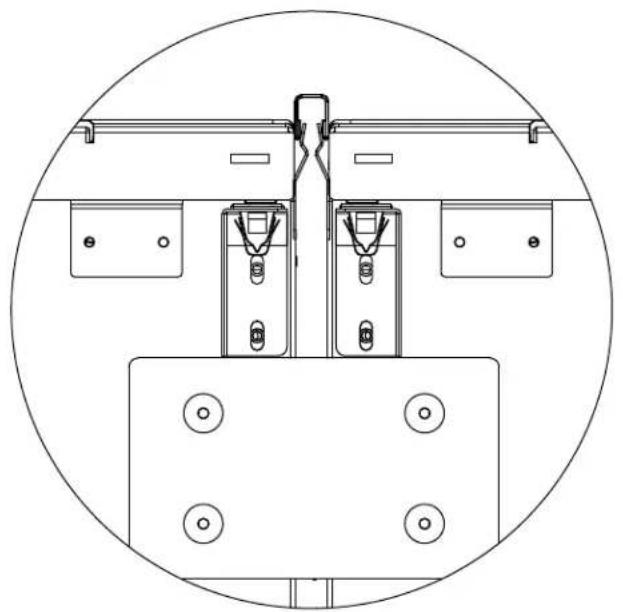

1. Remove plastic film from center trim before installing. Install center connecting trim (Item #3) in between the two units by pressing it in. Trim should be even with the top of the units. If needed, tap connecting trim gently into place with rubber mallet.

Technical line drawing of a mechanical assembly with mounting brackets and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and mounting holes (no text or symbols)

NOTE: Open both doors to install the trim. When installed, the face of the trim should be flush with the breaker frame.

1. Once the connection to the heater and the unit installation is complete, you will need to enable the heater which was plugged into the right hand unit. (Step 4 on page 7).

To enable the heater, on the control panel* of the right hand unit, press the VAC and UP arrow key and hold for 5 seconds. You will hear an alarm beep once when it accepts the entry.

*NOTE: Control panel may vary depending on model being installed.

Optional Custom Kickplate Installation

Remove screws fastening individual kickplates on units. Save screws to be used when installing custom kickplate. Place custom kickplate across bottom of both units and fasten using the mounting holes for the individual kickplates.

Viking Range, LLC

111 Front Street

Greenwood, Mississippi 38930

[phone]

For product information, call 1-888-845-4641

or visit our web site at vikingrange.com
