Star Mini DMWR001NM - Waffle Maker Dash - Free user manual and instructions

Product Type	Waffle Maker
Brand	Dash
Model	Star Mini DMWR001NM
Dimensions (L x W x H)	13 x 15 x 9 cm
Weight	0.5 kg
Power	220-240 V ~ 50/60 Hz, 700 W
Main Functions	Mini waffle baking, non-stick surface, heating indicator light
Care and Cleaning	Clean with a damp cloth after complete cooling; do not immerse in water; do not use metal utensils
Safety	Short power cord (avoids tripping hazards), polarized plug, hot surfaces (do not touch), auto shut-off? No, unplug after use
Spare Parts and Repairability	Not available; contact StoreBound customer service
General Information	Household use only, ready in minutes, recipe book included

Frequently Asked Questions - Star Mini DMWR001NM Dash

How to use the Dash Star Mini waffle maker for the first time?

Before first use, clean the plates with a damp cloth and dry them. Plug in the appliance, wait for the indicator light to turn off (indicates it has reached temperature), then pour in the waffle batter.

What is the best batter consistency for this waffle maker?

Use a standard waffle batter, neither too runny nor too thick. Fill each cavity to the brim to avoid overflow.

How long does it take to cook a waffle?

About 3 to 5 minutes depending on desired doneness. Watch the color: a golden waffle is ready.

Can I use metal utensils on the plates?

No, use only wood, silicone, or plastic utensils to avoid damaging the non-stick coating.

How to clean the mini waffle maker after use?

Unplug the appliance and let it cool completely. Wipe the plates with a damp cloth. Never immerse the appliance in water.

Does the waffle maker heat on both sides?

Yes, the top and bottom plates heat simultaneously for even cooking.

What if the indicator light does not turn off?

Check that the appliance is properly plugged in and the outlet works. If the problem persists, contact customer service.

Can I use this waffle maker for other foods besides waffles?

It is designed only for waffles. Using it for other preparations could damage the coating.

How to store the mini waffle maker?

Store it in a dry place, away from dust. Wrap the cord around the base, without forcing.

Where to find after-sales service?

Contact StoreBound by phone at 1-800-898-6970 (Mon-Fri 7am-7pm) or by email at [e-mail].

USER MANUAL Star Mini DMWR001NM Dash

DASH HOT SURFACE DASH recipes inside!

DMWR001NM

STAR

MINI WAFFLE MAKER

Instruction Manual | Recipe Guide

Simple red line drawing of a fork, plate with flour, and knife (no text or symbols)

STAR

Simple red line drawing of a fork, plate with flour, and knife (no text or symbols)

MINI WAFFLE MAKER

Important Safeguards....4-7

Parts & Features....8

Using Your Mini Waffle Maker 9-12

Cleaning & Maintenance 13

Troubleshooting....14-15

Recipes....17-26

Notes....28-29

Customer Support 30

Warranty 31

the dash team!

IMPORTANT SAFEGUARDS

IMPORTANT SAFEGUARDS: PLEASE READ AND SAVE THIS INSTRUCTION AND CARE MANUAL.

When using electrical appliances, basic safety precautions should be followed, including:

• Read all instructions.
• Remove all bags and packaging from appliance before use.
• Never leave appliance unattended when in use.
  • Make sure the appliance is cleaned thoroughly before using.
• Do not use appliance for other than intended use. For household use only. Do not use outdoors.
• WARNING: Hot surfaces! Never touch the Cooking Surface or Cover while appliance is in use. Always lift and lower the Cover by the Cover Handle.
• DO NOT lift the Cover so that your arm is over the Cooking Surface as it is hot and may cause injury. Lift from the side.
  • To prevent the risk of fire, electric shock, or personal injury, do not put cord, plug, or appliance in or near water or other liquids. The Mini Waffle Maker is NOT dishwasher safe.
• Never use abrasive cleaning agents to clean your appliance as this may

damage the Mini Waffle Maker and its nonstick Cooking Surface.

• Do not operate this appliance with a damaged cord, damaged plug, after the appliance malfunctions, is dropped, or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
• DO NOT use the Mini Waffle Maker near water or other liquids, with wet hands, or while standing on a wet surface.
• For maintenance other than cleaning, please contact StoreBound directly at 1-800-898-6970 from 7AM - 7PM PST Monday - Friday or by email at [e-mail].
• Do not use metal utensils on the Cooking Surface as this will damage the nonstick surface.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge unless they are provided with supervision and instruction concerning use

IMPORTANT SAFEGUARDS

of the appliance by a person responsible for their safety.

• Do not place appliance on or near a hot gas burner, hot electric burner, or in a heated oven.
• Be cautious when moving an appliance containing hot oils or other hot liquids.
• Refrain from using attachments that are not recommended by the appliance manufacturer, as this may result in fire, electric shock, or personal injury.
• Allow the Mini Waffle Maker to cool completely before moving, cleaning, or storing.
• Close supervision is necessary when any appliance is used by or near children.
• Do not let the cord touch hot surfaces or hang over the edge of tables or counters.
  • Always be sure to unplug the appliance from outlet prior to moving, cleaning, storage, and when not in use.

• StoreBound shall not accept liability for damages caused by improper use of the appliance.

• Improper use of the Mini Waffle Maker can result in property damage or even in personal injury.

• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not completely fit in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• A short power supply cord is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. An extension cord may be used if care is exercised in its use. If an extension cord is used, the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance. If the appliance is of the grounded type, the extension cord should be a grounding 3-wire cord. The extension cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

IMPORTANT SAFEGUARDS: PLEASE READ AND SAVE THIS INSTRUCTION AND CARE MANUAL.

GARANTIES IMPORTANTES:

VEUILLEZ LIRE ET CONSERVER CE MODE D'EMPLOI ET D'ENTRETIEN

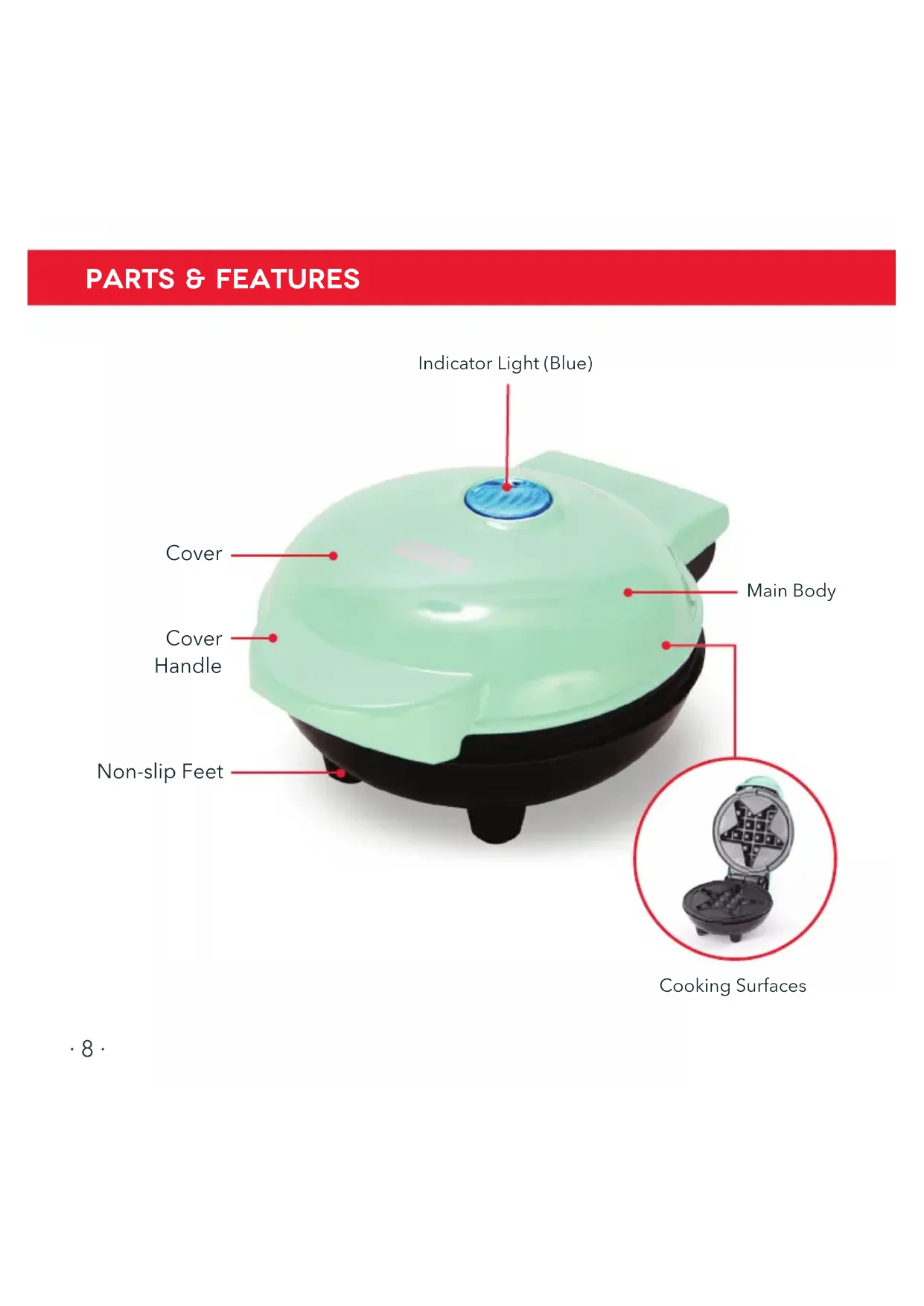

Indicator Light (Blue) Cover Main Body Cover Handle Non-slip Feet Cooking Surfaces

USING YOUR MINI WAFFLE MAKER

Before first use, remove all packaging material and thoroughly clean your Star Mini Waffl e Maker.

Hand using a handheld device to stop a black appliance, crossed out by a red prohibition symbol (no text or symbols on the device itself)

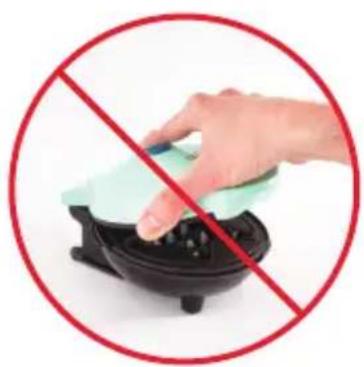

Never touch the Cooking Surface or Cover while appliance is in use.

Hand using a portable stove with red smoke, crossed out by a red prohibition symbol (no text or symbols on the stove itself)

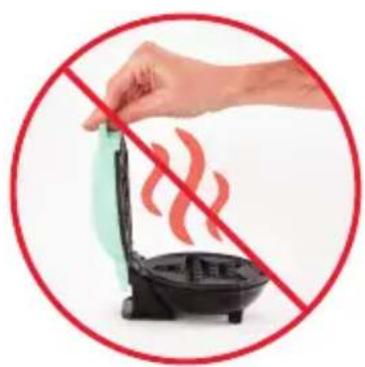

DO NOT lift the Cover so that your arm is over the Cooking Surface as it is hot and may cause injury.

Hand placing a green bowl into a black waffle (no text or symbols visible)

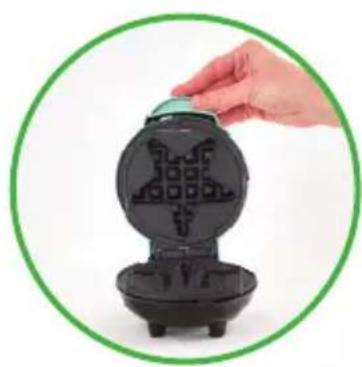

Always lift and lower the Cover by the Cover Handle. Lift from the side.

USING YOUR MINI WAFFLE MAKER

Top-down view of a green circular object with a blue internal structure and a red arrow pointing to it, labeled 'A' in the corner (no text or symbols on the object itself)

1 Place the appliance on a stable and dry surface. Plug the cord into a power outlet.

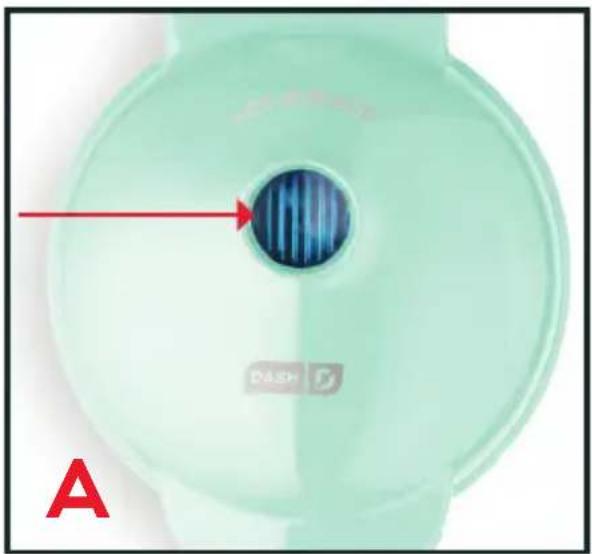

The Indicator Light (photo A) will illuminate, signaling that the Mini Waffl e Maker is heating up.

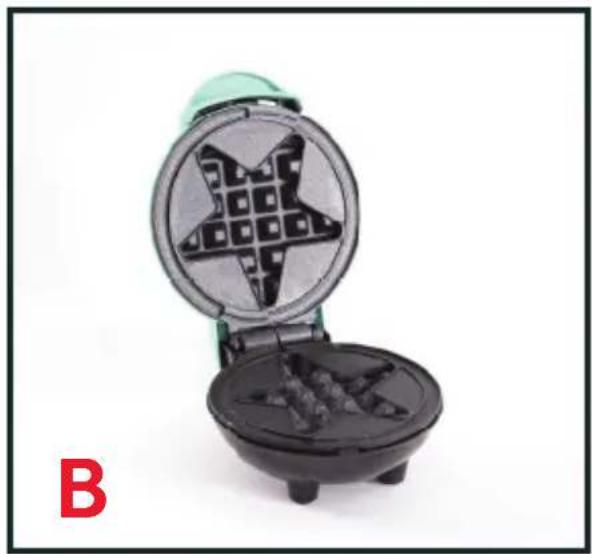

Close-up of a star-shaped waffle grill with open lid and green handle, no visible text or symbols

2 Once the Cooking Surface reaches the optimal cooking temperature, the Indicator Light will automatically shut off. Now, you're ready to get cooking (photo B)!

USING YOUR MINI WAFFLE MAKER

Hand holding a white soap can next to an open black waffle grater (no text or symbols visible)

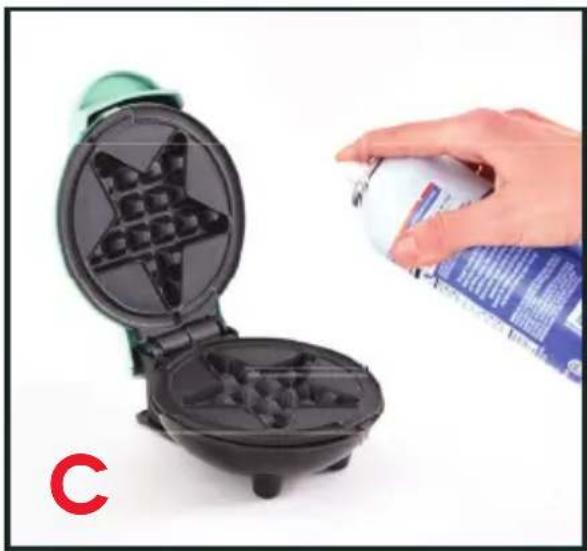

3 Carefully lift the Cover by the Cover Handle and spray both Cooking Surfaces with a small amount of cooking spray (photo C).

Hand using a star-shaped waffle to spread cheese into a black oven (no text or symbols visible)

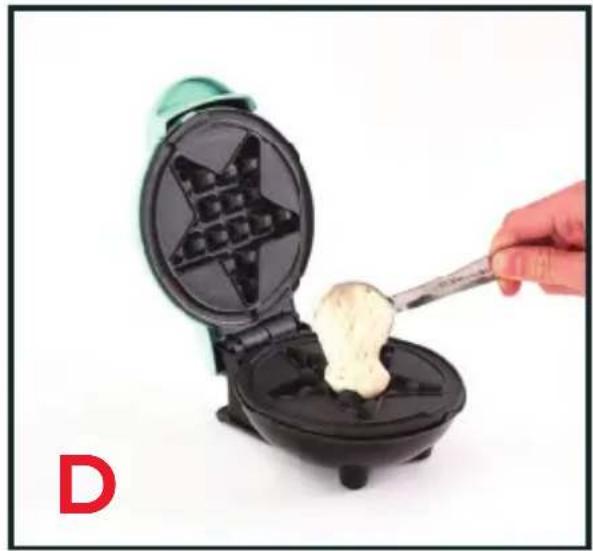

4 Place or pour batter onto the Cooking Surface (photo D) and close the Cover. For best results, use 1½ tbsp of batter per waffle.

USING YOUR MINI WAFFLE MAKER

Hand placing a golden waffle on an open black waffle-coated stand, with a green leaf and red letter 'E' in the corner (no text or symbols on the main subject)

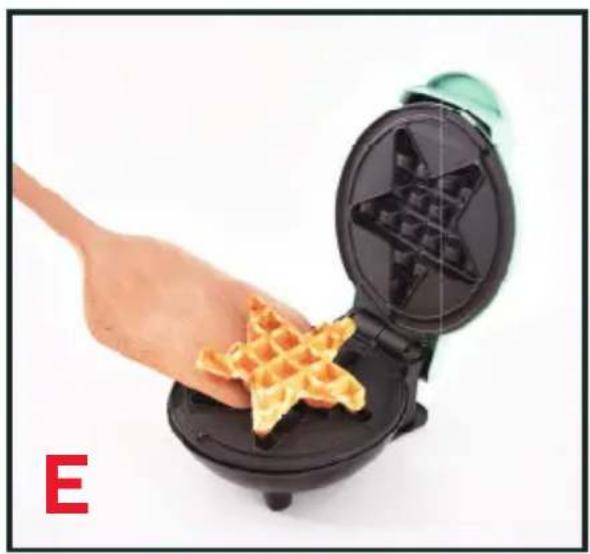

5 Once waffle is cooked to your preference, carefully remove it from the Cooking Surface with a heat-resistant nylon or silicone cooking utensil (photo E).

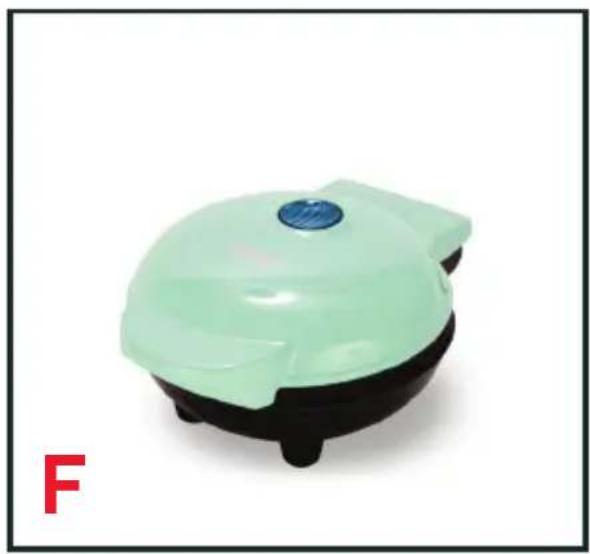

Green and black plastic robot with a blue control knob, labeled 'F' in the corner (no text or symbols on the device itself)

6 When you have fi nished cooking, unplug your Mini Waffl e Maker and allow it to cool before moving or cleaning (photo F).

NOTE: Do not use metal utensils to remove or place food on the Cooking Surface as this will damage the nonstick surface.

CLEANING & MAINTENANCE

Always allow the appliance to cool completely before moving, cleaning, or storing. Do not submerge appliance in water or any other liquids. Never use abrasive cleaning agents to clean your appliance as this may damage the Star Mini Waffle Maker.

In order to keep your Star Mini Waffle Maker in pristine working order, thoroughly clean the appliance after each use. This will prevent the build-up of food or oil.

• Unplug the Star Mini Waffle Maker and allow it to cool completely.
• Using a damp, soapy cloth, wipe down the Cooking Surface and Cover. Thoroughly rinse the cloth and wipe again.
  • Thoroughly dry the Star Mini Waffle Maker before storing.
• If there is food burned onto the Cooking Surface, pour on a little cooking oil and let sit for 5 to 10 minutes. Scrub the Cooking Surface with a sponge or soft bristled brush to dislodge food. Use a damp, soapy cloth to wipe down the Cooking Surface. Thoroughly rinse the cloth and wipe again. If any food remains, pour on cooking oil and let sit for a few hours, then scrub and wipe clean.
• Never use abrasive cleaning agents to clean your appliance as this may damage the Star Mini Waffle Maker and its nonstick Cooking Surface.

TROUBLESHOOTING

While Dash products are durable, you may encounter one or more of the problems listed below. If the issue is either not solved by the solutions recommended below or not included on this page, please contact our Customer Support Team at 1-800-898-6970 or [e-mail].

ISSUE SOLUTION
The light on the Mini Waffle Maker keeps shutting off.	This is normal. During the cooking process, the heating element will automatically turn on and off to regulate the temperature and ensure that the Cooking Surface does not get too hot or cold. When this occurs, the Indicator Light turns on and off.
How do I know when the Mini Waffle Maker is heated and ready to use?	When the Waffle Maker reaches the optimal temperature, the Indicator Light shuts off and that means you're ready to get cooking!
There is no On/Off Button.How do I turn the Mini Waffle Maker off and on?	To turn on, simply plug in the power cord.When you're done cooking, turn off the Mini Waffle Maker by unplugging it.

TROUBLESHOOTING

ISSUE SOLUTION
When using my Mini Waffle Maker, the Cover gets very hot. Is this normal?	Yes, this is completely normal. When using your Waffle Maker, always lift and lower the Cover by the Cover Handle. To prevent personal injury, DO NOT lift the Cover so that your arm is over the Cooking Surface as it is hot and may cause injury. Lift from the side.
After using my Mini Waffle Maker a few times, food is starting to stick to the surface. What is happening?	There is probably a build-up of burnt food residue on the Cooking Surface. This is normal, especially when cooking with sugar. Allow the appliance to cool fully, pour on a little cooking oil and let sit for 5-10 minutes. Scrub Surface with a sponge or soft bristled brush to dislodge food. Use a damp, soapy cloth to wipe down the Cooking Surface. Rinse the cloth and wipe again. If food remains, pour on cooking oil and let sit for a few hours, then scrub and wipe clean.
The Indicator Light will not turn on and the Cooking Surface is failing to heat.	1. Ensure that the power cord is plugged into the power outlet.2. Check to make sure the power outlet is operating correctly.3. Determine if a power failure has occurred in your home, apartment or building.

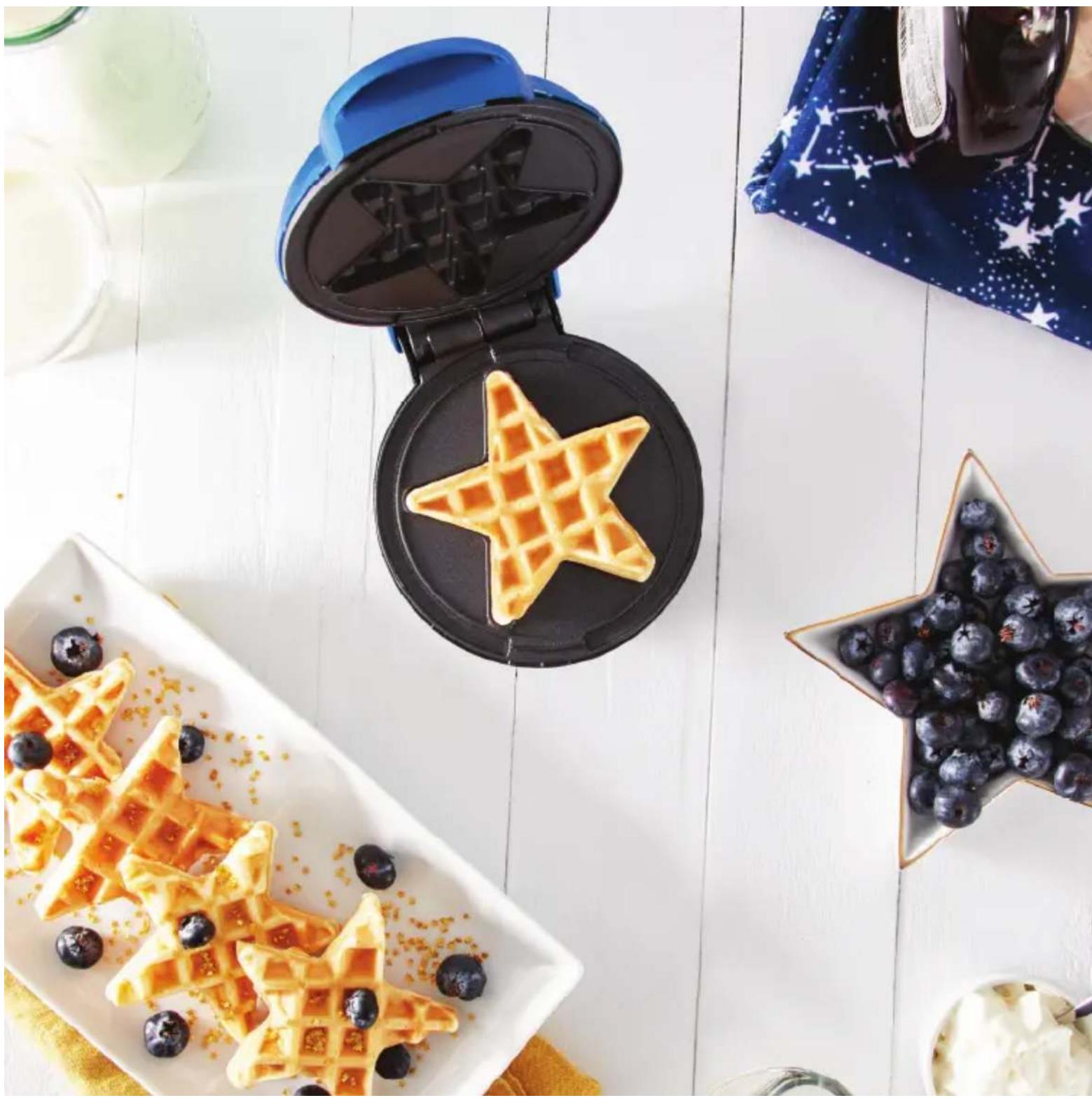

Top-down view of a waffle-shaped milkshake with blueberries, arranged on a white table with star-shaped cookies and a plate of waving buns (no text or symbols visible)

RECIPE GUIDE

Follow us!

@bydash | recipes, videos, & inspiration

@unprocessyourfood | veg & vegan-friendly meals

CLASSIC WAFFLES

Yield: 8-10 waffles

Ingredients:

1 cup fl our
1 tbsp sugar
2 tsp baking powder
14 tsp salt
1 egg 1 cup milk

2 tbsp melted butter or vegetable oil

Directions:

1. In a medium bowl, sift the fl our, sugar, baking powder, and salt. Whisk the egg, milk, and melted butter in a separate bowl. Add the wet ingredients to the dry and mix until just incorporated.
2. Grease the Mini Waffl e Maker with butter or coat with a light coat of cooking spray. Pour 1½ tbsp of the batter into the Star Mini Waffl e Maker and cook until golden brown. Repeat with the remaining batter.
3. Serve with a drizzle of maple syrup and fresh berries.

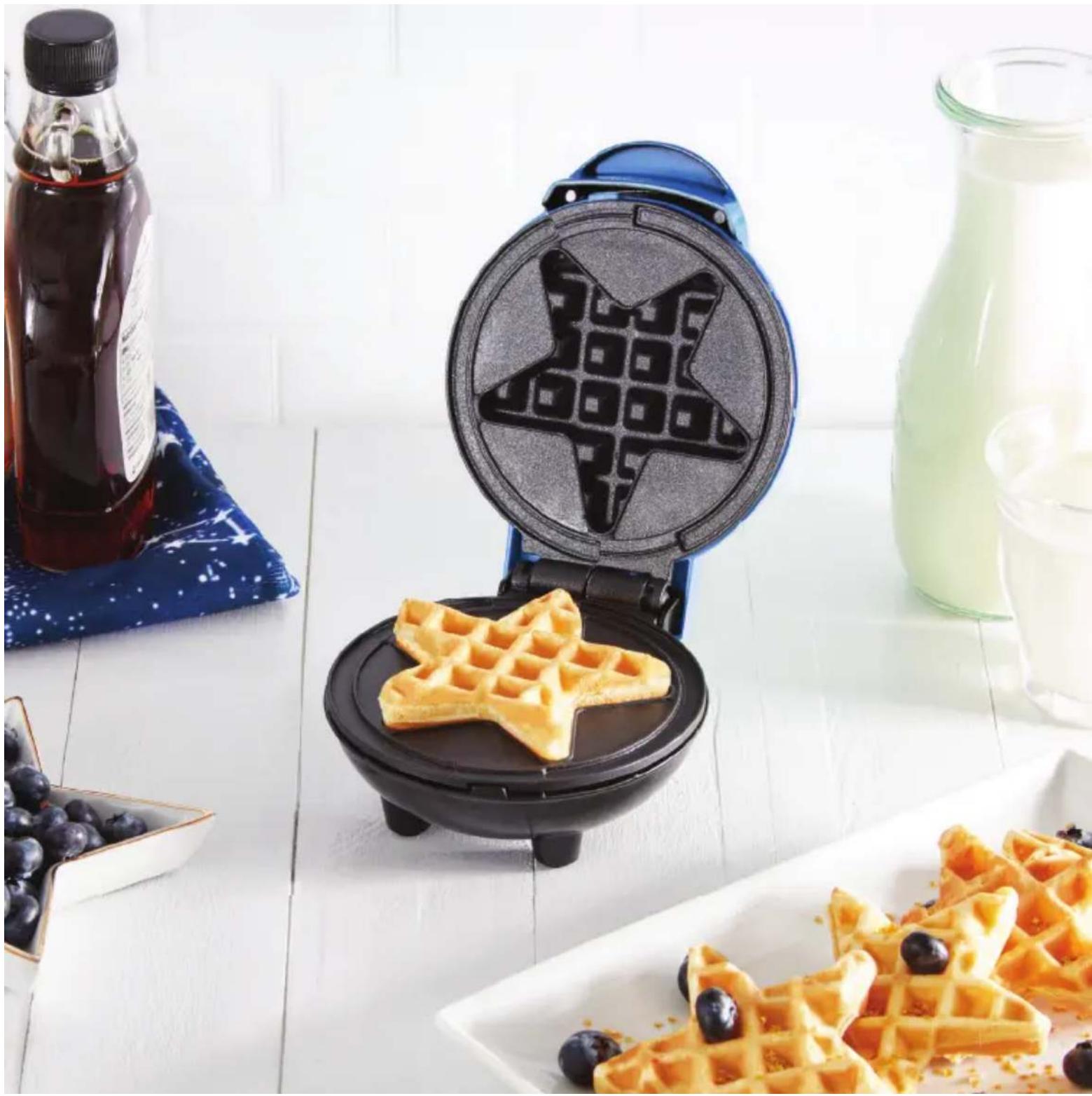

Exterior view of a blue waffle griddle on a white table with fresh blueberries and milk in the background (no text or symbols visible)

Freshly arranged tomatoes with red and yellow colors (no text or symbols visible)

PIZZA CHAFFLE

Yield: 8-10 waffles

Ingredients:

1 large egg

12 cup riced cauliflower

12 cup shredded mozzarella cheese

12 tsp dried oregano

18 tsp garlic powder

12 cup shredded Parmesan cheese

4 tbsp pizza sauce

4 tbsp shredded mozzarella (for pizza topping)

Directions:

1. In a mini food processor, pulse the egg, cauliflower, mozzarella, oregano, and garlic powder until the mixture is very finely chopped.
2. Spread 1 tbsp of the Parmesan cheese on the bottom of the Star Mini Waffle Maker. Add 1 12 tbsp of the cauliflower mixture, spreading it evenly. Sprinkle 1 tbsp more of the Parmesan cheese on top of the cauliflower mixture.
3. Cook the chaffle until well-browned and crisp, 6 mins. Set chaffle aside to cool. Repeat 3 more times making 4 chaffles.
4. Top each chaffle with 2 tbsp of the pizza sauce. Sprinkle on 1 tbsp mozzarella. Place the chaffles under the broiler until the cheese melts, 1-2 mins. Watch carefully so they don't burn and serve immediately.

Freshly arranged carrots and parsley on a white background (no text or symbols)

CARROT CAKE WAFFLES

Yield: 10-12 waffles

Ingredients:

12 cup all-purpose flour
12 cup light brown sugar
12 tsp baking powder
1 / 8 tsp baking soda
^1/8 tsp cinnamon
18 tsp ground clove
^1/8 tsp nutmeg
1 large egg
14 cup buttermilk
14 cup whole milk
12 tsp vanilla extract
12 cup shredded carrot
3 tbsp raisins
3 tbsp chopped walnuts

Directions:

1. Mix together flour, sugar, baking powder, baking soda, cinnamon, clove and nutmeg.
2. Whisk together egg, buttermilk, milk and vanilla extract until smooth. Add in dry ingredients and mix until no clumps remain. Mix in carrot, raisins and walnuts.
3. Add 1½ tbsp of waffle mix to your Star Mini Waffle Maker and cook until golden brow on both sides.

Close-up of golden waffles topped with white whipped cream and fresh strawberries on a white plate (no text or symbols visible)

Close-up of cinnamon sticks and a pile of powdered sugar on white background (no text or symbols)

SNICKERDOODLE WAFFLES

Yield: 10-12 waffles

Ingredients:

2 cups all-purpose flour

2 tsp kosher salt

4 tsp baking powder

13 cup sugar

4 tsp cinnamon

3 tsp cream of tartar

2 large eggs

1½ cups milk

13 cup unsalted butter

2 tsp vanilla extract

For Cinnamon Sugar Garnish

14 cup granulated white sugar

1 tbsp ground cinnamon

Directions:

1. In a small pan over low heat, combine milk and butter. Stir until milk is warm and butter is melted.

2. Mix together flour, salt, baking powder, sugar, cinnamon and cream of tartar in a large bowl.

3. Whisk together eggs and vanilla. Slowly pour in the warmed milk and butter.

4. Pour dry ingredients into the wet in three stages, incorporating all dry ingredients before adding the next.

5. Add 1½ tbsp of waffle mix to your Star Mini Waffle Maker and cook until golden brown on both sides.

6. Remove waffle and set on a wire rack and sprinkle with cinnamon sugar garnish.

CONFETTI WAFFLES

Yield: 8-10 waffles

Ingredients:

1 cup all-purpose flour

1 cup milk

1 tbsp white sugar

2 tbsp melted unsalted butter

2 tsp baking powder

1 tsp real vanilla extract

14 tsp salt

1 ½ tbsp rainbow sprinkles

1 large egg

Directions:

1. Mix together flour, sugar, baking powder and salt in a medium bowl.

2. Whisk together milk, egg, and melted butter and vanilla in a separate bowl. Add the wet ingredients to the dry and mix until combined. Add the rainbow sprinkles and mix to combine.

3. Add 1½ tbsp of waffle mix to your Star Mini Waffle Maker and cook until golden brown on both sides.

Stack of colorful waffles on a white plate with a fork and milk in the background (no text or symbols visible)

MORE RECIPE IDEAS

RECIPE IDEA INGREDIENTS		COOKING TIME
Protein Waffl e	Classic Waffl e Recipe (pg 18)1 scoop protein powder	4-6 min
Cornbread Waffl e 1⁄4 cup cornbread batter 6-8 min
Mashed Potato Bite	3 tbsp mashed potatoes 5 min
S'more Biscuit	1 refrigerated biscuit dough, sliced lengthwise2 squares milk chocolate5 mini marshmallows	5-7 min
Grilled Cheese	2 slices white or wheat bread, buttered2 slices American Cheese	5 min
Chocolate Chip Cookie	2 tbsp cookie dough 5-7 min
Waffl e Omelette	1 egg beaten2 tbsp chopped veggies1 tbsp grated Swiss cheese	5 min

OVER 80

Brilliant WAFFLE RECIPES

for your Dash Mini Waffl e Maker...

NETTING CREATIVE C find m

20 Catherine Call Discount & the Editor at Cross

Deliciously creative recipes taking mini to mighty!

Use with your Oak Non-Wattie Make

available now

in our SWEET NEW

COOKBOOK

find more creative recipes at bydash.com!

NOTES

NOTES

CUSTOMER SUPPORT

FEEL GOOD GUARANTEE™

Dash values quality and workmanship and stands behind this product with our Feel Good Guarantee™. To learn more about our commitment to quality, visit bydash.com/feelgood.

Our US-based customer support team is at your service

Monday - Friday during the times below.

Reach us at 1 [phone] or [e-mail]

7am 7pm 8am 8pm 9am 9pm 10am 10pm

Hey, Hawaii! You can reach our customer service team from 5AM to 5PM.

And also, Alaska, feel free to reach out from 6AM to 6PM.

STOREBOUND, LLC - 1 YEAR LIMITED WARRANTY

Your StoreBound product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of the original purchase when utilized for normal and intended household use. Should any defect covered by the terms of the limited warranty be discovered within one (1) year, StoreBound, LLC will repair or replace the defective part. To process a warranty claim, contact Customer Support at 1-800-898-6970 for further assistance and instruction. A Customer Support agent will assist you by troubleshooting minor problems. If troubleshooting fails to fix the problem, a return authorization will be issued. Proof of purchase indicating the date and place of purchase is required and should accompany the return. You must also include your full name, shipping address, and telephone number. We are unable to ship returns to a PO box. StoreBound will not be responsible for delays or unprocessed claims resulting from a purchaser's failure to provide any or all of the necessary information. Freight costs must be prepaid by the purchaser.

Send all inquiries to [e-mail].

There are no express warranties except as listed above.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CUSTOMER. STOREBOUND SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OR FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT EXCEPT TO THE EXTENT REQUIRED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts. Therefore, the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state.

Refurbished items or items not purchased through an authorized retailer are not eligible for warranty claims.

REPAIRS

DANGER! Risk of electric shock! The Dash Mini Waffle Maker is an electrical appliance.

Do not attempt to repair the appliance yourself under any circumstances.

Contact Customer Support regarding repairs to the appliance.

TECHNICAL SPECIFICATIONS

Voltage 120V \~ 60Hz

Power Rating 350W

Stock#: DMWR001NM_20210121_V2

DASH®
