Brand	Dash
Model	Pumpkin Mini DMWP001OR
Category	Waffle Maker
Product Type	Mini Waffle Maker
Dimensions (approx.)	13 x 13 x 9 cm
Weight (approx.)	0.5 kg
Power Supply	220-240 V, 50/60 Hz
Power	700 W
Material	Plastic and non-stick coating
Capacity	1 pumpkin-shaped waffle
Main Functions	Cooking pumpkin-shaped waffles
Heat Indicator	Indicator light
Handle	Insulated handle for lifting the lid
Care and Cleaning	Clean with a damp cloth; do not immerse; do not use metal utensils
Dishwasher safe	No
Safety	Hot surfaces, do not touch; polarized plug; short cord
Spare parts and repairability	Contact customer service
Warranty	Limited manufacturer's warranty
Intended Use	Household use only, indoors
Customer Service	1-800-898-6970 or [e-mail]

Frequently Asked Questions - Pumpkin Mini DMWP001OR Dash

How to use the Dash Pumpkin Mini Waffle Maker?

Plug in the appliance, wait for the indicator light to turn on (indicating the appliance is hot), pour the batter, close the lid using the handle, and let it cook until the waffle is golden brown. Never lift the lid above the hot surface.

How to clean the waffle maker?

Unplug the appliance and let it cool completely. Wipe the non-stick plates with a damp cloth. Never use abrasive products or metal utensils that could damage the coating. Never immerse the appliance in water.

What type of batter to use?

Use a classic waffle batter or pumpkin batter for pumpkin-shaped waffles. Avoid batters that are too runny as they may overflow.

Is the waffle maker suitable for children?

The appliance is not designed for use by children. Supervise children nearby as surfaces become very hot.

What to do if the waffle sticks?

Make sure you have lightly oiled the plates before use. If the waffle still sticks, wait for it to cook a little longer. Never use a metal knife to pry it off.

Can I use an extension cord?

Yes, but use an extension cord with a power rating at least equal to that of the appliance (700 W). Position it so it does not obstruct.

How to know if the waffle is cooked?

The indicator light turns off and on during cooking to maintain temperature. Open the lid from the side to check the color. Cooking time varies depending on the batter.

Can the waffle maker be washed in the dishwasher?

No, the waffle maker is not dishwasher safe. Clean it only by hand with a damp cloth.

What to do in case of breakdown?

Contact Dash customer service at 1-800-898-6970 or by email at [e-mail]. Do not attempt to repair the appliance yourself.

Is there a warranty?

Yes, the product is covered by a limited manufacturer's warranty. Keep the proof of purchase for any claims.

USER MANUAL Pumpkin Mini DMWP001OR Dash

DASH HOT SURFACE DASH recipes inside!

DMWP001

PUMPKIN

MINI MAKER WAFFLE

Instruction Manual | Recipe Guide

Simple red line drawing of a fork, plate with flour, and knife (no text or symbols)

Woman smiling while holding a red rice cooker (no visible text or symbols)

Man in blue shirt and apron holding a red kitchen blender (no visible text or symbols)

Woman holding a small white object, wearing a red and gray apron (no visible text or symbols)

Man holding a red portable radio with a white cup, wearing an apron (no visible text or symbols)

Man holding a red cooking pot and holding a tool, with no visible text or symbols

Woman smiling while holding a red plastic bag, surrounded by stacked red containers (no visible text or symbols)

Man holding a red electronic device with a screen (no visible text or symbols)

Woman with curly red hair holding a small red and white object, smiling (no visible text or symbols)

Man smiling while holding a red cooking pot (no visible text or symbols)

Man in apron holding a red appliance (no visible text or symbols)

Woman smiling while holding a metallic object with red accents (no visible text or symbols)

Woman smiling while holding a wine glass and a red wine jar (no text or symbols visible)

Woman holding a red air fryer (no visible text or symbols)

Portrait of a smiling woman holding a bowl and kitchen utensils (no text or symbols visible)

Woman holding two red food items with cartoon designs (no visible text or symbols)

Man holding a red piggy bank with a small flower, wearing an apron (no visible text or symbols)

MINI WAFFLE MAKER

Important Safeguards....4-7

Parts & Features....8

Using Your Mini Waffle Maker 9-12

Cleaning & Maintenance 13

Troubleshooting....14-15

Recipes.... 17-28

Customer Support 30

Warranty 31

the dash team!

IMPORTANT SAFEGUARDS

IMPORTANT SAFEGUARDS: PLEASE READ AND SAVE THIS INSTRUCTION AND CARE MANUAL.

When using electrical appliances, basic safety precautions should be followed, including:

• Read all instructions.
• Remove all bags and packaging from appliance before use.
• Never leave appliance unattended when in use.
• Make sure the appliance is cleaned thoroughly before using.
• Do not use appliance for other than intended use. For household use only. Do not use outdoors.
• Warning: Hot surfaces! Never touch the Cooking Surface or Cover while appliance is in use. Always lift and lower the Cover by the Cover Handle.
• DO NOT lift the Cover so that your arm is over the Cooking Surface as it is hot and may cause injury. Lift from the side.
• To prevent the risk of fire, electric shock, or personal injury, do not put cord, plug, or appliance in or near water or other liquids. The Mini Maker Waffle is NOT dishwasher safe.

• Never use abrasive cleaning agents to clean your appliance as this may damage the Mini Maker Waffle and its non-stick Cooking Surface.

• Do not operate this appliance with a damaged cord, damaged plug, after the appliance malfunctions, is dropped, or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.

• DO NOT use the Mini Maker Waffle near water or other liquids, with wet hands, or while standing on a wet surface.
• For maintenance other than cleaning, please contact StoreBound directly at 1-800-898-6970 from 7AM - 7PM PST Monday - Friday or by email at [e-mail].
• Do not use metal utensils on the Cooking Surface as this will damage the non-stick surface.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge unless they are provided with supervision and instruction concerning use of the appliance by a person responsible for their safety.

IMPORTANT SAFEGUARDS

• Do not place appliance on or near a hot gas burner, hot electric burner, or in a heated oven.
• Be cautious when moving an appliance containing hot oils or other hot liquids.
• Refrain from using attachments that are not recommended by the appliance manufacturer, as this may result in fire, electric shock, or personal injury.
• Allow Mini Maker Waffle to cool completely before moving, cleaning, or storing.
• Close supervision is necessary when any appliance is used by or near children.
• Do not let the cord touch hot surfaces or hang over the edge of tables or counters.
  • Always be sure to unplug the appliance from outlet prior to moving, cleaning, storage, and when not in use.
• StoreBound shall not accept liability for damages caused by improper use of the appliance.

• Improper use of the Mini Maker Waffle can result in property damage or even in personal injury.

• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not completely fit in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

• A short power supply cord is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. An extension cord may be used if care is exercised in its use. If an extension cord is used, the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance. If the appliance is of the grounded type, the extension cord should be a grounding 3-wire cord. The extension cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

IMPORTANT SAFEGUARDS: PLEASE READ AND SAVE THIS INSTRUCTION AND CARE MANUAL.

GARANTIES IMPORTANTES

GARANTIES IMPORTANTES: VEUILLEZ LIRE ET CONSERVER CE MODE D'EMPLOI ET D'ENTRETIEN

Indicator Light Cover Cover Handle Non-slip Feet Cooking Surfaces

USING YOUR MINI WAFFLE MAKER

BEFORE FIRST USE

Remove all packaging material and thoroughly clean your Mini Maker Waffle.

Hand using a hand mixer to clean or store food on a black stove, no text or symbols visible

Never touch the Cooking Surface or Cover while appliance is in use.

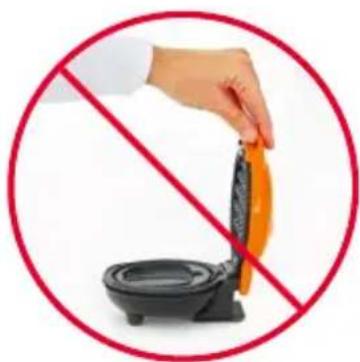

Hand holding an orange object next to a black appliance, crossed out by a red prohibition symbol (no text or symbols on the objects)

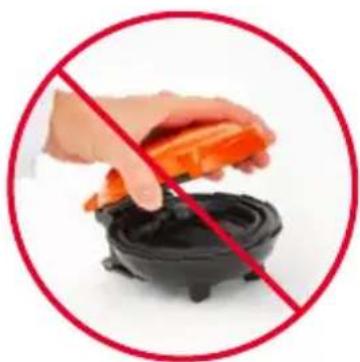

DO NOT lift the Cover so that your arm is over the Cooking Surface as it is hot and may cause injury.

Hand placing a square waffle on a black stand, enclosed in a green circular frame (no text or symbols visible)

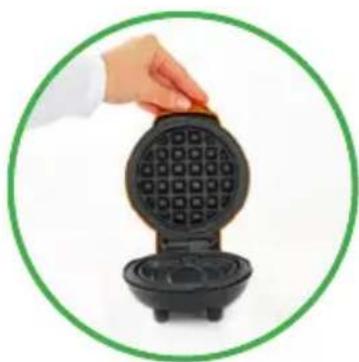

Always lift and lower the Cover by the Cover Handle. Lift from the side.

USING YOUR MINI WAFFLE MAKER

HOT SURFACE DASH D A

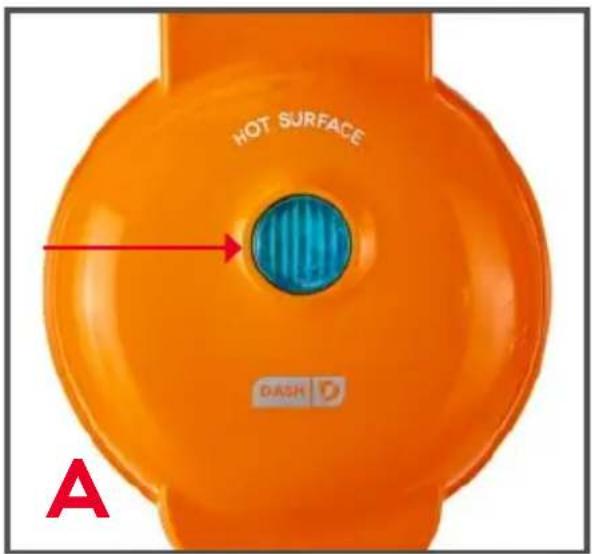

1 Place the appliance on a stable and dry surface. Plug the cord into a power outlet. The Indicator Light (photo A) will illuminate, signaling that the Mini Maker Waffle is heating up.

Exterior view of a black waffle-shaped appliance with red lid and black base, labeled 'B' in corner (no text or symbols on device)

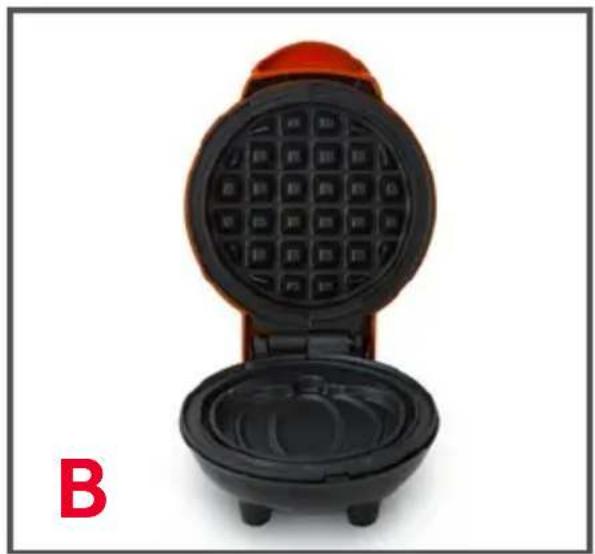

2 Once the Cooking Surface reaches the optimal cooking temperature, the Indicator Light will automatically shut off. Now, you're ready to get cooking (photo B)!

USING YOUR MINI WAFFLE MAKER

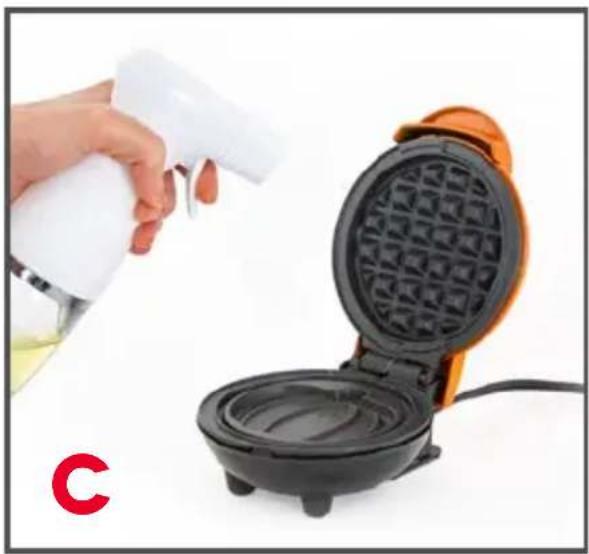

Hand spraying white spray into an orange waffle (no text or symbols visible)

3 Carefully lift the Cover by the Cover Handle and spray both Cooking Surfaces with a small amount of cooking spray (photo C).

Hand pouring milk into a waffle-shaped oven (no text or symbols visible)

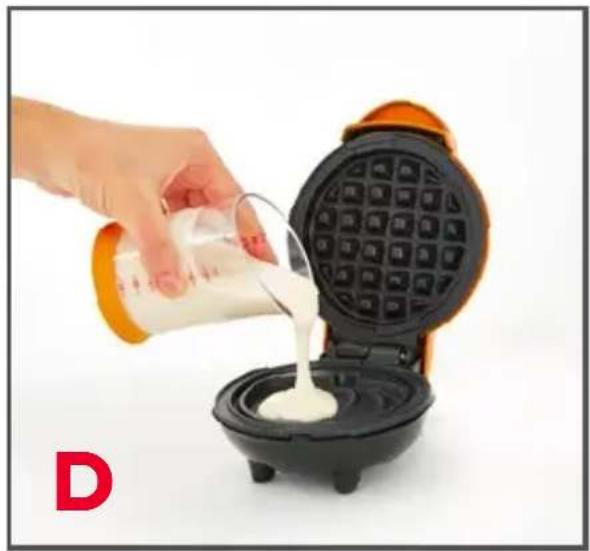

4 Place or pour batter onto the Cooking Surface (photo D) and close the Cover.

USING YOUR MINI WAFFLE MAKER

Close-up of a waffle being placed with a wooden spoon, no text or symbols visible

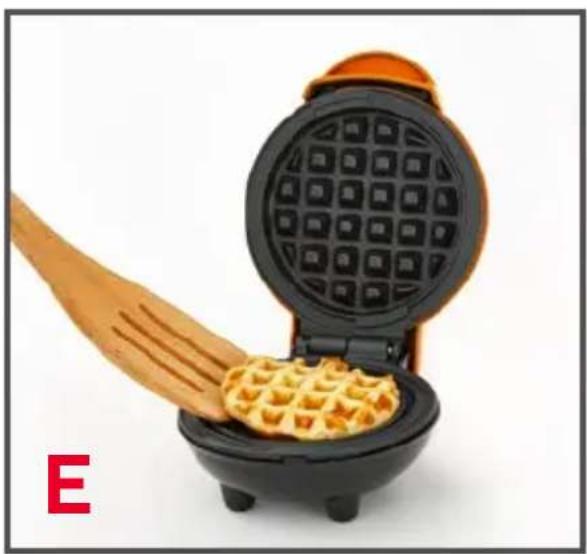

5 Once waffle is cooked to your preference, carefully remove it from the Cooking Surface with a heat-resistant nylon or silicone cooking utensil (photo E).

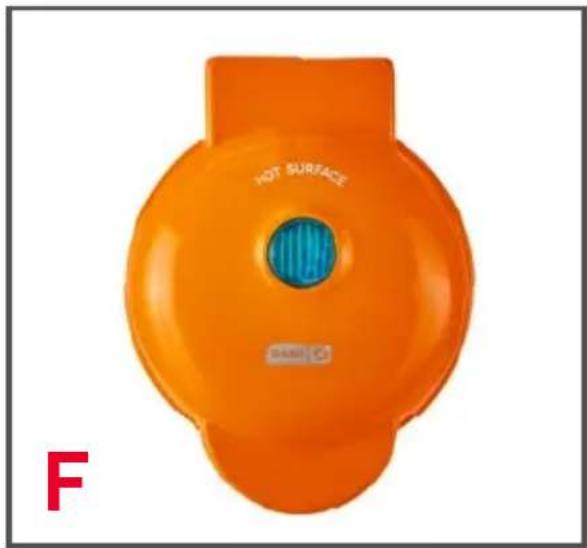

HOT SURFACE SARRO F

6 When you have finished cooking, unplug your Mini Maker Waffle and allow it to cool before moving or cleaning (photo F).

NOTE: Do not use metal utensils to remove or place food on the Cooking Surface as this will damage the non-stick surface.

CLEANING & MAINTENANCE

Always allow the appliance to cool completely before moving, cleaning, or storing. Do not submerge appliance in water or any other liquids. Never use abrasive cleaning agents to clean your appliance as this may damage the Mini Waffle Maker.

In order to keep your Mini Waffle Maker in pristine working order, thoroughly clean the appliance after each use. This will prevent the build-up of food or oil.

• Unplug Mini Waffle Maker and allow it to cool completely.
• Using a damp, soapy cloth, wipe down the Cooking Surface and Cover. Thoroughly rinse the cloth and wipe again.
  • Thoroughly dry Mini Waffle Maker before storing.
• If there is food burned onto the Cooking Surface, pour on a little cooking oil and let sit for 5 to 10 minutes. Scrub the Cooking Surface with a sponge or soft bristled brush to dislodge food. Use a damp, soapy cloth to wipe down the Cooking Surface. Thoroughly rinse the cloth and wipe again. If any food remains, pour on cooking oil and let sit for a few hours, then scrub and wipe clean.
• Never use abrasive cleaning agents to clean your appliance as this may damage the Mini Waffle Maker and its nonstick Cooking Surface.

TROUBLESHOOTING

While Dash products are durable, you may encounter one or more of the problems listed below. If the issue is either not solved by the solutions recommended below or not included on this page, please contact our Customer Support Team at 1-800-898-6970 or [e-mail].

ISSUE SOLUTION
The light on the Mini Maker Waffle keeps shutting off.	This is normal. During the cooking process, the heating element will automatically turn on and off to regulate the temperature and ensure that the Cooking Surface does not get too hot or cold. When this occurs, the Indicator Light turns on and off.
How do I know when the Mini Maker Waffle is heated and ready to use?	When the Waffle Maker reaches the optimal temperature, the Indicator Light shuts off and that means you're ready to get cooking!
There is no On/Off Button. How do I turn the Mini Maker Waffle off and on?	To turn on, simply plug in the power cord. When you're done cooking, turn off the Mini Maker Waffle by unplugging it.

TROUBLESHOOTING

ISSUE SOLUTION
When using my Mini Maker Waffle, the Cover gets very hot. Is this normal?	Yes, this is completely normal. When using your Waffle Maker, always lift and lower the Cover by the Cover Handle. To prevent personal injury, DO NOT lift the Cover so that your arm is over the Cooking Surface as it is hot and may cause injury. Lift from the side.
After using my Mini Maker Waffle a few times, food is starting to stick to the surface. What is happening?	There is probably a build-up of burnt food residue on the Cooking Surface. This is normal, especially when cooking with sugar. Allow the appliance to cool fully, pour on a little cooking oil and let sit for 5-10 minutes. Scrub Surface with a sponge or soft bristled brush to dislodge food. Use a damp, soapy cloth to wipe down the Cooking Surface. Rinse the cloth and wipe again. If food remains, pour on cooking oil and let sit for a few hours, then scrub and wipe clean.
The Indicator Light will not turn on and the Cooking Surface is failing to heat.	1. Ensure that the power cord is plugged into the power outlet.2. Check to make sure the power outlet is operating correctly.3. Determine if a power failure has occurred in your home, apartment or building.

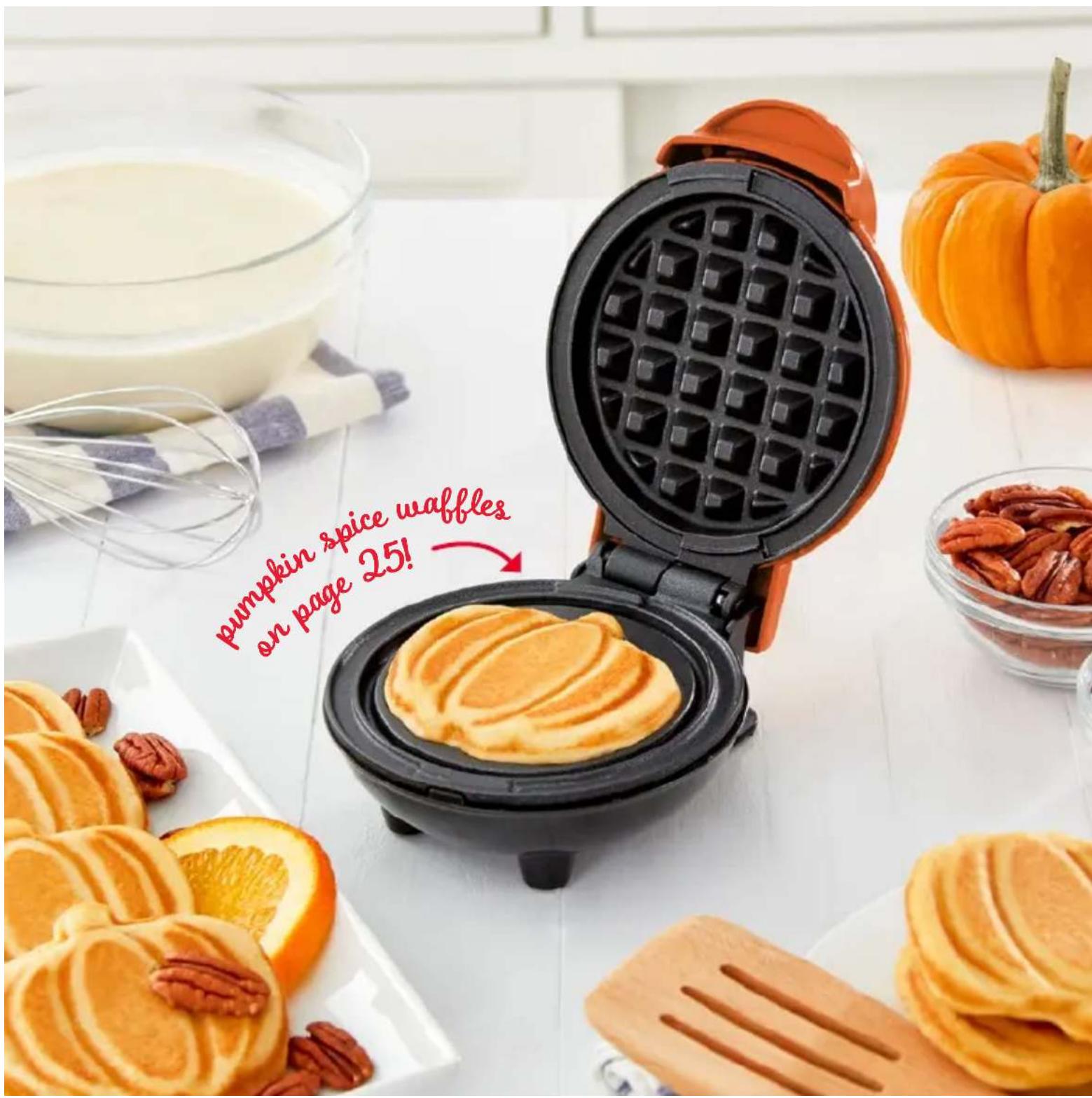

pumpkin spice waffles on page 25!

RECIPE GUIDE

Follow us!

@bydash | recipes, videos, & inspiration

@unprocessyourfood | veg & vegan-friendly meals

CLASSIC WAFFLES

Ingredients:

1 cup flour
1 tbsp sugar
2 tsp baking powder
14 tsp salt
1 egg
1 cup milk
2 tbsp melted butter or vegetable oil

Directions:

1. In a medium bowl, sift the flour, sugar, baking powder, and salt. Whisk the egg, milk, and melted butter in a separate bowl. Add the wet ingredients to the dry and mix until just incorporated.
2. Grease the Mini Waffle Maker with butter or coat with a light coat of cooking spray. Pour 14 cup of the batter into the Mini Waffle Maker and cook until golden brown. Repeat with the remaining batter.
3. Serve with a drizzle of maple syrup and fresh berries.

Close-up of golden-brown baked cookies shaped like a heart-shaped design, garnished with walnuts and star anise (no text or symbols visible)

Pile of fresh orange tomatoes with green stems (no text or symbols visible)

PIZZA CHAFFLE

Ingredients:

1 large egg

12 cup riced cauliflower

12 cup shredded mozzarella cheese

12 tsp dried oregano

_8 tsp garlic powder

12 cup shredded Parmesan cheese

4 tbsp pizza sauce

4 tbsp shredded mozzarella (for pizza topping)

Directions:

1. In a mini food processor, pulse the egg, cauliflower, mozzarella, oregano, and garlic powder until the mixture is very finely chopped.

2. Spread 1 tbsp of the Parmesan cheese on the bottom of the Mini Waffle Maker. Add half the cauliflower mixture, spreading it evenly. Sprinkle 1 tbsp more of the Parmesan cheese on top of the cauliflower mixture.

3. Cook the chaffle until well-browned and crisp, 6 mins. Set chaffle aside to cool. Repeat 3 more times making 4 chaffles.

4. Top each chaffle with 2 tbsp of the pizza sauce. Sprinkle on 1 tbsp mozzarella. Place the chaffles under the broiler until the cheese melts, 1-2 mins. Watch carefully so they don't burn and serve immediately.

PALEO WAFFLES

Ingredients:

2 large eggs
12 banana, mashed
^3/_4 tsp maple syrup
12 tsp vanilla extract
12 tsp baking powder
14 cup almond flour
1 ½ tbsp coconut flour
Pinch of salt

Directions:

1. Mix together eggs, banana, vanilla extract and maple syrup in a small bowl.
2. Whisk together dry ingredients in a separate bowl. Add the wet ingredients to the dry and mix until just incorporated.
3. Add 3.5 tbsp of batter to your Mini Waffle Maker and cook until golden brown on both sides.

Pile of broken dark chocolate bars on a white background (no text or symbols)

DARK CHOCOLATE WAFFLES

Ingredients:

3/4 cup all-purpose flour

3 tbsp white granulated sugar

14 cup cocoa powder

12 tsp baking powder

14 tsp baking soda

12 tsp kosher or sea salt

1 large egg

2 tbsp melted unsalted butter

1 cup buttermilk

1 tsp vanilla extract

14 cup semi sweet mini chocolate chips

Directions:

1. In a small pan over low heat, melt the butter. Shut off heat so butter is not hot when added to the mix.

2. Mix together the dry ingredients and set aside.

3. Beat egg with a whisk. Mix in buttermilk, butter and vanilla.

4. Add dry ingredients into wet in three rounds. Fully incorporate all dry ingredients before adding the next round. Fold in the chocolate chips.

5. Add 3.5 tbsp of batter to your Mini Waffle Maker and cook until golden brown on both sides.

Close-up of a plate with chocolate waffles, white whipped cream, and fresh strawberries on ice (no text or symbols visible)

Two sliced yellow potato pieces, one with visible seeds and the other on top (no text or symbols)

Banana Bread WAFFLES

Ingredients:

1½ cups all-purpose flour

1 tsp baking powder

14 tsp baking soda

14 tsp kosher salt

1 cup mashed bananas

(roughly 2 bananas)

^3/_4 cup buttermilk

14 cup light brown sugar

2 large eggs

3 tbsp canola oil

Directions:

1. Whisk together flour, baking powder, baking soda and salt in a medium bowl.
2. Mash bananas with a fork or place in stand mixer with paddle attachment until no large chunks remain. Add buttermilk, brown sugar, eggs and oil. Whisk until well-combined. Add dry ingredients and mix until no clumps remain.
3. Add 3 tbsp of batter to your Mini Waffle Maker and cook until golden brown on both sides. Serve with additional bananas, honey and powdered sugar, if desired.

PUMPKIN SPICE WAFFLES

Ingredients:

2 cups all purpose flour

2 tsp baking powder

2 tbsp pumpkin pie spice

14 cup sugar

2 tbsp light or dark brown sugar

14 tsp kosher salt

4 large eggs

12 cup whole milk

1 ½ cup canned pumpkin

^3/_4 cup unsalted butter

1 tsp vanilla extract

Directions:

1. Preheat Mini Waffle Maker. Melt butter on a small pan over low heat. Shut off heat so butter is not hot when added to the mix.

2. Mix together the dry ingredients and set aside.

3. Add eggs into a bowl and beat with a whisk. Add milk, pumpkin, butter and vanilla, mix to incorporate.

4. Add dry ingredients into wet in three rounds, fully incorporate all dry ingredients before added the next round. Add 3 tablespoons of batter into preheated Mini Waffle Maker and cook until the waffle is cooked through (about 5-6 minutes).

CINNAMON ROLL WAFFLES

Ingredients:

Classic Waffle Recipe

1¼ tsp cinnamon

12 tsp vanilla extract

Cream Cheese Icing

2 tbsp butter, melted

2 tbsp cream cheese, softened

12 cup powdered sugar

14 tsp vanilla extract

2-3 tbsp milk

Directions:

1. Make the Classic Waffles batter. Stir in the cinnamon and 12 teaspoon of vanilla extract. Pour 14 cup of the batter into the Pumpkin Mini Waffle Maker and cook until golden brown.
2. Repeat with the remaining batter.
3. In a medium bowl, mix the butter and cream cheese until well-combined. Stir in the powdered sugar, vanilla extract, and milk.
4. Drizzle the icing over the waffles and serve warm.

Stack of waffles topped with white cream and dark chocolate chips, served on a white plate (no text or symbols visible)

MORE RECIPE IDEAS

RECIPE IDEA INGREDIENTS		COOKING TIME
Protein Waffle	Classic Waffle Recipe (pg 18)1 scoop protein powder	4-6 min
Cornbread Waffle 1⁄4 cup cornbread batter 6-8 min
Mashed Potato Bite	3 tbsp mashed potatoes 5 min
Smore Biscuit	1 refrigerated biscuit dough, sliced lengthwise2 squares milk chocolate5 mini marshmallows	5-7 min
Grilled Cheese	2 slices white or wheat bread, buttered2 slices American Cheese	5 min
Chocolate Chip Cookie	2 tbsp cookie dough 5-7 min
Waffle Omelette	1 egg beaten2 tbsp chopped veggies1 tbsp grated Swiss cheese	5 min

OVER 80

Brilliant WAFFLE RECIPES

for your Dash Mini Waffle Maker...

ETTING CREATIVE C find m

by California Gas Research & the editors of Coal

Deliciously creative recipes taking mini to mighty!

Use with your Dash Mini Waffle Make!

available now

in our

SWEET NEW

COOKBOOK

find more creative recipes at bydash.com!

CUSTOMER SUPPORT

FEEL GOOD GUARANTEE™

Dash values quality and workmanship and stands behind this product with our Feel Good Guarantee™. To learn more about our commitment to quality, visit bydash.com/feelgood.

Our customer support teams in the US and Canada are at your service Monday - Friday during the times below.

Contact us at 1 [phone] or [e-mail]

6am 6pm 7am 7pm 8am 8pm 9am 9pm

Hey Hawaii! You can reach our customer service team from 3AM to 3PM. And also, Alaska, feel free to reach out from 5AM to 5PM.

STOREBOUND, LLC - 1 YEAR LIMITED WARRANTY

Your StoreBound product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of the original purchase when utilized for normal and intended household use. Should any defect covered by the terms of the limited warranty be discovered within one (1) year, StoreBound, LLC will repair or replace the defective part. To process a warranty claim, contact Customer Support at 1-800-898-6970 for further assistance and instruction. A Customer Support agent will assist you by troubleshooting minor problems. If troubleshooting fails to fix the problem, a return authorization will be issued. Proof of purchase indicating the date and place of purchase is required and should accompany the return. You must also include your full name, shipping address, and telephone number. We are unable to ship returns to a PO box. StoreBound will not be responsible for delays or unprocessed claims resulting from a purchaser's failure to provide any or all of the necessary information. Freight costs must be prepaid by the purchaser.

Send all inquiries to [e-mail].

There are no express warranties except as listed above.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CUSTOMER. STOREBOUND SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OR FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT EXCEPT TO THE EXTENT REQUIRED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts. Therefore, the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state.

REPAIRS

DANGER! Risk of electric shock! The Dash Mini Waffle Maker is an electrical appliance.

Do not attempt to repair the appliance yourself under any circumstances.

Contact Customer Support regarding repairs to the appliance.

TECHNICAL SPECIFICATIONS

Voltage 120V \~ 60Hz

Power Rating 350W

Stock#: DMWP001_20200415_V7

Made in China

DASH®
