Product Type	Mini Waffle Maker
Brand	Dash
Model	Deluxe Mini DMW005GBDB06
Color	Black
Dimensions (approx.)	22 x 18 x 10 cm
Weight (approx.)	0.9 kg
Material	Heat-resistant plastic, nonstick cooking surface
Power Supply	120 V ~ 60 Hz
Power	700 W
Capacity	1 mini waffle, 10 cm diameter
Cooking Surface Type	Nonstick, classic waffle shape
Indicator Light	Heating indicator (lights up when heating, turns off when ready)
Handle	Insulated, for safe lid lifting
Nonstick Coating	Yes, for easy release and simple cleaning
Cleaning	Wipe with a damp cloth after complete cooling. Do not immerse in water.
Safety	Do not touch hot surfaces, do not use near water, short anti-tangle cord
Recommended Use	Indoor, household use only
Warranty	Limited warranty, contact customer service for any repairs
Customer Service	1-800-898-6970 (US), [e-mail]
Included Accessories	Waffle maker only, no additional accessories

Frequently Asked Questions - Deluxe Mini DMW005GBDB06 Dash

How to clean the Dash Deluxe Mini waffle maker?

Wait for the appliance to cool completely, then wipe the cooking surface with a damp cloth. Do not use abrasive products and never immerse the appliance in water.

Can I use metal utensils on the nonstick surface?

No, only use wood, silicone, or plastic utensils to avoid damaging the nonstick coating.

How long does it take to cook a waffle?

Cooking time varies depending on the batter, but generally 3 to 5 minutes. The indicator light turns off when the appliance is ready, then turns back on during cooking.

What if the indicator light does not turn on?

Check that the appliance is plugged into a working outlet. If the problem persists, contact Dash customer service.

Are the plates dishwasher safe?

No, the appliance is not dishwasher safe. Clean it only by hand with a damp cloth.

Does the waffle maker heat up quickly?

Yes, the Dash Deluxe Mini heats up in minutes. The indicator turns off when the cooking temperature is reached.

Can I prepare anything other than waffles with this appliance?

This appliance is designed only for cooking waffles. Do not use other foods or preparations.

How to store the waffle maker?

Let it cool completely, clean it, then store it in a dry, dust-free place. Wrap the cord without forcing.

What to do in case of overheating or smoke?

Unplug the appliance immediately and let it cool. Do not use water to extinguish. Contact customer service if the problem persists.

Where to find spare parts or repair service?

Contact Dash customer service at 1-800-898-6970 or by email at [e-mail] for assistance with parts or repairs.

USER MANUAL Deluxe Mini DMW005GBDB06 Dash

DASH HOT SURFACE DASH recipes inside!

DMW005

DELUXE

MINI WAFFLE MAKER

Instruction Manual | Recipe Guide

Simple red line drawing of a fork, plate with flour, and knife (no text or symbols)

DELUXE

MINI WAFFLE MAKER

Important Safeguards....4-7

Parts & Features....8

Using Your Deluxe Mini Waffle Maker 9-12

Cleaning & Maintenance 14-15

Troubleshooting....16-17

Recipes....19-28

Customer Support 30

Warranty....31

the dash team!

IMPORTANT SAFEGUARDS

IMPORTANT SAFEGUARDS: PLEASE READ AND SAVE THIS INSTRUCTION AND CARE MANUAL.

When using electrical appliances, basic safety precautions should be followed, including:

• Read all instructions.
• Remove all bags and packaging from the appliance before use.

- Never leave the appliance unattended when in use.

• Make sure the appliance is cleaned thoroughly before using.

- Do not use appliance for other than intended use. For household use only. Do not use outdoors.

- WARNING: Hot surfaces! Never touch the Cooking Surface or Cover while the appliance is in use. Always lift and lower the Cover by the Cover Handle.

- DO NOT lift the Cover so that your arm is over the Cooking Surface as it is hot and may cause injury. Lift from the side.

• To prevent the risk of fire, electric shock or personal injury, do not put cord, plug or appliance in or near water or other liquids.

- The Deluxe Mini Waffle Maker is NOT dishwasher safe.

- Never use abrasive cleaning agents

to clean your appliance as this may damage the appliance and its nonstick Cooking Surface.

• Do not operate this appliance with a damaged cord, damaged plug, after the appliance malfunctions, is dropped or is damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.

- DO NOT use the Deluxe Mini Waffle Maker near water or other liquids, with wet hands or while standing on a wet surface.

- For maintenance other than cleaning, please contact StoreBound directly at 1-800-898-6970 from 9AM - 9PM EST Monday - Friday or by email at [e-mail].

- Do not use metal utensils on the Cooking Surface as this will damage the nonstick surface.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless

IMPORTANT SAFEGUARDS

they are provided with supervision and instruction concerning use of the appliance by a person responsible for their safety.

• Do not place appliance on or near a hot gas burner, hot electric burner or in a heated oven.
• Be cautious when moving an appliance containing hot oils or other hot liquids.
• Refrain from using attachments that are not recommended by the appliance manufacturer, as this may result in fire, electric shock or personal injury.
• Allow the Deluxe Mini Waffle Maker to cool completely before moving, cleaning or storing.
• Close supervision is necessary when any appliance is used by or near children.
• Do not let the cord touch hot surfaces or hang over the edge of tables or counters.
  • Always be sure to unplug the appliance from outlet prior to moving, cleaning, storage and when not in use.

• StoreBound shall not accept liability for damages caused by improper use of the appliance.

• Improper use of the appliance can result in property damage or personal injury.

• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• A short power supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. An extension cord may be used if care is exercised in its use. If an extension cord is used, the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance. If the appliance is of the grounded type, the extension cord should be a grounding 3-wire cord.
• The extension cord should be arranged so that it will not drape over a countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

IMPORTANT SAFEGUARDS: PLEASE

READ AND SAVE THIS INSTRUCTION

AND CARE MANUAL.

GARANTIES IMPORTANTES:

VEUILLEZ LIRE ET CONSERVER CE MODE D'EMPLOI ET D'ENTRETIEN

Indicator Light Hot SUZZA Cover Cord Wrap Cover Handle Non-slip Feet Cleaning Brush Cooking Surfaces

USING YOUR DELUXE MINI WAFFLE MAKER

Before first use, remove all packaging materials and thoroughly clean your Deluxe Mini Waffl e Maker.

Hand using a red portable device with a black cable, crossed out by a red prohibition symbol (no text or symbols on device)

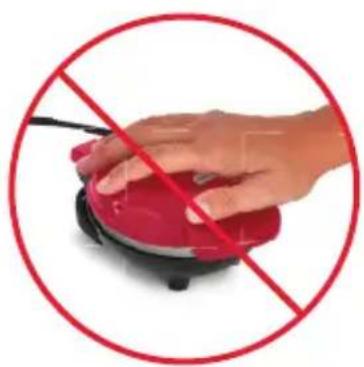

Never touch the Cooking Surface or Cover while the appliance is in use.

Red prohibition symbol over a frying pan and waffle, showing a hand using a red grater to press down (no text or symbols present)

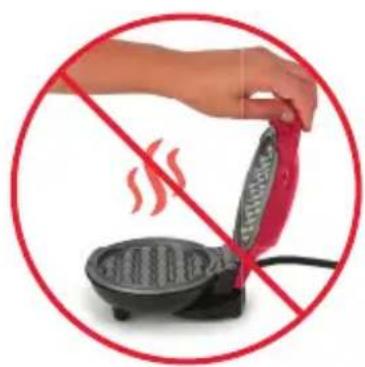

DO NOT lift the Cover so that your arm is over the Cooking Surface as it is hot and may cause injury.

Hand placing a square waffle on top of an open waffle (no text or symbols visible)

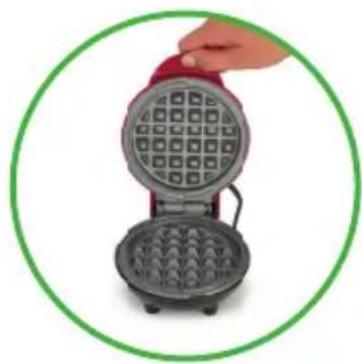

Always lift and lower the Cover by the Cover Handle. Lift from the side.

USING YOUR DELUXE MINI WAFFLE MAKER

HOT SURFACE DASH D A

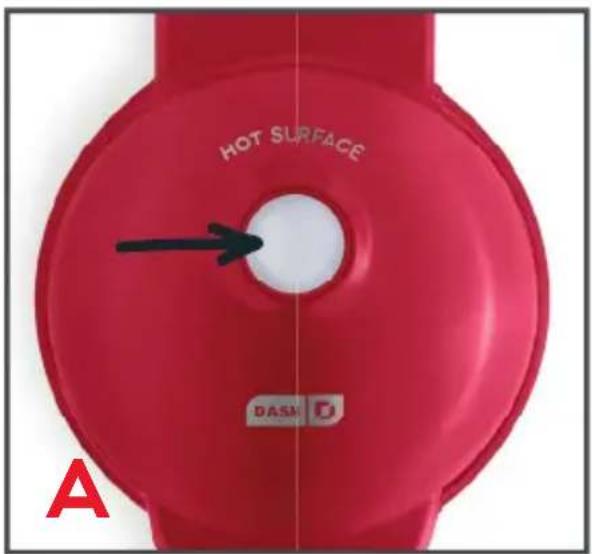

1 Place the appliance on a stable and dry surface. Plug the cord into a power outlet. The Indicator Light will illuminate (photo A), signaling that the Deluxe Mini Waffle Maker is heating up.

Red and black waffle-shaped food item with grid pattern, labeled 'B' in corner (no text or symbols on the object itself)

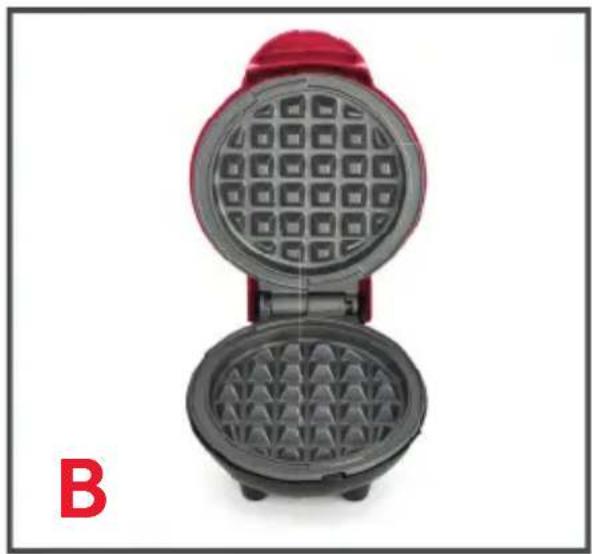

2 Once the Cooking Surface reaches the optimal cooking temperature, the Indicator Light will automatically shut off. Now, you're ready to get cooking (photo B)!

USING YOUR DELUXE MINI WAFFLE MAKER

Hand pouring red liquid into a waffle-shaped electric stove (no text or symbols visible)

3 Carefully lift the Cover by the Cover Handle and spray both Cooking Surfaces with a small amount of cooking spray (photo C).

Close-up of a red waffle being poured into a black griddle, no text or symbols visible

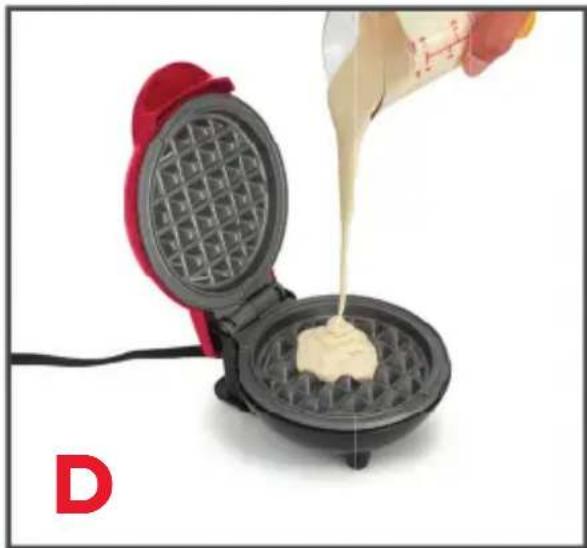

4 Place or pour batter onto the Cooking Surface (photo D) and close the Cover.

USING YOUR DELUXE MINI WAFFLE MAKER

Close-up of a red and black waffle making an open pan, showing the golden crust and waving (no text or symbols visible)

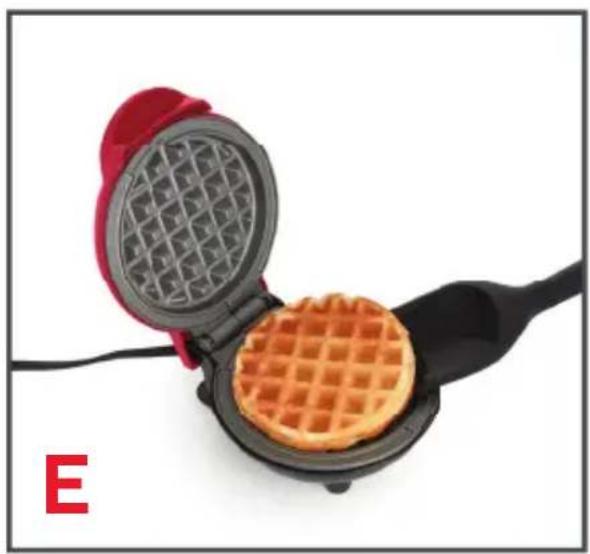

5 Once waffle is cooked to your preference, carefully remove it from the Cooking Surface with a heat-resistant nylon or silicone cooking utensil (photo E).

Red and black electric stove with a white lid, no visible text or symbols on the appliance itself.

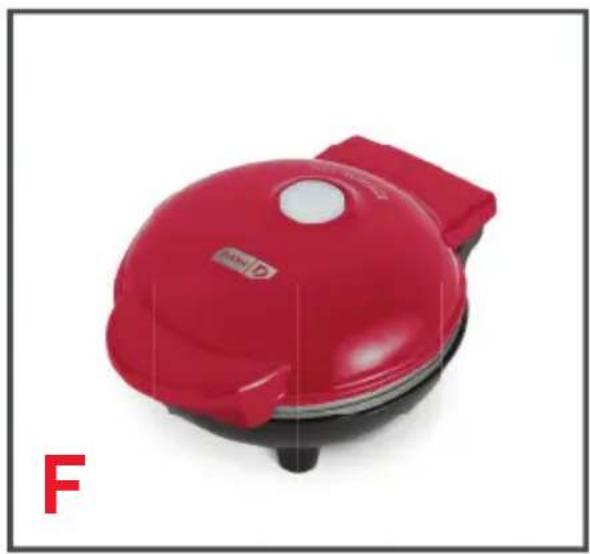

6 When you have fi nished cooking, unplug your Deluxe Mini Waffl e Maker and allow it to cool before moving or cleaning (photo F).

NOTE: Do not use metal utensils to remove or place food on the Cooking Surface as this will damage the nonstick surface.

Red waffle grater with open lid, surrounded by fresh bread rolls and garnishes on a marble surface (no text or symbols visible)

CLEANING & MAINTENANCE

Unplug and allow the appliance to cool completely before moving, cleaning or storing.

Thoroughly clean the Deluxe Mini Waffl e Maker after each use to prevent the build-up of food or oil.

• DO NOT submerge the appliance under running water or other liquids.
- Use a damp, soapy cloth to wipe down the Cover. Thoroughly rinse the cloth and wipe again.
- Never use abrasive cleaning agents to clean your appliance as this may damage Deluxe Mini Waffl e Maker and its nonstick Cooking Surface.

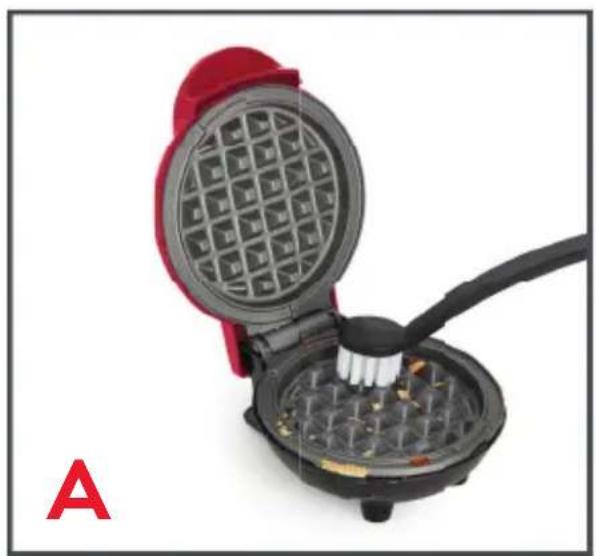

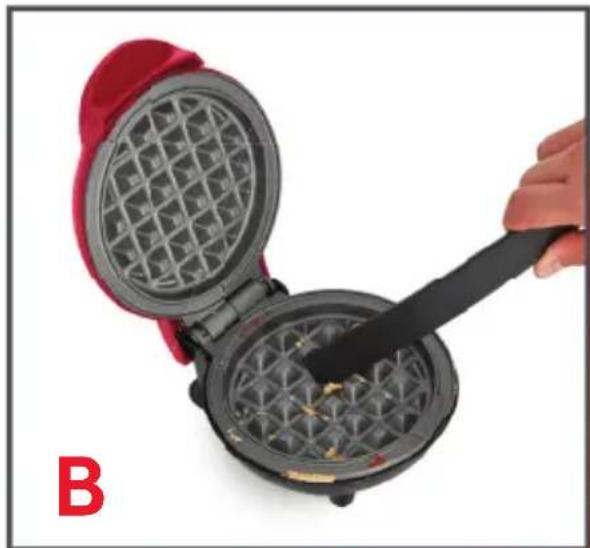

- Use the Cleaning Brush, wet or dry, to gently scrub the Cooking Surface (photo A). Use the chisel end of the Brush to dislodge food in the grooves of the Cooking Surface (photo B). Then use a damp, soapy cloth to wipe down the Cooking Surface. Rinse the cloth and wipe again.
- If there is food burned onto the Cooking Surface, pour on a little cooking oil and let sit for 5 to 10 minutes, then scrub the Cooking Surface with the Cleaning Brush. If any food remains, pour on cooking oil and let sit for a few hours, then scrub and wipe clean.

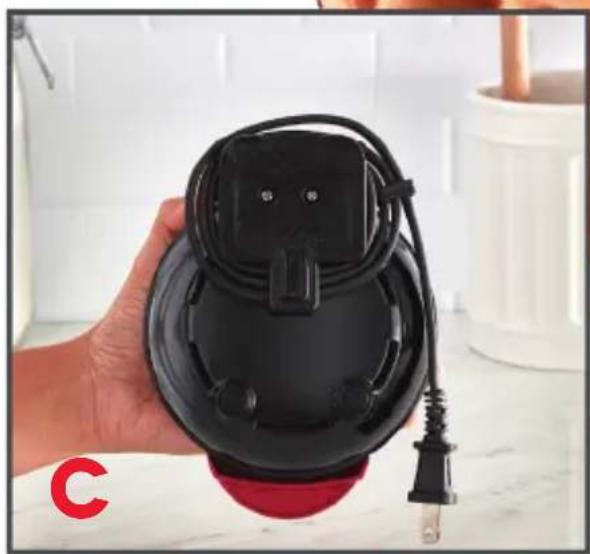

- Thoroughly dry the Deluxe Mini Waffl e Maker before storing. Use the Cord Wrap on the base for compact storage (photo C).

Close-up of a textured, reddish-brown surface with no visible text or symbols

CLEANING & MAINTENANCE

Close-up of a red and black waffle-shaped appliance with internal grid pattern (no text or symbols visible)

Hand using a black spatula to clean the waffle in an open red waffle (no text or symbols visible)

Close-up of a waffle texture with square grout pattern (no text or symbols)

Close-up of a waffle with diamond-shaped cavities (no text or symbols)

Hand holding a black and red electronic device with a cable, placed on a white surface (no visible text or symbols)

TROUBLESHOOTING

While Dash products are durable, you may encounter one or more of the problems listed below. If the issue is either not solved by the solutions recommended below or not included on this page, please contact our Customer Support team at 1-800-898-6970 or [e-mail].

ISSUE SOLUTION
The light on the Deluxe Mini Waffle Maker keeps shutting off.	This is normal. During the cooking process, the heating element will automatically turn on and off to regulate the temperature and ensure that the Cooking Surface does not get too hot or cold. When this occurs, the Indicator Light turns on and off.
How do I know when the Deluxe Mini Waffle Maker is heated and ready to use?	When the Deluxe Mini Waffle Maker reaches the optimal temperature, the Indicator Light shuts off and that means you're ready to get cooking!
There is no On/Off Button.How do I turn the Deluxe Mini Waffle Maker off and on?	To turn on, simply plug in the power cord.When you're done cooking, turn off the Deluxe Mini Maker Waffle by unplugging it.

TROUBLESHOOTING

ISSUE SOLUTION
When using my Deluxe Mini Waffle Maker, the Cover gets very hot. Is this normal?	Yes, this is completely normal. When using your Deluxe Mini Waffle Maker, always lift and lower the Cover by the Cover Handle. To prevent personal injury, DO NOT lift the Cover so that your arm is over the Cooking Surface as it is hot and may cause injury. Lift from the side.
After using my Deluxe Mini Waffle Maker a few times, food is starting to stick to the surface. What is happening?	There is probably a build-up of burnt food residue on the Cooking Surface. This is normal, especially when cooking with sugar. Allow the appliance to cool fully, pour on a little cooking oil and let sit for 5-10 minutes. Scrub the Cooking Surface with the Cleaning Brush to dislodge food. Use a damp, soapy cloth to wipe down the Surface. Rinse the cloth and wipe again. If food remains, pour on cooking oil and let sit for a few hours, then scrub and wipe clean.
The Indicator Light will not turn on and the Cooking Surface is failing to heat.	1. Ensure that the power cord is plugged into the power outlet.2. Check to make sure the power outlet is operating correctly.3. Determine if a power failure has occurred in your home, apartment or building.

Top-down view of a red waffle grater on a white marble table, surrounded by fresh fruits and bread slices (no text or symbols visible)

RECIPE GUIDE

Follow us!

@bydash | recipes, videos & inspiration

@unprocessyourfood | veg & vegan-friendly meals

CLASSIC WAFFLES

Yield: 8-10 waffles

Ingredients:

1 cup all-purpose fl our

1 tbsp sugar

2 tsp baking powder

14 tsp salt

1 egg

1 cup milk

2 tbsp vegetable oil or butter, melted

Directions:

1. In a medium bowl, sift the flour, sugar, baking powder and salt.

2. Whisk the egg, milk and melted butter in a separate bowl. Add the wet ingredients to the dry and mix until just incorporated.

3. Grease the Deluxe Mini Waffle Maker with butter or coat with a light coat of cooking spray. Pour 3.5 tbsp of batter into the Deluxe Mini Waffle Maker and cook until golden brown. Repeat with the remaining batter.

4. Serve with a drizzle of maple syrup and fresh berries, if desired.

Breakfast table with waffles, oranges, berries, and fruit on a white surface (no text or symbols visible)

SCALLION

WAFFLES

Yield: 8-10 waffles

Ingredients:

13 cup sesame seeds	1 cup all-purpose flour
1 large egg	12 tbsp baking powder
14 cup vegetable oil	18 tsp five-spice powder
34 cup whole milk	18 tsp Sichuan pepper powder
1 tsp sesame oil	18 tsp fresh ground white pepper
12 tsp salt	1 cup scallions, finely chopped
14 tsp sugar	4 cloves garlic, minced

Directions:

1. Toast the sesame seeds in a pan and cool completely.
2. Whisk together egg and oil until well combined. Mix in whole milk, sesame oil, salt, sugar, flour, baking powder, five-spice powder, Sichuan peppercorn powder and fresh ground white pepper until well combined.
3. Add scallions, garlic and toasted sesame seeds to the batter and mix until distributed evenly. Let the batter sit for 5 minutes.
4. Grease the Deluxe Mini Waffle Maker with a light coat of cooking spray. Pour 3.5 tbsp of batter into the Deluxe Mini Waffle Maker and cook until golden brown.

Stacked golden waffles with chopped green onions on a wooden board, garnished with fresh green onions (no text or symbols visible)

BANANA BREAD WAFFLES

Yield: 8-10 waffles

Ingredients:

1½ cups all-purpose flour 34 cup buttermilk
1 tsp baking powder 14 cup light brown sugar
14 tsp baking soda 2 eggs
1 / 4 tsp kosher salt 3 tbsp canola oil
2 bananas

Directions:

1. In a medium bowl, combine flour, baking powder, baking soda and salt.
2. Peel bananas and mash with a fork or place in stand mixer, mixing with paddle attachment until no large chunks remain. Add buttermilk, brown sugar, eggs and oil. Whisk until well combined. Add dry ingredients and mix until no clumps remain.
3. Grease the Deluxe Mini Waffle Maker with a light coat of cooking spray. Pour 3 tbsp of batter onto your Deluxe Mini Waffle Maker and cook until golden brown on both sides.
4. Serve with additional bananas, honey and powdered sugar, if desired.

Close-up of dried, reddish-brown elongated food items (no text or symbols visible)

BACON & CHEESE WAFFLES

Yield: 8-10 waffles

Ingredients:

1 cup all-purpose flour

2 tsp baking powder

1 large egg

1 cup whole milk

2 tbsp butter, melted

12 cup grated cheese of choice

4 slices cooked bacon, crumbled

Directions:

1. Whisk flour and baking powder together.

2. Whisk egg, milk and butter together.

3. Fold wet ingredients into dry ingredients. Fold the grated cheese and crumbled bacon into the batter.

4. Grease the Deluxe Mini Waffle Maker with a light coat of cooking spray. Pour 3.5 tbsp of batter onto your Deluxe Mini Waffle Maker and cook until golden brown.

Stack of three waffles topped with chocolate chips and whipped cream, served on a white plate with dark chocolate pieces (no text or symbols visible)

Close-up of five brown, rounded objects with handles, resembling chocolate or small food items (no text or symbols visible)

CHOCOLATE CHIP WAFFLES

Yield: 8-10 waffles

Ingredients:

1 cup all-purpose flour

1 tbsp sugar

2 tsp baking powder

1 cup chocolate chips

14 tsp salt

1 egg

1 cup milk

2 tbsp unsalted butter, melted

Directions:

1. In a medium bowl, combine flour, sugar, baking powder, chocolate chips and salt.

2. Whisk together the egg, milk and butter in a separate bowl.

3. Add the wet ingredients to the dry and mix until just incorporated.

4. Grease the Deluxe Mini Waffle Maker with a light coat of cooking spray. Pour 3.5 tbsp of batter onto the Deluxe Mini Waffle Maker and cook until golden brown on both sides.

MORE RECIPE IDEAS

RECIPE IDEA INGREDIENTS		COOKING TIME
Protein Waffl e	Classic Waffl e Recipe (pg 18)1 scoop protein powder	4-6 min
Cornbread Waffl e 1⁄4 cup cornbread batter 6-8 min
Mashed Potato Bite	3 tbsp mashed potatoes 5 min
S'more Biscuit	1 refrigerated biscuit dough, sliced lengthwise2 squares milk chocolate5 mini marshmallows	5-7 min
Grilled Cheese	2 slices white or wheat bread, buttered2 slices American Cheese	5 min
Chocolate Chip Cookie	2 tbsp cookie dough 5-7 min
Waffl e Omelette	1 egg, beaten2 tbsp chopped veggies1 tbsp grated Swiss cheese	5 min

OVER 80

Brilliant WAFFLE RECIPES

for your Dash Mini Waffl e Maker...

SETTING CREATIVE C find m

72 Cathecane Cal Condor & the E-brown at Dusk

Deliciously creative recipes taking mini to mighty!

Use with your God Hans Writte Meakor

available now

in our

SWEET NEW

COOKBOOK

find more creative recipes at bydash.com!

CUSTOMER SUPPORT

FEEL GOOD GUARANTEE™

Dash values quality and workmanship and stands behind this product with our Feel Good Guarantee™. To learn more about our commitment to quality, visit bydash.com/feelgood.

Our customer support teams in the US and Canada are at your service Monday - Friday during the times below.

Contact us at 1 [phone] or [e-mail]

6am 6pm 7am 7pm 8am 8pm 9am 9pm

Hey Hawaii! You can reach our customer service team from 3AM to 3PM. And also, Alaska, feel free to reach out from 5AM to 5PM.

STOREBOUND, LLC - 1 YEAR LIMITED WARRANTY

Your StoreBound product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of the original purchase when utilized for normal and intended household use. Should any defect covered by the terms of the limited warranty be discovered within one (1) year, StoreBound, LLC will repair or replace the defective part. To process a warranty claim, contact Customer Support at 1-800-898-6970 for further assistance and instruction. A Customer Support agent will assist you by troubleshooting minor problems. If troubleshooting fails to fix the problem, a return authorization will be issued. Proof of purchase indicating the date, model number, serial number and place of purchase is required and should accompany the return. You must also include your full name, shipping address, and telephone number. We are unable to ship returns to a PO box. StoreBound will not be responsible for delays or unprocessed claims resulting from a purchaser's failure to provide any or all of the necessary information. Freight costs must be prepaid by the purchaser.

Send all inquiries to [e-mail].

There are no express warranties except as listed above.

Warranty is voided if used outside of the 50 states of the United States, the District of Columbia or the 10 provinces of Canada. Warranty is voided if used with an electric adapter/converter or used with any voltage plug other than 120V.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CUSTOMER. STOREBOUND SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OR FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT EXCEPT TO THE EXTENT REQUIRED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts. Therefore, the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state.

Refurbished items or items not purchased through an authorized retailer are not eligible for warranty claims.

REPAIRS

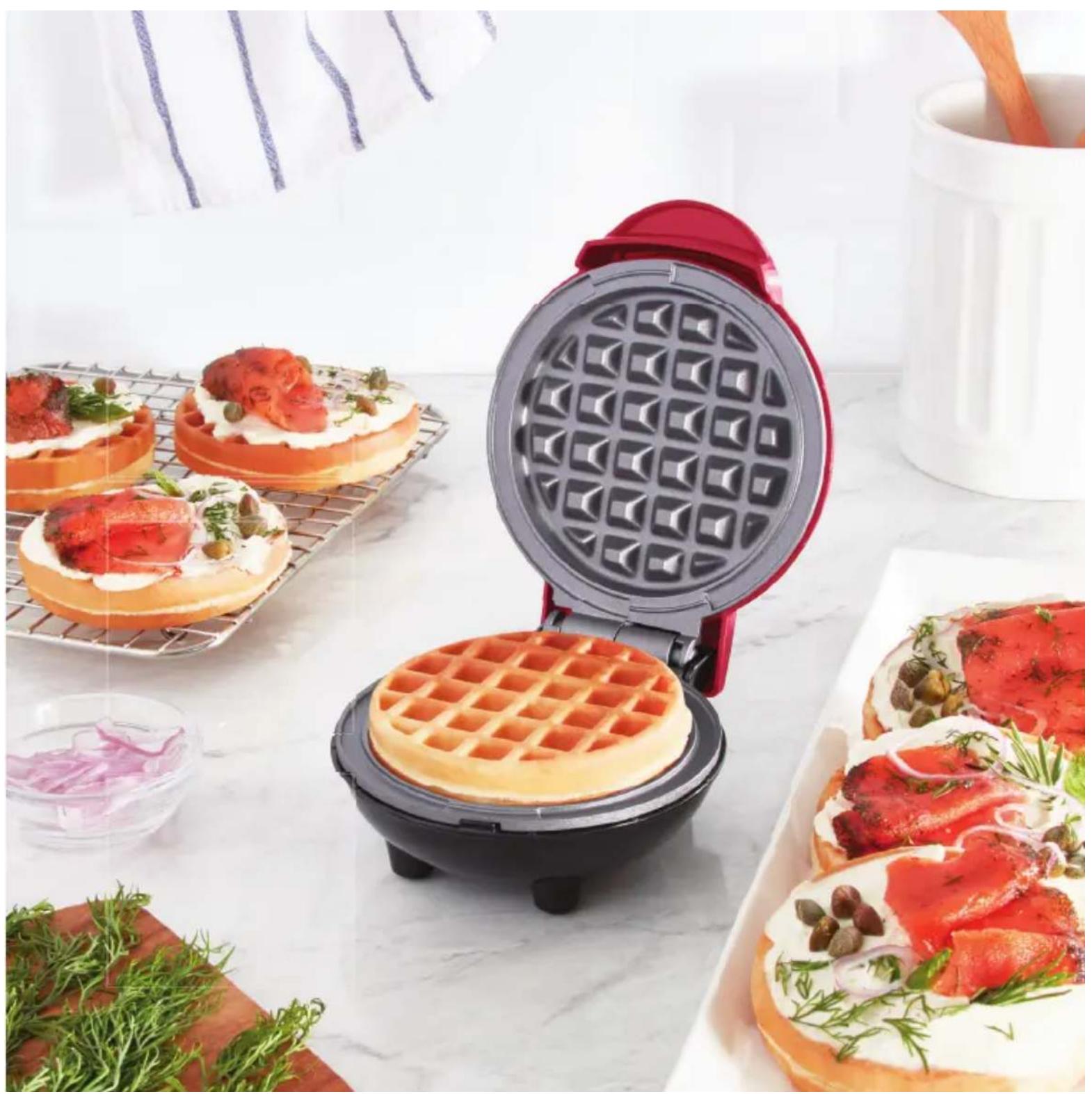

DANGER! Risk of electric shock! The Dash Deluxe Mini Waffle Maker is an electrical appliance.

Do not attempt to repair the appliance yourself under any circumstances.

Contact Customer Support regarding repairs to the appliance.

TECHNICAL SPECIFICATIONS

Voltage 120V \~ 60Hz

Power Rating 350W

Stock#: DMW005_20210826_V1

This product has passed food safety testing in accordance with FDA guidelines.

DASH
