| Brand | Burg Wächter |
| Model | WS OfficeLine 801 E FP |
| Category | Safe |
| Lock type | Electronic SecuTronic with fingerprint sensor and numeric keypad |
| Power supply | 4 AA LR6 alkaline batteries (1.5 V) |
| Battery level indicator | Yes, displayed on screen |
| User capacity | 1 administrator, up to 9 users |
| Number of storable fingerprints | Up to 20 |
| PIN code | 6 digits, default factory code 1-2-3-4-5-6 |
| Opening methods | PIN code alone or fingerprint + PIN code of another user |
| Delay function | Yes, adjustable from 0 to 99 minutes |
| Lockout after wrong codes | 3 failures: 5 min; then 10 min per additional failure |
| Clock and calendar | Yes, with automatic daylight saving time changeover |
| Event history | Up to 2000 entries, viewable and exportable on microSD card |
| Firmware update | Yes, via microSD card (FAT-32 format) |
| Menu languages | 12 languages, including French |
| Certification | ECB-S (Class B) according to EN 1300:2018 |
| Cleaning | Clean the keypad with a microfiber cloth |
| Battery replacement | Remove the cover with a Torx T8 screwdriver (provided) |
Frequently Asked Questions - WS OfficeLine 801 E FP Burg Wächter
User questions about WS OfficeLine 801 E FP Burg Wächter
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Safe in PDF format for free! Find your manual WS OfficeLine 801 E FP - Burg Wächter and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WS OfficeLine 801 E FP by Burg Wächter.
USER MANUAL WS OfficeLine 801 E FP Burg Wächter
B Ziffer-Tasten
| USER.0002 CD |
| Kombination: [ ] |
| FUNC: M |
| USER:0001 | ||
| 1:▲ | 2:▼ | FUNC: M |

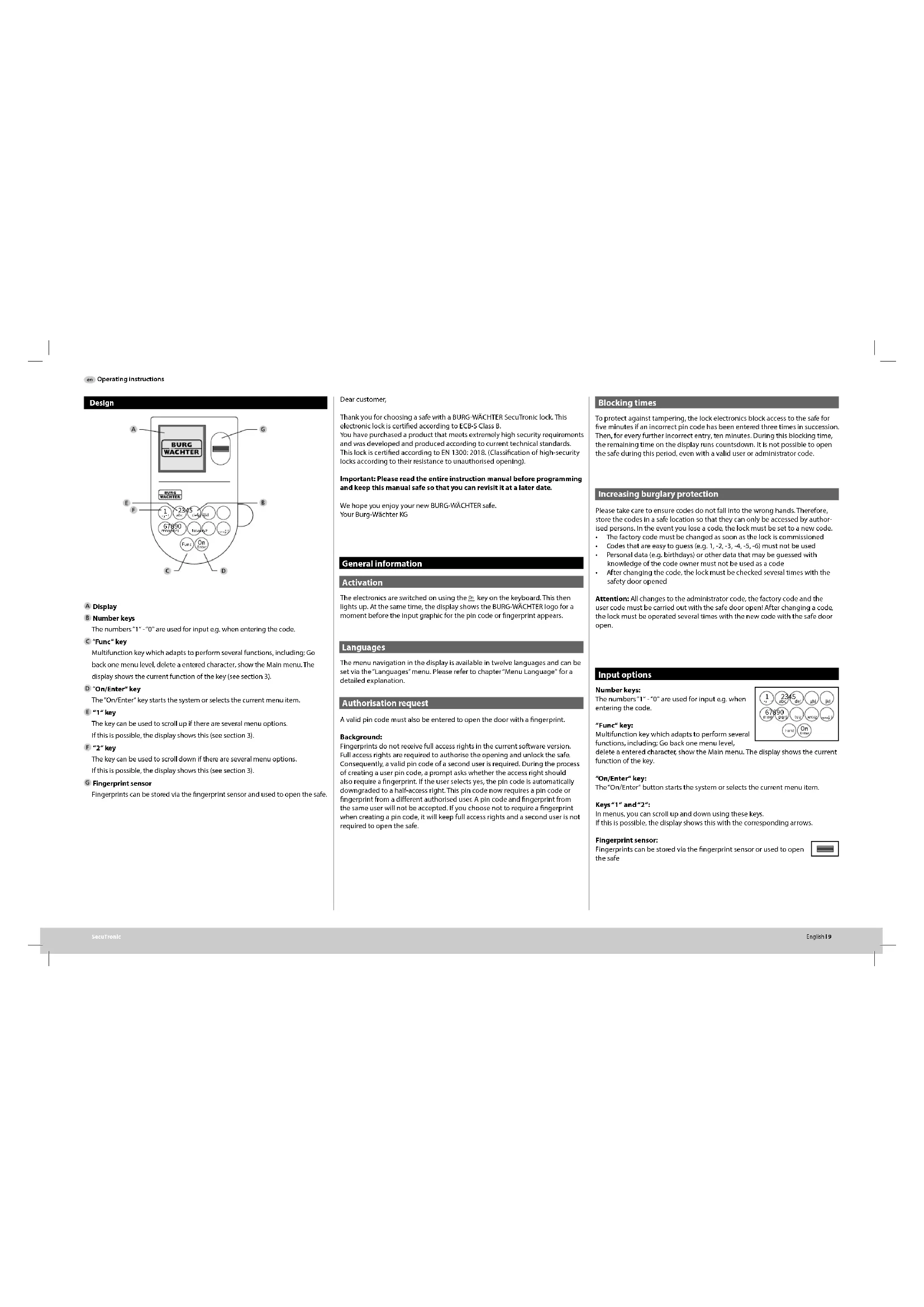

Operating instructions
Design
B Number keys
The numbers "1" - "0" are used for input e.g. when entering the code.
C 'Func' key
Multifunction key which adapts to perform several functions, including: Go back one menu level, delete a entered character, show the Main menu. The display shows the current function of the key (see section 3).
D "On/Enter" key
The "On/Enter" key starts the system or selects the current menu item.
E "1" key
The key can be used to scroll up if there are several menu options. If this is possible, the display shows this (see section 3).
E "2" key
The key can be used to scroll down if there are several menu options. If this is possible, the display shows this (see section 3).
G Fingerprint sensor
Fingerprints can be stored via the fingerprint sensor and used to open the safe.
Dear customer,
Thank you for choosing a safe with a BURG-WÄCHTER SecuTronic lock. This electronic lock is certified according to ECB-5 Class B. You have purchased a product that meets extremely high security requirements and was developed and produced according to current technical standards. This lock is certified according to EN 1300: 2018. (Classification of high-security locks according to their resistance to unauthorised opening).
Important: Please read the entire instruction manual before programming and keep this manual safe so that you can revisit it at a later date.
We hope you enjoy your new BURG-WÄCHTER safe. Your Burg-Wächter KG
General information
Activation
The electronics are switched on using the or key on the keyboard. This then lights up. At the same time, the display shows the BURG WÄCHTER logo for a moment before the input graphic for the pin code or fingerprint appears.
Languages
The menu navigation in the display is available in twelve languages and can be set via the "Languages" menu. Please refer to chapter "Menu Language" for a detailed explanation.
Authorisation request
A valid pin code must also be entered to open the door with a fingerprint.
Background:
Fingerprints do not receive full access rights in the current software version. Full access rights are required to authorise the opening and unlock the safe. Consequently, a valid pin code of a second user is required. During the process of creating a user pin code, a prompt asks whether the access right should also require a fingerprint. If the user selects yes, the pin code is automatically downgraded to a half-access right. This pin code now requires a pin code or fingerprint from a different authorised user. A pin code and fingerprint from the same user will not be accepted. If you choose not to require a fingerprint when creating a pin code, it will keep full access rights and a second user is not required to open the safe.
Blocking times
To protect against tampering, the lock electronics block access to the safe for five minutes if an incorrect pin code has been entered three times in succession. Then, for every further incorrect entry, ten minutes. During this blocking time, the remaining time on the display runs countdown. It is not possible to open the safe during this period, even with a valid user or administrator code.
Increasing burglary protection
Please take care to ensure codes do not fall into the wrong hands. Therefore, store the codes in a safe location so that they can only be accessed by authorised persons. In the event you lose a code, the lock must be set to a new code.
• The factory code must be changed as soon as the lock is commissioned
• Codes that are easy to guess (e.g. 1, -2, -3, -4, -5, -6) must not be used
+ Personal data (e.g. birthdays) or other data that may be guessed with knowledge of the code owner must not be used as a code
• After changing the code, the lock must be checked several times with the
safety door opened
Attention: All changes to the administrator code, the factory code and the user code must be carried out with the safe door open! After changing a code, the lock must be operated several times with the new code with the safe door open.
Input options
Number keys:
The numbers "1" - "0" are used for input e.g. when entering the code.
"Func" key:
Multifunction key which adapts to perform several functions, including; Go back one menu level,
delete a entered character, show the Main menu. The display shows the current function of the key.
"On/Enter" key:
The "On/Enter" button starts the system or selects the current menu item.
Keys "1" and "2";
In menus, you can scroll up and down using these keys.
If this is possible, the display shows this with the corresponding arrows.
Fingerprint sensor:
Fingerprints can be stored via the fingerprint sensor or used to open the safe
Display
A Specifies whether you can use the key to cancel the last entry (◀) or switch to the main menu (M).
B (2▼) appears when you can scroll down using the "2" key.
c (1:▲) appears when you can scroll up using the "1" key.
D (■) indicates the battery level.
E (☐/☐) Indicates whether the locking mechanism has released the lock and the safe can be opened.
Opening
Opening with PIN code
- Switch on the lock using the On key.
- Enter the 6-digit PIN code (factory setting "1-2-3-4-5-6").
• "Please turn the book" appears in the display
Opening with fingerprint
- Switch on the lock using the on key.
- Move a programmed finger from the top to bottom centrally over the sensor.
- The message "Validity not achieved" appears on the display.
- Enter a valid 6-digit pin code (factory setting "1-2-3-4-5-6") of another user.
• "Please turn the knob!" appears in the display
- Turn the knob.
Closing
After the safe has been closed, it is essential that the rotary knob is moved manually to its initial position. Ensure that the rotary knob is in the same position as in the following illustration.
Menu structure
Setting up the menu structure
- Change code
- Language
- Administrator
User
Create
Create code
Create fingerprint
Assign
Assign code
Assign fingerprint
Delete
Time functions
Set time
Set dat
Automatic STAWT
Delay time
Programming
Database update
Firmware update
Reorganise
Processes
Display
5ave
Setup
Register
FP reset
Generate AES key
- Info
System info
System check
Description of the menu functions
Code Change menu
Change the administrator code and the user codes. We would like to point out that, for security reasons, the factory set administrator code must be changed to an individually set code.
- Switch on the lock using the ☑ - key.
- Then press Func.
• The "Manman" appears. - Confirm with
• You can use the keys 1 or 2 to scroll until the
administrator/user is displayed and you wish
to change the code for. Confirm whether
• Committances
• Enter the old or factory code that was previously
valid using the keypad and press
• Enter the new code using the keypad and confirm with
confirm wings - Repeat your entry and confirm it again with
• Code change completed is displayed after
a correct entry. - Press any key.
Note: When a safe lock is first started up, additional information on the current date and time are requested.
• Enter the day (2 digits)
• Enter the month (2 digits)
• Enter the year (2 digits)
• Enter the hour (2 digits)
• Enter the minutes (2 digits)
Language menu
- Switch on the lock using the On key.
- Then press Func.
• The "Main menu" appears. - Scroll with the 1 or 2 key until the "Language"
menu item is highlighted. - Confirm with
- "Main menu/language" appears.
- Use keys 1 or 2 to scroll until the desired
language is marked Confirm with 0+ - Confirm with "new",
- "Data has now saved" appears in the display
- Press any key.
| MAIN MENU | ||
| Code changeLanguage/SpracheAdministrator...Info | ||
| 1:▲ 2:▼ FUNC: < | ||
| LANGUAGE | ||
| ČeštinaDeutschEnglishEspañol | ||
| 1:▲ 2:▼ FUNC: < |
Administrator menu
This menu has several sub-menus to group functions. The functions within this section can only be fully used with the administrator code.
| MAIN MENU | ||
| Code changeLanguage/SpracheAdministrator ...Info | ||
| 1:▲ | 2:▼ | FUNC: < |
Menu Administrator / User
Menu Administrator / User / Create
Created users can open the safe. See page 9 for information on validity.
Sub-menu Administrator / User / Create /
Create code
Switch on the lock using the On-You
- Switch on the lock using the key.
- Then press
- The "Mow menu" appears.
- Scroll with the 1 or 2 key until the "Administrator" menu item is highlighted.
- Confirm with
• "Main menu / Administrator" appears.
- Confirm with
• "Main menu / Administrative User" appears.
- Confirm with
• "Main menu / Administrator / User / Create" appears.
- Confirm with
- Enter the administrator code to acquire the authorisation for programming.
| USER |
| Create Assign Delete |
| 2:▼ FUNC: < |
| USER.0001 CD |
| Combination: [FP] |
| FUNC: M |
- The next free memory entry is displayed (e.g. USER.0002 CD).
- Enter the 6-digit code and confirm it with
- Use key 1 or 2 to scroll through the possible
combinations. - If you have not selected a combination,
confirm 3x with = - If you have selected the combination "FP", you will create your fingerprint as described in the sub-menu "Administrator / User / Create / Create fingerprint".
Sub-menu Administrator / User / Create /
Create fingerprint
- Switch on the lock using the key.
- Then press Full.
- The "Milk menu" appears.
- Scroll with the 1 or 2 key until the "Administrator"
menu item is highlighted. - Confirm with
• "Main menu / Administrative" appears. - Confirm with
• Math menu / Administrator / user appears. - Confirm with
• "Main menu / Administrator / User / Create finger" appears. - Scroll with the 1 or 2 key until the 'Create
fingerprint men - Confirm with
- Enter the administrator code to acquire the
authorisation for programming.
• "Programmer" appears. - Move the finger from the top to bottom
centrally and a number of times over the sensor. The display will either represent you to report - The display will either prompt you to repeat the process (for error messages, see page 15), or the message "USER.XXX.FP created" will appear.
- Press any key.
| USR.L0007 CD569425Kombination:[FP] | |
| 1:▲ | FUNC: < |
| USER.L0003 CDCreated: | |
| FUNC: < | |
| USER | |
| Create CodeCreate Finger | |
| 1:▲ | FUNC: < |
| USER,0003 TPcreated! |
| FUNC: < |
Menu Administrator / User / Assign
Users can have a code and a fingerprint.
5ee page 9 for information on validity.
Sub-menu Administrator / User / Assign /
Create code
- Switch on the lock using the _key.
- Then press
• The "Main menu" appears. - Scroll with the 1 or 2 key until the "Administrator" milestone is highlighted.
Menu item is highlighted.
• Confirm with ____. - “Methylamine/Aluminum appears.
- Confirm with 0=
- Comm with
- Scroll with the 1 or 2 key until the "sign"
- Scroll with the 1 of 2 key on menu item is highlighted
- Confirm with On
• "Unix menu /admin/mater /User /dssion Fuyer" appears. - Confirm with On
- Enter the administ
• Enter the administrator cube to acquire the authorisation for programming.
You can use the keys 1 or 2 to scro
the user is marked whose code is supposed
the user is marked whose code is supposed to be assigned. - Confirm with On
- Enter the 6-digit code and confirm it with
- Use key 1 or 2 to scroll through the possible
- Use key 1 of 2 to select through the possible combinations.
• If you have not selected a combination,
confirm 3x with 0n
| USER | ||
| Create Assign Delete | ||
| 1:2: FUNC: < | ||
| USER | ||
| Assign Code Assign Finger | ||
| 2: FUNC: < | ||
| 8 | ||
| USER.0001 | ||
| 1:2: FUNC:M |
Sub-menu Administrator / User / Assign / Assign fingerprint
- Switch on the lock using the key.
- Then press Func.
• The "Mota menu" appears.
- Scroll with the 1 or 2 key until the menu
item "Administrator" is highlighted.
- Confirm with
• "Mein may / Administer's" appears
Confirr with
- Confirm and "no."
• Inflow menu: Automatics / over appears.
- Scroll with the 1 or 2 key until the "ask"
menu item is highlighted.
- Confirm with On.
- Scroll with the 1 or 2 key until the
"Action Fines", menu item is highlighted
- Confirm with On
- The ad-hated
- Enter the administrator code to acquire
the authorisation for programming.
• "Mato men / Annishara / Boy / Assigo Heliger" appears.
- You can use the keys 1 or 2 to scroll until
the user is marked whose fingerprint is
supposed to be assigned.
- Confirm with On
- "Caste finan" apprais
- The following review of the top as bottom:
- Move the finger from the top to bottom
centrally and a number of times over the sensor.
• The display will either prompt you to repeat the
process (for error messages, see page 15), or the message "USER.XOG FP created!" will appear.
- Press any key
| USER | ||
| Create Assign Delete | ||
| 1:▲ 2:▼ FUNC: < |
| USER | |
| Assign Code Assign Finger | |
| 1:▲ | FUNC: < |
| USER.0003 FPcreated! |
| FUNC: < |
Menu Administrator / User / Delete
Deleted users no longer have access to the safe. However, these remain in the history.
Sub-menu Administrator / User / Delete
- Switch on the lock using the key.
- Then press Fum.
• The 'Main menu' appears.
- Scroll with the 1 or 2 key until the menu
item "Administrator" is highlighted.
- Confirm with 0
Mits were (Aledicated)
- max. m, m / AplnloD
• Confirm with
• "Math menu / Administrator / user" appears.
- Confirm with
- "Main menu /Administrator /User /Delete" appears.
- Scroll with the 1 or 2 key until the menu
item "Okts" is highlighted
Confirm with 0
- Enter the administrator code to acquire the authorisation for programming.
- You can use the keys 1 or 2 to scroll until the
user is marked whose code is supposed to
be deleted
- Confirm with 0
Vita (as a good deal)
| Dataset has been deleted! |
| FUNC: < |
Menu Administrator / Time functions
Time and date can be set, as well as whether the system should automatically switch between Central European Summer/Winter Time. The delay time prevents quick opening in the event of
there is a result that opening in the event in
a TUBBERY.
| ADMIN | ||
| UserTimer functionsProgrammingProcesses | ||
| 1:▲ | 2:▼ | FUNC: < |
Menu Administrator / Time functions / Set time
+ Switch on the lock using the On key.
- Then press Type.
• The "Mainway" appears.
• Scroll with the 1 or 2 key until the menu
item "Mānjuīzētər" is highlighted
Ken Namibana is highlighted
- Confirm with
• I am merely available to appears.
+ Scroll with the 1 or 2 key until the menu
Item "Amerfunctions" is highlighted.
• Confirm with On
• "Administrator /Type entry" appears.
+ Confirm with On
- Enter the administrator and to require
- Enter the administrator code to acquire
the authorisation for programming.
• The time (24-hour format) can be set via
the keypad
+ Confirm with On
• "Data has been saved!" appears.
• Press any key.
| TIMER FUN ... | |
| Time entryDate entryAutom. ST/WTDelay time | |
| 2:▼ | FUNC: < |
| Time entryH.M | 0.00 |
Menu Administrator / Time functions / Set date Menu Adminis
- Switch on the lock using the On key.
- Then press Func.
- The "Bolamew" appears.
- Scroll with the 1 or 2 key until the menu
Item "Administrator" is highlighted. - Confirm with On
• "Main menu / Administrator" appears. - Scroll with the 1 or 2 key until the menu
item "Time functions" is highlighted - Confirm with 0+
• "Power functions" appears. - Scroll with the 1 or 2 key until the "Date entry"
menu item is highlighted - Confirm with
- Enter the administrator code to acquire the
authorisation for programming.
• The date can be set via the keynap - The date can be set via the keypad.
- Confirm with 0s
• "Iota has these cases" - Всего ветримого appearance.
- Press any key.
| TIMER FUN ... |
| Time entryDate entryAutom. ST/WTDelay time |
| 1:▲ 2:▼ FUNC: < |
| Date entryD.M.Y ■0.00.00 |
| FUNC: M |
Menu Administrator / Time functions / Autom. ST/WT
Automatic update between Central European
Summer/Winter Time.
- Switch on the lock using the 12 key.
- Then press func.
• The "Main menu" appears. - Scroll with the 1 or 2 key until the menu
item "Administrator" is highlighted. - Confirm with
- "Administrator" appears.
- Scroll with the 1 or 2 key until the menu
item "Time functions" is highlighted - Confirm with
- "Base functions" appears.
- Scroll with the 1 or 2 key until the
- menu item "Autom. S1/W?" is highlighted
- Confirm with
- Enter the administrator code to acquire the
authorisation for programming.
• The automatic time changeover can be
switched on or off via key 1 or 2. - Confirm with
- "Data has been saved" appears.
- Press any key.
| TIMER FUN ... |
| Time entry |
| Date entry |
| Autom. ST/WT |
| Delay time |
| 1:▲ 2:▼ FUNC: < |
| Autom. ST/WT |
| ON| |
| 1:▲ FUNC: M |
tor / Delay time
The delay time sets up a required waiting time before a function is performed and can consequently prevent quick opening in the event of a robbery. After the delay time has elapsed, a valid and fully authorised entry must be repeated in order to gain access.
- Switch on the lock using the 0+ key.
- The press Fun:
- The "Main new" appears.
- Scroll with the 1 or 2 key until the menu
item "Administrator" is highlighted. - Confirm with
• "Administrator" appears.
- Scroll with the 1 or 2 key until the menu item
"Time functions" is highlighted.
- Confirm with
- "true functions" appears.
- Scroll with the 1 or 2 key until the
- menu item "delay time" is highlighted.
- Confirm with
- Enter the administrator code to acquire the authorization for recommending. Where a delay
authorisation for programming. Where a delay time has already been set it must first be up
time has already been set, it must first be run through.
The delout
- The delay time (0-99 minutes) can be set via the keyboard.
- Confirm with
- Committents
- Bozinius bettsalvei! appears.
- Press any key.
| TIMER FUN ... | |
| Time entryDate entryAutom. ST/WTDelay time | |
| 1:▲ | FUNC: < |
| Delay time[00] min | |
Menu Administrator / Programming
A firmware update installs the latest software version. Reorganise sorts the database.
| ADMIN | ||
| User | ||
| Timer functions | ||
| Programming | ||
| Processes | ||
| 1:▲ | 2:▼ | FUNC: < |
Menu Administrator / Programming / Databaseupdate
This function is not enabled at present.
| PROGRAMMING | |
| Database:updateFirmware:updateRestructure | |
| 2:▼ | FUNC: < |
Menu Administrator / Programming / Firmware update
- Please ensure that the batteries are full before updating the firmware.
- Please copy the new firmware version to a FAT-32 formatted microSD card and insert it
into the microSD card slot. - Switch on the lock using the On key.
• The press Fund.
• The "Main menu" appears. - Scroll with the 1 or 2 key until the menu
item "Administrator" is highlighted. - Confirm with
- "Administrator" appears
• Scroll with the 1 or 2 key until the
"Programming" menu item is highlighted.
• Confirm with
• Programming appears. - Scroll with the 1 or 2 key until the menu
item "Hanswreapate" is highlighted. - Confirm with
- Enter the administrator code to acquire the
authorisation for programming.
• The message "Custom current original manufacturer
Anonware version using Enter" appears. - Confirm with . Thereafter there is no
need to do anything further in the process.
• The message does not mean power appears. • The message on the display disappears.
• The message on the display disappears for some time. - When the update is complete, the message
"Finwareruptile completed" appears.
Menu Administrator / Programming / Reorganise
Reorganisation must be carried out cyclically in order to optimise the user database and restructure the user data records.
- Switch on the lock using the _0s key.
• The press func.
• The "Main menu" appears. - Scroll with the 1 or 2 key until the menu
item "Administrator" is highlighted. - Confirm with
- "Administrator" appears.
- Scroll with the 1 or 2 key until the
"Programming" menu Item is highlighted. - Confirm with
- "Programming" appears.
- Scroll with the 1 or 2 key until the menu
item "Restricting" is highlighted. - Confirm with
- Enter the administrator code to acquire
the authorisation for programming. - "Restructuring of progress" appears.
- Switch on the lock using the _0s key.
• The press func.
• The "Main menu" appears. - Scroll with the 1 or 2 key until the menu
item "Administrator" is highlighted. - Confirm with
- "Administrator" appears.
- Scroll with the 1 or 2 key until the
"Programming" menu Item is highlighted. - "Programming" appe
- Scroll with the 1 or 2 key until the menu
item "Restricting" is highlighted. - Confirm with
- Enter the administrator code to acquire
Menu Administrator / Processes
It is possible to store the history on an inserted microSD card or to output it directly on the display.
| ADMIN |
| User |
| Timer functions |
| Programming |
| Processes |
| 1:▲ 2:▼ FUNC: < |
Menu Administrator / Setup
The system must be registered for communication within the device. FP-reset removes all fingerprints.
| ADMIN | |
| User | |
| Restructure | |
| Processes | |
| Install | |
| 1:▲ | FUNC: < |
Menu Administrator / Setup / Generate AES key
This function is not enabled at present.
In this menu, you can have several pieces of information of the system displayed.
| MAIN MENU | |
| Code changeLanguage/SpracheAdministrator ...Info | |
| 1:▲ | FUNC: < |
Menu Administrator / Processes / Displays
- Switch on the lock using the key.
• The press FurlA
• The "Main menu" appears. - Scroll with the 1 or 2 key until the menu
item "Administrator" is highlighted. - Confirm with
• "Administrator" appears. - Scroll with the 1 or 2 key until the menu
Item "Processes" is highlighted. - Confirm with
- Enter the administrator code to acquire
the authorisation for programming. - Scroll with the 1 or 2 key through the
data records. - Confirm with
| Processes | |
| Display | |
| Save | |
| 2:▼ | FUNC: < |
Menu Administrator / Setup / Register
In the event of a complete system failure, the electronic control panel may have to be registered again with the locking mechanism.
- Switch on the lock using the B key.
- The press Func.
- The "Main menu" appears.
- Scroll with the 1 or 2 key until the menu item
"Administrator" is highlighted. - Confirm with
• "Administrator" appears. - Scroll with the 1 or 2 key until the menu item
"Setup" is highlighted. - Confirm with
- Enter the administrator code to acquire the
authorisation for programming. - "Dataset has been stored" appears in the display
- Press any key.
| SETUP | |
| InstallFP ResetGenerate AES-Key | |
| 2:▼ | FUNC: < |
| Dataset has been stored | |
Menu info / System info
- Switch on the lock using the or key.
- The press Func.
• The "Main menu" appears. - Scroll with the 1 or 2 key until the menu
item "info" is highlighted.
• Confirm with - "info" appears
• Confirm with On - Enter the administrator code to acquire
the authorisation for programming.
• The system information is displayed. - Scroll with key 1 or 2 to view the information.
- Use the Time key to return.
| MAIN MENU | |
| Code changeLanguage/SpracheAdministrator...Info | |
| 1:▲ | FUNC: < |
| InfoLE-V1.0SN:20.0A.00.00 | |
| 2:▼ | FUNC: M |
Menu Administrator / Processes / Save
- Please insert a FAT-32 formatted microSD card into the microSD card slot.
- Switch on the lock using the key.
• The press 198c. - The "Main menu" appears.
- Scroll with the 1 or 2 key until the menu
item "Administrator" is highlighted. - Confirm with Dr.
• "Administrator" appears. - Scroll with the 1 or 2 key until the menu
Item "Processes" is highlighted. - Confirm with
• "Maese" appears. - Scroll with the 1 of 2 key until the menu item/curd is highlighted
Item say is highlighted. Confirm with - Confirm with . Enter the adminiect
- Enter the administrator code to acquire the authorization for programming
the authorisation • "Notes unit" appears - "Use: Mr. Appears,"
- October has been stored! appears.
- Press any key.
| Processes | |
| DisplaySave: | |
| 1: | FUNC: |
| Please wait! | |
| Dataset has been stored! | |
| FUNC: | |
Menu Administrator / Setup / FP-reset
- Switch on the lock using the key.
- The press Func.
- The "Main menu" appears.
- Scroll with the 1 or 2 key until the menu
item "Administrator" is highlighted. - Confirm with
- "Administrator" appears.
- Scroll with the 1 or 2 key until the menu
item "Setup" is highlighted. - Confirm with
- Scroll with the 1 or 2 key until the menu
item "H" is highlighted. - Confirm with
- Enter the administrator code to acquire the authorization for programming
the authorisation for programming. - Belellia and More Exclney appears.
- Confirm with 0s
• "Let's my" appears - Must him appears.
- Press any key.
- Press any key.
| SETUP | |
| InstallFP ResetGenerate AES-Key | |
| 2:▼ | FUNC: < |
| Delete data with ENTER key | |
| FUNC: < | |
Info / system check menu
- Switch on the lock using the On key.
• The press
• The "Mainmen" appears. - Scroll with the 1 or 2 key until the menu item
"info" is highlighted.
• Confirm with - "info" appears.
- Scroll with the 1 or 2 key until the menu item
"Systemcheck" is highlighted. - Confirm with
- Enter the administrator code to acquire the authorisation for programming.
• The system check information is dl
• Scroll with key 1 or 2 to view the information. - Use the (one) key to return.
| INFO | ||
| System infoSystemcheck | ||
| 1:▲ | 2:▼ | FUNC: < |
| 8 | ||
| EE✓ ADC 5.43V✓ Flash✓ touch con.. | ||
| 2:▼ | FUNC: M | |
Error messages
The illustration below describes the error messages on the display when a fingerprint is created is or when the safe is opened.
Error message Solution
| Too fast! Please repeat | Move your finger slowly across the sensor. |
| Too tilted! Please repeat | Move your finger flat across the sensor. |
| Too short! Please repeat | Move your finger across the sensor so that more area of your fingerprint can be read. |
| Position in the middle and repeat!! | Position your finger in the middle of the sensor. |
| Wrong code! Enter a valid code. | |
| No admittance! An unaved fingerprint has been used. Repeat with a fingerprint that has already been created. | |
Technical details
| Number of administrator codes: | 1 |
| Number of user codes: 9 (max.) | |
| Number of fingerprint codes: | 20 (max.) |
| Blocking times: After an incorrect code is entered 3x, 5 minutes,thereafter always 10 minutes | |
| Power supply: 4x AA MIGNON LR6 ALKALINE | |
| Date/time: | √ |
| Updatable (firmware): | √ |
| History number: 2,000 | |
Battery replacement
You can see the battery status at any time using the battery level indicator at the top right of the display. If the battery capacity is running low, a corresponding message appears on the display: When this notice appears, change the batteries as soon as possible.
Remove the screw on the underside of the lock electronics. This will require a Torx T B screw-driver. This is included in the scope of delivery.
Let the cover slide out together with the batteries.
Remove the old batteries and dispose of them according to the disposal instructions on page 15. Replace the batteries with four new 1.5 V AA Mignon batteries and according to the correct polarity. For this purpose, illustrations are shown on the battery holder. Please use branded batteries and no rechargeable batteries.
Push the cover and batteries back into the locking electronics and screw them tight.
Warranty
BURG-WACHTER products comply with the technical standards at the time of production and adhere to our own quality standards. The guarantee only covers defects which can be proved to have resulted from production or material defects at the time of purchase. The warranty ends after two years, further claims are excluded. Defects and damage caused by e.g. transport, incorrect operation, improper use, wear etc. are excluded from the warranty. The batteries are not included in the guarantee. A short description of any defects identified must be made in writing and the device returned to the place it was purchased, together with the original packaging. After the device has been tested, and within a appropriate period of time, the guarantor will decide whether or not to repair or exchange the item.
Attention:
In order to deliver a flawless and high quality product to you and to better assist you in case of service or repair, it is necessary that faulty or defective devices along with the valid administrator code be presented to your dealer together with the original documentation.
For returns, all undamaged device parts must furthermore be in the factory setting due to your right of revocation. Failure to comply with this will invalidate the warranty.
Disposal of the device
Dear customer.
please help us avoid unnecessary waste. Should you intend to dispose of this device at any time, please remember that many components of this device contain valuable materials that can be recycled.
Please be aware that electrical and electronic equipment and batteries marked in this way must not be disposed of with house hold waste but collected separately. Please obtain information on the collecting points for electrical waste from the responsible authority of your city/municipality.
BURG-WÄCHTER KG hereby declares that this device complies with the Directives 2014/30/EU, (EMC) and 2011/65/EU (RoHS).
The complete text of the EU Declaration of Conformity is available at the following Internet address: www.burg.biz
Safety recommendation
Please clean the keyboard operating surface periodically with a microfibre cloth (e.g. glasses cleaning cloth for spectacles) to remove any fingerprints on the keyboard surface.
Printing and typesetting errors as well as technical changes reserved.
tr Mode d'emploi
Montage
B Touchesnumériques
| MAIN MENU |
| Code changeLanguage/SpracheAdministrator ...info |
| 1:▲ | 2:▼ | FUNC: |
| LANGUAGE |
| ČeštinaDeutschEnglishEspañol |
Menu administrateur
| USER | |
| Create Assign Delete | |
| 2:▼ | FUNC: < |
| USER.0001 CD |
| Combination: [FP] |
| FUNC: M |
| Program finger |
| ...4↓ |
| FUNC: < |
| USERLOOD3.TPcreated! |
| FUNC: < |
| USER | ||
| Create Assign Delete | ||
| 1:▲ | 2:▼ | FUNC: < |
| USER | |
| Assign Code | |
| Assign Finger | |
| 2:▼ | FUNC: < |
| USB:1.0001 | ||
| 1:▲ | 2:▼ | FUNC: M |
| USER | ||
| Create Assign Delete | ||
| 1:▲ 2:▼ FUNC: < |
| USER | |
| Assign Code Assign Finger | |
| 1:▲ | FUNC: < |
| USER.0003 FPcreated! |
| FUNC: < |
| TIMER FUN ... |
| Time entry |
| Date entry |
| Autumn. ST/WT |
| Delay time |
| 1:▲ 2:▼ FUNC: < |
| Autom. ST/WT[ON] | |
| 1:▲ | FUNC: M |
| Year Ended December 31, | ||
| 2018 | 2017 | |
| Revenues | 1,465 | 1,394 |
| Costs and expenses | (1,038) | (1,038) |
| Year Ended December 31, | ||
| 2018 | 2017 | |
| Revenues | 1,465 | 1,394 |
| Costs and expenses | (1,038) | (1,038) |
| Year Ended December 31, | ||
| 2018 | 2017 | |
| Revenues | 1,465 | 1,394 |
| Costs and expenses | (1,038) | (1,038) |
| Year Ended December 31, | ||
| 2018 | 2017 | |
| Revenues | 1,465 | 1,394 |
| Costs and expenses | (1,038) | (1,038) |
| Year Ended December 31, | ||
| 2018 | 2017 | |
| Revenues | 1,465 | 1,394 |
| Costs and expenses | (1,038) | (1,038) |
| Year Ended December 31, | ||
| 2018 | 2017 | |
| Revenues | 1,465 | 1,394 |
| Costs and expenses | (1,038) | (1,038) |
| Year Ended December 31, | ||
| 2018 | 2017 | |
| Revenues | 1,465 | 1,394 |
| Costs and expenses | (1,038) | (1,038) |
| Year Ended December 31, | ||
| 2018 | 2017 | |
| Revenues | 1,465 | 1,394 |
| Costs and expenses | (1,038) | (1,038) |
| Year Ended December 31, | ||
| 2018 | 2017 | |
| Revenues | 1,465 | 1,394 |
| Costs and expenses | (1,038) | (1,038) |
| Year Ended December 31, | ||
| 2018 | 2017 | |
| Revenues | 1,465 | 1,394 |
| Costs and expenses | (1,038) | (1,038) |
| Year Ended December 31, | ||
| 2018 | 2017 | |
| Revenues | 1,465 | 1,394 |
| Costs and expenses | (1,038) | (1,038) |
| Year Ended December 31, | ||
| 2018 | 2017 | |
| Revenues | 1,465 | 1,394 |
| Costs and expenses | (1,038) | (1,038) |
| Year Ended December 31, | ||
| 2018 | 2017 | |
| Revenues | 1,465 | 1,394 |
| Costs and expenses | (1,038) | (1,038) |
| Year Ended December 31, | ||
| 2018 | 2017 | |
| Revenues | 1,465 | 1,394 |
| Costs and expenses | (1,038) | (1,038) |
| Year Ended December 31, | ||
| 2018 | 2017 | |
| Revenues | 1,465 | 1,394 |
| Costs and expenses | (1,038) | (1,038) |
| Year Ended December 31, | ||
| 2018 | 2017 | |
| Revenues | 1,465 | 1,394 |
| Costs and expenses | (1,038) | (1,038) |
| Year Ended December 31, | ||
| 2018 | 2017 | |
| Revenues | 1,465 | 1,394 |
| Costs and expenses | (1,038) | (1,038) |
| Year Ended December 31, | ||
| 2018 | 2017 | |
| Revenues | 1,465 | 1,394 |
| Costs and expenses | (1,038) | (1,038) |
| Year Ended December 31, | ||
| 2018 | 2017 | |
| Revenues | 1,465 | 1,394 |
| Costs and expenses | (1,038) | (1,038) |
| Year Ended December 31, | ||
| 2018 | 2017 | |
| Revenues | 1,465 | 1,394 |
| Costs and expenses | (1,038) | (1,038) |
| As of December | ||
| 2017 | 2016 | |
| Net earnings | 1,384 | 1,359 |
| Earnings per share: | ||
| (人民币元) | 0.04 | 0.04 |
| Weighted average shares outstanding | 0.03 | 0.03 |
| Basic | 0.03 | 0.03 |
| Diluted | 0.03 | 0.03 |
| 2017 | 2016 | |
| EBITDA | 3,458 | 3,394 |
| EBITDA margin | 1.4% | 1.4% |
| 3.7.10.24 |
| ADMIN |
| User |
| Timer functions |
| Programming |
| Processes |
| 100% |
| 1:▲ | 2:▼ | FUNC: |
| 2017 | 2016 | |
| EBITDA | 3,458 | 3,394 |
| EBITDA margin | 1.4% | 1.4% |
| ase de données |
| 1 | 2 |
| PROGRAMMING |
| Databaseuncate |
| Firmwareundate |
| Restructure |
| Confirm current original firmware version with Enter |
| FUNC: M |
| Firmwareupdate complete! |
| FUNC: < |
PROGRAMMING
| Databaseupdate |
| Firmwareupdate |
| Restructure |
| 1:▲ | FUNC: |
| Restructuring in progress! |
| ADMIN |
| User |
| Timer functions |
| Programming |
| Processes |
| Dataset has been stored! |
| FUNC: < |
Menu Administrateur/Installation
| ADMIN | |
| User | |
| Restructure | |
| Processes | |
| Install | |
| 1:▲ | FUNC: < |
Menu Administrateur/Installation/Enregistrer
| SETUP | |
| InstallFP ResetGenerate AES-Key | |
| 2:▼ | FUNC: < |
| Dataset has been stored | |
| SETUP | |
| Install | |
| FP-Reset | |
| Generate AES-Key | |
| 2:▼ | FUNC: < |
| Delete data with ENTER key | |
| FUNC: < | |
Menu Administrateur/Installation/Générer cryptage AES.
B Numerieketoetsen
| USER | |
| Create | |
| Assign | |
| Delete | |
| 2:▼ | FUNC: < |
| USER,0003 FPcreated! |
| FUNC: < |
| USER | ||
| Create Assign Delete | ||
| 1:▲ 2:▼ FUNC: < |
| USER | |
| Assign Code Assign Finger | |
| 1:▲ | FUNC: < |
| USER.0003 FPcreated! |
| FUNC: < |
| Dataset has been deleted! |
| FUNC: < |
| ADMIN | ||
| UserTimer functionsProgrammingProcesses | ||
| 1:▲ | 2:▼ | FUNC: < |
| ADMIN |
| User |
| Timer: functions |
| Programming |
| Processes |
ase-update
| PROGRAMMING | |
| DatabaseupdateFirmwareupdateRestructure | |
| 2:▼ | FUNC: < |
Menu Administrator / Programmering / Firmware-update
Confirm current
original firmware
version with Enter
[NO TEXT]
Firmwareupdate
Restructuring
in progress!
1
|
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.
Menu Administrator / Handelingen
| ADMIN |
| User |
| Timer functions |
| Programming |
| Processes |
| 1:▲ 2:▼ FUNC: < |
Menu Administrator / Setup
| ADMIN | |
| User | |
| Restructure | |
| Processes | |
| Install | |
| 1:▲ | FUNC: < |
Menu Administrator / Handelingen / Weergeven
| Processes | |
| Display | |
| Save | |
| 2:▼ | FUNC: < |
Menu Administrator / Setup / Aanmelden
| SETUP | |
| InstallFP ResetGenerate AES-Key | |
| 2:▼ | FUNC: < |
| Dataset has been stored | |
Menu Administrator / Handelingen / Opslaan
| Processes | |
| DisplaySave | |
| 1:▲ | FUNC: < |
| Please wait! | |
| Dataset has been stored! | |
