USER MANUAL RO1355 IFM
The encoder transforms rotational movement into pulse sequences. These allow the measurement of linear distances and angular movement as well as the determination of positions.
Electrical connection
Disconnect power from the installation before connecting or disconnecting cables or connectors!
Unused wires must be insulated to avoid short circuits and cross faults.
Short-circuit protection
5 V TTL version: outputs short-circuit protected against 0 V
10...30 V HTL version: outputs short-circuit protected against 0 V and L+ for maximum 1 minute
Standard wiring:
| Flange plug 13-wire cable 12-pole | |||
| L+ M brown/green | |||
| L+ sensor B blue | |||
| 0V K white/green | |||
| 0V sensor L white | |||
| A E brown | |||
| A neg. F | green | ||
| B | H | grey | |
| B neg. A | pink | ||
| 0 index | C | red | |
| 0 index neg. | D | black | |
| fault neg. | G lilac | ||
| free | - | - | |
| free | - | yellow | |
| screen | housing | housing |
Wiring is also indicated on the housing cap. If there is a deviation, the encoder must be connected as indicated on the label on the housing cap.
The wires L+ (sensor) and 0V (sensor) are internally connected to the supply voltage. When using external electronics which regulate the supply voltage these wires can be used as test wires. If unused, these wires must be connected to the supply voltage or insulated.
Depending on the version, the electrical connection is made via the cable or via cables to be obtained separately.
When using suitable cables the maximum cable length is 100 m for the 5 V TTL version and 300 m for the 10...30 V HTL version.
The cables must be laid separately from interfering sources, the minimum distance is 20 cm.
The braided screen in the cable is connected to the encoder housing.
Output signals

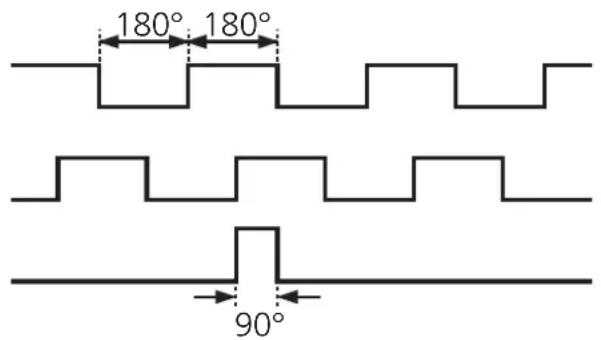

output A
0 index
The encoder provides digital pulse sequences at the output stages. The outputs A and B are electrically offset by 90^ . Thus the direction of rotation can be evaluated in the external electronics.
The combined zero index is provided once in a mechanical revolution of the shaft. In case of power failure it can be used as a reference point within a revolution.
The inverted output signals are used for external electronics with differential voltage input to filter interference.
Installation
Do not hit the shaft, do not use a file or similar tool on the shaft: This could destroy the unit!


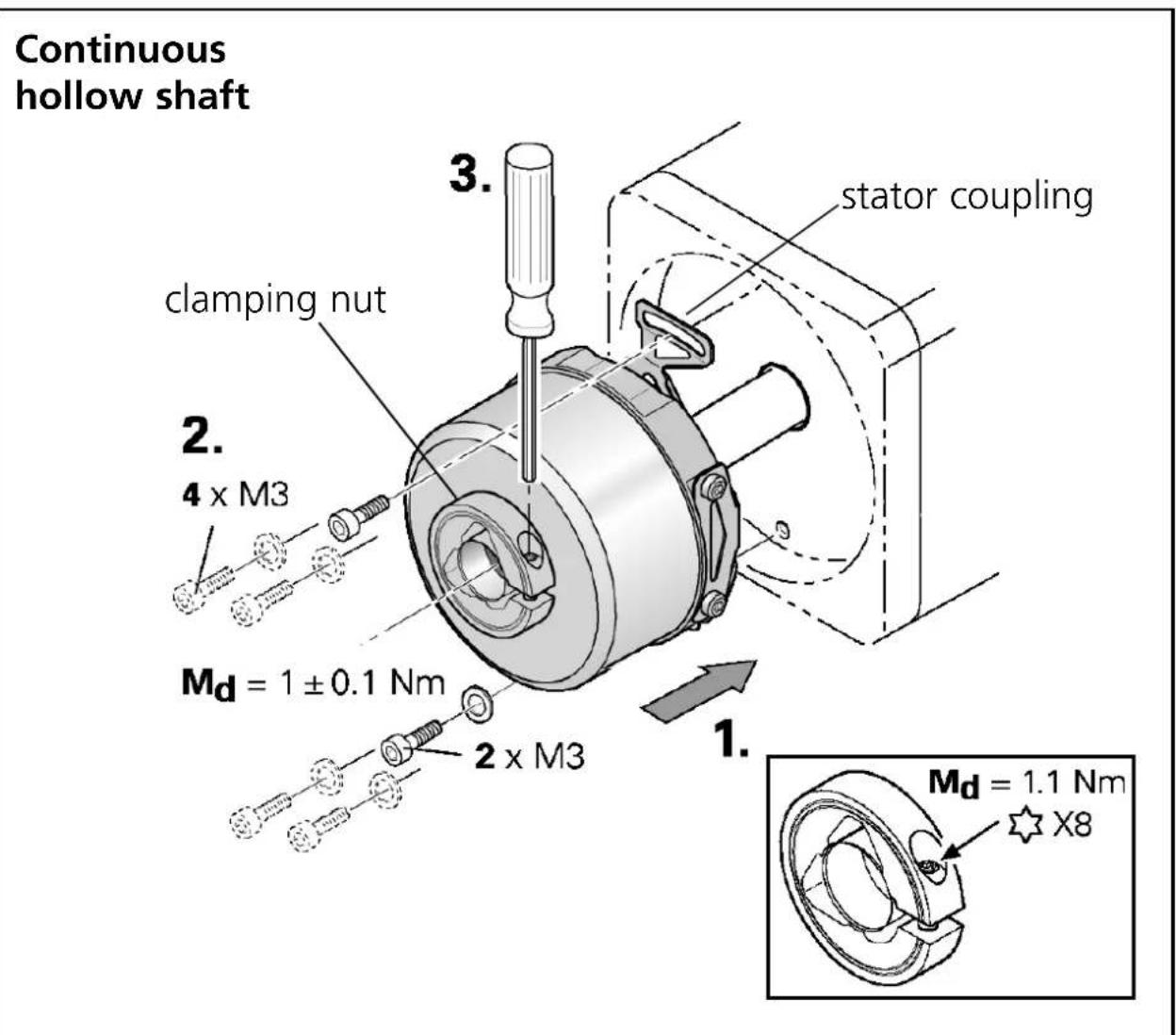

Continuous hollow shaft clamping nut 3. stator coupling 2. 4 x M3 Md = 1 ± 0.1 Nm 2 x M3 1. Md = 1.1 Nm X8- Place the clamping nut on the encoder.
- Slip the encoder onto the shaft (min. 10 mm) and fix the stator coupling by means of four M3 screws.
- Tighten the screws of the clamping nut.


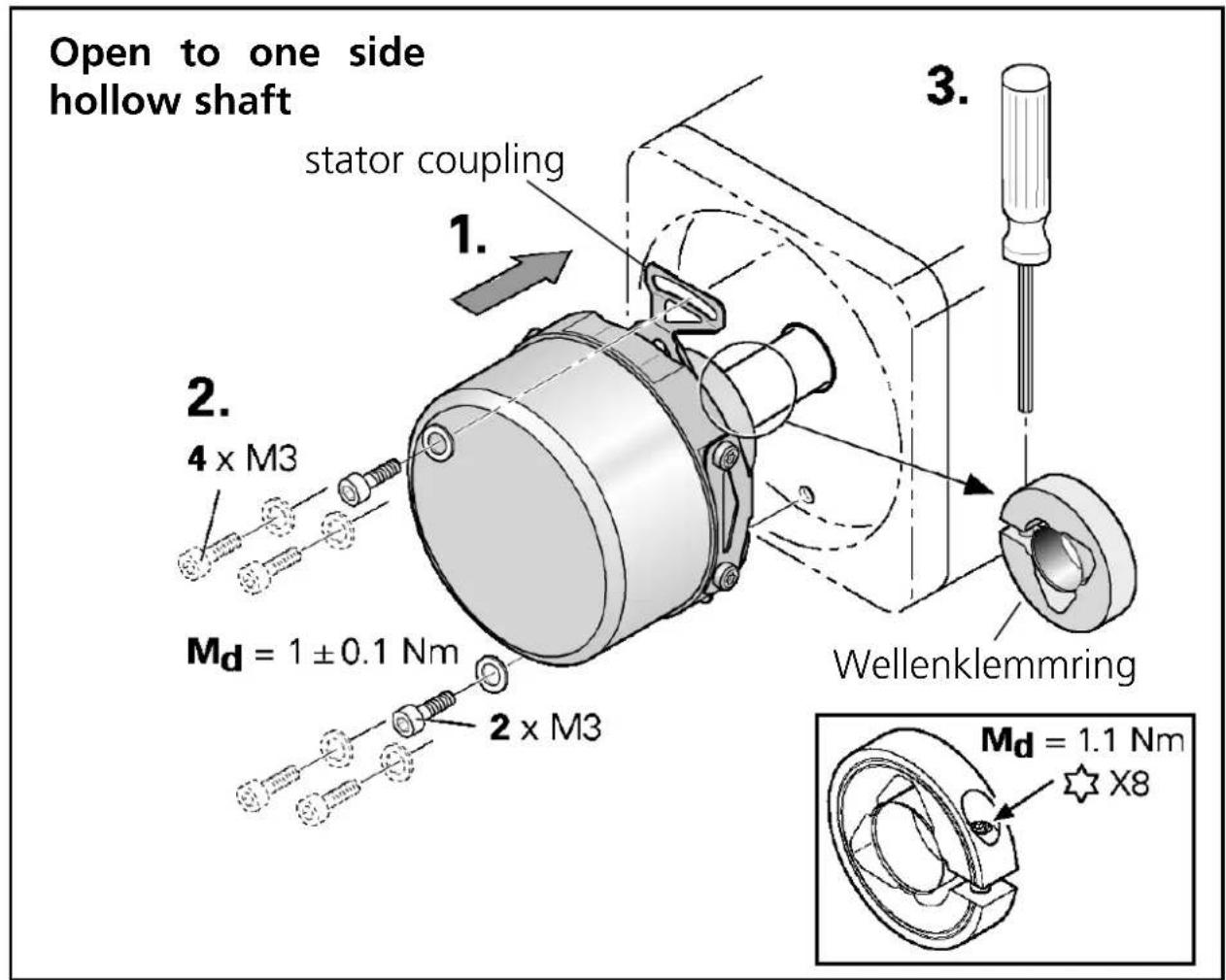

Open to one side hollow shaft stator coupling 1. 2. 4 x M3 Md = 1 ± 0.1 Nm 2 x M3 Wellenklemming 3. Md = 1.1 Nm ★ X8- Place the clamping nut on the encoder.
- Slip the encoder onto the shaft (min. 10 mm) and fix the stator coupling by means of four M3 screws.
- Tighten the screws of the clamping nut.
Linear movements can be transformed into a rotational movement using a measuring wheel or rack and pinion. For mounting the maximum permissible shaft loads of the encoder must be taken into account.
The data sheet, further documents and suitable accessories are available on our website at www.ifm.com.
Holder of Certificate: ifm electronic gmbh
Friedrichstr. 1
45128 Essen
GERMANY
Production 20196
Facility(ies):
Certification Mark:
Product: Electronic measuring equipment (encoders)
Model(s): RAx, ROx, RPx, RBx, RCx, RUx, RVx, RSx, RMs, RNx "x" can be any character (up to 15 digits) and defines configurations, interface, resolution and length.
Parameters: Rated Voltage: 5-30 Vdc Rated Current: max. 370 mA
Remark: When installing, requirements of mentioned Test Standards and Installation Guide has to be fulfilled. Supply shall fulfil requirements of limited energy circuit or Class 2 power.
Tested UL 61010-1:2004 according to: CAN/CSA-C22.2 No. 61010-1:2004
The product was voluntarily tested according to the relevant safety requirements and mentioned properties. It can be marked with the certification mark shown above. The certification mark must not be altered in any way. This product certification system operated by TÜV SÜD America Inc. most closely resembles that described by ISO/IEC Guide 67, Conformity assessment - Fundamentals of product certification, System 3. See also notes overleaf.
Test report no.: 028-71370093-000
Date, 2010-08-18
Page 1 of 1
TÜV®
