Brief adjustment instructions

- Installation

Mounting → page 22, electrical connection → page 24.

• HI-Teach

Apply the operating voltage.

After approx. 15s the unit is ready.

Allow the medium to flow through the system at the required maximum flow rate (HI).

Press the Learn/Set button and keep it pressed.

The green LEDs on the right and on the left flash,

after 5s the LED bar (green) fills from left to right

(release the button as soon as the first LEDs light).

The indication goes off briefly.

The unit stores the current flow as maximum flow.

- The unit is ready for normal operation.

Further setting options ( page 25)

• The HI-Teach is sufficient for the majority of waterbased applications. Optional: adjustment to minimum flow (LO-Teach).
• Setting of the switch points.
• Setting for monitoring and optical indication of excess flow.
• Reset to factory settings.

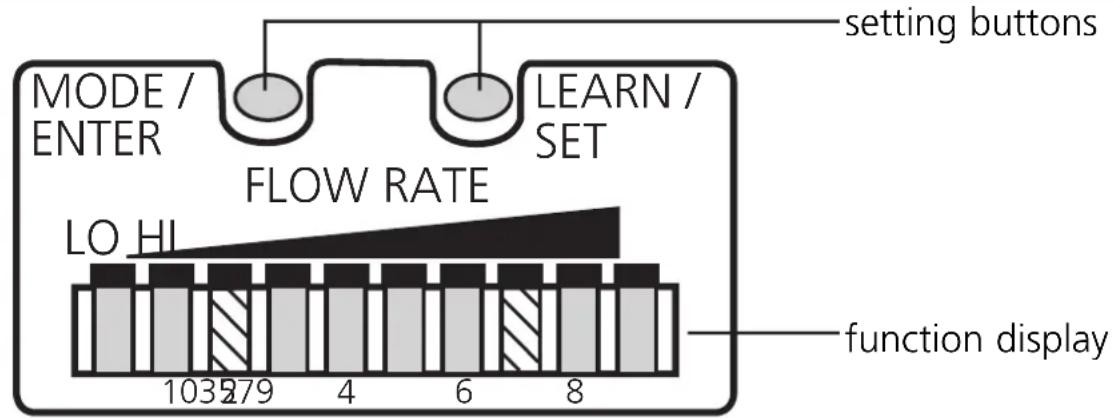

Controls and visual indication

MODE / ENTER FLOW RATE LEARN / SET setting buttons LO HI 103 279 4 6 8 function display

Function display (Run mode)

2 4 6 8

current flow within the display range _10 (LED bar green)

2 4 6 8 10

excess flow (LED 9 flashes)

2 4 6 8 10

underflow (LED 0 flashes)

Indication of the switch points (SPx):

LED orange: flow ≥SPx; LED red: flow < SPx

Setting buttons

Mode / Enter:

- selection of the menu items and acknowledgement

Learn/Set:

• adjustment to maximum / minimum flow;
• reset to factory settings
• setting of values (scrolling by holding pressed; incremental by pressing briefly)

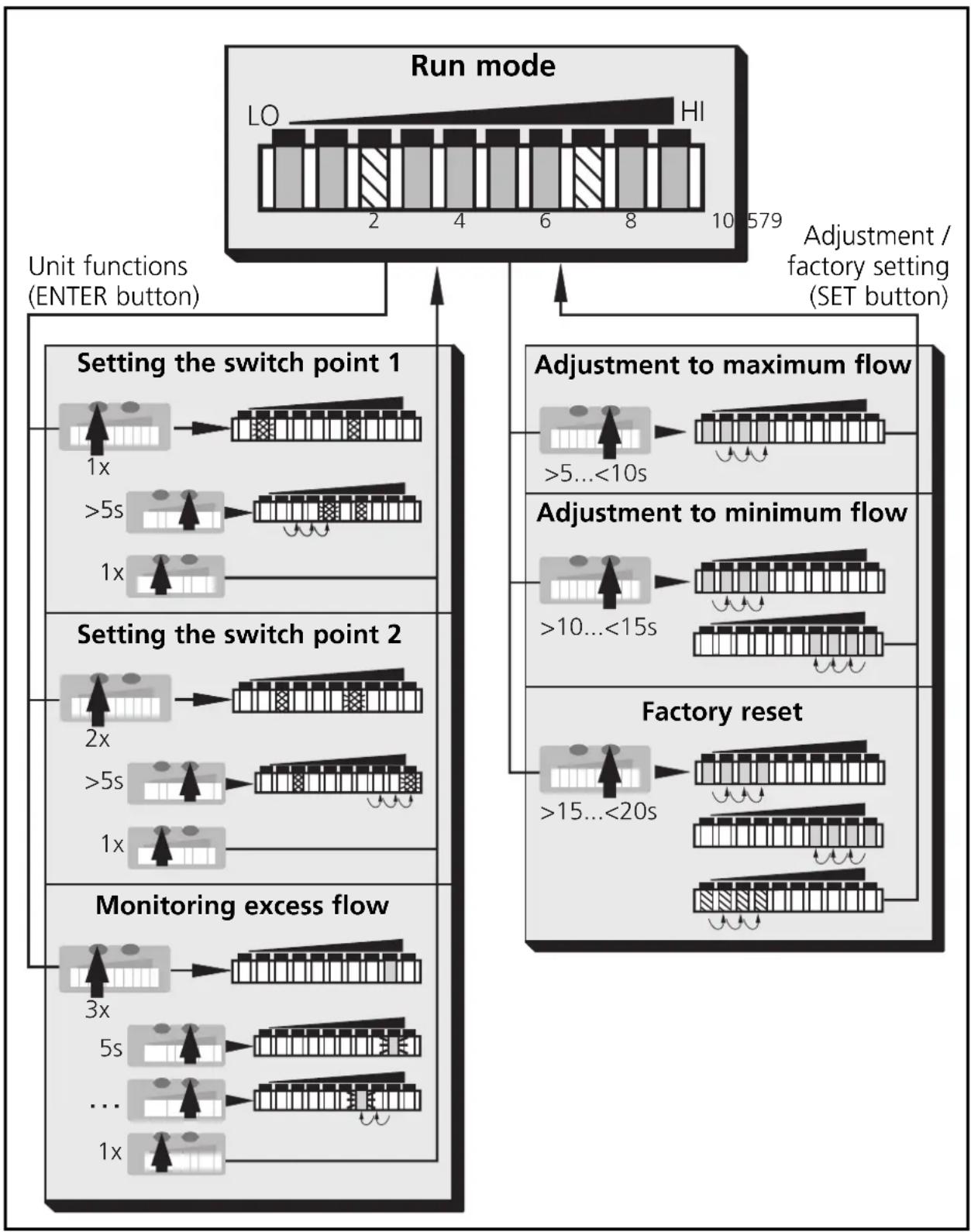

Menu structure

☐ LED = green LED = orange LED ≠ red

Contents

Function and features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 21
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 22
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 24
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 25
Installation and set-up / Operation / Maintenance ..... page 26
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 27
Programming diagrams / Technical information ..... page 28

Function and features

The flow monitor

• detects the flow velocity in liquid and gaseous media
- switches the outputs according to the programming (N.O./or-N.C./, programmable by wiring; →page 24)
- and indicates the relative flow value within the adjustable detection range by means of LEDs:

• LED 0 = lower limit of the detection range (maximum value / LO)
• LED 9 = upper limit of the detection range (minimum value / HI)

- It is also possible to indicate:

• Switching status (LED red: flow below the switch point, LED orange: flow has reached the switch point).
• Excess flow: LED 9 flashes if the flow is considerably higher (2 LEDs) than the display range.
• Underflow / flow standstill: LED 0 flashes if the flow is lower than the display range.

Installation

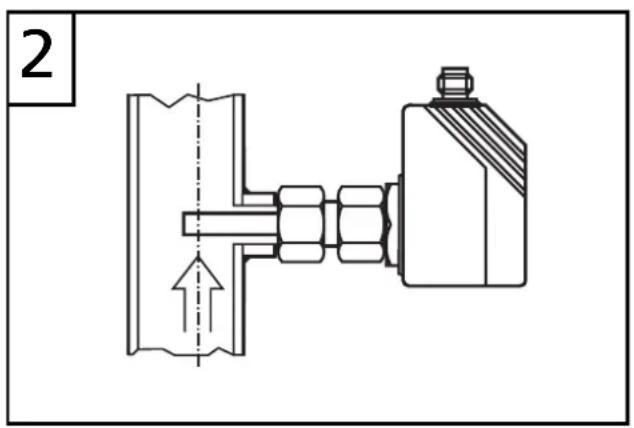

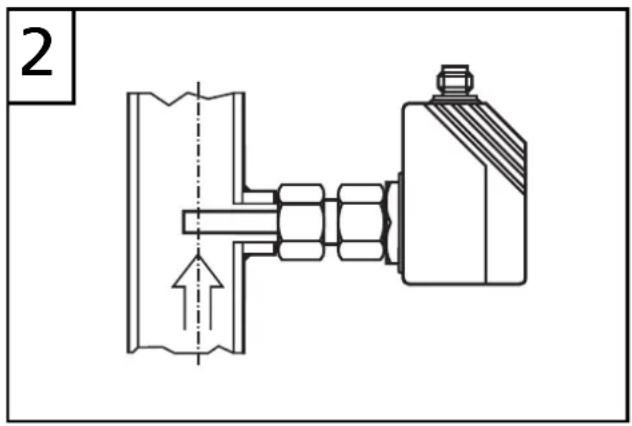

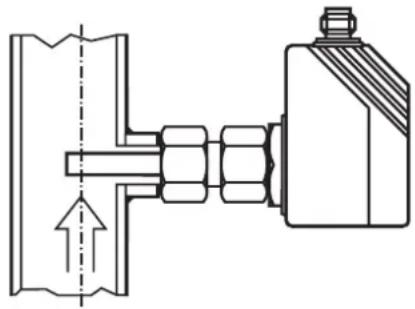

The unit is adaptable for various process fittings (adapters to be ordered separately as accessories).

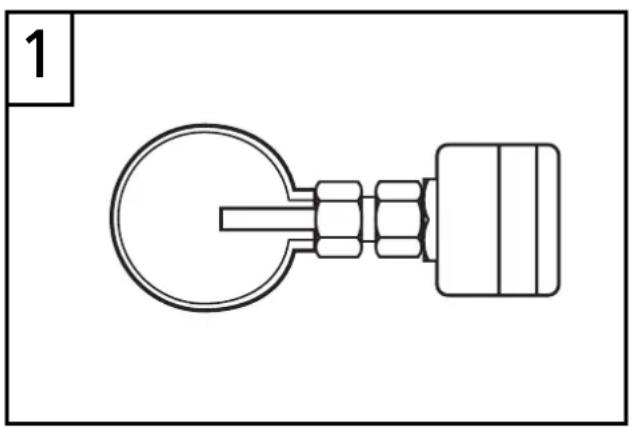

• In the case of horizontal pipes mount the unit from the side, if possible (fig. 1).
  When the unit is to be mounted at the bottom of the pipe, it should be free from deposits.
  When the unit is to be mounted at the top of the pipe, it should be completely filled with the medium to be monitored.
• In the case of vertical pipes mount the unit in a place where the medium flows upwards (fig. 2).

Pure mechanical component diagram without any text, numbers, or symbols

2

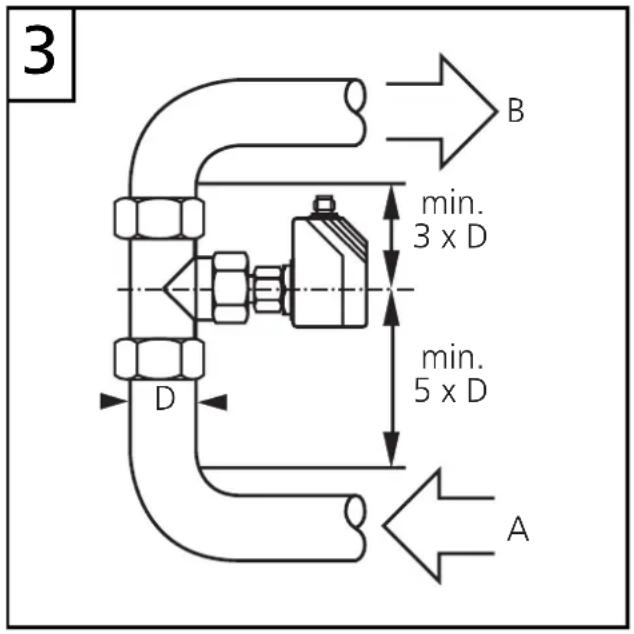

To avoid malfunction a minimum distance between the flow monitor and bends, valves, changes in cross-section or such like must be observed:

• Min. 5 x pipe diameter upstream (A),
• min. 3 x pipe diameter downstream (B).

3 B min. 3 x D min. 5 x D A D

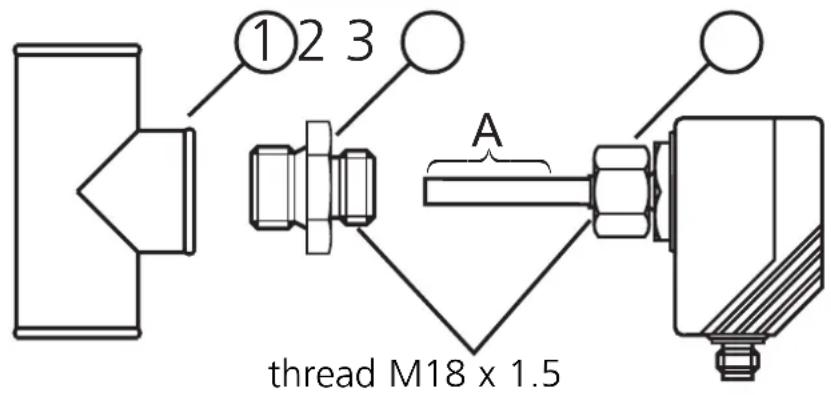

①2 3 thread M18 x 1.5

1. Lubricate the nut (3) and all threads with grease to ensure the nut can be loosened and tightened several times.
   Note: No grease must be applied to the sensor tip (A).
2. Screw the suitable adapter (2) onto the process fitting (1).
3. Insert the flow monitor into the adapter. While keeping the unit aligned tighten the nut (3); (max. tightening torque 50Nm).

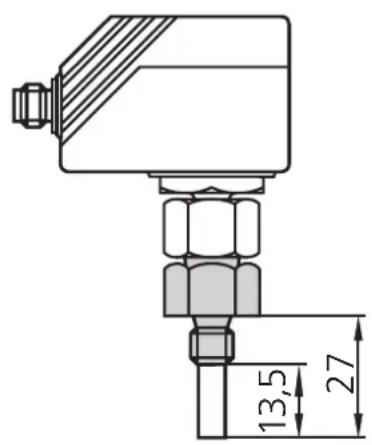

Insertion depth of the sensor: min. 12mm in the pipe. When the adapters are used which are available as accessories, the correct depth is ensured.

Note: The sensor tip must not touch the pipe wall.

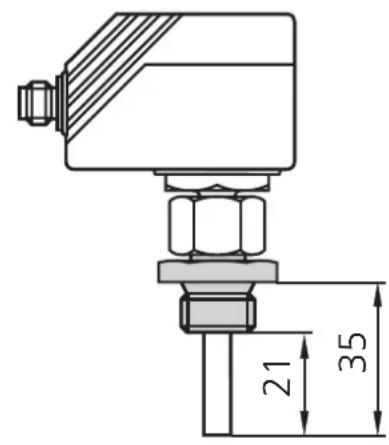

mounting dimension with M12 adapter	mounting dimension with G 14 adapter	mounting dimension with G 12 adapter

Electrical connection

The unit must only be connected by an electrician.

The national and international regulations for the installation of electrical equipment must be observed.

Voltage supply to EN50178, SELV, PELV.

The device shall be supplied from an isolating source and protected by an overcurrent device such that the limited voltage circuit requirements in accordance with UL 508 are met.

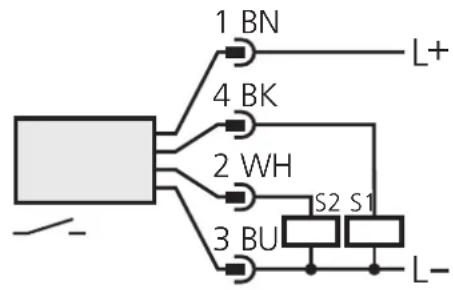

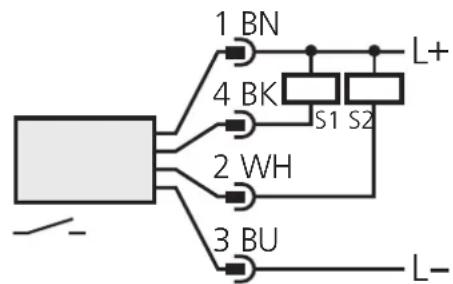

Disconnect power before connecting the unit as follows

$$ (\text {一} = \mathrm{N}. \theta_ {\cdot} ^ {\dagger} / = \mathrm{N}. C.) $$

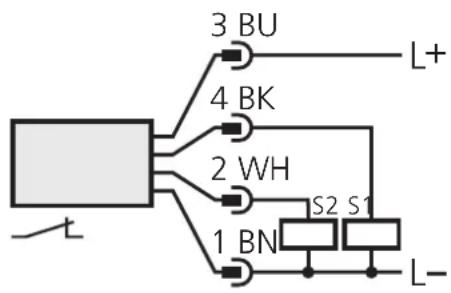

DC PNP

3 BU 4 BK 2 WH 1 BN S2 S1 L+ L-

connector view (sensor)

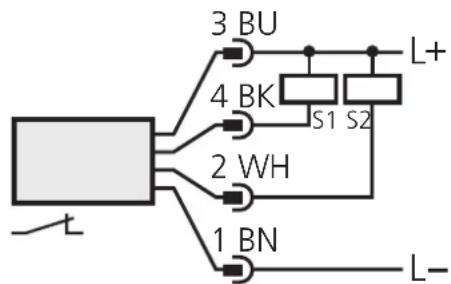

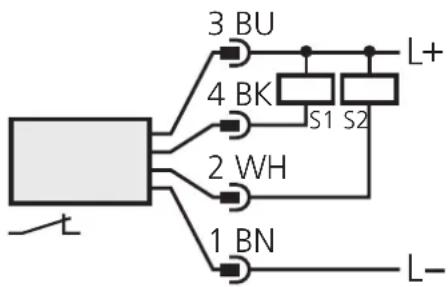

DC NPN

1 BN 4 BK 2 WH 3 BU L+ S1 S2 L-

3 BU 4 BK 2 WH 1 BN L+ S1 S2 L-

connector view (sensor)

Core colours of ifm sockets:

$$ 1 = \text {BN (brown)}, 2 = \text {WH (white)}, 3 = \text {BU (blue)}, 4 = \text {BK (black)} $$

When the supply voltage is applied, all LEDs light and go off one after the other.* The unit is then ready for operation.

*During this time both outputs are switched according to the programming:

ON with the NO function and OFF with the NC function.

Failure indication: 5 left LED's flashing in case of short-circuit at the switching output S1; 5 right LED's flashing in case of short-circuit at the switching output S2.

Programming

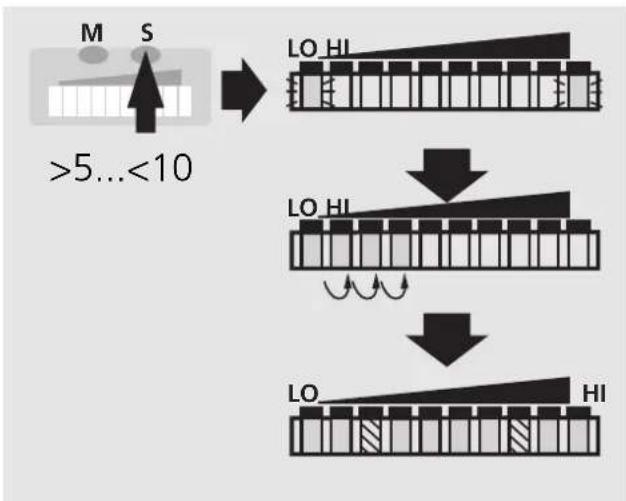

■Setting of the detection range HI-Teach

• Allow the medium to flow through the system at the required maximum flow rate.
• Press the Learn/Set button for >5...<10s (= adjustment to maximum flow / upper limit of the detection range).

Optional: LO-Teach

The HI-Teach is sufficient for the majority of waterbased applications. Optional: adjustment to minimum flow.

• Allow the medium to flow through the system at the required minimum flow rate or bring flow to a standstill.
• Press the Learn/Set button for >10...< 15s (= adjustment to minimum flow or flow standstill / lower limit of the detection range).

■Setting of the switch points (SP1 / SP2)

• Press the Mode/Enter button briefly (to set SP1), or press the Mode/Enter button twice (to set SP2).
• Press the Learn/Set button for 5s,
• keep the Learn/Set button pressed or press the button several times until the requested switch point is set.
• Press the Mode/Enter button briefly.

■Monitoring excess flow

• Press the Mode/Enter button three times.
• Press the Learn/Set button for 5s, release the button when LED flashes.
• Press the Learn/Set button several times to shift the LED for the maximum display value.
• Press the Mode/Enter button briefly.

■Reset to factory settings

- Press the Learn/Set button for >15...<20s.

■The following applies to all setting procedures:

• If no button is pressed for 15s during the setting procedure, the unit returns to the operating mode with the parameter values unchanged.
• If adjustment has not been possible, all the red LEDs flash. The unit returns to the operating mode with the parameter values unchanged.

■Locking / Unlocking

The unit can be electronically locked to prevent unwanted adjustment of the set parameters: Press both setting buttons for 10s (the unit must be in Run mode). Indication goes out briefly (acknowledgement of locking / unlocking).

Units are delivered from the factory in the unlocked state.

If the unit is locked, it is possible to indicate

• the current switch point 1 (press the Mode/Enter button once),
• the current switch point 2 (press the Mode/Enter button two times),
• the setting of the function “monitoring excess flow” (press the Mode/Enter button three times).

Installation and set-up / Operation / Maintenance

After mounting, wiring and setting check whether the unit operates correctly.

When the supply voltage is applied, all LEDs light and go off one after the other.* The unit is then ready for operation.

*During this time both outputs are switched according to the programming: ON with the NO function and OFF with the NC function.

Failure indication:

5 left LED's flashing in case of short-circuit at the output S1; 5 right LED's flashing in case of short-circuit at the output S2.

Recommended maintenance

Check the sensor tip for build-up from time to time. Clean it with a soft cloth. If necessary, build-up which adheres firmly (e.g. lime) can be removed with a common vinegar cleansing agent.

Technical data

Operating voltage [V] 20 ... 36 DC ^1)

Current rating [mA] .... 2 x 250; short-circuit protection; reverse polarity protection / overload protection

Voltage drop [V] < 2.5

Max. temperature gradient of medium [K/min] 300

Gases

Medium temperature [°C] -25 ... +80

Setting range [cm/s] 200 ... 3000

Greatest sensitivity [cm/s] 200 ... 800

Response time [s] 1 ... 10

Power-on delay time [s] 15, optically indicated

Pressure rating [bar]. 300

Operating temperature [°C]....-25 ... +80

Protection IP 67 (IEC60529) / (UL50)

Shock resistance [g]. 50 (DIN / IEC 68-2-27, 11 ms)

Vibration resistance [g] ..... 20 (DIN / IEC 68-2-6, 55-2000 Hz)

Housing material....PBT-GF 20

Sensor material .... stainless steel (316S12);

O-ring: FPM 8x1.5 gr 80° Shore A

^1) to EN50178, SELV, PELV;

referring to UL: see page 24 (Electrical connection).

Programming diagrams / Technical information

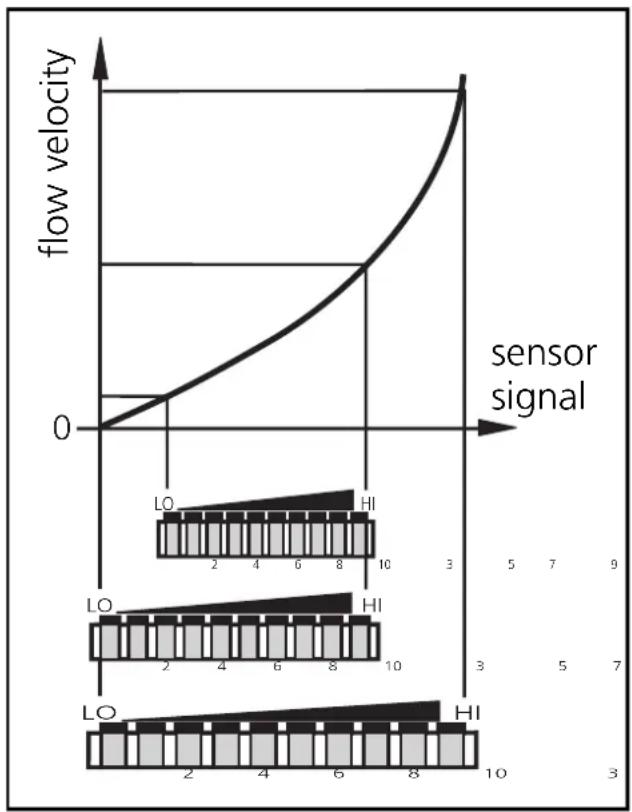

■Setting of the detection range

The detection range (window) is determined by:

• Adjustment to the required maximum flow (HI-Teach) = upper limit of the window. This setting is sufficient for the majority of waterbased applications.
• Adjustment to the required minimum flow / flow standstill (LO-Teach) = lower limit of the window.

- Adjustment to maximum flow (HI-Teach)

The unit detects the current flow and sets this value as the maximum value for the LED display (LED 9).

1	Apply the operating voltage. After approx. 15s the unit is ready.Allow the medium to flow through the system at the required maximum flow rate.
2			Press the Learn/Set button and keep it pressed.The green LEDs on the right and on the left flash,after 5s the LED bar (green) fills from left to right(release the button as soon as the first LEDs light).The indication goes off briefly.The unit stores the current flow as maximum flow and passes into the operating mode.
	>5...<10s

- Adjustment to minimum flow / flow standstill (LO-Teach), optional

The unit detects the current flow and sets this value as the minimum display value for the LED display. In normal operation the first green LED (LED 0) flashes when the flow falls below this value (or when it comes to a standstill).

NOTE: The LO-Teach operation may only be carried out after the HI-Teach operation.

1	Allow the medium to flow through the system at the required minimum flow rate or bring to a standstill.
2			Press the Learn/Set button and keep it pressed.The green LEDs on the right and on the left flash,after 5s the LED bar (green) fills from left to right
	>10...<15s
			after a further 5s the LED bar (gren) fills from right to left (release the button as soon as the first LEDs on the right light).
			The indication goes off briefly.The unit stores the current flow as minimum flow and passes into the operating mode.

■ Setting of the switch points

Switch point 1 (SP1) = lower value, setting range: LED 0 ... SP2

Switch point 2 (SP2) = upper value, setting range: SP1 ... LED 9

1	1 time (= setting of SP1)2 times (= setting of SP2)	Press the Mode/Enter button.The current switch point is indicated:LED lit: coarse setting, LED flashes: fine setting.
2	>5s	Press the Learn/Set button and keep it pressedAfter 5s the switch point is increased* (incremental by pressing briefly or scrolling by holding pressed).Indication:The flashing LED moves from left to right. After LED 9 has been reached the cycle starts again at LED 0. The LED which is constantly lit moves on by one position.**
3		Press the Mode/Enter button briefly (acknowledgement).The set switch point becomes effective; the unit passes into the operating mode.

*Decrease the switch point: Let the flashing and lit LEDs move to the maximum setting value. Then the cycle starts again at the minimum setting value.
- SP1: min. setting value = LED 0; max. setting value = LED "SP2".
- SP2: min. setting value = LED "SP1"; max. setting value = LED 9.
**Overflow: If the flashing LED and the lit LED exceed the maximum setting value, the cycle starts again at the minimum setting value.

■Monitoring excess flow

With this function the position of the display window within the detection range can be defined: Shift the LED for the maximum display value to position 8, 7, 6 or 5. In the case of maximum flow all LEDs from 0 up to this LED are lit. The LEDs above the range signal excess flow. If the switch point is above this range, the unit switches in the case of excess flow.

1		Press the Mode/Enter button three times. The current setting is indicated (green LED).
2		Press the Learn/Set button for 5s (until LED flashes).
3		Press the Learn/Set button several times until the requested LED flashes (LED 8, 7, 6 or 5). Each time the button is pressed the LED moves back by one position. When it is lower than LED 5 the cycle starts again at LED 9.
4		Press the Mode/Enter button briefly (acknowledgement). The indication goes off briefly. The unit stores the new setting and passes into the run mode.

Please note:
The display value is reset (to LED 9) after each maximum flow rate adjustment (HI-Teach.

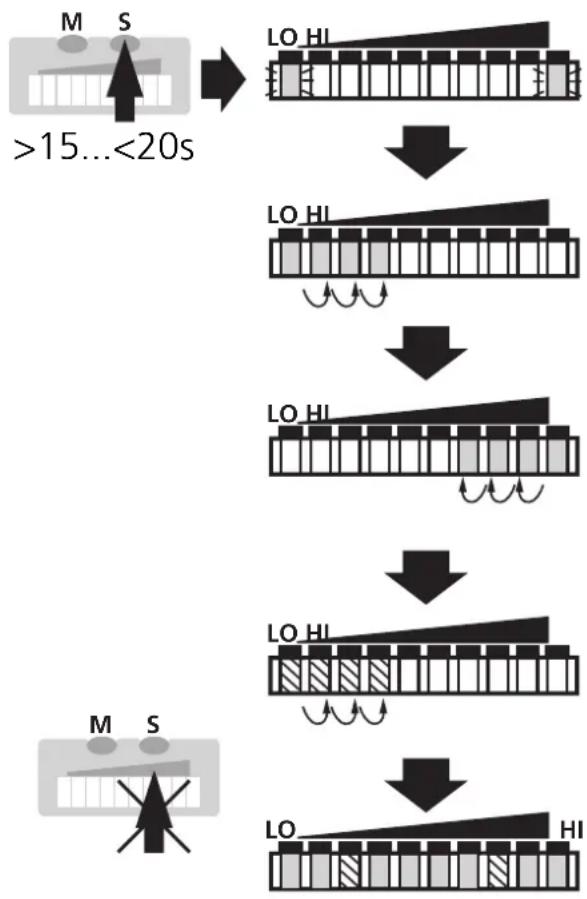

■Return to factory setting

Press the Learn/Set button and keep it pressed. The green LEDs on the right and on the left flash,

after 5s the LED bar (green) fills from left to right,

after a further 5s the LED bar (green) fills from right to left,

after a further 5s the LED bar (orange) fills from left to right (release the button as soon as the first orange LEDs light).

The indication goes off briefly. All settings are returned to factory setting and the unit passes into the run mode flow.

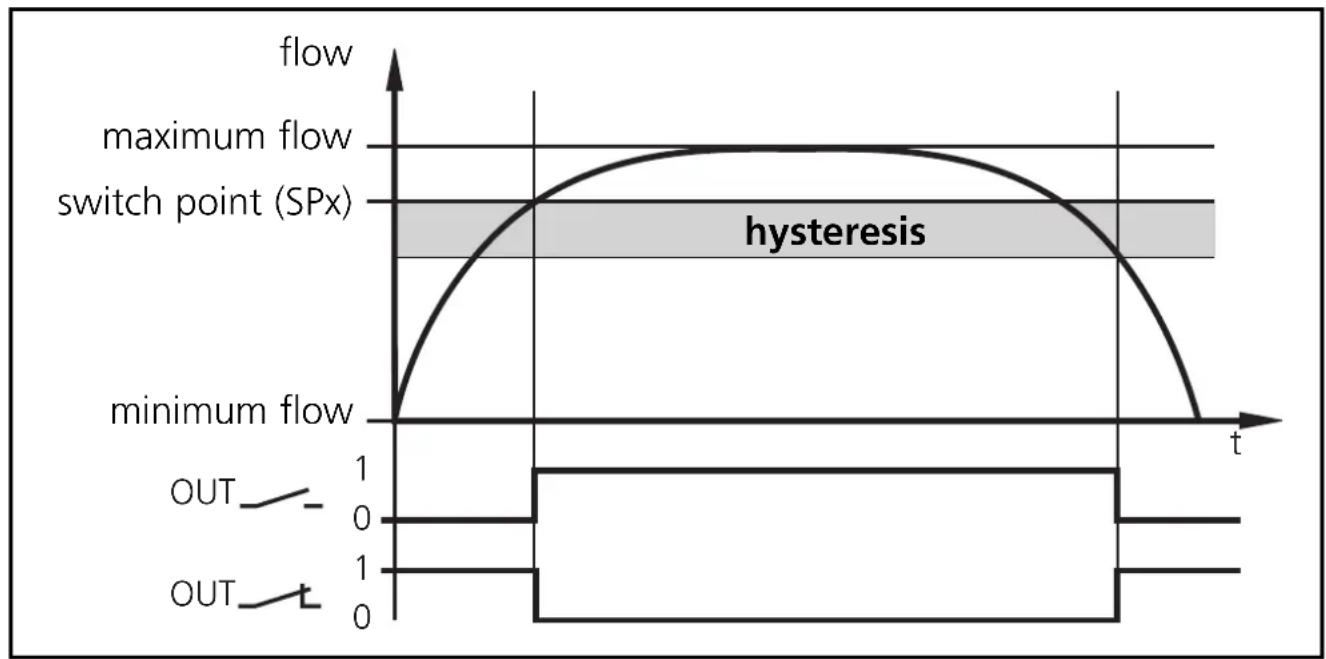

Hysteresis function

When the flow rises, the outputs switch when the corresponding switch point (SPx) has been reached.

When the flow falls again, the output switches back when the value "SPx minus hysteresis" has been reached..

The hysteresis is considerably influenced by the choice of the operating range on the sensitivity curve of the sensor:

• In the case of adjustment to HI-Flow values in the range 0 ... 60cm/s the hysteresis is 2 - 4cm/s (values apply to water).
• In the case of adjustment to HI-Flow values above 100cm/s the hysteresis increases as the flow rises.

The typical response time of the unit is 3 ... 8s. It can be influenced by setting the LO-Teach and the switch point:

• The lower the LO-Teach or the switch point is set, the faster the unit switches on.
• The higher the LO-Teach or switch point is set, the faster the unit switches off.

☐ LED = verte LED = orange LED ☒ rouge

Contenu

Pure mechanical component diagram without any text, numbers, or symbols

2

Technical line drawing of a mechanical assembly with no visible text or symbols

1 BN 4 BK 2 WH 3 BU L+ S1 S2 L-

3 BU 4 BK 2 WH 1 BN S1 S2 L+ L-

Tenue aux chocs [g] ..... 50 (DIN / VEI 68-2-27, 11 ms)

Tenue aux vibrations [g] ..... 20 (DIN / CEI 68-2-6, 55-2000 Hz)

Boîtier....PBT-GF 20
