Product type	Kitchen range hood
Brand	Bertazzoni
Model	KTI42XT
Electrical supply	120 V, 60 Hz, AC, dedicated 15 A circuit
Motor power	Not specified
Speed levels	3 speeds (low, medium, high) + intensive (6 min)
Controls	Touch panel and remote control (LR03-AAA battery not included)
Lighting	Integrated LED, replacement by authorized service
Filters	Dishwasher-safe metal grease filters; optional activated charcoal filter (SKU 901497)
Material	Stainless steel
Installation type	Ducted to the outside or recirculation (charcoal kit required)
Minimum clearance	24 inches between bottom of hood and cooking surface
Special functions	Delayed shut-off (15 min), intensive speed (6 min)
Warranty	2 years limited (parts and labor)
Metal filter maintenance	Every 2 months, dishwasher
Charcoal filter replacement	Every 4 months (or more depending on use)

Frequently Asked Questions - KTI42XT BERTAZZONI

How to install the Bertazzoni KTI42XT range hood?

Installation must be performed by a qualified professional. Use a 6-inch metal duct. Maintain a clearance of at least 24 inches between the hood and the cooking surface. Follow the provided template and securely fasten the chimney support to the ceiling. Do not use flexible duct.

How to clean the metal grease filters?

Remove the filters by pushing them back and pulling down. Wash them in the dishwasher or by hand with a mild detergent. Dry them completely before reinstalling, with the handle facing forward. Clean every 2 months.

How to replace the activated charcoal filter?

The charcoal filter is necessary in recirculation mode. Purchase kit SKU 901497. Remove the metal filters, unlock the charcoal filter hooks, install the new filter, and secure it. Replace it every 4 months.

The remote control does not work, what to do?

Check the battery: use an LR03-AAA alkaline battery (1.5 V). Make sure the compartment is properly closed. Avoid heat sources. If the problem persists, contact customer service.

How to activate the delayed shut-off?

Press and hold the stop button (OFF) for 2 seconds. The fan continues to run for 15 minutes and then stops automatically. Use this function to remove odors after cooking.

Can I use the hood without external evacuation?

Yes, in recirculation mode. You must install an activated charcoal filter (purchased separately). The air is filtered and then returned to the kitchen. Make sure to use the appropriate conversion kit.

What types of bulbs does the hood use?

The hood is equipped with integrated LED lighting. In case of failure, replacement must be carried out by an authorized service to avoid any electrical risk.

The hood makes noise, is this normal?

A slight ventilation noise is normal. On intensive speed, the noise level is higher. If the noise is abnormal, check that the filters are clean and properly installed, and that the duct is not blocked.

How to adjust the height of the hood?

Loosen the metric screws on the sides of the chassis (up to 6 screws). Adjust to the desired height (chimney min. 32 inches). Tighten all screws. Remove the central section if a reduced height is required (min. 27 inches).

Where can I find spare parts?

Contact your dealer or Bertazzoni customer service. Charcoal filters (SKU 901497) and baffle filters (SKU 901581) are available. Use only original parts.

USER MANUAL KTI42XT BERTAZZONI

INSTALLATION AND USER MANUAL

ISLAND T-SHAPE DESIGN HOODS

BERTAZZONI

INSTRUCTIONS D'INSTALLATION ET D'UTILISATION

HOTTE D'INSTALLATION EN ÎLOT

PERTAZZO ITALIA

KTI..XT

Section Page

IMPORTANT SAFETY INSTRUCTIONS 3

RANGE HOOD DIMENSIONS 6

INSTALLATION HEIGHT REQUIREMENTS 7

PARTS 8

TOOLS NEEDED 10

VENTING METHOD 11

COMPONENTS FOR INSTALLATION TO THE CEILING 12

INSTALLING 12

CLEANING STAINLESS STEEL 26

CARING FOR FILTERS 26

REPLACING ACTIVATED CHARCOAL FILTER 27

REPLACING BULBS 27

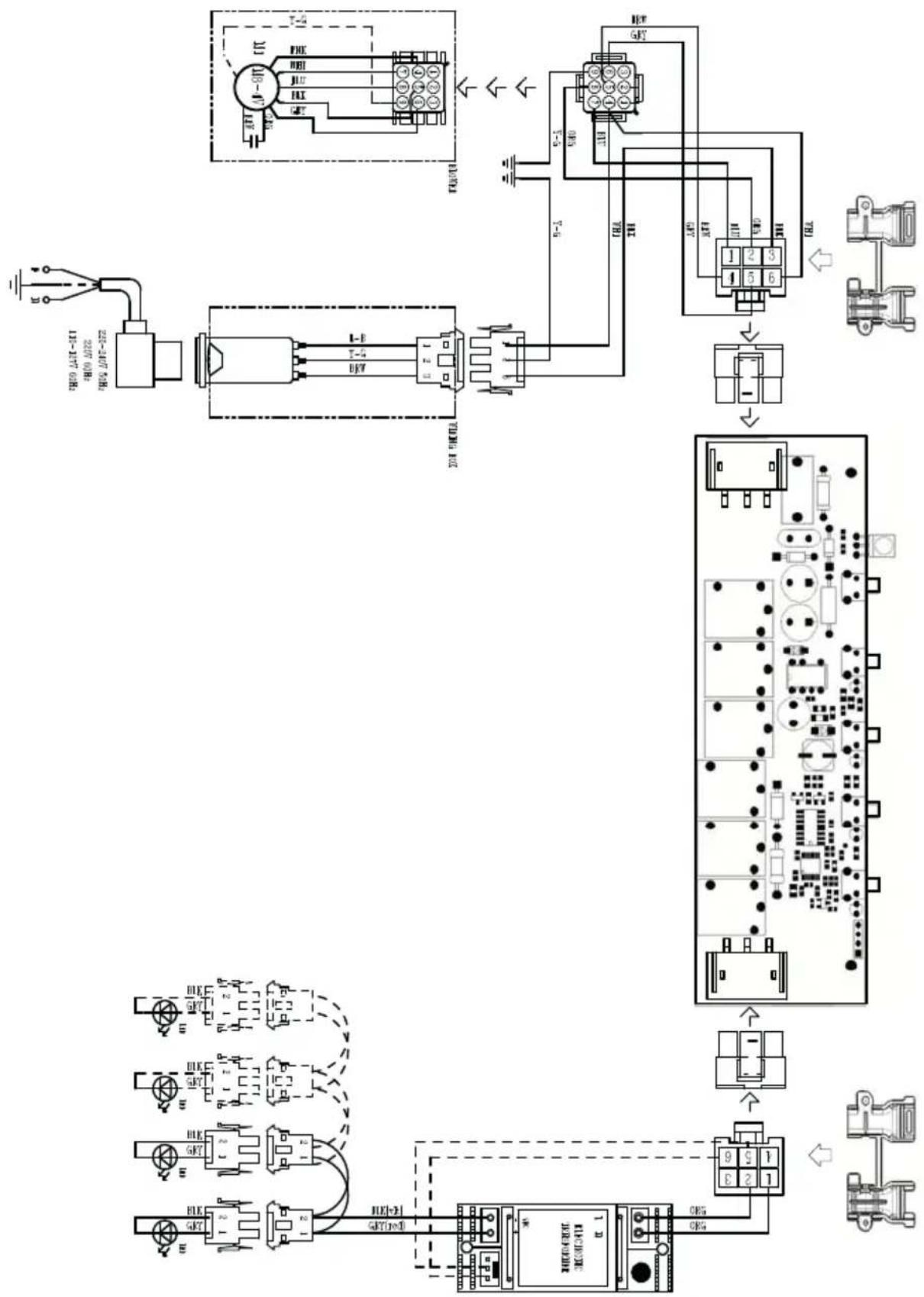

WIRING DIAGRAM 28

WARRANTY 29

READ AND SAVE THESE INSTRUCTIONS BEFORE YOU START INSTALLING THIS Range Hood

WARNING: - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium setting.
b) Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:

a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately EVACUATE AND CALL THE FIRE DEPARTMENT.

b) NEVER PICK UP A FLAMING PAN - You may be burned.

c) DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.

d) Use an extinguisher ONLY if:

a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately EVACUATE AND CALL THE FIRE DEPARTMENT. b) NEVER PICK UP A FLAMING PAN - You may be burned. c) DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result. d) Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how to operate it.

2. The fire is small and contained in the area where it started.

3. The fire department is being called.

4. You can fight the fire with your back to an exit.

* Based on "Kitchen Firesafety Tips" published by NFPA

WARNING - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, do not use this fan with any solid-state speed control device.

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.
2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

CAUTION: For General Ventilating Use Only. Do Not Use To Exhaust Hazardous or Explosive Materials and Vapors.

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Installation Work And Electrical Wiring Must Be Done By Qualified Person(s) In Accordance With All Applicable Codes And Standards, Including Fire-Rated Construction.
2. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
3. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
4. Ducted fans must always be vented to the outdoors.

ALL WALL AND FLOOR OPENINGS WHERE THE Range Hood IS INSTALLED MUST BE SEALED.

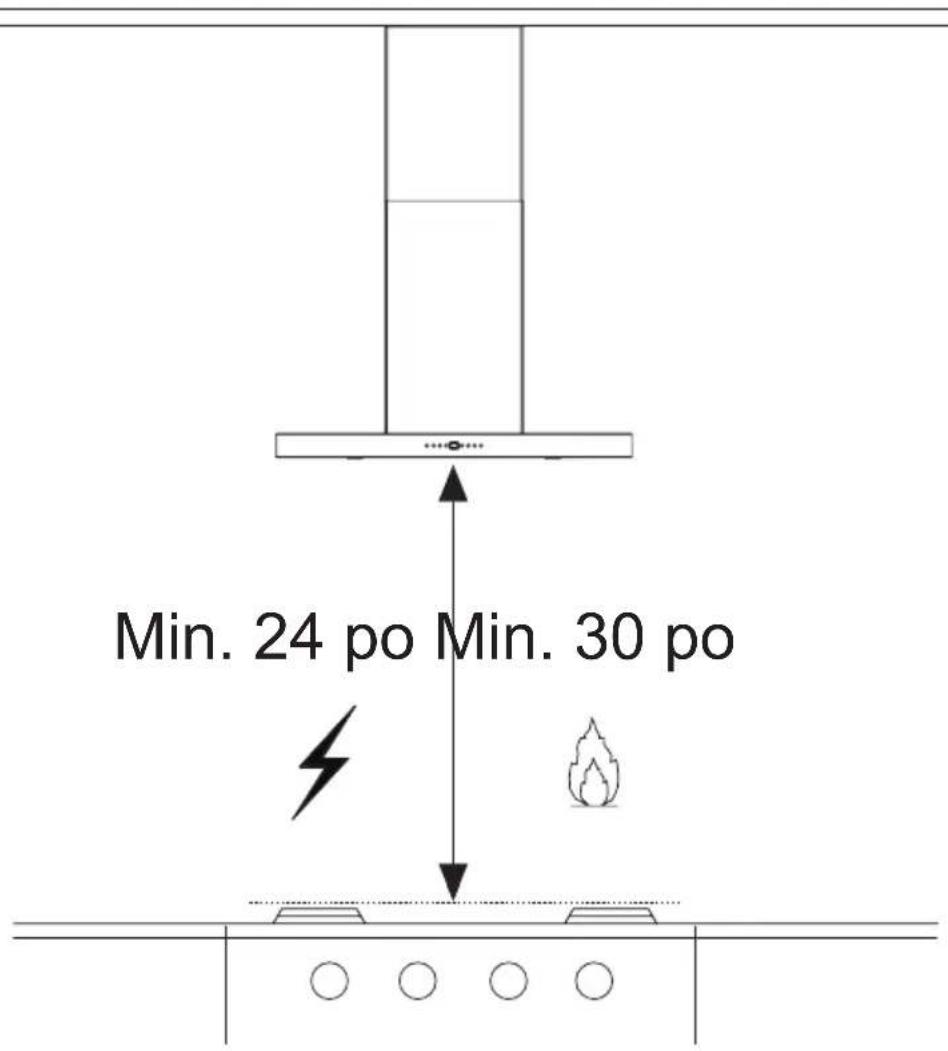

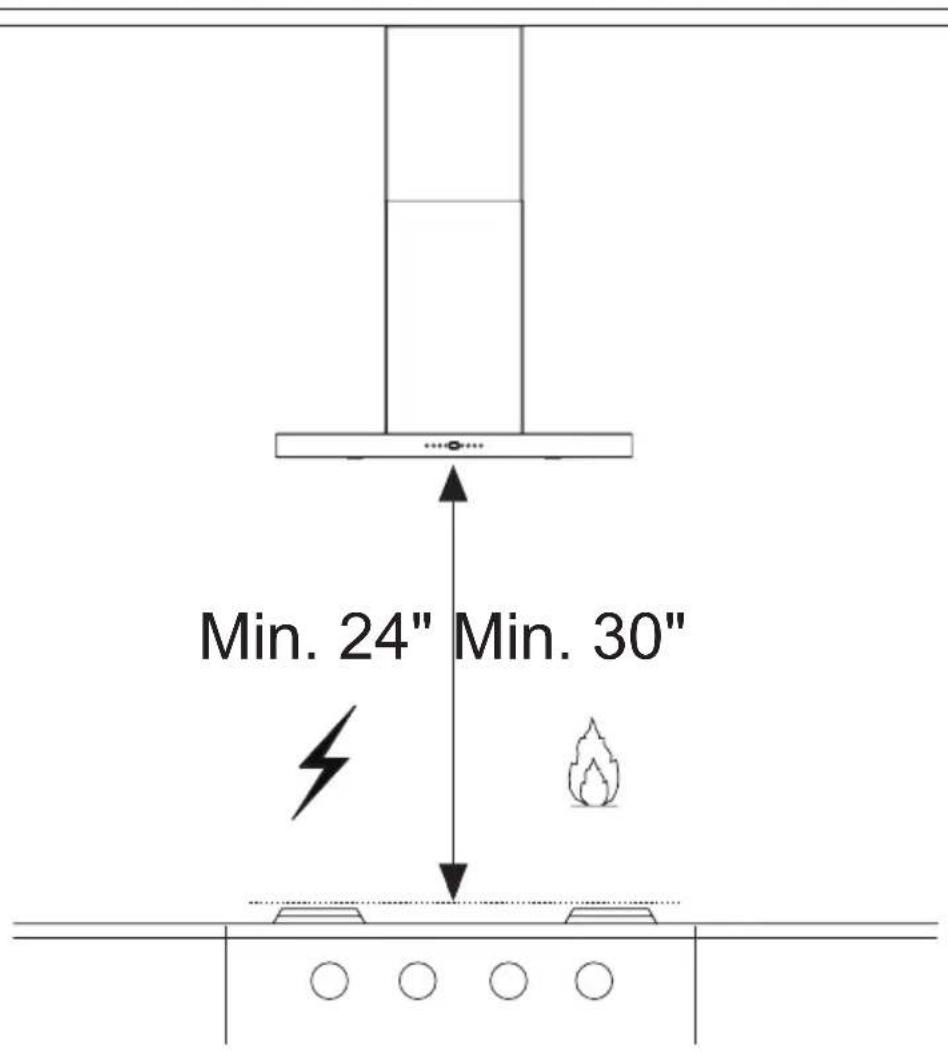

This Range Hood requires at least 24" of clearance between the bottom of the Range Hood and the cooking surface or countertop. This hood has been approved by UL at this distance from the cooktop. This minimum clearance may be higher depending on local building codes. For gas cooktops and combination ranges, a minimum of 30" is recommended and may be required.

Overhead cabinets on both sides of this unit must be a minimum of 18" above the cooking surface or countertop. Consult the cooktop or range installation instructions given by the manufacturer before making any cutouts.

MOBILE HOME INSTALLATION The installation of this Range Hood must conform to the Manufactured Home Construction and Safety Standards, Title 24 CFR, Part 3280 (formerly Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280). See Electrical Requirements"

VENTING REQUIREMENTS

Determine which venting method is best for your application. Ductwork can extend either through the wall or the roof.

The length of the ductwork and the number of elbows should be kept to a minimum to provide efficient performance. The size of the ductwork should be uniform. Do not install two elbows together. Use duct tape to seal all joints in the ductwork system. Use caulking to seal exterior wall or floor opening around the cap.

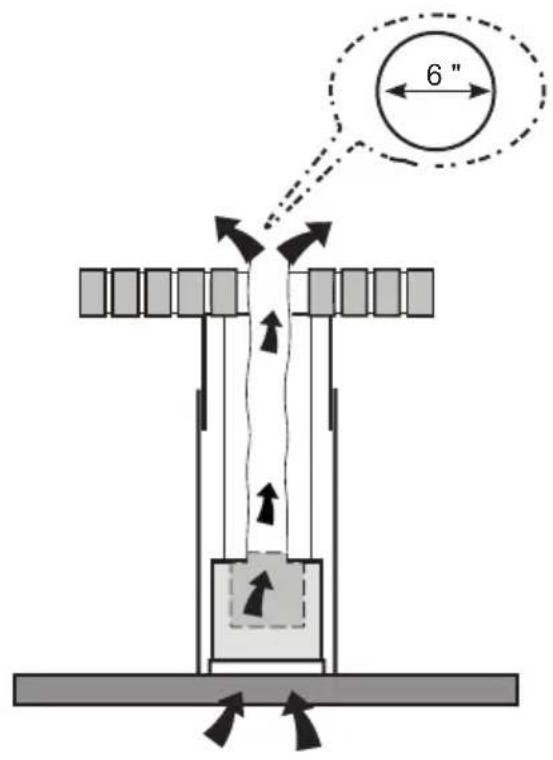

Flexible ductwork is not recommended. Flexible ductwork creates back pressure and air turbulence that greatly reduces performance.

Make sure there is proper clearance within the wall or floor for exhaust duct before making cutouts. Do not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut, then a supporting frame must be constructed.

WARNING - To Reduce The Risk Of Fire, Use Only Metal Ductwork.

CAUTION - To reduce risk of fire and to properly exhaust air, be sure to duct air outside – Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.

Cold Weather installations

An additional back draft damper should be installed to minimize backward cold air flow and a nonmetallic thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break. The break should be as close as possible to where the vent system enters the heated portion of the house.

WARNING

• Venting system MUST terminate outside the home.
• DO NOT terminate the ductwork in an attic or other enclosed space.
• DO NOT use 4" laundry-type wall caps.
• Flexible-type ductwork is not recommended.
• DO NOT obstruct the flow of combustion and ventilation air.
• Failure to follow venting requirements may result in a fire.

ELECTRICAL REQUIREMENTS

A 120 volt, 60 Hz AC-only electrical supply is required on a separate 15 amp fused circuit. A time-delay fuse or circuit breaker is recommended. The fuse must be sized per local codes in accordance with the electrical rating of this unit as specified on the serial/rating plate located inside the unit near the field wiring compartment.

WARNING

• Electrical ground is required on this Range Hood.
- If cold water pipe is interrupted by plastic, nonmetallic gaskets or other materials, DO NOT use for grounding.
• DO NOT ground to a gas pipe.
- DO NOT have a fuse in the neutral or grounding circuit. A fuse in the neutral or grounding circuit could result in electrical shock.
- Check with a qualified electrician if you are in doubt as to whether the Range Hood is properly grounded.
- Failure to follow electrical requirements may result in a fire.

State of California Proposition 65 Warning (US only)

WARNING

This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov

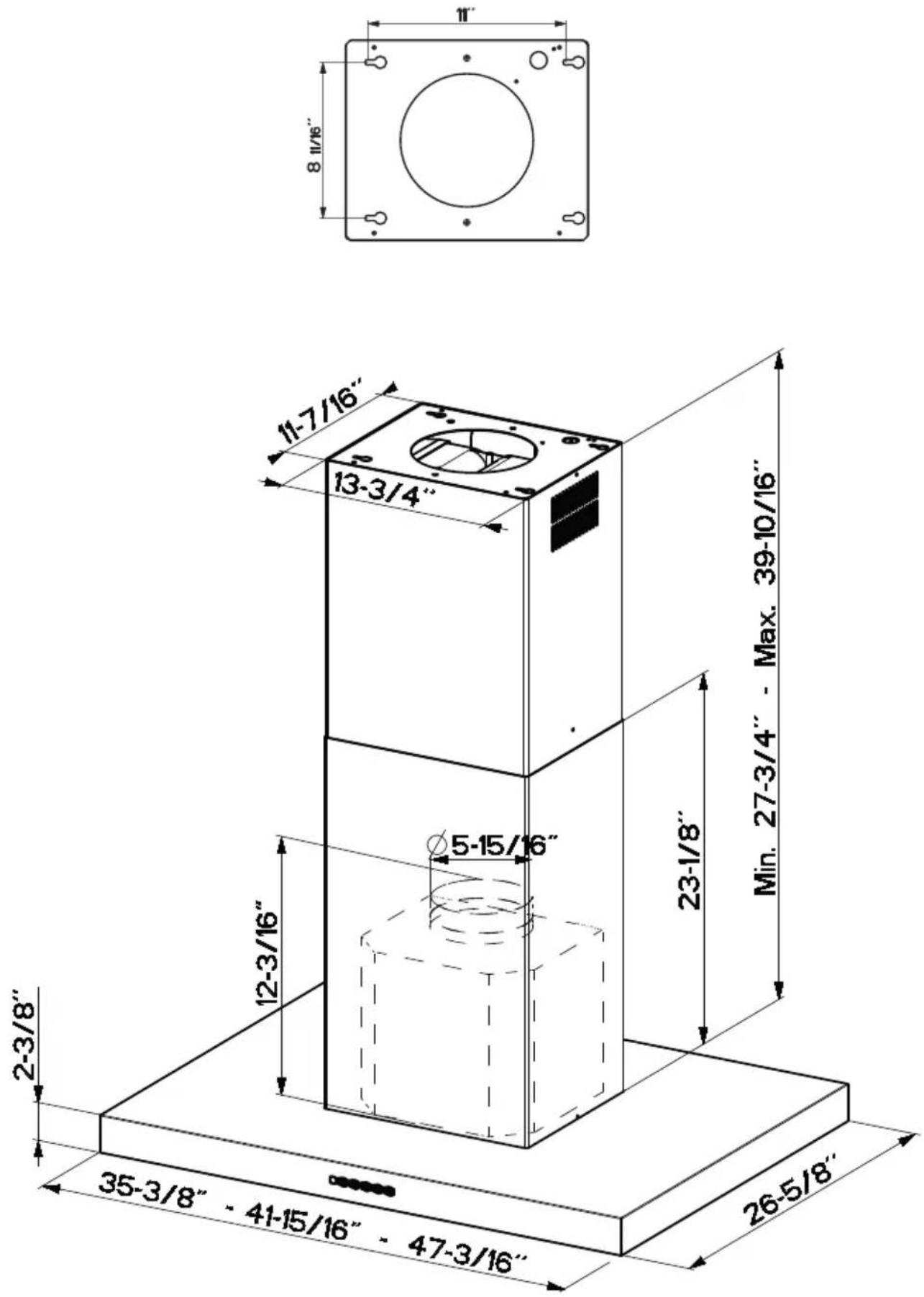

11" 8 11/6" 11-7/16" 13-3/4" Min. 27-3/4" - Max. 39-10/16" Ø5-15/16" 23-1/8" 12-3/16" 2-3/8" 35-3/8" - 41-15/16" - 47-3/16" 26-5/8"

Min. 24" Min. 30"

MIN. 24" OVER ELECTRIC

MIN. 30" OVER GAS

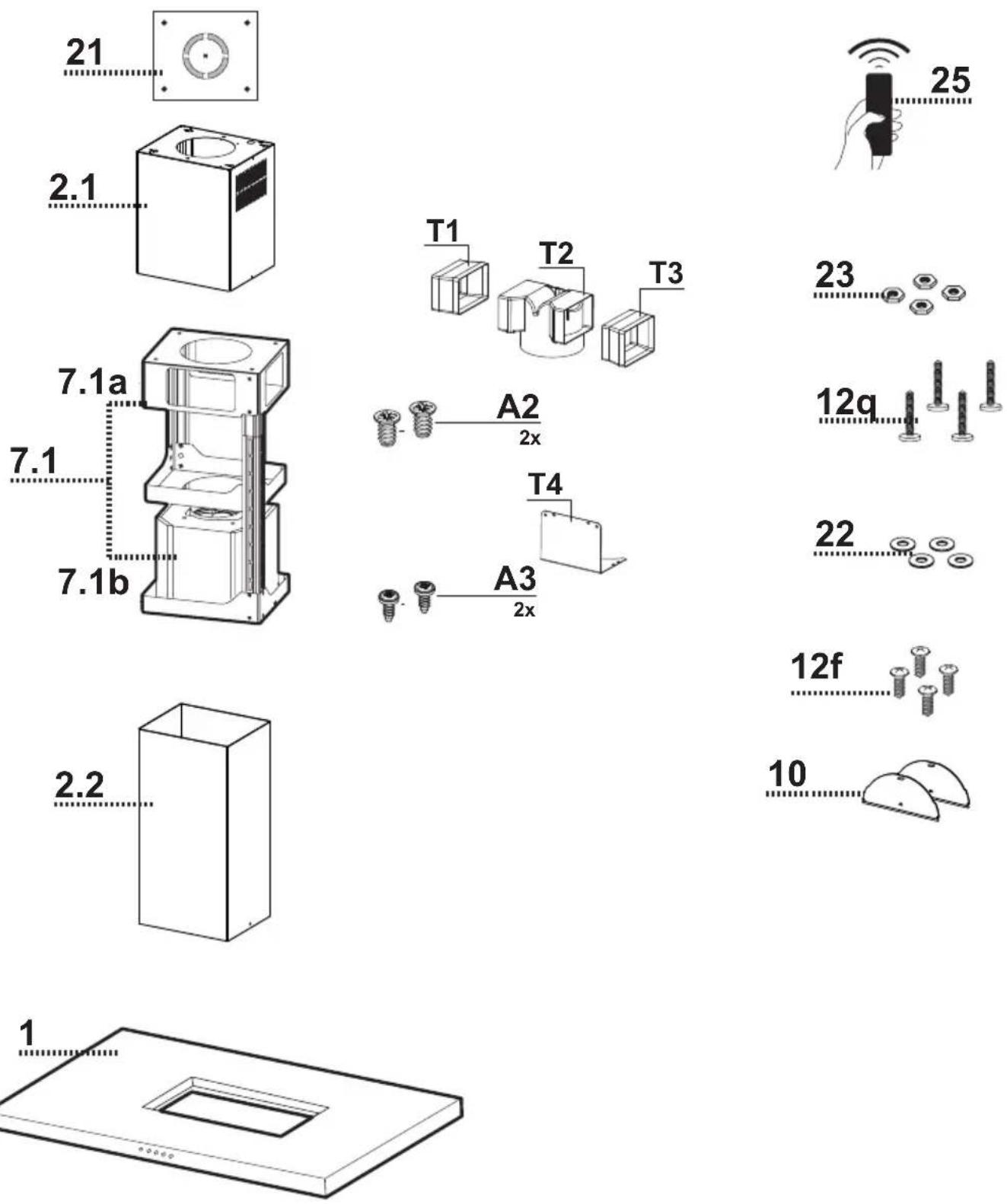

PARTS INCLUDED

REF. PART		QTY
1	Hood body	1
2	Telescopic Chimney comprising:	1
2.1	Upper Section	1
2.2	Lower Section	1
7.1	Telescopic frame complete with extractor, consisting of:	1
7.1a	Upper frame	1
7.1b	Lower frame 1
10	Flaps 2
25	Remote control 1
T1-T3	Air Outlet Connector Extension 2
T2	Air Outlet Connector 1
T4	Air Outlet Connector fixing bracket 1

REF	PART
12q	Torx Screws 1/4" x 3 1/8"			4
12f	Torx Screws 1/4" x 9/16"			4
21	Drilling template			1
22	1/4" int. dia washers			4
23	1/4" Nuts			4
A2	Pozi Screws 1/8" x 1/4"			2
A3	Pozi Screws 1/8" x 3/8"			2

PARTS NEEDED

PART
6" Round Metal Ductwork
Drywall plugs or other suitable wall fasteners based on your installation.

ACCESSORIES AVAILABLE

ACCESSORY	SKU#
Replacement Activated Charcoal Filter # 901497
Baffle filter Kit # 901581
Duct cover kit installation up to 10' # 901585

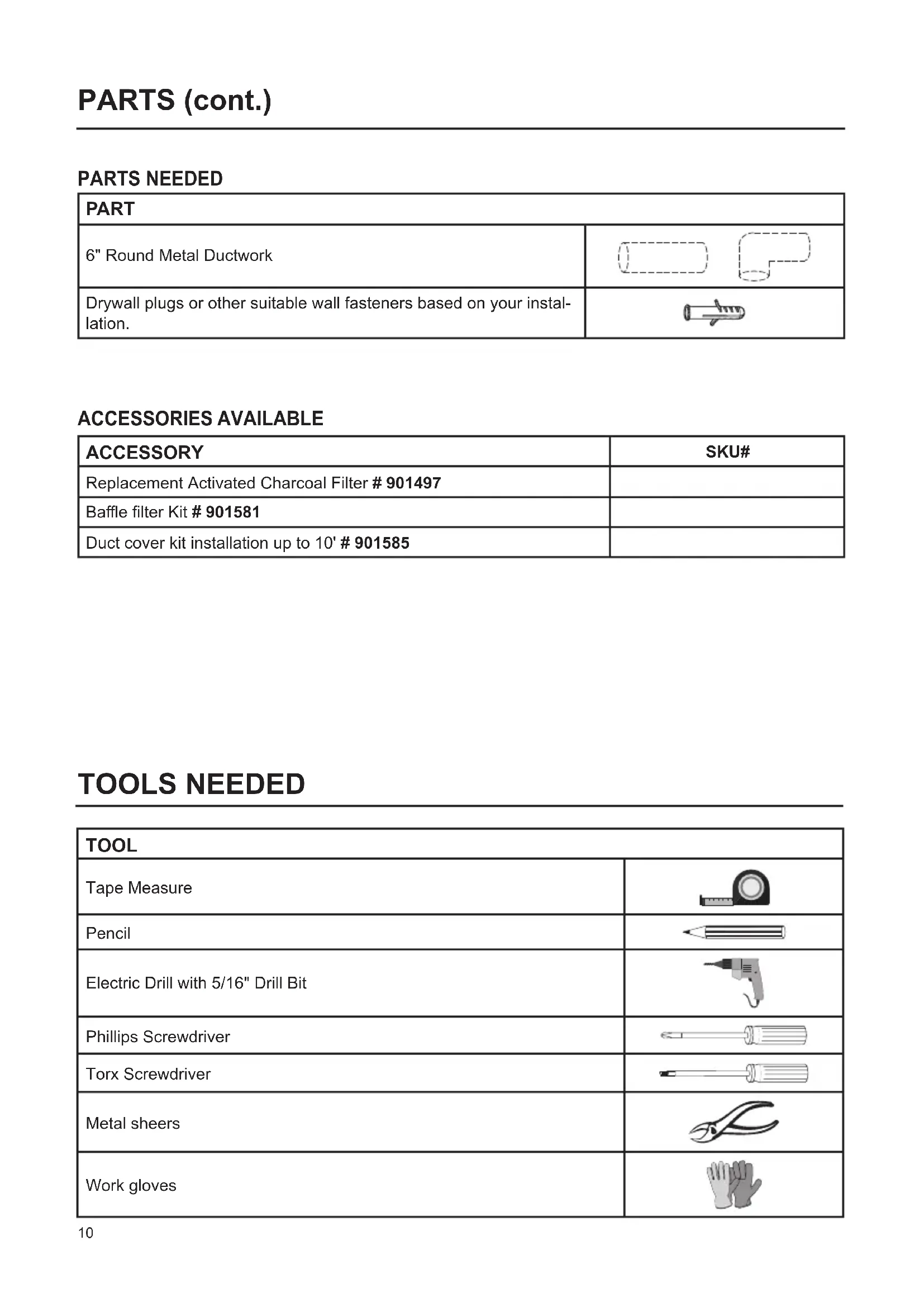

TOOLS NEEDED

TOOL
Tape Measure
Pencil
Electric Drill with 5/16" Drill Bit
Phillips Screwdriver
Torx Screwdriver
Metal sheers
Work gloves

Ducted Venting Installation

6"

Non ducted - recirculation

Requires purchase of Activated Charcoal Accessory kit.

Mechanical diagram showing a piston-cranked press mechanism with directional arrows indicating motion (no text or labels)

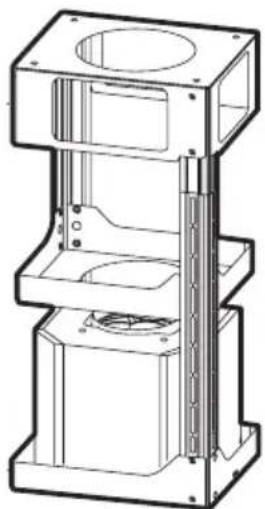

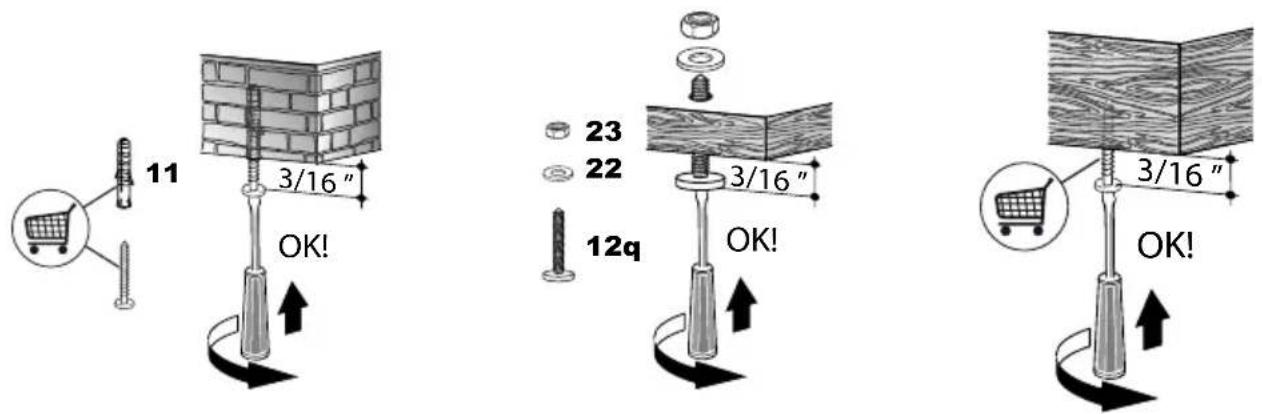

COMPONENTS FOR INSTALLATION TO THE CEILING

These fasteners may need to be purchased separately depending on your installation.

INSTALLING

1

Do not make any cutouts until you have decided whether this installation will be ducted or non-duct and then plan accordingly.

Technical diagram showing a mechanical assembly with a base and mounting plate, no visible text or symbols

Put a thick, protective covering over cooktop, set-in range or countertop to protect from damage or dirt.

Determine and clearly mark with a pencil on the ceiling where the rangehood will be installed.

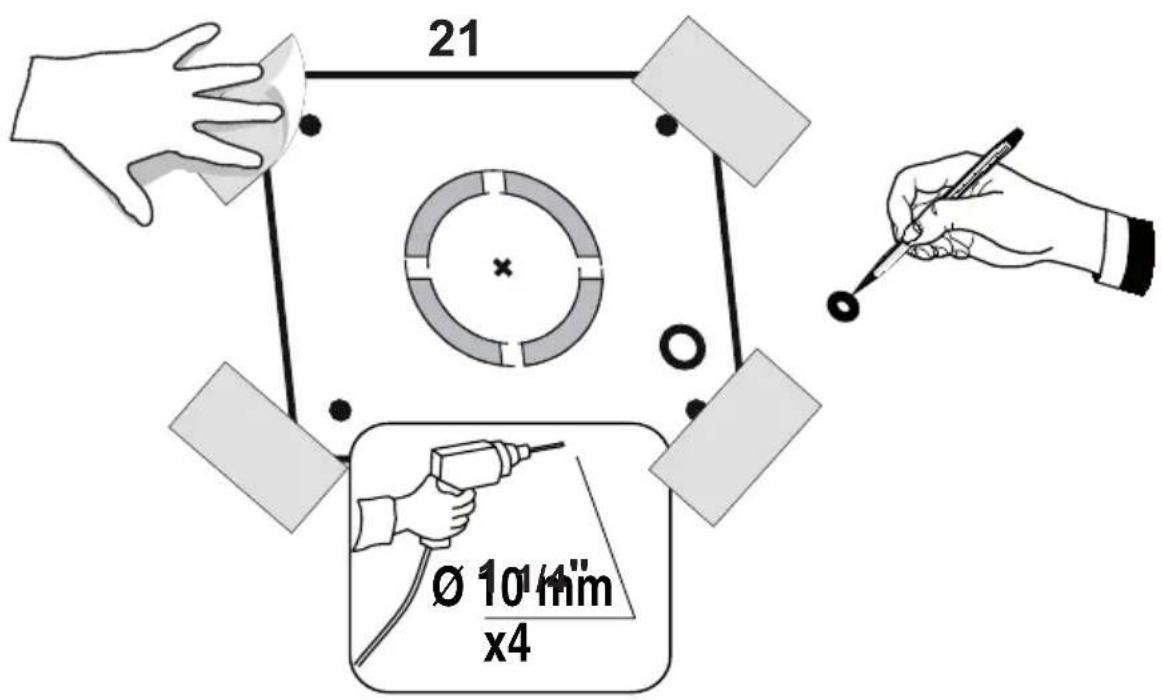

A template 21 for mounting the support is supplied in the carton with the support. Use this template to mark holes for support on the ceiling.

Determine and make necessary cuts for the ductwork. The duct opening is shown on the mounting template. Install ductwork before mounting the hood.

Determine the proper location for the Power Supply Cable as indicated on the template. Use a 1 1/4" Drill Bit to make this hole. Run the Power Supply Cable. Use caulking to seal around the hole.

A knockout for threading through the Power Supply from the ceiling is located on the top of the frame. Do not connect the Power Cable to the Wiring Box or power up the hood at this time. Run enough power cable from the ceiling to reach the wiring box on the hood.

21 Ø 10 mm x4

3

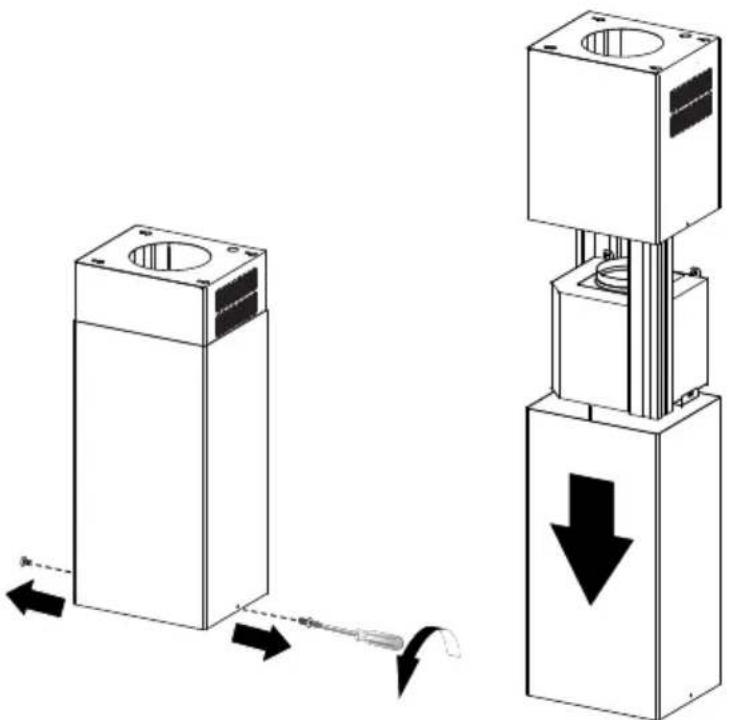

Chimney Flues Must Be Removed Before Installing the Hood

Loosen the two screws fastening the lower chimney and remove this from the lower frame.

Technical illustration of a mechanical device with two views: one showing a cylindrical component and the other showing a multi-tiered press or lift mechanism with a downward arrow (no text or symbols present)

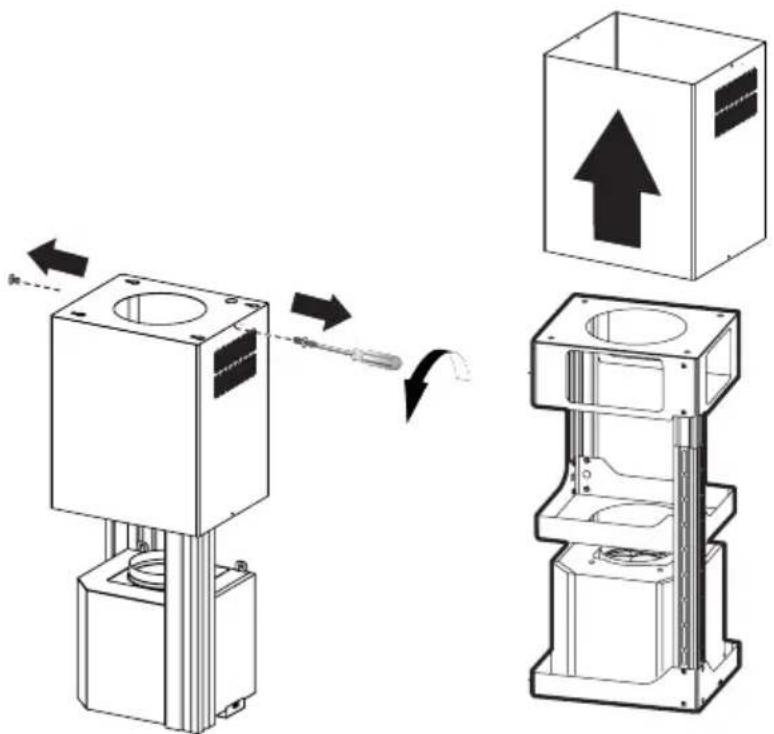

Loosen the two screws fastening the upper chimney and remove this from the upper frame.

Technical diagram showing assembly steps of a mechanical device with labeled components and directional arrows indicating motion.

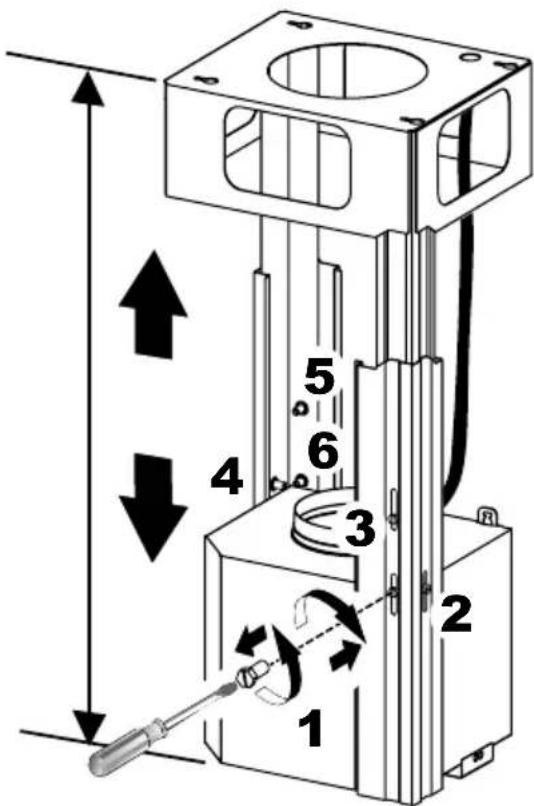

If you need to adjust the height of the frame, proceed as follows:

• Unfasten the metric screws joining the two columns, located at the sides of the frame (1,2,3,4,5,6).
• Adjust the frame to the height required, then refit all the screws removed as above.

1 2 3 4 5 6 7 8 9 10

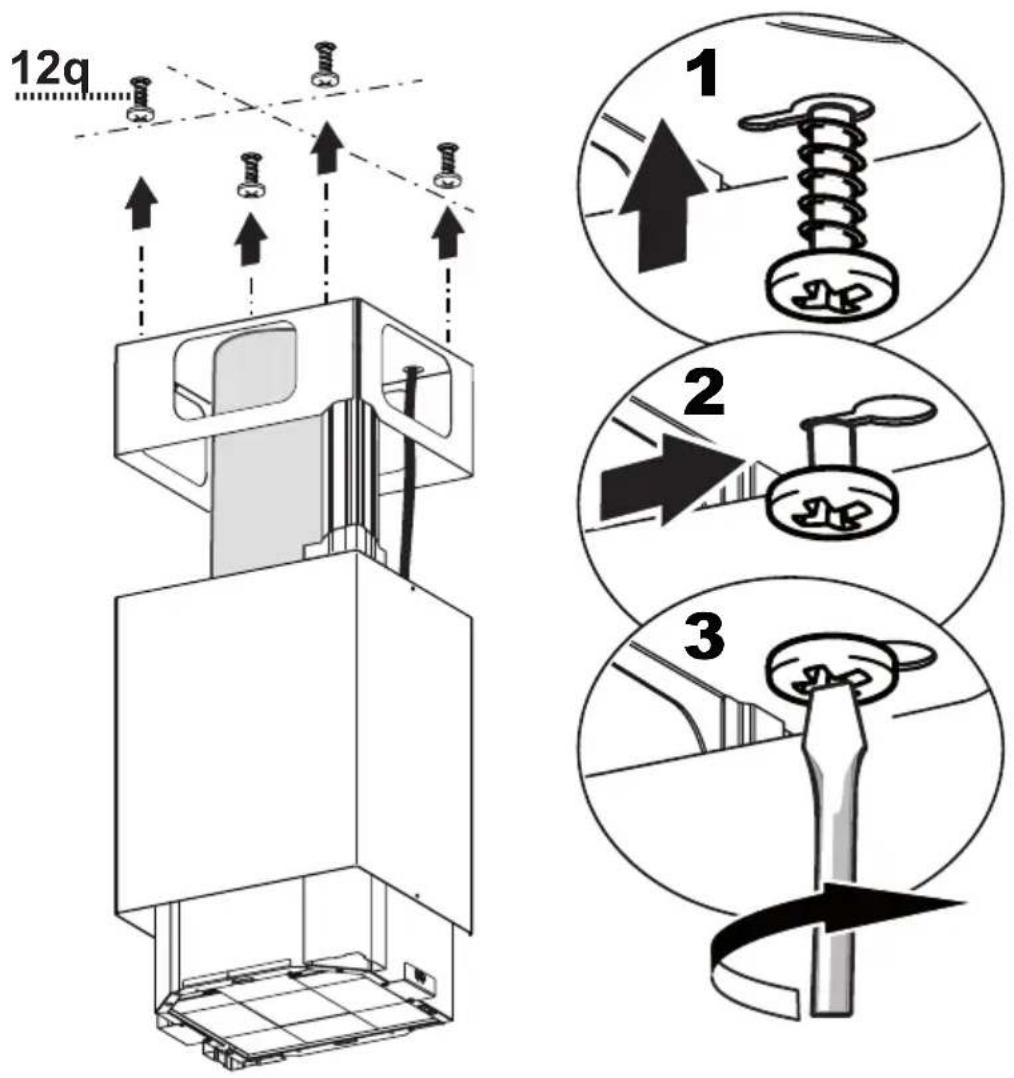

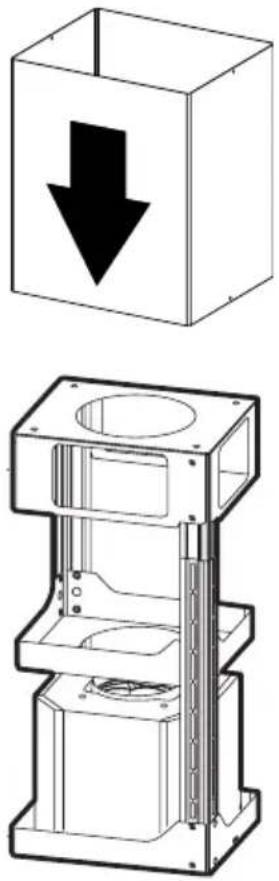

REMOVING THE MIDDLE TRESTLE COMPONENT

NOTE: The chimney structure can reduce down to a 27 " minimum height. To reduce the height, the middle section of the support structure needs to be removed. Out of the box, the minimum chimney length is 32 ". Insure the the installation process outlined in the U&C is followed and there is sufficient stability with the middle section removed.

Technical line drawing of a mechanical assembly with two views: one showing a cylindrical component being inserted, the other showing a cylindrical housing (no text or symbols present)

5 Upper Flue Must Be In Place Before Proceeding After the regulation for height adjustment, insert the upper chimney stack from above, and leave it running free on the frame.

Technical line drawing of a mechanical assembly with a downward arrow and internal components (no text or symbols)

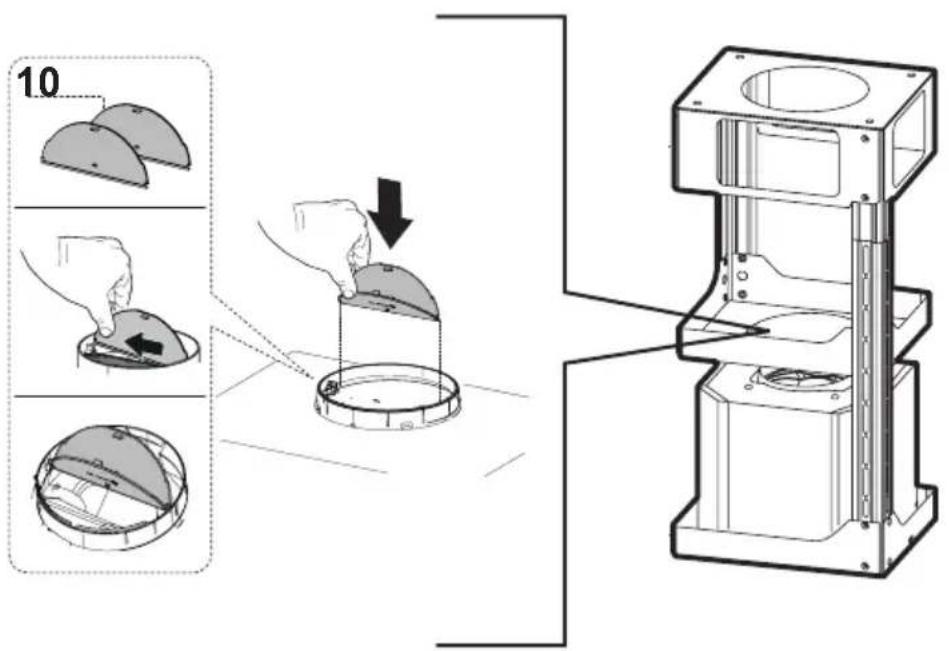

6 Only for Ducted Venting Installation Install the Flaps included 10 with the Hood before connecting to the ductwork.

10 ↓

Now take either your wood screws or bolts depending on your set-up and screw all four into the pilot holes and leave 1/4" of the heads exposed.

Next install a UL or CSA listed strain relief in the wiring box so that the screws can be tightened after the chimney support is attached to the ceiling.

Now lift the chimney support into it's final position and feed the electrical supply through the strain relief.

Next position the chimney support so that the large end of the keyhole slots are over the ceiling attachment screws or bolts. Then push the chimney support so that the bolts are in the neck of the slots. Tighten all four screws or bolts securely.

- The frame mountings must be secure to withstand the weight of the hood and any stresses caused by the occasional side thrust applied to the device. On completion, check that the base is stable, even if the frame is subjected to bending.

- In all cases where the ceiling is not strong enough at the suspension point, the installer must provide strengthening using suitable plates and backing pieces anchored to the structurally sound parts.

12q 1 2 3

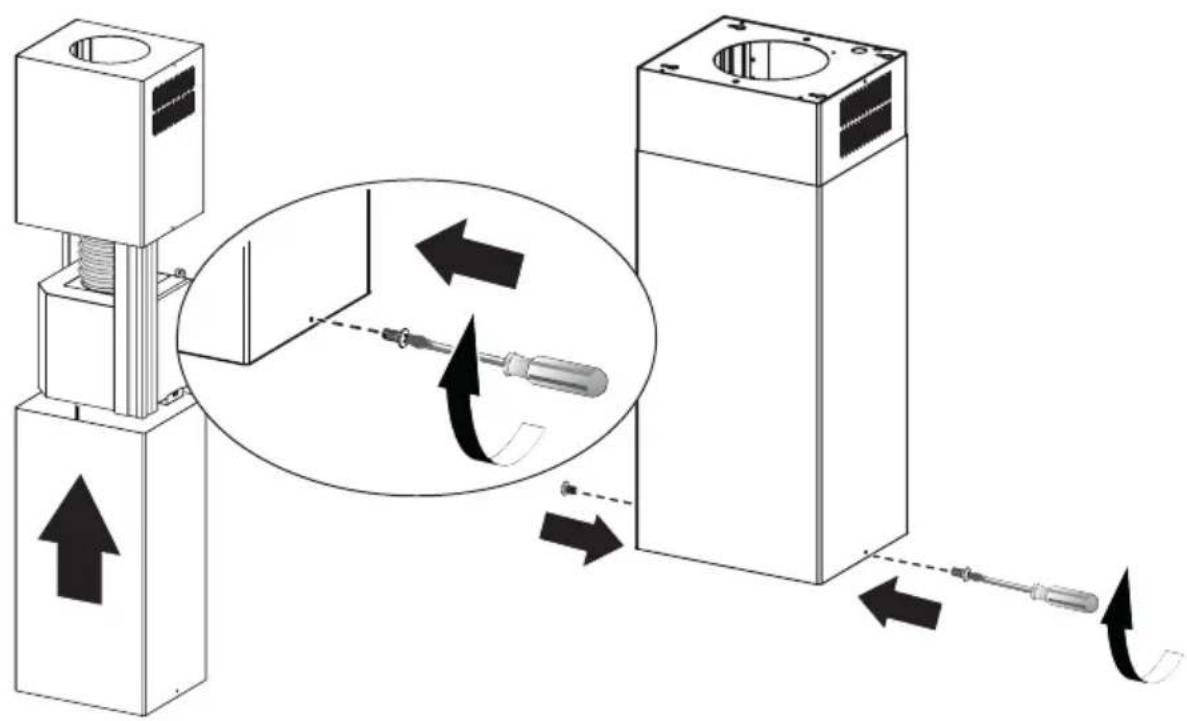

Installation of wiring connection

Remove the cover from the field wiring compartment.

DO NOT turn on the power until installation is complete!

Connect the Power Supply Cable to the rangehood.

Connect the Green (Green and Yellow) ground wire under the Green grounding screw. Attach the White lead of the power supply to the White lead of the rangehood with a twist-on type wire connector.

Attach the Black lead of the power supply to the Black lead of the rangehood with a twist-on type wire connector.

Replace the field wiring compartment cover and the grease filters.

A. Home power supply cable
B. Black wires
C. UL listed wire connectors
D. White wires
E. Green (or bare) ground wire from home power supply connected to green ground screw
F. Range hood power supply cable
G. Range hood power supply cable connected to green ground screw

Technical diagram of an electrical enclosure with labeled components A through F, including a magnified inset showing internal wiring connections.

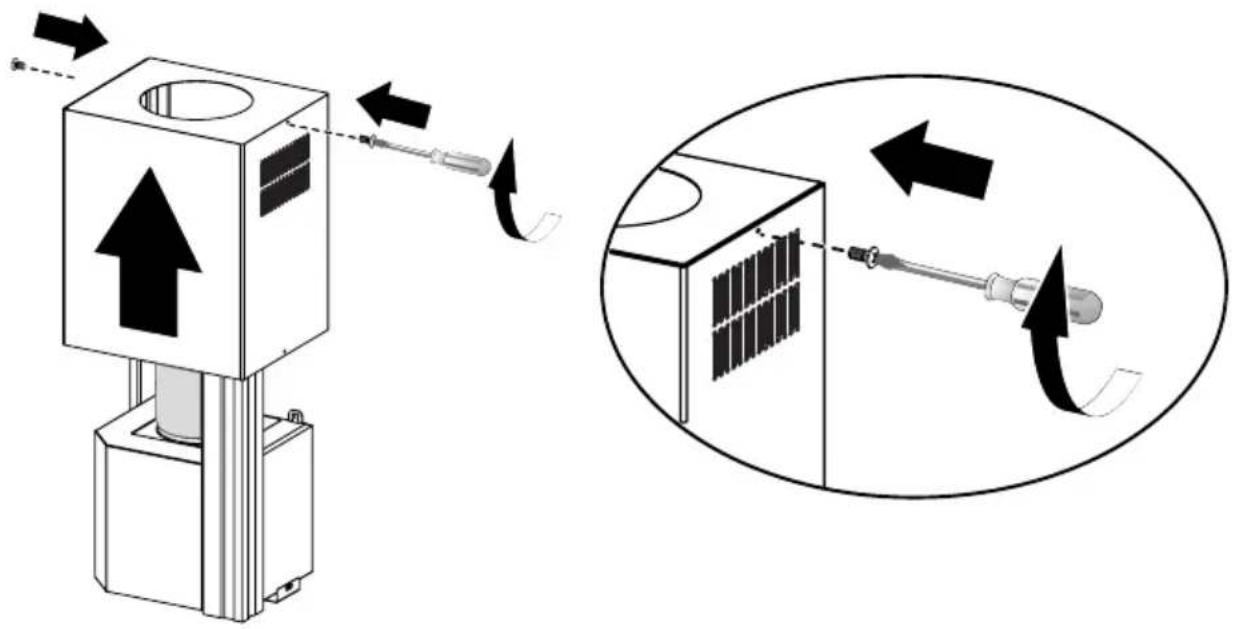

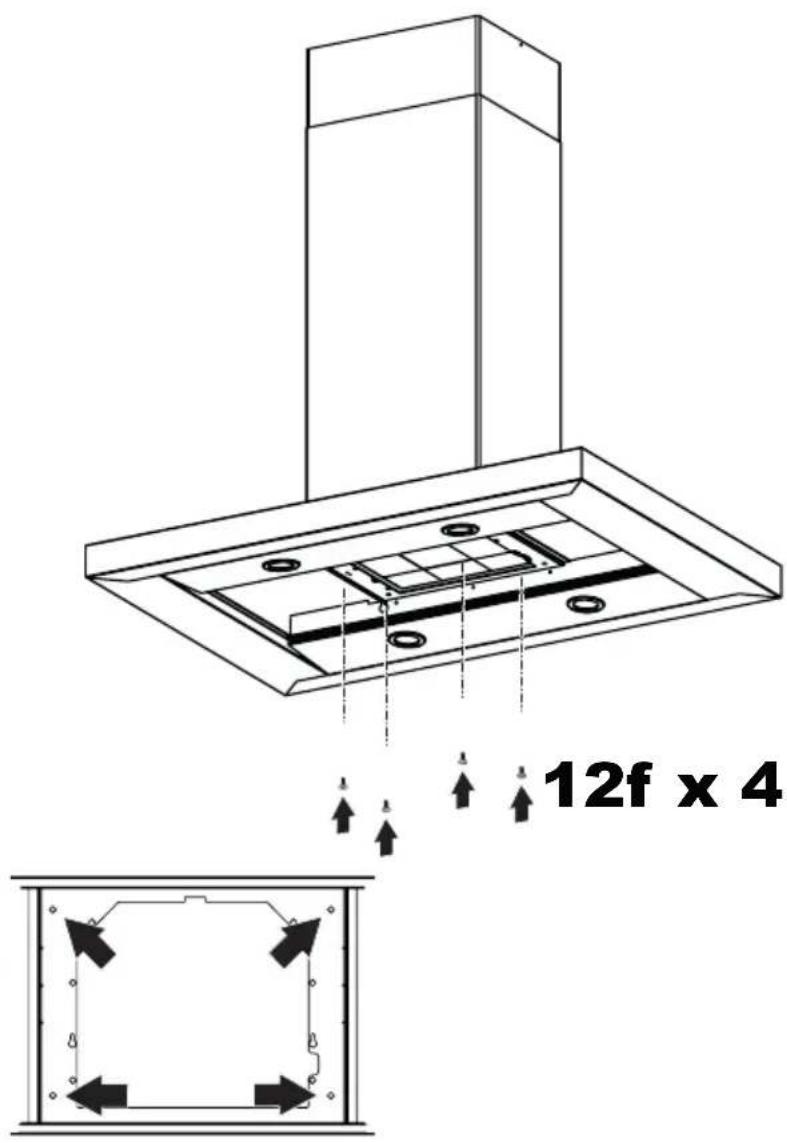

Position the upper chimney section and fix the upper part to the frame using the 2 screws removed previously.

Diagram illustrating a mechanical device with directional arrows and a magnified view showing the internal structure of a solar panel.

Similarly, position the lower chimney section and fix the lower part to the frame using the 2 screws removed previously.

Technical diagram illustrating a mechanical assembly with directional arrows and a magnified inset showing tool movement.

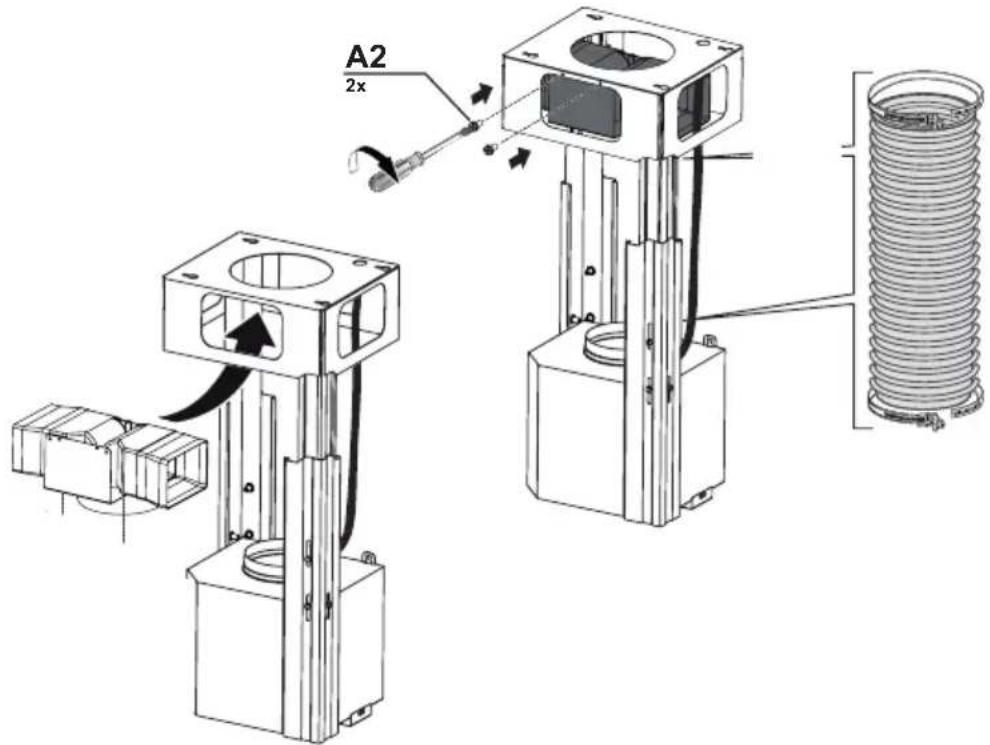

Only for non ducted recirculating installations

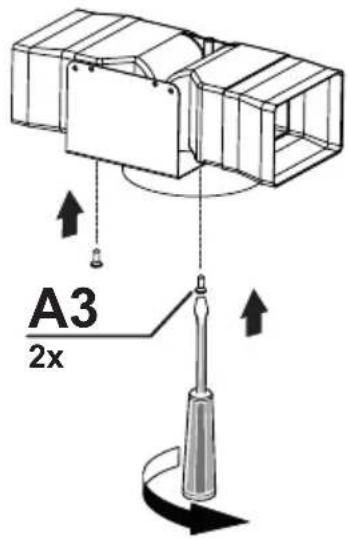

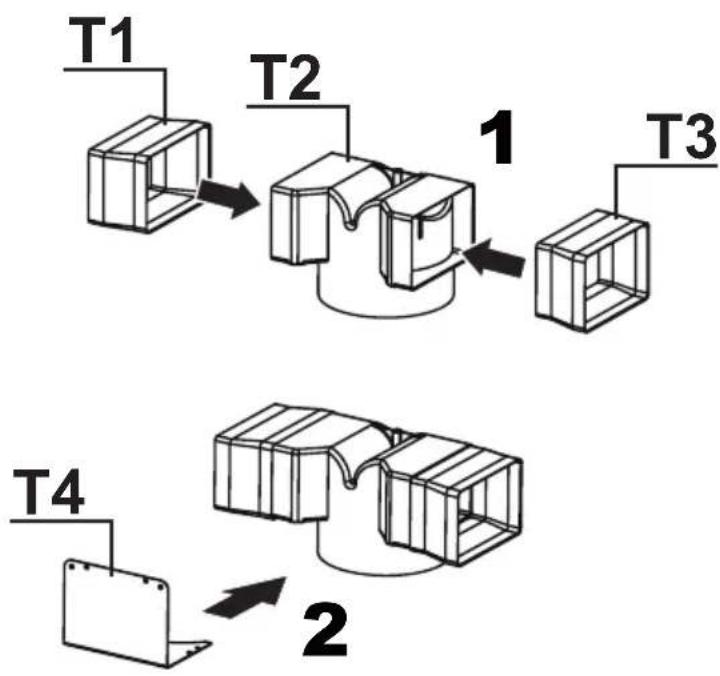

Insert the Connector extensions T1 and T3 into the side of the Connector T2. Insert the Connector T2 into the Support bracket T4 and fix it with the screws.

Fasten the Support bracket T4 fixing it to the upper part with the Screws.

A3 2x

Make sure that the Connector extensions outlet T1 and T3 is in correspondence with the Chimney openings both horizontally and vertically.

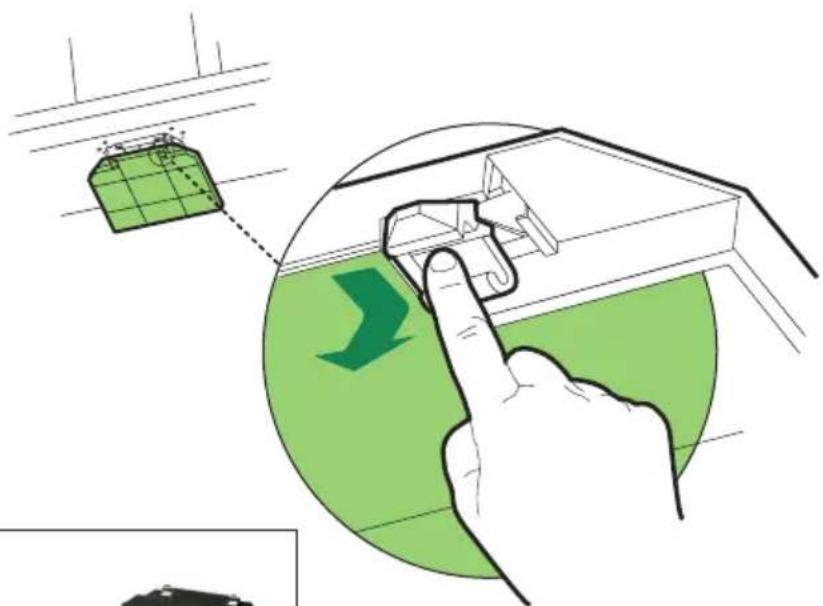

Attach a charcoal filter in the correct position and block it by the fixing hooks as

A2 2x

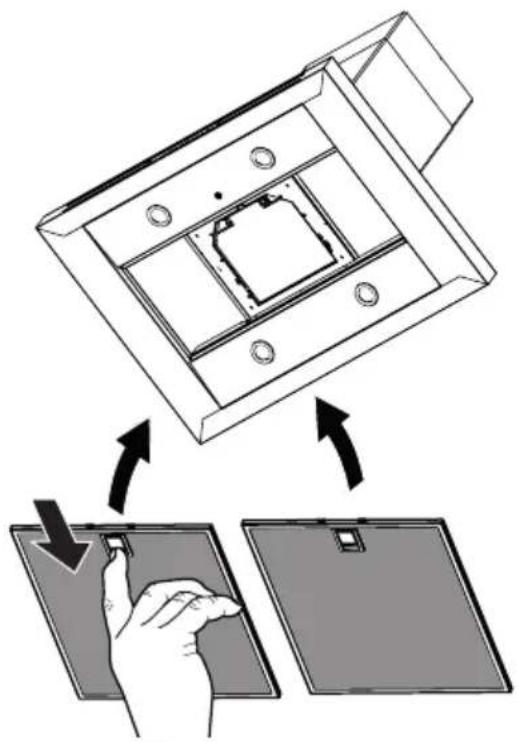

shown. Unlock the fixing hooks (towards the back of the hood) to remove.

Diagram illustrating a hand interacting with a device, showing a green box and a green circular background with a downward arrow.

Required Activated Charcoal Filter Accessory - sku # 901497 (purchased separately)

12

Attachment of Hood Canopy

Remove the grease filters from the hood canopy.

Remove any activated charcoal filters.

Working from below, fix the hood canopy to the frame where indicated, using the 4 screws 12f, then tighten all the screws securely.

12f x 4

13

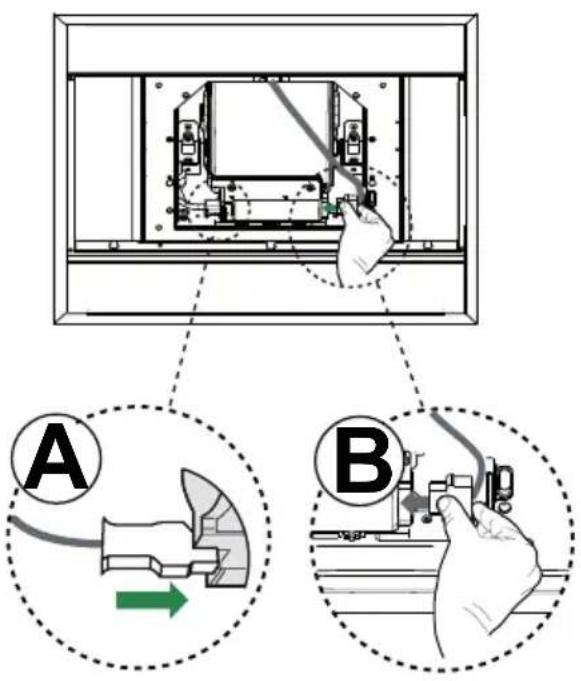

Connect the connector "B". Check the connection of connector "A".

Technical line drawing of a ceiling-mounted air duct with ventilation grilles and mounting holes (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled components A and B, showing hand positioning and directional arrows.

14

Reinstall the grease filters from the hood canopy.

Diagram illustrating a device mounting process with labeled components and directional arrows indicating assembly steps.

FOR BEST RESULTS

Start the Range Hood several minutes before cooking to develop proper airflow. Allow the Range Hood to operate for several minutes after cooking is complete to clear all smoke and odors from the kitchen.

LT1 T2 T3 T4

Button Function
	Fan off button:turn the blower Off. The fan can be operated by pressing any of the fan setting buttons.
	Hold down this button for 2 seconds to activate Delay off function which will keep the fan on for 15 minutes and automatically shut off.
1	Fan settings buttons: Low speed.
[H4WZ]	Fan settings buttons: Medium speed.
	Fan settings buttons: High speed / Intensive speed.
	Hold down the button for 2 seconds to activate the intensive speed, which is timed to run for 6 minutes. At the end of this time it will automatically return to the speed set before. Suitable to deal with maximum levels of cooking fumes.
	Light button: On/Off switch for the lights.

NOTE: If your product has had a CFM adjustment, refer to the CFM adjustment manual for the information. Some motor speeds or functions may be reduced.

Remote control information

The appliance can be controlled using a remote control powered by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-AAA type (not included).

- Used batteries must be disposed of in the proper manner.

Caution:

• Do not place the remote control near heat sources.
• Do not discard the batteries with normal waste, they must be put into the specific containers.
• Make sure the battery compartment is screwed down flat and is fully tightened.

Illustration of a car hood with a circular vent and internal compartments, showing a green arrow pointing to the bottom (no text or symbols)

Remote Control control panel

Black handheld electronic device with six metallic buttons (no visible text or symbols)

	Motor Motor On/Off.
-	- Decreases the working speed each time it is pressed.
+	- Increases the working speed each time it is pressed.
i	Intensive Activates/Deactivates Intensive operation.
	Delay	Brief pressure: Activates/Deactivates the Delay function: automatic switch-off with a 30' delay. The display shows the operating speed and the dot at the bottom right flashes once a second.
	Light	Lights On / Off.

Cleaning Exterior surfaces:

Please note, abrasives and scouring agents can scratch range hood finishes and should not be used to clean finished surfaces.

Stainless Steel finish cleaning instructions:

Clean exterior surfaces with a commercially available stainless steel cleaner. Use a soft microfiber cloth and to wipe going with the grain of the stainless steel.

CARING FOR FILTERS

CLEANING METAL GREASE FILTERS

The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

• Remove the Filters one at a time, pushing them towards the back of the unit and at the same time pulling downward.
• Wash the Filters without bending them, and leave them to dry completely before replacing. (If the surface of the filter changes colour as time goes by, this will have absolutely no effect on the efficiency of the filter itself.)
• Replace, taking care to ensure that the handle faces forwards.
• No water can be present in filters before installing back in hood.

Illustration of a hand interacting with a grid-based device and a small building structure (no text or symbols)

REPLACING ACTIVATED CHARCOAL FILTER

The filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.

• Remove the Filters one at a time, pushing them towards the back of the unit and at the same time pulling downward.
• Remove the saturated charcoal filter by releasing the hooks.
  • Fit the new filter and fasten it in its correct position.
• Replace, taking care to ensure that the handle faces forwards.
• "When used in recirculation mode, to Reduce the Risk of Fire and Shock use only conversion kit Model # 901497.

Please contact the retailer that sold you the product to purchase carbon filters above.

Diagram illustrating a door lock operation with labeled components and a hand interacting with a device, including a 'W' button.

REPLACING BULBS

LED lights must be replaced by authorized service.

Electrical wiring diagram showing connections between components, relays, and a terminal block with labeled terminals and wiring numbers.

Please kindly register on our web site www.bertazzoni.com to validate your new product warranty and help us to assist you better in case of any inconvenience.

TWO YEAR LIMITED WARRANTY

The warranties provided by Bertazzoni Spa in this statement apply exclusively to Bertazzoni appliances and accessories sold as new products to the original owner by a Bertazzoni authorized distributor, retailer, dealer or service center and installed in the United States and Canada. The warranties provided in this statement are not transferable and have validity from the date of installation.

COVERAGE INFORMATION

Bertazzoni SpA will repair or replace any component part which fails or proves defective due to materials and/or workmanship within 2 years from the date of installation and under conditions of normal residential use. Repair or replacement will be free of charge, including labor at standard rates and shipping expenses. Repair service must be performed by a Bertazzoni Authorized Service

Center during normal working hours.

COSMETIC WARRANTY

Bertazzoni will cover parts showing cosmetic defects in material and workmanship for a period of thirty (30) days from date of installation of the unit. This coverage will include scratches, stains, surface imperfections on stainless steel, paint and porcelain, with the exclusion of slight differences in color due to materials and painting/enamelling technologies.

Exclusions are labor costs, B stock items, out - of - box appliances and display units.

HOW TO OBTAIN SERVICE

To obtain service please contact Bertazzoni Customer Service at the numbers below and make sure to have model number, serial number, and date of purchase ready. This information will be requested by our team and is crucial to speeding up resolution.

UNITED STATES https://us.bertazzoni.com/more/support

Phone: [phone]

CANADA https://ca.bertazzoni.com/more/support

Phone: [phone]

Save proof of original purchase or of original installation to establish warranty period. Copy of the product serial tag is affixed to the back cover of the instruction manual.

WHAT IS NOT COVERED

1. The product used in any commercial/business application
2. Repair service provided by other than a Bertazzoni authorized service agent.
3. Damage or repair service to correct service provided by an unauthorized agency or the use of unauthorized parts.
4. Installation not in accordance with local electrical codes or plumbing codes.
5. Defects or damage due to improper storage of the product.
6. Defects or damage or missing parts on products sold out of the original factory packaging or from displays.
7. Service calls or repairs to correct the installation of the product and/or related accessories.
8. Service calls to connect, convert or otherwise repair the electrical wiring / gas line / water line to properly use the product.
9. Service calls to provide instructions on the use of a Bertazzoni product.
10. Repair service due to product usage in manner other than what is normal and customary for home use.
11. Replacement of wear and tear parts
12. Replacement of glasses and light bulbs if they are claimed to have failed later than 30 days after installation and in no case later than 4 months after date of purchase
13. Defects and damages arising from accident, alteration, misuse, abuse, improper installation.
14. Defects and damages arising from transportation of the product to the home of the owner.
15. Defects and damage arising from external forces beyond the control of Bertazzoni SpA such as fire, flood, earthquakes and other acts of God.

In case the product will be installed in a remote area, where certified trained technicians are not reasonably available, the customer will be responsible for the transportation costs for the delivery of the product to the nearest authorized service center or for the displacement costs of a certified trained technician.

Bertazzoni does not assume any responsibility for incidental or consequential damages.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which may vary from state to state or province to province.

Section Page

CONSIGNES DE SÉCURITÉ IMPORTANTES 31

DIMENSIONS DE LA HOTTE 34

EXIGENCE D'INSTALLATION EN HAUTEUR 35

PIÈCES 36

OUTILS NÉCESSAIRES 38

MÉTHODE D'AÉRATION 39

COMPOSANTS POUR L'INSTALLATION AU PLAFOND 40

INSTALLATION 40

FONCTIONNEMENT DES COMMANDES 52

NETTOYAGE DE L'ACIER INOXYDABLE 54

11" 8 11/6" 11-7/16" 13-3/4" Min. 27-3/4" - Max. 39-10/16" Ø5-15/16" 23-1/8" 12-3/16" 2-3/8" 35-3/8" - 41-15/16" - 47-3/16" 26-5/8"

Min. 24 po Min. 30 po

MIN. 24 PO SUR ÉLECTROMÉNAGER ÉLECTRIQUE MIN. 30 PO SUR ÉLECTROMÉNAGER À GAZ

PIÈCES INCLUDES

ACCESSOIRES DISPONIBLES

Diagram of a mechanical press or lifting mechanism with directional arrows indicating motion (no text or symbols present)

COMPOSANTS POUR L'INSTALLATION AU PLAFOND

Technical diagram showing a mechanical assembly with a base and mounting plate, no visible text or symbols

21 Ø 10/mm x4

3

Technical illustration of a mechanical device with two views: one showing a cylindrical component and the other showing a multi-tiered press or lift mechanism with a downward arrow (no text or symbols present)

Technical diagram showing assembly steps of a mechanical device with labeled components and directional arrows indicating movement.

Technical line drawing of a mechanical assembly with two views: one showing a cylindrical component being inserted, the other showing a rectangular housing (no text or symbols)

Simple line drawing of a box with a black downward arrow inside (no text or symbols)

Technical line drawing of a multi-tiered mechanical housing or enclosure with mounting holes and internal components (no text or symbols)

Technical diagram of a mechanical or electrical component with labeled parts A through F, including a magnified inset showing internal wiring connections.

Diagram illustrating a mechanical device with directional arrows and a magnified view showing the internal structure of a solar panel.

Technical diagram illustrating a mechanical assembly with directional arrows and a magnified inset showing tool movement.

Diagram illustrating a hand interacting with a device, showing a green box and a green circular background with a downward arrow.

Technical line drawing of a ceiling-mounted air duct with ventilation grilles and mounting holes (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled components A and B, showing hand positioning and directional arrows.

14

Diagram illustrating a device mounting process with labeled components and directional arrows indicating assembly steps.

POUR DE MEILLEURS RÉSULTATS

Illustration of a hand holding a device with a circular vent and a green arrow pointing to it (no text or symbols)

Black handheld electronic device with six metallic buttons (no visible text or symbols)

Illustration of a hand interacting with a grid-based device and a small building structure (no text or symbols)

REPLACEMENT FILTRE À CHARBONS ACTIFS

Diagram illustrating a door lock operation with labeled components and a hand interacting with a device, including a 'W' button.

REEMPLACEMENT DES AMPOULES

Electrical wiring diagram showing connections between components, relays, and a device with labeled terminals and wiring specifications.

https://us.bertazzoni.com/more/support

Phone: [phone]

CANADA

https://ca.bertazzoni.com/more/support

Phone: [phone]
