USER MANUAL Durathon 26133 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and

cans bulbus - as well as delicious recipes, tins, and

to register your product online!

Please call us – our friendly

associates are ready to help.

USA: 1.800.851.8900

Questions?

Line drawing of a waffle grill with grid-patterned pan and side grating (no text or symbols)

Hamilton Beach®

Flip Belgian

Waffle Maker

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against risk of electrical shock, do not immerse cord, plug, or any part of the appliance in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning
6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter or touch hot surfaces, including the stove.

10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
12. Do not use appliance for other than intended use.
13. Do not use appliance unattended.
14. During use, provide 4 to 6 inches air space above, behind, and on both sides for air circulation.
15. Never remove the waffle with any kind of cutting device or other metallic kitchen utensil.
16. Always allow the appliance to cool before putting it away, and never wrap the cord around the appliance while it is still hot.

SAVE THESE INSTRUCTIONS!

OTHER CONSUMER SAFETY INFORMATION

This product is intended for household use only.

WARNING! Shock Hazard: This product is provided with either a polarized (one wide blade) or grounded (3-prong) plug to reduce the risk of electric shock. The plug fits only one way into a polarized or grounded outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. If the appliance is provided with a grounded cord, the extension cord must also be a grounding 3-wire cord. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

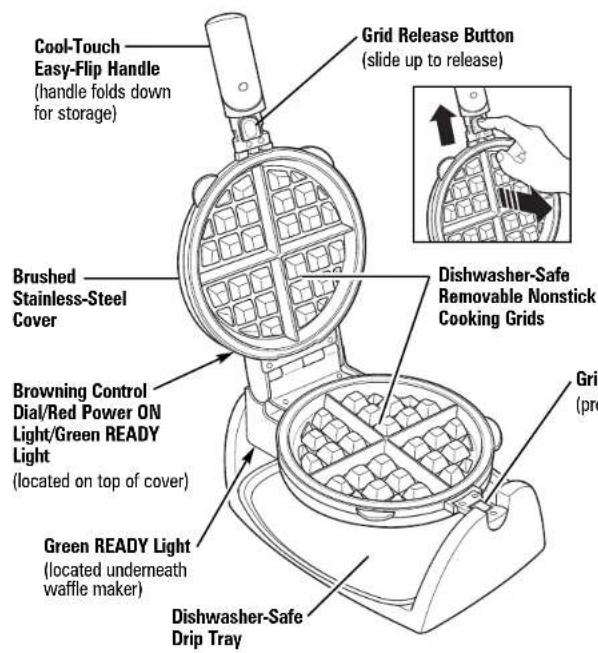

Parts and Features

Cool-Touch Easy-Flip Handle (handle folds down for storage) Brushed Stainless-Steel Cover Browning Control Dial/Red Power ON Light/Green READY Light (located on top of cover) Green READY Light (located underneath waffle maker) Grid Release Button (slide up to release) Dishwasher-Safe Removable Nonstick Cooking Grids Grid (pre)

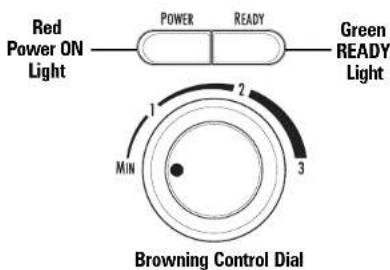

Red Power ON Light POWER READY Green READY Light 1 2 3 MIN Browning Control Dial

Green READY Light (located underneath waffle maker)

The red Power ON light comes on when the appliance is first plugged in. This light will stay on until the unit is unplugged.

The green READY lights come on when the appliance has reached the desired temperature. For best results, wait until green READY lights come on before adding waffle batter. These lights will cycle on and off during baking.

How to Use

POWER R

Plug cord into electrical outlet. The red Power ON light will glow. TIP: A small amount of nonstick cooking spray can be used on the grids before preheating.

1 2 3 NIN R READY

Choose desired browning control setting (MIN-3) and preheat with cover closed until the green READY lights come on.

Illustration of a cartoon character in motion, showing a steaming face with an upward arrow (no text or symbols)

Using an oven mitt, turn handle counterclockwise and open cover.

WARNING! Burn Hazard. Always use an oven mitt to protect hand when opening a hot waffle maker. Escaping steam can burn.

BEFORE FIRST USE: Wipe the bottom and top cooking grids with a soapy, damp cloth. Rinse cloth; then wipe grids again. Wipe or brush waffle grids with vegetable oil. This is only recommended before first use. Waffle browning will improve with each subsequent batch. Cooking grids are dishwasher-safe.

Illustration of hands pouring liquid into a pan using a waffle (no text or symbols)

Raise cover and pour about 1 cup (250 ml) of batter into center of the grids, allowing batter to spread for even filling; then lower lid. Be careful not to pour too much batter onto grids, as they may overflow.

Illustration of a hand using a tool to lift a bag with a black arrow indicating rotation (no text or symbols)

Turn handle clockwise to flip waffle maker and lock into place within 10 seconds of closing cover.

Diagram showing a cooking setup with wafers, electrical outlet, and power plug connections

Waffles are done in about 5–8 minutes, depending on the setting, recipe, and when steaming begins to stop.
Remove waffle with plastic or wooden utensil. Never use metal. This will damage the nonstick coating of the appliance. Unplug unit when through cooking. Let cool.

Care and Cleaning

Diagram showing hands using wafers to install a griddle, with arrows indicating process steps

Unplug unit and allow to cool completely before removing grids. For the upper grid, slide latch away from grid to release. For lower grid, press button to release.

Line drawing of a hand using a tool to press or install a mechanical component (no text or symbols present)

Wipe outside of unit with a damp, soapy cloth.
Do not use steel wool, scouring pads, or abrasive cleansers on any part of the unit. Never use sharp or pointed objects for cleaning purposes.

WARNING

Electrical Shock Hazard.

Disconnect power before cleaning. Do not immerse cord, plug, or base in any liquid.

Line drawing of a hand holding a tray with a lid and arrow indicating motion (no text or symbols)

Clean drip tray by rinsing off excess overflowed batter with hot water; then use soapy cloth to clean drip tray and rinse again with hot water.

Line drawing of three food items: a square plate, a waffle with grid pattern, and a rectangular dish (no text or symbols)

DO NOT use the "SANI" setting when washing in the dishwasher. "SANI" cycle temperatures could damage your product.

Line drawing of a mechanical device with a handle and central component (no text or symbols)

Always allow the appliance to cool down completely and lock the lid by rotating the handle before storing.

Usage Tips

• To make your family a quick, hot breakfast, use any of the waffle mixes currently available on the market.
• Save additional time in the morning by preparing waffle batter the night before and refrigerating it. Make sure waffle batter reaches room temperature before use. Using fresh batter results in fluffier waffles.
• Use a cooking spray before pouring batter into the grids, especially for dessert waffles or recipes with a lot of sugar.
• If your waffles start to stick, the grids may need to be scrubbed with a nylon brush to remove any cooked-on food particles.

• If using nuts in waffle batter, use chopped nuts and/or evenly spread batter to allow lid to fully close.

• Waffles can be made ahead of time and kept warm in a 200^ (93°C) oven.

• Most waffles are done in about 6 minutes, depending on the setting selected. Some of the recipes which are made from scratch may take a little longer. Check for doneness at about 6 minutes. If the cover of the waffle maker doesn't lift up easily, then let the waffle cook a minute more before checking again. Another indicator that the waffle is done is when the steaming stops.
• To store, let waffles cool and pack in an airtight container; store in refrigerator or freezer for reheating later.
• Reheat in a microwave oven, a toaster oven, or a regular oven.

840204801 ENv01.qxd:Layout 1 10/5/11 9:18 AM Page 7

Notes

7

Limited Warranty

This warranty applies to products purchased in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.
