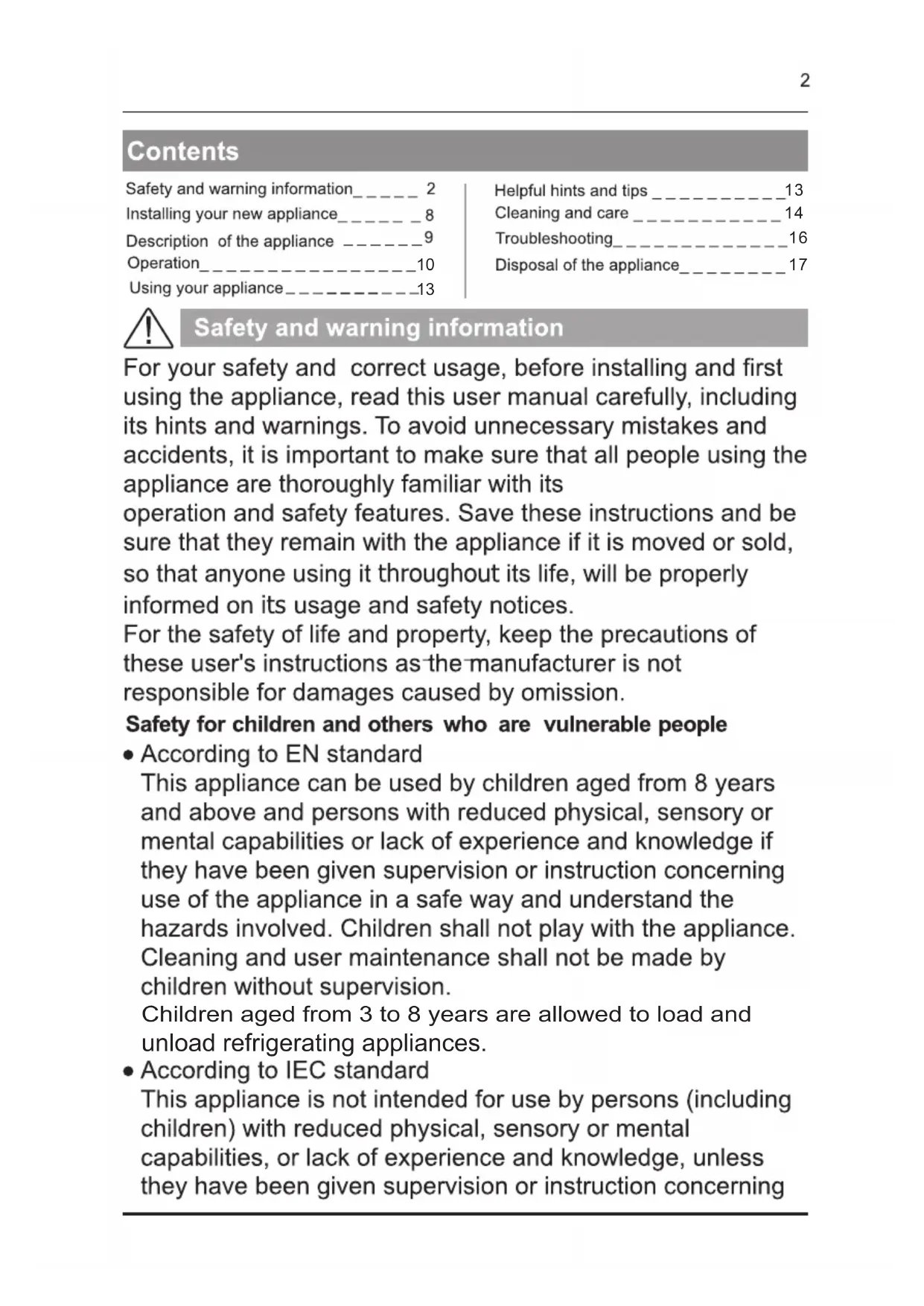

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

17Children should be supervised to ensure that they do not play with the appliance.The symbol is a warning and indicates the refrigerant and insulation blowing gas are flammable.

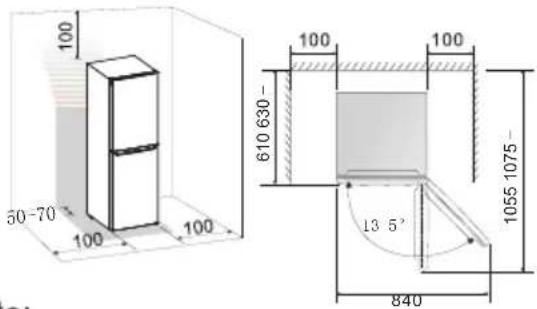

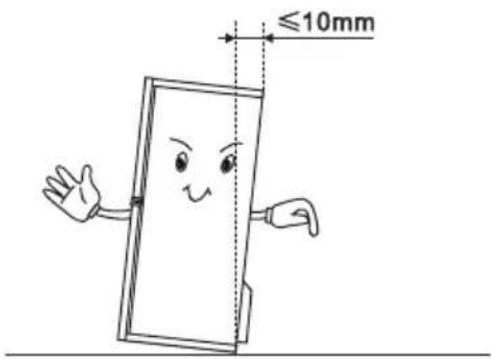

This refrigerating appliance is not intended to be used as a a built-in appliance., d50-70mm50-70mm 610 630!1055 1075!

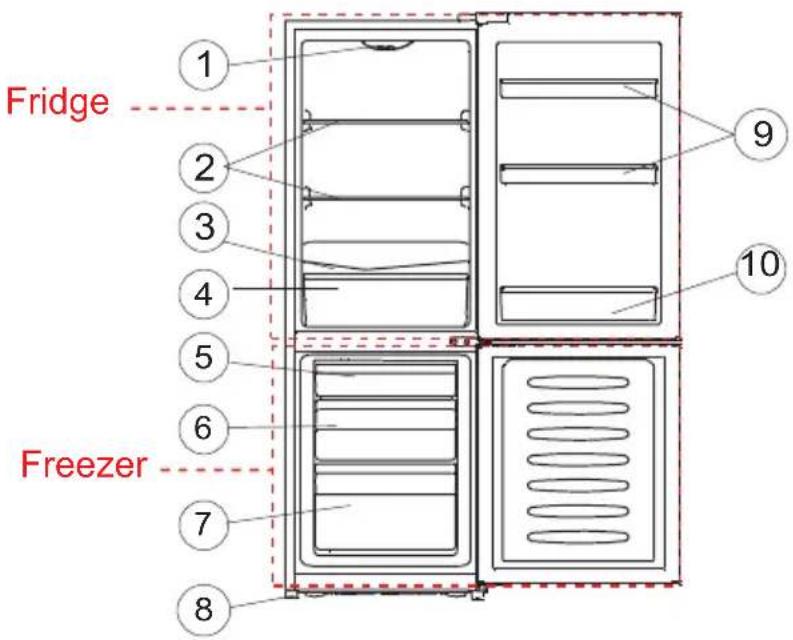

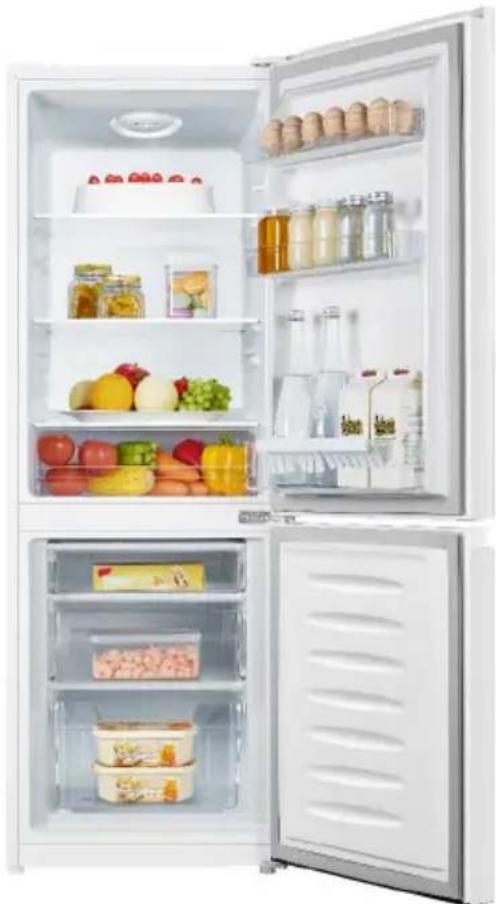

13 5° N,ST or N,ST,T 50-70 8Description of the appliance View of the appliance . .1 controller part2.Storage shelf.3.Crisper box Cover4.Crisper box5.Upper freezer drawer6.Middle freezer drawer7.Lower freezer drawer8.Adjustable feet9.Upper door shelf10.Lower door shelf

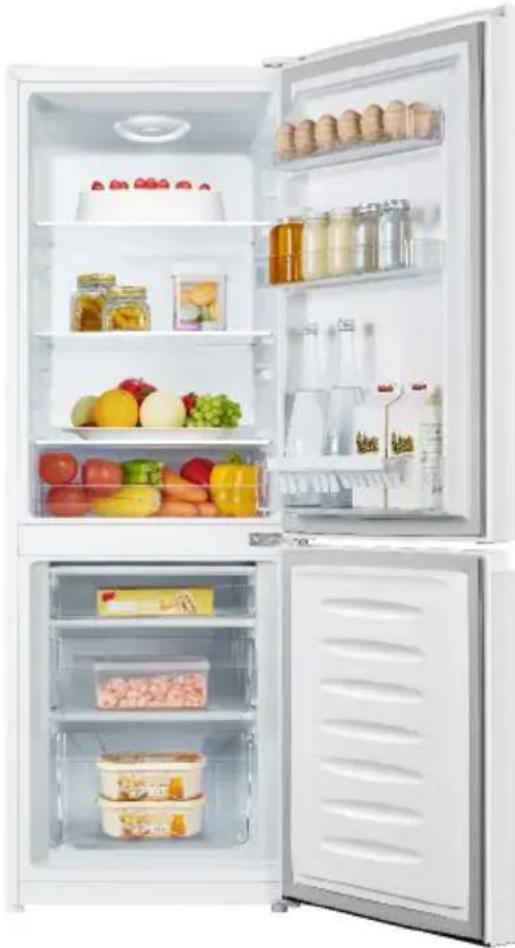

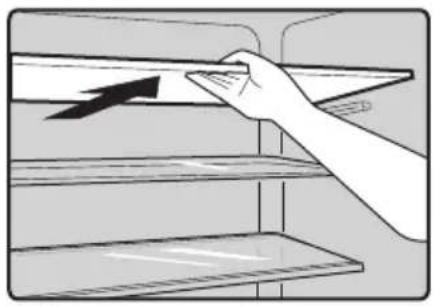

Freezer Fridge T o g e t m o r e s p a c e i n t h e f r e e z e r , y o u c a n r e m o v e d r a w e r s ( e x c e p t t h e b o t t o m d r a w e r i n f r e e z e r ! ) . T o g e t t h e b e s t e n e r g y o f t h i s p r o d u c t , p l e a s e p l a c e a l l s h e l v e s , d r a w e r s o n t h e i r o r i g i n a l p o s i t i o n a s t h e i l l u s t r a t i o n a b o v e .Operation Starting up and temperature regulation The temperature selector knob is located on the top of the refrigerator compartment. Setting 0 means: Off. Clockwise rotate the knob to turn on the appliance Setting 1 means: Highest temperature, warmest setting. Setting 7 (end-stop) means: Lowest temperature, coldest setting. Insert the plug of the connection lead into the plug socket with protective earth c o n t a c t . W h e n t h e r e f r i g e r a t o r compartment door is opened, the internal lighting is switched on. Important! High ambient temperatures (e.g. on hot summer days) and a cold setting (position 6 to 7) may cause the compressor to run continuously or even non-stop! Reason: when the ambient temperature is high, the compressor must run continuously to maintain the low temperature in the appliance. Remove and install the door shelf Remove the door shelf press inwardly press inwardly Install the door shelf Firstly tilt the left side of the door shelf ,and make sure the notch has been fastened to the door .Then press the right side inwardly ,push it down to the right place. Press the right side of the door shelf inwardly ,while holding the left side . When the notch of the shelf has been detached from the refrigerator door , remove the rack obliquely upwardly .

Warning:The door shelf must not removed

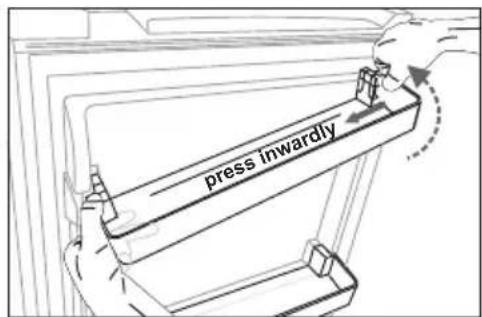

nd installed by the user! If the door shelf is damaged ,contact the customer helpline for assistance .To replace the door shelf, the below steps can be followed: Then remove the controller box.

High temperature setting will accelerate

For optimum food preservation, a medium setting is generally the most suitable. food waste.Reversing the door The side at which the door opens can be changed, from the right side (as supplied) to the left side, if the installation site requires. Warning! When reversing the door, the appliance must not be connected to the mains. Ensure that the plug is removed from the mains socket. Note: Before you start laying the refrigerator on its back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the backboard of the refrigerator. To reverse the door, the following steps are generally recommended.

1. Stand the refrigerator upright. Open the

upper door to take out all door racks (to avoid racks damaged) and then close the door.

2. Remove the Upper hinge cover (right) ①,

then remove the screws and remove② , part Put part just detached back to③. ① plastic bag, place screws and part at② ③ side for use. Note: Please hold the upper door by hand during step 2 to prevent door dropping.

3. Remove the upper door and place it on a

smooth surface with its panel upwards. Loose screws and remove part① , ② ， then install part to the left side with② screws ①.

4. Loose screws used to fix the middle①

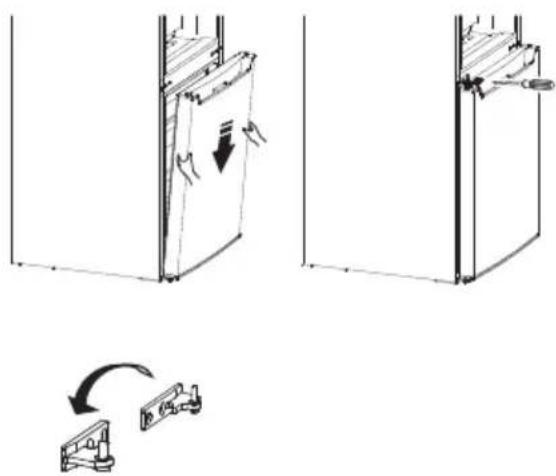

hinge and remove middle hinge . Then② ② remove the lower door.

5. Place the lower door on a smooth

surface with its panel upwards. Loose screws and remove part then① , ② ， install part to the left side with screws② ①.

6. Change screw hole covers on middle

cover plate from left to right (as shown in figure below).

118. Screw out lower hinge, change it to the

near hole site, and then screw up.

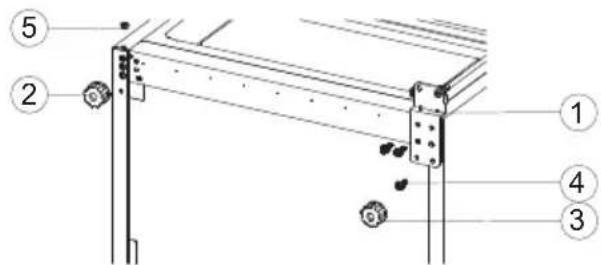

9. Just remount to the step 7, change part

① ②,⑤to left and part to right and then fix part with screws Finally install① ④ . part ③ .

11. Screw out the upper hinge axis, turn the

upper hinge over and fix axis on it. Then place it at side for use.

12. ① ,Remove the screw hole cover

then install it to the right side as② , shown in figure below.

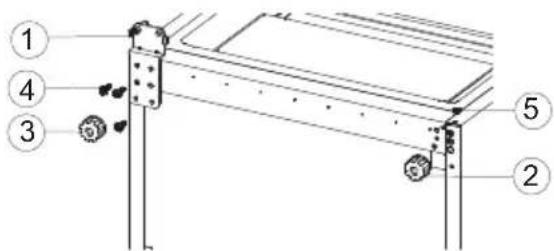

13. Move the upper door to appropriate

position, adjust part and upper door,① and then fix part by screws Please① ② ( hold upper door by hand when installing) , and then install another part in the③ ( plastic bag). Note: When installing part firstly, push it③, from left to right completely, then push it down tight.

10. Move the lower door and adjust its

position to align lower hole site and upper hinge axis. Turn the middle hinge by 180, adjust the middle hinge to the appropriate position and then install it.

and then close it. 12Helpful hints and tips Energy saving tips We recommend that you follow the tips below to save energy. Try to avoid keeping the door open for long periods in order to conserve energy. Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc) Don't set the temperature colder than necessary. Don't store warm food or evaporating liquid in the appliance. Place the appliance in a well ventilated, humidity free, room. Please refer to Installing your new appliance chapter. If the diagram shows the correct combination for the drawers, crisper and shelves, do not adjust the combination as this is designed to be the most energy efficient configuration. Hints for fresh food refrigeration Do not place hot food directly into the refrigerator or freezer, the internal temperature will increase resulting in the compressor having to work harder and will consume more energy. Do cover or wrap the food particularly if， it has a strong flavor. Place food properly so that air can circulate freely around it. Hints for refrigeration Meat (All Types) wrap in polythene food: wrap and place on the glass shelf above the vegetable drawer. Always follow food storage times and use by dates suggested by manufacturers. Cooked food, cold dishes, etc.: They should be covered and may be placed on any shelf. Fruit and vegetables: They should be stored in the crisper box Butter and cheese: Should be placed aluminum foil or polyethylene(plastic) bags while removing as much air as possible. Milk bottles: Should have a lid and be stored in the door shelf.

13Hints for the storage of frozen food Ensure that frozen food has been stored correctly by the food retailer Once defrosted food will deteriorate， rapidly and should not be re-frozen. Do not exceed the storage period indicated by the food manufacturer. Switching off your appliance If the appliance needs to be switched off for an extended period, the following steps should be taken prevent mould on the appliance.

Remove the power plug from the mains socket.

3. Clean and dry the interior thoroughly

4. Ensure that all the doors are wedged

open slightly to allow air to circulate. Hints for freezing When first starting-up or after a period out of use, let the appliance run at least 2 hours on the higher settings before putting food in the compartment. Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required. Wrap up the food in aluminum foil or polyethylene food wraps which are airtight, Do not allow fresh unfrozen food to， touch the food which is already frozen to avoid temperature rise of the latter. Iced products if consumed immediately， after removal from the freezer compartment, will probably cause frost burns to the skin. It is recommended to label and date each frozen package in order to keep track of the storage time.

Cleaning and care For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly at least every two months. Caution! The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket. Exterior cleaning To maintain good appearance of your appliance, you should clean it regularly. -Spray water onto the cleaning cloth instead of spraying directly on the surface of the appliance. This helps ensure an even distribution of moisture to the surface. -Clean the doors, handles and cabinet surfaces with a mild detergent and then wiped dry with a soft cloth. Caution! -Don't use sharp objects as they are likely to scratch the surface. -Don't use thinner, car detergent, clorox, ethereal oil, abrasive cleansers or organic Interior cleaning You should clean the appliance interior regularly. It will be easier to clean when food stocks are low. Wipe the inside of the fridge freezer with a weak solution of bicarbonate of soda, and then rinse with warm water using a wrung-out sponge or cloth. Wipe completely dry before replacing the shelves and crisper box. Thoroughly dry all surfaces and removable parts. A layer of frost may occur on the freezer compartment's interior walls if the freezer door is opened frequently or kept open too long. If the frost is too thick, choose a time when the supply of food stocks are low and proceed as follows: 1.Remove existing food and accessories , unplug the appliance from the mains power and leave the doors open. Ventilate the room thoroughly to accelerate the thawing process.

2. When defrosting is completed, clean your

freezer as described above. 14Defrosting in frozen-food storage compartment In the case of speeding up the process of defrosting, you may put a bowl of warm water (about 50°C) into the freezer chamber, and scrape away the ice and frost with a defrosting spatula. After doing so,be sure to set the knob of the temperature regulator to the original position. It is not advisable to heat the freezer chamber directly with hot water or hair dryer while defrosting to avoid deformation of the inner case. It is also not advisable to scrape off ice and frost or separate food from the containers which have been congealed together with the food with sharp tools or wooden bars, so as not to damage the inner casing or the surface of the evaporator. Caution! Don't use sharp objects to remove frost from the freezer compartment. Only after the interior is completely dry should the appliance be switched back on and plugged back into the mains socket. Door seals cleaning Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash seal with a mild detergent and warm water. Rinse and dry it thoroughly after cleaning. Caution! Only after the door seals are completely dry should the appliance be powered on. Defrosting in fresh food storage compartment It is automatically controlled by switching the temperature regulator on or off so that there is no need of operation of defrosting. Water from defrosting will be drained into an drip tray through a drain pipe at the back of the fridge automatically. Defrosting Why defrosting Water contained in food or getting into air inside the fridge be opening doors may form a frost layer inside. It will weaken the refrigeration when the frost is thick. While it is more than 10mm thick, you should defrost. Warning! Switching off the appliance before defrosting, turn the temperature regulator to position “0”. Important! The fridge should be defrosted at least every one month. During the using process, if the door was opened frequently or using the appliance in the extreme humidity, we advise the user to defrost every two weeks. Remove all refrigerated packages. Switch off the appliance by turning the temperature regulator to position “0”. Remove the mains plug or switch off or disconnect the electricity supply. Clean thoroughly (see section: Cleaning and Care) Leave the door open to avoid the build up of odors. Note:If the appliance contains freezer compartment Defrosting in freezer chamber is operated manually. Before defrosting, take the food out. Take the ice tray out or put them into the fresh food compartment temporarily. Set the knob of the temperature regulator to position “0”(where the compressor will stop working) and leave the door of the refrigerator open until ice and frost dissolve thoroughly and accumulation at the bottom of the freezer chamber. Wipe off the water with soft cloth. Go out of use for a long time 15Troubleshooting If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. Warning! Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product. Problem Check whether the power cord is plugged into the power .outlet properly Check the fuse or circuit of your power supply replace, if necessary. The ambient temperature is too low Try setting the chamber. temperature to a colder level to solve this problem. The interior may need to be cleaned Some food containers or wrapping cause odours, . Possible cause Solution& Appliance is not working correctly Odours from the compartments The sounds below are quite normal: Compressor running noises. Clicking noise before the compressor starts. Noise from the appliance Other unusual noises are due to the reasons below and :may need you to check and take action The cabinet is not level. The back of appliance touches the wall. Bottles or containers fallen or rolling. The motor runs continuously It is normal to frequently hear the sound of the motor, :it wil need to run more when in following circumstances Temperature setting is colder than necessary Large quantity of warm food has recently been stored .within the appliance The temperature outside the appliance is too high. Doors are kept open too long or too often. After your installing the appliance or it has been .switched off for a long time A layer of frost occurs in the compartment Ensure food is placed within the appliance to allow sufficient ventilation Ensure that door is fully closed To remove the. . frost please refer to cleaning and care chapter, .

Temperature inside is too warm You may have left the doors open too long or too frequently or; the doors are kept open by some obstacle or the appliance is; located with insufficient clearance at the sides back and top., Temperature inside is too cold Increase the temperature by following the Controller part.”" chapter. Doors cant be closed easily Check whether the top of the refrigerator is tilted back by mm to allow the doors to self close or if something10-15 , .inside is preventing the doors from closing

16Water drips on the floor The water pan (located at the rear bottom of the cabinet) may not be properly leveled or the draining spout (located, underneath the top of the compressor depot) may not be properly positioned to direct water into this pan or the water, spout is blocked You may need to pull the refrigerator away. from the wall to check the pan and spout. The light is not working The light may be damaged Refer to replace lights in. .operation chapter

Disposal of the appliance It is prohibited to dispose of this appliance as household waste. Packaging materials Packaging materials with the recycle symbol are recyclable Dispose of the packaging into. a suitable waste collection container to recycle it. Before disposal of the appliance 1.Pull out the mains plug from the mains socket. 2.Cut off the power cord and discard with the mains plug Warning Refrigerators contain refrigerant and gases in the insulation Refrigerant and! . gases must be disposed of professionally as they may cause eye injuries or ignition. .Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

- Clean water tanks if they have not been used for 48 h. - If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.19

~Warranty conditions Dear user, For our warranty conditions, please scan the QR code below or use the link underneath. At the bottom in the footer you will find our warranty conditions.
