IAN 385781 - Sofa Livarno Lux - Free user manual and instructions

Product type	Sofa with adjustable backrest and armrests
Brand	Livarno Lux
Model	IAN 385781
Maximum load	220 kg
Dimensions (Length × Height × Depth)	approx. 198 × 84.5 × 69 cm
Date of manufacture	12/2021
Delivery contents	1 seat, 2 armrests, 1 backrest, 4 feet (2 types), 4 crossbars (2 types), 2 cushions, 1 mattress, screws and Allen keys
Intended use	Indoor/outdoor domestic use (balcony, terrace, garden)
Material	Natural wood (color and structure variations possible)
Assembly	Required, tools provided (Allen keys)
Armrest adjustment	Adjustable angle with locking pins
Care and cleaning	Clean with soft brush and soapy water; apply wood care oil several times per season
Safety instructions	Do not use as a toy, do not climb on the sofa, check stability before use
Storage	Store dry and clean; for outdoor use, use a cover with air circulation
Warranty	3 years (from date of purchase, subject to conditions)
After-sales service France	0800 919270 | [e-mail]
After-sales service Belgium	070 270 171 (0.15 EUR/min) | [e-mail]
Disposal	Recyclable; dispose of packaging according to local regulations
Spare parts	Available during the warranty period (according to the manufacturer)

Frequently Asked Questions - IAN 385781 Livarno Lux

How to assemble the Livarno Lux IAN 385781 sofa?

Assembly is done by following the steps in the manual: screw the feet onto the crossbars, attach the crossbars to the seat, then mount the armrests and backrest using the provided screws and Allen keys. Fully unfold the armrests by loosening the locking pins before securing them.

What is the maximum weight supported by this sofa?

The maximum load of the Livarno Lux IAN 385781 sofa is 220 kg.

Can this sofa be used outdoors?

Yes, it is designed for outdoor use (balcony, terrace, garden). However, it must be protected from the weather with a cover and stored in a dry, airy place.

How to maintain the sofa's wood?

Clean the wood with a soft brush and soapy water, then let it dry completely. Regularly apply a commercial wood care oil, especially several times per season, following the oil manufacturer's instructions. Avoid harsh cleaners.

Are the armrests adjustable?

Yes, the armrests can be tilted to different angles. To do this, loosen the locking pins, fold the supports upward, adjust the desired angle by gently pulling the armrest, then secure with the pins.

What is the warranty period?

The warranty is 3 years from the date of purchase, covering material and manufacturing defects, subject to presentation of the receipt. It does not cover normal wear and tear or fragile parts.

How to store the sofa when not in use?

Always store it dry and clean, protected from the weather. For outdoor storage, cover it with a tarp ensuring good air circulation. Avoid extreme temperatures and humidity.

What are the important safety precautions?

Do not let children play with or climb on the sofa. Check stability before use, do not sit on the armrests or backrest, and do not exceed the maximum load of 220 kg. Ensure the sofa is on a flat surface.

What material is the sofa made of?

The sofa is made of natural wood. Color and structure variations are normal. It requires regular maintenance with wood oil.

Can I get spare parts for this sofa?

Yes, essential spare parts are available during the warranty period. Contact customer service at 0800 919270 (France) or 070 270 171 (Belgium).

USER MANUAL IAN 385781 Livarno Lux

DAYBED MIT SITZKISSEN DAYBED WITH CUSHIONS BANQUETTE AVEC COUSSINS

81 AD	82
DAYBED MIT SITZKISSEN
Au/boucneilting
78 SE
BANQUETTE AVEC COUSSINS
Notice de montage
65
LEZANKA Z PODUSZKAMI
Instruktjoa montaje
SE
POHOVKA S VANKUSOM
SEDADLA
Montsäzyndvod
84
DAYBED MED HYNDER
Monteringswajceding

CQ CQ C

Before reading, fold out the ilustration page and get to know all of the functions of your unit.

华

GS/IE Assembly and safety information Page 12

m = 311 ;

12/8/2

2019年1月22日

12x - 1 > 0

8

IAN385781_2107

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭

---

DE AT CH

WICHTIG, FÜR SPÄTERE BEZUGNAHME AUFBEWAHREN: SORGFÄLTIG LESEN!

GB IE

IMPORTANT: RETAIN FOR LATER REFERENCE; PLEASE READ CAREFULLY!

FR BE

IMPORTANT. LIRE ATTENTIVEMENT! A CONSERVER POUR RÉFERENCE ULTÉRIEURE.

NL BE

BELANGRIJK, BEWAREN OM LATER TE KUNNEN NASLAAN; ZORGVULDIG LEZEN!

PL

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following assembly instructions and the safety information carefully.

Use the product only as described and only for the given areas of application. Store these assembly instructions carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Scope of delivery (fig. A)

1 x seat (A)
2× armrest (B)
1 x backrest (C)
2 × leg(D)
2xleg(E)
2 x cross brace (F)
2 x cross brace (G)
2 × cushion (H)
1 x seat support (I)
8 × screw M7 × 60mm (1)
8 × screw M8 x 50mm with sleeve (2)
4× screw M6× 35mm (3)
8 × screw M6 x 15mm with sleeve (4)
4 × shim, square (5)
4× shim, round (6)
2 x Allen key (7)
1 × assembly instructions

Technical data

Maximum load: 220kg

Date of manufacture (month/year): 12/2021

Dimensions:

approx. 198 × 84.5 × 69cm (w × h × d)

Intended use

The product is not intended for commercial use. The product is designed for use at home, e.g. balcony, terrace, or garden

Safety instructions

Danger to life!

• Never leave children unsupervised with the packaging material. Risk of suffocation.

Risk of injury!

• Before using the product check for correct stability.
• Stand the product on an even surface.
• The product may only be used under adult supervision and not as a toy.
• The product is not for climbing on or playing with! Make sure that people, particularly children, do not stand on the product or pull themselves up on it. The product may fall over.
• Check the product for damage or wear before each use.
• Never stand on the product.
• Do not sit on the backrests or armrests.

Avoiding material damage!

• Protect the product in extreme weather conditions, e.g. in strong winds. Store the product in a protected area.

Assembly

1. Screw the legs (D)/(E) to each cross brace (F)/(G) using the screws (1) (fig. B).

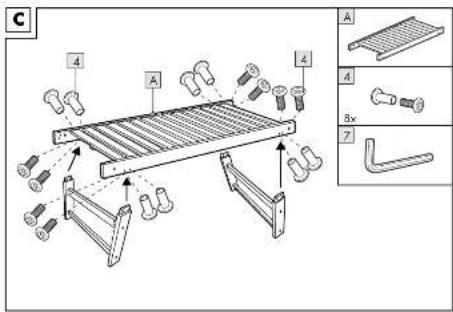

2. Insert the legs into the seat (A) and attach them using the screws and screw sleeves (4). Secure both of them with the Allen keys (7) supplied (fig. C).

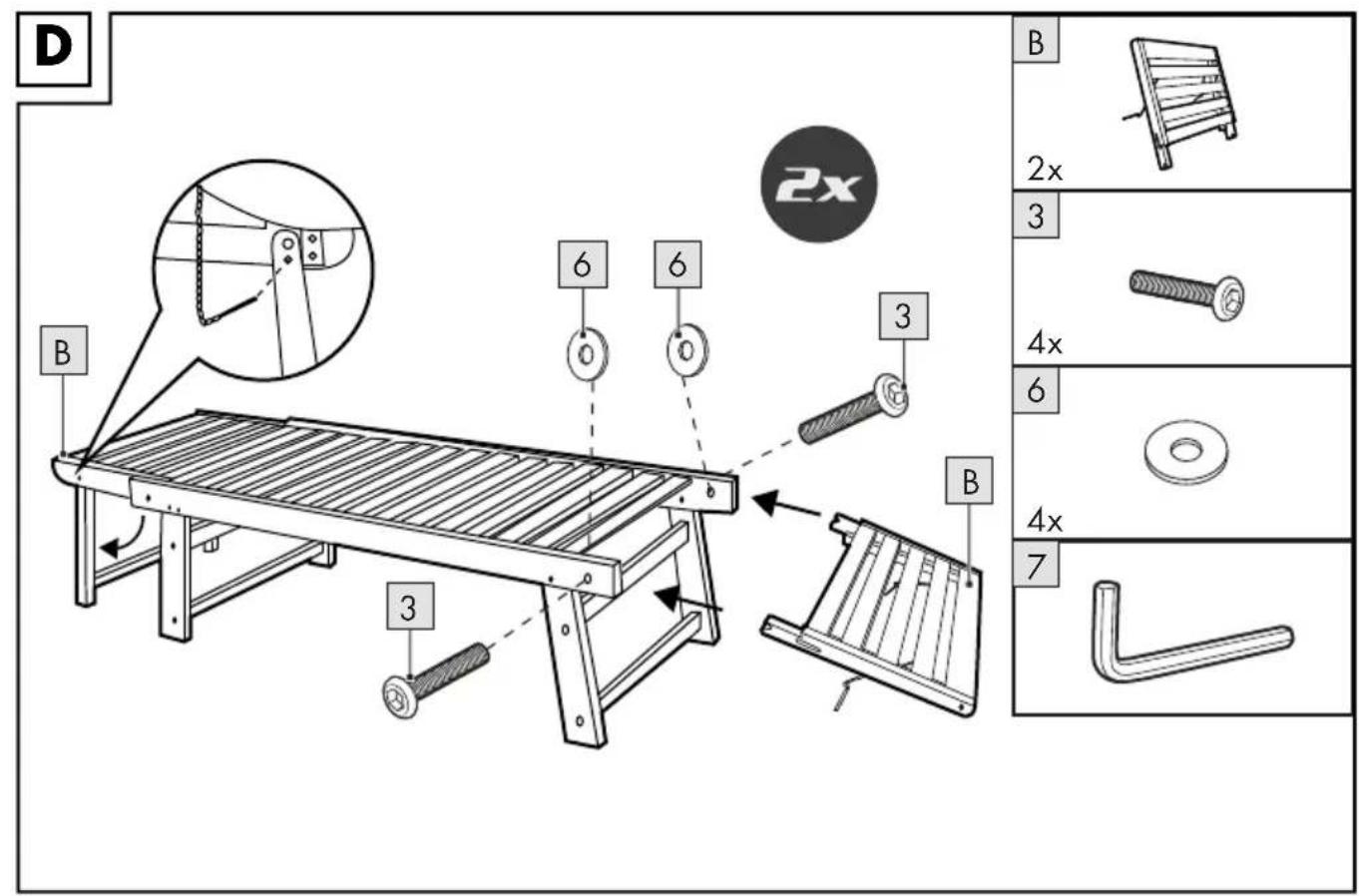

3. Screw the armrests (B) to the seat as shown in fig. D.

Note: Unfold the armrests fully by unlocking the locking pins, unfold the supports, and then insert the locking pin again (fig. D).

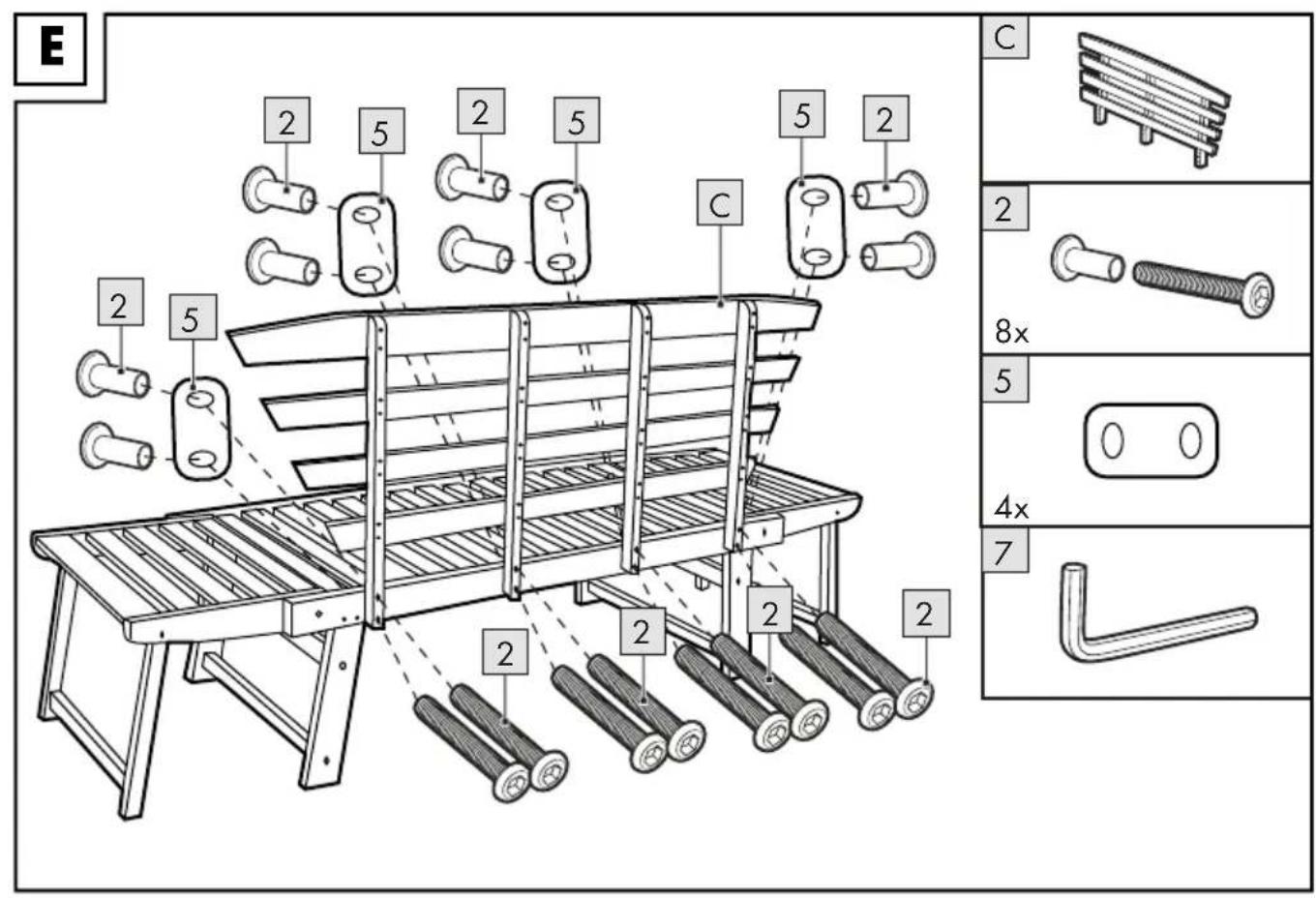

1. Screw the backrest (C) to the seat. To do this secure the screws (2) with the matching sleeves and the Allen keys supplied (7) (fig. E).
2. Stand the product on an even surface.

Use

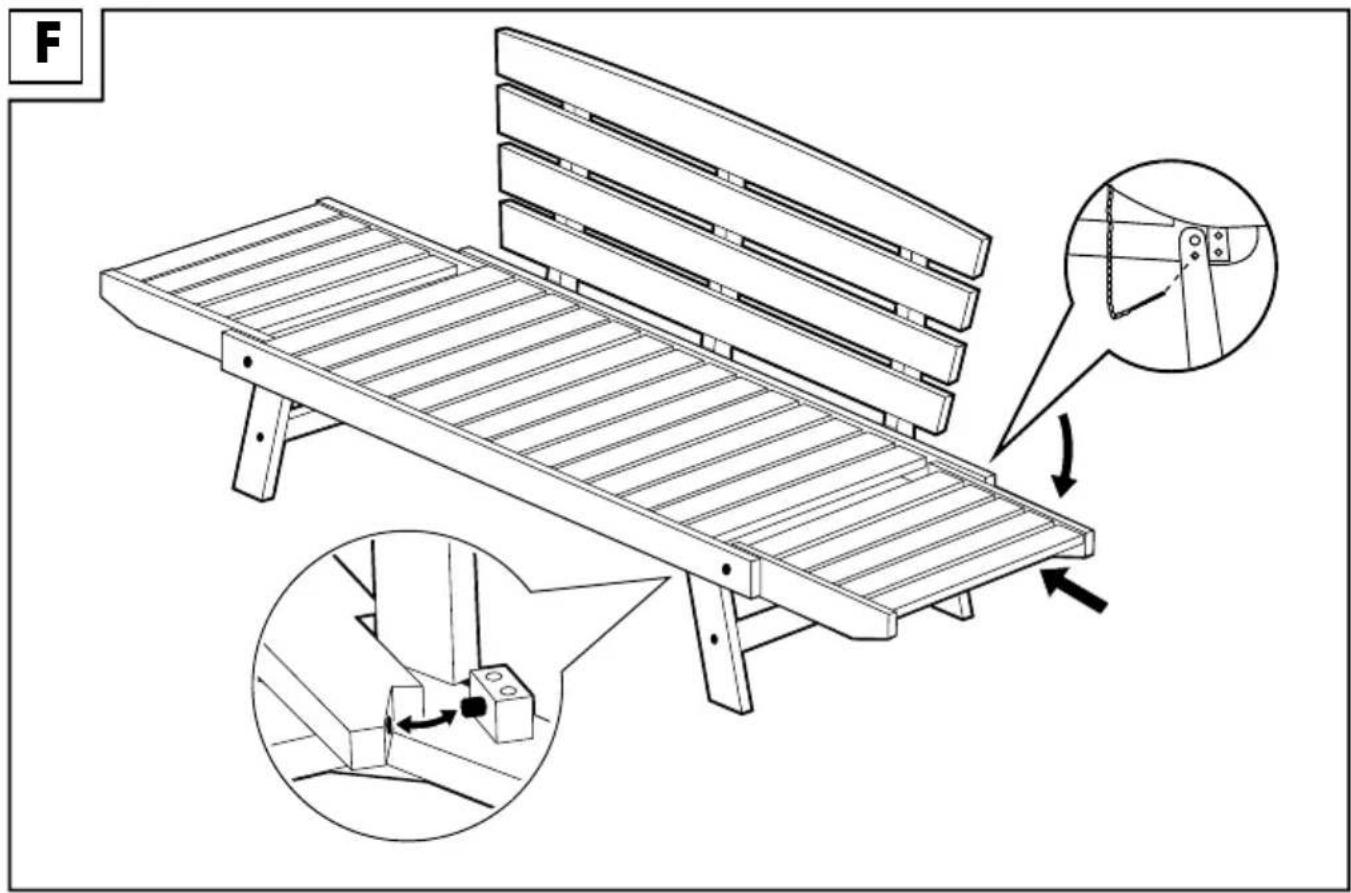

1. Unlock the locking pins and flip up the supports (fig. F).
2. To adjust the armrests simply pull them towards you and set at the angle you wish. (fig. F).

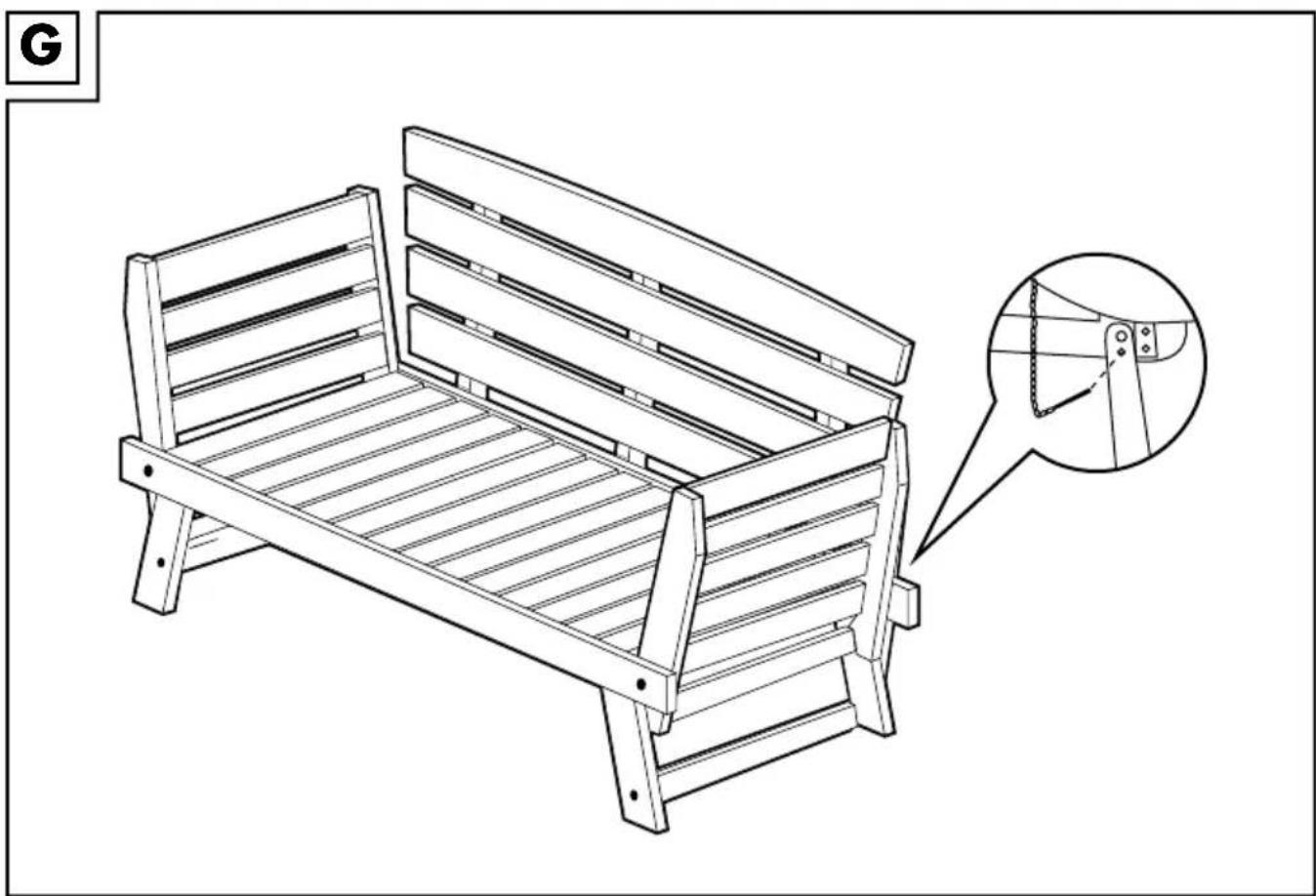

3. Lock the armrests in position with the locking pins (fig. G).

Note: When adjusting make sure that the armrests grip securely in the metal pin mounted on the seat (fig. F).

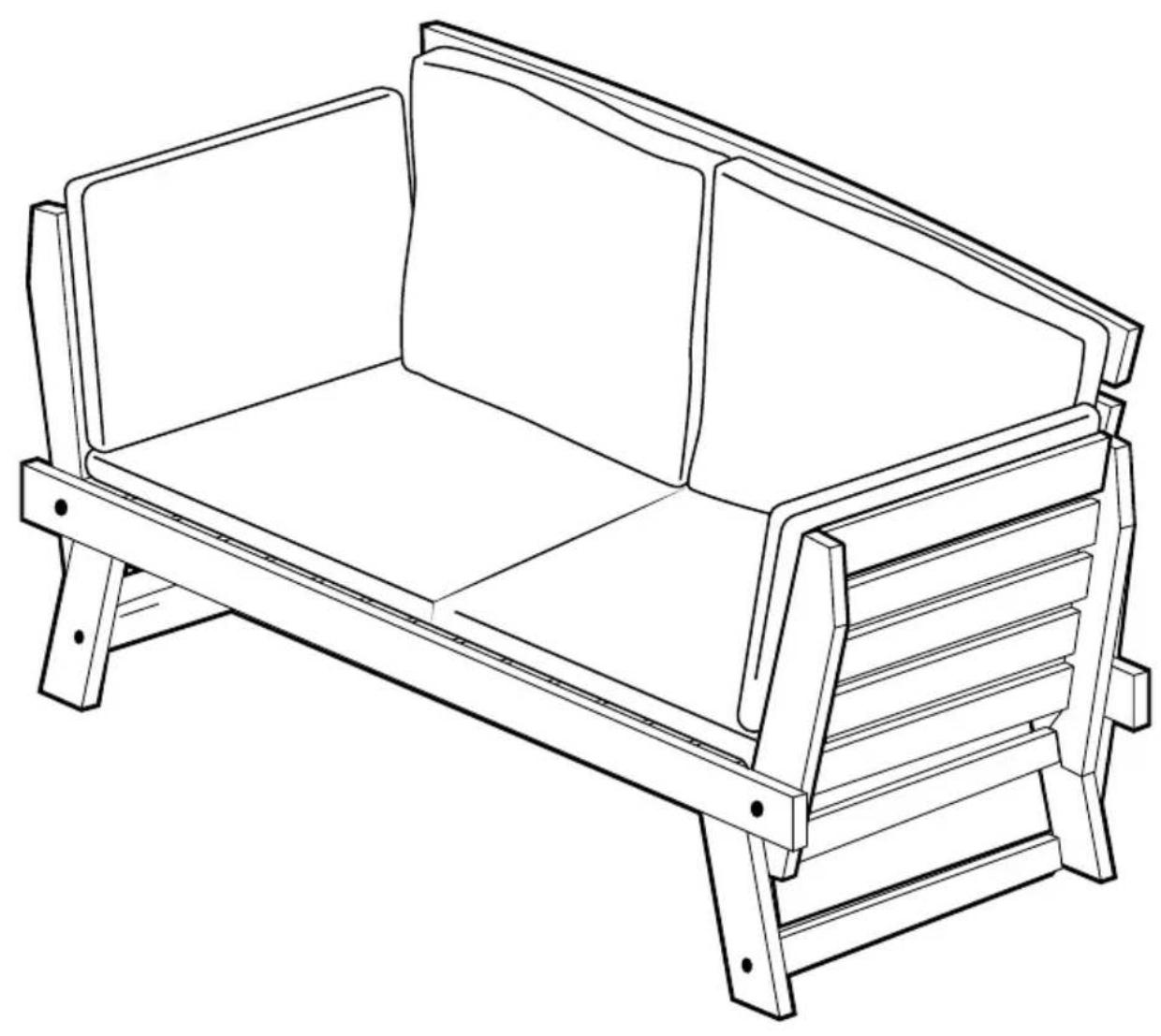

1. Place the cushions on the product (fig. H).

Storage

• When not in use, always store the product clean and dry at room temperature.
• Be aware that wood can be affected by changing temperatures, air humidity, and other influences.
• The wood in the product is a natural material and there may therefore be slight variations in colour and structure.
• When stored outdoors the product should be covered by a tarpaulin. Make sure that there is adequate air circulation and keep the tarpaulin dry.

Cleaning and care

• Clean the product with a soft brush and a mild solution of soap and water.
• Allow the product to dry completely after cleaning.
• Treat the product with a wood treatment oil from your specialist retailer. You should repeat the treatment several times each season. Before treatment the wood must be completely dry!
• Follow the instructions of the manufacturer of the wood treatment oil you have selected.
  IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol, n is meant to reflect the recycling cycle - number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions. The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances.

Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt. The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts.

If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice.

Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.

IAN:385781_2107

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]
