IAN 388813 - Hammock Livarno Lux - Free user manual and instructions

Brand	Livarno Lux
Model	IAN 388813
Product type	Hammock with wooden frame
Total dimensions (L x W x H)	Approx. 313 x 120 x 122 cm
Lying area (L x W)	Approx. 196 x 96 cm
Maximum load capacity	110 kg
Item weight	Not specified (estimate ~15-20 kg)
Materials	Wood (base, extensions, legs), metal chain, carabiners
Recommended minimum age	12 years and up
Intended use	Private use, for one person lying down
Assembly	Assembly by an adult (requires a second person for suspension)
Height adjustment	By link chain and carabiners
Cleaning	Soft brush and soapy water, dry thoroughly
Wood care	Special care oil, several times per season
Storage	Dry, clean place at room temperature; tarp if outdoors
Safety	Check before each use; minimum clearance 1.5 m; do not use as a swing
Warranty	3 years (material and manufacturing defects)
Spare parts	Available during the warranty period
Power supply	Not applicable
Recycling code	Identified by recycling symbol on packaging

Frequently Asked Questions - IAN 388813 Livarno Lux

What is the maximum weight capacity of this hammock?

The Livarno Lux IAN 388813 hammock supports a maximum load of 110 kg.

How to assemble the wooden frame?

Follow figures B to C in the manual. Start by not tightening the screws too much. The large holes in the wooden bases must face outward. After assembly, tighten all screws.

How to adjust the height of the hammock?

Attach the carabiner to the corresponding link in the chain to shorten or lengthen the suspension (fig. D).

What maintenance is required for the wood?

Clean with a soft brush and soapy water, dry completely. Apply wood care oil several times per season when the wood is dry.

Can this hammock be used outdoors?

Yes, but avoid prolonged exposure to weather. Outdoors, cover it with a tarp ensuring adequate air circulation.

Can children use this hammock?

No, it is prohibited for children under 12 years. Not suitable for unsupervised children due to risk of strangulation.

How to get on and off the hammock safely?

Ideally, have a second person assist you. If alone: stand in the middle, balance the hammock with one hand, sit down carefully, then lie down completely (fig. E to H).

What to do in case of damage or wear?

Before each use, check for damage. Do not use the hammock if damaged. Contact customer service ([e-mail]) for possible repair under warranty.

What is the warranty period?

The warranty is 3 years from the date of purchase, covering material and manufacturing defects. Keep the receipt.

How to clean the hammock without damaging it?

Use a soft brush and slightly soapy water. Rinse with clean water and let dry completely. Never use harsh products.

USER MANUAL IAN 388813 Livarno Lux

Black-and-white photo of a hammock with curved backrest and wooden legs (no text or symbols)

PDF ONLINE www.lidl-service.com

HÄNGEMATTE MIT HOLZGESTELL HAMMOCK WITH WOODEN FRAME HAMAC AVEC SUPPORT EN BOIS

DE AT CH

Assembly instructions

NL BE

HANGMAT MET HOUTEN ONDERSTEL

Montagehandleiding

CZ

HOUPACÍ SÍT SE STOJANEM

Návod k sestavení

ES

HAMACA CON SOPORTE DE MADERA

Simple line drawing of a person standing on a curved structure with two arms extending outward (no text or symbols)

Line drawing of a person standing on a tight net with a string, no text or symbols present

Line drawing of a person balancing on a hammock with arms extended (no text or symbols)

Line drawing of a person lying on a hammock with arms extended (no text or symbols)

Line drawing of a simple hammock with adjustable legs and support beams (no text or symbols)

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following assembly instructions and the safety information carefully.

Use the product only as described and only for the given areas of application. Store these assembly instructions carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Scope of delivery (fig. A)

1 x hammock (1)
2 x wooden base piece (2)
2 x wooden extension (3)
2 x wooden stand (4)
1 x chain (5)
3 x snap hook (6)
4 x hexagon screw, long (7)
4 x hexagon screw, short (8)
2 x eye bolt (9)
2 x t-spanner, two-part (10) and (11)
14 x shim (12)
12 x screw nut (13)
4 x cover cap (14)
1 x instructions for use

Technical data

Dimensions: approx. 313 x 120 x 122cm

$$ (l x w x h) $$

Dimensions: approx. 196 x 96cm (l x w)

Maximum load: 110kg

Date of manufacture (month/year):

12/2021

Intended use

The product is used for lying down and is for one person over the age of 12 weighing up to 110kg. The product is intended for private use only.

⚠️ Safety instructions

Important: Read these instructions for use carefully and be sure to keep it handy!

Danger to life!

• Never leave children unsupervised with the packaging material. Risk of suffocation.
• Warning. This product is not suitable for unsupervised use by children due to openings that pose a strangulation hazard.
• Warning. Not suitable for children under 12 years.

Risk of injury!

• The weather conditions can affect the material! Sun, ultraviolet rays, rain, relative humidity, and temperatures affect the material.
  There is a risk that the product may not withstand the indicated load due to changes in the material and thus represents a risk of injury. Do not expose the product to the elements for unnecessarily long periods of time.

- Keep the product away from children.

• The product is not a toy.

- Use the product only for its intended purpose.

- An adult should always assemble the product.

- Do not allow the product to be used as a swing, for climbing on, or for gymnastics. Do not stand up in the product, get in feet first, or put your head in between the hang ropes.

- Ropes and materials wear out and can become frayed or fragile. Check the product for damage or wear before each use. The product may be used only when in good working order and condition!

- Use only accessories approved by the manufacturer and appropriate replacement parts on surfaces that are shock-absorbent, such as carpeting, or outdoors on grass surfaces, in order to minimise the risk when falling out of the hammock.

- Make absolutely sure that the product has been hung correctly before use.

- Leave a sufficient clearance of at least 1.5m from the sides for the hammock to swing.

Assembly

1. Assemble the product as shown in figs. B to C. For easier assembly do not tighten the screws too much at first.
   Hint: Pay attention to the alignment of the boreholes in the wooden bases (4). The big boreholes must face outwards.
2. Tighten all screws firmly.
3. Use the chain (5) and the snap hooks (6) to suspend the hammock from the wooden frame (fig. D).
4. To adjust the height for reclining, shorten or lengthen the chain by hooking the snap hook into the corresponding link in the chain (fig. D).

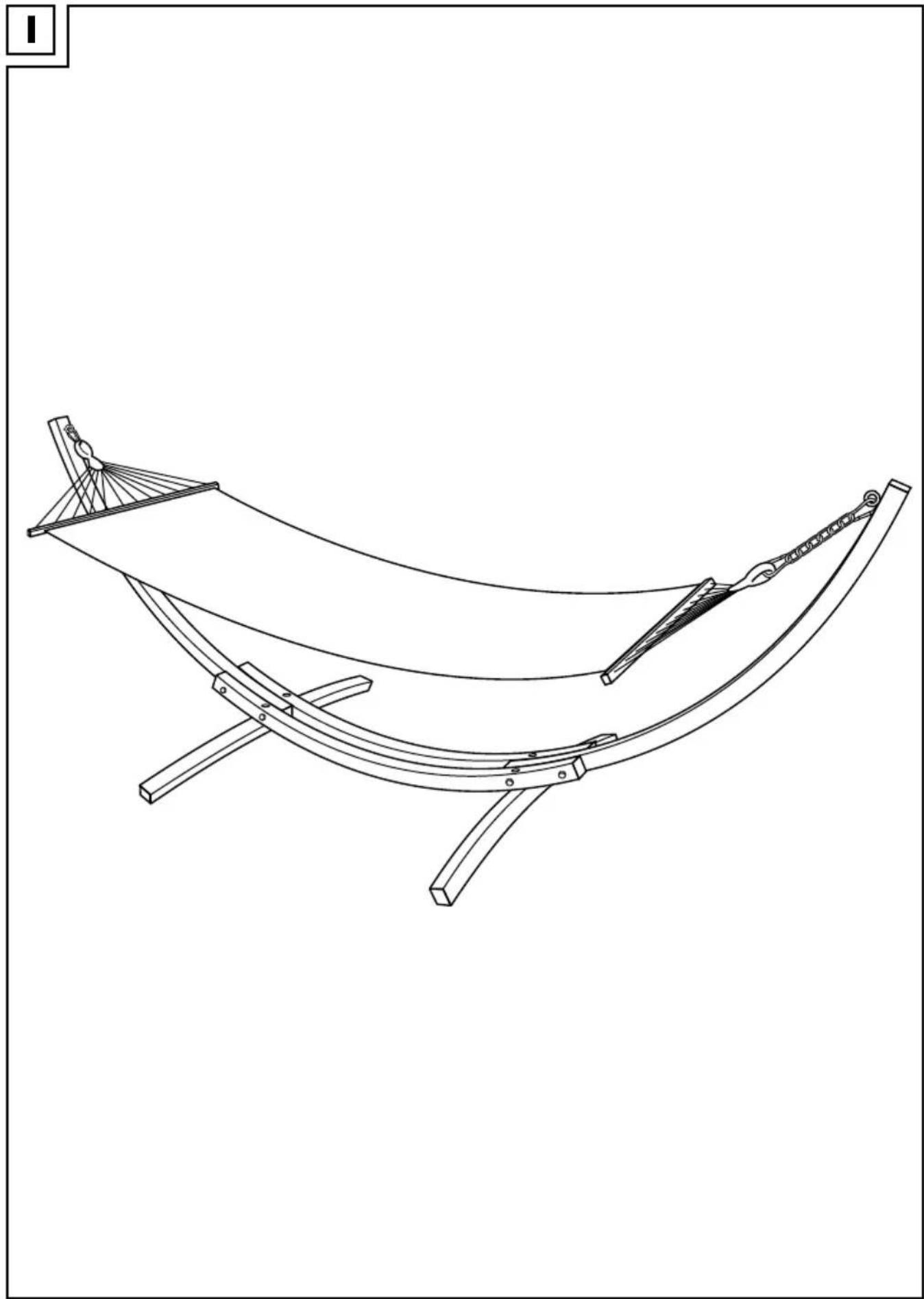

5. Set the product up on a flat surface (fig. 1).

Warning. Incorrect assembly can lead to serious injury.

Use

Important!

To minimise the risk of falling out of the hammock, have another person help you when climbing in and out. Always check that the product has been hung correctly before each use.

Getting in and out of the hammock without the help of another person.

1. Stand close to the middle of the hammock (fig. E).

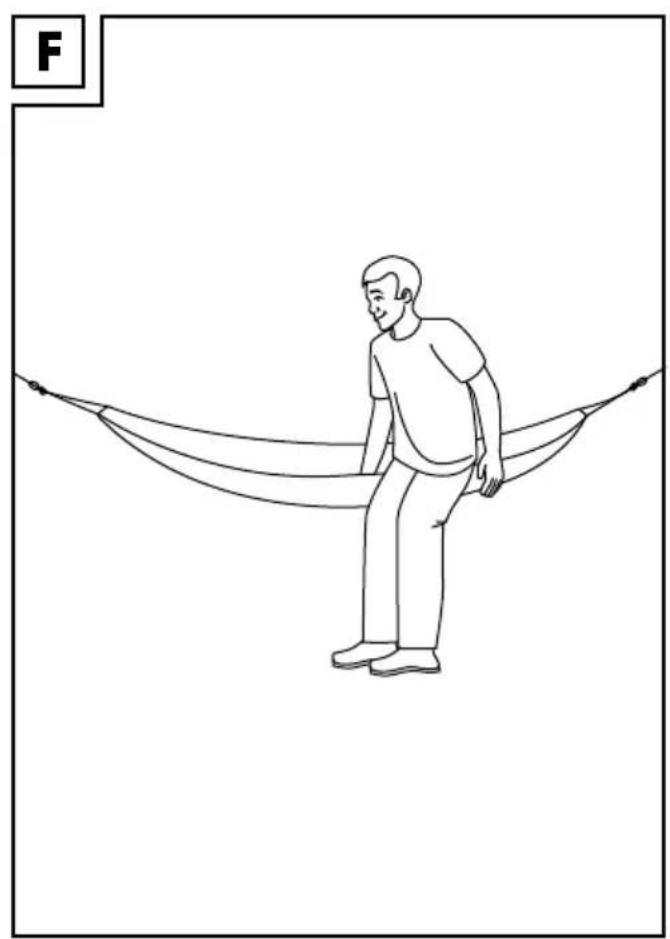

2. Use one hand to keep the product steady. (fig. F)

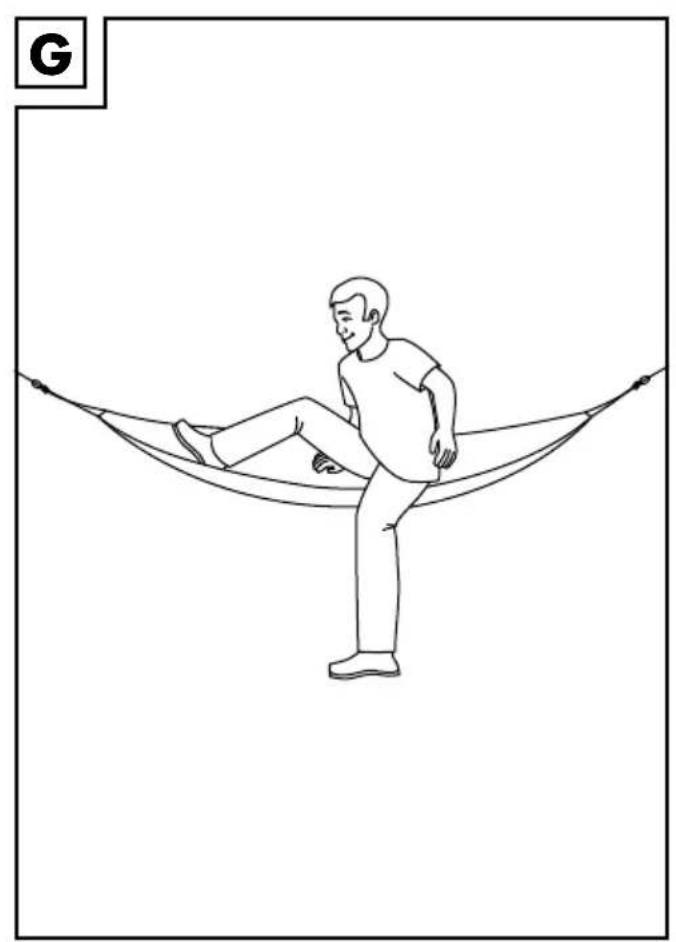

3. Carefully sit down in the hammock while keeping it steady with your hand. (fig. G).

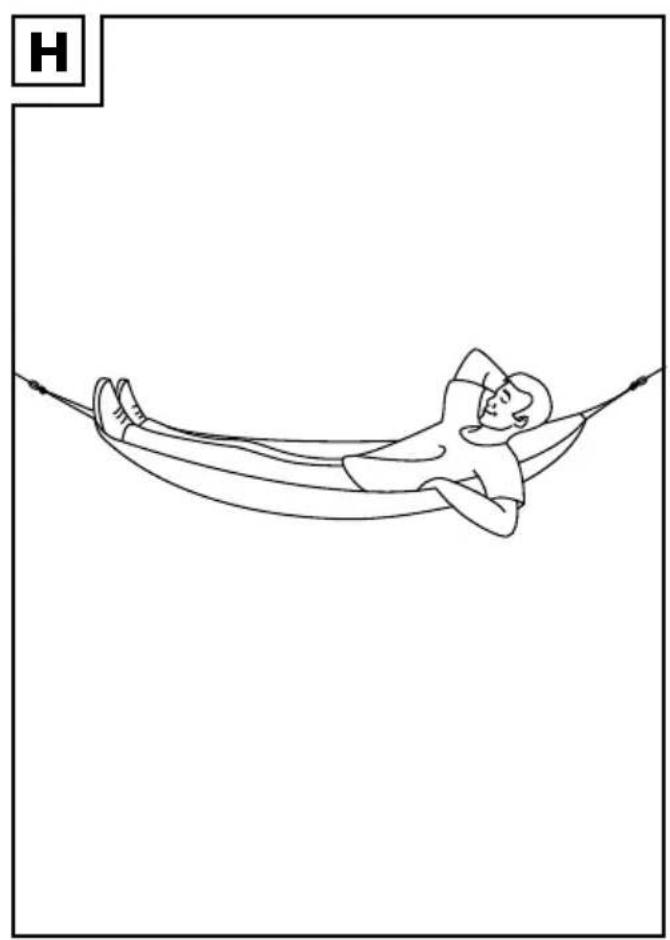

4. Lie down full length in the product. (fig. H).

Storage

• When not in use, always store the product clean and dry at room temperature.
• When stored outdoors the product should be covered by a tarpaulin. Make sure that there is adequate air circulation and keep the tarpaulin dry.
• Remember that wood can be affected by changing temperatures, humidity and other influences.
• The wood in the product is a natural material and there may therefore be slight variations in colour and structure.

Cleaning and care

• Clean the product with a soft brush and a mild solution of soap and water.
• Allow the product to dry completely after cleaning.
• Treat the product with a wood treatment oil from your specialist retailer. Treatment should be repeated several times per season. Before treatment the wood must be completely dry!
• Follow the instructions of the manufacturer of the wood treatment oil you have selected. IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol – which is meant to reflect the recycling cycle – and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions.

The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances.

Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt. The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts.

If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice.

Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.

IAN: 388813_2107

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]
