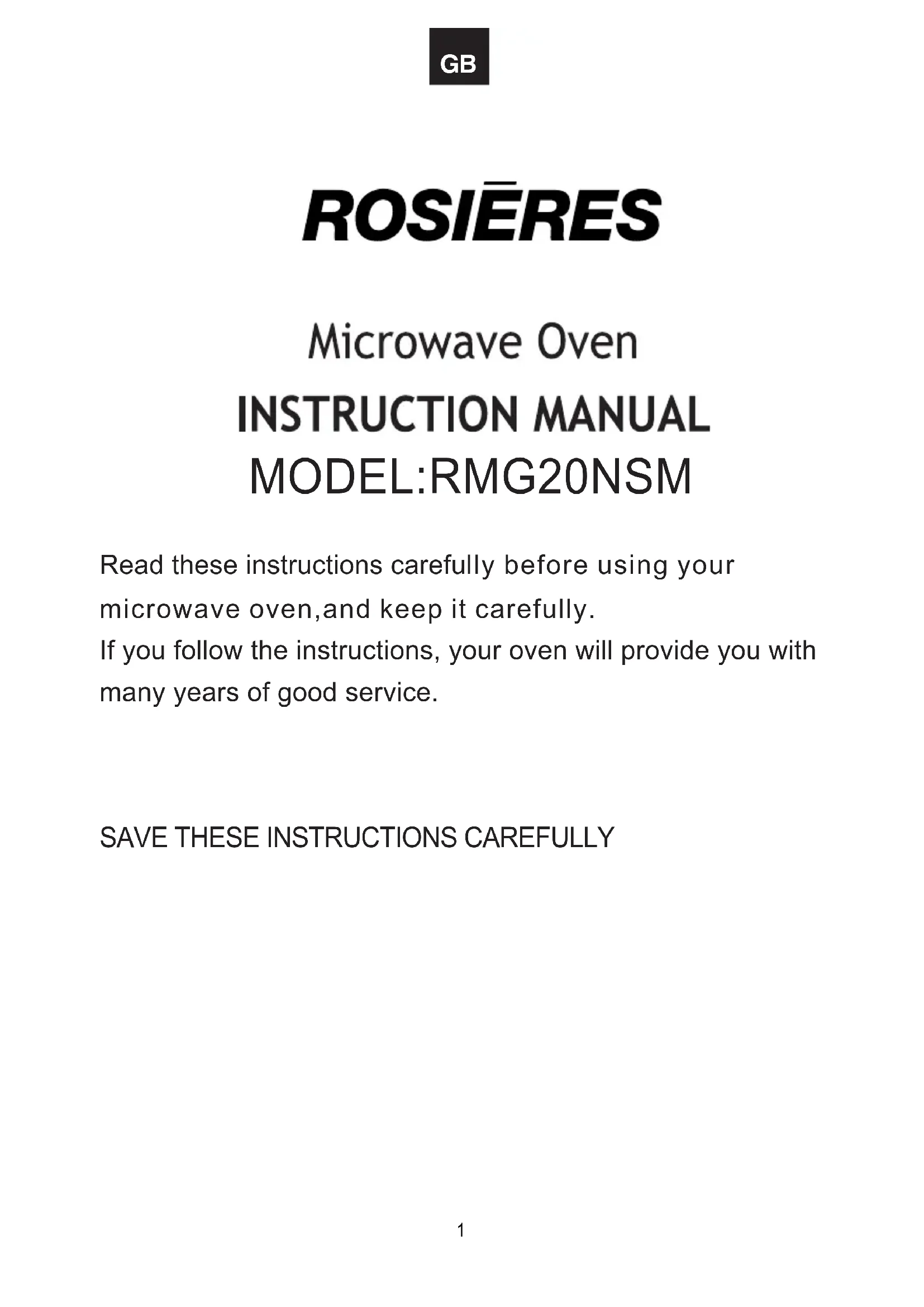

USER MANUAL RMG20NSM ROSIERES

RMG20NSMSAVE THESE INSTRUCTIONS CAREFULLY

Read these instructions carefully before using your microwave oven,and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service.

1Specifications (a) Do not attempt to operate this oven with the door open since this canresult in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person. ADDENDUM If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Model: Rated Voltage: Rated Input Power(Microwave):Rated Output Power(Microwave):Rated Input Power(Grill):230V~ 50Hz1270W1000W800WRMG20NSM

2To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated

in sealed containers since they are liable to explode.

2. Warning: It is hazardous for anyone other than a

competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

3. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.Children shall not play with the appliance.Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of

children less than 8 years.

5. Only use utensils that are suitable for use in microwave

6. The oven should be cleaned regularly and any food

deposits should be removed.

7. Read and follow the specific:"PRECAUTIONS TO

8. When heating food in plastic or paper containers,

39. If smoke is emitted, switch off or unplug the appliance

and keep the door closed in order to stifle any flames.

10. Do not overcook food.

11. Do not use the oven cavity for storage purposes.

Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles from

paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in accordance with the

installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should

not be heated in microwave ovens since they may explode, even after microwave heating has ended. 15.This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -by clients in hotels, motels and other residential type environments; -farm houses; -bed and breakfast type environments.

16. If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

17. Do not store or use this appliance outdoors.

18. Do not use this oven near water, in a wet basement

or near a swimming pool.

19. The temperature of accessible surfaces may be high

when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated keep an eye on the oven due to the possibility of ignition.

21. Failure to maintain the oven in a clean condition

could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. 22.The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

23. Microwave heating of beverages can result in

delayed eruptive boiling, therefore care must be taken when handling the container. 24.The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 25.Children should be supervised to ensure that they do not play with the appliance. 26.The appliances are not intended to be operated by means of an external timer or separate remote-control system.

27. Accessible parts may become hot during use.

Young children should be kept away. 28.Steam cleaner is not to be used. 29.During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. 30.Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a surface, and do not cover any vents on the oven.

531.WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. 32.The microwave oven must be operated with the decorative door open.(for ovens with a decorative door.) 33.Surface of a storage can get hot. 3 .The microwave oven is intended for heating food an beverages.Drying of food or clothing and heating of warming pads,slippers,sponges,damp cloth and similar may lead to risk of injury,ignition or fire.

drawer allowed during microwave cooking.

35. Metallic containers for food and beverages are not

READ CAREFULLY AND KEEP FOR FUTURE

37. Care should be taken not to displace the turntable

when removing containers from the appliance.

38. The appliance must not be installed behind a

decorative door in order to avoid overheating.

36. The appliance shall not be cleaned with a steam

adult supervision due to the temperatures generated. combination mode, children should only use the oven under

39. WARNING: When the appliance is operated in the

6To Reduce the Risk of Injury to Persons Grounding Installation DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire

1. A short power-supply cord

is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. cord is used: 1)The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. 2)The extension cord must be a grounding-type 3-wire cord. 3)The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally. cord. extension

7CLEANING Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp

2. Clean the accessories in the usual way in soapy water.

3. The door frame and seal and neighbouring parts must be

cleaned carefully with a damp cloth when they are dirty.

4. Do not use harsh abrasive cleaners or sharp metal scrapers

to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

5. Cleaning Tip---For easier cleaning of the cavity walls that the

food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth. UTENSILS CAUTION Personal Injury Hazard It is hazardous for anyone other than a compentent person to carry out any service or repair operation that involves the removalof a cover which gives protection against exposure to microwave energy. Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold

water (250ml) along with the utensil in question.

2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is

warm, do not use it for microwave cooking.

4. Do not exceed 1 minute cooking time.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

8Materials you can use in microwave oven Utensils Remarks Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. Use for short–term cooking/warming only. Do not leave oven unattended while cooking. Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Use as a cover to prevent splattering or a wrap for steaming. Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Thermometers Microwave-safe only (meat and candy thermometers). Wax paper Use as a cover to prevent splattering and retain moisture. Browning dish Glass jars Glassware Oven cooking bags Paper plates and cups Paper towels Parchment paper Plastic Plastic wrap Dinnerware Materials to be avoided in microwave oven Utensils Remarks Aluminum tray Food carton with metal handle Metal or metal- trimmed utensils Metal twist ties Paper bags Plastic foam Wood Metal shields the food from microwave energy. Metal trim may cause arcing. May cause a fire in the oven. Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood will dry out when used in the microwave oven and may split or crack. May cause arcing. Transfer food into microwave-safe dish. May cause arcing. Transfer food into microwave-safe dish. May cause arcing and could cause a fire in the oven.

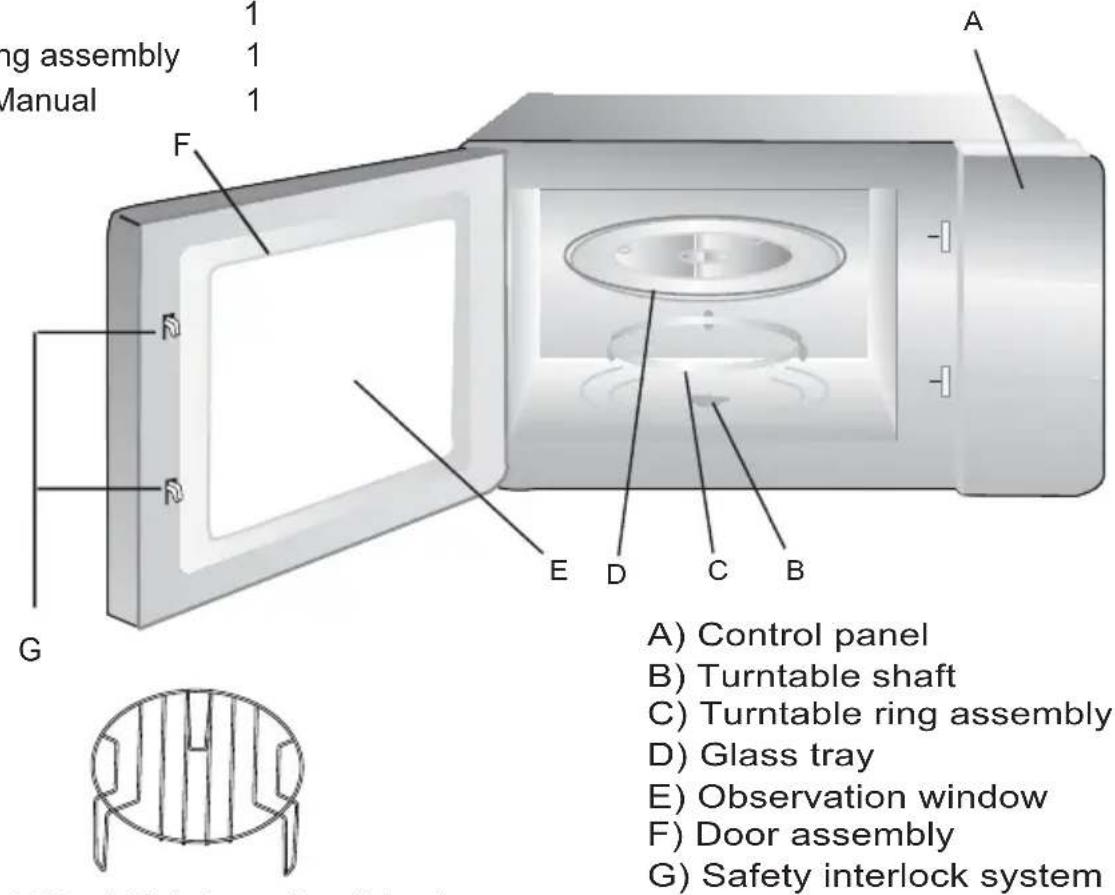

Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity.Your oven comes with the following accessories:Glass tray 1Turntable ring assembly 1Instruction Manual 1Grill Rack( Only be used in grill functionand be placed on the glass tray )Hub (underside)Glass trayTurntable ring assemblya. Never place the glass tray upside down. The glass tray should never be restricted.b. Both glass tray and turntable ring assembly must always be used during cooking.c. All food and containers of food are always placed on the glass tray for cooking.d. Ifglass tray turntable ring assembly cracks or breaks, contact your nearest authorized service center. Turntable Installation Turntable shaft

10Installation and connection 1.This appliance is only intended for domestic use. 2.This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.

3. Please observe the special installation instructions.

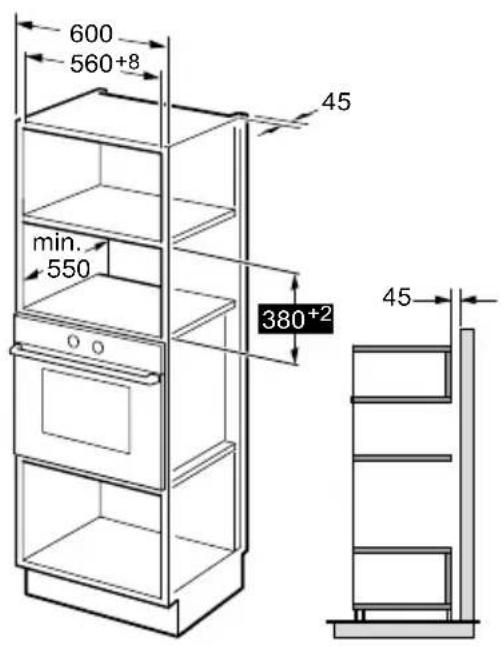

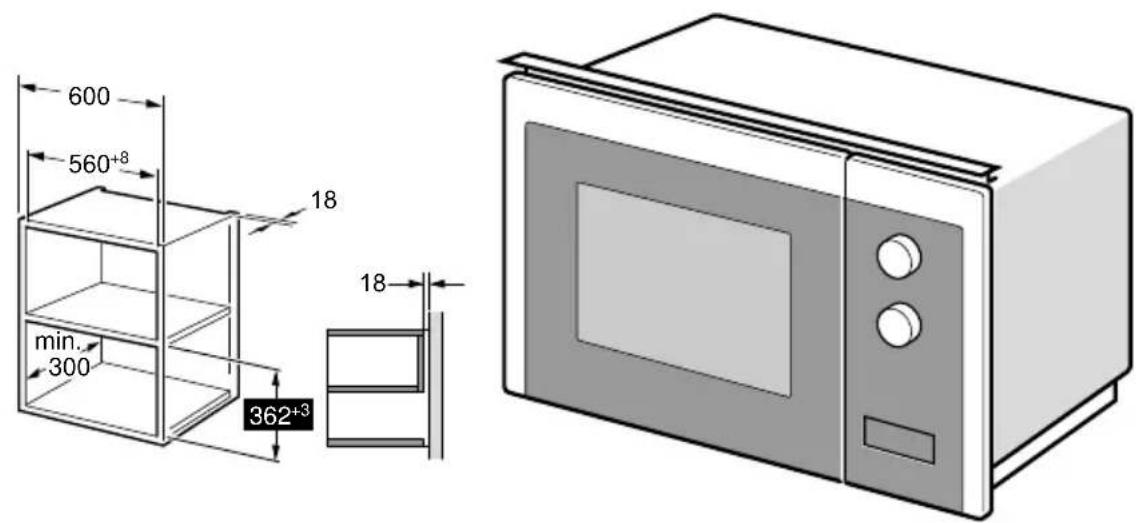

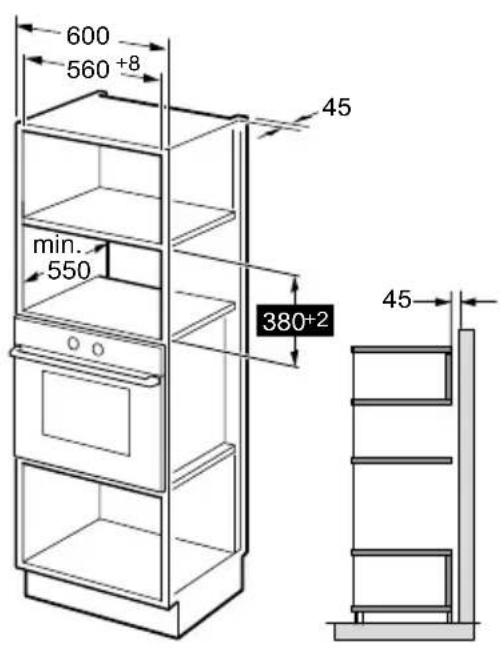

4.The appliance can be installed in a 60cm wide wall- mounted cupboard. 5.The appliance is fitted with a plug and must only be connected to a properly installed earthed socket. 6.The mains voltage must correspond to the voltage specified on the rating plate. 7.The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3mm. 8.Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire. The accessible surface may be hot during operation.

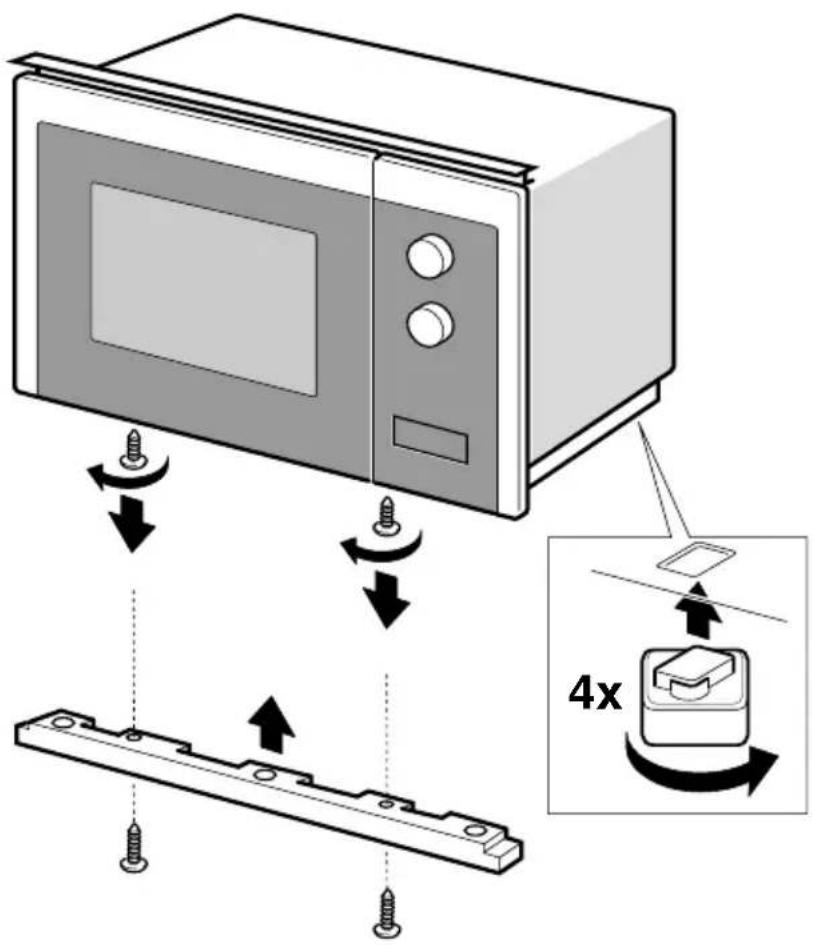

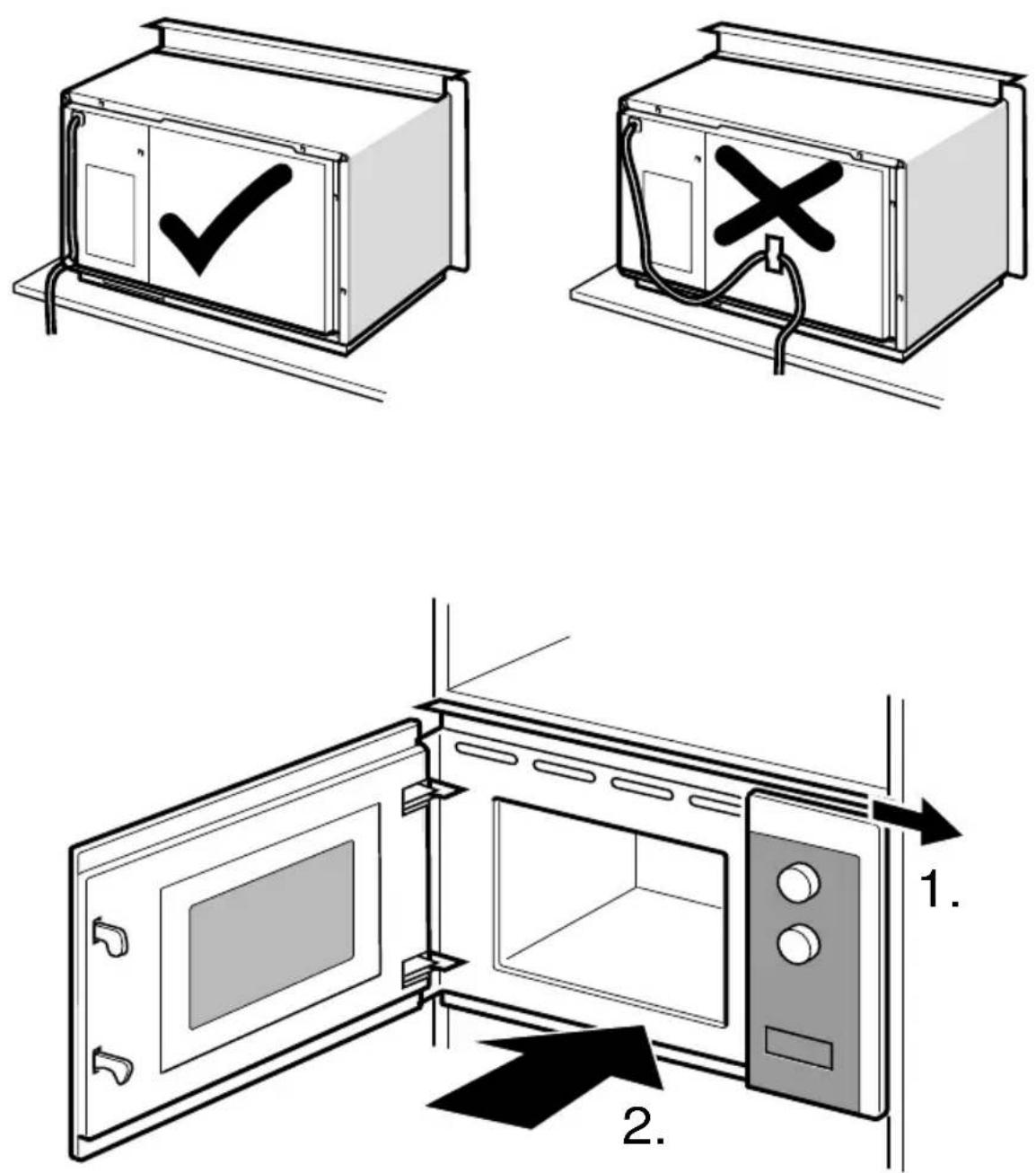

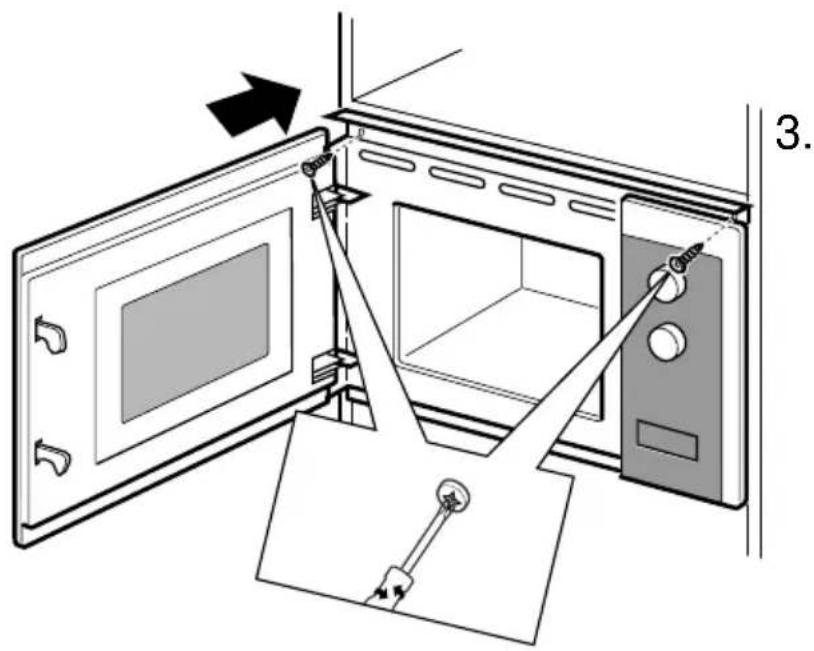

11Installation Instruction The following must be noted Electrical connection The appliance is fitted with a plug and must only be connected to a properly installed earthed socket. Only a qualified electrician who takes the appropriate regulations into account may install the socket or replace the connecting cable. If the plug is no longer accessible following installation, an all-pole isolating switch must be present on the installation side with a contact gap of at least 3 mm. Contact protection must be ensured by the installation. Fitted units The installation cabinet must not have a back panel behind the appliance. Minimum installation height: 850 mm. Ventilation slots and intakes must not be covered. Installing the oven - Fig. 2 Note: Do not trap or kink the mains lead. Appliance in a wall-hanging unit - Fig. 1A Appliance in a tall unit - Fig.1B

152. Microwave Cooking

This microwave oven uses modern electronic control to adjust cooking parametersto meet your needs better for cooking. When the microwave oven is electrified,the oven will display "0:00", buzzer will 3) Press " 5) Press " The current time will display.Note: If the clock is not set, it would not function when powered.1) Press " OPERATION INSTRUCTION NOTE: the step quantities for the adjustment time of the coding switch are as follow: 1---5 min : 10 seconds 5---10 min : 30 seconds 10---30 min : 1 minute 30---95 min : 5 minutesMicrowave Power Chart1) Press the " Micro

2) Press " Micro or press " " or " " to select the

microwave power. "P100", "P80", "P50", "P30", "P10" will display in order. Microwave PowerDisplayP100 P80 P50 P30 P10 1.Clock Setting " to confirm, the minute " twice, " to finish clock setting. ring once.the hour figures will flash. figures ":" will flash.wave " key once, and "P100" will display.wave " repeatedly " to start cooking.High Med.High Med. Med.Low Lowoven will enter to waiting state. will flash; 0---1 min : 5 seconds The " to confirm setting.

2) Press " "or " " to adjust the hour figures,the input time should be within 0--23.

4) Turn " "or " " to adjust the minute figures, the input time should be within 0--59.

(The maximum cooking time is 95 minutes)4) Press " " or " " to adjust the cooking time.DurationDurationDuration Start + 30 '' Confirm Start + 30 '' Confirm

Press " " once, the screen will display "G", and press repeatedly or press "

" to choose thepower you want, and "G","C-1" Press " " again to start cooking.Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.1) Press " W " once, the screen will display "dEF1".3) Press " " key to start defrosting. Grill Power 100% 45% 64%

55% 36% Grill Combi.1 Combi.2 Microwave Power Program Display

1) Press " Grill Combi " once, the screen displays "G".

" to start cooking.2) Continue to press " " until the screen displays "C-1".Combination Power instructions:

C-1 C-2 Note:If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over,close the door, and then press" " to continue cooking. If no operation, the oven will continue working.eight efrost Grill Combi" Grill Combi"Grill Combi

5) Press " " " or " " to set cooking time. (The maximum cooking time is 95 minutes)

4) Press " " or " " to adjust the cooking time until the oven displays "10:00".

2) Press " "or " " to select the food weight. The range of weight is 100-2000g.Note:

have a better effect of , you should turn the food over, close the door, and then press" " to continue cooking. If no operation, the oven will continue working. If half the defrost time passes, the oven sounds twice, and this is normal. In order to defrosting or "C-2" will display. Press " " to confirm the power. Press " to c

176.Multi-Stage Cooking stage automatically. The buzzer will ring once after each stage and the next stage will begin.Note: Auto menu and speedy cooking cannot be set as one of the multi-stage.

" once, the screen will display " 00:00 " . (The maximum cooking time is 95 minutes)" to confirm setting. If the clock has been set(24-hour system), the screen will display the current time.Note: The kitchen Time is different from 24-hour system. Kitchen Timer is a timer.Example: if you want to defrost the food for 5 minutes, then to cook with 80%microwave power for 7 minutes. The steps are as following:3) Press "Micro4) Press " " repeatedly to choose microwave power till "P80" displays;" to start cooking.

1) Press " " once, the screen will display "dEF2". Time Defrostwave" once, the screen will display "P100".2 stages can be maximumly set. If one stages is defrosting, it should be put in the firstMicro wave

) Press " 1) Press " 3) Press " 4) When the kitchen time is reached, the buzzer will ring 5 times.

1) Press " " once, the screen will display "dEF2".3) Press " " key to start defrosting. Time Defrost" to c

) Press "2) Press " "or " " to select the cooking time.The maximum time is 95 minutes.2) Press " "or " " to adjust the defrost time of 5 minutes; 5) Press " "or " " to adjust the cooking time of 7 minutes; 2) Press " " or " " to enter the correct timer.Note: have a better effect of , you should turn the food over, close the door, and then press" " to continue cooking. If no operation, the oven will continue working. If half the defrost time passes, the oven sounds twice, and this is normal. In order to defrosting DurationStart Sec l + 30 '' l ConfirmStart Sec l + 30 '' l Confirm Start + 30 '' Confirm Start + 30 '' Confirm Start + 30 '' Confirm

2) Press " " to confirm the menu you choose.

4) Press " " to start cooking.

1) In waiting state, press " " repeatedly to

3) Press " "or" " to choose the food weight.

1) In waiting state, press " " key to cook with 100% power level

for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes. grill and combination. Press " Micro " " , the current power will be displayed for 3 seconds.

" to continue cooking. " is not pressed in 1 minutes. The current time will be displayed. The setting will be cancelled.

2) During the microwave,grill,combination cooking and the defrost by time process,

press " " to increase the cooking time.

3) Under the states of auto menu and defrost by weight, cooking time

by pressing" ". cannot be increased wave" or

1) In cooking states of microwave or

11. Inquiring Function

2) If the clock has been set , during cooking state, press "

It will be displayed for 3 seconds.

10. Lock Function for Children

Lock: In waiting state, press " Stop C and the current time will display if the time has been set, will display " . Lock quitting: In locked state, press " the lock is released. " to check lear" for 3 seconds to enter " for 3 seconds, screen the children-lock state

f the door is opened in the process of cooking, close the door and then pressI

Start the current time.

2) Once the cooking programme has been set , "

3) The buzzer sounds once by efficient press, inefficient press will be no responce.

Grill Combi press" "

4) In waiting state, press " " to choose the cooking time. After adjusting the cooking time,

20According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available. Microwave oven interfering TV reception Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal. Dim oven light Oven cannot be started. (1) Power cord is not plugged in tightly. Unplug. Then plug again after 10 seconds. Replace fuse or reset circuit breaker (repaired by professional personnel of our company) Test outlet with other electrical appliances. Close door well. (3) Trouble with outlet. (4) Door is not closed well. (2) Fuse blowing or circuit breaker works. Oven does not heat. In low power microwave cooking, oven light may become dim. It is normal. In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal. Steam accumulating on door, hot air out of vents Oven started accidentally with no food in. It is forbidden to run the unit without any food inside. It is very dangerous. Normal Trouble Possible Cause Remedy Trouble shooting
