Brand	Playtive
Model	IAN 302451
Product Type	RC toy (RC race car)
Recommended Age	6 years and up
Power Supply	5 AA LR6 1.5 V batteries (3 in the car, 2 in the remote)
Operating Frequency	40 MHz (RC-5296) / 27 MHz (RC-5297, RC-5298)
Maximum Speed	7 km/h
Operating Time	Approximately 2 hours
Control Functions	Forward, backward, turn left/right (with combinations)
Direction Adjustment	Front axle compensation via lever
Delivery Contents	1 car, 1 remote control, 5 AA batteries, 1 instruction manual
Care and Cleaning	Clean with water and a dry cloth; do not use harsh cleaners
Safety Instructions	Not suitable for children under 36 months; use under adult supervision; do not expose to heat
Warranty	3 years from date of purchase
After-Sales Service	France Service: 0800 919270, [e-mail]; other countries via hotline
Spare Parts	Available during the warranty period
Date of Manufacture	2018
Standards	Compliant with RED Directive 2014/53/EU and RoHS 2011/65/EU
Disposal	Do not dispose of with household waste; recycle separately

Frequently Asked Questions - IAN 302451 Playtive

What batteries should I use for the Playtive IAN 302451 remote-controlled car?

Use AA LR6 1.5 V batteries (non-rechargeable). The car requires 3 batteries and the remote control 2 batteries of the same type and brand.

How do I insert the batteries into the car?

Open the battery compartment cover on the back of the car by pushing it down. Insert the 3 batteries respecting polarities (+/-). Close the cover.

How do I insert the batteries into the remote control?

Unscrew the screw on the back of the remote control, remove the cover, insert 2 batteries respecting polarities, then screw back tightly.

Why doesn't my car drive straight?

Use the compensation lever on top of the car (1a). If it veers right, push the lever slightly left; if it veers left, push it right. Repeat until adjusted.

What is the minimum recommended age for this toy?

The toy is recommended for children aged 6 and up. Not suitable for children under 36 months due to small parts.

How do I clean the remote-controlled car?

Clean it with a damp cloth and water, then dry with a dry cloth. Do not use harsh cleaners.

What is the range of the remote control?

The manual does not specify the exact range. For optimal use, point the remote's antenna towards the car. Typical range for this type of toy is 10 to 30 meters.

Can I use rechargeable batteries?

No, only use non-rechargeable batteries as per safety instructions. Rechargeable batteries could damage the device.

What should I do if the car stops responding to the remote?

Check that the car is turned on (ON/OFF button on the back). Check the condition and polarity of batteries in the car and remote. Replace batteries if necessary.

How should I dispose of the product at the end of its life?

Do not throw the product in household waste. Remove the batteries and deposit them at a collection point. Dispose of the electronic toy at a recycling center according to local regulations.

USER MANUAL IAN 302451 Playtive

RC RENNAUTO

RC RACING CAR

VOITURE DE COURSE RC

DE AT CH

RC RENNAUTO

Gebrauchsanweisung

FR BE

VOITURE DE COURSE RC

Instructions for use

NL BE

RC RACEAUTO

Gebruiksaanwijzing

ES

COCHE DE CARRERAS RC

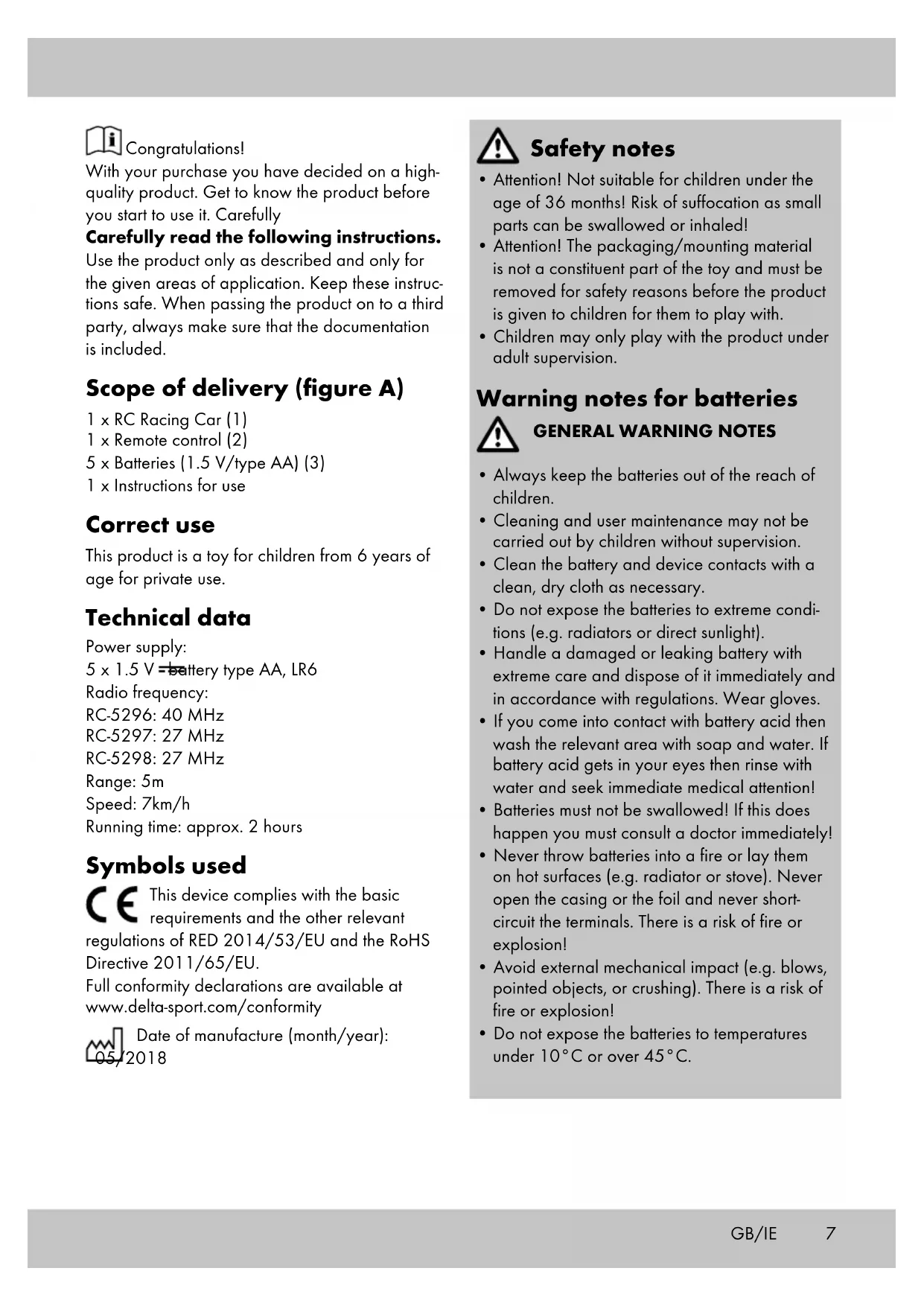

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully

Carefully read the following instructions.

Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Scope of delivery (figure A)

1 x RC Racing Car (1)

1 x Remote control (2)

5 x Batteries (1.5 V/type AA) (3)

1 x Instructions for use

Correct use

This product is a toy for children from 6 years of age for private use.

Technical data

Power supply:

5 x 1.5 V battery type AA, LR6

Radio frequency:

RC-5296: 40 MHz

RC-5297: 27 MHz

RC-5298: 27 MHz

Range: 5m

Speed: 7km/h

Running time: approx. 2 hours

Symbols used

CE This device complies with the basic requirements and the other relevant regulations of RED 2014/53/EU and the RoHS Directive 2011/65/EU.

Full conformity declarations are available at www.delta-sport.com/conformity

Date of manufacture (month/year): 2018

Safety notes

• Attention! Not suitable for children under the age of 36 months! Risk of suffocation as small parts can be swallowed or inhaled!
• Attention! The packaging/mounting material is not a constituent part of the toy and must be removed for safety reasons before the product is given to children for them to play with.
  • Children may only play with the product under adult supervision.

Warning notes for batteries

GENERAL WARNING NOTES

• Always keep the batteries out of the reach of children.
- Cleaning and user maintenance may not be carried out by children without supervision.
- Clean the battery and device contacts with a clean, dry cloth as necessary.
- Do not expose the batteries to extreme conditions (e.g. radiators or direct sunlight).
- Handle a damaged or leaking battery with extreme care and dispose of it immediately and in accordance with regulations. Wear gloves.
- If you come into contact with battery acid then wash the relevant area with soap and water. If battery acid gets in your eyes then rinse with water and seek immediate medical attention!
- Batteries must not be swallowed! If this does happen you must consult a doctor immediately!
- Never throw batteries into a fire or lay them on hot surfaces (e.g. radiator or stove). Never open the casing or the foil and never short-circuit the terminals. There is a risk of fire or explosion!
- Avoid external mechanical impact (e.g. blows, pointed objects, or crushing). There is a risk of fire or explosion!
- Do not expose the batteries to temperatures under 10°C or over 45°C .

ADDITIONAL WARNING NOTES FOR BATTERIES

• Only use batteries from the same manufacturer and of the same type.
• Remove the batteries if they are empty or if you are not going to use the product for a longer period.
• New and used batteries may not be used together.
• Change all the batteries at the same time.
  • Non-rechargeable batteries may not be charged.
• Warning: batteries must not be charged or reactivated by other means, dismantled, thrown into the fire, or short-circuited. There is a risk of fire or explosion!
• Please ensure correct polarity (+/-) when inserting the batteries.
• Dispose of used batteries in the appropriate manner at the local authority collection point or with a retailer.
• The terminals may not be short-circuited.
• Do not use rechargeable batteries!

Inserting the batteries

ATTENTION! Pay attention to the following instructions in order to avoid mechanical and electrical damage.

Insert the included batteries before using the product for the first time.

Inserting the batteries into the vehicle

1. Push the battery compartment cover (1b) on the back of the vehicle (1) downwards and fold it outwards in order to open the battery compartment (1d).
2. Insert three batteries (3) carefully into the battery compartment (figure C). The batteries must be entirely inside the battery compartment.

Note: Pay attention to the positive and negative poles on the batteries and make sure you insert them correctly.

1. Close the battery compartment cover (1b) on the back again.

Inserting the battery into the remote control (figure E)

1. Use a suitable screwdriver to release the screw on the battery compartment (2e) on the underside of the remote control (2) and remove the cover (2f).
2. Insert two batteries (3) carefully into the battery compartment (2g). The batteries must be entirely inside the battery compartment.
   Note: Pay attention to the positive and negative poles on the batteries and make sure you insert them correctly.
3. Screw the battery compartment (2f) on the back of the remote control again.

Changing the batteries

ATTENTION! Pay attention to the following instructions in order to avoid mechanical and electrical damage.

Change the batteries as described for battery insertion if the batteries stop working. Remove the batteries from the product before inserting the new batteries.

Switching the product on and off (figure B)

The vehicle must be switched on in order to steer the product using the remote control.

In order to switch the vehicle on or off push the switch (1c) on the back of the vehicle to ON to switch it on or to OFF to switch it off.

Steering the vehicle

The vehicle can be steered in different directions using the remote control. To do this point the antenna on the remote control towards the vehicle and press it as follows:

• Forward arrow (2a): vehicle moves forwards (figure F).

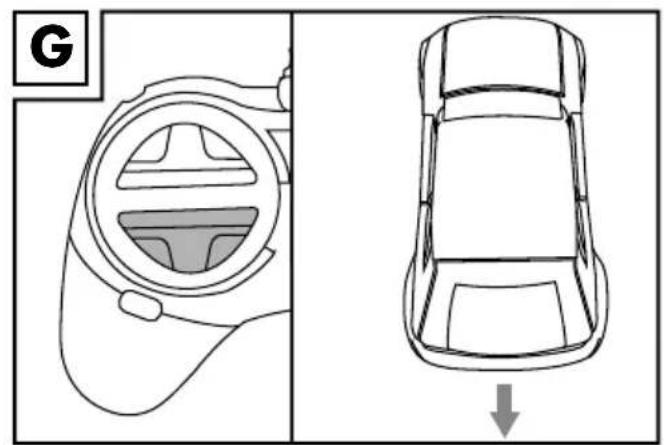

• Backwards arrow (2b): vehicle moves backwards (figure G).

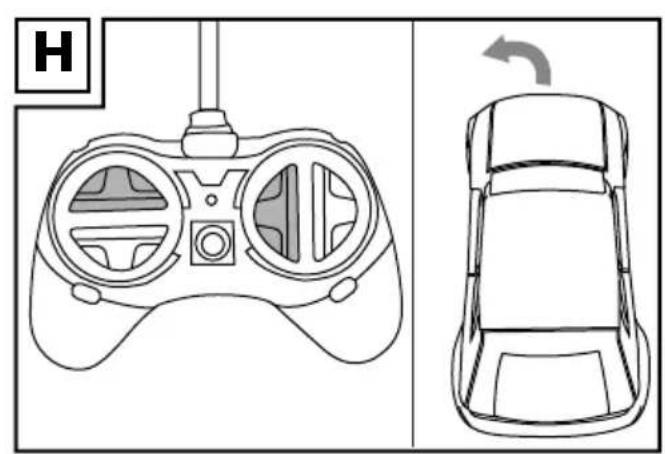

• Arrow to the left (2c) in combination with forward arrow (2a): vehicle drives in a curve to the left (figure H).

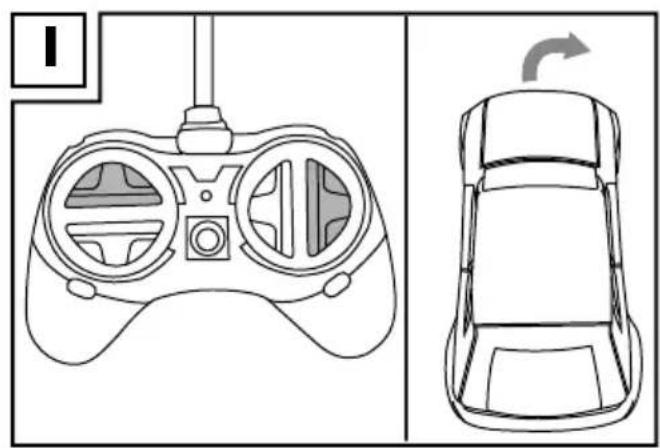

• Arrow to the right (2d) in combination with forward arrow (2a): vehicle drives in a curve to the right (figure I).

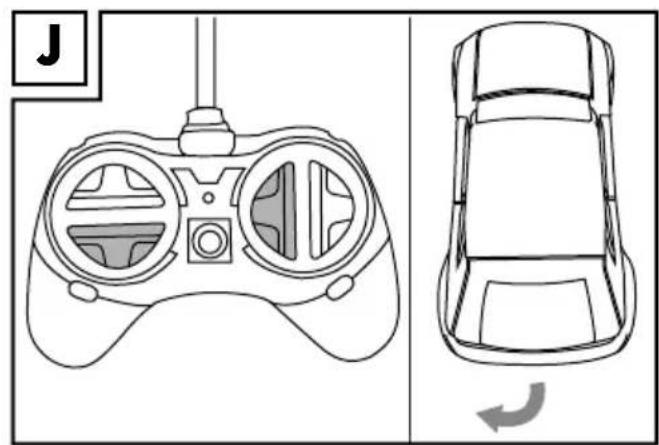

• Arrow to the left (2c) in combination with backwards arrow (2b): vehicle drives backwards in a curve to the left (figure J).

• Arrow to the right (2d) in combination with backwards arrow (2b): vehicle drives backwards in a curve to the right (figure K).

Trimming the front axle (figure L)

If the vehicle is no longer driving straight ahead even though you are using the 'forward arrow' (2a) then proceed as follows:

1. If the vehicle is drifting to the right then push the trim lever (1a) slightly to the left.
2. If the vehicle is drifting to the left then push the trim lever (1a) slightly to the right.
3. Repeat step 1 or step 2 if the vehicle is still not driving straight ahead.

Storage, cleaning

Always store the product in clean and dry condition at room temperature. Only use water to clean and wipe it dry with cleaning cloth.

IMPORTANT! Never clean the product with aggressive cleaning agents.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Devices that are marked with the symbol shown here may not be disposed of with domestic waste. You are obliged to dispose of these kinds of used electrical and electronic devices separately. Ask your local authority about possible methods for regulated disposal. Remove the batteries from the article before disposing of it.

Dispose of batteries carefully

Please note: Batteries are hazardous waste and may not be disposed of with domestic waste by law. You can hand over used batteries free of charge at local collection points or at retail outlets. Special containers are provided here for this purpose.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt. The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty. With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.
