Brand	Playtive
Model	IAN 93708
Product type	Leisure skateboard
Board dimensions (L x W)	66 x 18 cm
Maximum load	100 kg (class A: 20-100 kg)
Bearings	ABEC 7
Intended use	Private outdoor use on smooth, level, dry surfaces
Compliance	Not suitable for road traffic
Recommended protective equipment	Helmet, knee pads, wrist guards, elbow pads
Package contents	1 skateboard, 1 instruction manual
Maintenance	Clean with water, dry, grease bearings
Spare parts	Available at www.delta-sport.com
Warranty	3 years
Customer service Belgium	Phone: [phone] (€0.15/min), Email: [e-mail]
Article number (IAN)	271532 (model: 93708)
Not suitable for jumps	Yes

Frequently Asked Questions - IAN 93708 Playtive

What is the maximum weight supported by this Playtive IAN 93708 skateboard?

The skateboard supports a maximum load of 100 kg (class A: 20-100 kg).

Is this skateboard suitable for children?

This is not a toy according to the toy safety directive. It is recommended for children only under adult supervision. Children must wear full protective equipment.

Can I use this skateboard on public roads?

No, it is not suitable for road traffic. It should only be used on private surfaces that are smooth, level, and dry.

How to adjust the skateboard's steering?

You can adjust the steering by tightening or loosening the axle nut (fig. b). A soft adjustment is made by slightly unscrewing the nut, a hard adjustment by tightening it. Ensure the self-locking ring is fully on the screw.

How to replace the wheels?

Unscrew the axle nut, remove the worn wheel and insert the new one with its washers. Apply security varnish to the nut before tightening. Always replace wheels in pairs.

How to maintain the ball bearings?

Check the bearings regularly, especially after riding on wet surfaces. Clean them with a dry cloth and lubricate them externally with a suitable lubricant to prevent rust.

What is the maximum permitted load?

The maximum load is 100 kg (class A).

What is the warranty period?

The skateboard has a 3-year warranty from the date of purchase, covering material and manufacturing defects.

Where can I find spare parts?

Spare parts are available at www.delta-sport.com, under Service – Lidl spare parts service.

What protective equipment should I wear?

It is recommended to wear a helmet, knee pads, wrist guards, and elbow pads, as well as non-slip shoes.

USER MANUAL IAN 93708 Playtive

www.lidl-service.com PDF online

SKATEBOARD

GB IE

SKATEBOARD

Instructions for use

SE

SKATEBOARD

Bruksanvisning

FR BE

SKATEBOARD

Mode d'emploi

DE AT CH

SKATEBOARD

Gebrauchsanweisung

FI

RULLALAUTA

Käyttöohje

DK

SKATEBOARD

Brugervejledning

NL BE

SKATEBOARD

Gebruiksaanwijzing

Line drawing of a skateboard with grid-patterned backboard and wheels (no text or symbols)

B 1 C 3 5 7 4 8 9 6 2

GB IE

Contents 4

Technical data 4

Correct use 4

Safety notes 4 - 5

Use 5

Maintenance 6

Care and storage 6

Disposal Information 6

3-year warranty 6-7

SE

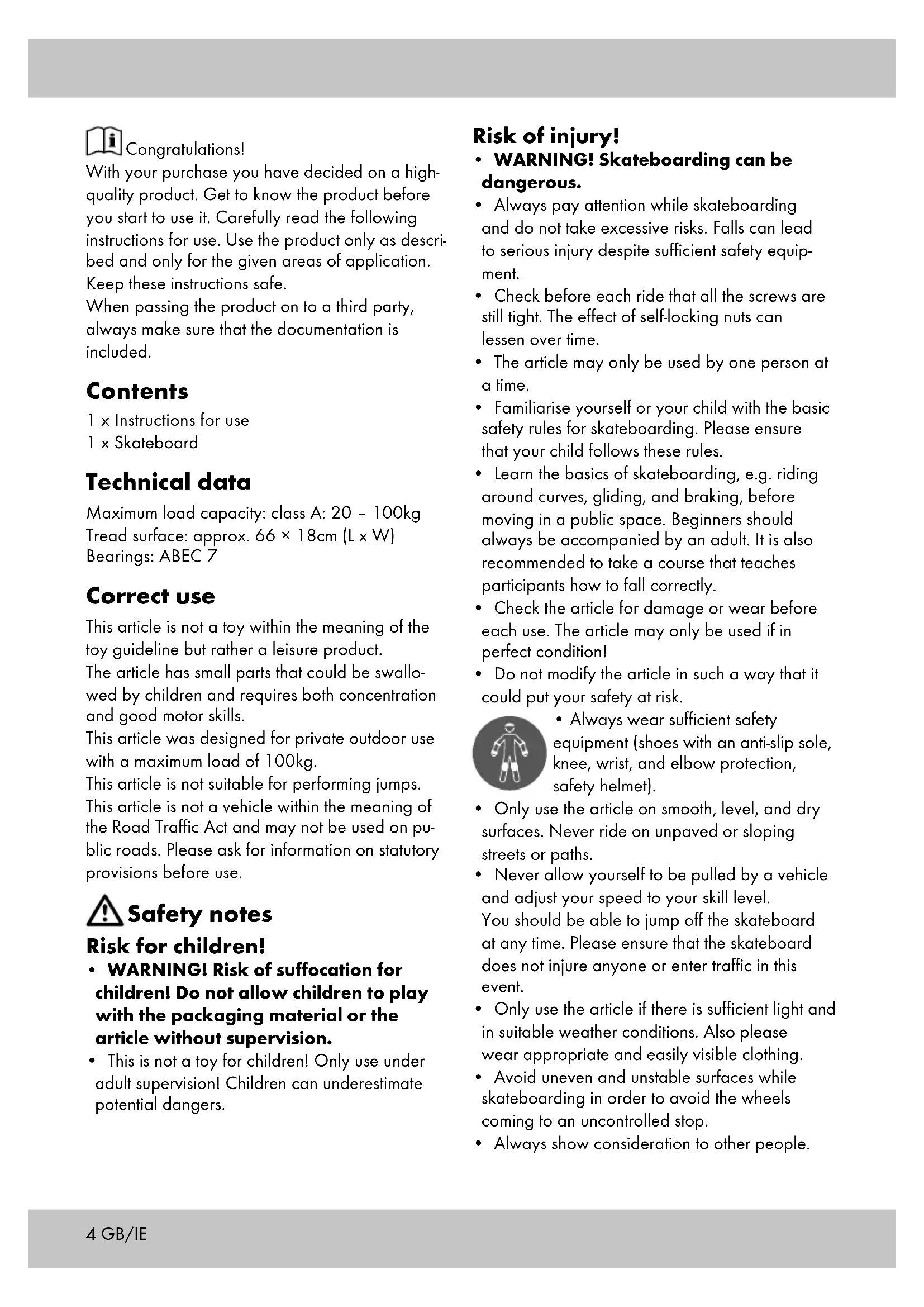

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully read the following instructions for use. Use the product only as described and only for the given areas of application. Keep these instructions safe.

When passing the product on to a third party, always make sure that the documentation is included.

Contents

1 x Instructions for use

1 x Skateboard

Technical data

Maximum load capacity: class A: 20 - 100kg

Tread surface: approx. 66 × 18cm (L × W)

Bearings: ABEC 7

Correct use

This article is not a toy within the meaning of the toy guideline but rather a leisure product.

The article has small parts that could be swallowed by children and requires both concentration and good motor skills.

This article was designed for private outdoor use with a maximum load of 100kg.

This article is not suitable for performing jumps.

This article is not a vehicle within the meaning of the Road Traffic Act and may not be used on public roads. Please ask for information on statutory provisions before use.

Safety notes

Risk for children!

- WARNING! Risk of suffocation for children! Do not allow children to play with the packaging material or the article without supervision.

- This is not a toy for children! Only use under adult supervision! Children can underestimate potential dangers.

Risk of injury!

• WARNING! Skateboarding can be dangerous.
• Always pay attention while skateboarding and do not take excessive risks. Falls can lead to serious injury despite sufficient safety equipment.
• Check before each ride that all the screws are still tight. The effect of self-locking nuts can lessen over time.
• The article may only be used by one person at a time.
• Familiarise yourself or your child with the basic safety rules for skateboarding. Please ensure that your child follows these rules.
• Learn the basics of skateboarding, e.g. riding around curves, gliding, and braking, before moving in a public space. Beginners should always be accompanied by an adult. It is also recommended to take a course that teaches participants how to fall correctly.
• Check the article for damage or wear before each use. The article may only be used if in perfect condition!
• Do not modify the article in such a way that it could put your safety at risk.

• Always wear sufficient safety equipment (shoes with an anti-slip sole, knee, wrist, and elbow protection, safety helmet).

• Only use the article on smooth, level, and dry surfaces. Never ride on unpaved or sloping streets or paths.
• Never allow yourself to be pulled by a vehicle and adjust your speed to your skill level.

You should be able to jump off the skateboard at any time. Please ensure that the skateboard does not injure anyone or enter traffic in this event.

• Only use the article if there is sufficient light and in suitable weather conditions. Also please wear appropriate and easily visible clothing.

• Avoid uneven and unstable surfaces while skateboarding in order to avoid the wheels coming to an uncontrolled stop.
  • Always show consideration to other people.

• Do not skateboard in traffic or among large groups of pedestrians.

• The article may not be used in rain, icy conditions and/or on gritted surfaces (e.g. sand).
• Although the article was designed for heavy impacts, damage cannot be ruled out following long-term use. As a skateboarder you are solely liable for any resulting risks.

Caution! Always inspect the article for any damage before use and undertake regular maintenance.

Caution! Only use original replacement parts and have repairs carried out by an expert. Do not carry out any modifications to the article that may put your safety in risk.

Caution! Check whether there are local regulations in force concerning the use of skateboards (possibly also with regard to required protective clothing) and observe them.

Use

Conduct while skateboarding

• Check the function of the wheels before each use and ensure that all screws are tight.
• Clean the ball bearings and the wheels regularly.
• Remain alert and careful at all times.
  • Always stay in control while riding.
• Always be in control of your speed. Only ride at a speed at which you are still in control of the skateboard and can safety dismount during the ride.
• Avoid stones, sand, gravel, water, oil, potholes, and very rough surfaces.

Tips for beginners

Most accidents happen in the first month. Please follow the tips below:

Caution! Practise initially on an anti-slip surface such as a carpet before moving to a faster surface.

• Get help from a second person during your initial test rides so that they can support you if necessary.
• Learn the basics of skateboarding, e.g. riding around curves, gliding, and braking, before trying difficult tricks.

Riding and braking

1. To get an initial feeling, stand on the skateboard in a relaxed position with your knees slightly bent and get a second person to pull you.

2. Once you feel safe and are able to keep your balance well, you can undertake your first attempts alone. Place one foot on the skateboard and push yourself off with the other foot. You can place your second foot on the skateboard when you have built up enough speed. To find the correct posture, stand with your upper body leaning slightly forwards, looking in your direction of travel, and with your body slightly sideways. Dismount from the skateboard in a controlled manner if you lose your balance. Only ride at a speed at which you can still control the skateboard.

3. For the next step try to roll the skateboard forwards using body movements.

4. Shift your body weight to the left or right to turn around a curve.
5. Practise 'tilting' the skateboard in order to turn or brake during the ride. At the same time, place one foot at the very back of the skateboard and shift your weight to this foot. The skateboard will tip down at the back.

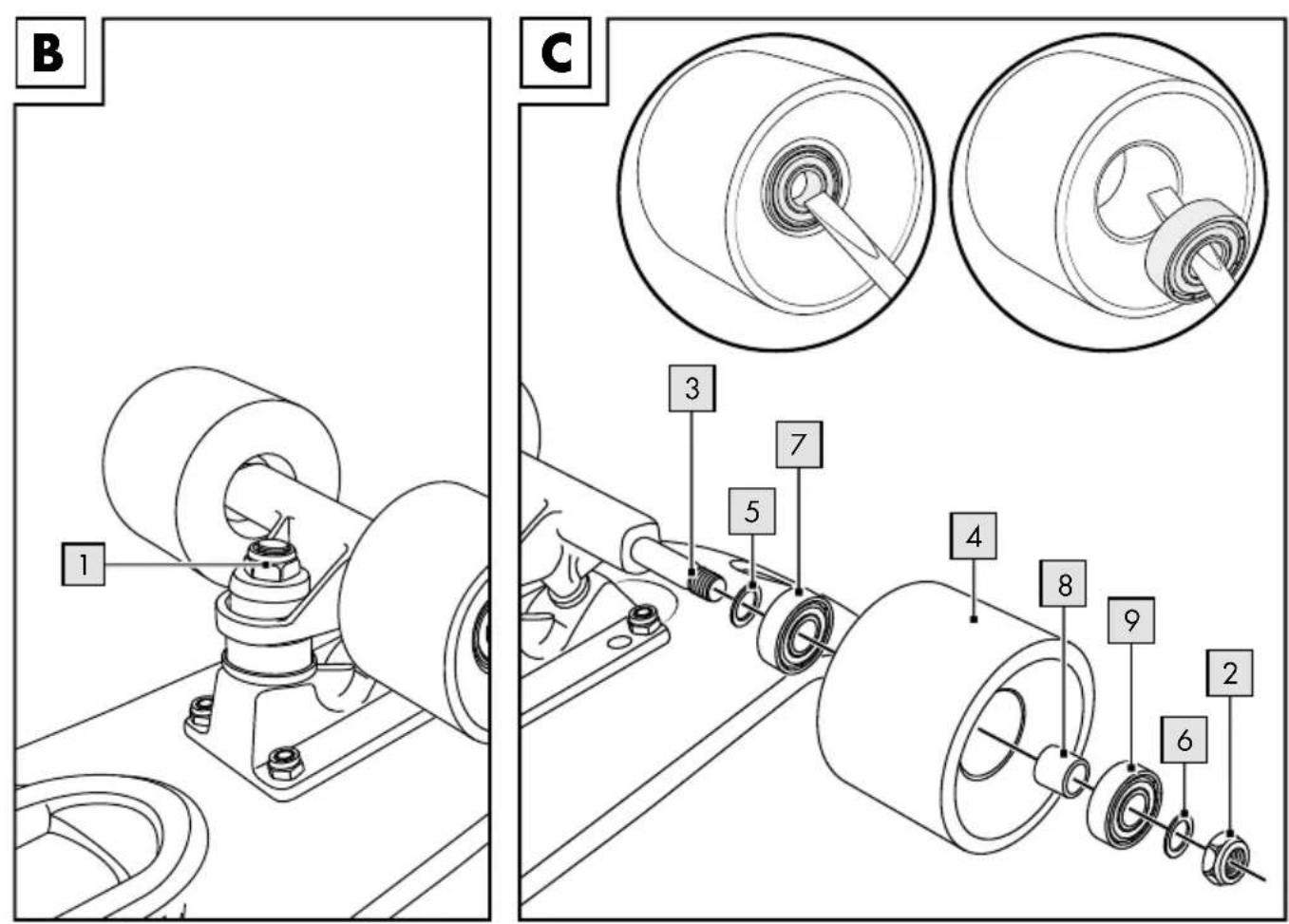

Setting the steering characteristics (figure B)

You can set the steering characteristics on the front axle and the back axle, choosing between a soft and a hard setting.

Soft setting:

Loosen the kingpin nut (1) slightly.

Hard setting:

Tighten the kingpin nut more securely.

Caution! – Risk of accident

In order to ensure the self-locking protection on the kingpin nut, the self-locking ring on the kingpin nut must be located completely on the screw.

Otherwise the nut can loosen during the ride.

Maintenance

Exchanging the wheels (figure C)

Wheels wear down. The wear depends on many factors such as the ground, the size and weight of the user, the weather conditions, the material of the wheels and their hardness. It is therefore necessary to exchange them at intervals.

Worn or unevenly worn wheels should always be exchanged in pairs. If you would like to use wheels with new ball bearings you must follow the following steps:

1. Release the axle nut (2) from the axle (3).
2. Remove the wheel (4) and place a new wheel with new ball bearings onto the axle. Do not forget the washers (5 and 6) on each side of the wheel.
3. Apply thread locking lacquer to the axle nut and tighten it. The wheel must not wobble, but not be tightened so securely that this blocks the wheel.

Cleaning and exchanging the ball bearings (figure. C)

The ball bearings should be checked at regular intervals and after riding on wet, dusty, or oily surfaces.

If the ball bearings have become wet then they must be dried with a cloth without fail. Exchange the ball bearings if they are damaged. Only use ball bearings that are authorised for this skateboard.

1. Remove the wheel as described.
2. Push out one set of ball bearings (7) carefully by pressing on the spacer (8) using a screw-driver and then remove the spacer.
3. Push out the other set of ball bearings (9) by pressing with a screwdriver. Please ensure that you do not damage the ring on the ball bearings with the tool and do not lose the spacer.

4. Insert the new set of ball bearings directly into the spacer and then insert this into the wheel. The ball bearings may not protrude or tilt.

5. Place the wheel on the axle. Be sure not to forget the washers.

6. Apply thread locking lacquer to the axle nut and tighten it.

Care and storage

• Look out for splinters, sharp edges, and cracks on the deck and remove them if necessary.
• Regular maintenance and cleaning contributes to the safety and preservation of the article.
• Always store the article in a clean, dry condition in a temperature-controlled room.
• Keep the tread surface clean to retain its anti-slip characteristics.
• Remove stones and other foreign bodies from the wheels.
• Clean only with water, never with aggressive cleaning agents. Then wipe it dry with a cleaning cloth. Dry wet or damp ball bearings with a clean cloth. Lubricate the ball bearings with a suitable lubricant (oil or grease) from the outside in order to prevent rust formation.

Disposal Information

Dispose of the product and all corresponding components through an approved waste disposal company or through your municipal waste disposal provider. Please observe the currently valid regulations. In case of doubt, ask your waste disposal provider about environmentally sound disposal.

3 years warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty. With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 271532

GB Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-mail: [e-mail]

You can also find spare parts for your product at:

www.delta-sport.com, category Service - Lidl Spare Parts Service
