Product type	Amplified Bluetooth speaker
Brand	Trevi
Model	Xjump XJ 90
Dimensions	184 x 67 x 67 mm
Weight	410 g
Rechargeable battery	Lithium 3.7 V, 2000 mAh
Power supply	Micro USB 5 V, 1 A
Charging time	Approximately 3 hours
Frequency response	90 Hz – 15 kHz
Signal-to-noise ratio	≥ 90 dB
Bluetooth – Max power	0.8 mW
Bluetooth – Frequency	2.4 GHz
Protection rating	IPX7
Main functions	Bluetooth, TWS, hands-free, Micro SD player, AUX input
Care and cleaning	Soft slightly damp cloth, avoid solvents
Safety instructions	Do not expose to water, heat, dust; do not block vents; do not use voltage higher than 5 V
Recommended charging temperature	5 °C to 35 °C
Average battery life	Variable depending on volume
Included accessories	Micro USB cable, user manual
Battery disposal	Removal by qualified personnel, mandatory recycling

Frequently Asked Questions - Xjump XJ 90 Trevi

How to turn on and off the Xjump XJ 90 speaker?

Press and hold the power button (button 1) for 3 seconds to turn the device on or off.

How to pair the speaker via Bluetooth?

Turn on the speaker: the white LED flashes. Enable Bluetooth on your mobile device and search for 'XJ 90'. Select it to pair. No password is needed, unless prompted: enter '0000'.

What to do if Bluetooth does not connect automatically?

Within 10 seconds of powering on, the speaker searches automatically. After that, you must manually connect via your device. You can also long-press the multifunction button (5) to disconnect/reconnect.

How to use TWS (True Wireless Stereo) function?

Turn on both speakers simultaneously. Press and hold the function selection + TWS button (button 3) on one of them until a beep. The speakers connect automatically. Then, search for 'XJ 90' on your phone.

How to recharge the battery?

Turn off the speaker. Connect the supplied micro USB cable to the DC IN port (port 8) and the other end to a 5V 1A charger. The LEDs indicate charging. Allow approximately 3 hours for a full charge.

What is the protection rating of the Xjump XJ 90?

The protection rating is IPX7, meaning it is resistant to temporary immersion in water up to 1 meter for 30 minutes.

How to clean the speaker?

Use a soft slightly damp cloth. Never use solvents or abrasive substances.

Can the speaker be used while charging?

It is not recommended to use it while charging to avoid damaging the battery. The device must be turned off during charging.

How to switch to AUX mode?

Connect a Jack/Jack audio cable (not supplied) to the AUX IN input (port 9) and to your audio source. The speaker automatically switches to AUX mode. Control playback from your external device.

What to do if the speaker does not turn on?

Check that the battery is charged. Plug it into a charger. If the problem persists, contact a TREVI authorized service center.

USER MANUAL Xjump XJ 90 Trevi

Users's guide - English

- Amplified Bluetooth speaker

Black Xiaomi 3.0 smartphone with visible sound waves and a strap (no text or symbols on body)

FUNZIONE TWS (TRUE WIRELESS STEREO)

Do not use power supply with a voltage higher than 5V, cause damage to the player.

• Listen at high volume for long periods of time, may damage your hearing.
• Avoid using it in the following cases:
• Near strong heat sources, such as central heating plants or stoves.
• In very humid places such as bathrooms, swimming pools, etc.
• In very dusty places.
• In places subject to strong vibrations.
• Position the appliance in such a way that there is always enough room for free air circulation (at least 5cm).
• Do not block the air inlets.
• If any liquid enters the appliance, unplug it immediately from the socket and take it to the nearest TREVI authorised service centre.
• Before switching on the appliance, always check that the power cable and the connection cable are properly installed.
• No naked flame sources, such as lighted candles, should be placed on this.
• The apparatus shall not be exposed to dripping or splashing water and no object filled with water, such as vases, should be placed on the unit.
• Keep this manual for future reference.

CARE AND MAINTENANCE

For cleaning it is recommended to use a soft, slightly damp cloth. Avoid solvents or abrasive substances.

English

IMPORTANT

The construction of this device guarantees long flawless operation. However, if come some problem, you should consult your nearest authorized service center.

TREVI pursues a policy of continuous research and development. Therefore, the products may show different characteristics from those described.

WARNING FOR A CORRECT USE OF RECHARGEABLE BATTERY

• Recharge the battery in an ambient temperature between 5°C and 35°C.
• Don't recharge more than the suitable period to prevent the risk of overheating and burst.
• Recharging the battery over the suitable period or an extended period of inactivity may reduce battery duration.
• Rechargeable battery is liable to wear and tear and its performance will reduce gradually.
• To extend the duration of the battery use it when is completely charged up to the complete discharging, then recharge it fully before use it again. Recharge a battery not completely consumed, will result in a reduced duration. In this case, repeat the full charging/discharging cycle many times.
• Avoid recharge the battery for the whole night.

CONTROLS

English

1 xJ

6 9 10

1. Power button
2. Call microphone
3. button: Mode + TWS
4. • button: short press VOL+, long press Next song
5. ▶ button: Multifunction

- short press Play/Pause

- When call coming: short press to answer or end a call. Long press to call rejection. Double

click to callback.

1. = button: short press VOL-, long press PREV song
2. 4 levels LED battery indicator
3. DC charge port (micro USB)
4. AUX IN 3.5mm Jack
5. Micro SD card slot

English

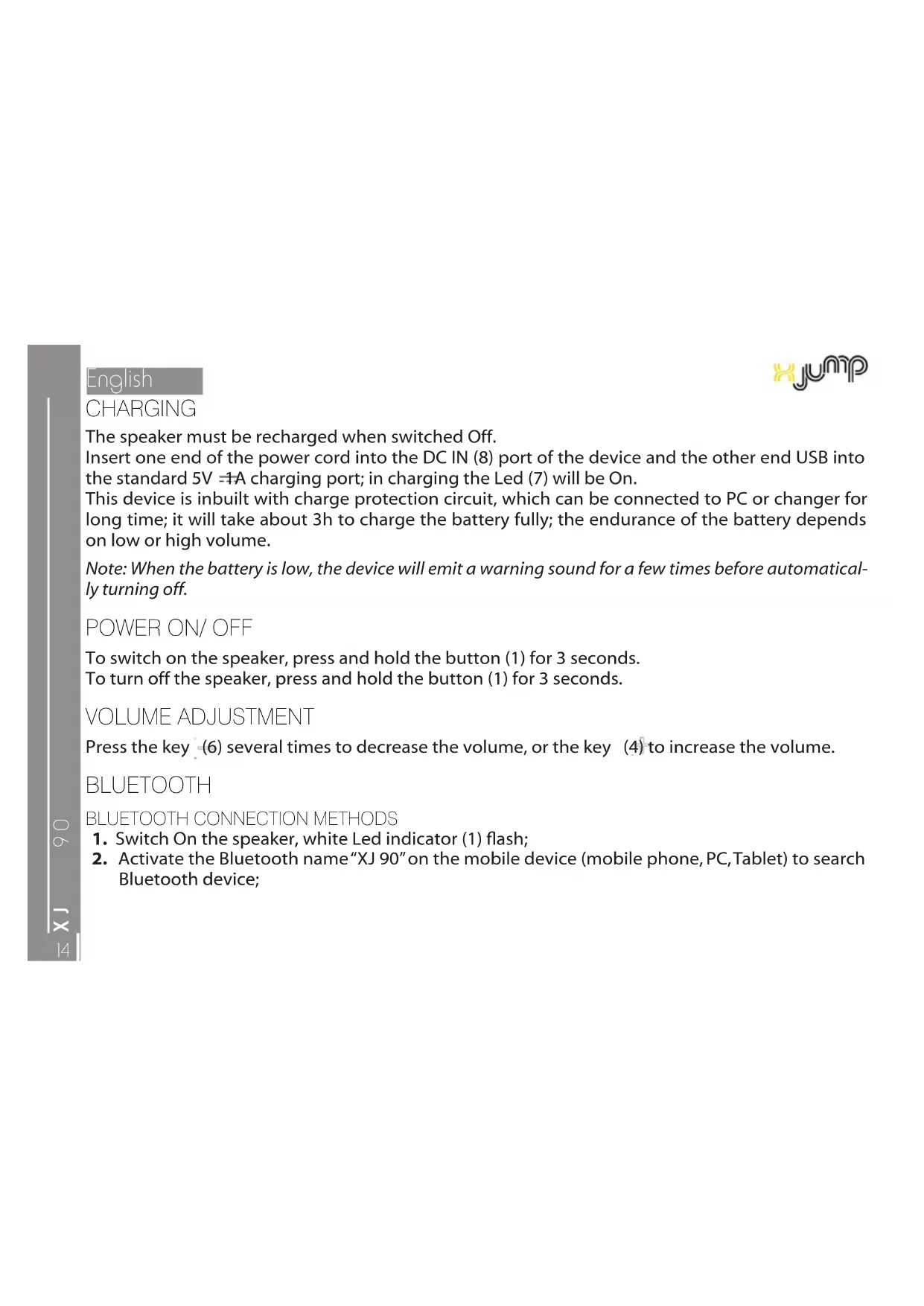

CHARGING

The speaker must be recharged when switched Off.

Insert one end of the power cord into the DC IN (8) port of the device and the other end USB into the standard 5V =1A charging port; in charging the Led (7) will be On.

This device is inbuilt with charge protection circuit, which can be connected to PC or changer for long time; it will take about 3h to charge the battery fully; the endurance of the battery depends on low or high volume.

Note: When the battery is low, the device will emit a warning sound for a few times before automatically turning off.

POWER ON/OFF

To switch on the speaker, press and hold the button (1) for 3 seconds.

To turn off the speaker, press and hold the button (1) for 3 seconds.

VOLUME ADJUSTMENT

Press the key (6) several times to decrease the volume, or the key (4) to increase the volume.

BLUETOOTH

BLUETOOTH CONNECTION METHODS

1. Switch On the speaker, white Led indicator (1) flash;
2. Activate the Bluetooth name "XJ 90" on the mobile device (mobile phone, PC, Tablet) to search Bluetooth device;

English

1. With manual click, the device will automatically pair and connect: successful connection will deliver reminding tone. (In general case, no password is needed; for special mode, output password, input "0000");
2. The successfully paired device can be automatically connected for the next switch-on.

Note:

• Whithin 10s after entering Bluetooth mode, the Bluetooth will automatically seek for the device and pair for connection; after 10s, it needs to be connected manually.
• Long press key (5). Bluetooth headset can be disconnected/reconnected.

COMANDS AVAILABLE IN BLUETOOTH MODE

• Press and hold the key + (4) for a few seconds to go to the next song, keep the key = (6) pressed for a few seconds to go to the previous song;
• Press the button (5) to pause, press it again to resume playback.

HANDS-FREE MODE FOR CALLS

If connected to a telephone, you will hear a beep when a call is received.

• Press the key (5) once to open the call and activate the hands-free function, press it again to end the call;
• Double click on the button (5) to recall the last number.

English

TWS PAIRING METHODS

1. Power On the Bluetooth speakers at the same time, then the LED indicator quick flashing;
2. Press and hold (3) button of any device and the device will issue a prompt sound. At this time, the device is in the pairing mode;
3. The two speakers will connect automatically and you should hear the indicator tone. When the status light indicator is in white, the TWS has connected successfully;
4. Under connection, search Bluetooth device and select "XJ 90".

Note: Using the TWS function must get the two device paired at first then continuing the Bluetooth function.

1. Turn on the speaker;
2. Insert a micro SD card into the slot (10) holding the contacts facing upwards;
3. Playback will start automatically;
4. Press and hold the key + (4) for a few seconds to go to the next song, press and hold = (6) button for a few seconds to go to the previous song;
5. Press the button ▷ (5) to pause, press it again to resume playback.

AUX IN

1. Connect the Jack/Jack audio cable (NOT supplied) to the AUX jack (9) and the other end to the external device. The device will automatically go to AUX mode;
2. Start from the external device playback.

English

TECHNICAL SPECIFICATIONS

Rechargeable Battery: Internal Lithium 3.7V, 2000mAh

Power supply: 5V = 1A

Power audio: 24W

Frequency response: 90Hz - 15KHz

S/N ratio: ≥90 db

Distortion factor: <1%

Impedance: 4Ω

Max Bluetooth power transmission: 0,8mW

Bluetooth transmission frequency: 2,4GHz

Index protection: IPX7

Dimensions: 184 x 67 x 67mm

Weight: 410gr

INFORMATION ON THE REMOVAL AND DISPOSAL OF BATTERIES

Warning: the operation of removal and disposal is reserved to technical personnel!

Whatever type of battery used up, it should never be placed in household waste, fire or water. Each type of used battery must be recycled or disposed of at an appropriate dedicated collection points.

To remove the battery:

1. Remove the cover grille above the speakers;
2. Unscrew all the screws present and separate the front part of the cabinet from the rear one;
3. Identify the battery, remove it and replace it with one of the same characteristics and capacity.

English

PRECAUTIONS FOR CORRECT DISPOSAL OF THE PRODUCT

The symbol shown on the equipment indicates that waste must be disposed of in "separate collection" and so the product must not be disposed of together with urban waste.

The user must take the product to special “separate waste collection centres” provided by local government, or deliver it to the retailer against the purchase of a new product.

Separate collection of waste and subsequent treatment, recycling and disposal operations promotes the production of equipment with recycled materials and limits negative effects on the environment and on health caused by improper handling of waste.

Illegal disposal of the product leads to the enforcement of administrative penalties.

Français

REMARQUES D'UTILISATION

Alimentation: 5V = 1A

Puissance audio: 24W

RECOMMANDATIONS POUR L'ÉLIMINATION CORRECTE DU PRODUIT.

Warning: the operation of removal and disposal is reserved to technical personnel!

Simplified EU Declaration Of Conformity

Hereby TREVI S.p.a declares that the appliance model XJ 90

is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

https://www.trevi.it/dms/zidi/TREVI/DOCXJ90.pdf
