Product Type	Juice Extractor and Versatile Food System
Brand	Omega
Model	MM1500
Power Supply	120 V ~ 50/60 Hz, 200 W
Rotation Speed	80 RPM
Motor	2 HP
Dimensions (L x W x H)	154 x 470 x 312 mm
Net Weight	6.7 kg
Cord Length	1.5 m
Rated Operating Time	Less than 30 minutes
Main Functions	Juicing (fruits/vegetables/wheatgrass/celery), chopping, mincing, nut butters, nut/soy milks, baby food, frozen desserts, pasta, bread sticks
Press Screw Material	BPA-free Ultem
Included Parts	Pusher, hopper, drum, press screw, juice filter, blank cone, end caps (adjustable and for celery), 4 pasta nozzles, 2 bread stick nozzles, strainer, cleaning brush, pulp and juice containers
Maintenance and Cleaning	Removable parts (except drum) dishwasher safe (top rack). Monthly deep cleaning: soak in warm soapy water (max 60°C) for 30 minutes
Safety	Grounding required, reset switch and thermal cutoff, automatic shut-off, reverse button (REV)
Warranty	See Omega warranty document

Frequently Asked Questions - MM1500 OMEGA

How to assemble the Omega MM1500 juice extractor?

Insert the press screw into the drum, place the juice filter over it, then the blank cone or end cap depending on use. Secure the safety clip and lock the hopper. Plug in the appliance and turn it on.

What to do if the press screw stops working?

Press the REV (reverse) button for 3 to 5 seconds, then release. Repeat 2 to 3 times. If the problem persists, unplug the appliance, disassemble and clean the drum.

How to clean the extractor after use?

Unplug the appliance. Wash the removable parts (except the drum) with warm soapy water or in the dishwasher (top rack). Use the cleaning brush for the filter. Dry completely before reassembling.

Can you extract celery juice with this appliance?

Yes, use the celery juice end cap (green ring). Do not produce more than 473 ml of juice without cleaning the cap. Keep the stalks whole.

What types of pasta can be prepared with the MM1500?

Use the included pasta nozzles: round, oval, flat, or for bread sticks. Prepare the dough by hand, then extrude it through the food system with the blank cone.

Is the appliance noisy or does it vibrate?

A slight trembling is normal due to the rotation of the screw. Hard ingredients (carrots, beets) may accentuate vibrations. This is not a defect.

What to do in case of juice leakage on the base?

Check that you are not overloading the hopper. Push food gradually. Ensure the juice flap is closed. A leak can also come from excess pulp.

How to make nut butter with the MM1500?

Use the blank cone and the empty end cap. Pass the nuts (without skin) 2 to 3 times until smooth. Optionally add a little oil.

Can the appliance chop meat?

No, the appliance is not designed for chopping meat. It can mince fish or herbs, but not raw meat.

Where to find additional recipes?

Visit the official website www.OmegaJuicers.com or the recipe pages in the manual. The manual includes recipes for juices, nut butters, milks, desserts, and baby food.

USER MANUAL MM1500 OMEGA

Black Omega brand hairdryer with a cylindrical head and lever, shown against a white background (no text or symbols on the device body)

MM1500

USER MANUAL

Multi-Use Juicer and Nutrition System®

LOW SPEED MASTICATING JUICER

MODE D'EMPLOI

Presse-Agrumes Multi-Usage et Nutrition System®

CONGRATULATIONS on the purchase of your new Omega product.

At Omega, we strive to develop technologically advanced machines that help deliver nutrition and flavor of the highest kind and closest to nature's purest form.

We are driven by you, our brand supporters. Your enthusiasm helps us continue to reinventandrenewourlineofjuicers,highspeedblendersandbeverageequipment.

Our team at Omega thanks you for supporting us for over 50 years!

www.omegajuicers.com/omega-warranty-registration

RECIPES, VISIT:

www.omegajuicers.com/recipes

CUSTOMER SERVICE:

Visit www.omegajuicers.com

After using your Omega, we kindly ask you to rate the machine on

www.OmegaJuicers.com

TABLE OF CONTENTS

02 - 03 Important Safeguards

04 - 05 Know Your Omega

06 - 07 Quick Start Assembly

08 - 09 Operating Instructions

10 - 11 OperatingNotes

12 - 13 Cleaning

14 - 17 Precautions for Safe Use

18 - 19 If the Auger Stops Working

20 - 25 How To Prepare

21 Celery

21 Fruits And Vegetables

22 Wheatgrass And Greens

22 Mincing And Chopping

23 Nut Butters

25 Pasta and Breadsticks

26 - 27 Troubleshooting

28 - 29 Product Specifications

30 - 41 Recipes

42 - 83 French

84 - 125 Spanish

Omega COLD PRESS 365®

IMPORTANT SAFEGUARDS

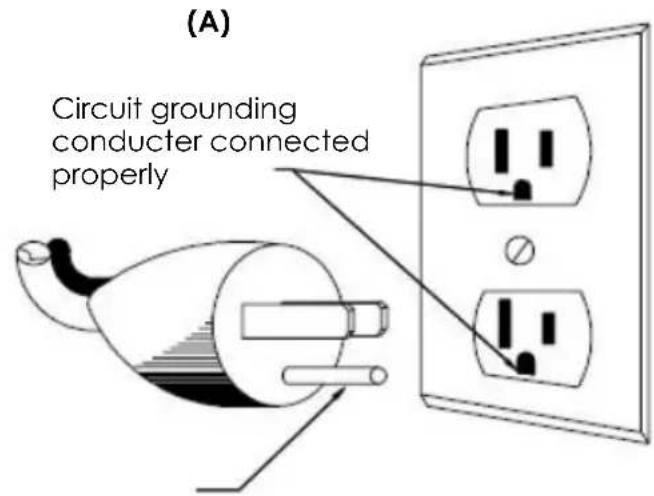

WARNING: GROUNDING INSTRUCTIONS

This appliance must be grounded while in use to protect the operator from electrical shock. The appliance is equipped with a 3-conductor cord and a 3-prong grounding-type plug to fit the proper grounding-type receptacle. The appliance has a plug that looks like sketch A in Figure 73.1. An adaptor, sketch B, should be used for connecting sketch A plugs to two-prong receptacles. The grounding tab which extends from the adaptor must be connected to a permanent ground such as a properly grounded outlet box as shown in sketch C using a metal screw.

FIGURE 73.1

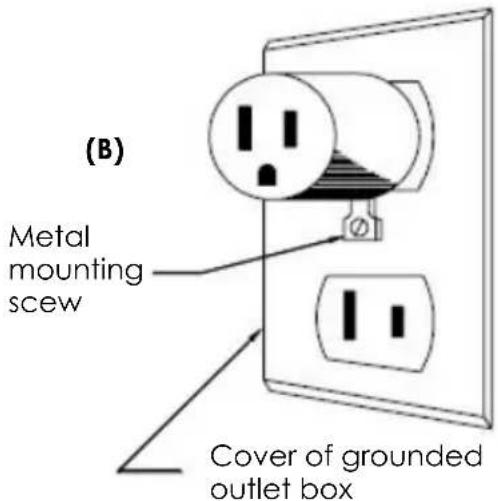

Grounding Methods

(A) Circuit grounding conductor connected properly

(B) Metal mounting screw Cover of grounded outlet box

(C)
ADAPTER

Technical line drawing of a cylindrical device with internal components and a base, labeled 'IS' at the bottom (no text or symbols on the diagram itself)

Grounding means
AA220

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following.

1. READ ALL INSTRUCTIONS BEFORE USING.
2. To protect against electrical shock, do not immerse cord, plug, or main body (motor) in water or other liquid.
3. The appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of appliance by a person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
5. Avoid contact with moving parts. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the manufacturer (see warranty) for examination, repair, or electrical or mechanical adjustment.
7. The use of attachments not recommended or sold by manufacturer may cause fire, electric shock or injury.
8. Do not let cord hang over edge of table or counter or touch heated surfaces.
9. Always make sure juicer cover is clamped securely in place before motor is turned on. Do not unfasten clamps while juicer is in operation.
10. Be sure to turn switch to OFF position after each use of your juicer. Make sure the motor stops completely before disassembling.
11. Do not put your fingers or other objects into the juicer while it is in operation. If food becomes lodged in opening, use food pusher or another piece of fruit or vegetable to push down the lodged food. When this method is not possible, turn off the machine, remove the plug from wall outlet and disassemble juicer to remove the remaining food.
12. Do not use outdoors.
13. Do not place on or near a hot gas or electric burner or in a heated oven.
14. Do not use appliance for anything other than its intended use.
15. Keep hands and utensils away from moving blades or discs while processing food to reduce the risk of severe injury to persons or damage to the food processor. A scraper may be used but must be used only when the food processor is not running.
16. Blades are sharp. Handle carefully.
17. Keep the appliance clean. Refer to the Care & Cleaning instructions in this manual.
18. DO NOT plug in until familiar with all the instructions and operating procedures.
19. DO NOT unplug from electrical outlet by pulling on the cord. To unplug, grasp the plug, not the cord, and pull.
20. Turn off all controls before unplugging from or plugging into an electrical outlet.
21. This appliance can not grind meat.
22. Check hopper for presence of foreign objects before using.
23. Moving parts – Keep fingers out of discharge openings.
24. Sharp blade – Always use food pusher.
25. Rated operating time – Less than 30 minutes.

SAVE THESE INSTRUCTIONS

Omega COLD PRESS 365®

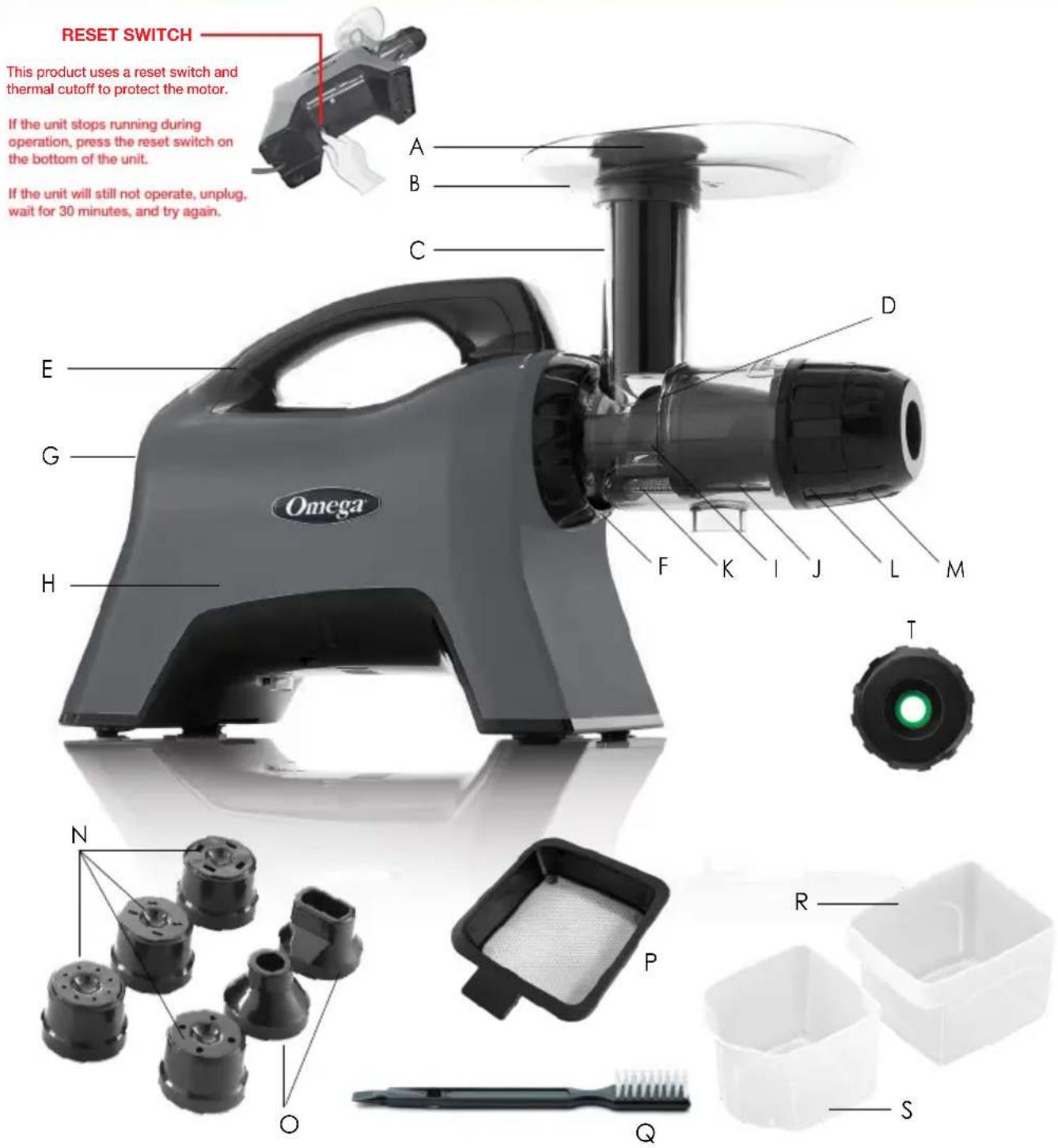

KNOW YOUR OMEGA

KNOW YOUR OMEGA

RESET SWITCH This product uses a reset switch and thermal cutoff to protect the motor. If the unit stops running during operation, press the reset switch on the bottom of the unit. If the unit will still not operate, unplug, wait for 30 minutes, and try again. A B C D E G H F K I J L M T N O P R S Q

A Pusher
B Hopper
C Chute
D Drum
E Handle
F Locking Clip
G On/Off Button (In Rear)

H Housing
I Auger (Inside Drum)
J Blank Cone (Inside Drum)
K Juicing Screen (Inside Drum)
L Blank End Cap
M Adjustable End Cap
N 4 Pasta Nozzles

2 Breadstick Nozzles
P Sieve
Q Cleaning Brush
R Pulp Container
s Juice Container
Celery Juice End Cap

Omega COLD PRESS 365

QUICK START ASSEMBLY

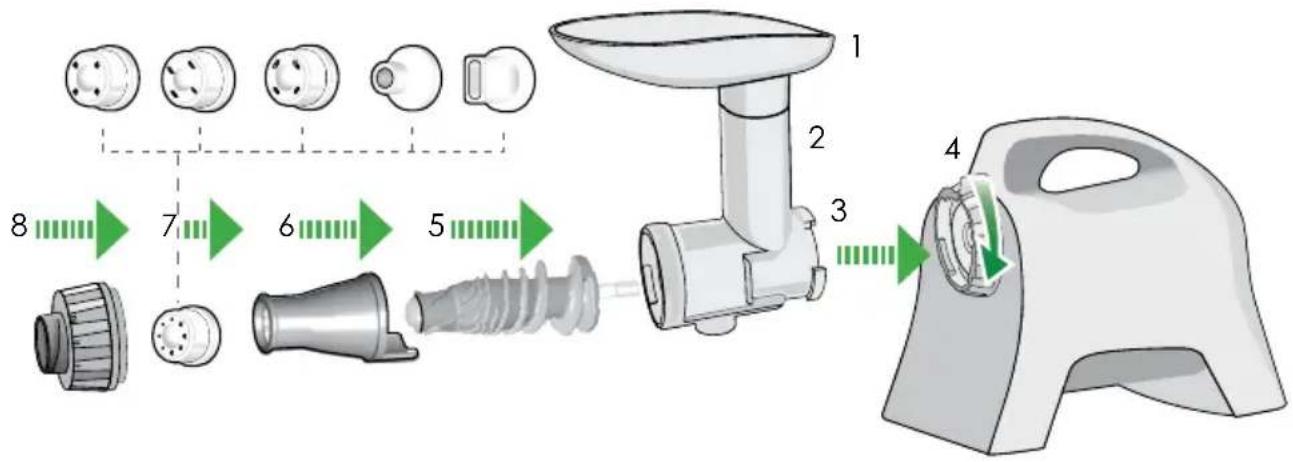

YOUR JUICER INCLUDES 2 ADJUSTABLE END CAPS

Close-up of a black circular mechanical component with a green center and textured outer ring (no text or symbols visible)

CELERY JUICE END CAP

Use this cap ONLY for celery

Circular black mechanical component with a central hole, no visible text or symbols

Use this cap for all other fruits & vegetables

ADJUSTABLE END CAP

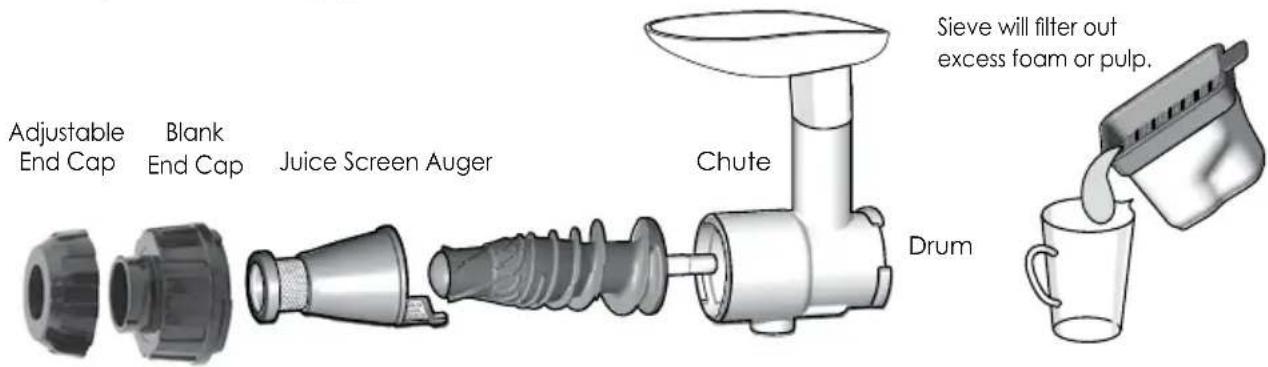

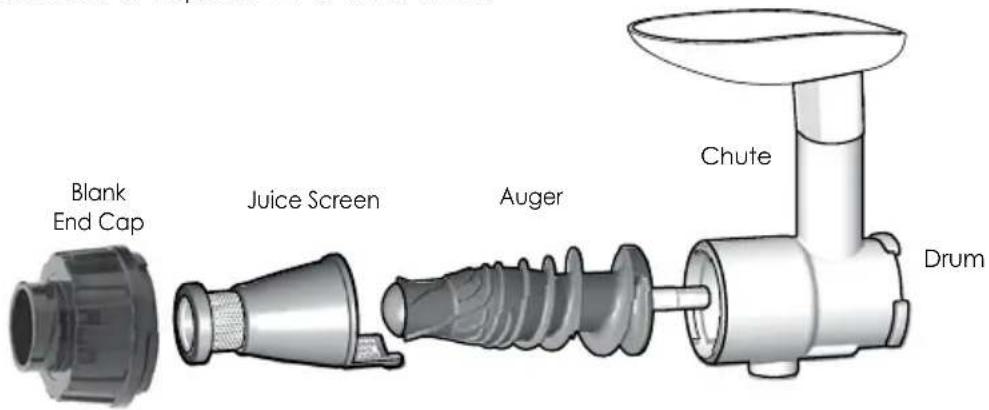

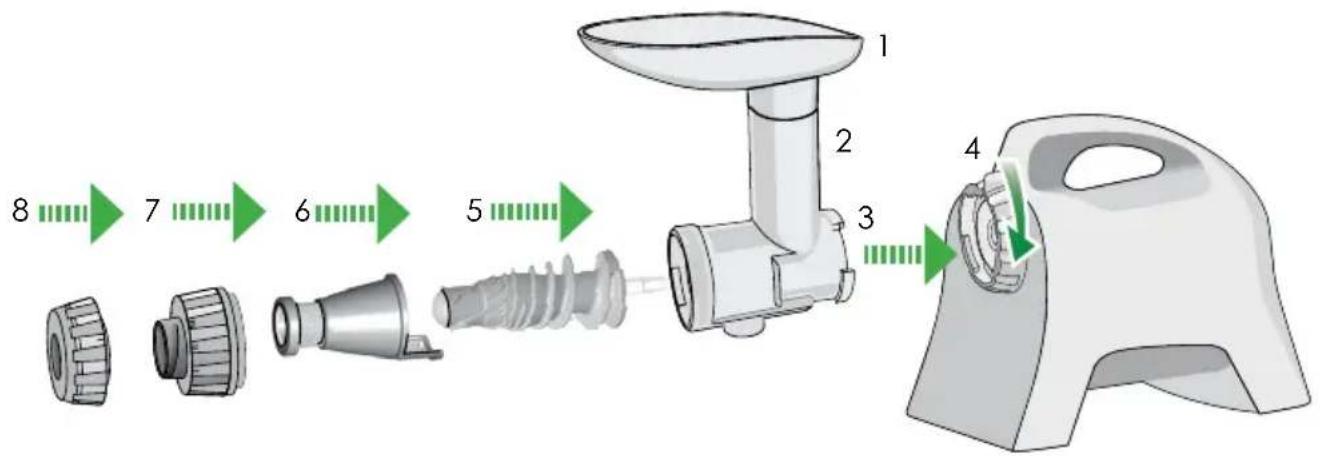

FOR JUICING

8 7 6 5 1 2 3 4

1 Hopper
2 Chute
3 Drum
4 Locking Clip
5 Auger

6 Juice Screen
7 Blank End Cap
8 Adjustable End Cap
9 Pulp Container
10 Juice Container

Illustration of a small manual brush with a side box, no text or symbols present

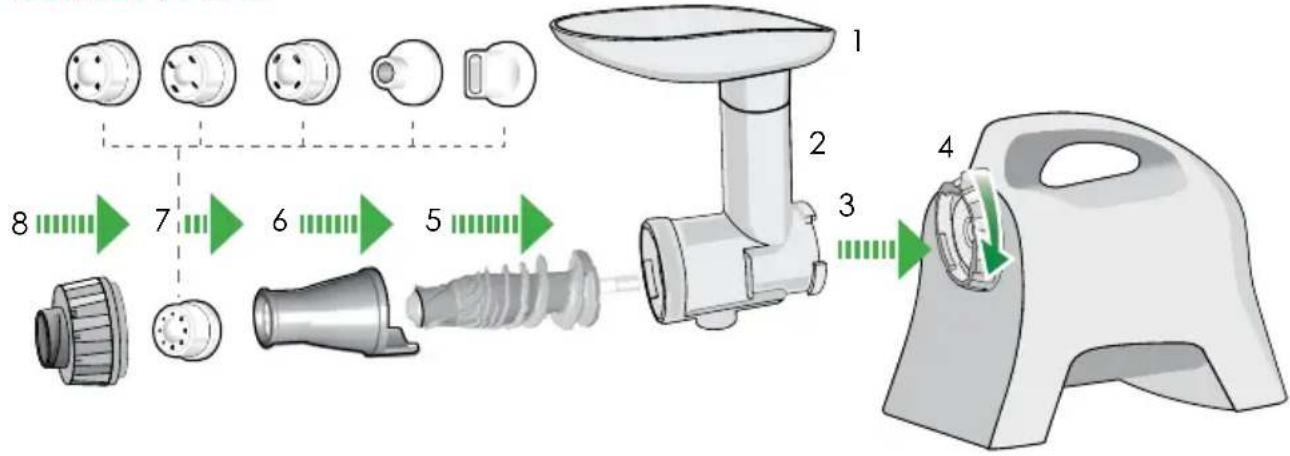

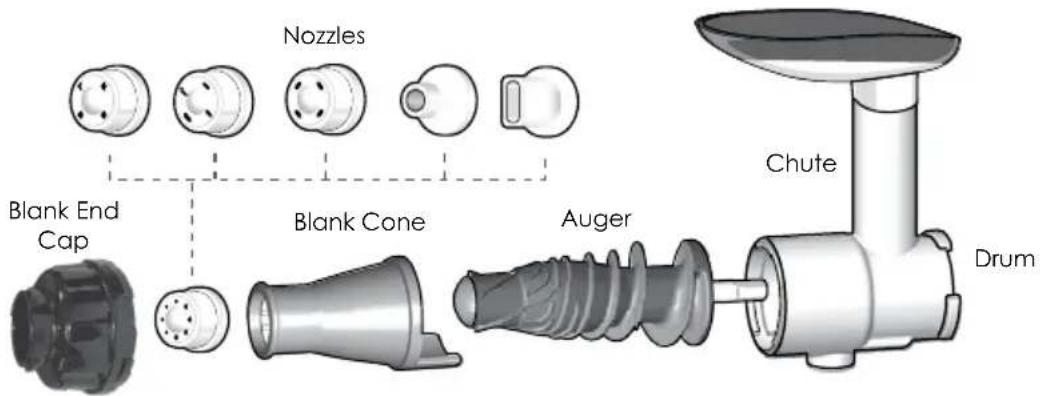

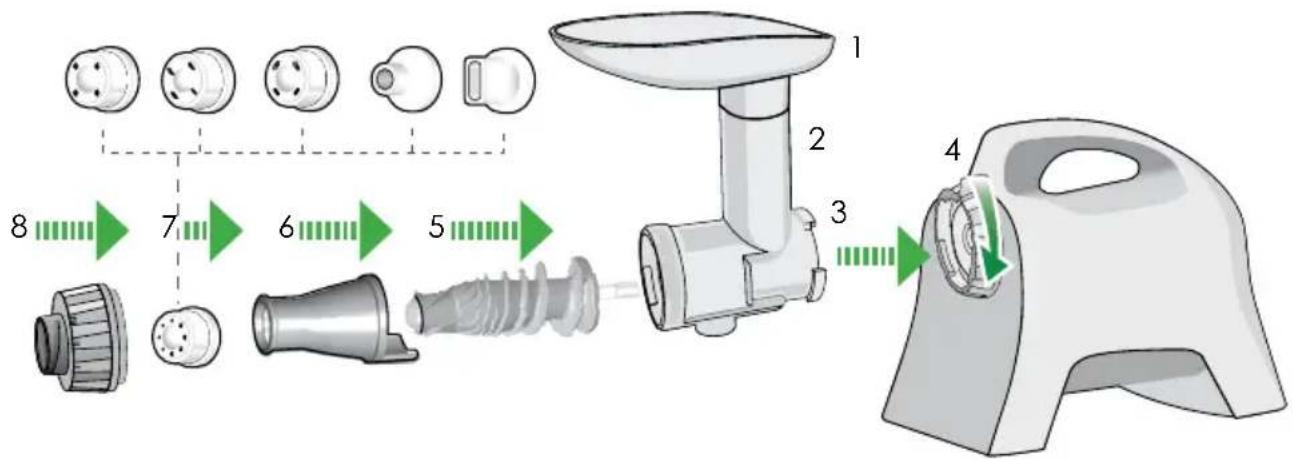

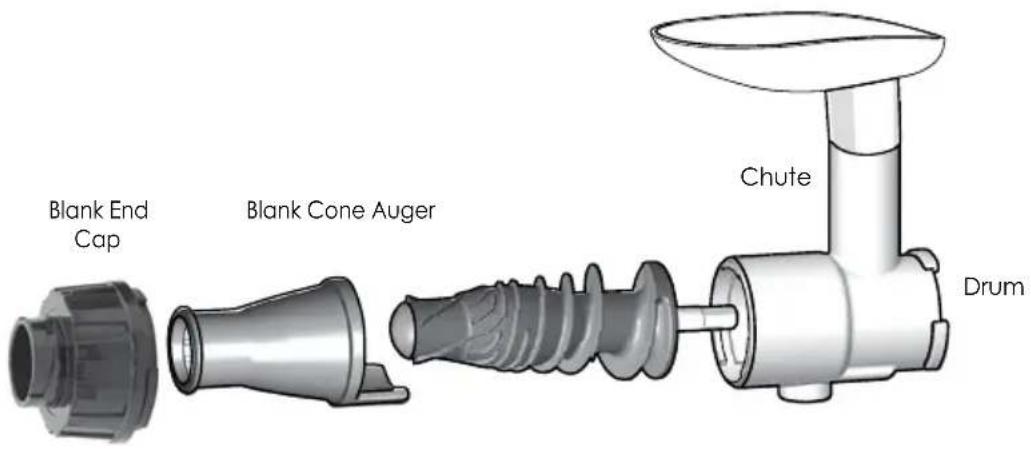

FOR FOOD PROCESSING

Diagram illustrating the assembly of a kitchen knife with numbered parts and directional arrows indicating assembly steps.

1 Hopper
2 Chute
3 Drum
4 Locking Clip
5 Auger

6 Blank Cone
7 Nozzle Options
8 Blank End Cap
9 Pulp Container

Illustration of a manual hand mixer with a small container, no text or symbols present

Omega COLD PRESS 365®

OPERATING INSTRUCTIONS

OPERATING INSTRUCTIONS

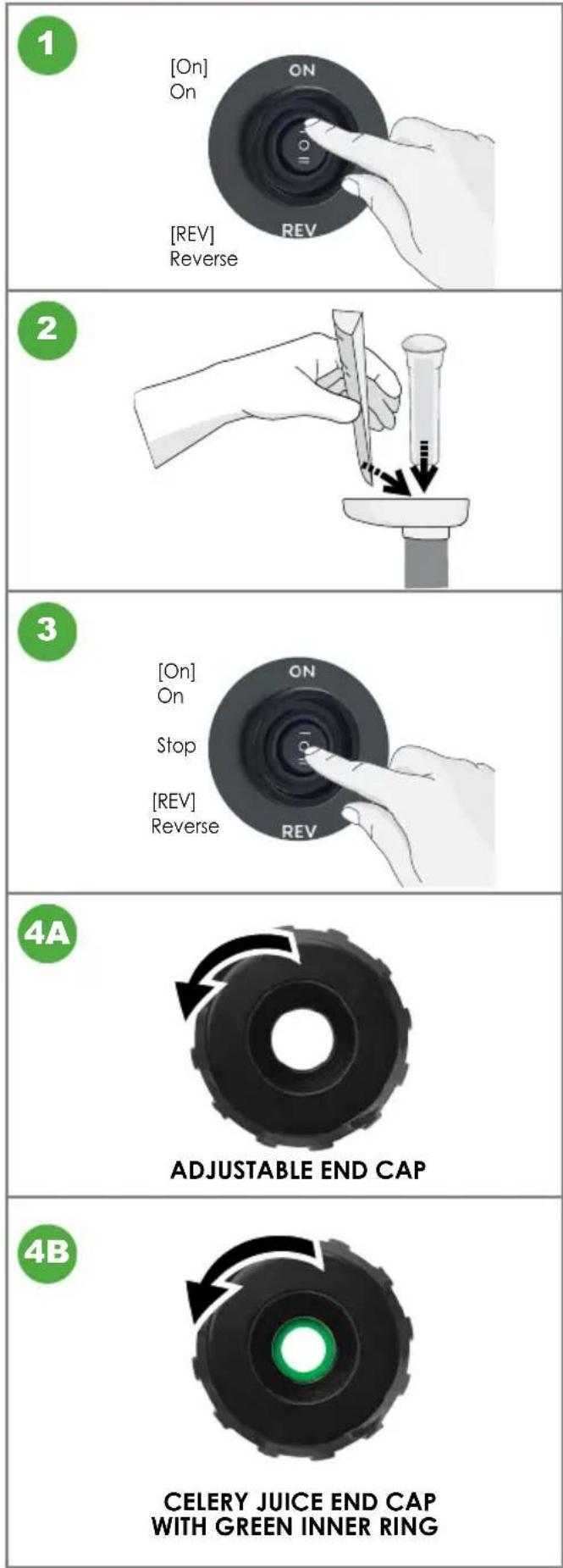

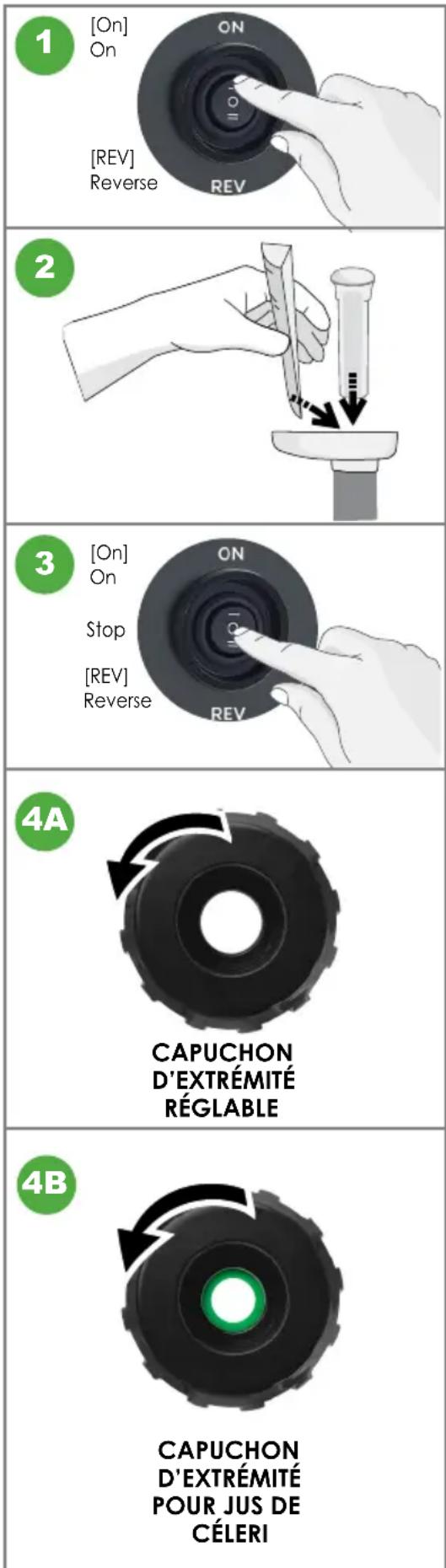

JUICING FUNCTION

Press [ON] button on the back of the Omega® Nutrition System to start.

Gradually put the ingredients into the hopper chute and press down with the pusher.

DO NOT place any metal objects into the hopper. If the drum set is clogged or the machine stops operating, press the reverse button 2 to 3 times and press the ON button again to resume normal operation.

After the extraction or processing is complete, place the switch in the stop position to stop.

WARNING When using [ON] or [Rev]

button, make sure that the auger stops completely.

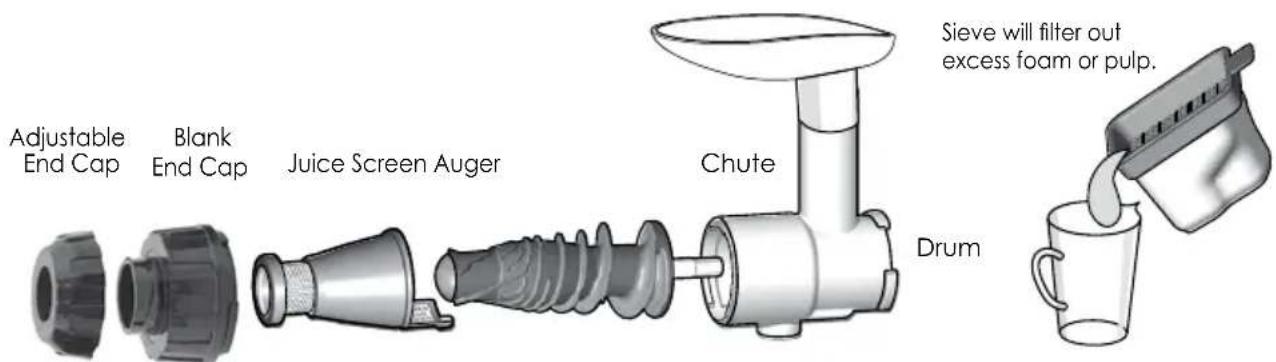

Your adjustable end cap is to be used when juicing all fruits and vegetables other than celery. When juicing harder produce, turn the adjustable end cap counterclockwise to tighten the squeeze, increasing the pressure. For softer, or pulpy produce, turn the adjustable end cap clockwise to loosen the pressure.

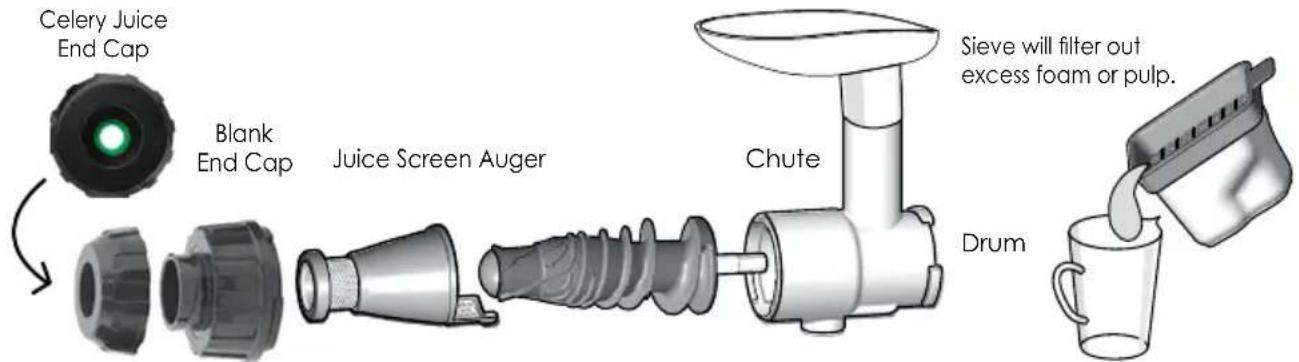

Your celery juice end cap is to be used ONLY for juicing celery. It is NOT to be used for juicing any other type of fruit or vegetable. It includes a special green inner ring to facilitate celery juicing. Take care not to lose this insert and be sure to clean it after each use. Turn the end cap counter clockwise to tighten the squeeze, increasing the pressure. Turn the end cap clockwise to loosen the pressure.

Omega COLD PRESS 365®

OPERATING NOTES

OPERATING NOTES

This heavy-duty nutrition system features a patented, stone mill-like auger, made of hygienic BPA-free Ultem. The low speed of 80 RPMs ensures full taste and the highest nutritional value.

• FRUIT JUICE. Efficiently juices hard and soft fruits: even citrus fruits.
• VEGETABLE JUICE. Juices all kinds of vegetables including carrots, beets, celery, peppers, and radishes without destroying the natural flavor and nutritional benefits. Fresh taste and full nutrition are guaranteed with this unique extraction process.
• WHEATGRASS AND LEAFY GREENS. Kale, cabbage, spinach and pine tree needles are just some of the natural products that can be juiced. Enjoy the best that nature offers in raw foods and juice them for full nutritional benefits.
• CELERY. Celery is the most common of herbs that can be juiced. Extract liquid from raw celery stalks.

While you can juice fruits, vegetables, leafy greens and herbs to make one tasty drink, you may occasionally (or always) only juice one type to concentrate a fruit, vegetable or herb's health enhancing benefits.

When juicing celery, keep the celery stalks as whole as possible. Do not cut the celery into small pieces.

When using the celery juice end cap, do not make more than 16oz. of celery juice at a time without cleaning the endcap. If dry pulp stops juice flow, loosen celery end cap. Remove the end cap and clean it before continuing to juice.

• FOOD PROCESSOR. Chops and minces, providing natural flavor and nutrition from garlic, scallions, red pepper, ginger, and most other foods, including herbs and seasonings. Soft foods for special diets for babies are quick and easy to prepare with the homogenizer set-up.
• NUT BUTTERS. Make almond butter, peanut butter, sunflower seed butter and more while using all-natural ingredients.
• NUTS & SOY MILKS. Use almonds, pecans, cashews, hazelnuts, or any other of your favorites to create nutritious milks. You can also make coconut milks.
• DESSERT MAKER. Make all-natural, dairy free, gluten free, low fat, low sugar, low calorie desserts that taste like your favorite ice creams or frozen treats.

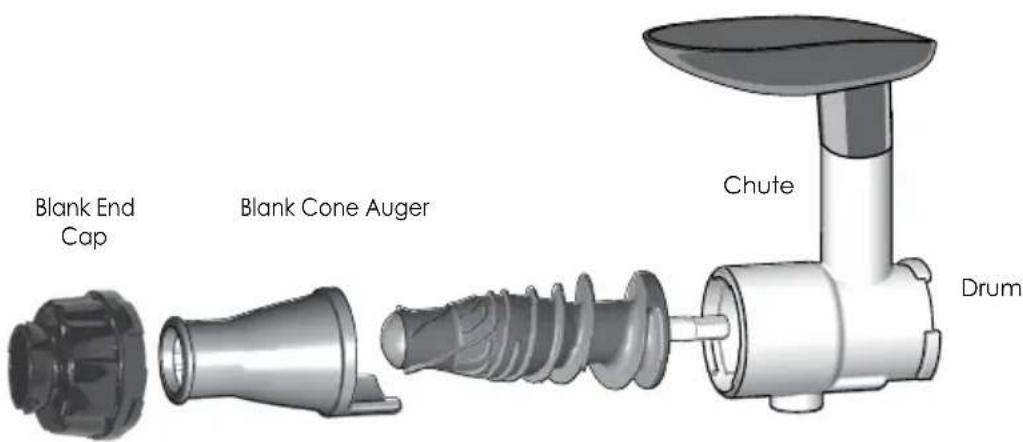

• BABY FOODS. Make homemade baby food knowing that you are giving your baby fresh produce that is nutritious and easily digestible.

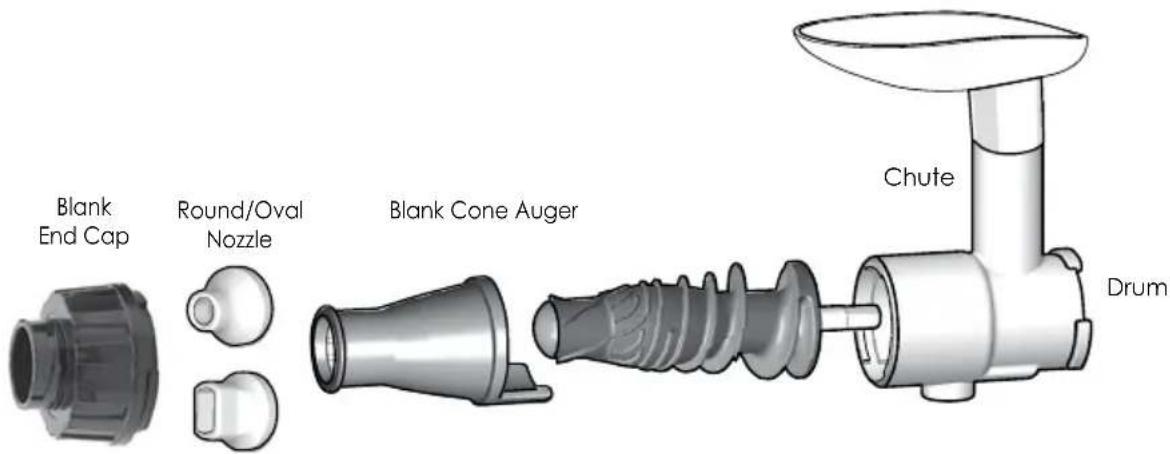

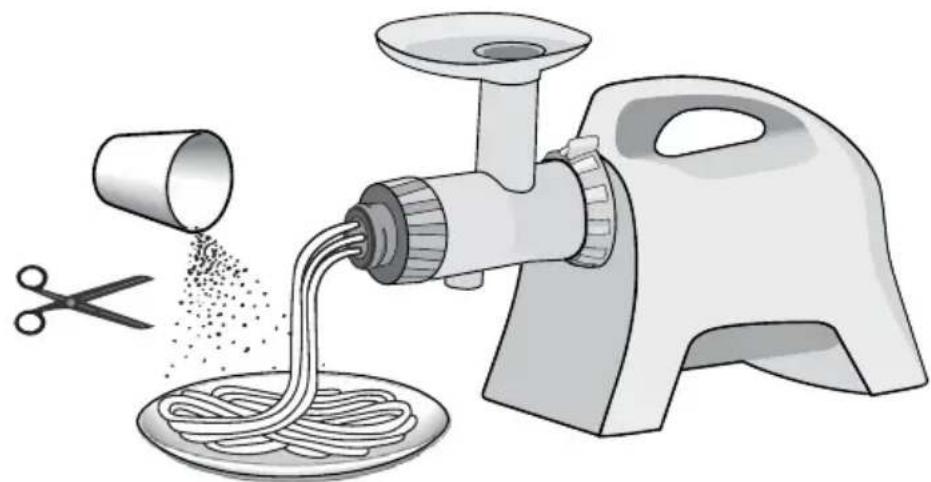

• PASTA EXTRUDER. Make homemade spaghetti, linguini, or breadsticks can be extruded in just minutes with the included pasta nozzles.

Omega® COLD PRESS 365®

CLEANING

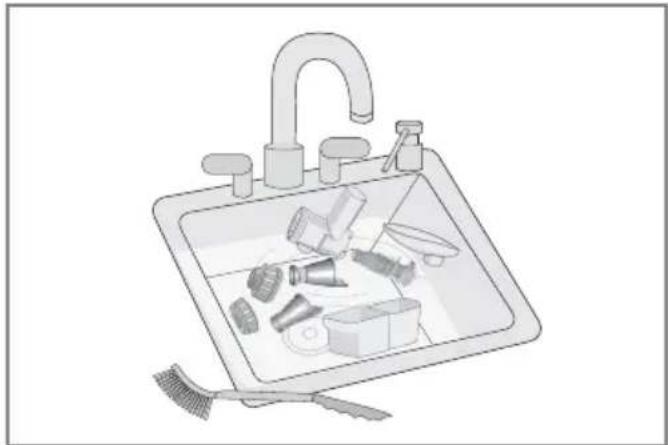

DAILY CLEANING

Illustration of a kitchen sink with cleaning tools and a broom (no text or symbols)

It is important to always scrub all sides and surfaces of your juicing parts with warm water, liquid dish soap and a scrubbing brush after each use to remove minerals and debris.

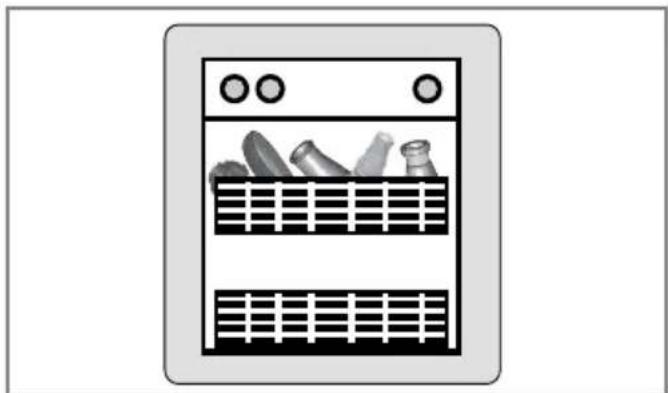

EASY CLEANING SYSTEM

Illustration of a kitchen appliance with shelves and utensils (no text or symbols)

When juicing is done, removable parts (except for the drum) may be washed in the top rack of the dishwasher.

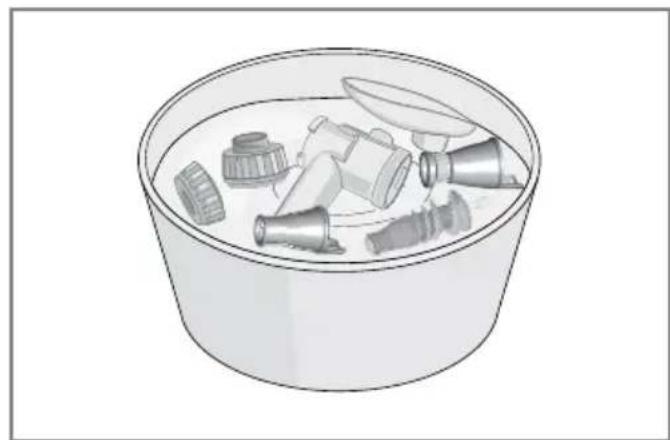

DEEP CLEANING

Illustration of a container with plastic containers and a funnel, no text or symbols present

A deep cleaning should be done approximately once per month, or as needed depending on frequency of use. To do a deep clean you will need a one gallon bowl filled with warm water and approximately one cup of liquid dishwasher soap which specifically states that it removes mineral buildup.

Let the parts soak for half an hour then thoroughly rinse and completely dry. Make sure water doesn't extend past 140 F°.

Omega COLD PRESS 365®

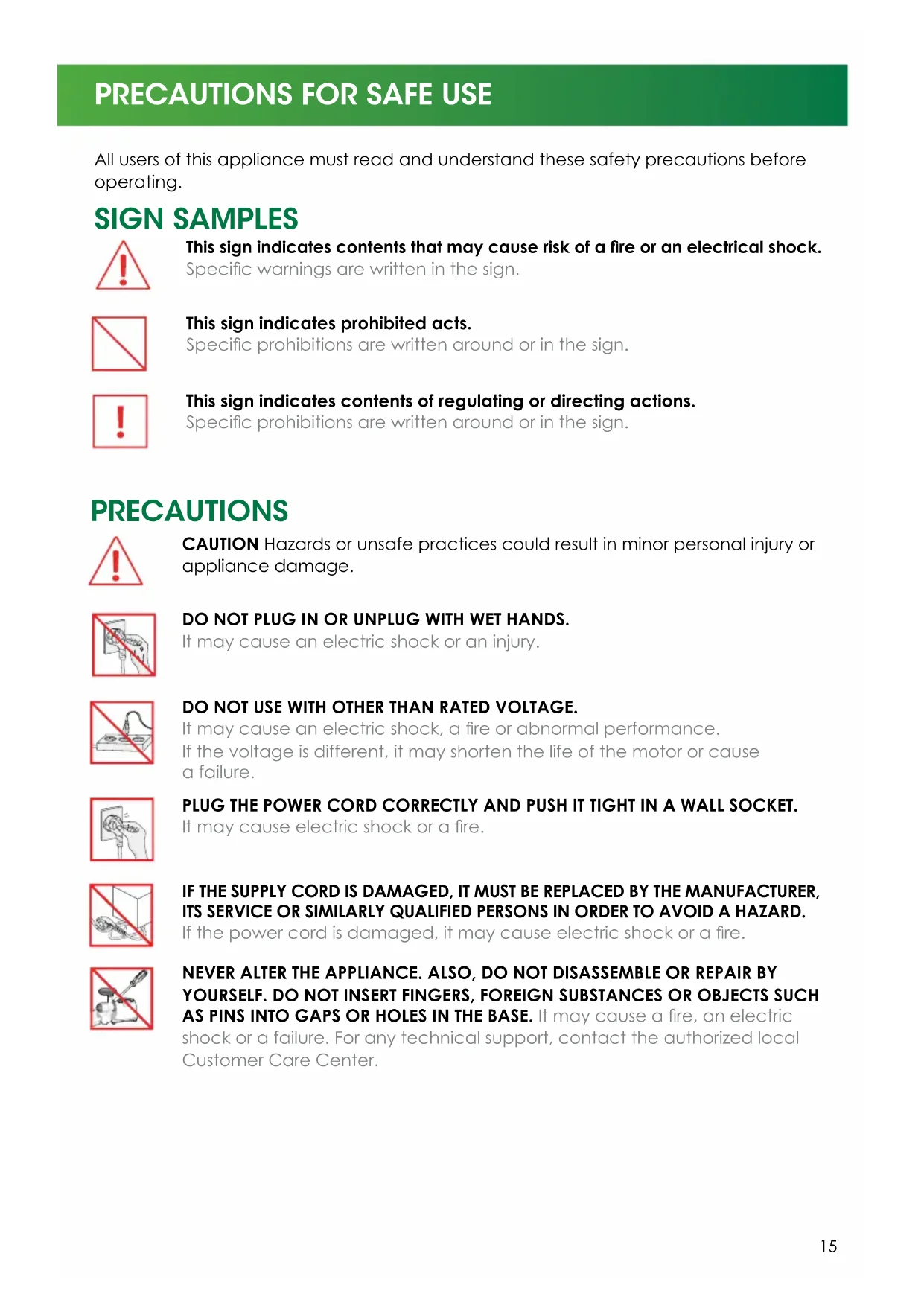

PRECAUTIONS FOR SAFE USE

PRECAUTIONS FOR SAFE USE

All users of this appliance must read and understand these safety precautions before operating.

SIGN SAMPLES

This sign indicates contents that may cause risk of a fire or an electrical shock.

Specific warnings are written in the sign.

This sign indicates prohibited acts.

Specific prohibitions are written around or in the sign.

This sign indicates contents of regulating or directing actions.

Specific prohibitions are written around or in the sign.

PRECAUTIONS

CAUTION Hazards or unsafe practices could result in minor personal injury or appliance damage.

DO NOT PLUG IN OR UNPLUG WITH WET HANDS.

It may cause an electric shock or an injury.

DO NOT USE WITH OTHER THAN RATED VOLTAGE.

It may cause an electric shock, a fire or abnormal performance.

If the voltage is different, it may shorten the life of the motor or cause a failure.

PLUG THE POWER CORD CORRECTLY AND PUSH IT TIGHT IN A WALL SOCKET.

It may cause electric shock or a fire.

IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD.

If the power cord is damaged, it may cause electric shock or a fire.

NEVER ALTER THE APPLIANCE. ALSO, DO NOT DISASSEMBLE OR REPAIR BY YOURSELF. DO NOT INSERT FINGERS, FOREIGN SUBSTANCES OR OBJECTS SUCH AS PINS INTO GAPS OR HOLES IN THE BASE. It may cause a fire, an electric

shock or a failure. For any technical support, contact the authorized local Customer Care Center.

PRECAUTIONS FOR SAFE USE

DO NOT MOISTEN THE BASE OR SPLASH WATER ON THE BASE.

Be careful not to let any liquids or other substances get into the switch on the appliance. DO NOT OPERATE THE SWITCH WITH WET HANDS.

It may cause electric shock or a fire.

WHEN THE POWER CORD, WIRE IS BROKEN OR DAMAGED OR THE PLUG-IN PART BECOMES LOOSE, DO NOT OPERATE IT.

It may cause an electric shock, a fire or an injury.

FOR SAFETY, MUST DO GROUND CONNECTION DO NOT DO THE GROUNDING ON GAS PIPE, PLASTIC WATER PIPE, TELEPHONE WIRE, ETC.

It could cause an electric shock, a fire, or a malfunction and an explosion.

Be sure to use the socket with ground connection.

NEVER DISASSEMBLE BOWL SET DURING OPERATION OR INSERT FINGERS, FOREIGN OBJECTS SUCH AS FORKS, SPOONS ETC. INTO FEEDING TUBE OR JUICE OUTLET.

It may cause an injury, an accident or a failure.

THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.

Children should be supervised to ensure that they do not play with the appliance.

DO NOT OPERATE WITHOUT LOCKING THE HOPPER PROPERLY.

It may cause an injury or a failure.

WHEN DETECTING A GAS LEAK, DO NOT INSERT THE POWER CORD INTO ITS SLOT. OPEN THE WINDOW TO VENTILATE FULLY AND IMMEDIATELY.

It may cause an injury or a failure.

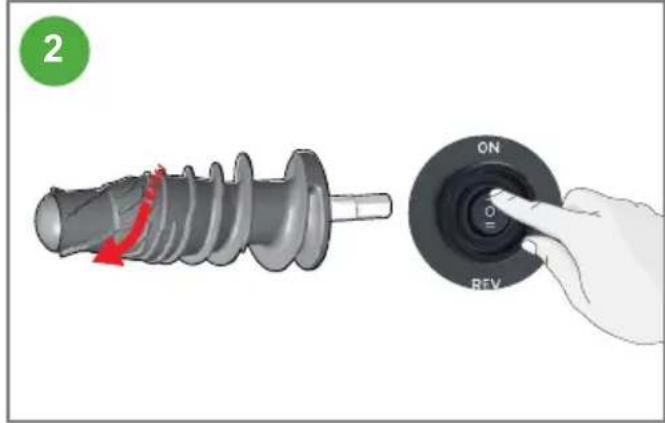

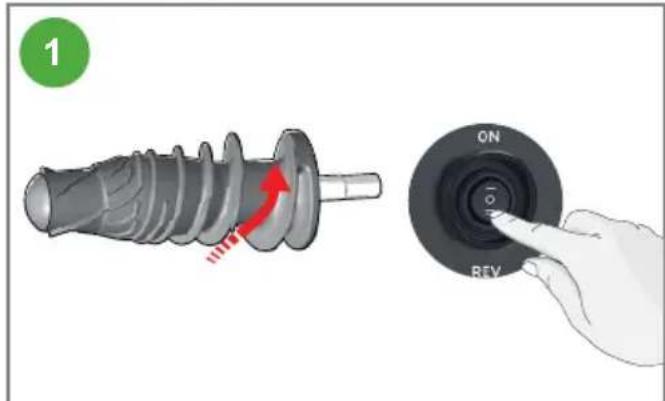

IF SCREW ROTATION IS STOPPED IN NORMAL OPERATION, PRESS [REVERSE/REV] BUTTON AND HOLD FOR 2-3 SECONDS AND THEN AFTER REVERSE OPERATION IS COMPLETELY STOPPED, PRESS [ON] BUTTON AGAIN. If such a stop event continues during the operation, the parts may be damaged and performance may be deteriorated due to overheating in a motor. When the problem continues, immediately stop the appliance and contact the local Customer Care Center.

NEVER PUT A FINGER, A FORK OR A SPOON ETC. INTO JUICE OUTLET.

It may cause an injury or a failure.

PRECAUTIONS FOR SAFE USE

DURING THE OPERATION, DO NOT ATTEMPT TO MOVE THE BASE, DISASSEMBLE THE BOWL SET OR PARTS AND TRY TO LOCK THEM.

It may cause an injury or a failure. Any act of event needed, switch off first and unplug the power cord.

WHEN USING THE APPLIANCE, BE CAREFUL FOR A NECKTIE, LONG NECKLACE, SCARF ETC. NOT TO BE ENTANGLED INTO FEEDING TUBE.

It may cause an injury, a failure or a breakage.

PLACE THE APPLIANCE ON A FLAT AND STABLE SURFACE.

It may cause an injury or a failure.

DO NOT OPERATE THE APPLIANCE FOR MORE THAN 30 MINUTES AT A TIME.

It may cause a motor failure due to overheating. Cool it down sufficiently for 5 minutes and operate it again.

WHEN PLACING INGREDIENTS INTO THE FEEDING TUBE, ONLY USE THE PUSHER PROVIDED.

It may cause an injury or a failure.

DO NOT ALLOW A SEVERE SHOCK TO THE APPLIANCE OR DROP IT.

It may cause an electric shock, a fire or damage

IF THE APPLIANCE GIVES OFF AN UNPLEASANT SMELL OR EXCESSIVE HEATING, SMOKE, STOP USING IMMEDIATELY AND CONTACT THE LOCAL CUSTOMER CARE CENTER.

When using a new appliance, it gives off a smell and the smell disappears naturally over time.

ALWAYS UNPLUG THE APPLIANCE AFTER USE. WHEN UNPLUGGING THE POWER CORD, MAKE SURE TO HOLD THE POWER CORD.

If holding the wire to unplug, it may cause an electric shock or a fire.

THE APPLIANCE WEIGHS ABOUT 14.77 LB (6.7 KG). WHEN MOVING THE APPLIANCE, ENSURE TO MOVE IT HOLDING GRIPS TIGHTLY AT THE BASE BOTTOM WITH BOTH HANDS.

If attempting to hold bowl or the edge of the base, the base may fall causing an injury or a failure.

Omega COLD PRESS 365®

IF THE AUGER STOPS WORKING

IF THE AUGER STOPS WORKING

1 ON REV

2 ON REV

Press [Rev] button for 3 to 5 seconds, then release. When the [Rev] button is released, the auger will stop rotating. Repeat this 2 to 3 times. The [Rev] button pushes the ingredients upward releasing the food clog.

Press [ON] button to start. When using [ON] auger should rotate. Wait 2 to 3 seconds. Then press [REV] button. Repeat this 2 to 3 times. Make sure the auger stops completely after releasing the button.

Note:

Even after following the directions above, if the juicer still doesn't work, please unplug the power cord, disassemble the chamber set and clean it. Then try again.

Omega COLD PRESS 365®

HOW TO PREPARE

CELERY

FRUITS AND VEGETABLES

WHEATGRASS AND GREENS

MINCING AND CHOPPING

NUT BUTTERS

NUTS AND SOY MILKS

DESSERTS

BABY FOODS

PASTA AND BREADSTICKS

CELERY

Juicing Screen

Celery Juice End Cap (with green inner ring)

No Nozzle Needed

• Thoroughly wash celery to remove accumulated chemicals.
- When juicing celery, keep the celery stalks as whole as possible. Do not cut the celery into small pieces.
- Some juice may exit into the pulp bowl and not the juice bowl. This is normal. This may continue to occur until the ejection area is filled with pulp.
- When using the celery juice end cap, do not make more than 16oz. of celery juice at a time without cleaning the endcap. If dry pulp stops juice flow, loosen celery end cap. Remove the end cap and clean it before continuing to juice.

Celery Juice End Cap Blank End Cap Juice Screen Auger Chute Sieve will filter out excess foam or pulp. Drum

FRUITS AND VEGETABLES

Juicing Screen

End Cap

No Nozzle Needed

• Thoroughly wash fresh ingredients to remove accumulated chemicals. The Omega® Nutrition System can extract juice from un-peeled fruits and vegetables but your taste may prefer peeled produce.
• Soft produce will process easier if refrigerated.
  • Cut fruits and vegetables into small pieces to fit in the drum.
• Turn [ON] machine and let it run without interruption until all juice has been extracted.
  • Alternate soft and firm items. It is best to start with the softer item.
• If the pulp starts to clog the drum, turn [OFF] machine and empty the drum set. Reassemble and resume normal operation.
  • After placing the last piece of fruit or vegetable into the hopper, keep the machine running for a few seconds to ensure juice is extracted.
  • After every use, clean all parts that come into contact with food or juice.
• You may juice items that are not usually used in meals, for example, carrot or beet stems.

Adjustable End Cap Blank End Cap Juice Screen Auger Chute Drum Sieve will filter out excess foam or pulp.

WHEATGRASS AND GREENS

Juicing Screen

Adjustable End Cap

No Nozzle Needed

• Thoroughly wash fresh ingredients to remove accumulated chemicals.
- Do not overfill the feed chute. Feed the juicer with small quantities. Allow most of the juice to exit before pushing in the next item.
- Some juice may exit into the pulp bowl and not the juice bowl. This is normal. This may continue to occur until the ejection area is filled with pulp.
- When juicing an item for added taste, insert that item during the first half of the juicing process. If inserted at the end of the process, the full taste may not come through.
- Certain green drinks may be too strong for some people. Lemon, apple, ginger, carrots &/or beets may be added as a natural sweetener to dilute the taste of wheatgrass and leafy greens.

Adjustable End Cap Blank End Cap Juice Screen Auger Chute Drum Sieve will filter out excess foam or pulp.

MINCING AND CHOPPING

Blank Cone

Blank End Cap

Round/Oval Nozzle

• Use as a food processor to make marinades, salsas, soups and sauces.
• Chop or grind meat, fish, herbs, soaked rice and beans. Remove any fat from the meat or poultry if not desired in the finished product. Bone and scale fish before processing.

Blank End Cap Round/Oval Nozzle Blank Cone Auger Chute Drum

NUT BUTTERS

Blank Cone

Blank End Cap

No Nozzle Needed

• Nut butters are an all-natural version of peanut butter, almond butter, sunflower seed butter, etc.
• Remove all skins and shells from nuts. Turn [ON] machine. Start adding nuts 1 cup at a time.
• Add 1 to 2 tablespoons of oil slowly between nuts.
• Process nuts through nutrition system at least two to three times until texture is of a smoother consistency.

Blank End Cap Blank Cone Auger Chute Drum

NUT & SOY MILKS

Juicing Screen

Blank End Cap

No Nozzle Needed

• Nut milks consist of almonds, pecans, cashews, hazelnuts, etc. You can also make coconut milk and soy milk.
• Soak nuts for 4-8 hours in water.
• Drain and rinse nuts well. Add fresh water to the soaked nuts. We recommend 3 cups of water per 1 cup of nuts. Add more water for a thinner consistency and less water for a thicker consistency.
• Turn [ON] machine. Ladle the soaked nuts and some of the fresh water into the chute. Optional: Add pulp to the bowl of remaining water and spoon into juicer for a second time for a more flavor and a creamier texture. You can either stop after the second process or repeat for a third time.

Blank End Cap Juice Screen Auger Chute Drum

DESSERTS

Blank Cone

Blank End Cap

No Nozzle Needed

• Make all-natural sweet, frozen treats without the added fat, sugar and calories.
- Thaw frozen fruit for 5-10 minutes. Turn [ON] machine. Process thawed fruit through nutrition system and serve.
- Popular frozen fruit sorbets include banana, cherry, blackberry, blueberry, raspberry, strawberry, melon, kiwi, mango, pear, pineapple, peach, grape, orange, and more!
- You can also make frozen lemonades and ice creams with all-natural ingredients. Recipes can be found on www.OmegaJuicers.com.

BABY FOOD

Blank Cone

Blank End Cap

No Nozzle Needed

• Making homemade baby food with your Omega Juicer can be very rewarding knowing that you are giving your baby fresh produce that is nutritious and easily digestible. This also gives your baby regular chances to experience a wide variety of textures and tastes without artificial preservatives or additives.
• Start by cooking the vegetable or fruit. Either steam, bake, or boil. Steaming maintains the most nutrients.
• For Fruits: apples, pears, peaches, plums, mangoes and strawberries, all puree well.
  • For Vegetables: potatoes, carrots, yams, broccoli and squash, all puree well.
• Turn [ON] machine. Spoon the cooked vegetable/fruit down the chute. If steamed or boiled vegetable or fruit add some of the cooked liquid. Adding the liquid helps preserve any nutrients that may have released into the water during cooking.

The above recipes are made using the items below.

Blank End Cap Blank Cone Auger Chute Drum

PASTA OR BREADSTICKS

Blank Cone

Blank End Cap

Round, Flat or Breadsticks Nozzle

• This machine can to extrude pasta; not make pasta. Make dough by hand or use a mixer.
• Sprinkle a small amount of flour on the pasta, on the nutrition system hopper and inside the drum to prevent sticking.
• Add water to the dough if it becomes too dry.
  • To extrude pasta:

Decide which style of noodle you prefer and place the appropriate nozzle on the drum.

Shape the pasta dough into balls or tubes that are slightly smaller than the nutrition system hopper opening.

Turn [ON] machine. Process dough through nutrition system. A consistent feeding of dough without any gaps will give you longer noodles as pasta exits. Pasta may be cut with a scissor or a knife to desired length.

Freshly made pasta should be put in boiling water. Fresh pasta will cook faster than packaged pasta.

If you want to make the pasta more flavorful, add spinach, basil or sundried tomatoes. Leftover vegetable juice or pulp may also be mixed into dough for added flavor.

Your choice of nozzle will determine the size and shape of the pasta.

Nozzles Blank End Cap Blank Cone Auger Chute Drum

Illustration of a hairdryer machine pouring noodles from a cup into a bowl, with scissors cutting the pipe (no text or symbols)

Omega COLD PRESS 365®

TROUBLESHOOTING

TROUBLESHOOTING

Please troubleshoot using the details below before contacting Omega Customer Service for repair or service. When contacting Omega for after-sales service, please have the manufacturer's serial number or bar code available.

The Appliance Does Not Work

• Make sure the power cord is plugged in correctly.
• Make sure the drum is assembled correctly. If the drum is not locked into place, the appliance will not operate.
• Make sure the appliance is assembled according to the instructions in this manual. Refer to the instructions.
• If the appliance still does not work, please contact Omega Customer Service for additional support.

The drum Does Not Open

• If there is a lot of pulp inside the drum, press [On] to release the excess pulp.
• Check the appliance for any foreign substance or solid objects including seeds.
• Press [Rev] button to push up stuck ingredients.
• Do not attempt to open by force. If the drum still does not open, please contact Omega Customer Service for additional support.

The Appliance Stops During Normal Operation

• Check for large pieces of food stuck in the appliance.
• Refer to the section "If the Auger Stops Working" and follow the guideline for the [Rev] button.
• If the appliance still does not work, please contact Omega Customer Service for additional support.

Fine Lines or Scratch Marks around the Auger

- This is normal. Do not be concerned. These are molding marks resulting from the normal manufacturing process.

Juice Leaks Over the Base

• Check for an excessive amount of ingredients in the hopper and/or chute.
• If you try to juice a large amount of food compared to the pulp chute, the packing will be slightly pushed away. Juice may leak out of the gap.
• Do not force too much food into the juicer. Push food gradually for extraction.
• Check to make sure the juice flap is closed.

Juicer Shakes when In-Use

• This is normal as the auger rotates. It is not a malfunction. Hard ingredients such as carrots, potato, radish, beets, etc. may cause shaking more so than soft ingredients.
• Depending on the firmness of the ingredient, there may be a more pronounced shaking of the motor.
• Slight shaking may be caused by the motor.

Omega COLD PRESS 365®

PRODUCT SPECIFICATIONS

PRODUCT SPECIFICATIONS

Product Name

Omega® Multi-Use Juicer and Nutrition System®

Model Name MM1500

Rated Voltage 120 V

Rated Frequency 50/60 Hz

Rated Power Consumption 200 W

RPM 80 RPM

Cord Length 60 inches (1500 mm)

Product Weight 14.7 lb (6.7 kg)

Shipping Weight 20.9 lb (9.5 kg)

Outward Dimension 6.1" Width (154 mm)

18.5" Depth (470 mm)

12.3" Height (312 mm)

Rated Operating Time Less than 30 minutes

Black Omega brand hairdryer with a circular head and lever handle (no visible text or symbols on body)

Omega® COLD PRESS 365®

RECIPES

Almond Milk

What You'll Need:

2 cups of unsalted almonds 6 cups of distilled water

How To Prepare:

1 Soak almonds overnight in 3 cups of water. Drain.
2 Place almonds in 3 cups of fresh water.
3 Using the juicing screen in the Omega® Nutrition System, ladle almonds and water into juicer.
If you prefer the milk thinner add more water.
4 You can sweeten milk by adding 1 tsp of honey, agave nectar, cane sugar or maple syrup. You can make vanilla almond milk by adding 1 tsp of vanilla extract or make chocolate almond milk by adding 1 tbsp of unsweetened cocoa powder.

PREP

12 hours

PROCESS

4 minutes

Soy Milk

What You'll Need:

1 cup dried organic soy beans 6 cups of water dash of salt 1 / 2 tsp vanilla extract 1 tsp agave or other sweetener 1 tsp cinnamon

PREP

12 hours

PROCESS

35 minutes

How To Prepare:

Soak soy beans overnight in 3 cups of water. Drain.
2 Place soy beans in 3 cups of fresh water. Using the juicing screen in the Omega® Nutrition System. Ladle soy beans and water into juicer. If you prefer the milk thinner add more water.
3 Transfer the milk to a pot on the stove. Bring the milk to a boil. Then reduce to low and let simmer for 25 minutes. Skim off and discard any foam or filmy layers that occur.
4 Remove from heat and flavor with salt, vanilla extract, agave and cinnamon. Mix and Enjoy.

Peanut Butter

What You'll Need:

2 cups shelled and skinned roasted peanuts 1 tbsp grapeseed oil 2 tsp coconut nectar 1 tsp real salt

How To Prepare:

With an Omega® Nutrition System, change the juicing cone for the blank cone and assemble your preferred nozzle.
2 Start pouring nuts into the chute. Run them through about 2-3 times until oils start to appear.
3 Transfer to a bowl and combine all ingredients by hand, with a spoon.
4 Pour the mixture into the Omega® Nutrition System one more time.

PREP 5 minutes PROCESS 10 minutes

Cookie Dough Nut Butter

What You'll Need:

2 cups dry cashews 6 tablespoons coconut nectar 1 tbsp coconut oil 2 tsp vanilla powder 12 tsp real salt

How To Prepare:

1 With an Omega® Nutrition System, change the juicing cone for the blank cone and assemble your preferred nozzle.
2 Start pouring nuts into the chute. Run them through about 2-3 times until oils start to appear.
3 Transfer to a bowl and combine all ingredients by hand, with a spoon. Pour the mixture into the Nutrition System one more time.

PREP 5 minutes PROCESS 8 minutes

Homemade Pasta

What You'll Need:

1 cup flour 1 egg, beaten 2 tbsp water ½ tsp salt

How To Prepare:

1 In a large bowl, combine flour and salt.
2 Make a well in the middle of the flour/salt mixture, then add egg. If dough is too stiff, then add water.
3 With an Omega® Nutrition System, change the juicing cone for the blank cone, choose preferred pasta nozzle.
4 Put dough through chute and cut noodles to preferred length.

PREP 5 minutes JUICE 5 minutes

Eggless Pasta

What You'll Need:

2 cups semolina flour 12 tsp salt 12 cup warm water

How To Prepare:

In a large bowl combine flour and salt, then add water (add more if too dry).
2 With an Omega® Nutrition System, change the juicing cone for the blank cone, choose preferred pasta nozzle.
3 Put dough through chute and cut noodles to preferred length.

PREP 5 minutes JUICE 5 minutes

Breadsticks

What You'll Need:

2 ¼ pkg active dry yeast 1 ½ cup warm water ½ cup warm milk 2 tbsp sugar 3 tbsp butter, divided and melted ½ tsp kosher salt ½ tsp minced garlic ¾ tsp dried italian seasoning 4 ½ - 5 ½ cups flour ¼ cup parmesan cheese, grated

PREP

15 minutes

PROCESS

5 minutes

How To Prepare:

In a large bowl, combine yeast with water and let stand until it bubbles (7-10 minutes).
2 Add milk, sugar, butter, kosher salt, and 2 cups of flour. Beat until smooth. Add parmesan cheese and remaining flour until it forms into a soft dough.
3 With an Omega® Nutrition System, change the juicing cone for the blank cone, choose preferred bread stick nozzle. Put dough through chute, running the dough about 7-8 times.
4 Divide dough into equal portions.

Salsa in a Glass

What You'll Need:

2 tomatoes

1/4 onion

1/2 lime

1 jalapeno pepper

5 sprigs of fresh cilantro

PREP

5 minutes

JUICE

5 minutes

How To Prepare:

1 Wash all produce well.
2 Peel lime (optional).
3 Add all ingredients into your Omega® Nutrition System and juice.
4 Serve and enjoy.

Baby Food - Applesauce

What You'll Need:

3 medium red apples

How To Prepare:

1 Steam 3 medium red, skinned and seeded apples.
2 With an Omega® Nutrition System, change the juicing cone for the blank cone, choose preferred nozzle.
3 Process through the Omega® Nutrition System.

4 Add a sprinkle of cinnamon. Yields 1 cup.

PREP 15 minutes PROCESS 6 minutes

Baby Food - Sweet Potato

What You'll Need:

2 sweet potatoes

How To Prepare:

1 Steam potatoes 20 to 25 minutes.
2 Process through the Omega® Nutrition System.
3 1 large potato yields about 1 cup.

PREP 30 minutes PROCESS 5 minutes

Baby Food - Carrots

What You'll Need:

3 large carrots

How To Prepare:

1 Steam carrots.
With an Omega® Nutrition System, change the juicing cone for the blank cone, choose preferred nozzle.
3 Process through the Omega® Nutrition System.
Three large carrots yields about 1 cup.

PREP 30 minutes PROCESS 5 minutes

Baby Food - Peas

What You'll Need:

peas

PREP

3 minutes

PROCESS

6 minutes

How To Prepare:

1 Depod peas when preparing. No need to steam, unless you prefer.
2 With an Omega® Nutrition System, change the juicing cone for the blank cone, choose preferred nozzle.
3 Then process through the Omega® Nutrition System. Better for children 1 to 2 years old (younger children have trouble digesting them).

Clean Boost

What You'll Need:

12 a beetroot 5 spinach leaves 14 cabbage

1 broccoli stick

12 a grapefruit

12 a lemon

1 orange

1 kiwi fruit

2 small pieces of ginger

PREP

2 minutes

JUICE

4 minutes

How To Prepare:

1 Cut product to fit into hopper.
2 Juice in an Omega® Nutrition System.
3 Pour over ice.
4 Enjoy!

Australian Dream

What You'll Need:

2 beets (australian beetroot) 2 organic carrots 1 cup organic strawberries 2 cups kale leaves (6-8 leaves) (australia tuscan cabbage)

PREP

3 minutes

JUICE

6 minutes

How To Prepare:

1 Wash all produce well.
2 Cut as needed to fit into juicer.
3 Juice in an Omega® Nutrition System.
4 Pour over ice and enjoy.

Morning Glory Citrus

What You'll Need:

2 grapefruits (peeled) 1 red bell pepper 2 pears 6 carrots

How To Prepare:

1 Wash all produce well.
2 Juice all produce in an Omega® Nutrition System and enjoy!

Serving Size: 16 - 18 oz.

Bursting with Vitamin C and beta-carotene, as well as Vitamins A & K and even copper.

PREP 5 minutes JUICE 5 minutes

Apple & Kiwi Juice

What You'll Need:

2 apples 3 kiwis

How To Prepare:

1 Wash the apples, then remove the core and cut into quarters.
2 Peel the kiwis and chop into small pieces.
3 Juice ingredients in your Omega® Nutrition System.
4 Stir before drinking.

PREP 5 minutes JUICE 5 minutes

Total Health Booster

What You'll Need:

1 medium apple, cored and cubed
2 medium soft pears, cored and cubed ^1/2 cup fresh cherries (pits removed or frozen and thawed)

How To Prepare:

1 In your Omega® Nutrition System, juice apple, pears, and cherries.
Before serving, garnish with fresh cherries, if desired.

PREP 5 minutes JUICE 5 minutes

Cukelear Power

What You'll Need:

1 cucumber 2 collard green leaves 1 handful of cauliflower florets ½ lemon (yellow rind removed)

How To Prepare:

1 Wash all produce.
2 Add all ingredients into your Omega® Nutrition System and juice.
3 Pour into your glass and enjoy!

PREP 5 minutes JUICE 5 minutes

Tropical Morning

What You'll Need:

1 peach (remove pit)

1 mango (peeled and seed removed)

1 orange (skin removed)

^1/_2 cup coconut water

1 teaspoon agave nectar

How To Prepare:

1 In your Omega® Nutrition System, juice peach, mango and orange
2 Add remaining ingredients and stir.
3 Serve chilled and garnish with a peach slice.

PREP 5 minutes JUICE 5 minutes

Island Dreaming Sorbet

What You'll Need:

1 / 2 cup frozen pineapple chunks 1 / 2 cup frozen banana 1 cup frozen strawberries 1 / 2 cup frozen mango chunks 2 tbsp coconut flakes

How To Prepare:

1 Mix all ingredients in a bowl. Thaw slightly before running through Omega® Nutrition System.
2 Change the juicing cone for the blank cone and assemble your preferred nozzle.
3 Start pouring and pushing the ingredients into the chute. Serve.

PREP 5 minutes PROCESS 5 minutes

Frozen Lemonade Sorbet

What You'll Need:

6 tbsp lemon juice

3 tbsp raw honey 1 cup water

PREP

6 hours

PROCESS

5 minutes

How To Prepare:

1 Heat lemon juice and honey for 10-20 seconds in microwave. Stir. Add in the water and stir.
32 Freeze the mixture in ice cube trays or ice pop mold.
3 With an Omega® Nutrition System, change the juicing cone for the blank cone and assemble your preferred nozzle.
4 Thaw lemon cubes slightly before pushing thru the chute of Omega® Nutrition System. Serve.

Orange Dreamsicle Sorbet

What You'll Need:

4 frozen oranges/ mandarins peeled 1 cup vanilla yogurt

PREP

5 minutes

PROCESS

5 minutes

How To Prepare:

1 Freeze yogurt and peeled orange segments.
2 Thaw slightly before running through Omega® Nutrition System.
3 Change the juicing cone for the blank cone and assemble your preferred nozzle.
4 Start pouring and pushing the ingredients into the chute, alternating the yogurt and the orange segments. Serve.

Omega COLD PRESS 365®

Félicitations!

www.omegajuicers.com/omega-warranty-registration

POUR DES RECETTES, RENDEZVOUS AU :

www.omegajuicers.com/recipes

www.OmegaJuicers.com

TABLE OF CONTENTS

Technical line drawing of a cylindrical mechanical component with a base and mounting bracket (no text or symbols)

Close-up of a black circular mechanical component with a green center and textured outer ring (no text or symbols visible)

Close-up of a black mechanical ring or nut with a central hole (no text or symbols visible)

Illustration of a manual hand mixer with a container, labeled 9 and 10 (no text or symbols on the device itself)

TRANSFORMATION DES ALIMENTS

Diagram illustrating the assembly of a kitchen knife with numbered parts and directional arrows indicating assembly steps.

Illustration of a small manual hand mixer with a side box and handle (no text or symbols)

Omega COLD PRESS 365®

MODE D'EMPLOI

BOUTON MARCHE/ARRÊT/MARCHE ARRIÈRE

Illustration of a kitchen sink with cleaning tools and a broom (no text or symbols)

Line drawing of a kitchen appliance with a grater and kitchen utensils (no text or symbols)

Illustration of a container with plastic bottles and a funnel, no text or symbols present

2 ON O REV

Illustration of a hairdryer machine pouring noodles from a cup into a bowl, with scissors cutting the pipe (no text or symbols)

Omega COLD PRESS 365®

DIAGNOSTIC DE DÉFAILLANCE

DIAGNOSTIC DE DÉFAILLANCE

INFORMATION SUR LE PRODUIT

INFORMATION SUR LE PRODUIT

Black Omega brand hairdryer with a clear blade and lever, shown against a white background (no text or symbols visible on the device body)

Omega COLD PRESS 365®

RECETTES

Lait d'Amande

Ingrédients:

2 cups dry cashews 6 tablespoons coconut nectar

1 tbsp coconut oil

2 tsp vanilla powder

12 tsp real salt

PRÉP 5 minutes MÉTHODE 8 minutes

Méthode:

www.OmegaJuicers.com

Diagram showing a wall socket with warning symbols and a fuse, indicating electrical hazard or leakage.

Diagram of a cylindrical device with internal components and labeled parts (no readable text or symbols)

Close-up of a black circular mechanical component with a green central hole (no text or symbols visible)

Usa esta tapa SOLO para apio

Close-up of a black circular mechanical component with flanged ends and central hole (no text or symbols visible)

Illustration of a manual hand mixer with two containers, labeled 9 and 10 (no text or symbols on the device itself)

PARA PROCESAR ALIMENTOS

Diagram illustrating the assembly of a kitchen knife with numbered parts and directional arrows indicating assembly steps.

Illustration of a manual hand mixer with a small container (no text or symbols)

Omega COLD PRESS 365®

Illustration of a kitchen sink with cleaning tools and a broom (no text or symbols)

Line drawing of a kitchen appliance with a grater and kitchen utensils (no text or symbols)

Illustration of a container with plastic bottles and a funnel, no text or symbols present

2 ON O REV

Illustration of a hairdryer with a cup pouring liquid into a bowl, scissors cutting it, and a screwdriver inserted (no text or symbols)

Omega COLD PRESS 365®

Black Omega brand hairdryer with a clear blade and handle (no visible text or symbols on body)

Omega COLD PRESS 365®

RECETAS

Leche de almendras

Ingredientes:

www.OmegaJuicers.com

The Legacy Companies, Weston, FL 33331 U.S.A.
