IMPORTANT SAFETY INFORMATION

Your Sound Bar is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent your Sound Bar from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Sound Bar. Keep these instructions in a safe place for future reference. Please heed all warnings and follow all instructions.

• To reduce the risk of electric shock or component damage, switch off the power before connecting other components to your Sound Bar.
• When moving your Sound Bar from an area of low temperature to an area of high temperature, condensation may form in the housing. Wait before turning on your Sound Bar to avoid causing fire, electric shock, or component damage.
• Never push any object into the slots and openings on your Sound Bar enclosure. Do not place any objects on the top of your Sound Bar. Doing so can cause short circuit parts causing a fire or electric shock. Never spill liquids on your Sound Bar.
• Your Sound Bar should be operated only from the type of power source indicated on the label on the A2DC Adapters. If you are not sure of the type of power supplied to your home, consult your dealer at local power company.
• Only power of the marked voltage can be used for your Sound Bar. Any other voltage than the specified voltage may cause fire or electric shock.
  The power cord must be replaced when using different voltage than the voltage specified. For more information, contact your dealer
  Do not defeat the safety purpose of the grounded plug.
• When connected to a power outlet, power is always flowing into your Sound Bar. To totally disconnect power, unplugging the power cord.
• Go not overload power strips and extension cords. Overloading can result in fire or electric shock
  The wall socket should be located near your Sound Bar and be easily accessible
• Do not touch the power card during lightning. To avoid electric shock, avoid handling the power card during electrical storms.
• Do not attempt to repair or service Saund for yourself. Opening or removing the front career may expose you to high voltages, electric shock, and other hazards. If repair is required, contact your dozier and refer all servicing to qualified service personnel.
• Keep your Sound Bar away from moisture. Do not expose your Sound Bar to rain or moisture. If water penetrates into your Sound Bar, unpling the power cord and contact your dealer. Continuous use in this case may result in tire or electric shock.
  Do not use your Sound Bar if any abnormality occurs. If any smoke or odor becomes apparent, uniping the power cord and contact your dealer immediately. The hot try to repair your Sound Bar yourself.
• Avoid using dropped or damaged appliances. If your Sound Bar is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of your Sound Bar may cause fire or electric shock.
• Do not install your Sound Bar in an area with heavy dust or high humidity. Operating your Sound Bar in environments with heavy dust or high humidity may cause fire or electric shock.
• Ensure that the power cord and any other cables are unplugged before moving your Sound Bar.
• When unplugging your Saunr Bore, hold the power plug, not the card. Pulling an power cord may damage the wires inside the cord and cause fire or electric shock. When your Saunr Bore will not be used for an extended period of time, unplug the power cord.
  To reduce risk of electric shock, do not touch the connector with wet hands.
• Insert the remote control battery in accordance with instructions. Incorrect polarity may cause the battery to leak which can damage the remote control or injure the operator.
• If any of the following occurs, contact the dealer:
  The power cord fails or frays
  Liquid sprays or any object drops into your Sound Bar
  Sound Bar is expcaed to ran or other moisture
• 300000000000000000000000000000000000000000000000000000000
  substantial
• Keep your Sound Bar away from moisture. Do not expose your Sound Bar to rain or moisture. If water penetrates into your Sound Bar, unplag the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.

• Unpin the power card before cleaning your Sauna Bar. Clean only with dry cloth. Do not use a liquid or a spray cleaner on your Sauna Bar. Do not use abrasive cleaners.

• Slides and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your Sound Bar and to protect it from overheating, be sure these openings are not blocked or covered. Do not place your Sound Bar in a bookcase or cabinet unless proper ventilation is provided.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Your Sound Bar ACD/DCAdapters are equipped with all three-proonged grounded plug (a plug with a third grounding plug). This plug will fit only into a grounded power outlet. This is a safety feature, if your outlet does not accommodate the three-proonged, have an electrician install the corrected outlet, or use an acceptor to ground your Sound Bar safely.
- Protect the power card from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
Only use attachments/ accessories specified by the manufacturer.
- Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
- Unplug this apparatus during lightning storms or when unused for long periods of time.
- Refer all servicing to qualified service personal. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus; the apparatus has been exposed to rain or moisture, does not operate, or has been dropped.
To reduce the risk of fire or electric shock, do not expense this apparatus in rain or moisture.
The Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
The main plug is used as the disconnect device, the disconnect device shall remain readily operable.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Explanation of Warning symbols:

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of not applied dissection software within this product that may be sufficient to enable a risk of shock to assess.

The explanation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance.

Important Safety Instructions

1. Read these instructions. 2. Write the text as follows:
2. keep all functions. 3. used all functions.
   4.50%x1nshchop
3. Do not use this appraisal as an appraisal
4. Clean only with dry soap
   7.Do not block any ventilation openings.

Install in accordance with the manufacturer's instructions.

WARNING

DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD

• The remote control supplied with this product carries a cornbution cell battery. If the cointution cell battery is swallowed, it can cause severe internal burns in just two (2) hours and can lead to death.
• Keep new and used batteries away from children. If the battery compartment does not close securely stop using the product, and keep it away from children.
• If you think balance might have been swallowed or placed inside any part of the body, seek immediate medical attention.

PACKAGE CONTENTS

Sound Bar

Remote Control with Battery

This Quick Start GuidePower Adapter with C

Wall Mount TemplateWall Mount BrameBA to 3.5mm
Audio Cable

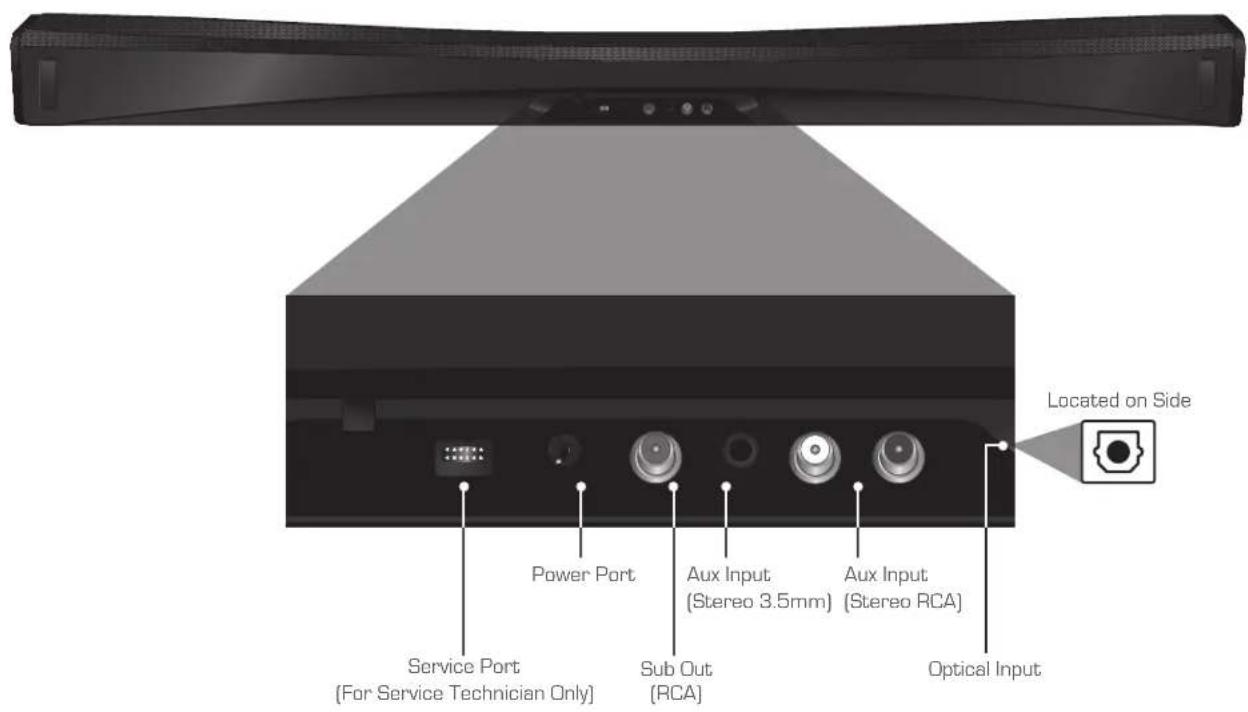

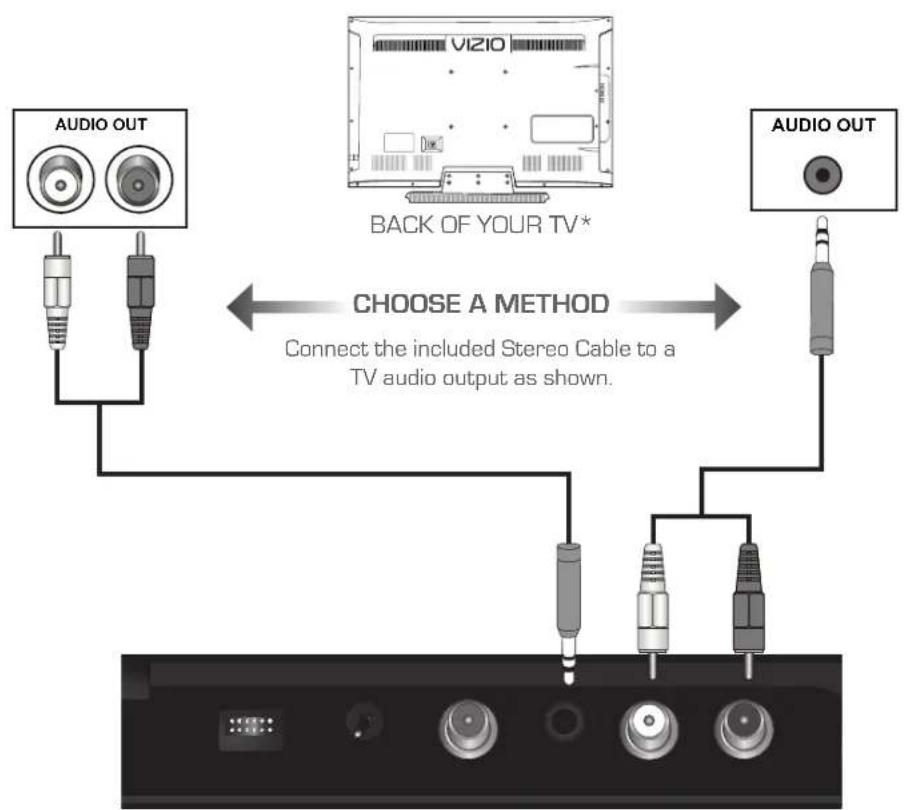

CONNECTIONS

BOTTOM OF SOUND BAR

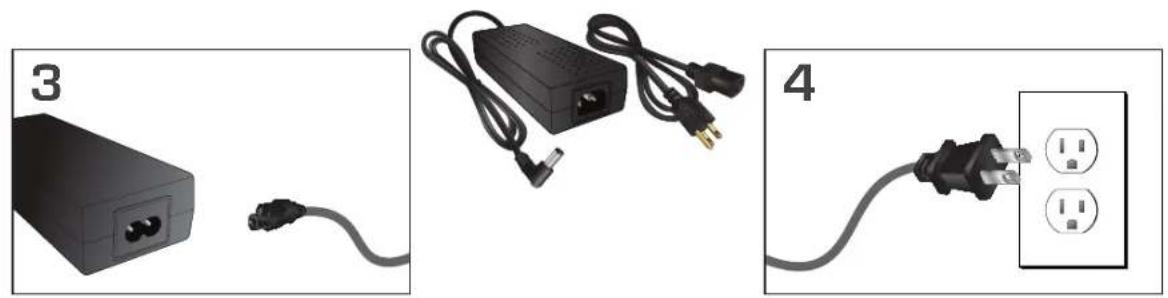

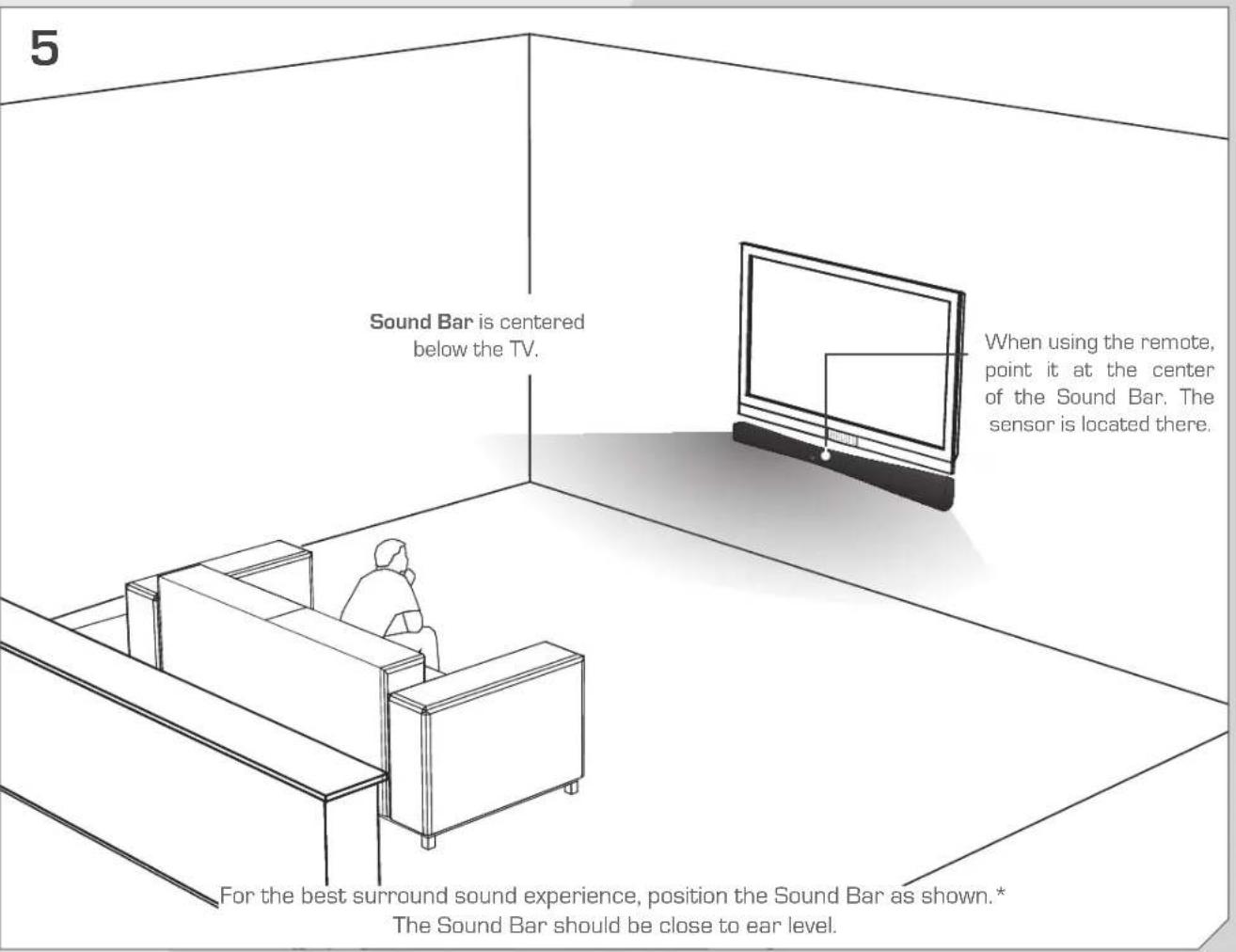

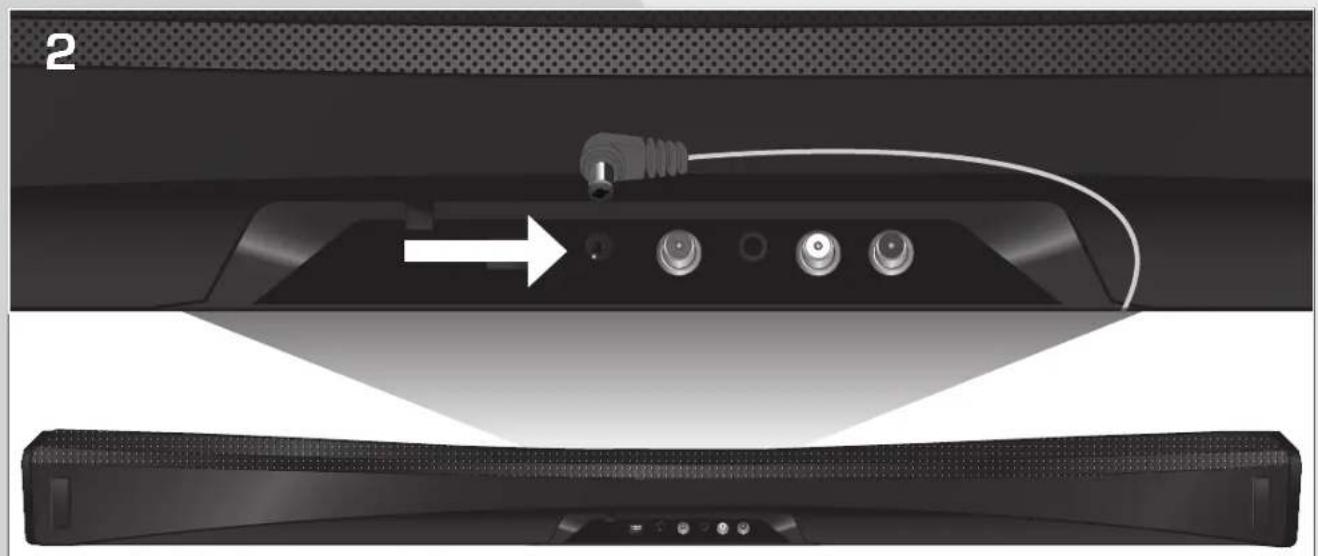

FIRST-TIME SETUP

1
BOTTOM OF SOUND BAR

*Not all TVs have the audio outputs shown above. To connect the Sound Bar directly to your other devices [Blu-ray player, game system, etc] see your device's user manual.

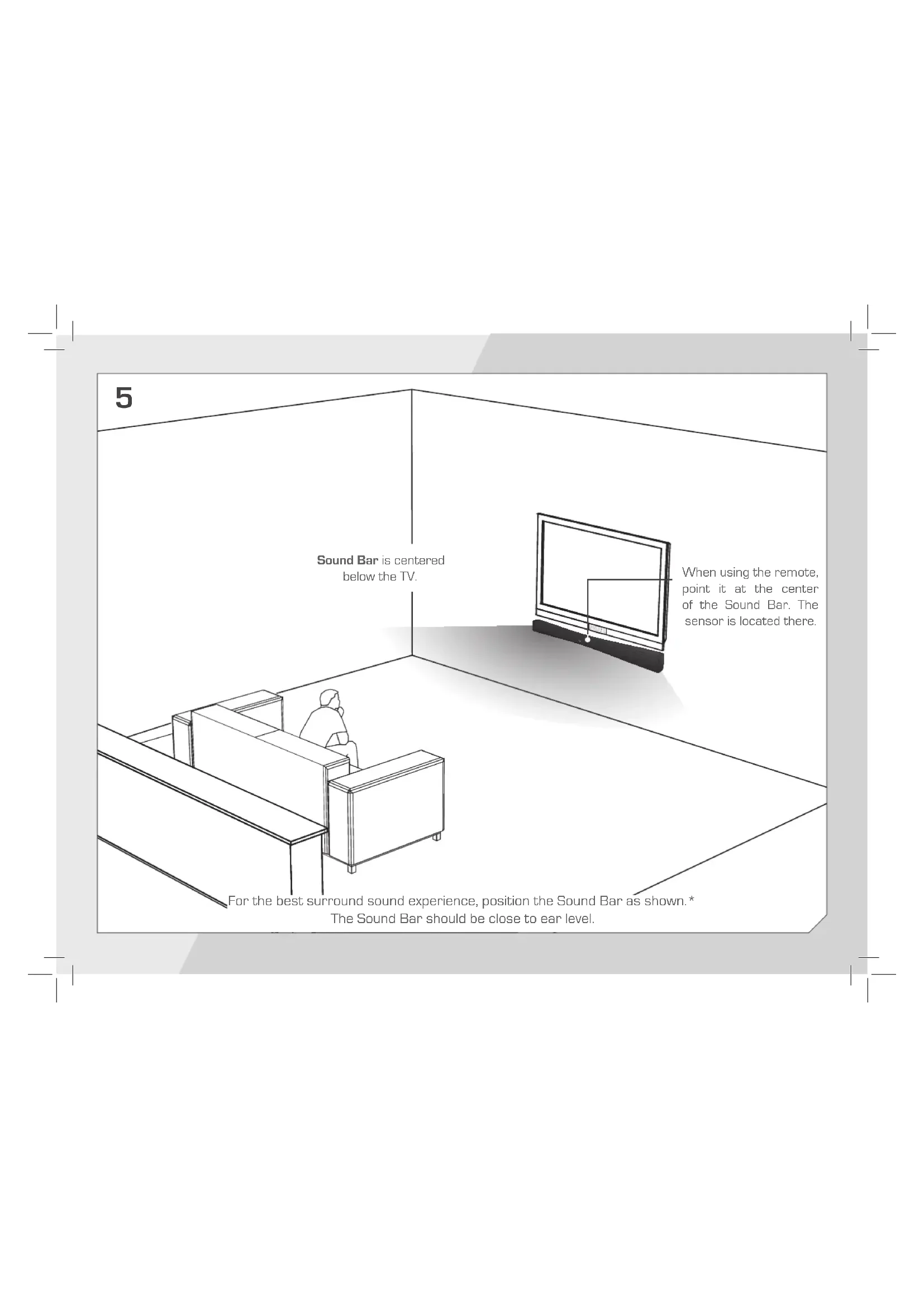

6

Gently pull the plastic tab from the back of the remote control. [The plastic tab can be thrown away]

7

Turn your TV on, then press the Power button on the remote to turn the Sound Bar on.

Press the Input button to cycle through the audio inputs. For example, if you connected your TV to Aux 1, set the Sound Bar to Aux 1.

Setup is complete.

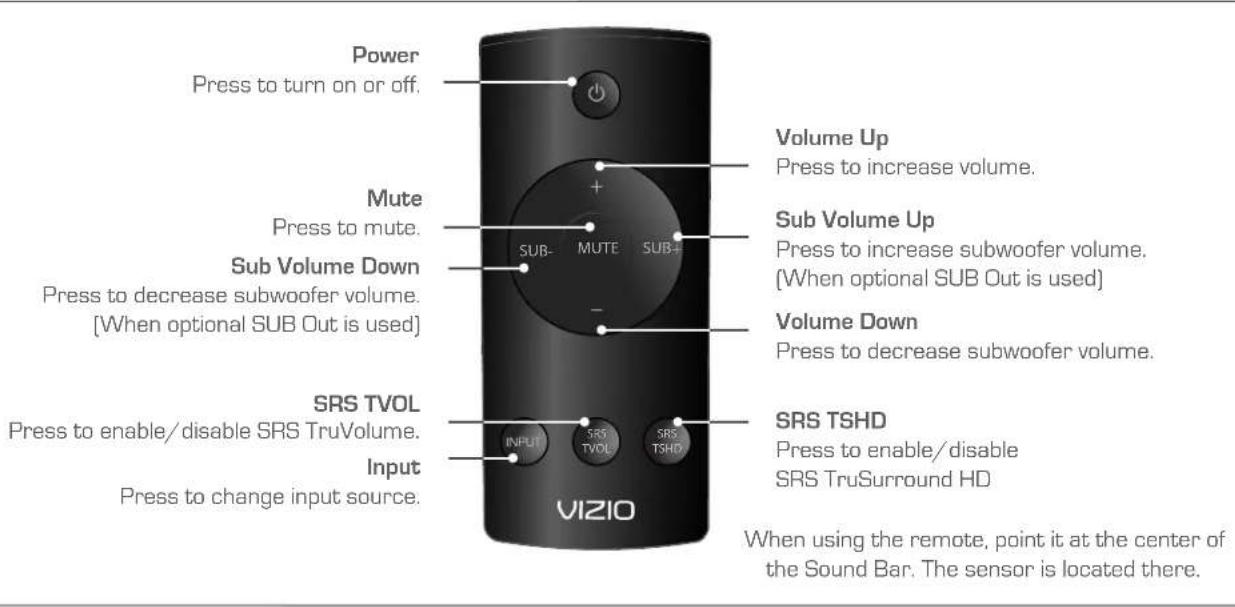

USING THE REMOTE

If your remote stops responding, you may need to replace the battery.

To replace the battery, insert a flat-head screwdriver into the slot as shown. Gently push down on the tab, then press and pull downward on the battery cover to open.

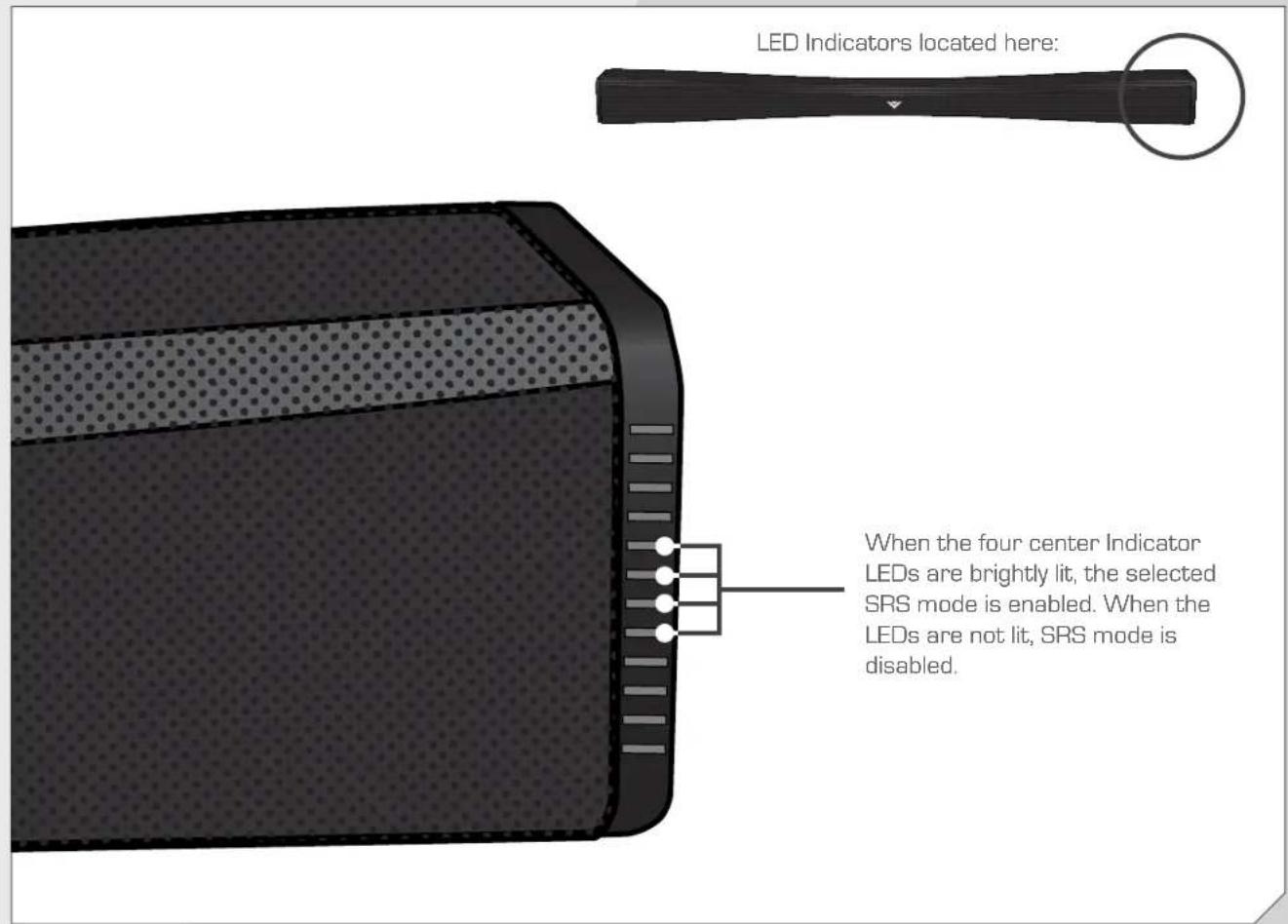

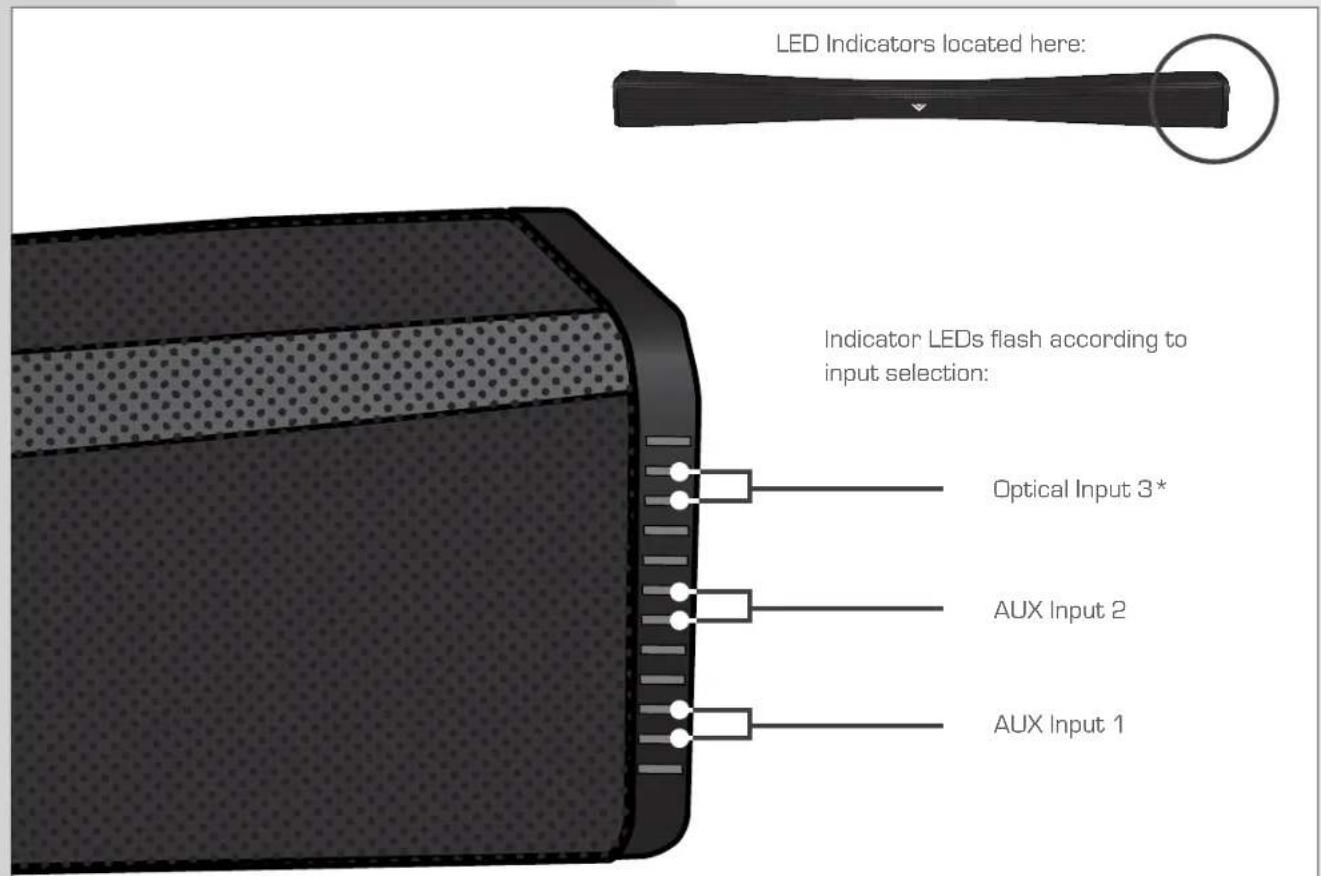

INDICATOR LEDs

*Rapid flash indicates incompatible source. If there is no sound output, see Help & Troubleshooting page.

INDICATOR LEDs [CONTINUED]

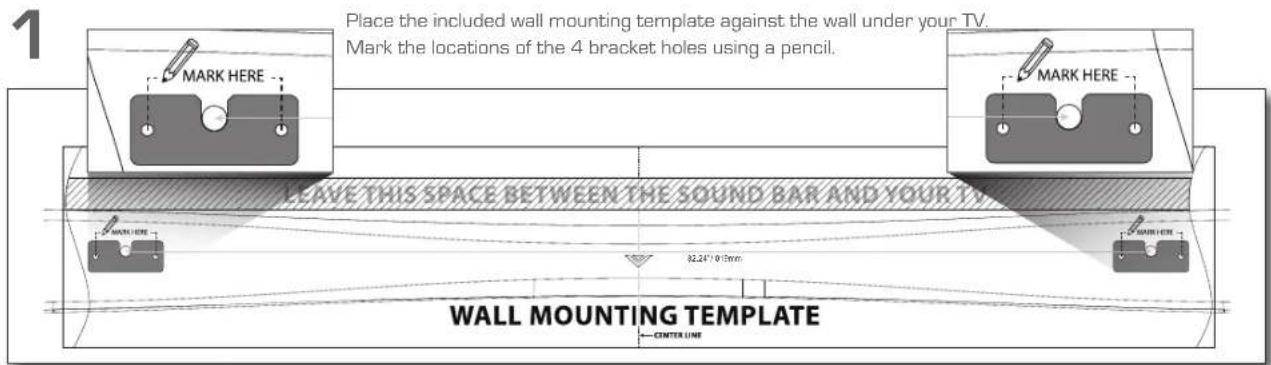

WALL MOUNTING THE SOUND BAR

2

Be sure your screws are attached to wood studs or drywall anchors (for drywall) or concrete anchors (for brick/concrete walls).

Screws for attachment to the wall are not included. Choose the screw type and length appropriate to your home's construction. If in doubt, consult a professional installer.

If you are unfamiliar with power tools or the layout of electrical wiring in the walls of your home, consult a professional installer.

HELP & TROUBLESHOOTING

There is no power.	•Press the POWER button on the remote control or on the top of your Sound Bar. •Ensure the power cord is securely connected. •Ensure the light on the power adapter is glowing green. •Plug a different device into the electrical outlet to verify that the outlet is working correctly.
There is no sound.	•Increase the volume. Press Volume Up on the remote control. •Press MUTE on the remote to ensure the Sound Bar is not muted. •Press INPUT on the remote to select a different input source. •If you are using the 3.5mm output from your TV, be sure that is connected to an audio OUTPUT and not audio INPUT. Some TVs use 3.5mm audio INPUT for devices such as computers. •Your TV may be set to variable audio output. Confirm that the audio output setting is set to FIXED or STANDARD, not VARIABLE. Consult your TV's user manual for more detailed information. •If you are using a SPDIF/Optical connection, make sure your TV is set to PCM audio output.
I hear buzzing or humming.	•Ensure all cables and wires are securely connected. •Connect a different source device [TV, Blu-ray player, etc] to see if the buzzing persists. If it does not, the problem may be with the original device. •Connect your device to a different input on the Sound Bar.
I want to turn off the auto power down function.	•An "Always-On" mode can be enabled by pressing and holding the Power and Vol - buttons on the Sound Bar for 5 seconds. •The Bar can be returned to the Auto Power Down mode by pressing and holding the Power and Vol + buttons on the Sound Bar for 5 seconds.
I want to return my Sound Bar to factory settings.	•Press and hold the Input and Vol - buttons on the Sound Bar for 5 seconds to return it to its factory default settings.

ONE-YEAR LIMITED WARRANTY

ON PARTS AND LABOR

Covers units purchased as new in United States and Puerto Rico Only

VIZIO provides a warranty to the original purchaser of a new Product against defects in materials and workmanship for a period of one year of non-commercial usage and ninety (90) days of commercial use. If a Product covered by this warranty is determined to be defective within the warranty period, VIZIO will either repair or replace the Product at its sole option and discretion.

To obtain warranty service, contact VIZIO Technical Support via email: [e-mail] or via phone at 877 MY VIZIO (877.698.4946) from 6:00AM to 9:00PM Monday through Friday and 8:00AM to 4:00PM Saturday and Sunday, Pacific Time, or visit www.VIZIO.com. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER. Proof of purchase in the form of a purchase receipt or copy thereof is required to show that a Product is within the warranty period.

Parts and Labor

There will be no charge for parts or labor during the warranty period. Replacement parts and Products may be new or recertified at VIZIO's option and sole discretion. Replacement parts and Products are warranted for the remaining portion of the original warranty or for ninety (90) days from warranty service or replacement, whichever is greater.

Type of Service

Defective Products must be sent to a VIZIO service center to obtain warranty service. VIZIO is not responsible for transportation costs to the service center, but VIZIO will cover return shipping to the customer. PRE-AUTHORIZATION IS REQUIRED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER FOR WARRANTY SERVICE.

Product returns to VIZIO's service centers must utilize either the original carton box and shipping material or packaging that affords an equal degree of protection. VIZIO Technical Support will provide instructions for packing and shipping the covered Product to the VIZIO service center.

Limitations and Exclusions

VIZIO's one-year limited warranty only covers defects in materials and workmanship. This warranty does not cover, for example: cosmetic damage, normal wear and tear, improper operation, improper voltage supply or power surges, signal issues, damages from shipping, acts of God, any type of customer misuse, modifications or adjustments, as well as installation and set-up issues or any repairs attempted by anyone other than by a VIZIO authorized service center. Products with unreadable or removed serial numbers, or requiring routine maintenance are not covered. This one year limited warranty does not cover Products sold "AS IS", "FACTORY RECERTIFIED", or by a non-authorized reseller.

THERE ARE NO EXPRESS WARRANTY OTHER THAN THOSE LISTED OR DESCRIBED ABOVE. ANY IMPLIED WARRANTY, INCLUDING ANY IMPLIED WARRANTY OF MERCHANT-ABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE PERIOD OF TIME SET FORTH ABOVE. VIZIO'S TOTAL LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER INCLUDING VIZIO'S NEGLIGENCE, ALGEGED DAMAGE, OR DEFECTIVE GOODS, WHETHER SUCH DEFECTS ARE DISCOVERABLE OR LATENT, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCT. VIZIO SHALL NOT BE RESPONSIBLE FOR LOSS OF USE, LOSS OF INFORMATION OR DATA, COMMERCIAL LOSS, LOST REVENUE OR LOST PROFITS, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. THIS WARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE. CHECK www.VIZIO.com FOR THE MOST CURRENT VERSION.

SPECIFICATIONS

Sound Bar: Two 2-3/4" High-Efficiency

Full-Range Transducers

Inputs: 1 × 3.5mm Stereo Audio

1 x RCA Stereo Audio Pair

1 x Optical Digital

Sound Pressure Level: 95 dB

Frequency Response (Sound Bar): 90 Hz - 19.5 KHz

Voltage: 110-240 VAC, 50-60 Hz

Dimensions (Sound Bar): 40.72" W x 3.28" H x 2.50" D

Net Weight (Sound Bar): 5.7 lbs

Compliances: UL, FCC, cUL, NRCAN

LEGAL & COMPLIANCE

FCC Class B Radio Interference Statement

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference.

RF Exposure Information

This device meets the government's requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.

IC Statement

Operation is subject to the following two conditions:

1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Disposal and Recycling

You must dispose of this product properly, according to local laws and regulations.

Because this product contains electronic components and a battery, it must be disposed of separately from household waste. Contact local authorities to learn about disposal and recycling options.

SRS is a trademark of SRS Labs, Inc. SRS technologies are incorporated under license from SRS Labs, Inc.

This product qualifies for ENERGY STAR in the "factory default" setting and this is the setting in which power savings will be achieved. Changing the factory default settings or enabling other features will increase power consumption that could exceed the limits necessary to qualify for ENERGY STAR rating.

NOTES

DO YOU HAVE QUESTIONS?

LET US HELP!

YOUR PRODUCT INCLUDES FREE LIFETIME TECH SUPPORT

The VIZIO support team is highly trained and is based in the United States.

We can help with:

• New Product Setup
• Connecting Your Devices
  Technical Problems
  And More

Phone: [877] 878-4946 [TOLL-FREE]

Email: [e-mail]

Web: www.VIZIO.com/support

Hours of operation:

Monday - Friday: 5 AM TO 9 PM (PST)

Saturday - Sunday: 8 AM TO 4 PM (PST)
