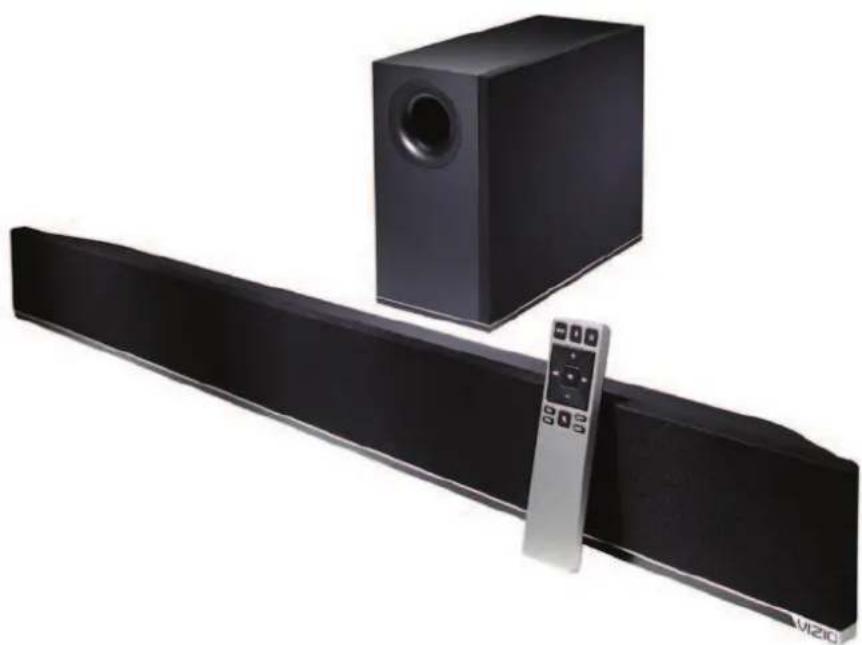

Product Type	Soundbar with wireless subwoofer
Model	VIZIO S3821w-C0NA
Power	Sound pressure level: 100 dB
Frequency Response	50 Hz - 19 kHz
Soundbar Transducers	2 x 7.6 cm (3 inches) full-range
Subwoofer Transducer	1 x 15.2 cm (6 inches) high excursion
Power Supply	120 V AC, 60 Hz
Audio Inputs	1 x stereo 3.5 mm, 1 x RCA, 1 x Toslink optical, 1 x digital coaxial
USB Input	Yes (plays .WAV files only)
Bluetooth	Yes, range up to 9 meters
Audio Features	DTS TruSurround HD, TruVolume, adjustable treble and bass
Wall Mounting	Possible with M4 x 10 screws and supplied brackets
Warranty	Limited one year (parts and labor)
Certifications	UL, C-UL, FCC, IC, ENERGY STAR
Maintenance and Cleaning	Unplug before cleaning; use a dry cloth; do not use liquid or abrasive cleaners
Safety	Do not expose to rain or moisture; do not block ventilation openings; use only specified accessories
Spare Parts and Repairability	Contact VIZIO technical support for repair; do not attempt to repair yourself

Frequently Asked Questions - S3821wCNA VIZIO

What to do if the soundbar does not turn on?

Ensure the power cord is securely plugged into the soundbar and a working wall outlet. Press the Power button on the remote or on top of the soundbar. If the problem persists, try another outlet or contact technical support.

How to connect the soundbar to my TV?

Use one of the supplied cables: optical digital, digital coaxial, or stereo 3.5 mm/RCA audio cable. Connect the cable to your TV's audio output and to the corresponding input on the soundbar. Press the Input button on the remote to select the correct source.

Why is there no sound from the soundbar?

Check that the soundbar is powered on and the volume is not at minimum or muted. Press Mute to unmute. Select the correct input using the Input button. If using a digital input, set your TV's audio output to PCM. Ensure the cable is firmly connected.

How to pair my phone via Bluetooth?

Press and hold the Bluetooth button on the soundbar or remote for 5 seconds. The LED indicators will scroll left to right. On your phone, enable Bluetooth and search for 'VIZIO S3820w'. Select it to pair. Once connected, the LEDs will stop flashing.

The subwoofer has no sound, what to do?

Check that the subwoofer is turned on (switch set to ON) and its LED is solid green. If the LED is blinking, the two devices are not paired. To re-pair, press the pairing button on the back of the subwoofer for 5 seconds, then do the same on the soundbar. The LEDs will blink rapidly, then become solid once paired.

The remote control does not work, what should I check?

Replace the batteries with new ones, observing polarity. Point the remote directly at the center of the soundbar. Remove any obstacles. If using Bluetooth, some buttons (e.g., Back) may not be compatible with the current application.

How to wall mount the soundbar?

Use the supplied wall brackets and drilling template. Attach the M4 x 10 screws to the back of the soundbar. Mark the locations on the wall using the template, then drill and insert anchors suitable for your wall (wood, drywall, or concrete). Attach the brackets to the wall and hang the soundbar.

What does the flashing of the LED indicators mean?

The LED indicators show the soundbar status. For example, a left-to-right sweep indicates the soundbar is in Bluetooth pairing mode. A slow blinking subwoofer LED indicates it is not paired. Refer to the 'LED Indicators' section in the manual for more details.

Can I use a USB drive to play music?

Yes, plug a USB drive containing audio files in .WAV format only into the USB port (5) on the back of the soundbar. Press the Input button until the USB input is selected. Playback is controlled via the Play/Pause, Next, and Previous buttons on the remote.

Where can I find the complete user manual?

You can download the free PDF manual from the website notice-facile.com. Go to the product page for the VIZIO S3821wCNA and click 'Download'. A link will be sent to you by email if you request it in another language.

USER MANUAL S3821wCNA VIZIO

Black and white photo of a streaming setup with a speaker, TV, and remote control (no text or symbols visible)

QUICK START GUIDE

Model: S3821w-C0NA

IMPORTANT SAFETY INSTRUCTIONS

Your Unit is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent your Unit from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Unit. Keep these instructions in a safe place for future reference.

- Read these instructions.

- Keep these instructions.

- Heed all warnings.

- Follow all instructions.

- Do not use this apparatus near water.

- Clean only with a dry cloth.

- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

- Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

- Protect the power cord from being walked on or pinched, particularly of plugs, convenience receptacles, and the point where they exit from the apparatus.

- Only use attachments/accessories specified by the manufacturer.

- Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

- Unplug this apparatus during lightning storms or when unused for long periods of time.

- Rotor all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• To reduce the risk of electric shock or component damage, switch off the power before connecting other components to your Unit.

- Unplug the power cord before cleaning your Unit. A damp cloth is sufficient for cleaning. Do not use a liquid or a spray cleaner on your Unit. Do not use abrasive cleaners.

• Always use the accessories recommended by the manufacturer to insure compatibility.

- When moving your Unit from an area of low temperature to an area of high temperature, condensation may form in the housing. Wait before turning on your Unit to avoid causing tire, electric shock, or component damage.

- Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your Unit and to protect it from overheating, be sure these openings are not blocked or covered. Do not place your Unit in a bookcase or cabinet unless proper ventilation is provided.

- Never push any object into the slots and openings on your Unit enclosure. Do not place any objects on the top of your Unit. Doing so could short circuit parts causing a fire or electric shock. Never spill liquids on your Unit.

- When connected to a power outlet, power is always flowing into your Unit. To totally disconnect power, unplug the power cord.

- Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

- The wall socket should be located near your Unit and be easily accessible

- Keep your Unit away from moisture. Do not expose your Unit to rain or moisture. If water penetrates into your Unit, unplug the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.

- Do not use your Unit if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your Unit yourself.

- Avoid using dropped or damaged appliances. If your Unit is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of your Unit may cause fire or electric shock.

- Do not install your Unit in an area with heavy dust or high humidity. Operating your Unit in environments with heavy dust or high humidity may cause fire or electric shock.

- Ensure that the power cord and any other cables are unplugged before moving your Unit.

- When unplugging your Unit, hold the power plug, not the cord. Pulling on the power cord may damage the wires inside the cord and cause fire or electric shock. When your Unit will not be used for an extended period of time, unplug the power cord.

- To reduce risk of electric shock, do not touch the connector with wet hands.

- Insert the remote control batteries in accordance with instructions. Incorrect polarity may cause the battery to leak which can damage the remote control or injure the operator.

• See the important note and rating located on the back of the unit.

- WARNING - This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near the equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain, or moisture.

- CAUTION - Danger of explosion or fire if batteries are mistreated. Replace only with the same or specified type.

- Do not leave the batteries exposed to direct sunlight for a long period of time with doors and windows closed. Do not disassemble the batteries or dispose of it in fire.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Explanation of WARNING symbols:

The lighting flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of not isolated dangerous voltage within the product that may be sufficient magnitude to constitute a risk of shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance.

PACKAGE CONTENTS

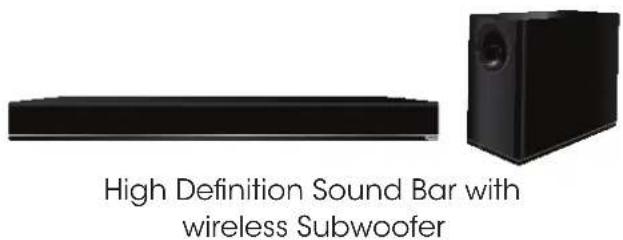

High Definition Sound Bar with wireless Subwoofer

2 x Power Cable

Stereo RCA to 3.5mm Audio Cable

Remote Control with Batteries

This Quick Start Guide

Coaxial Audio Cable

Digital Optical Cable

2 x Sound Bar Wall Mount Bracket

2 x Wall Mount Screw (Size: M4 x 10)

Wall Mount Template

CONTROLS & CONNECTIONS

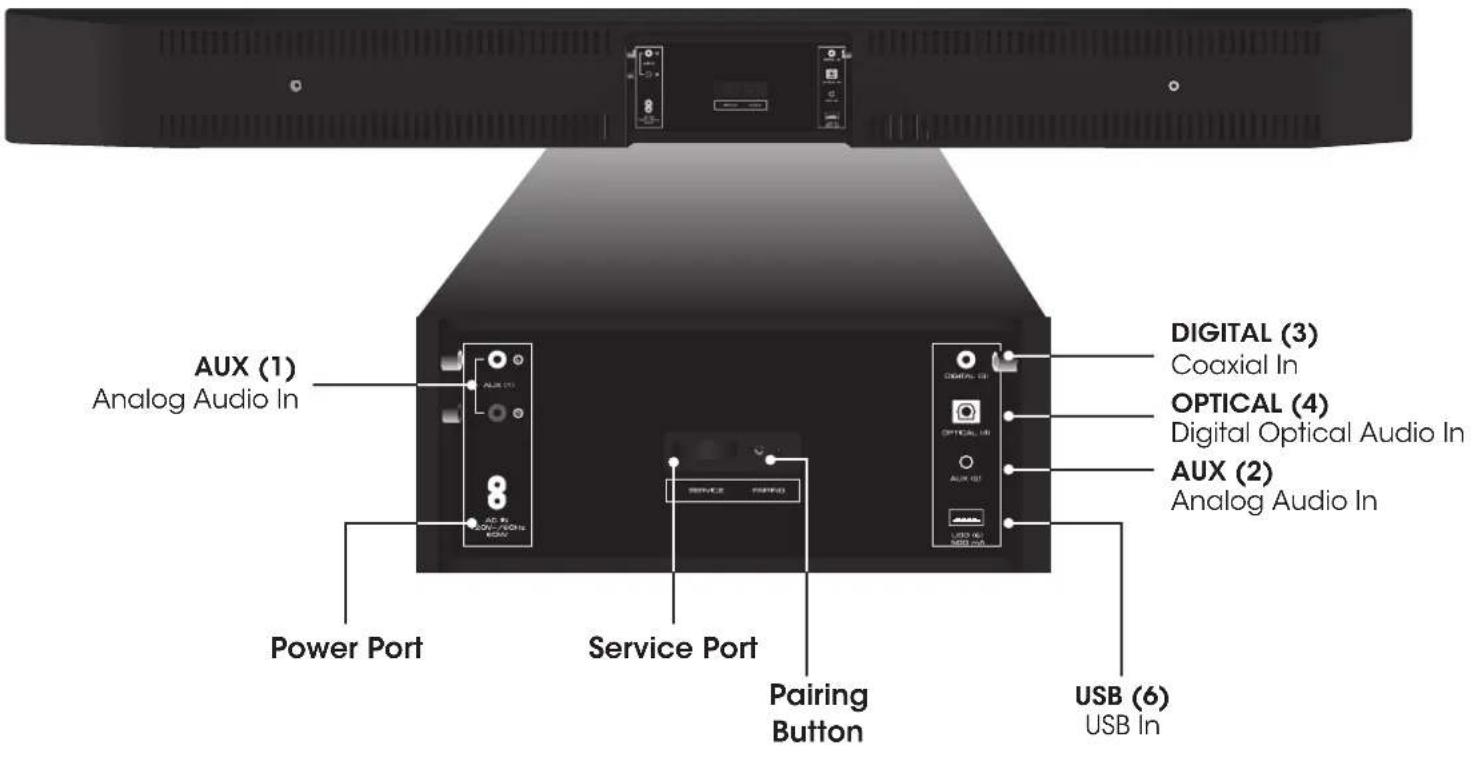

Back of Sound Bar

AUX (1) Analog Audio In Power Port Service Port Pairing Button DIGITAL (3) Coaxial In OPTICAL (4) Digital Optical Audio In AUX (2) Analog Audio In USB (6) USB In

Back of Sound Bar

Back view of a black electronic device with two ports and ventilation slots (no visible text or symbols)

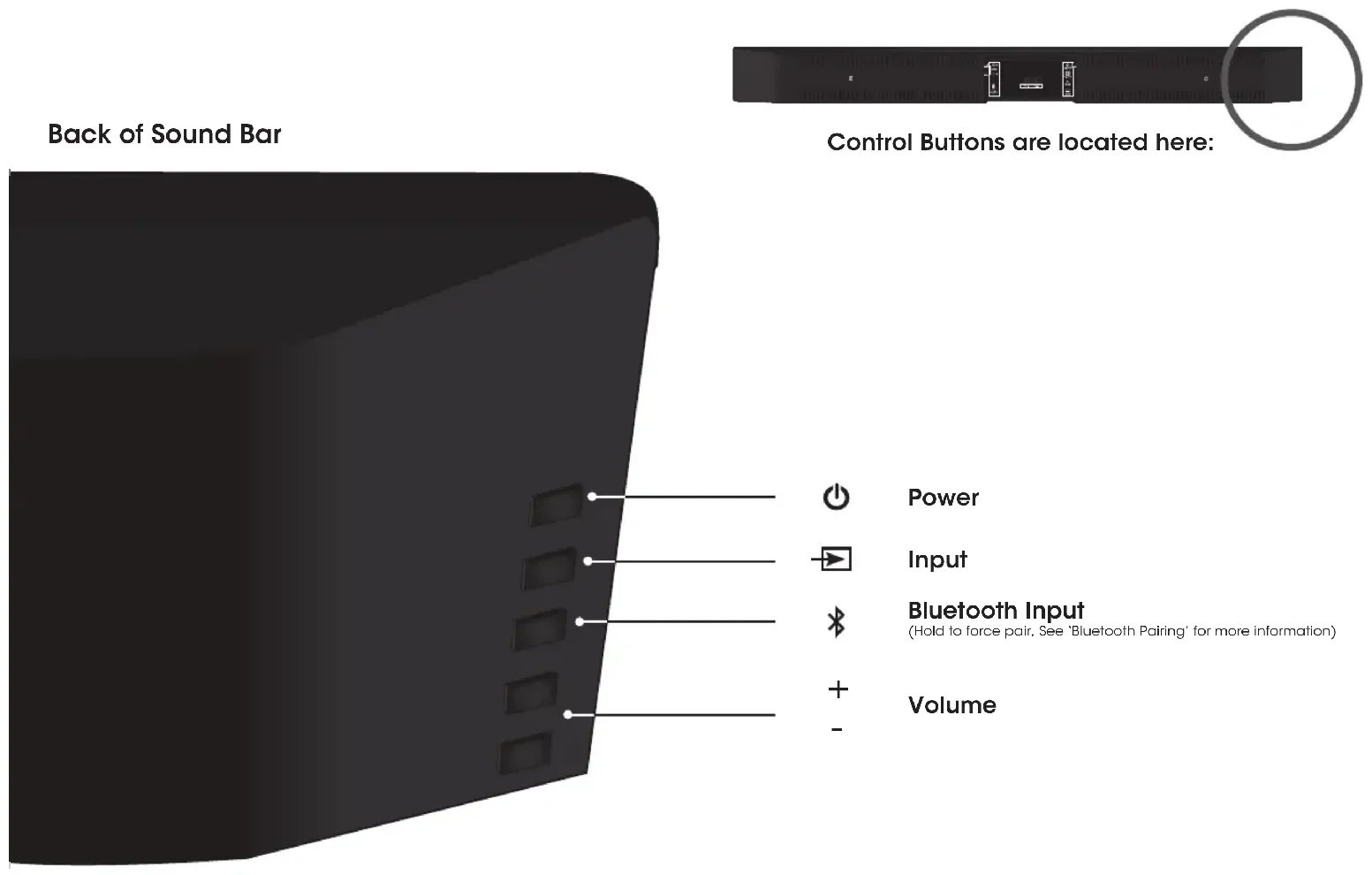

Control Buttons are located here:

3D rendering of a dark rectangular object with three small rectangular cutouts and three horizontal lines pointing to the edges (no text or symbols)

Power

Input

Bluetooth Input

(Hold to force pair, See 'Bluetooth Pairing' for more information)

Volume

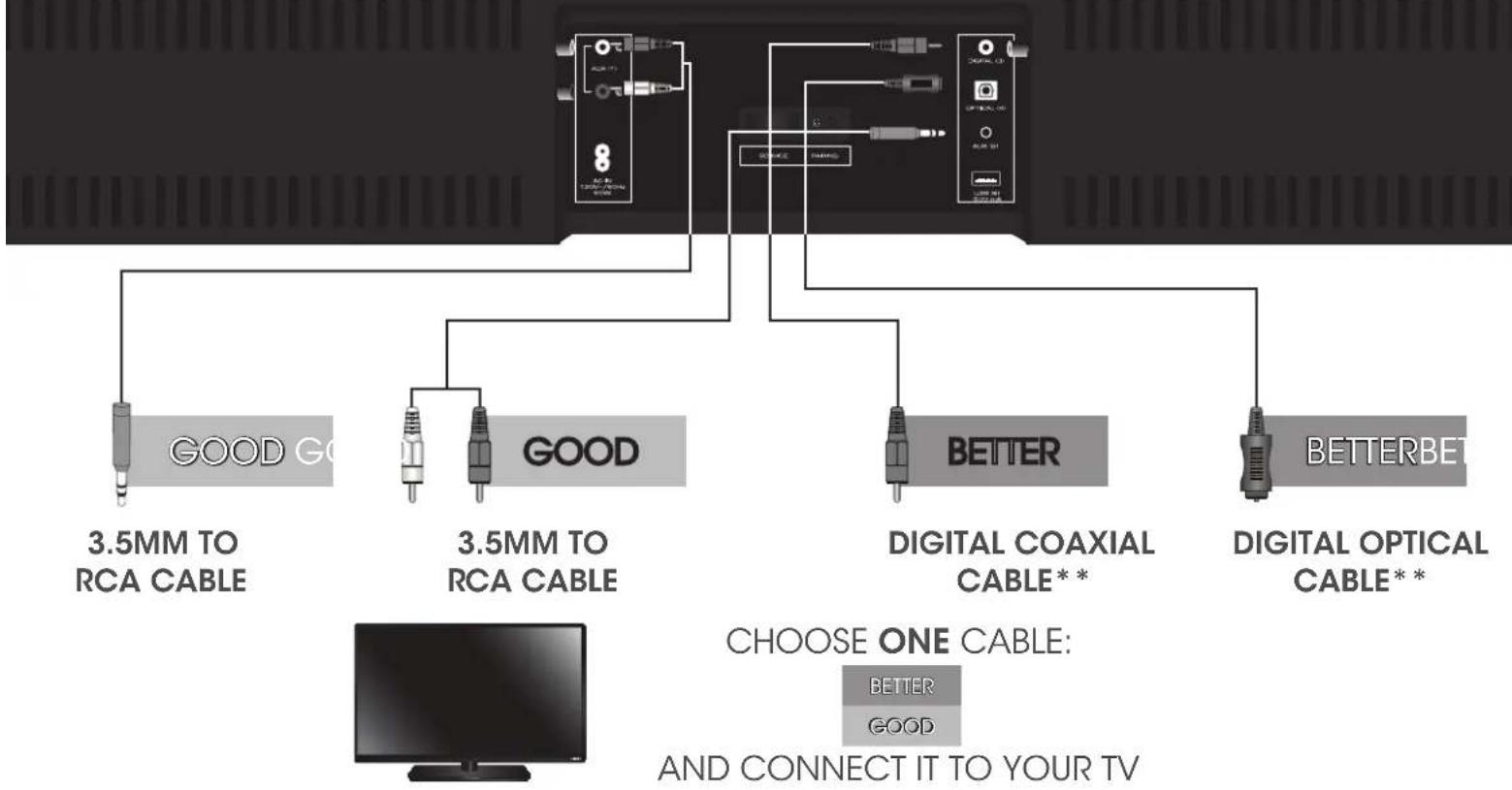

FIRST-TIME SETUP

Back of Sound Bar

*Not all TVs have the audio outputs shown above. To connect the Sound Bar directly to your other devices (Blu-ray player, game system, etc) see your device's user manual.
**When using either of the Digital Inputs, if there is no audio: (A) try setting the TV output to PCM or (B) Connect directly to your Blu-ray/other source, some TVs do not pass through digital audio.

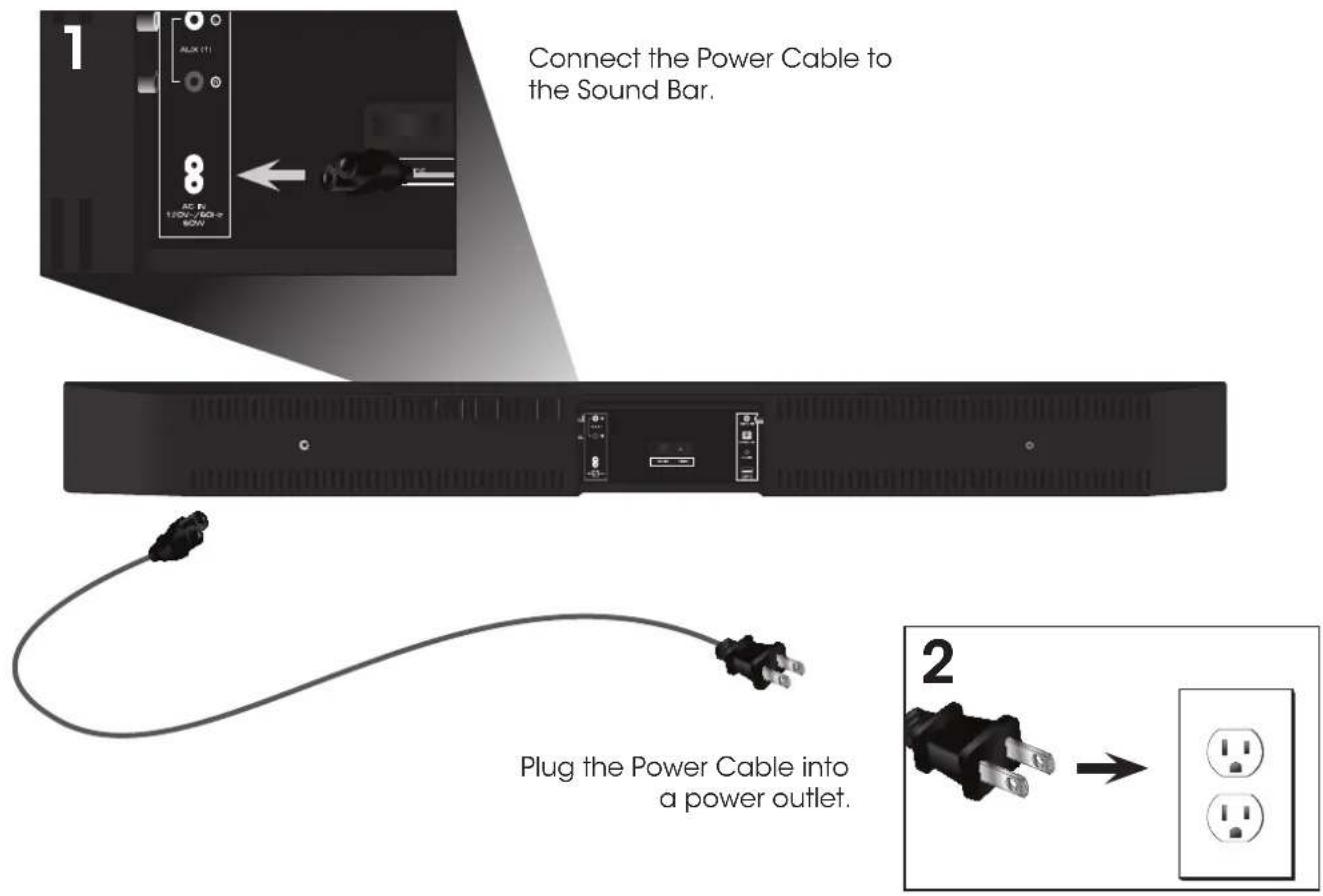

Connect the Power Cable to the Sound Bar. Plug the Power Cable into a power outlet.

Connect the Power Cable to the Sound Bar.

Plug the Power Cable into a power outlet.

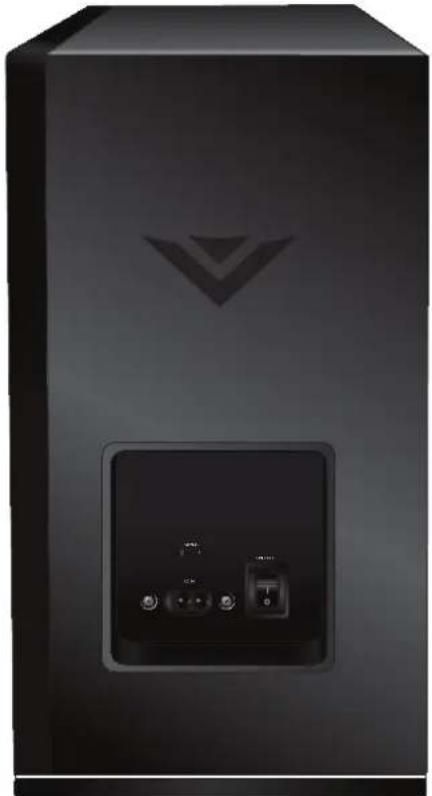

BACK OF SUBWOOFER

Black electronic device with a V-shaped logo and control panel (no visible text or symbols)

3 AC IN

Connect a Power Cable to the Subwoofer.

4 →

Plug the Power Cable into a power outlet.

5 ON / OFF

Flip the Power Switch into the On position.

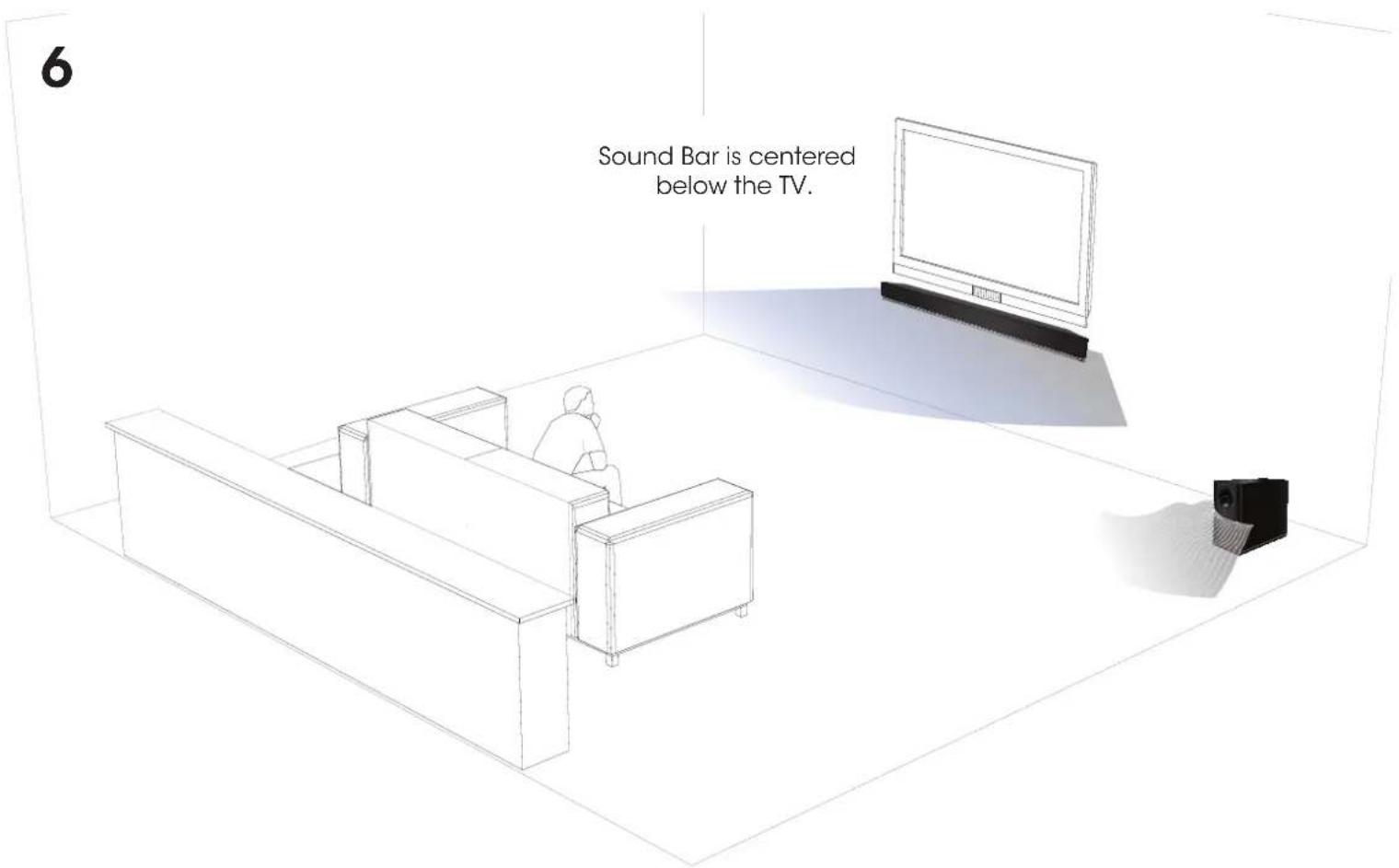

Sound Bar is centered below the TV.

For the best surround sound experience, position the Sound Bar and Subwoofer as shown. The Sound Bar should be close to ear level. The Subwoofer should be placed in a corner of the room.

7

Top Top

Remove the battery cover by gently sliding it away from the remote.

8

Two black rectangular objects with a beige label, one open and one closed, against a white background (no visible text or symbols)

Insert the included batteries and gently slide the battery cover back into place.

9

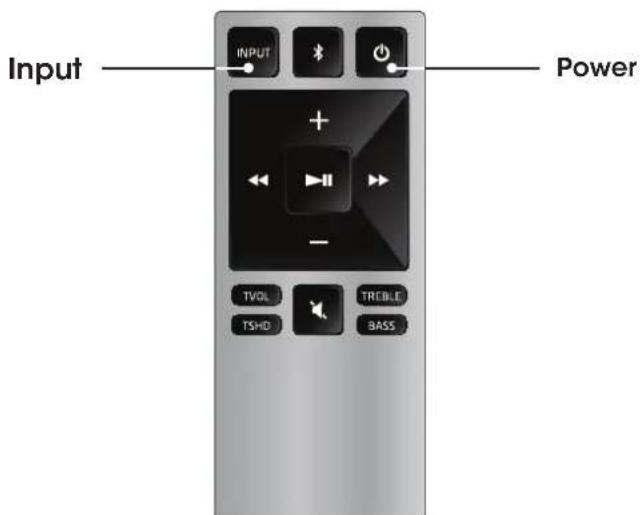

Turn your TV on, then press the Power button on the remote to turn the Sound Bar on.

Press the Input button to switch between audio sources. For example, if you connected your TV to Input 1, set the Sound Bar to Input 1.

Hardware setup is complete.

Input POWER INPUT + - TVOL TSHD TRCBLE BASS

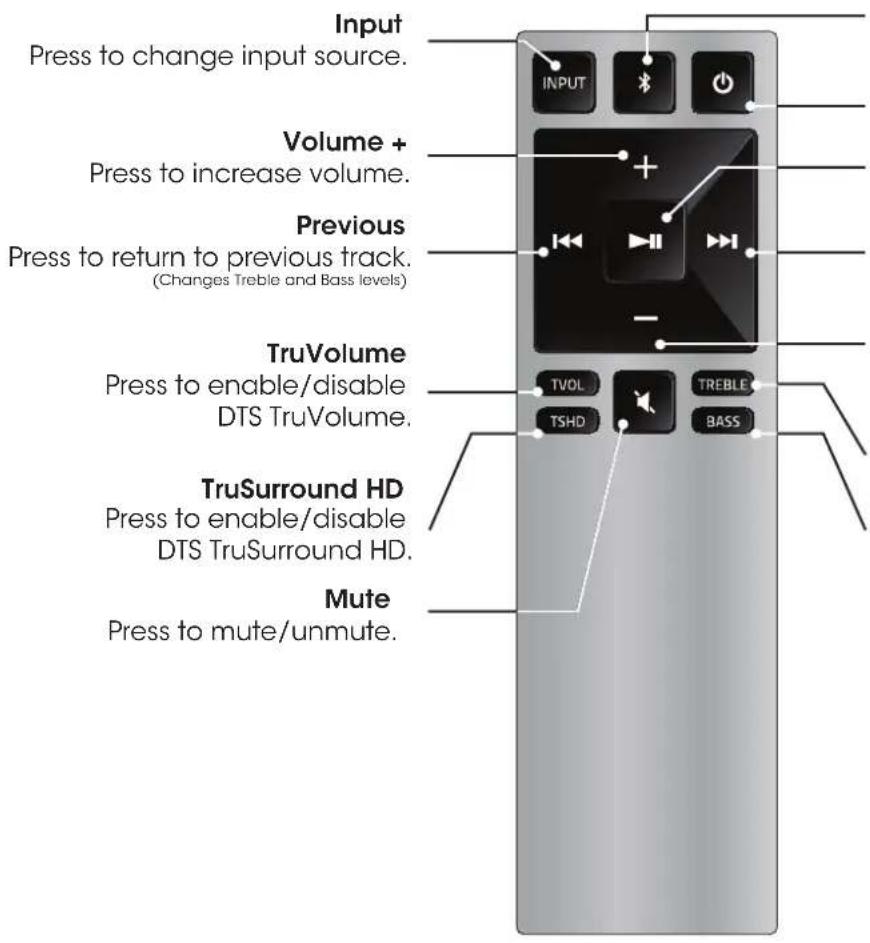

USING THE REMOTE

Input Press to change input source. Volume + Press to increase volume. Previous Press to return to previous track. (Changes Treble and Bass levels) TruVolume Press to enable/disable DTS TruVolume. TruSurround HD Press to enable/disable DTS TruSurround HD. Mute Press to mute/unmute.

Bluetooth

Press to enter Bluetooth input.

(To enter force pair mode, press and hold for 5 seconds)

Power

Press to turn on or off.

Enter/Play/Pause

Press to select an option.

Press to play or pause.

Next

Press to skip to the next track.

(Changes Treble and Bass levels)

Volume -

Press to decrease volume.

Treble

Press to enter treble adjustment mode.

Bass

Press to enter bass adjustment mode.

LED INDICATORS

LED Indicators are located here:

The LED Indicators will behave differently with each button on the remote control.

Function LED	Behavior Description
Input	Analog Audio In - AUX (1)Analog Audio In - AUX (2)Coaxial In - Digital (3)Digital Optical Audio In - Optical (4)BluetoothUSB Device - USB (6)	Press the INPUT button on the remote to cycle through each available input:Analog Audio In - AUX (1)Analog Audio In - AUX (2)Coaxial In- Digital (3)Digital Optical Audio In - Optical (4)BluetoothUSB Device - USB (6)
Bluetooth Pairing	(When searching for device)Flash from Left to Right and back continuously.	Press and hold the ➕ button on the remote. The Sound Bar will be discoverable for 15 minutes. You can now search for the Sound Bar (VIZIO S3821w) using your Bluetooth Device. The sound bar will power down if no device is found.Note:Set your Bluetooth device into pairing mode prior to the Sound Bar.
DTS TruVolume On/Off	TruVolume On:TruVolume Off:	Press the TVOL button to enable/disable TruVolume. When enabled (On), TruVolume provides a consistent and comfortable volume level for a more enjoyable listening experience.
DTS TruSurround On/Off	TruSurround On:TruSurround Off:	Press the TSHD button to enable/disable DTS TruSurround. When enabled (On), all inputs will produce virtual surround sound. When disabled (Off), all sources will playback in 2.1 stereo.
Treble Levels	Two center LEDs indicate Treble level 0.	Press the TREBLE button then press the Next/Previous button to increase/decrease the treble level. The LED indicators will move to the right with increasing levels and to the left with decreasing levels.
Bass Levels	Two center LEDs indicate Bass level 0.	Press the BASS button then press the Next/Previous button to increase/decrease the bass level. The LED indicators will move to the right with increasing levels and to the left with decreasing levels.

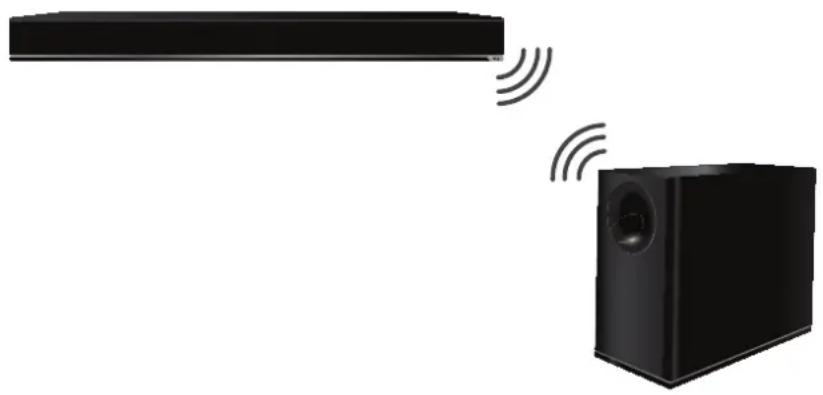

RE-LINKING THE SUBWOOFER WITH SOUND BAR

Illustration of a black audio device emitting sound waves from its speaker (no text or symbols)

Your Subwoofer has already been paired with your Sound Bar by VIZIO. However, you may need to pair the Subwoofer to the Sound Bar if there is no sound coming from the Subwoofer.

When the green LED on both the Sound Bar and Subwoofer are lit, the two are paired. A slow blink means the two are not paired.

What does pairing mean?

Pairing means to wirelessly connect.

1

FABING ACIN

Back of Subwoofer

First confirm that the power switch is in the ON position.

Press and hold the Pairing button on the back of the Subwoofer for 5 seconds. The LED on the back of the Subwoofer will blink rapidly.

2

Back of Sound Bar 1 2 3 ↓ 输出 1.0 输出 1.0

Turn on the Sound Bar. Press and hold the Pairing button on the back of the Sound Bar for 5 Seconds. The LED on the back of the Sound Bar will blink rapidly. When the green LED on both the Sound Bar and Subwoofer are lit, the two are paired.

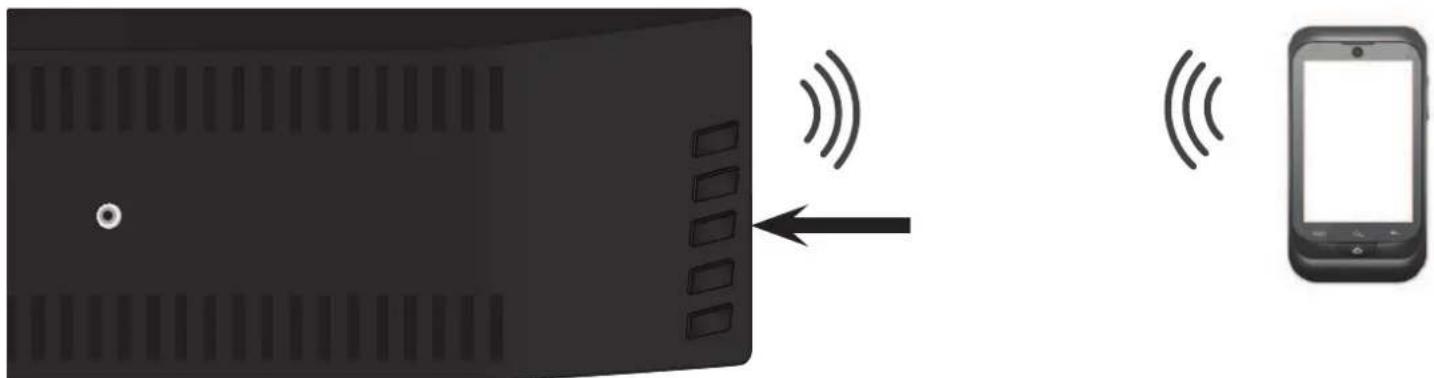

BLUETOOTH PAIRING

To pair the Sound Bar with a Bluetooth device:

1. Press and hold the Bluetooth button ✝ on the Sound Bar or the Bluetooth button ✝ on the remote for five (5) seconds. When the Sound Bar is in Bluetooth Pairing Mode, the LED Indicators on the Display Panel on the front of the Sound Bar will light sequentially from left to right and back again.

Once the device is paired, the LED Indicators will stop flashing.

1. You can now search for the Sound Bar (VIZIO S3821w) using your Bluetooth device. For more information, see the documentation that came with your device.
2. Play audio from your Bluetooth device. Volume can be controlled on your source device and the Sound Bar.

Back of Sound Bar

Illustration of a device with signal waves from an external panel and a smartphone (no text or symbols)

USING BLUETOOTH MODE

Your Sound Bar supports music streaming from smartphones, tablets, and computers with Bluetooth capability. Device compatibility will vary, see your device's documentation for more information. Once you have paired your source device to the Sound Bar, as long as you stay within range of the Sound Bar, your device should remain paired, even if you change the input on the Sound Bar.

Your Sound Bar is not equipped with a microphone, so it cannot operate as a hands-free device for a smartphone.

Maximizing Signal

A Bluetooth signal has a range of up to 30 feet. Keep in mind that Bluetooth is a compressed audio format, so streamed music may lose some integrity when compared to a wired connection.

Try the following if your sound quality is less than optimal:

• If you hear any break-up or disconnect while streaming music from your device, move the source device closer to the Sound Bar.
• Be sure that there are no solid obstructions in the line-of-sight between the Sound Bar and the source device.
• Other wireless devices can affect Bluetooth range, including wireless security cameras, wireless video baby monitors, cordless phones, and microwave ovens. Turning off or moving these devices may improve Bluetooth range.

Reduce the volume levels on your device and on the Sound Bar before pressing Play. High volume levels can damage your hearing.

ADVANCED SETUP

Connect up to five (5) different devices to the Sound Bar (devices shown are examples you can use any device).

To listen to a device, change the input source on the Sound Bar.

Optical, Coaxial, and 3.5mm cables transmit audio only. If connecting a video device, you will need a separate video connection from the device to your TV.

Back of Sound Bar RCA AUDIO CABLE DIGITAL COAXIAL CABLE DIGITAL OPTICAL CABLE 3.5mm AUDIO CABLE USB THUMB DRIVE*

Illustration of electronic devices including a tablet, a CD, a music note, and a laptop (no text or symbols visible)

Game Console Network Media Player Tablet/MP3 Player/Laptop

WALL MOUNTING THE SOUND BAR

1

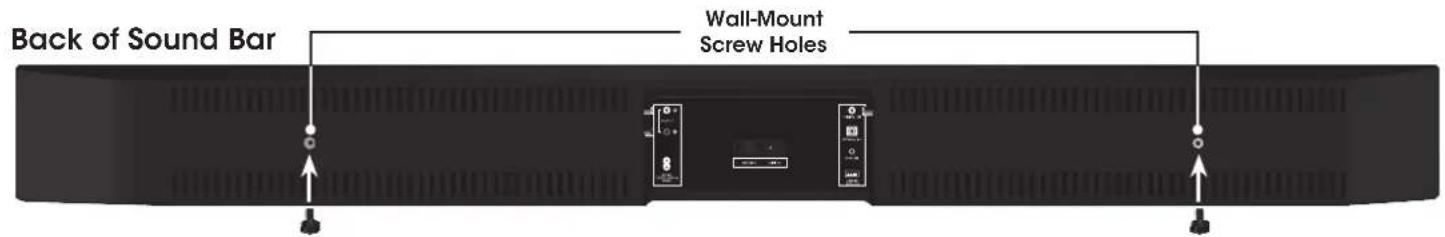

Back of Sound Bar Wall-Mount Screw Holes

Insert and tighten two Wall-Mount Screws with a Phillips-head screwdriver into the Wall-Mount Screw Holes.

2

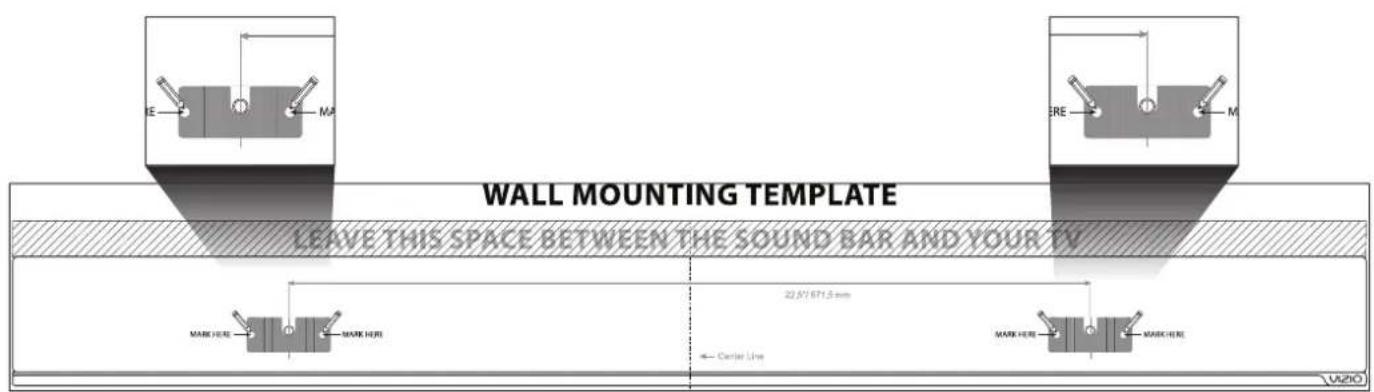

WALL MOUNTING TEMPLATE LEAVE THIS SPACE BETWEEN THE SOUND BAR AND YOUR TV MARK HERE → MARK HERE 22,571.671,5 mm Center Line MARK HERE → MARK HERE VADIO

Place the included wall mounting template against the wall under your TV. Mark the four bracket holes using a pencil.

3

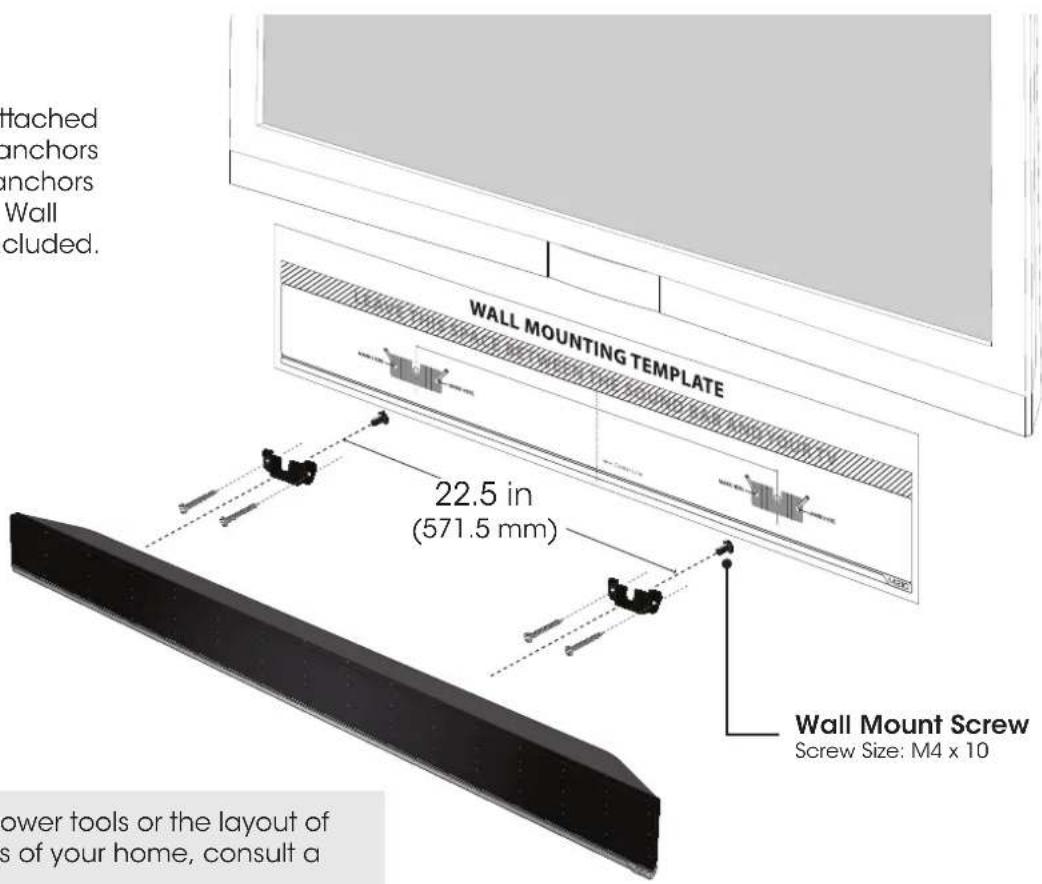

Be sure your screws are attached to wood studs or drywall anchors (for drywall) or concrete anchors (for brick/concrete walls). Wall mounting hardware is not included.

attached anchors anchors walls cluded. WALL MOUNTING TEMPLATE 22.5 in (571.5 mm) Wall Mount Screw Screw Size: M4 x 10 lower tools or the layout of s of your home, consult a

If you are unfamiliar with power tools or the layout of electrical wiring in the walls of your home, consult a professional installer.

HELP & TROUBLESHOOTING

There is no power.	Press the POWER button on the remote control or on the top of your Sound Bar.Ensure the power cord is securely connected.Plug a different device into the electrical outlet to verify that the outlet is working correctly.
There is no sound.	Increase the volume. Press Volume Up on the remote control or on the top of your Sound Bar.Press MUTE on the remote to ensure the Sound Bar is not muted.Press INPUT on the remote or on the top of your Sound Bar to select a different input source.When using either of the Digital Inputs, if there is no audio: (A) Try setting the TV output to PCM or (B) Connect directly to your Blu-ray/other source, some TVs do not pass through digital audio.Your TV may be set to variable audio output. Confirm that the audio output setting is set to FIXED or STANDARD, not VARIABLE. Consult your TV's user manual for more detailed information.If using Bluetooth, ensure that the volume on your source device is turned up and that the device is not muted.
I hear buzzing or humming.	Ensure all cables and wires are securely connected.Connect a different source device (TV, Blu-ray player, etc) to see if the buzzing persists. If it does not, the problem may be with the original device.Connect your device to a different input on the Sound Bar.
The remote isn't working.	Replace the remote batteries with new ones.Point the remote directly at the center of the Sound Bar when pressing a button.If using a Bluetooth connection, some of the buttons on the remote may not be supported by the streaming application. (e.g., Pandora doesn't support the Back button.)

DO YOU HAVE QUESTIONS?

LET US HELP!

YOUR PRODUCT INCLUDES FREE LIFETIME TECH SUPPORT

We speak English

The VIZIO support team is highly trained and is based in the United States.

We can help with:

• New Product Setup
• Connecting Your Devices
  • Technical Problems
• And More

Phone: [phone] (TOLL-FREE)

Email: [e-mail]

Web: http://store.VIZIO.com/support

Hours of operation:

Monday - Friday: 5 AM TO 9 PM (PST)

Saturday - Sunday: 8 AM TO 4 PM (PST)

We speak English • Se habla Español • Nous parlons Français

VIZIO RECOMMENDS

NETFLIX Watch instantly vodu Watch in HD twitter YouTube

Introducing the new E-series slim frame design. The VIZIO E-series LED TV is shattering the mold in a way only VIZIO can, with high-quality design and picture at the best value. With a stunningly slim outer frame design – and LED with 1080p Full HD for rich colors and vivid details, this HDTV gives you the best picture at the best value.

Available at www.VIZIO.com

This Product Sold Separately

VIZIO RECOMMENDS

Two black rectangular devices, one with a logo and the other with a 'VIZIO' branding, shown against a white background (no text or symbols on the devices themselves).

The VIZIO Co-Star™ Stream Player merges live TV and streaming entertainment into one experience, turning any HDTV into the ultimate smart TV. Using the latest version of Google TV™, Co-Star decks out your existing HDTV with apps, full-screen Web browsing and the best in streaming entertainment. And with 1080p Full HD resolution, built-in Wi-Fi, and 3D-readiness, VIZIO Co-Star is the ultimate entertainment upgrade for any high-definition television.

Available at www.VIZIO.com

This Product Sold Separately

ONE-YEAR LIMITED WARRANTY

ON PARTS AND LABOR

Covers units purchased as new in United States and Puerto Rico Only

VIZIO provides a warranty to the original purchaser of a new Product against defects in materials and workmanship for a period of one year of non-commercial usage and ninety (90) days of commercial use. If a Product covered by this warranty is determined to be defective within the warranty period, VIZIO will either repair or replace the Product at its sole option and discretion.

To obtain warranty service, contact VIZIO Technical Support via email: [e-mail] or via phone at 877 MY VIZIO (877.698.4946) from 5:00AM to 9:00PM Monday through Friday and 8:00AM to 4:00PM Saturday and Sunday, Pacific Time, or visit www.VIZIO.com. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER. Proof of purchase in the form of a purchase receipt or copy thereof is required to show that a Product is within the warranty period.

Parts and Labor

There will be no charge for parts or labor during the warranty period. Replacement parts and Products may be new or recertified at VIZIO's option and sole discretion. Replacement parts and Products are warranted for the remaining portion of the original warranty or for ninety (90) days from warranty service or replacement, whichever is greater.

Type of Service

Defective Products must be sent to a VIZIO service center to obtain warranty service. VIZIO is not responsible for transportation costs to the service center, but VIZIO will cover return shipping to the customer. PRE-AUTHORIZATION IS REQUIRED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER FOR WARRANTY SERVICE.

Product returns to VIZIO's service centers must utilize either the original carton box and shipping material or packaging that affords an equal degree of protection. VIZIO Technical Support will provide instructions for packing and shipping the covered Product to the VIZIO service center.

Limitations and Exclusions

VIZIO's one-year limited warranty only covers defects in materials and workmanship. This warranty does not cover, for example: cosmetic damage, normal wear and tear, improper operation, improper voltage supply or power surges, signal issues, damages from shipping, acts of God, any type of customer misuse, modifications or adjustments, as well as installation and set-up issues or any repairs attempted by anyone other than by a VIZIO authorized service center. Products with unreadable or removed serial numbers, or requiring routine maintenance are not covered. This one year limited warranty does not cover Products sold "AS IS", "FACTORY RECERTIFIED", or by a non-authorized reseller.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED OR DESCRIBED ABOVE. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE PERIOD OF TIME SET FORTH ABOVE. VIZIO'S TOTAL LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER INCLUDING VIZIO'S NEGLIGENCE, ALLEGED DAMAGE, OR DEFECTIVE GOODS, WHETHER SUCH DEFECTS ARE DISCOVERABLE OR LATENT, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCT. VIZIO SHALL NOT BE RESPONSIBLE FOR LOSS OF USE, LOSS OF INFORMATION OR DATA, COMMERCIAL LOSS, LOST REVENUE OR LOST PROFITS, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. THIS WARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE. CHECK www.VIZIO.com FOR THE MOST CURRENT VERSION.

SPECIFICATIONS

Sound Bar: 2 x 3" High-Efficiency Full-Range Transducers

Subwoofer: 1 x 6" High-Excursion (Long throw) Transducer

Inputs: 1 x 3.5mm Stereo Audio

1 x RCA Stereo Audio

1 x Optical (Toslink)

1 x Digital Coaxial Audio

1 x USB (WAV playback only)

Bluetooth (Wireless)

Sound Pressure Level (System): 100 dB

Frequency Response (System): 50 Hz - 19 KHz

Voltage: 120 VAC, 60 Hz

Compliances: UL, C-UL, FCC

LEGAL & COMPLIANCE

FCC Class B Radio Interference Statement

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference.

RF Exposure Information

This device meets the government's requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.

IC Statement

Operation is subject to the following two conditions:

1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

IC Radiation Exposure Statement

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Disposal and Recycling

You must dispose of this product properly, according to local laws and regulations. Because this product contains electronic components and a battery, it must be disposed of separately from household waste. Contact local authorities to learn about disposal and recycling options.

Other:

Image(s) used under license from Shutterstock.com

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS TruSurround is a trademark of DTS. Inc. DTS. Inc. All Rights Reserved.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS TruVolume is a trademark of DTS. Inc. © DTS, Inc. All Rights Reserved.

This product qualifies for ENERGY STAR in the "factory default" setting and this is the setting in which power savings will be achieved. Changing the factory default settings or enabling other features will increase power consumption that could exceed the limits necessary to qualify for ENERGY STAR rating.

We want to help you save energy.

VIZIO

Black and white photo of a streaming setup with a speaker, remote control, and video player (no text or symbols visible)

GUIDE DE DÉMARRAGE RAPIDE

3D rendering of a dark rectangular object with three small rectangular cutouts and three horizontal lines pointing to the edges (no text or symbols)

Pure electrical circuit lines without any symbols

Black electronic device with a V-shaped logo and control panel (no visible text or symbols)

3 AC IN

Two black rectangular objects with a beige label, one open and one closed, against a white background (no visible text or symbols)

Illustration of a black audio device emitting sound waves from its speaker (no text or symbols)

Illustration of a device with signal waves from an external panel and a smartphone (no text or symbols)

UTILISER LE MODE BLUETOOTH

Black-and-white photo of a desktop computer setup including a tablet, an electronic device with a musical note, and a laptop with a screen interface (no visible text or symbols)

VOUS AVEZ DES QUESTIONS?

LAISSEZ-NOUS VOUS AIDER!

VOTRE PRODUIT COMPREND LE SOUTIEN TECHNIQUE À VIE GRATUIT

Télép Co We speak English •

Web : http://store.VIZIO.com/support

Two black rectangular devices, one with a logo and the other with a 'VIZIO' branding, shown against a white background (no text or symbols on the devices themselves).

© 2013 VIZIO INC. ALL RIGHTS RESERVED.

© 2013 VIZIO INC. TOUS DROITS RÉSERVÉS.

130513OC-NC
