31337D - Oven HAMILTON BEACH - Free user manual and instructions

Product Type	Toaster Oven
Brand	Hamilton Beach
Model	31337D
Power Supply	120 V ~ 60 Hz
Maximum Temperature	230 °C (450 °F)
Timer	Mechanical, up to 30 minutes, with automatic shut-off and bell
Functions	Toast, Bake, Broil
Included Accessories	Oven rack, baking pan, removable crumb tray
Capacity	4 slices of bread (toast)
Door Material	Safety-tempered glass
Care and Cleaning	Clean with a damp cloth; do not use metal scouring pads; removable door for cleaning
Safety	Automatic timer shut-off; polarized plug; do not use with external timer
Warranty	5 years (Canada), 1 year (USA)
Customer Service (Canada)	1.800.267.2826
Customer Service (USA)	1.800.851.8900
Repairability	Repair by manufacturer or qualified agent; spare parts available upon request

Frequently Asked Questions - 31337D HAMILTON BEACH

How to use the toast function?

Place the rack in the lower position. Turn the temperature selector to maximum (toast icon). Turn the timer past 10, then back to desired toast level. A bell rings at the end.

Can I open the door if food catches fire?

No, never open the door. Unplug the appliance and let the contents extinguish before opening.

What is the preheating procedure for baking?

Turn the timer past 10 and preheat for 5 minutes before inserting food. The recommended temperature is 177°C (350°F) for most dishes.

How to clean the inside of the oven?

Wipe the inner walls and glass door with a cloth dampened with soapy water, then rinse with a damp cloth. Never use metal scouring pads.

The oven emits a smoke smell during first use, is this normal?

Yes, it's normal. Heat the empty oven at 230°C (450°F) for 10 minutes before first use to remove manufacturing residues.

How to remove and clean the door?

Open the door fully, then gently pull it upward to remove. Clean with warm soapy water, rinse and dry. Do not put in dishwasher.

What foods can I broil?

Place the rack in the upper position. Use the baking pan. Do not preheat. Approximate times: hamburgers 25 min, hot dogs 15 min, sausages 15-20 min, fish 15 min. Turn halfway through.

The timer knob does not turn easily, what should I do?

Make sure to turn the knob past 10 before returning to the desired setting. If the problem persists, contact customer service.

Can I use an extension cord?

Yes, an approved extension cord can be used if the cord is too short. Its electrical ratings must be equal to or greater than those of the appliance. Avoid circuit overload.

What is the warranty on this appliance?

5-year warranty in Canada and 1 year in the USA against defects in materials and workmanship. Requires proof of purchase. Does not cover glass, normal wear, or accidental damage.

USER MANUAL 31337D HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online

Please call us – our friendly associates are ready to help. USA: 1.800.851.8900

Questions

Exterior view of a Hamilton Beach EasyJet Rooster (no text or symbols on the device itself)

English 2

Français.... 11

Español 21

WARNING

Silhouette of a flame with multiple sharp peaks (no text or symbols)

Fire Hazard.

• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.
• Do not operate unattended while in Toast or Broil modes.
• Do not use with oven cooking bags.
• Do not heat taco shells in toaster oven. Always use full-size conventional oven.
  • Always allow at least one inch between food and heating element.
  • Always unplug toaster oven when not in use.
• Regular cleaning reduces risk of fire hazard.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs.
5. To protect against electric shock, do not immerse cord, plug, or toaster oven in water or other liquid.
6. Unplug from outlet when not in use and before cleaning. Allow to cool before cleaning appliance and putting on or taking off parts.
7. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and

repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

1. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
2. Do not use outdoors.
3. Do not let cord hang over edge of table or counter or touch hot surfaces.
4. Do not place on or near a hot gas or electric burner or in a heated oven.
5. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
6. To disconnect, turn all controls to OFF (☐) then remove plug from wall outlet.

7. Use extreme caution when removing pan or disposing of hot grease.

8. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electrical shock.

9. Oversize foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.
10. The bread may burn. A fire may occur if toaster is covered or touching flammable material, including curtains, draperies, walls, overhead cabinets, paper or plastic products, cloth towels, and the like, when in operation.
11. Extreme caution should be exercised when using containers constructed of materials other than metal or glass.

12. Do not store any materials, other than manufacturer-recommended accessories, in this oven when not in use.

13. Do not place any of the following materials in the oven: paper, cardboard, plastic, and the like.

14. Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.
15. To turn oven off, turn timer to OFF (O) position. See "Parts and Features" section.
16. Do not place eyes or face in close proximity with tempered safety glass door, in the event that the safety glass breaks.
17. Always use appliance with crumb tray securely in place.
18. Do not use appliance for other than intended use.
19. Clean oven interior carefully. Do not scratch or damage heating element tube.
20. Do not operate the appliance by means of an external timer or separate remote-control system.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

⚠ WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

This appliance is equipped with a fully tempered safety glass door. The tempered glass is four times stronger than ordinary glass and more resistant to breakage. Tempered glass can break; however, it breaks into pieces with no sharp edges. Care must be taken to avoid scratching door surface or nicking edges. If the door has a scratch or nick, call our toll-free customer service number.

Always unplug your toaster oven from the outlet when not in use.

BEFORE FIRST USE

Most heating appliances produce an odor and/or smoke when used the first time. Plug the toaster oven into an outlet. Turn Temperature Dial to 450°F (230°C). Heat at this temperature for 10 minutes. The odor should not be present after this initial preheating. Wash baking pan and oven rack before using.

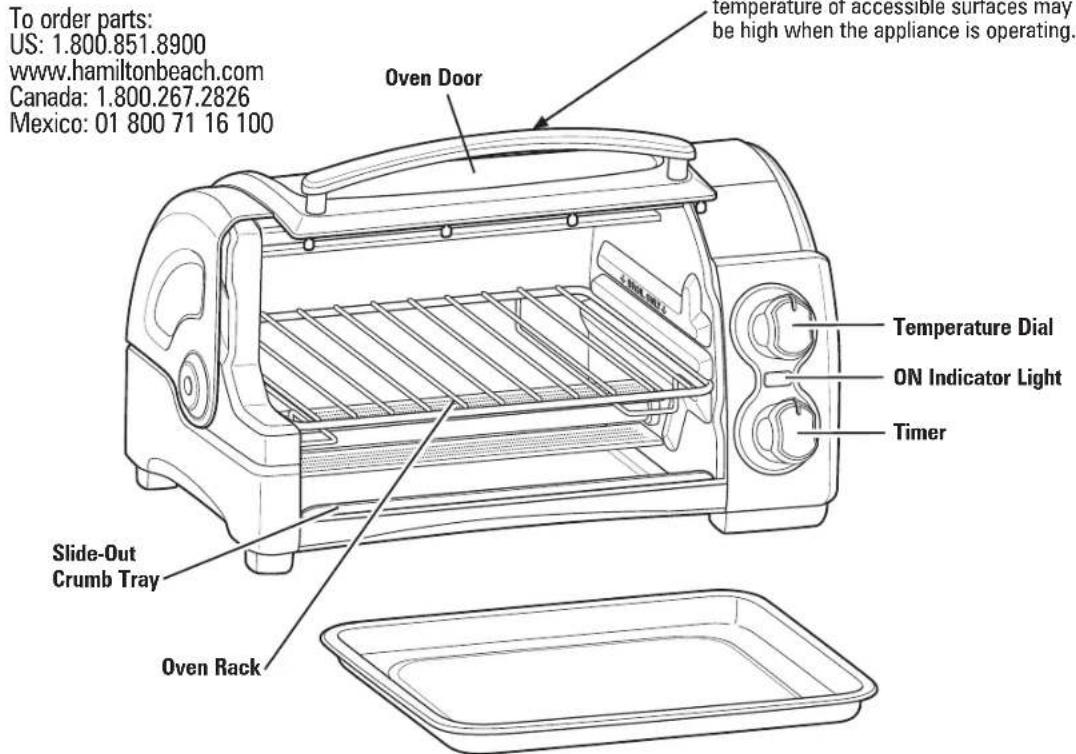

Parts and Features

To order parts: US: 1.800.851.8900 www.hamiltonbeach.com Canada: 1.800.267.2826 Mexico: 01 800 71 16 100 Oven Door Temperature or accessible surfaces may be high when the appliance is operating. Temperature Dial ON Indicator Light Timer Slide-Out Crumb Tray Oven Rack

Baking Pan
HIGH RACK POSITION: broiling

Line drawing of a vehicle interior showing storage racks and ventilation duct (no text or symbols)

LOW RACK POSITION: baking and toasting

Technical line drawing of a mechanical assembly with no visible text or symbols

How to Toast

Line drawing of a refrigerator interior showing rack and door (no text or symbols)

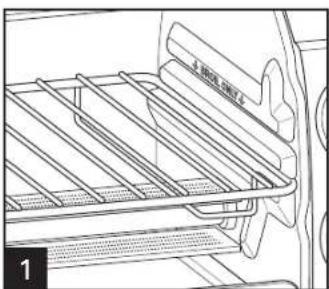

Place oven rack in LOW RACK POSITION (shown) for toast, English muffins, bagels, and waffles.

200 250 300 350 400 450 MP °F 2

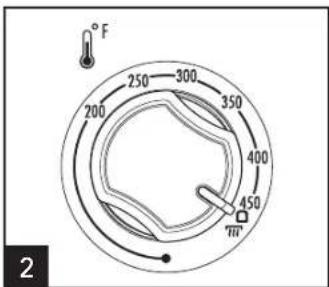

Turn Temperature Dial to maximum temperature (☐). Place food in oven.

• When toasting only two slices of bread, place bread in middle of oven rack to get even toasting on top and bottom.
• To toast bagels, English muffins, and waffles, place oven rack in LOW RACK POSITION and place food cut/split side facing up. This will toast the cut/split side more than the outside food. Set Timer to desired setting.
• To toast regular toaster pastries or frozen pastries, place oven rack in the LOW RACK POSITION. Select a color lighter than Medium and toast directly on the oven rack. If pastry has a glaze or frosting, use baking pan.

WARNING Fire Hazard.

- If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.

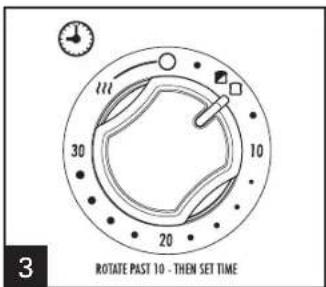

3 ROTATE PAST 10 - THEN SET TIME

Rotate Timer past 10 and then back to desired toast color. A bell will sound when the toast cycle is complete.

• Do not operate with door open or removed.
• Do not leave appliance unattended when in operation.
  • Always unplug toaster oven when not in use.

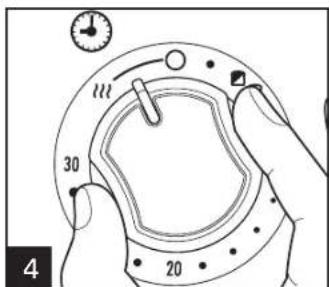

ROTATE PAST M 4

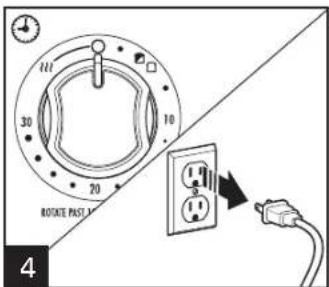

When finished, turn Timer dial to OFF) and unplug.

• When toasting, condensation may form on the oven door. The moisture will slowly escape from the enclosed oven.
• The number of slices of bread and the bread freshness will affect toast color. For example, toasting 4 slices of bread will require a darker toast color setting than 2 slices of bread. Adjust the Timer based on desired color and number of slices.
• If you are not satisfied with the color balance between the two sides of your food in the recommended rack position, select a different rack position.

How to Bake

Line drawing of a refrigerator interior showing rack and door (no text or symbols)

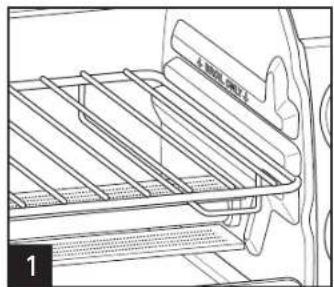

Place oven rack on LOW RACK POSITION (shown).

°F 250 300 200 350 400 450 70° 2

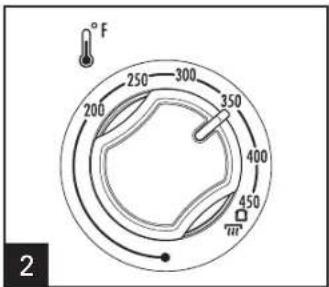

Turn Temperature Dial to desired temperature.

WARNING Fire Hazard.

• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.
• Do not use oven cooking bags.

30 20 10 11

3 ROTATE PAST 10 - THEN SET TIME

Rotate Timer past 10 and let preheat for 5 minutes prior to placing food in oven.

• Do not operate with door open or removed.
  • Always allow at least one inch (2.5 cm) between food and heating element.
  • Always unplug toaster oven when not in use.

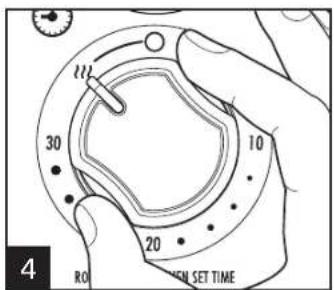

30 10 20 RO MEN SET TIME 4

After oven is preheated, set Timer to desired time by rotating Timer past 10 and then to desired baking time or rotate Timer to III (ON) while pressing in and holding the buttons on the side of the dial.

30 10 20 ROTATE PAST M 5

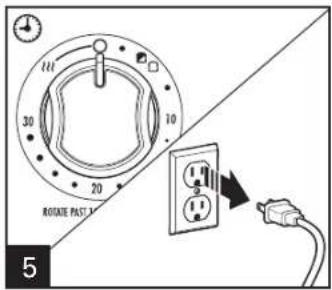

When finished, turn Timer dial to Ⓐ(OFF) and unplug.

6

• Do not totally enclose foods in aluminum foil. Foil can insulate foods and slow down heating.
• To reheat rolls or biscuits, place on baking pan and heat at 300°F (149°C) for 10 minutes.
• Reheat leftover roasts or casseroles at 350°F (177°C) for 20 to 30 minutes or until heated through.
• Bake foods, such as pizza, on the LOW RACK POSITION. Place food directly on oven rack or in baking pan.

IF YOU LIVE IN A HIGH-ALTITUDE AREA:

The Extension service will have detailed information about cooking for your area. To locate the Cooperative Extension service in your county, please visit: http://www.csrees.usda.gov/Extension/.

How to Broil

Line drawing of a refrigerator interior showing the roof rack and side panel (no text or symbols)

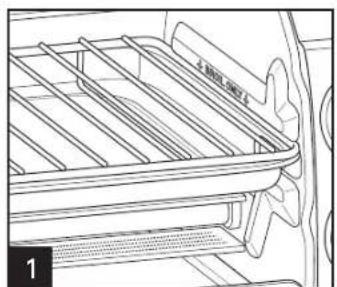

Slide oven rack into HIGH RACK POSITION. Insert baking pan under oven rack and add food. DO NOT PREHEAT OVEN.

200 250 300 350 400 450 nm °F 2

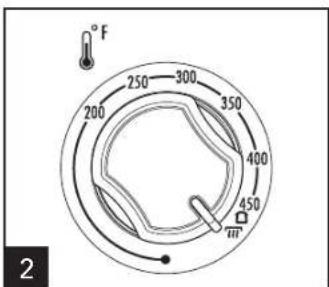

Turn Temperature Dial to (broil).

FOOD	APPROX. BROIL TIME
Hamburgers	25 minutes
Hot Dogs	15 minutes
Sausage Links or Patties (pierce casings before cooking)	15 to 20 minutes
Fish	15 minutes

These cooking times are an average and should be adjusted to individual preferences. Turn foods halfway through cooking time.

WARNING Fire Hazard.

• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.
• Do not leave oven unattended during operation.

30 20 4

Rotate Timer past 10 and then to the desired broiling time or rotate Timer to III(ON) while pressing in and holding the buttons on the side of the dial. Turn foods when browned or halfway through cooking time.

• Do not operate with door open or removed.
• Keep one inch (2.5 cm) between food and heating element.
• Do not use oven cooking bags.
• Do not heat foods in plastic containers.
• Follow food manufacturer's instructions.

111 30 20 10 ROTATE POST 4

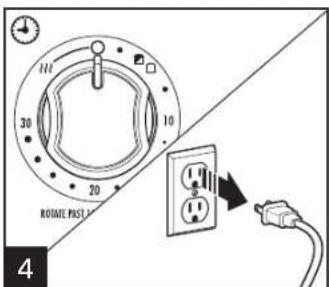

When finished, turn Timer dial to QOFF) and unplug.

• Cook beef and pork to at least 160^ F ( 71^ C).
• Cook chicken to at least 165^ F ( 73^ C).
• Cook fish until at least 145°F (63°C) or until opaque or flakes with a fork.

Visit foodsafety.gov for more safe cooking temperature information.

Care and Cleaning

ROTATE PAST AIR 1

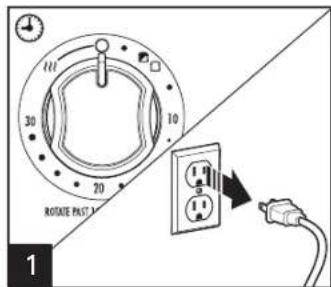

When finished, turn Timer dial to QOFF) and unplug.

Diagram of a door handle mechanism with an arrow indicating direction (no text or symbols present)

To clean inside of oven, wipe oven walls, bottom of oven, and glass door with a damp, soapy cloth. Repeat with a damp, clean cloth.

Illustration of a toaster with hand operating the blade (no text or symbols)

For stubborn stains, use a plastic scouring pad.
To remove door: Open door; gently pull straight up and remove to clean with hot, soapy water. Rinse with water and dry. DO NOT place door in dishwasher, since this may damage the door and will void your warranty.

WARNING Electrical Shock Hazard.

Do not clean with metal scouring pads. Pieces can break off pad and touch electrical parts.

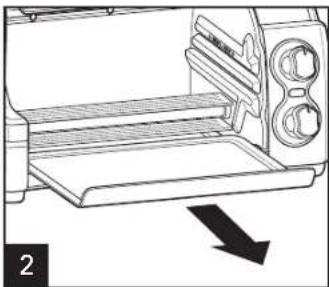

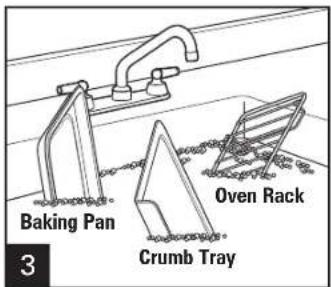

Baking Pan Crumb Tray Oven Rack 3

[Non-Text]

Line drawing of a hand cleaning a microwave oven with a cloth (no text or symbols)

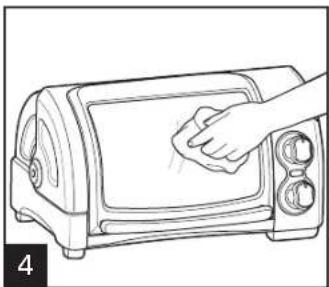

Wipe outside of oven with a damp cloth. Do not use abrasive cleansers or metal scouring pads.

Diagram of a hand operating a device with a downward arrow indicating process (no text or symbols present)

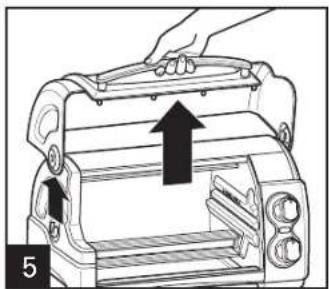

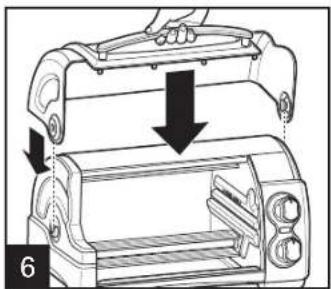

To replace door: Align inside of door piece with outside door piece; gently slide into position. Door must remain in fully open position during removal and replacement.

Troubleshooting

PROBLEM

Oven will not heat.	Check to make sure electrical outlet is working and the oven is plugged in. Turn Temperature Dial to 350^ ( 177^ ) and turn Timer to III (ON) while pressing in and holding the buttons on the side of the dial.
Moisture forms on inside of oven door when toasting.	This is normal when toasting in a toaster oven. Moisture is slower to escape from a toaster oven than from a toaster. The amount of moisture will differ between fresh bread, bagels, and frozen pastries.
An odor and smoke come from oven.	Smoke and odor are normal during first use of most heating appliances. These will not be present after initial heating period.
Oven will not toast.	Check to make sure outlet is working and oven is plugged in. Turn Temperature Dial to (toast) and rotate Timer past 10 and then back to desired toast color.
Some foods burn and some are not done.	Adjust oven temperature or cooking time for best results with your recipes.
Concentrated steam comes out of top corners of oven door.	Moisture escaping from oven will be concentrated into streams from the top corners of the door. This gives the appearance of smoke. This is normal for this product.

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online!

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

⚠AVERTISSEMENT

Silhouette of a flame-like shape with no text or symbols

Danger d'incendie.

Technical line drawing of a mechanical assembly or rack system (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

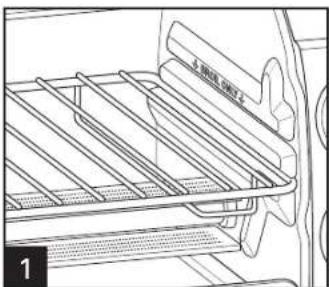

Le grillage

Line drawing of a refrigerator interior showing rack and door frame (no text or symbols)

Line drawing of a refrigerator interior showing rack and door (no text or symbols)

Line drawing of a refrigerator interior showing grating and ventilation slots (no text or symbols)

Line drawing of a kitchen drawer with a double door and a downward arrow indicating motion (no text or symbols)

Line drawing of a hand cleaning a microwave oven with a cloth (no text or symbols)

Illustration of a toaster oven with hand operating the top panel and arrows indicating motion (no text or symbols)

Diagram showing a hand operating a toaster with a downward arrow indicating process flow, labeled with number 6.

Silhouette of a flame with multiple sharp peaks (no text or symbols)

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Como Tostar

Line drawing of a refrigerator interior showing rack and door (no text or symbols)

Line drawing of a refrigerator interior showing rack and door (no text or symbols)

Line drawing of a refrigerator interior showing the rack and door (no text or symbols)

Line drawing of a kitchen drawer with a double door and a downward arrow indicating motion (no text or symbols)

Illustration of a toaster oven with hand operating the top panel and arrows indicating motion (no text or symbols)

Line drawing of a hand cleaning a microwave oven with a cloth (no text or symbols)

Diagram showing a hand operating a toaster with a downward arrow indicating process flow, labeled with number 6.
