Brand	Blaupunkt
Model	5DA26450
Product type	Range hood
Use	Domestic
Minimum safety distance (cooking surface)	650 mm
Exhaust duct diameter	120 mm minimum
Supply voltage	As per rating plate (typically 220-240 V)
Electrical class	I (grounding required)
Control type	Push/turn knob
Number of motor speeds	Multiple adjustable speeds
Lighting	Switchable via knob
Grease filter	Dishwasher-safe, every 2 months
Activated carbon filter	Not washable, replace every 4 months
Exterior cleaning	Damp cloth and mild liquid detergent
Prohibited cleaning products	Alcohol and silicone-based products
Power cord replacement	By an authorized technician

Frequently Asked Questions - 5DA26450 BLAUPUNKT

What is the minimum safety distance between the cooking surface and the hood?

The minimum safety distance is 650 mm. If the gas cooking surface instructions specify a greater distance, please comply strictly.

How to clean the grease filters?

Grease filters must be cleaned every 2 months. They can be washed in the dishwasher.

When should the activated carbon filter be replaced?

The activated carbon filter cannot be washed or regenerated. It must be replaced approximately every 4 months.

Can I use the hood simultaneously with a gas appliance?

Yes, but the room must be adequately ventilated. Negative pressure must not exceed 0.04 mbar to prevent backflow of exhaust gases.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by the manufacturer or an authorized after-sales technician.

How to adjust the motor speed?

Push the knob and release it to extend it, then turn the knob to select the desired suction speed.

How to turn on the hood light?

Push the knob and release it to turn it on. To turn off, push the knob back inward.

Which products are prohibited for cleaning the hood?

Do not use alcohol or silicone-based products to clean the interior or exterior of the hood.

Can this appliance be used by children?

Yes, from 8 years of age under supervision. Children under 8 years must not clean or maintain the appliance without supervision.

How to install the hood correctly?

Installation must be carried out by a competent technician. Observe safety distances, connect the hood to the flue duct with a tube of at least 120 mm, and ensure the grounding is compliant.

USER MANUAL 5DA26450 BLAUPUNKT

Illustration of a hand holding a smartphone with a 'Z' symbol, no text or symbols present

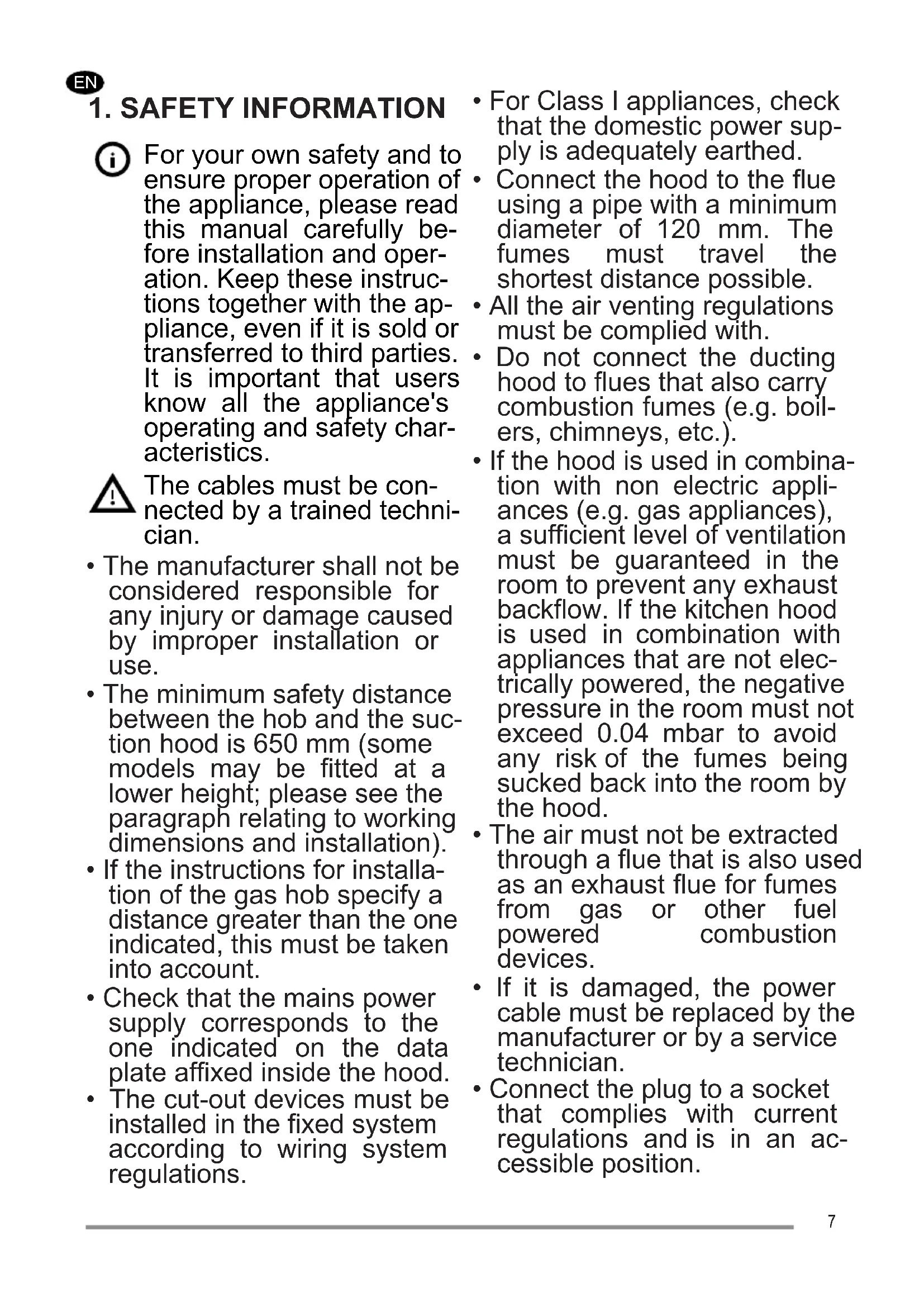

For your own safety and to ensure proper operation of the appliance, please read this manual carefully before installation and operation. Keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users know all the appliance's operating and safety characteristics.

The cables must be connected by a trained technician.

• The manufacturer shall not be considered responsible for any injury or damage caused by improper installation or use.
• The minimum safety distance between the hob and the suction hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
• If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
• Check that the mains power supply corresponds to the one indicated on the data plate affixed inside the hood.

• The cut-out devices must be installed in the fixed system according to wiring system regulations.

• For Class I appliances, check that the domestic power supply is adequately earthed.

• Connect the hood to the flue using a pipe with a minimum diameter of 120 mm. The fumes must travel the shortest distance possible.
• All the air venting regulations must be complied with.
• Do not connect the ducting hood to flues that also carry combustion fumes (e.g. boilers, chimneys, etc.).
• If the hood is used in combination with non electric appliances (e.g. gas appliances), a sufficient level of ventilation must be guaranteed in the room to prevent any exhaust backflow. If the kitchen hood is used in combination with appliances that are not electrically powered, the negative pressure in the room must not exceed 0.04 mbar to avoid any risk of the fumes being sucked back into the room by the hood.
• The air must not be extracted through a flue that is also used as an exhaust flue for fumes from gas or other fuel powered combustion devices.
• If it is damaged, the power cable must be replaced by the manufacturer or by a service technician.
• Connect the plug to a socket that complies with current regulations and is in an accessible position.

- As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be complied with scrupulously.

CAUTION: remove the protective films before installing the hood.

- Only use screws and hardware of a sort suitable for the hood.

CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambé food under the hood: you might cause a fire.

- This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves. Make sure that children are not allowed to play with the appliance. Cleaning and maintenance to be performed by the user must not be carried out by children, unless they are under supervision.

- Supervise children, to make sure they do not play with the appliance.

- The appliance must not be used by persons (including children) with limited psycho-physical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.

Accessible parts may become extremely hot during the use of cooking appliances

- Clean and/or replace the fil- ters after the period of time in- dicated (danger of fire). See the paragraph on Mainten- ance and cleaning.

- The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).

- The symbol ☒ on the product or on its packaging indicates that the product must not be disposed of with the normal domestic waste. The product must be disposed of at a specialist re-cycling centre for electrical and electronic components. By making sure that this product is disposed of properly, you will help prevent possible negative consequences for the environment and for health that might result from its improper disposal. For more detailed in-

formation on how to re-cycle this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.

2. USE

• The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave high flames under the hood when it is in operation.
• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.
• Deep-fryers must be kept under constant supervision when in use: the oil may catch fire if it gets too hot.

3. CLEANING AND MAINTENANCE

- The activated charcoal filter cannot be washed or regenerated, and must be changed approximately every 4 months of operation, or more frequently in the case of particularly intensive use (W).

W

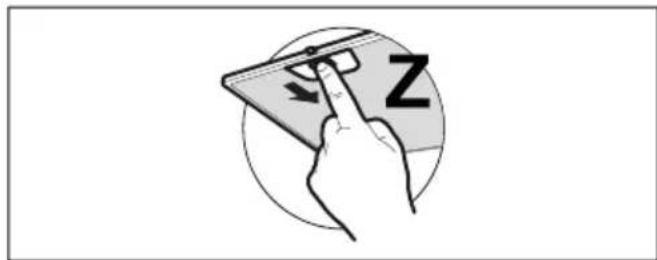

- The grease filters must be cleaned every 2 months of operation, or more frequently in the case of particularly intensive use. They can be washed in a dishwasher (Z).

Illustration of a hand holding a smartphone with a finger, no text or symbols present

• Clean the hood using a damp cloth and neutral liquid detergent.
• Avoid using alcohol or silicone-based products to clean the inside and outside of the cooker hood.

4. CONTROLS

Light	To turn on the lights, press the hand grip and release it so that it comes out of its housing. To turn off the lights, press the hand grip in again, putting it back in the off position.
Motor speed adjustment	Push the hand grip and release it so that it comes out of its housing, then turn the hand grip to select one of the available suction speeds.

5. LIGHTING

- Please contact the Service Department to change it ("Please contact the service department to purchase it").

FR

1. INFORMATIONS RELATIVES À LA SÉCURITÉ

Illustration of a hand holding a smartphone with a finger, next to a stylized 'Z' logo (no text or symbols on the device itself)

Illustration of a hand holding a smartphone with a finger, inside a circular frame containing the letter 'Z' (no text or symbols on the device itself)

Illustration of a hand holding a smartphone with a finger, inside a circular frame containing the letter 'Z' (no text or symbols on the device itself)

Illustration of a hand holding a smartphone with a finger, showing a stylized 'Z' on its screen (no text or symbols beyond the label)

Illustration of a hand holding a smartphone with a 'Z' symbol on its screen (no text or symbols on the device itself)

Hand holding a smartphone with a Z symbol on the screen (no text or symbols on the device itself)

Illustration of a hand holding a smartphone with a finger pointing at it, no text or symbols present

Diagram showing a hand pressing a circular button on a light bulb, then moving a roller with directional arrows indicating rotation.
