Two-Door Household Refrigerator Operating Instructions

RF282BSF0

Contents

EN

Thank you for buying TCL refrigerator. We hereby express our thanks. Welcome to use TCL refrigerator. We will do our best to provide you with quality service.

Safety instructions P2

Product introduction P5

Handling and placement P6

Preparations prior to use P7

Operation notes P8

Illustration and operation of display panel P8

Food storage P10

Ice-making P10

Disassembly and assembly method of accessory P11

Maintenance P11

Failure analysis P12

Non-failure P12

Technical parameter P13

Packing list P13

Safe recovery instructions P14

Description of climate types P14

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

5. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

6. WARNING: Do not damage the refrigerant circuit.

7. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

8.Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

1. This appliance is intended to be used in household and similar applications such as

— Staff kitchen areas in shops, offices and other working environments;

— Farm houses and by clients in hotels, motels and other residential type environments;

— Bed and breakfast type environments;

— Catering and similar non-retail applications.

1. This product contains a light source of energy efficiency class F for light source ERP, test with (without) light cover.

Safety instructions

1. Warning

Warning: No barrier is allowed around the appliance or in the embedded structure in order to ensure the free ventilation.

Warning: It is forbidden to speed up the defrosting process with any mechanical equipment or by other method except for the method recommended by the manufacturer.

Warning: Never damage the refrigerating circuit.

Warning: Never use any electric apparatus in the food chamber of the appliance except for the type recommended by the manufacturer.

Warning: Never place the liquid beverage or food contained with glass container in the freezing chamber for fear of cracking.

Warning: If powered off, the refrigerator shall be powered on 5min later for fear of damaging the compressor.

Warning: If any live part, abnormal noise, smell, smoke or other abnormality is found during use, it is necessary to power off the appliance immediately and contact the after-sales service department of the Company timely.

Warning: Never place your finger or hand under the refrigerator, especially rear bottom of refrigerator; otherwise, you may be hurt by the sharp matter.

Warning: The children must not play or climb the refrigerator. The operation by the children must be supervised by their parents for fear of danger.

Warning: Never place your hand between the doors to open or close door for fear of jamming your finger. The door handle shall be used to open or close the door.

Warning: Under the climate types N, ST and T, the operating ambient range of the appliance is 16°C\~43°C. If the appliance operates outside the rated climate type (ambient temperature range), the appliance may not maintain the satisfying interior temperature.

Warning: Risk of fire / flammable materials

Warning: When positioning the appliance, ensure the supply cord is not trapped or damaged.

Warning: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

Clean regularly surfaces that can come in contact with food and accessible drainage systems. Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

One-, two- and three-star compartments are not suitable for the freezing of fresh food. If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

2. Cautions

Cautions: The power supply of this product must be uniform with the power supply mentioned on the nameplate, and the standard independent 3-hole socket shall be used (above 10A, and reliably grounded). One socket must not be shared by more than one appliance; otherwise, fire may be caused due to overheat.

Cautions: Never pull the power wire by hand. It is necessary to hold and unplug the power connector from the socket to disconnect the power supply. The power wire or connector must not be touched by the wet hand for fear of electric shock.

Cautions: The power wire must not be squeezed by the refrigerator or any heavy load, and the power wire shall not be bent extremely. The damage or peeling of power wire may result in fire or electric shock. If the power wire is broken or cut, please contact the after-sales service department immediately.

Cautions: No flammable or explosive matter or corrosive acid or alkaline matter is allowed in the refrigerator.

Safety instructions

EN

Cautions: The refrigerator must not be used in the rain or under the sunshine.

Cautions: It is forbidden to place the container with fluid on the refrigerator because the breakage or turnover of the container may affect the electrical insulation of refrigerator and result in electric shock or fire.

Cautions: The refrigerator must not be disassembled or modified without permission. The repair of refrigerator must be performed by the specialist.

Cautions: In case of leakage of any flammable gas such as coal gas, it is necessary to close the leaking valve first and then open the window for ventilation, and forbidden to unplug the refrigerator connector immediately for fear of fire or explosion due to electric spark.

Cautions: Refrigerating appliances – in particular a refrigerator-freezer Type I – might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed;

Cautions: The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold.

Cautions: The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food.

Cautions: The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.

Cautions: The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.

Cautions: The care required with regard to frozen food in storage in the event of an extended non-running of the refrigerating appliance (interruption of power supply or failure of the refrigerating system).

Cautions: The action to be taken when the refrigerating appliance is switched off and taken out of service temporarily or for an extended period (e.g. emptied, cleaned and dried, and the door(s) or lid(s) propped ajar).

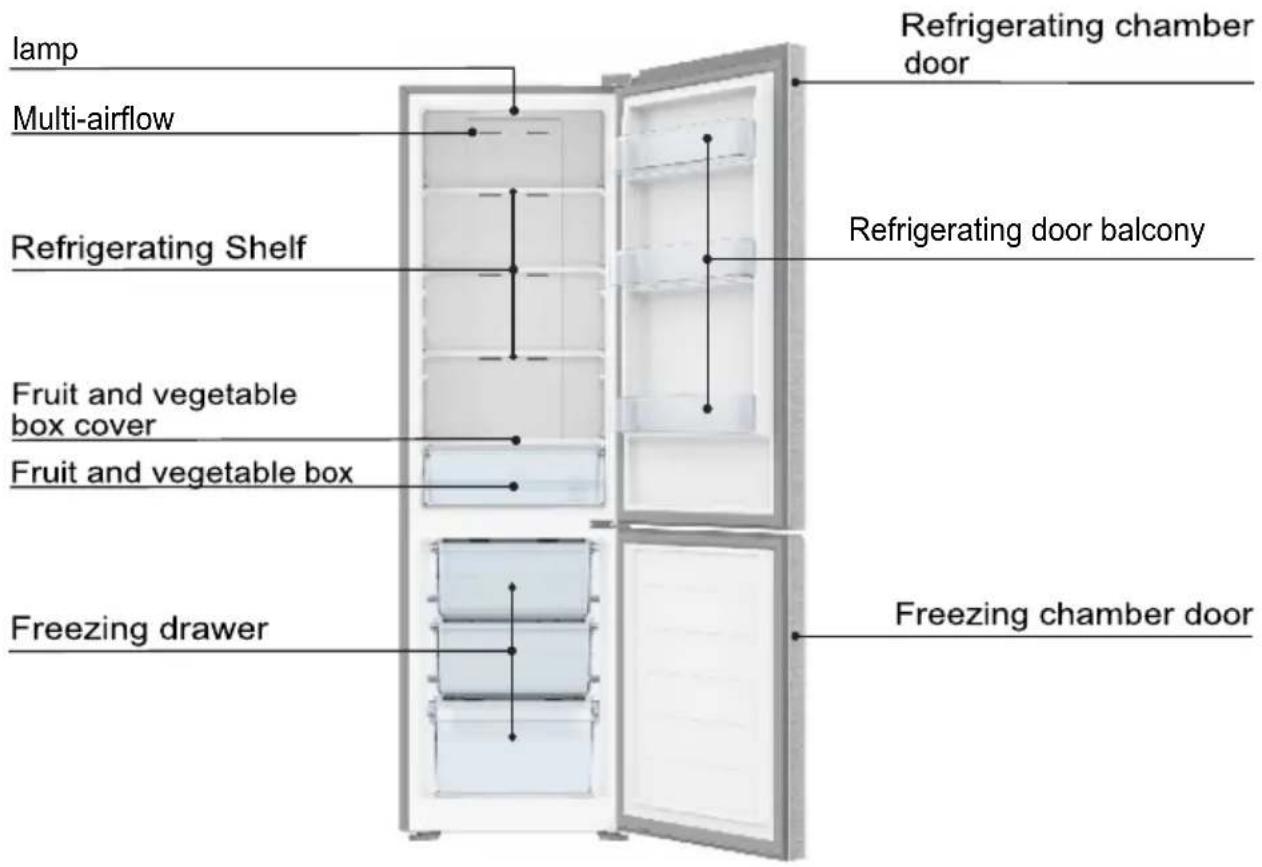

lamp Multi-airflow Refrigerating Shelf Fruit and vegetable box cover Fruit and vegetable box Freezing drawer Refrigerating chamber door Refrigerating door balcony Freezing chamber door

The pictures are for reference only. Please refer to the object

Features

--Computer intelligent temperature control ; air cooling and frost free.
--Environmental-friendly refrigerant, It applies materials without CFC, R600a environmental-friendly materials. 80% of the main materials can be recycled;
--Transparent drawers with novel appearances and their internal foods can be clear at a glance;
--The tempered glass refrigeration shelves are height adjustable, wear proof, heat-proof and practical;
--The concealed condenser applies flat back design. It has perfect and coordinated style which is simple, easy to clean and high utility rate of space;
--This product adopts the efficient mute compressor of international brand and special case foaming technology, and features low noise, low energy consumption, and is more suitable for family and commercial purposes.

Warm prompt:

If your product is improved product, it may not be totally same as that in the instructions. But it will not change the performance and method of application. Please feel relieved about usage.

Handling and placement

EN

Certain space shall be left around the refrigerator, shown in the figure.

>30cm >10cm >10cm

During handling, the door side of the refrigerator shall not contact with the handling tools

<45°

The refrigerator shall be placed in an environment which is dry, has good ventilation, far from direct sunshine and heat source.

Illustration of a person standing beside a cardboard box with steam rising, under a sunny sky (no text or symbols)

The refrigerator shall be placed on the flat and firm surface. If the ground is not flat, adjust the adjusting leg to keep it level.

Cartoon illustration of a smiling face on a rectangular box with arms and legs (no text or symbols)

Never place the refrigerator into a too cold environment that may get frozen.

Cartoon illustration of a character with surprised expression inside a box, surrounded by floating symbols (no text or labels)

Removing the foam base is mandatory for bottom heat dissipation and can avoid fire.

Cartoon illustration of a smiling cube with steam inside, placed on a surface (no text or symbols)

Warning:

- When handling the refrigerator, at least two persons are required – one lifts the top of rear part, the other one handles the bottom (if one part is clamped, it is quite dangerous and may cause accident).

- When moving the refrigerator, the lower runner may damage and scratch the floor. If you need to move the refrigerator for a long distance, the internal accessories shall be fixed using adhesive tape. Otherwise, the accessories may get damaged due to crashing each other.

--Please place the refrigerator in the position with small vibration or little exposed to vibration. For users in the area where earthquake often occurs, please fix the refrigerator against the wall or pole. Otherwise, the falling of refrigerator will cause accident.

--Sufficient clearance shall be left around. If the clearance is too small or place goods on the top or close to the side, or paste on the sides, the heat dissipation of refrigerator will be affected, and thus to cause unnecessary electric energy waste as well as and other goods; the contact between the back and wall will cause vibration and noise;

--Adjust the front part and adjusting feet of the refrigerator to level it. Unlevel of the refrigerator will cause vibration and noise.

This refrigerating appliance is not intended to be used as a built-in appliance

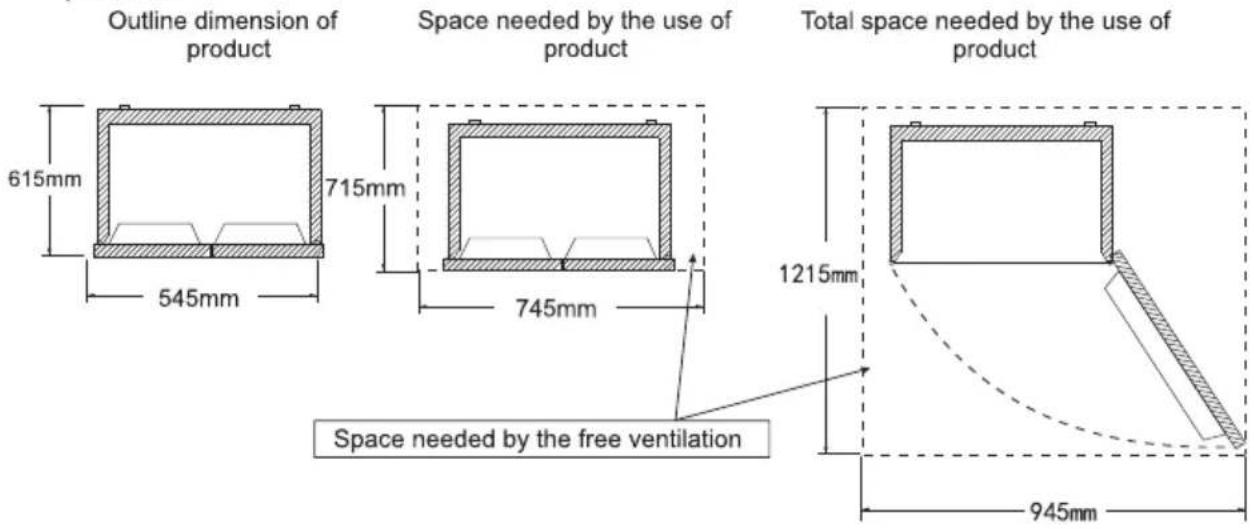

The outline dimension of the product and the space needed by the use of product are shown in the following.

pictures:

Outline dimension of product 615mm 545mm 715mm Space needed by the use of product 745mm Total space needed by the use of product 1215mm Space needed by the free ventilation 945mm

Preparations prior to use

1. Remove all packing assemblies such as case fixing tape etc., especially the foam base.
2. Use warm wet cloth to clean both interior and exterior of the refrigerator, (neutral detergent can be added in warm water).
3. After leveling and cleaning the refrigerator, stand it for about 5 hours before plugging the power plug for powering on, and cool the refrigerator for 2 to 3 hours before storing foods.

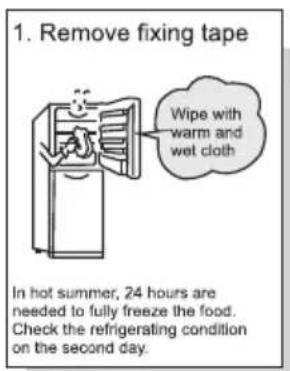

1. Remove fixing tape Wipe with warm and wet cloth In hot summer, 24 hours are needed to fully freeze the food. Check the refrigerating condition on the second day.

2. Connect to power

3. Store food after connecting to power for 2-3 hours Do not open the doors frequently to save electricity. The plastics odors will disappear automatically after freezing for a while.

The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.

Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.

Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.

Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.

Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

Please refer to the product introduction picture on page 5 for the placement of accessories.

ELECTRONIC CONTROL

The above is the computer control board of the product

Power on for the first time

The first time the power is turned on, the refrigerator runs under 5^ C.

Gear adjustment

Repeatedly pressing the "< "key or" >" key, the refrigerator position will cycle between "02" → "04" → "05" → "06" → "08" → "02", select the appropriate position to stop the operation and Wait for 5 seconds and the gear is confirmed.

Power-off memory

When the power is cut off, the instantaneous state of the power cut is locked. After the incoming call, it still works according to the settings before the power cut.

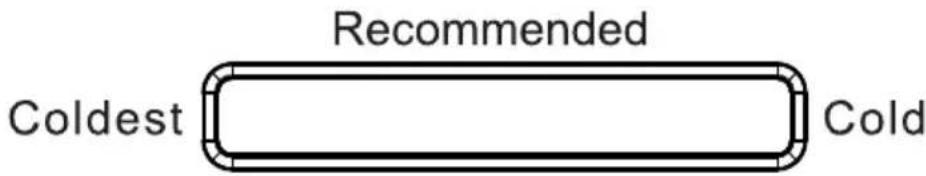

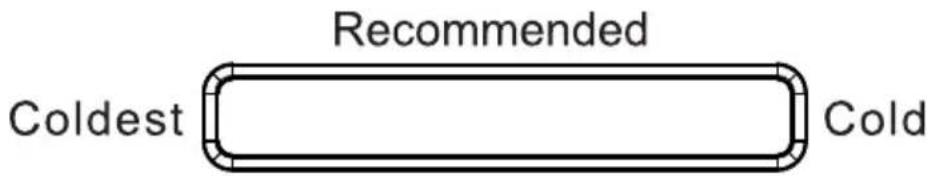

Damper adjustment paddle

damper adjustment dial adjustment principle behind the refrigerating drawer: Usually we recommend using it in the mid-range.

Recommended Coldest Cold

When the temperature in the box varies with the opening and closing of the refrigerator, the ambient temperature, and the place where it is placed, etc.

Refrigerator temperature adjustment

When the damper adjustment blade is adjusted to the "cold" side, the amount of cold air blowing to the refrigerating compartment can be increased to achieve a better refrigerating compartment cooling effect.

Freezer temperature adjustment

When the damper blade adjustment is adjusted to the "coldest" side, the amount of air blowing to the refrigerating compartment is reduced, which will extend the compressor operating time and enhance the refrigeration effect of the freezing compartment.

Foods storage

Refrigerating chamber (2°C\~8°C)

--The refrigerating chamber is mainly used for storing short-term foods, like milk, eggs and bottled drink.
--Vegetables, melons and fruits shall be put into the fruit and vegetable box to prevent water loss.
--The cooked foods shall be put into the refrigerator after packaging with the preservative bags, to prevent the back from frosting and the power from increasing.

Freezing chamber (-24°C\~-15°C)

--The freezing chamber is used for the foods to be stored for long-term.
--Fish and meat to be frozen shall be cut into small pieces, packaged with preservative bags separately and then put into the frozen drawer.
--The glass container or the sealed container filled with liquid shall not be stored in the freezing chamber, to prevent the risk of burst due to freezing.
--The fresh foods shall not be stored together with the frozen foods.
--Do not place food close to inside wall in freezer lest food and wall should be frozen together.

★★ Warm tips:

The stored food, if any, shall not block the air duct outlet and return port for fear of affecting the refrigerating effect.

Before being stored in the refrigerator, the overheated water and food shall be cooled to the room temperature.

Ice-making (If the appliance has it)

Fill the ice-making box with 4/5 water and put the box into the freezing chamber. After the water in the box turns into ice, twist the box slightly to separate the ice from the box. However, don't bend the box. When separating the ice, wrap the box with dry box to avoid finger frostbite.

Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)

Operation notes

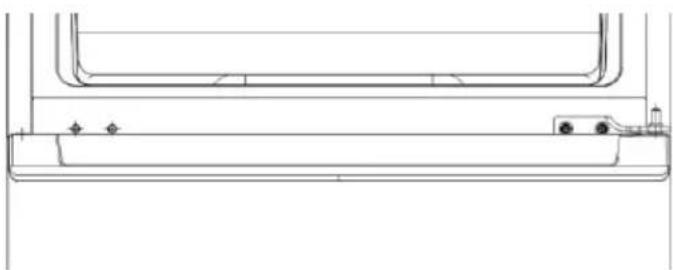

Before reversing the door, please prepare the following tools: cross screw driver, wrench. Note: please remove the main plug before reversing the door. Two people may be needed.

1. Close the door, take out the screw from the upper hinge cover with a cross screw driver, remove the hinge cover, and then disassemble the connection terminal, screw off the top hinge, and take down the door. Remove the screw cover on the left.

Simple line drawing of a rectangular object with two side panels and a base, no text or symbols present.

Simple line drawing of a room corner with a wall-mounted shelf and a small figurine on the floor (no text or symbols)

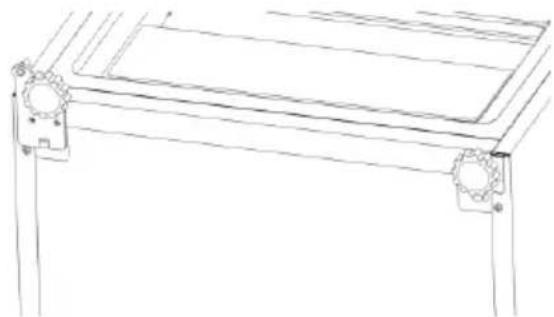

1. Take out the screws of the middle hinge with a cross screwdriver, remove the middle hinge, remove the screw cover at the left screw hole, and take down the lower door.

Technical line drawing of a mechanical component or bracket with mounting holes and a support structure (no text or symbols)

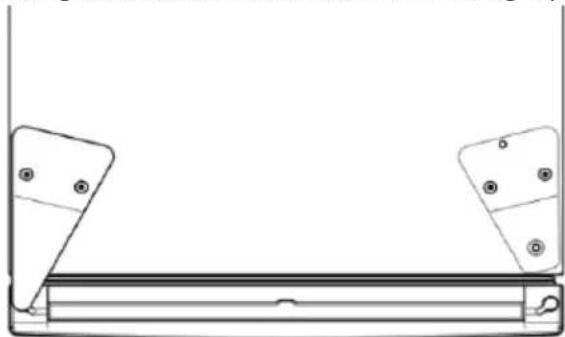

1. Laying down the refrigerator, and remove the lower hinge and leveling angle at the bottom of the refrigerator.

Pure mechanical linkage diagram without any text, numbers, or symbols

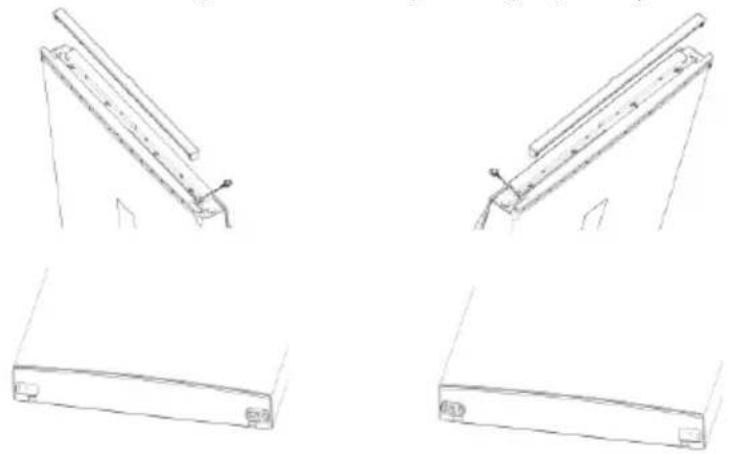

1. Remove the wire cover of the upper upper door cover, change the wiring harness from the right side to the left side, install the wire cover of the upper end cover, and change the upper door and lower door stop to the left side. (the replacement of upper door and lower door stop is the same as that of lower door, and the lower left figure will be changed to right picture)

Line drawings of four different mechanical or architectural components, possibly a frame or support structure (no text or symbols present)

Operation notes

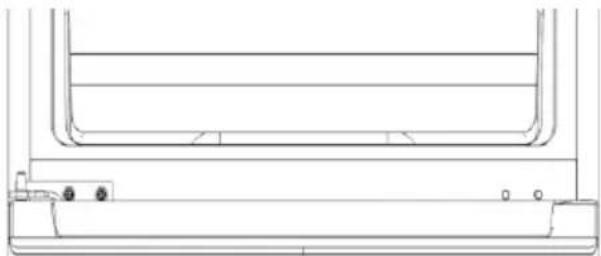

1. Disas semble the lower hinge assembly, and then install the leveling foot and screw nut (as shown in the right figure).

Technical line drawing of mechanical components including a flanged gear and bolt assembly (no text or labels)

Technical line drawing of mechanical components including a plate, gear, and threaded shaft (no text or symbols)

1. Replace the lower hinge assembly with the leveling angle, and install the lower door.

Line drawing of a mechanical frame with mounting feet and a central rectangular component (no text or symbols)

1. Install the middle hinge at the left mounting position, and install the previously removed screw cover to the right screw hole.

Technical line drawing of a mechanical component or bracket (no text or symbols)

1. Install the door, connect the terminals, install the upper hinge, the upper hinge cover and the previously removed screw cover. Reverse door complete. (the upper hinge and hinge cover are installed on the left as shown in the figure, and the screw cover is in the right position)

Pure technical line drawing of a mechanical component with no text or symbols

1. After the operation is completed, please stand still for a period of time and turn on the power.

Operation notes

Disassembly and assembly method of accessory

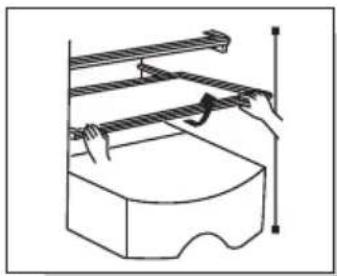

--Glass shelf in the refrigerating chamber: the height of the shelf is adjustable, which facilitates the storage of articles with different volumes. Pull the shelf outwardly and upwardly in a slight way to take out.

--Fruit and vegetable box: for storing vegetables and fruits. It can be taken out by pulling outwardly.

--Drawer in the freezing chamber: storing foods to be preserved for long-term, such as meat and fish. It can be taken out by pulling outwardly and lifting upwardly.

Kindly tips: It is recommended to put into the large piece of meat after being cut into small pieces, to avoid difficult cutting after being frozen. The quick-freezing foods shall be distributed uniformly and stored together after being frozen.

--Bottle pedestal at the refrigerating door: storing eggs, various bottled drinks and other sundries. It can be taken out by being lifted up slightly.

Note: Don't pull out the bottle pedestal at the refrigerating door forcibly during disassembly, to avoid damaging the refrigerator.

Technical line drawing of a mechanical assembly with no visible text or symbols

Take out by pulling upwardly and outwardly in a slight way

Diagram showing a hand pressing down on a document with an upward arrow, no text or symbols present

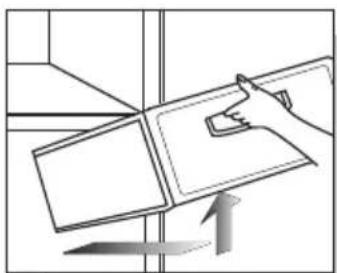

Take out by pulling outwardly and upwardly in a slight way

Changing the Light

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

Maintenance

It is suggested to maintain the refrigerator once per month;

--Unplug the power plug to prevent from electric shock;

--Use wet cloth or neutral detergent (cleanser essence) to wipe off the oil contamination and other dirt. Then completely wipe off the detergent.

--Do not use alkaline detergent, soap powder, gasoline and alcohol, talcum powder etc.; otherwise the coats or plastics may be damaged;

--Regularly clean the refrigerator body and clear the ground dusts to keep the refrigerator clean.

Inspections after maintenance:

1. Whether there are damages to the power line and plug; 2. Whether there are dusts on the power plug; 3. Whether there is abnormal heat on the plug; 4. Whether the socket is loose; 5. Whether the plug is totally inserted.

Note:

If the power line and plug is damaged and there exist dusts, electric shock or fire may occur;

After unplugging the plug, 5 minutes must pass before re-plugging it;

Do not put your hands under the refrigerator to avoid getting hurt.

Illustration of a plug with a switch next to an electrical outlet (no text or symbols)

Unplug the refrigerator plug before cleaning

Health detergent

Please use neutral detergent

Failure analysis

EN

The following items shall be inspected before occurring failures which require maintenance:

Failures: Refrigerator does not work, The refrigeration effect is poor

Causes:1. Check the connection of power supply. 2. Check whether the refrigerator is exposed to direct sunlight or whether there is heat source nearby. 3. Check whether there is heat dissipation space around refrigerator.

Remedies:1. Connect the power supply. 2. Move the refrigerator to a place without direct sunlight and heat source. 3. Leave sufficient space between refrigerator and wall.

Failures: Foods in refrigerating chamber are frozen

Causes:1. Check whether the setting temperature is too low. 2. Check whether foods with too much water are too close to the rear wall.

Remedies:1. Adequately increase the temperature. 2. Move the foods with too much water to the door side of glass shelf

Failures: There is abnormal sound in refrigerator

Causes:1. Check whether the bottom of refrigerator is stable. 2. Check whether the refrigerator is too close to the wall. 3. Check whether the refrigerator touches other objects.

Remedies:1. Adjust the bottom adjusting leg to stabilize the refrigerator. 2. Leave sufficient space around refrigerator. 3. Remove the obstacles.

Failures: There is abnormal odor in refrigerator

Causes:1. Check whether the foods are sealed for storage. 2. Check whether the refrigerator is clean. 3. Check whether the foods are stored for too long time.

Remedies:1. Sealed foods for storage. 2. Regularly clean the refrigerator. 3. Do not store foods for too long time.

Non-failures

Phenomenon:Fever or hot on two sides and spacing part surface between refrigerating chamber and freezing chamber.

Cause: Refrigerator pipes (condenser, anti-fog pipes) are on two sides and front part of refrigerator for heat dissipation and to prevent from condensation.

Phenomenon:The door is too tight and not easy to open

Cause: Reopening of the door immediately after closing it is hard because hot air enters the refrigerator and contracts to produce pressure difference. It is easy to open the door after a while.

Phenomenon: There is water ripple in refrigerator

Cause: When starting or stopping the compressor, the refrigerant will make such sound; Water produced after defrosting will also make such sound.

Phenomenon: There is "Click" sound or tick sound in refrigerator

Cause: Shrinkage and swelling of case will make such sound; When the case is cold or the door is opened, this sound will occur; Phenomenon: There is hum sound in refrigerator

Cause: Running of compressor will make such sound (if the refrigerator is not leveled, this sound will be louder)

Phenomenon: There is condensation or frosting freezing chamber door surface or food surface

Cause: Temperature or humidity around the refrigerator is high; The door is opened for too long time; The foods with too much water are not sealed or tightly wrapped

Phenomenon: There is condensation on the built-in light surface

Cause: Light will produce heat after being lit, and the door is opened for too long time. So there is temperature difference, and thus the light case will have condensation

Phenomenon: There is condensation and water mist on body

Cause: Humidity around refrigerator is high, and the moisture in the air will gather in the case to form condensation

Model	RF282BSF0
Climate type	N/ST/T
Electric shock resistance	I
Star sign
Total Volume	282 L
Volume of Freezer	80L
Power type	220-240V-/150Hz
Rated current	0.7A
Energy consumption E16	0.513kWh/24h
Energy consumption E32	1.059kWh/24h
Annual energy consumption AE	287 kWh/a
Lamp power	1.5W
Weight	55kg
Dimension	545x615x1825
Refrigerant and charge amount	R600a,54g
Noise Volume	41dB (A)

Packing list

Annex\Model	RF282BSF0
Refrigerating shelf	3
Fruit and vegetable box cover	1
Fruit and vegetable box	1
Ice-making box	1
Egg box	1
Refrigerating door bottle bracket	3
Freezing drawer	3
Operating instruction	1

Safe recovery instructions

EN

Disposal

Old appliances still have some surplus value. An environmentally friendly approach will ensure that valuable raw materials are recycled.

The refrigerants used in your equipment and insulation materials require special handling procedures. Make sure there is no pipe damage on the back of the equipment before handling. Up-to-date information on the options for disposing of old equipment and packaging from old equipment can be obtained from the local municipal office

Correct Disposal of this product.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Description of climate types

Table 1 Climate classes

Class	Symbol	Ambient temperature ranges°C
Extended temperate	SN	+10 to +32
Temperate	N	+16 to +32
Subtropical	ST	+16 to +38
Tropical	T	+16 to +43

Extended temperate: "this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C";

temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';

Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';

Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Dear customer

if you need customer service, please check warranty card for further information.

Illustration of a cardboard box with a surprised face and warning symbols, no text present

Cartoon illustration of a smiling face inside a rectangular box with arms pointing downward (no text or symbols)

Cartoon illustration of a distressed face inside a box surrounded by snowflakes and falling petals (no text or symbols)

Cartoon illustration of a smiling cube with steam lines, placed on a base with small circular symbols (no text or labels)

Remarques:

Recommended Coldest Cold

Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Simple line drawing of a room corner with a small figure standing near the window (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Four technical line drawings of mechanical components or supports, shown from different angles and orientations (no text or symbols present)

Technical line drawing of mechanical components including a gear and shaft assembly (no text or symbols)

Technical line drawing of mechanical components including a flange, bolt, and threaded shaft (no text or labels)

Line drawing of a mechanical frame with four legs and a central rectangular plate (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand holding a rectangular object with an upward arrow, no text or symbols present

Illustration of a plug and a wall socket with a switch, showing an electrical switch (no text or symbols present)

Neutral detergent

Illustration of a distressed cardboard box with steam rising, under a sunny sky (no text or symbols)

Cartoon illustration of a smiling rectangular character standing on a tiled floor with arrows indicating movement or motion (no text or symbols)

Cartoon illustration of a smiling face inside a box surrounded by snowflakes and falling petals (no text or symbols)

Cartoon illustration of a smiling cube with steam rising, placed on a base with wavy lines indicating motion (no text or symbols)

Netter Hinweis:

Recommended Coldest Cold

Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a room corner with a small figure standing near the floor (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Line drawings of four different mechanical or architectural components with no visible text or symbols

Technical line drawing of mechanical components including a gear and housing (no text or symbols)

Technical line drawing of mechanical components including a gear and mounting bracket (no text or symbols)

Line drawing of a rectangular frame with mounting feet and a central handle (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand interacting with a device panel, with an upward arrow indicating motion (no text or symbols present)

Simple line drawing of an electric plug connected to a wall socket with a lightning bolt (no text or symbols)

Neutral detergent

Illustration of a cartoon character standing beside a cardboard box with steam rising, under a sun and no text or symbols present.

Cartoon illustration of a smiling rectangular character standing on a tiled floor with arrows indicating movement or direction (no text or symbols)

Cartoon illustration of a smiling face inside a box surrounded by snowflakes and decorative elements (no text or symbols)

Cartoon illustration of a smiling cube with steam rising, placed on a base with no text or symbols

Warmte prompt:

Recommended Coldest Cold

Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)

Bediening Opmerkingen

Simple line drawing of a mechanical component with two angled components and mounting holes (no text or symbols)

Simple line drawing of a room corner with a wall-mounted shelf and a small figurine (no text or symbols)

Technical line drawing of a mechanical component or bracket with mounting holes and a base (no text or symbols)

Line drawing of a mechanical device with a ruler and base plate (no text or symbols)

Technical line drawing of a mechanical assembly with a bracket and mounting base (no text or symbols)

Bediening Opmerkingen

Technical line drawing of mechanical components including a gear and housing (no text or symbols)

Technical line drawing of mechanical components including a gear and mounting bracket (no text or symbols)

Line drawing of a mechanical frame with mounting feet and a central rectangular plate (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a mechanical component with two angled components and a base plate (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a hand holding a rectangular object with an upward arrow, no text or symbols present

Illustration of a plug and socket connected to an electrical outlet (no text or symbols)

Neutral detergent

Illustration of a distressed cardboard box with steam rising, under a sunny sky (no text or symbols)

Cartoon illustration of a smiling rectangular character standing on a tiled floor with arms and legs, no text or symbols present.

Cartoon illustration of a smiling face inside a box surrounded by snowflakes and falling petals (no text or symbols)

Cartoon illustration of a smiling cube with steam rising, placed on a base with steam lines (no text or symbols)

Recordatorio:

Recommended Coldest Cold

Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)

Notas de Operación

Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)

Notas de operación

Simple line drawing of a rectangular object with two side panels and a base, no text or symbols present.

Simple line drawing of a person standing near a horizontal bar inside a rectangular frame (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Notas de operación

Technical line drawing of mechanical components including a flange, bolt, and gear assembly (no text or labels)

Technical line drawing of mechanical components including a gear and mounting bracket (no text or symbols)

Line drawing of a rectangular frame with mounting feet and a central circular component (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a mechanical component with two flanged ends and a central base (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand holding a rectangular object with an upward arrow, no text or symbols present

Illustration of a plug and socket connected to an electrical outlet (no text or symbols)

Neutral detergent

Illustration of a cartoon box with a surprised face and steam rising, under a sunny sky (no text or symbols)

Cartoon illustration of a smiling rectangular character standing on a tiled floor with arrows indicating direction (no text or symbols)

Cartoon illustration of a smiling face inside a box surrounded by snowflakes and falling petals (no text or symbols)

Cartoon illustration of a smiling cube with steam rising, placed on a base with steam lines (no text or symbols)

Alerta morno:

Recommended Coldest Cold

Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)

Notas de operação

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a room corner with a small figure standing near the floor (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Simple line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical device with a lever and base (no text or symbols)

Notas de operação

受控文件

Technical line drawing of mechanical components including a flanged gear and a bolted part (no text or symbols)

Technical line drawing of mechanical components including a gear and mounting bracket (no text or symbols)

Line drawing of a rectangular frame with mounting feet and a central panel (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand interacting with a document or folder, with an upward arrow indicating direction (no text or symbols present)

Illustration of an electric plug connected to a wall-mounted electrical socket with a switch (no text or symbols)

Neutral detergent

Illustration of a distressed cardboard box with steam rising, under a sunny sky (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms and legs standing on a tiled floor (no text or symbols)

Cartoon illustration of a smiling face inside a box surrounded by snowflakes and falling petals (no text or symbols)

Cartoon illustration of a smiling cube with steam rising, placed on a textured base (no text or symbols)

Recommended Coldest Cold

Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)

Note operative

Simple line drawing of a mechanical component with two angled arms and mounting holes (no text or symbols)

Simple line drawing of a room corner with a small figure standing near the floor (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of a mechanical component with a rectangular base and a vertical rod, no text or symbols present

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

Note operative

Technical line drawing of mechanical components including a flanged base, threaded bolt, and bolted joint (no text or symbols)

Technical line drawing of mechanical components including a gear and mounting bracket (no text or symbols)

Line drawing of a mechanical frame with four legs and a central rectangular plate (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand interacting with a document or folder, with an upward arrow indicating direction (no text or symbols present)

Illustration of an electrical outlet with a plug and switch, showing a wall-mounted socket (no text or symbols)

Neutral detergent

Illustration of a distressed cardboard box with steam rising, under a sunny sky (no text or symbols)

Cartoon illustration of a smiling rectangular box with arms and legs, standing on tiled floor with arrows indicating movement (no text or symbols)

Cartoon illustration of a character holding a box with snowflakes around (no text or symbols)

Cartoon illustration of a smiling cube on a steaming platform (no text or symbols)

Προειδοποίηση:

Recommended Coldest Cold

Illustration of hands holding a grid-based object with curved arrows indicating rotation (no text or symbols)

GR

Simple line drawing of a mechanical component with two angled components and a central base (no text or symbols)

Simple line drawing of a room corner with a small figure standing near the floor (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

Technical line drawing of a mechanical assembly with a bracket and base (no text or symbols)

Technical line drawing of mechanical components including a gear and housing (no text or symbols)

Technical line drawing of mechanical components including a gear and mounting bracket (no text or symbols)

Line drawing of a rectangular frame with mounting feet and a central handle (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Diagram showing a hand pressing down on a panel with an upward arrow, no text or symbols present

Illustration of an electrical outlet with a plug and switch, showing a wall-mounted socket (no text or symbols)

Neutral detergent

Illustration of a cartoon character standing beside a box under a sun, with a monitor showing a photo and no visible text or symbols.

Cartoon illustration of a smiling rectangular character with arms and legs standing on a tiled floor (no text or symbols)

Cartoon illustration of a distressed face inside a box surrounded by snowflakes and decorative elements (no text or symbols)

Cartoon illustration of a smiling cube on a steaming platform (no text or symbols)

Vřelá výzva:

Recommended Coldest Cold

Illustration of hands holding a grid-based object with curved arrows indicating rotation (no text or symbols)

Poznámky k provozu

Simple line drawing of a mechanical component with two angled components and mounting holes (no text or symbols)

Simple line drawing of a rectangular frame with a small human figure at the base (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Simple line drawing of a mechanical device with a bracket and mounting base (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Poznámky k provozu

Technical line drawing of mechanical components including a gear and housing (no text or symbols)

Technical line drawing of mechanical components including a gear and mounting bracket (no text or symbols)

Line drawing of a mechanical frame with mounting feet and a central panel (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Pokyny k užívání

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Diagram showing a hand pressing down on a panel with an upward arrow, no text or symbols present

Illustration of a plug and socket connected to an electrical outlet with a directional arrow (no text or symbols)

Neutral detergent

Illustration of a distressed box with steam rising, sun and card in background (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms outstretched, standing on a tiled floor (no text or symbols)

Cartoon illustration of a smiling face inside a box surrounded by snowflakes and falling petals (no text or symbols)

Cartoon illustration of a cube with a smiling face and steam lines, placed on a base (no text or symbols)

Wpływ ciepła:

Recommended Coldest Cold

Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)

PL

Uwagi operacyjne

Simple line drawing of a mechanical component with two angled components and a central rod (no text or symbols)

Simple line drawing of a room corner with a wall-mounted shelf and a small figurine (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Simple line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

PL

Uwagi operacyjne

Technical line drawing of mechanical components including a gear and housing (no text or symbols)

Technical line drawing of mechanical components including a gear and mounting bracket (no text or symbols)

Line drawing of a rectangular frame with mounting feet and a central panel (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Diagram showing a hand pressing down on a panel with an upward arrow, no text or symbols present

Illustration of a plug and socket connected to an electrical outlet (no text or symbols)

Neutral detergent

Illustration of a distressed cardboard box with steam rising, under a sunny sky (no text or symbols)

Cartoon illustration of a smiling rectangular box with arms and legs, no text or symbols present

Cartoon illustration of a character holding a box with snowflakes around (no text or symbols)

Cartoon illustration of a smiling cube with steam rising, placed on a textured base (no text or symbols)

Важно знать:

The above is the computer control board of the product

Power on for the first time

The first time the power is turned on, the refrigerator runs under 5°C.

Gear adjustment

Repeatedly pressing the "< "key or" >" key, the refrigerator position will cycle between "02" → "04" → "05" → "06" → "08" → "02", select the appropriate position to stop the operation and Wait for 5 seconds and the gear is confirmed.

Power-off memory

When the power is cut off, the instantaneous state of the power cut is locked. After the incoming call, it still works according to the settings before the power cut.

Damper adjustment paddle

damper adjustment dial adjustment principle behind the refrigerating drawer: Usually we recommend using it in the mid-range.

Recommended Coldest Cold

When the temperature in the box varies with the opening and closing of the refrigerator, the ambient temperature, and the place where it is placed, etc.

Refrigerator temperature adjustment

When the damper adjustment blade is adjusted to the "cold" side, the amount of cold air blowing to the refrigerating compartment can be increased to achieve a better refrigerating compartment cooling effect.

Freezer temperature adjustment

When the damper blade adjustment is adjusted to the "coldest" side, the amount of air blowing to the refrigerating compartment is reduced, which will extend the compressor operating time and enhance the refrigeration effect of the freezing compartment.

RU

Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Simple line drawing of a person standing near a ladder inside a room (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawings of three mechanical components or assemblies (no text or symbols present)

RU

Uwagi operacyjne

Technical line drawing of mechanical components including a gear and housing (no text or symbols)

Technical line drawing of mechanical components including a gear and mounting bracket (no text or symbols)

Line drawing of a mechanical frame with mounting feet and a central rectangular component (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand pressing down on a panel with an upward arrow, no text or symbols present

Simple line drawing of an electrical outlet with a plug and switch, showing a wall-mounted socket (no text or symbols)

Neutral detergent
